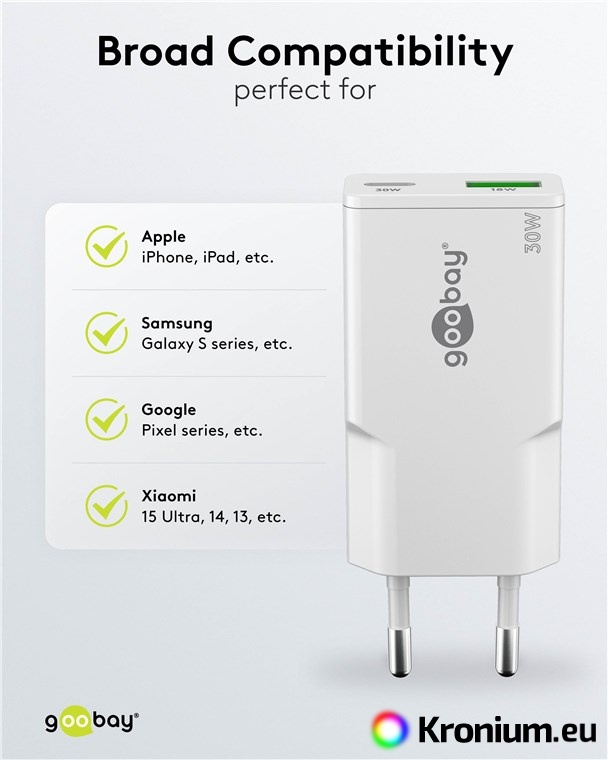

High-performance USB GaN adapter for powering up to two USB devices from the mains, providing a total power output of up to 30 W. It supports both standard USB devices and devices compatible with PD3.0, QC3.0, and PPS fast charging protocols. Its power is therefore sufficient not only for powering common portable electronics, but also for cellphones, laptops and other devices that support high charging speeds. The adapter is thus particularly suitable for fast charging Fenix LR80R, LR50R, LR40R V2.0, LR35R, PD40R, and PD36R PRO, PD36 TAC flashlights, mobile phones, power banks, and other devices.
However, it can also be used to charge all models that support normal charging speeds, such as Fenix TK26R and E28R, E18R, BC30R, BC35R, BC25R, and Fenix BC21R V3.0 rechargeable flashlights. Rechargeable headlamps HM71R, HM70R, HM65R-T, HM65R, HM61R, HM51R, HM50R, HM60R, HP30R, HP25R, HP16R, rechargeable lanterns CL30R, CL26R, CL28R, and for powering Fenix USB chargers ARE-D1, ARE-D2, VC4SL USB charger, and VC8 USB charger.

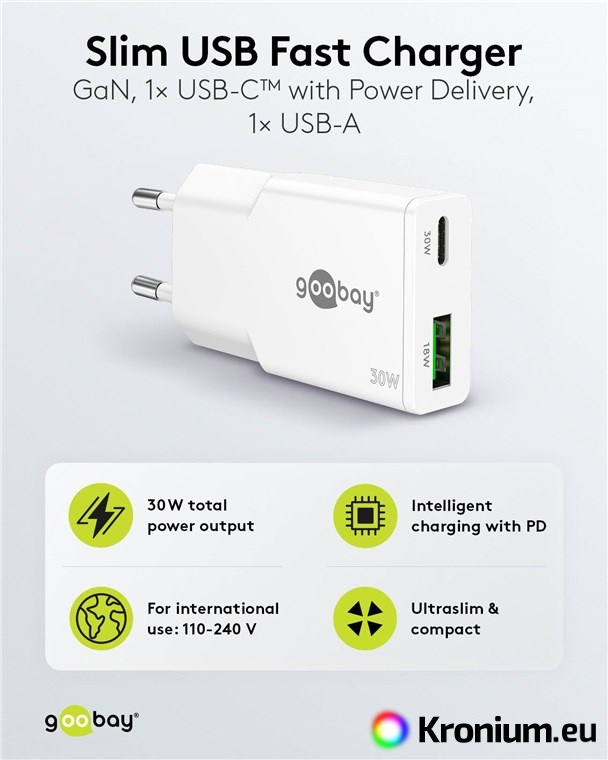

30W USB GaN Adapter Parameters
- Input voltage 100-240 VAC, 50-60Hz.
- For charging USB devices and devices that support PD3.0, QC3.0, and PPS fast charging protocols.

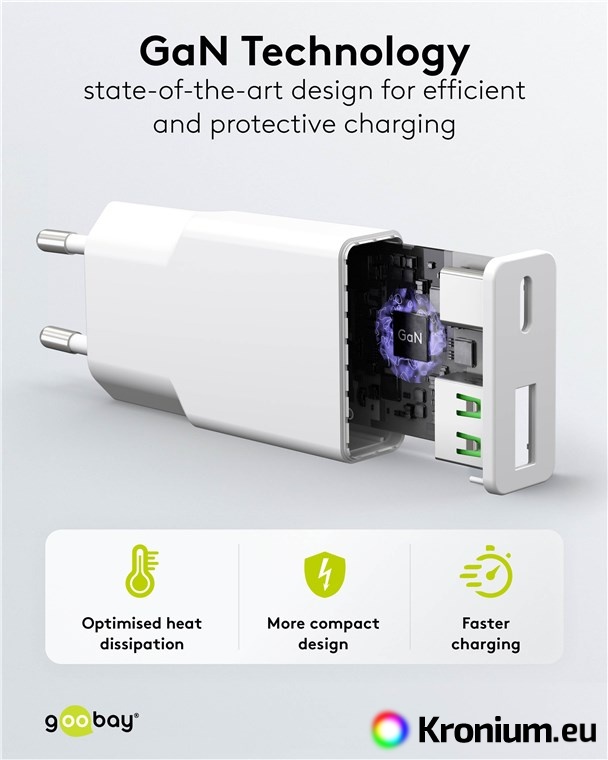

- The charger is equipped with a smart chip that sets the optimal charging speed according to the connected device.

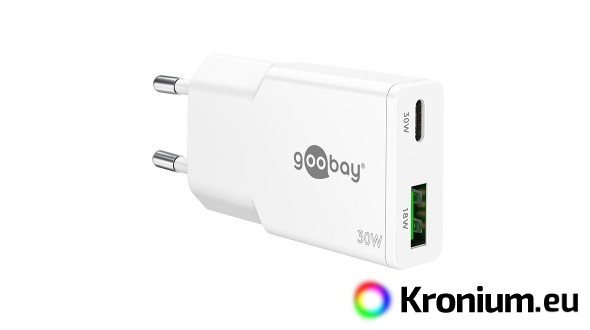

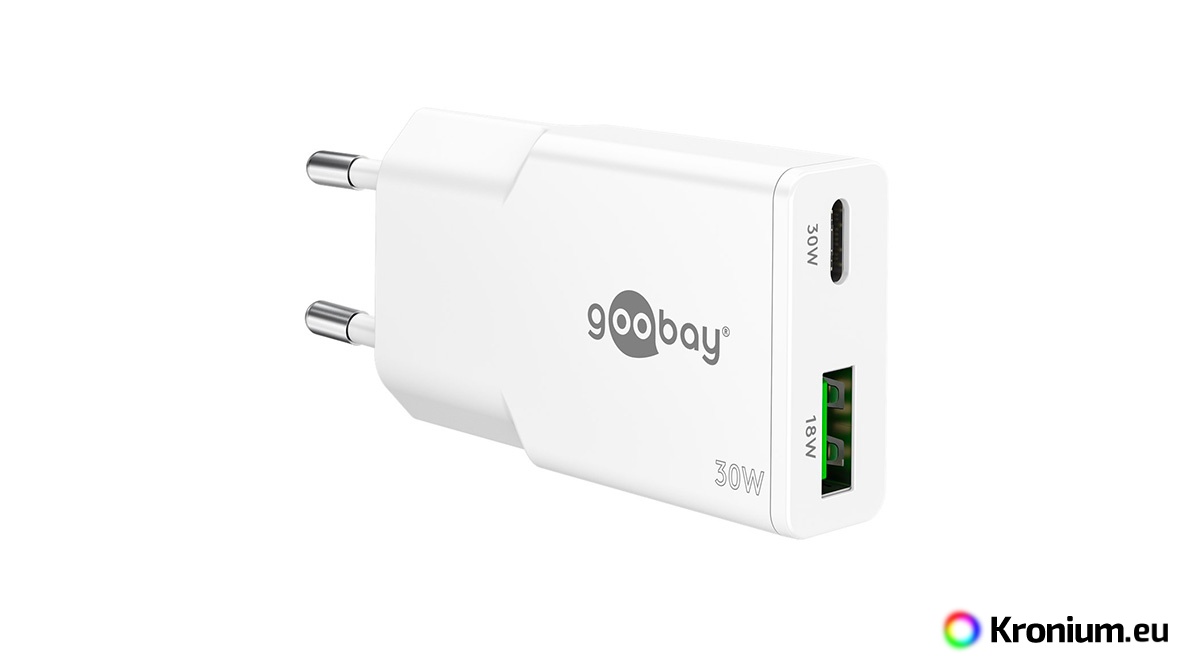

- One PD USB-C output and one QC USB-A output.
- USB-C output voltage and current: 5.0V-3.0A (15.0W) / 9.0V-3.0A (27.0W) / 12.0V-2.5A (30.0W) / 15.0V-2.0A (30.0W) / 20.0V-1.5A (30.0W) / PPS: 3.3-11.0V - 2.7A (29.7W) / 3.3-16.0V - 1.9A (29.6W).
- USB-A output voltage and current: 5.0V-3.0A (15.0W) / 9.0V-2.0A (18.0W) / 12.0V-1.5A (18.0W).
- Voltage and current when using both outputs: PD + QC: 5.0V-3.0A (15.0W max)
- Maximum total charging power 30 W.
- Multiple protection against overvoltage, overload, ignition, and short circuit.
- Weight 40 grams.

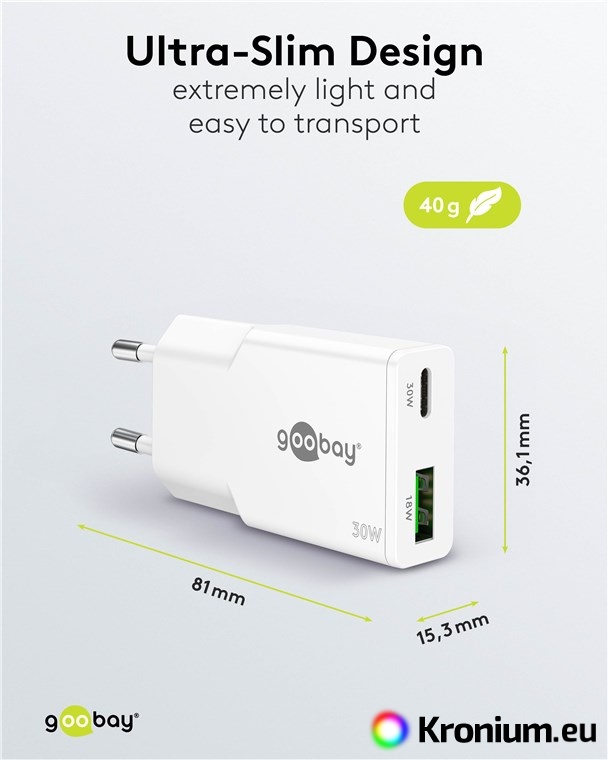

- Compact dimensions 81 x 15.3 x 36.1 mm (incl. plug).
- The package includes the USB adapter.
