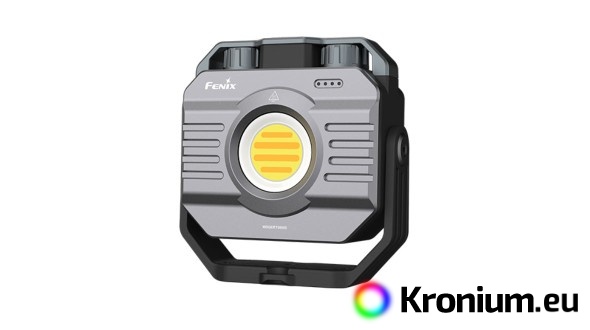

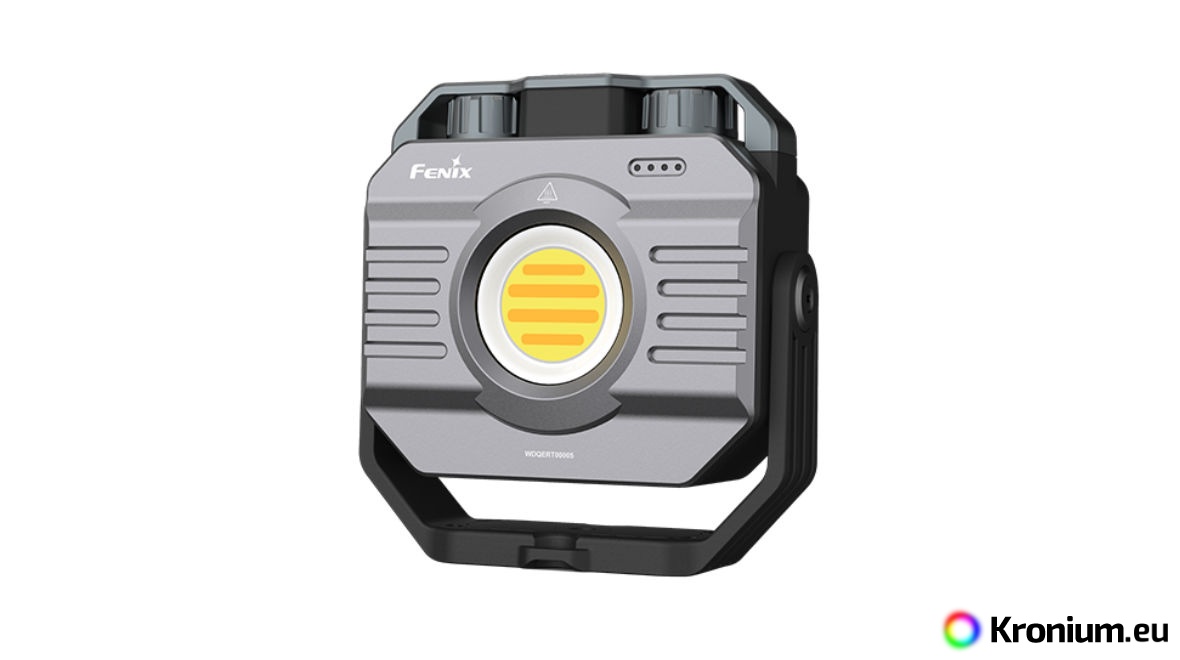

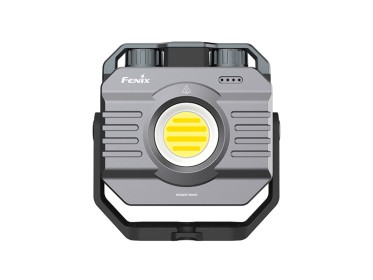

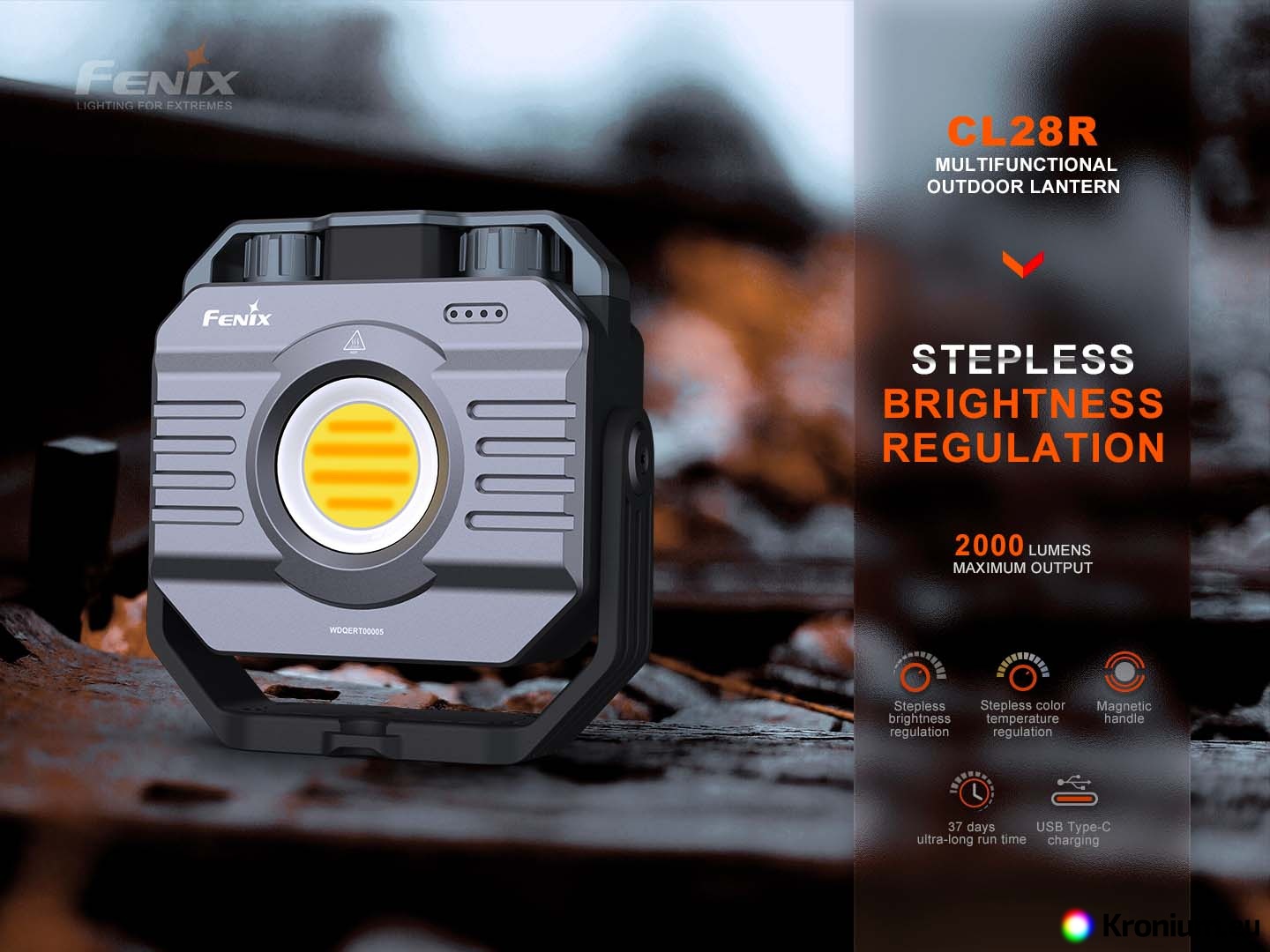

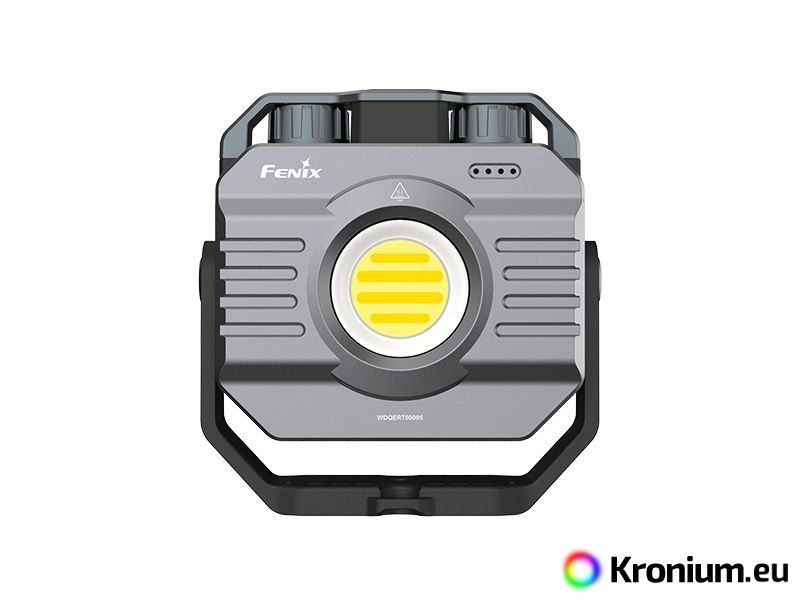

Fenix CL28R is a multifunctional rechargeable lantern with integrated powerbank. In addition, it also works great as a rechargeable work light, a photographer's light and as a home and tent or car light. The high-brightness COB diode provides a luminous flux of up to 2000 lumens (ANSI), the intensity of which can be smoothly controlled by a rotary switch. Continuously adjustable, it also has a color temperature light setting that can be changed in the range of 2700 - 6000 K. The CL28R is powered by a built-in Li-ion battery with a 10000 mAh total capacity, which is charged directly in the lantern via a USB-C connector. There are also two USB-C and USB-A discharge ports, so you can use the light as a power bank with supporting PD3.0/PD2.0, QC3.0/QC2.0 fast charging protocols, with 18W output. In addition to infinitely adjustable white light, the lamp also offers two red light modes - 9 lumen constant lighting and the same 9 lumen red flashing light.

Thanks to its durable and shockproof construction with IP66 protection, the light can withstand adverse weather conditions and drops from a height of 1.5 meters. The light's wide mounting options are provided by a handle that rotates 360°, includes built-in magnets and also has a static thread.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

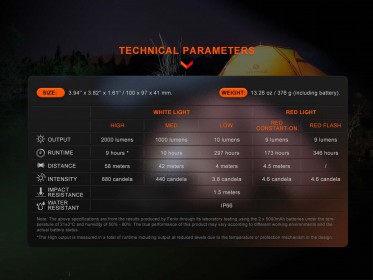

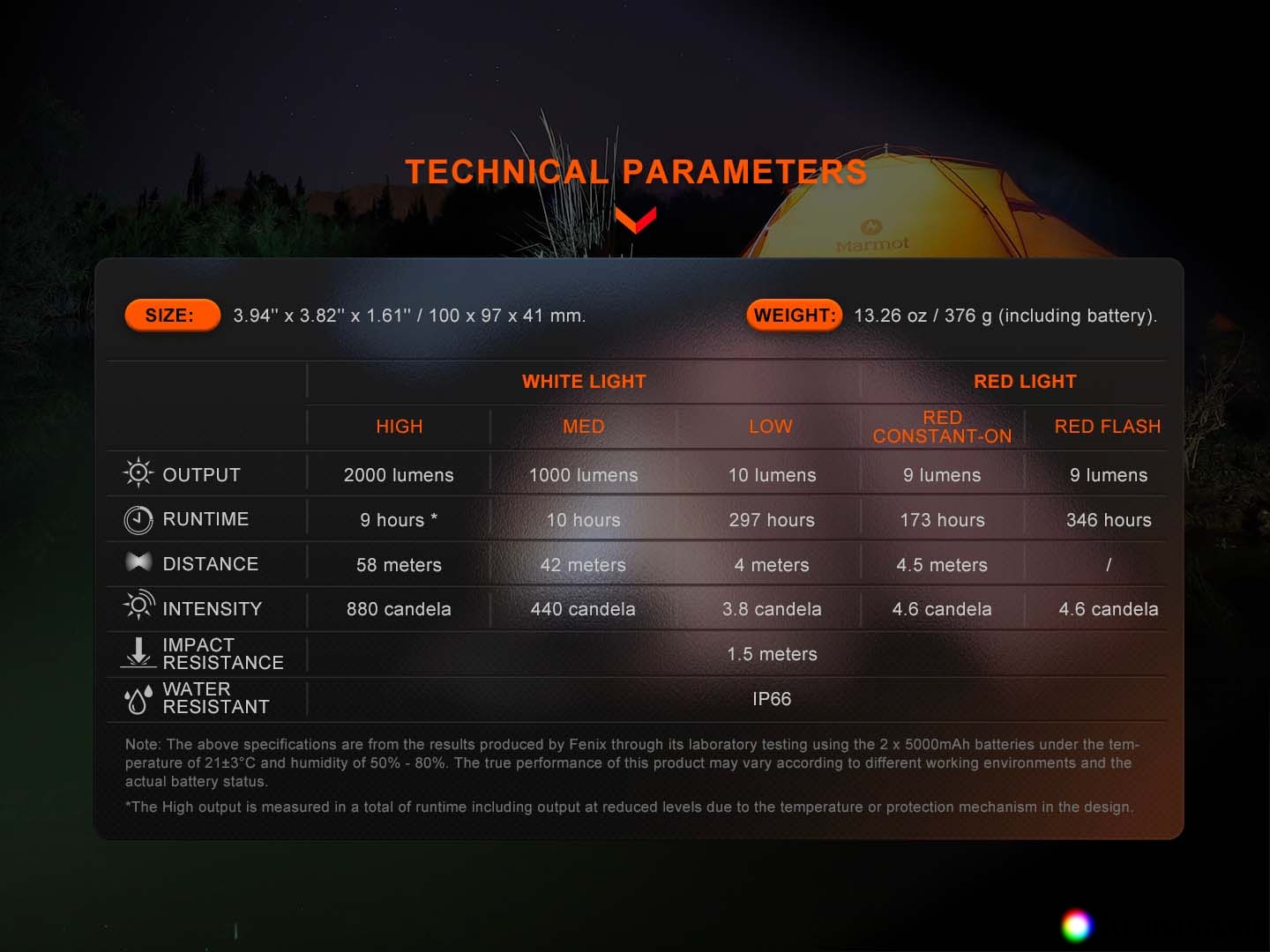

Fenix CL28R rechargeable worklight specifications

• The light source is a high-brightness COB diode with an infinitely adjustable color temperature between 2700-6000 K and a lifetime of 50,000 hours.
• Power Modes:
  • white light with infinitely adjustable output: 2000 - 10 lumens (with a lifetime of 9 - 297 hours)
  • Red light: 9 lumens (173 hours)-> flicker 9 lumens (346 hours)
• Internal Li-ion battery with total capacity 10000 mAh.
• Very wide uniform light cone with range up to 58 meters (880 cd).
• Charge via USB-C connector. Supports PD3.0/PD2.0, QC3.0/QC2.0 fast charging.
• Battery charge status indication and low voltage warning.
• Powerbank function with two kinds of USB connectors (C and A, cannot be used at the same time) for charging other portable electronics with USB charging. Supports PD3.0/PD2.0, QC3.0/QC2.0 fast charging with up to 18 W of power.
• Light has memory for set color temperature and will always turn on at the
• Made of aluminum alloy and durable plastic, the lantern is shockproof against falls from a height of 1.5 meters.

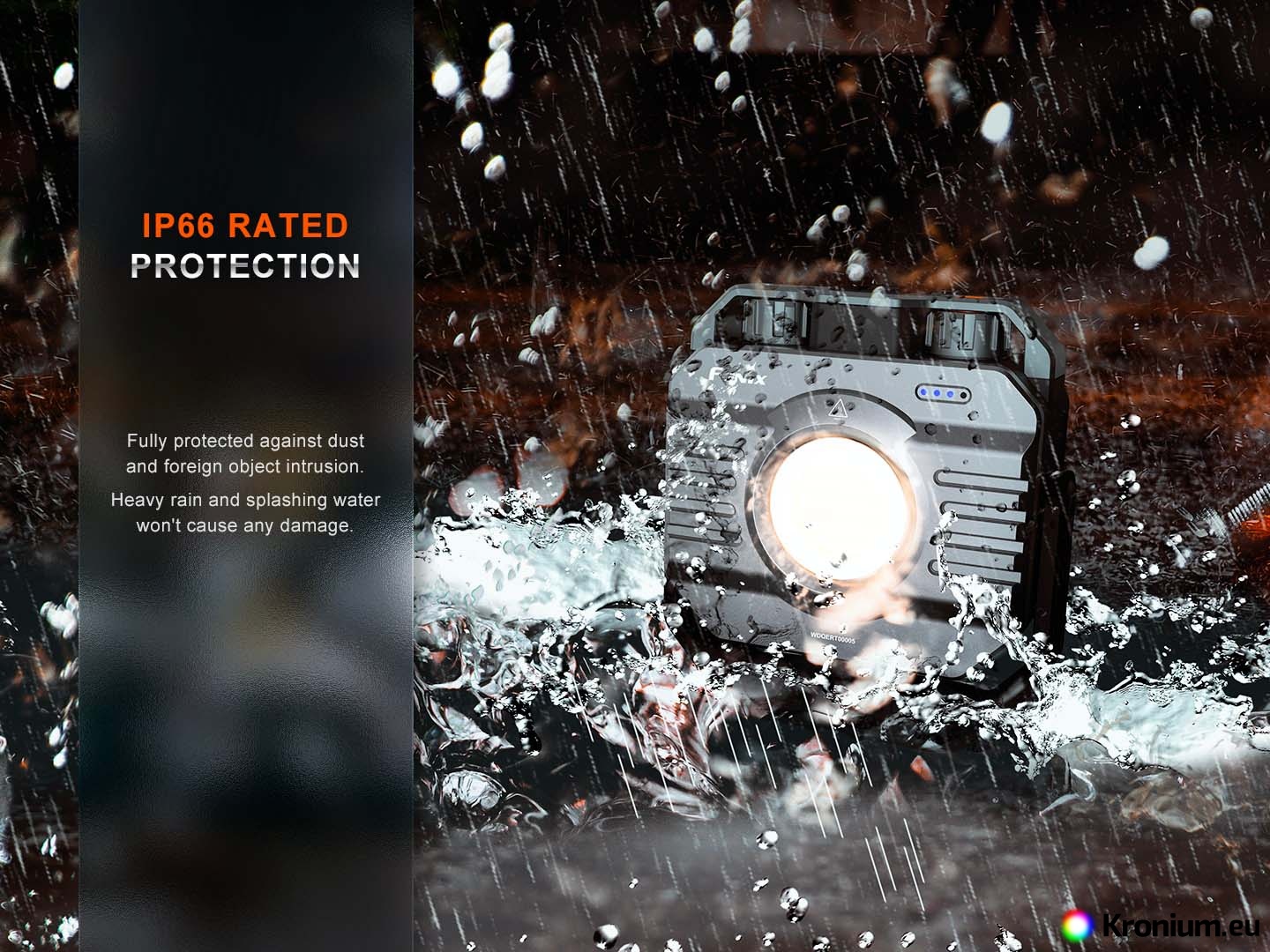

• Waterproof to IP66 standard (heavy rain).

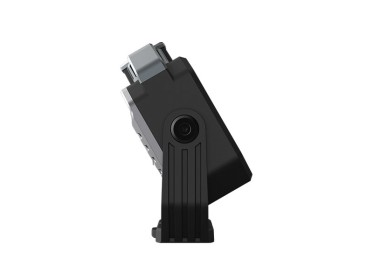

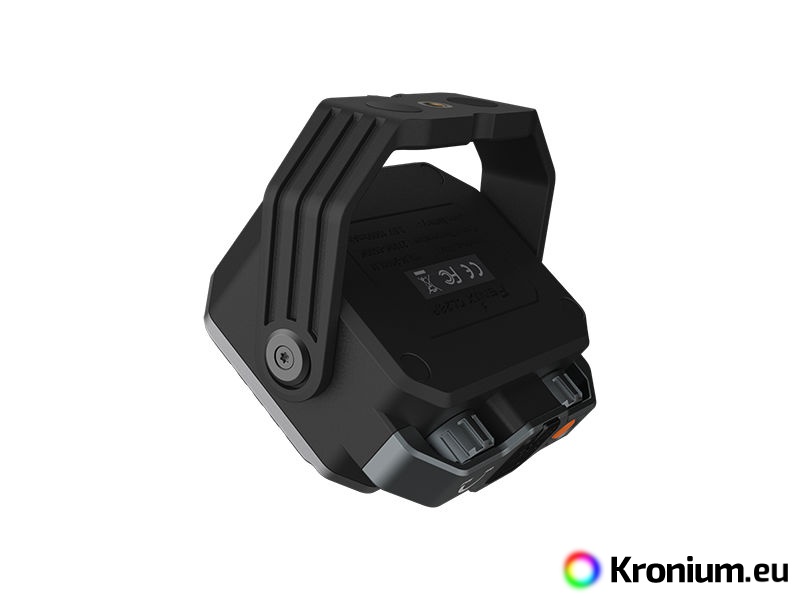

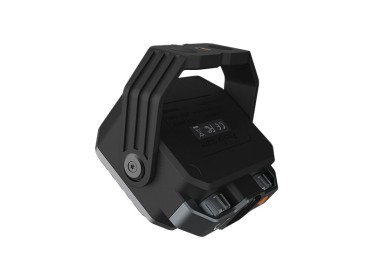

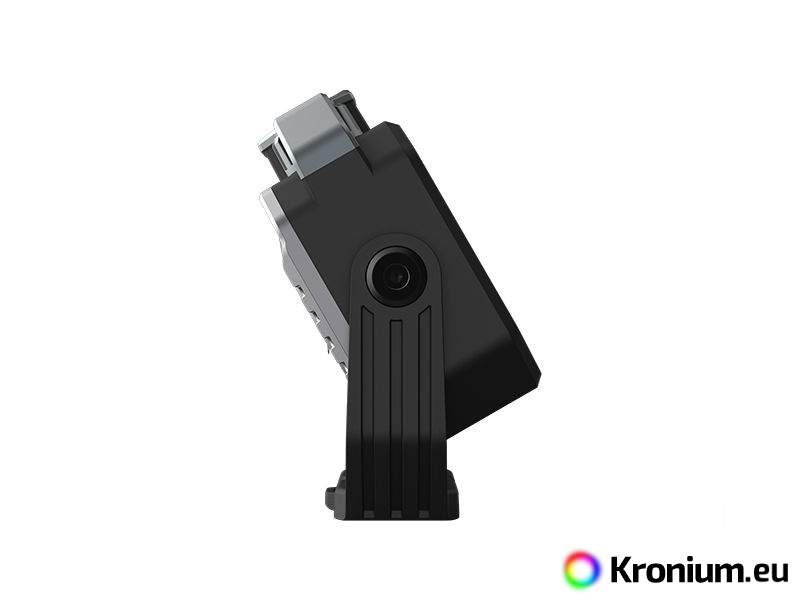

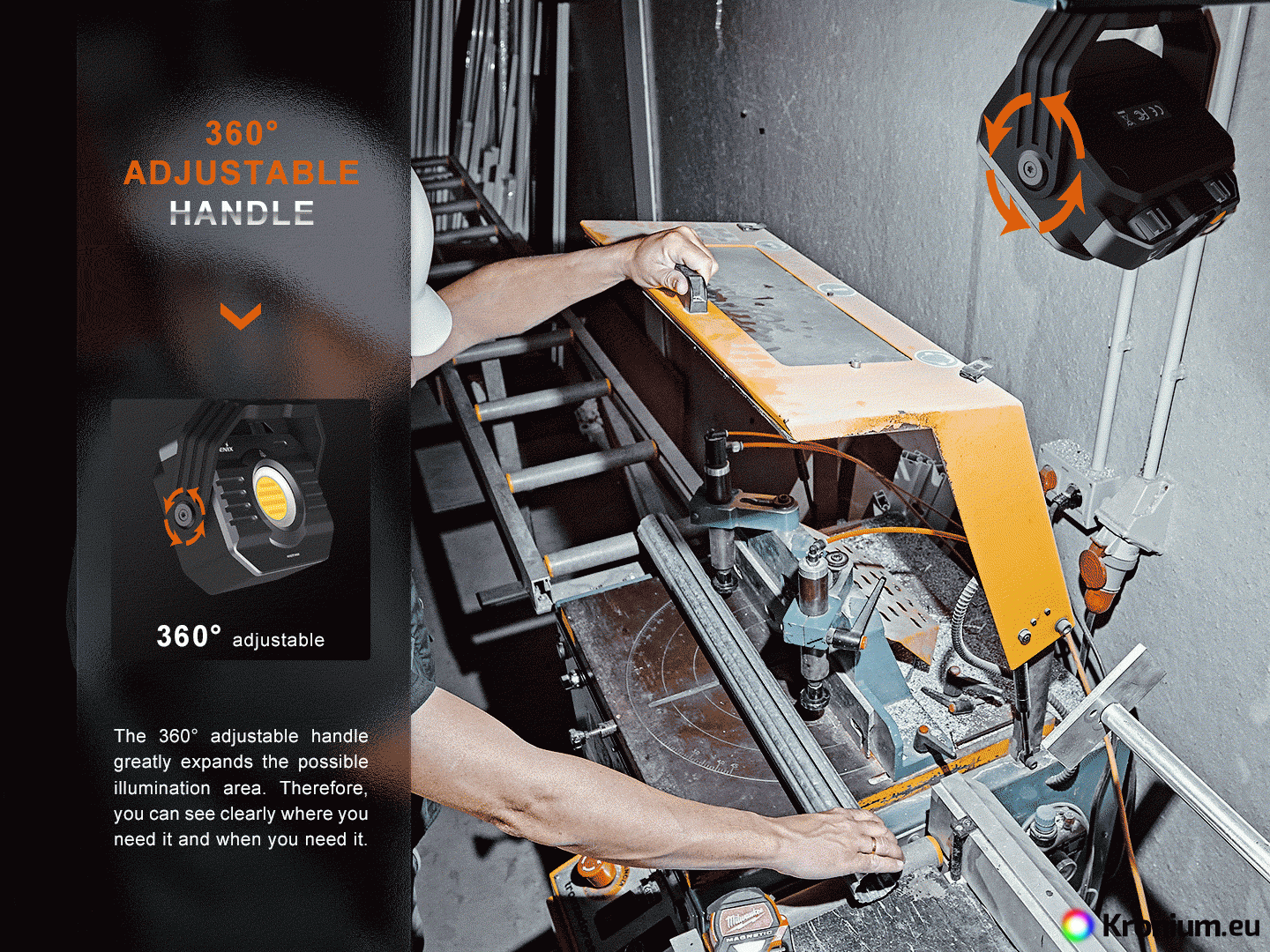

• The light is equipped with a threaded handle for tripod mounting and an integrated magnet. The handle is rotatable by 360°.
• Dimensions 10 cm x 9.7 cm x 4.1 cm.
• Weight 376 grams.
• Lantern and USB cable included.

 Using the Fenix CL28R rechargeable lantern

To turn on in white light mode, turn the A dial clockwise. This smoothly controls the light output from lowest to highest. To reduce the output, turn the A dial counterclockwise. To turn off the white light, turn dial A counterclockwise until it clicks in the extreme position.

To change the color temperature of the lit lantern, turn dial B clockwise. The hue of the light will change from warmest to coolest. In the opposite direction, the other way around.

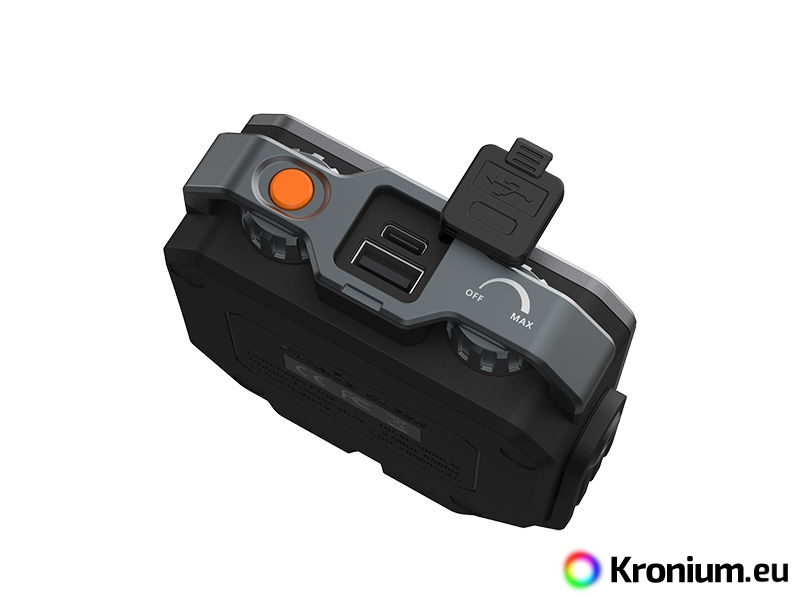

Holding the orange button while the flashlight is off will turn it to red light mode. Short presses of the orange button switches between steady red light and flash. Hold the red light off again button. The red light mode cannot be activated when the white light is on, the white light must first be switched off with rotary control A. If you want to switch from red light mode to white light mode, just turn the white light on by turning the A control clockwise.

Battery Capacity Indication - When the lantern is off, a short press of the orange button activates the four status LEDs on the front of the lantern. The number of LEDs lit indicates the approximate level of battery charge (20-40%, 40-60%, 60-80%, over 80%). When the batteries are discharged below 20% capacity, the last status LED will start flashing.

Charging the Fenix CL28R lantern

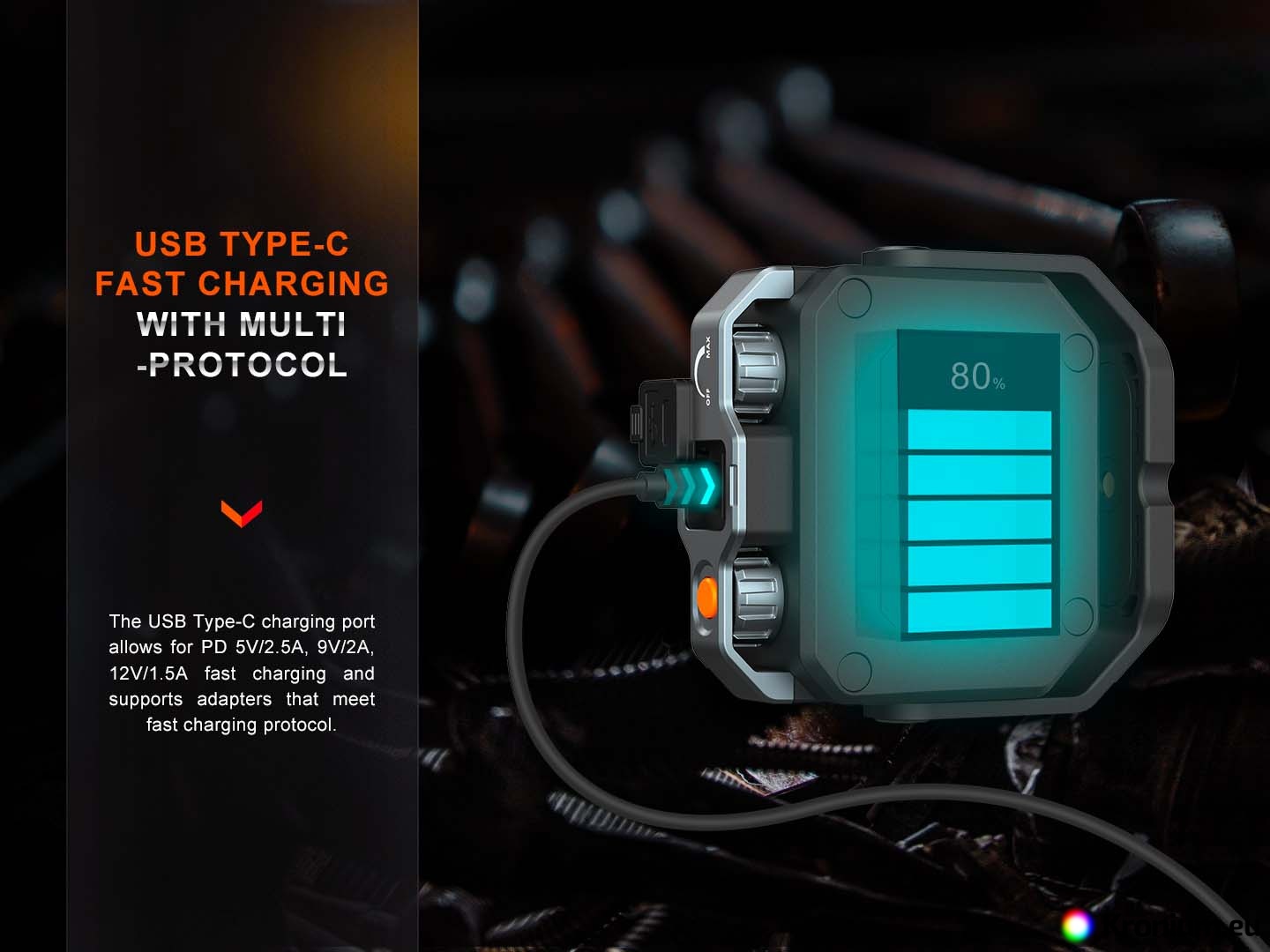

To charge the light, flip off the rubber cap of the USB connectors. Connect it using the included USB cable to your computer, USB network adapter or USB car adapter. A standard mobile phone charger with a USB-C connector can also be used for charging. During charging, the status LEDs flash from left to right, after a full charge they all light up permanently. When charging is complete, make sure the rubber connector cover is carefully covered to prevent dirt from entering.

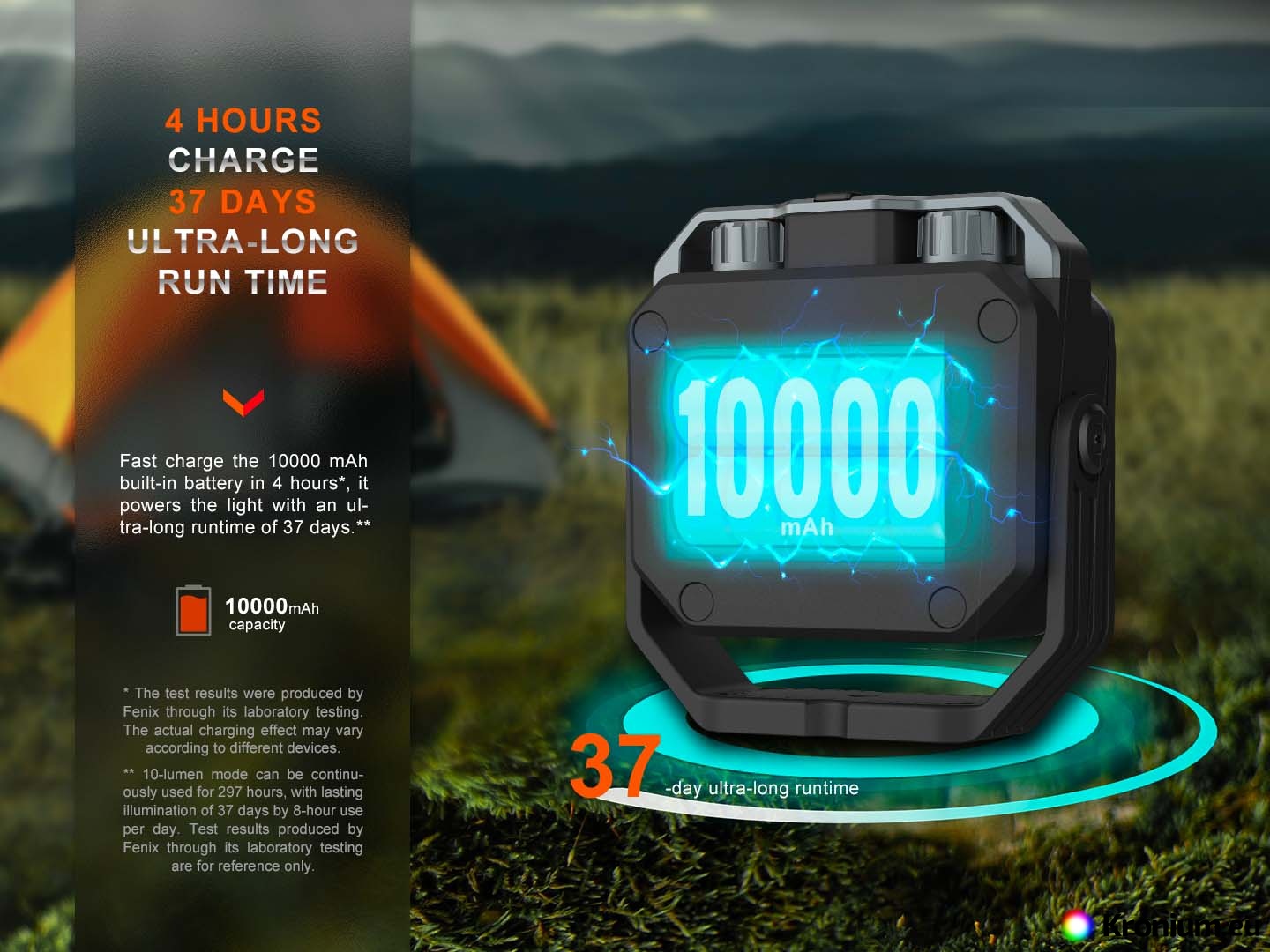

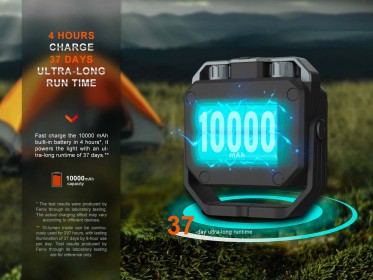

The battery does not suffer from memory effect, so it can be recharged at any time and there is no need to wait until it is discharged. Charging a fully discharged lantern takes about 4 hours (depending on the strength of the charging source used).

The light can be used while charging.

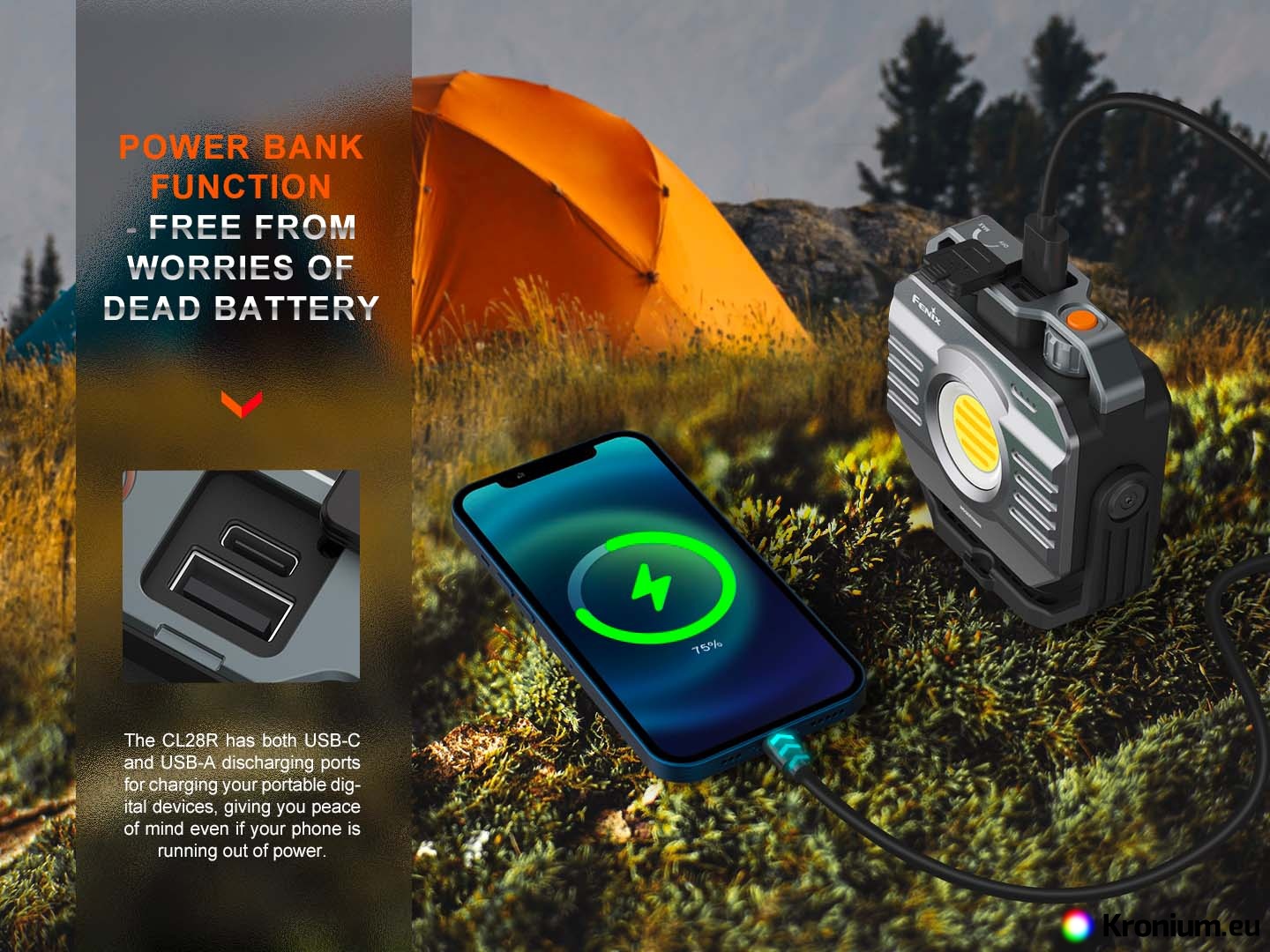

To power external USB devices (powerbank function), connect the cable to the USB-C or USB-A connector (cannot use both at the same time). Status LEDs flash from right to left. When the battery voltage drops too low (below 2.9V), the powerbank function stops. The light can be used while charging other devices.

Warning

• Do not disassemble the sealed parts yourself, it will violate the warranty.
• If the flashlight flashes, does not switch to higher power modes, or does not light up, the battery is dead - charge it.

Warranty

Warranty two years.
