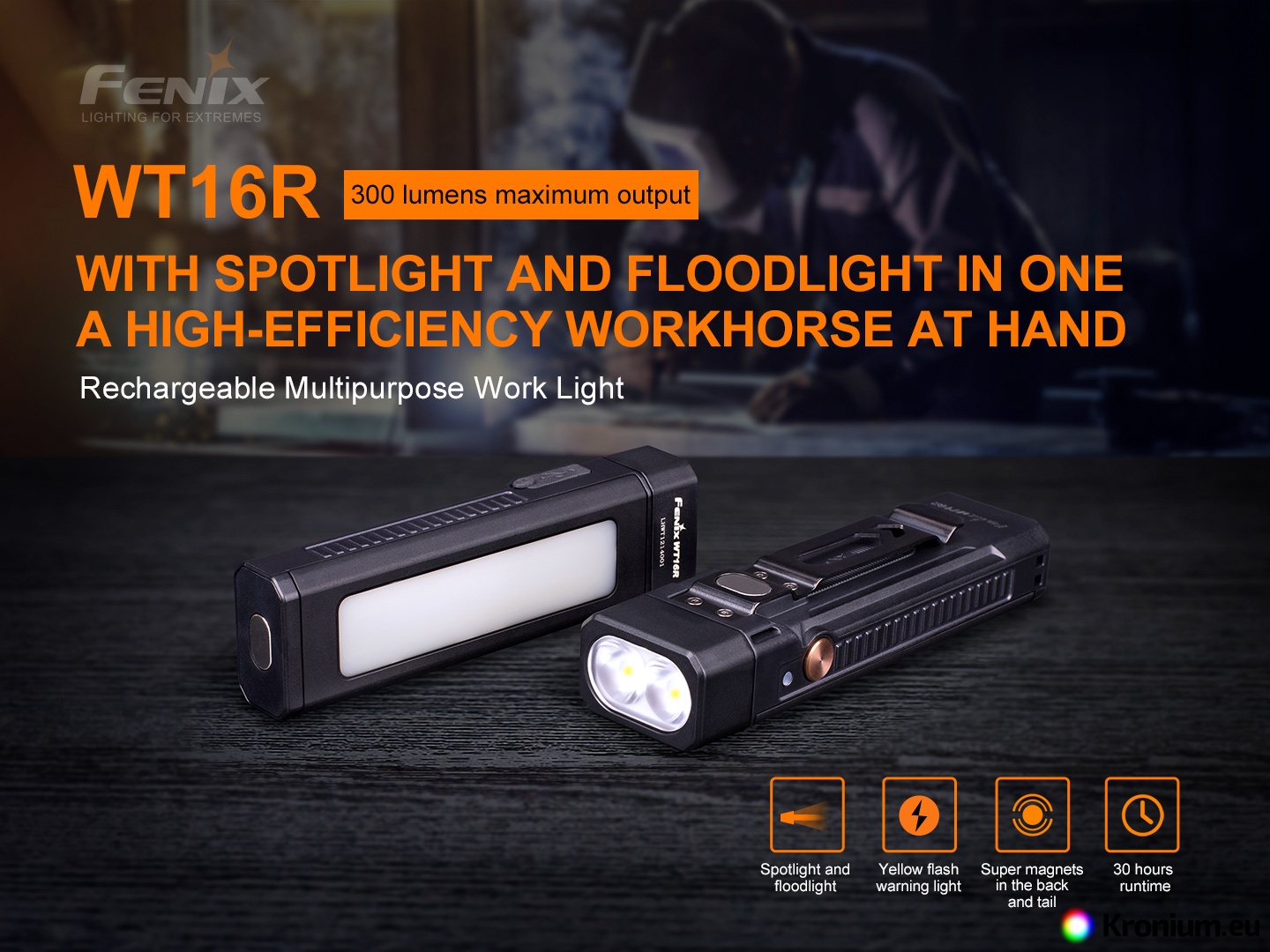

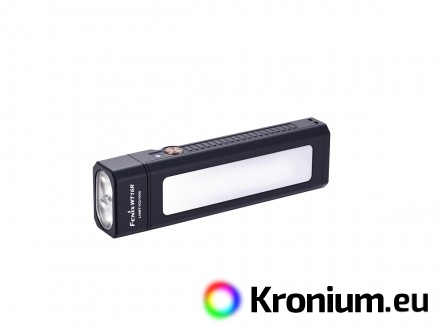

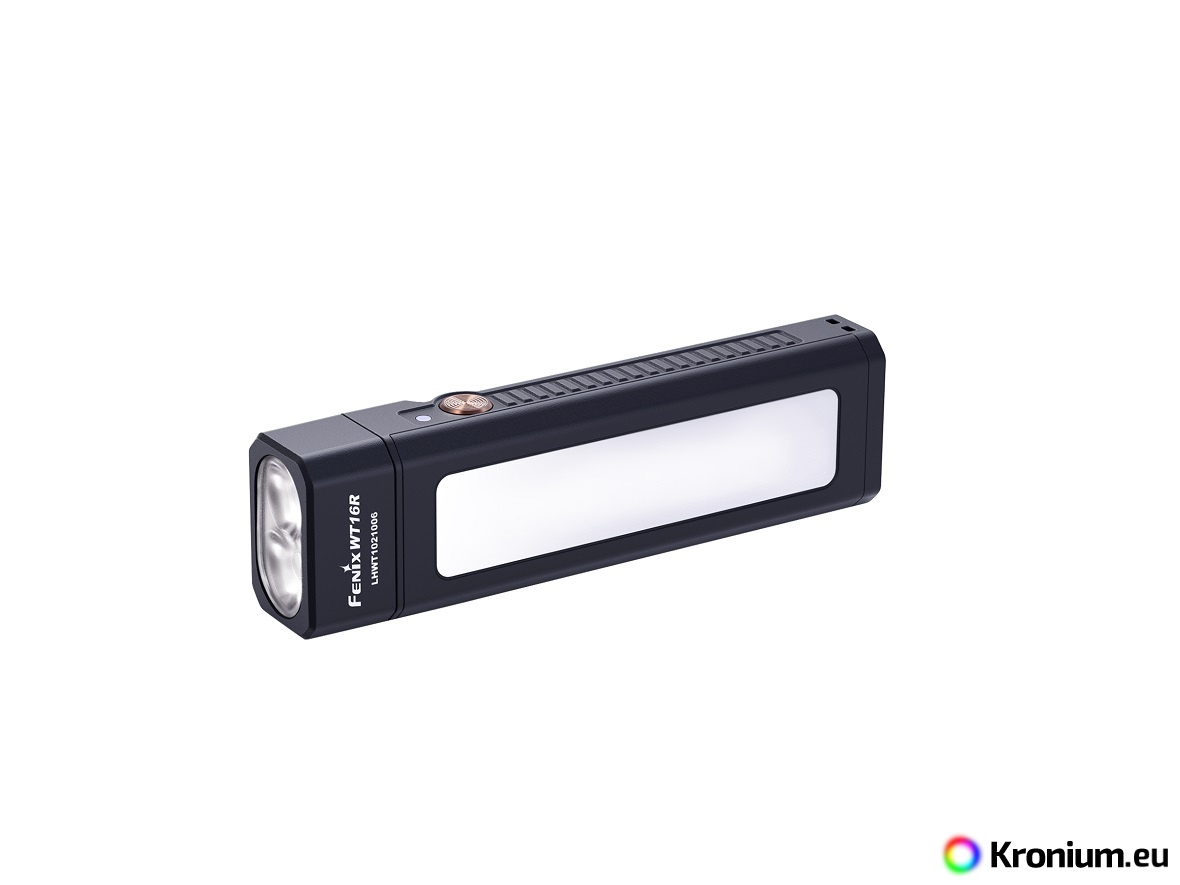

The Fenix WT16R is a multi-purpose rechargeable flashlight with a spotlight reflector and side floodlight with an output of up to 300 lumens. The light source in the spotlight is a pair of Cree XP-E2 LEDs, the side light contains several COB LEDs. The side light has a wide light cone with uniform intensity, which is ideal not only for lighting the workplace, but also has a warning yellow flashing function. The Fenix WT16R flashlight is also equipped with a strong steel clip for easy carrying on a belt or pocket. It is also equipped with two strong magnets, one located on the side and the other on the bottom. The lamp can thus be easily attached to the iron surface in two different positions. Due to its variability, the flashlight is designed specifically for work use, but it will also serve well at home and when camping.

The flashlight is powered by a built-in 3.7 V/2000 mAh lithium-polymer battery, which is charged by a cable via USB-C connector (included).

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

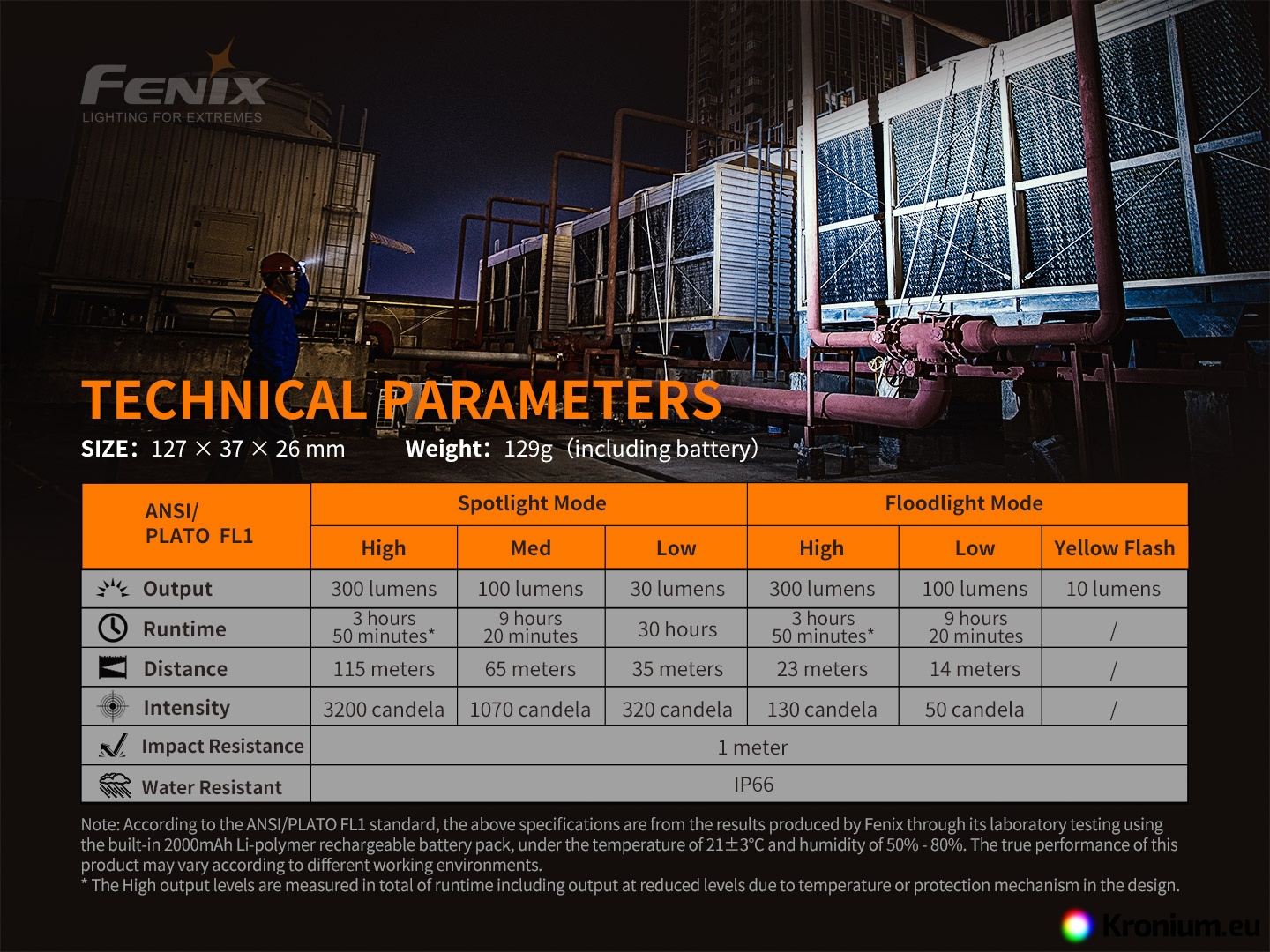

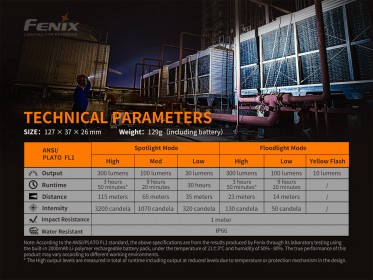

Fenix WT16R work flashlight specifications

• Powerful Cree XP-E2 and COB LEDs are used with a 50,000 hour lifetime.
• Six power modes:

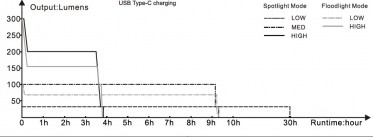

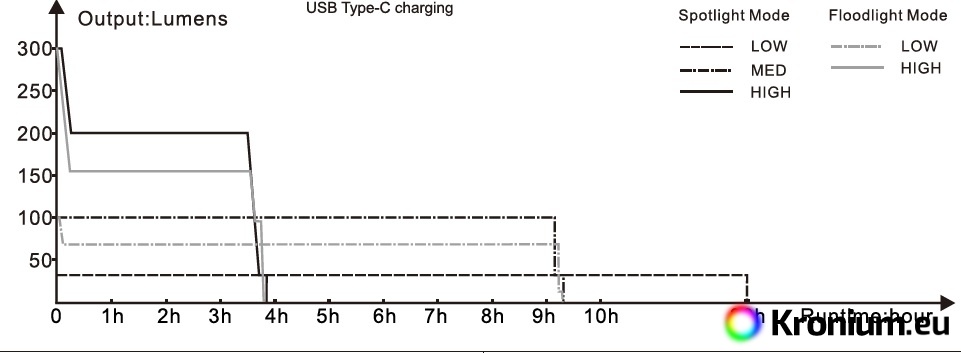

  • Spotlight: 300 lumens (3.8 hours) -> 100 lumens (9.3 hours) -> 30 lumens (30 hours).

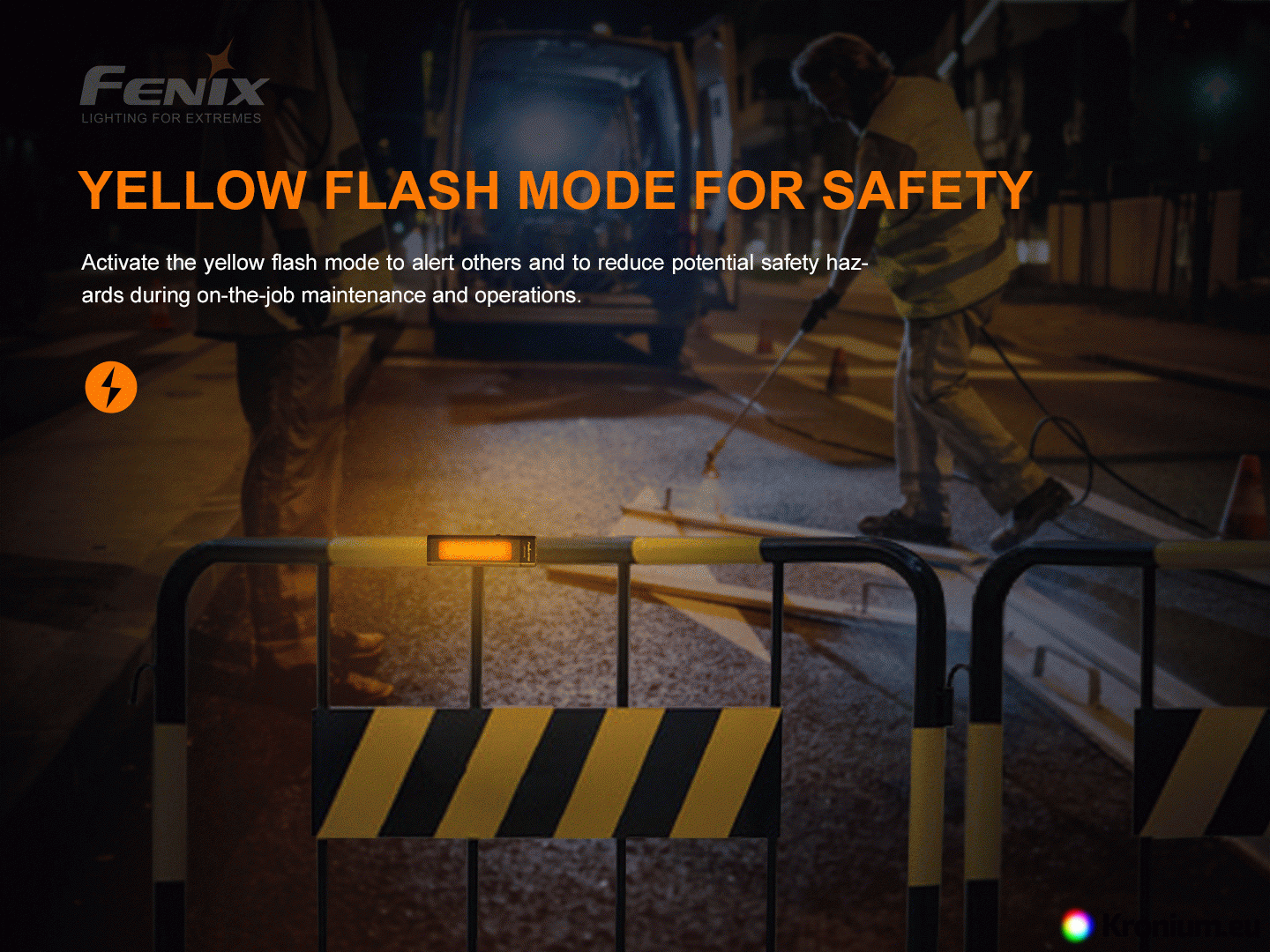

  • Side floodlight: 300 lumens (3.8 hours)-> 100 lumens (9.3 hours)-> yellow flicker (10 lumens).
• Digitally controlled for constant brightness, electronics remember last used mode.

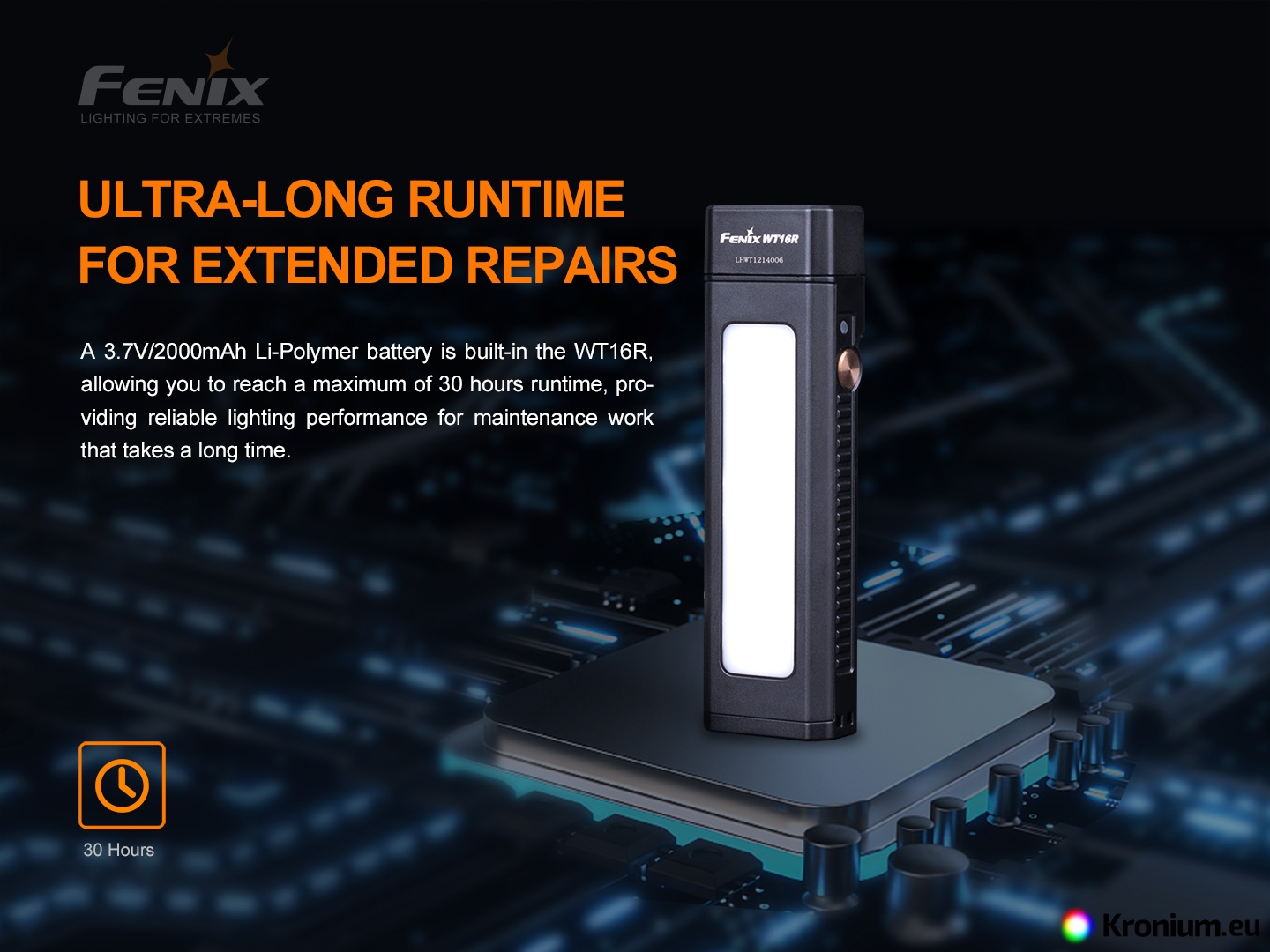

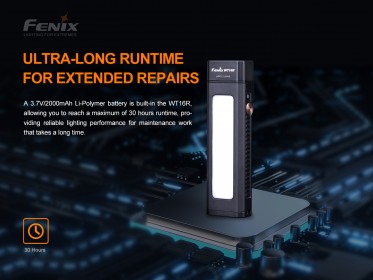

• Uses a built-in Lithium Polymer battery 3.7V/2000 mAh that charges via the USB-C connector on the flashlight.
• Supports fast charging, full charge in 1 hour and 40 minutes with 2A USB power supply.
• Spotlight ranges 115 meters (3200 cd), side floodlight ranges 23 meters (130 cd).
• Battery charge indication.
• Dimensions 12.7 cm (length) x 3.7 cm (width) x 2.6 cm (height).
• Weight 129 grams (including battery).
• Made of impact resistant plastic.
• Shockproof to drops from a height of 1 meter.

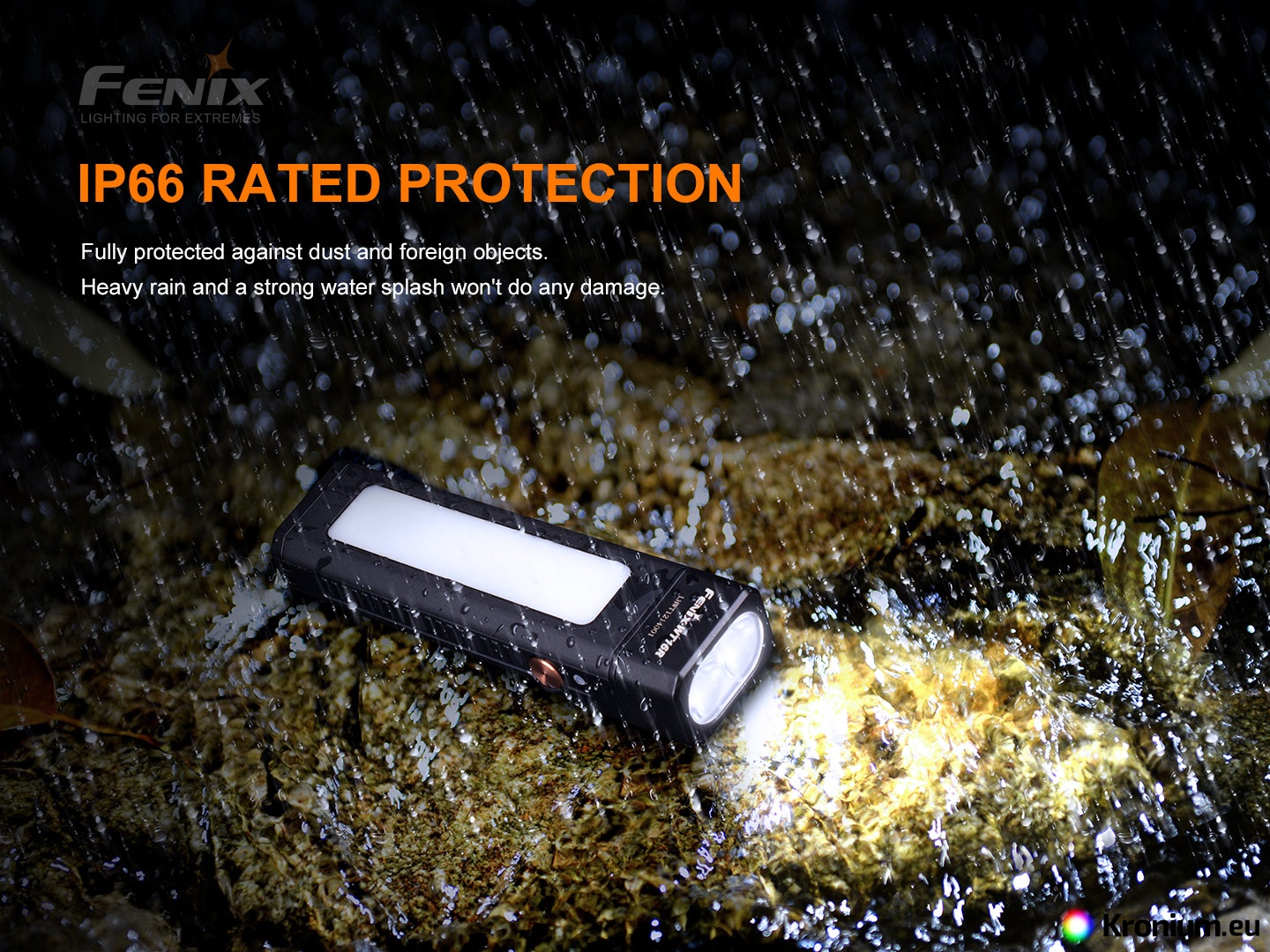

• Waterproof to IP66 standard.

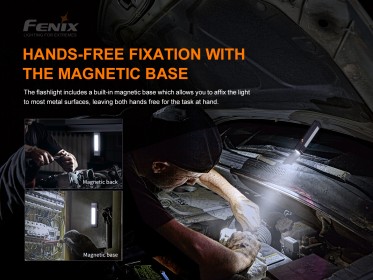

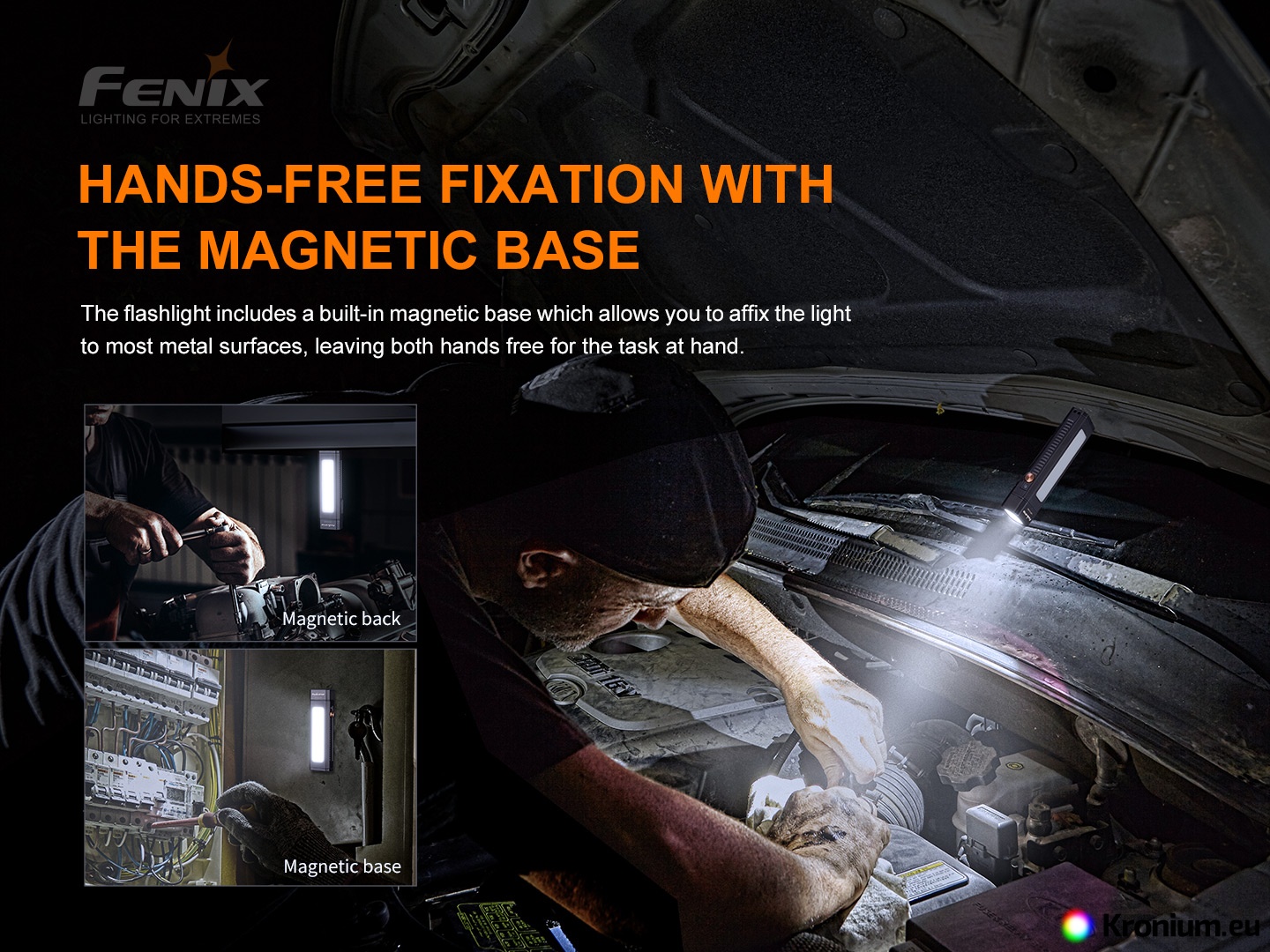

• Two magnets on the back and side of the flashlight - the flashlight can be attached to anything metal.

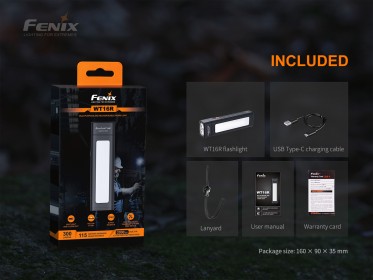

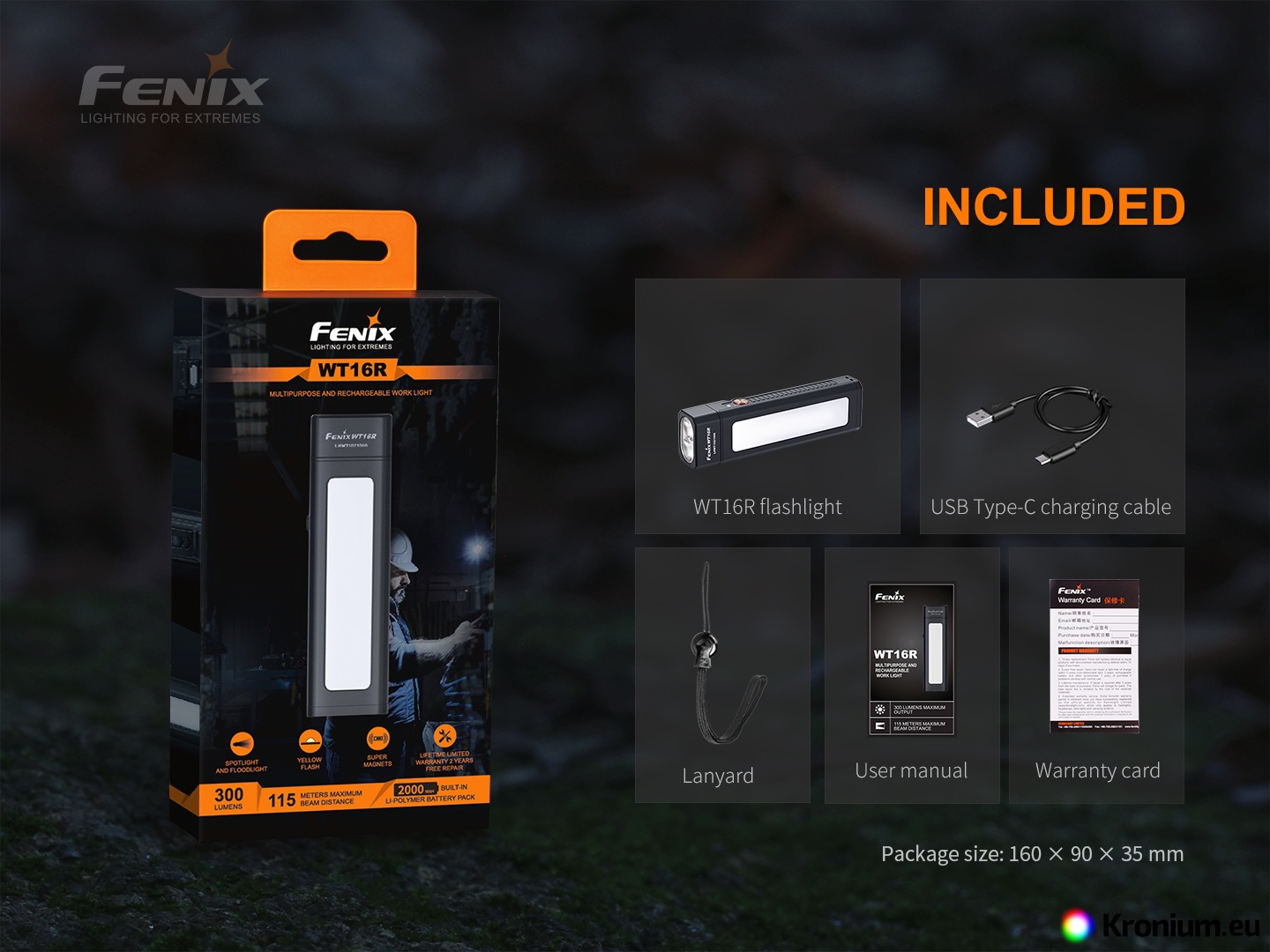

• Included in the package is a flashlight with rechargeable battery, USB-C cable and hand strap.
• The flashlight can also be purchased with USB mains adapter and USB car adapter.

Using the Fenix WT16R

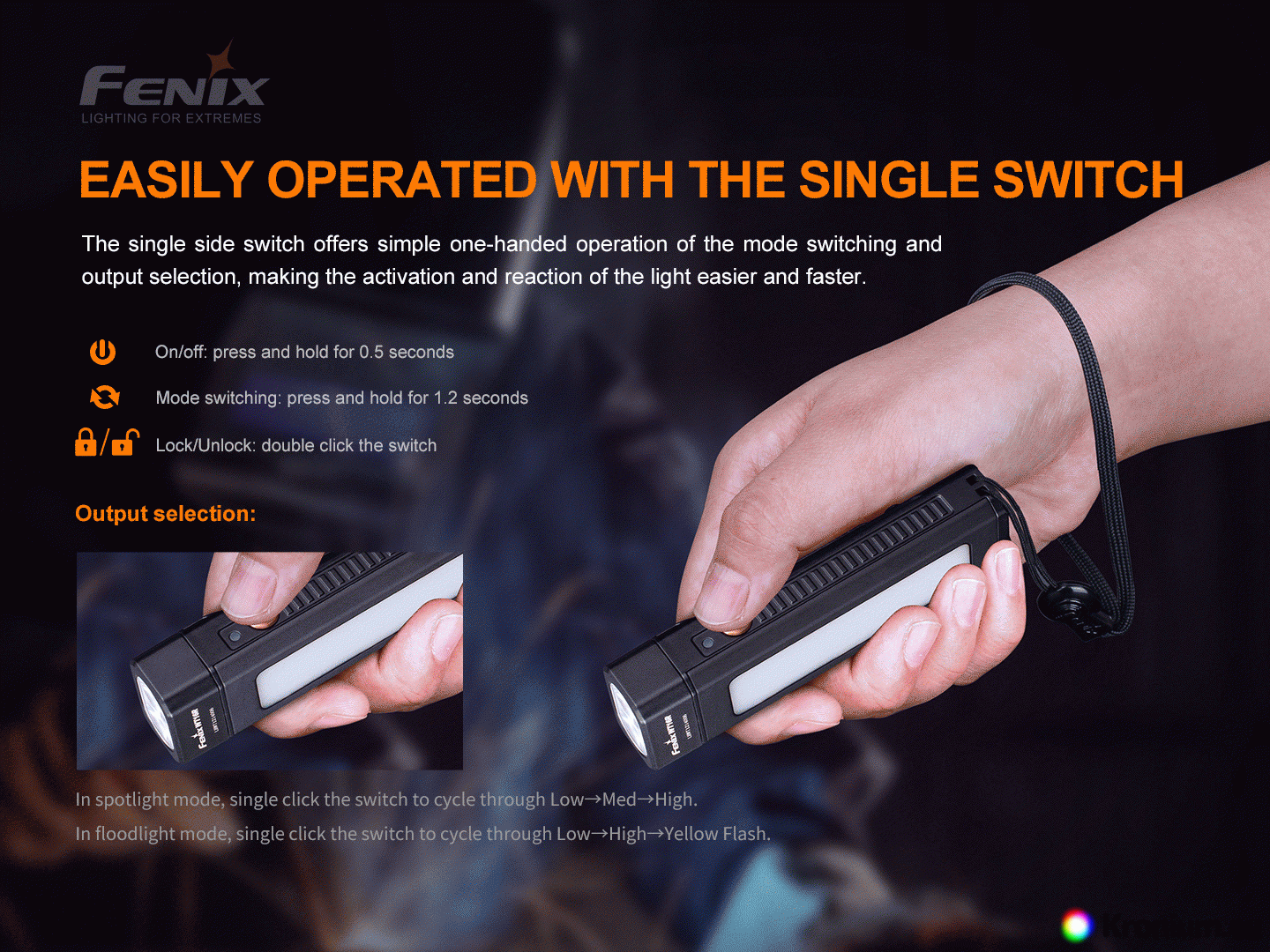

The flashlight is switched on and off by pressing the button for 0.5 seconds, once it is on, the light modes are switched by sshortly pressing it. To switch between spotlight andfloodlight, hold the button for 1.2 seconds. The flashlight has a memory and will always switch on in the last light mode when switched on again.

The control button can be locked to prevent it from turning on by itself, e.g. when transported in luggage. When the flashlight is switched off, press the control button twice quickly (within 0.5 seconds), the flashlight then flashes twice to signal locking. To unlock, press the button again twice quickly.

Overheat protection - When operating at maximum power, the flashlight will gradually reduce the lumen output to 200 lumens when using the spotlight or 150 lumens when using the floodlight after five minutes.

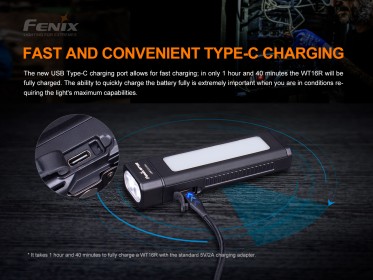

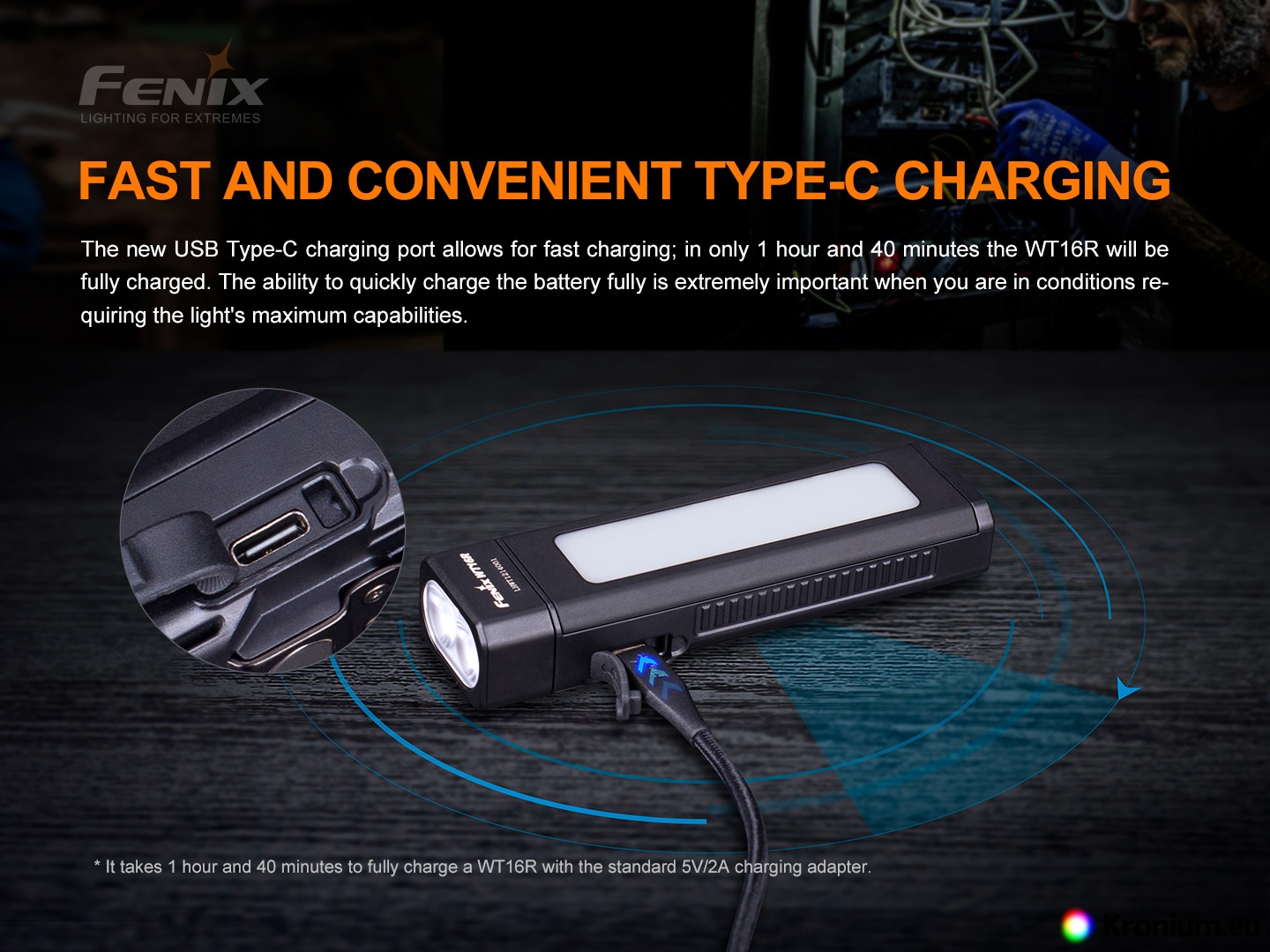

The flashlight is charged via a USB-C connector that can be plugged into a computer, powerbank, USB mains adapter or USB car adapter. During charging, the indicator LED next to the button glows red and turns green when fully charged. A full charge takes approximately 1 hour and 40 minutes when using a 2A power supply.

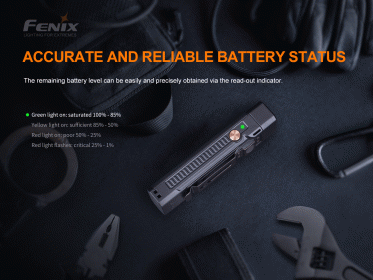

Charge status indication - After briefly pressing the button (the flashlight must be switched off), the battery charge status LED next to the button is activated. A green light indicates the battery is over 85% charged, green flashing at 50-85%, red means 25-50% and red flashing indicates the battery is less than 25% charged.

Warning

• Do not disassemble the flashlight yourself, it will violate the warranty.
• If the flashlight flickers or does not light up, it may be due to one of the following reasons:
  • The battery is dead – charge it.

Warranty

Two years.
