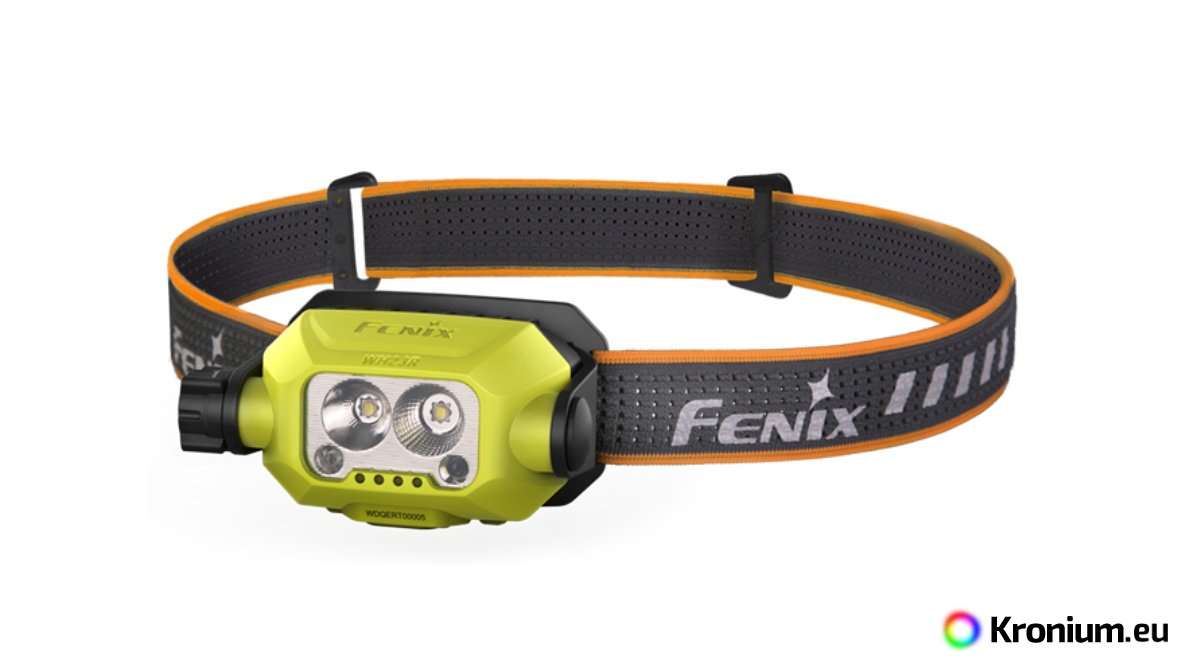

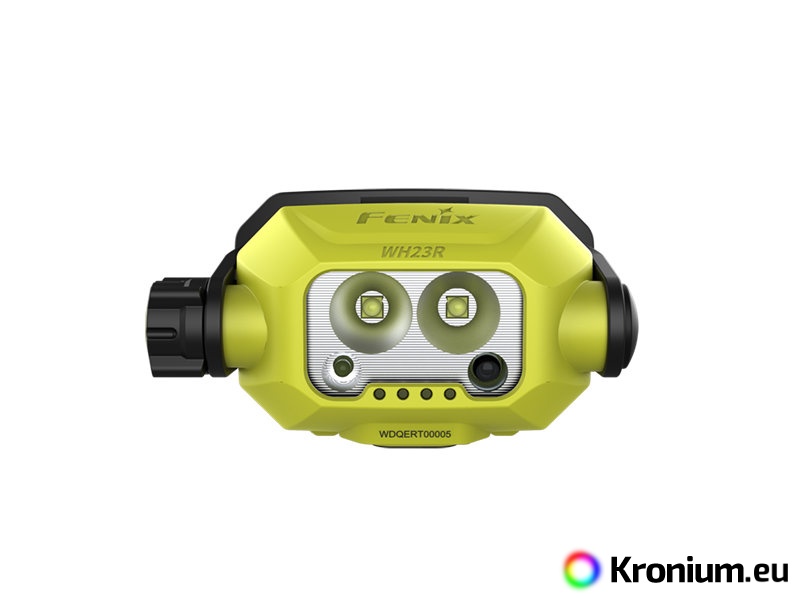

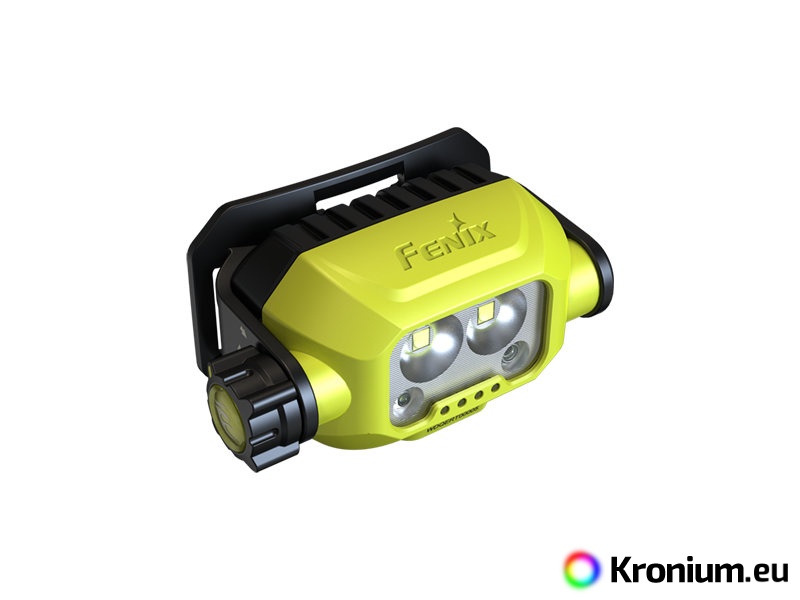

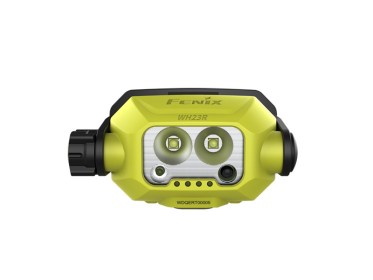

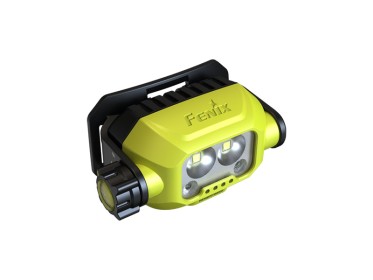

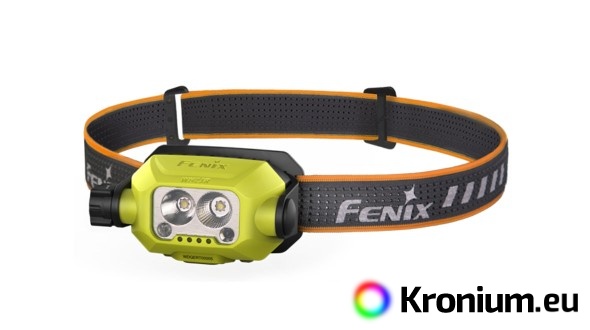

Fenix WH23R is a rechargeable work headlamp that features high drop resistance, a unique design with two reflectors and a touchless on/off function. The long-distance reflector creates a slightly focused light beam with range of up to 84 meters and the second reflector has a very wide and continuous light trail. The luminous flux of each reflector is up to 300 lumens and their light can be combined in turbo mode to a total output of 600 lumens. On the side of the headlamp there is a rotary control that can be used to select four positions: off - high beam - wide beam - turbo mode. In the positions of the wide and long reflector, three levels of power can be switched with a button hidden in the rotary control.

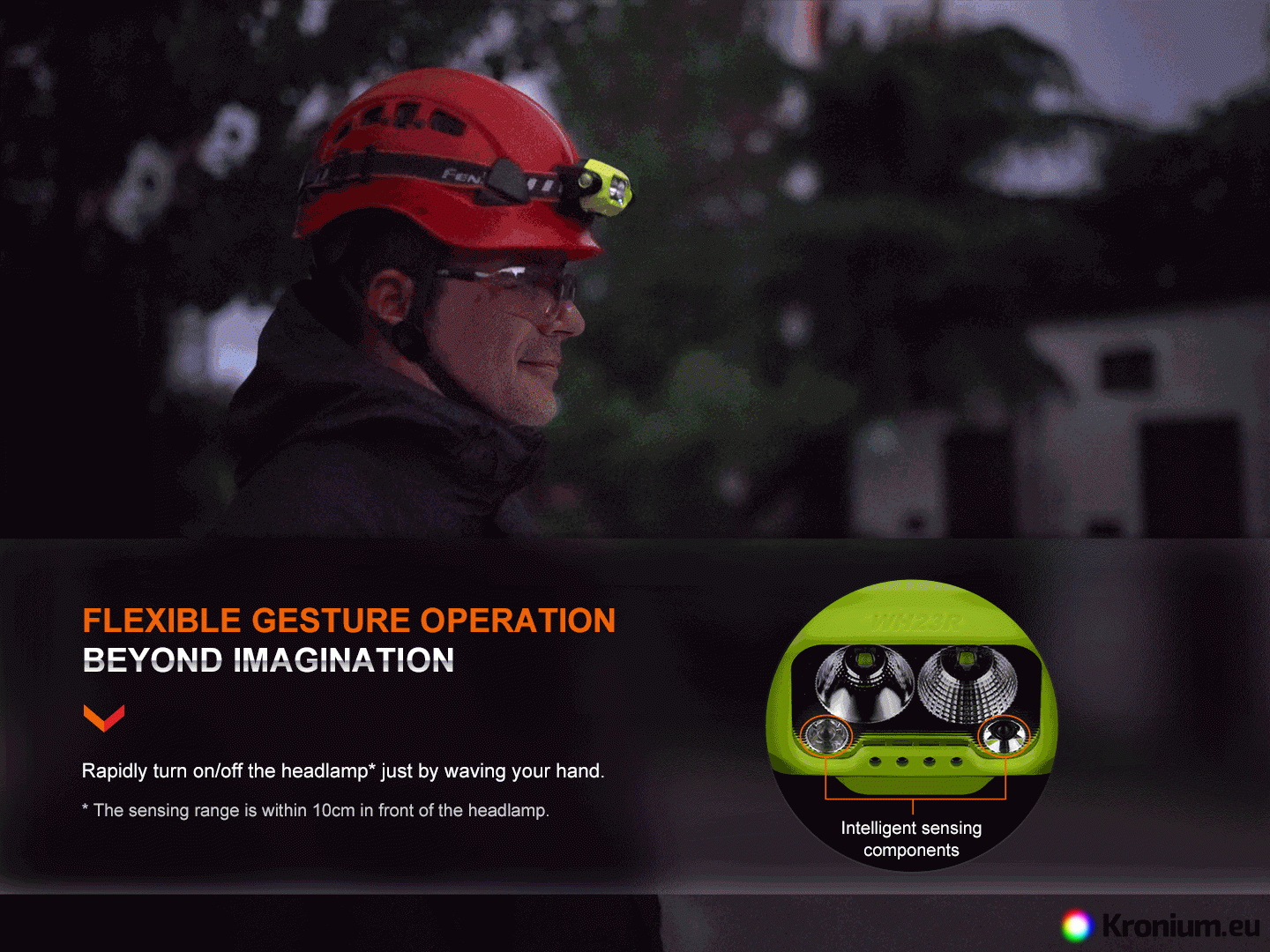

The new Gesture-sensing function allows you to turn the light on and off by waving your hand at a distance of about 10 centimeters in front of the headlamp. So you can keep your hands free from mud, oils and whatever while working and the flashlight will still stay clean. For power, it uses a built-in Li-pol battery with a capacity of 2000 mAh, which is charged via a modern USB-C connector directly in the headlight.
All parameters of the flashlight (luminous flux, battery operation time, waterproofing, range and impact resistance) are measured in compliance with the ANSI/ NEMA FL 1-2009.

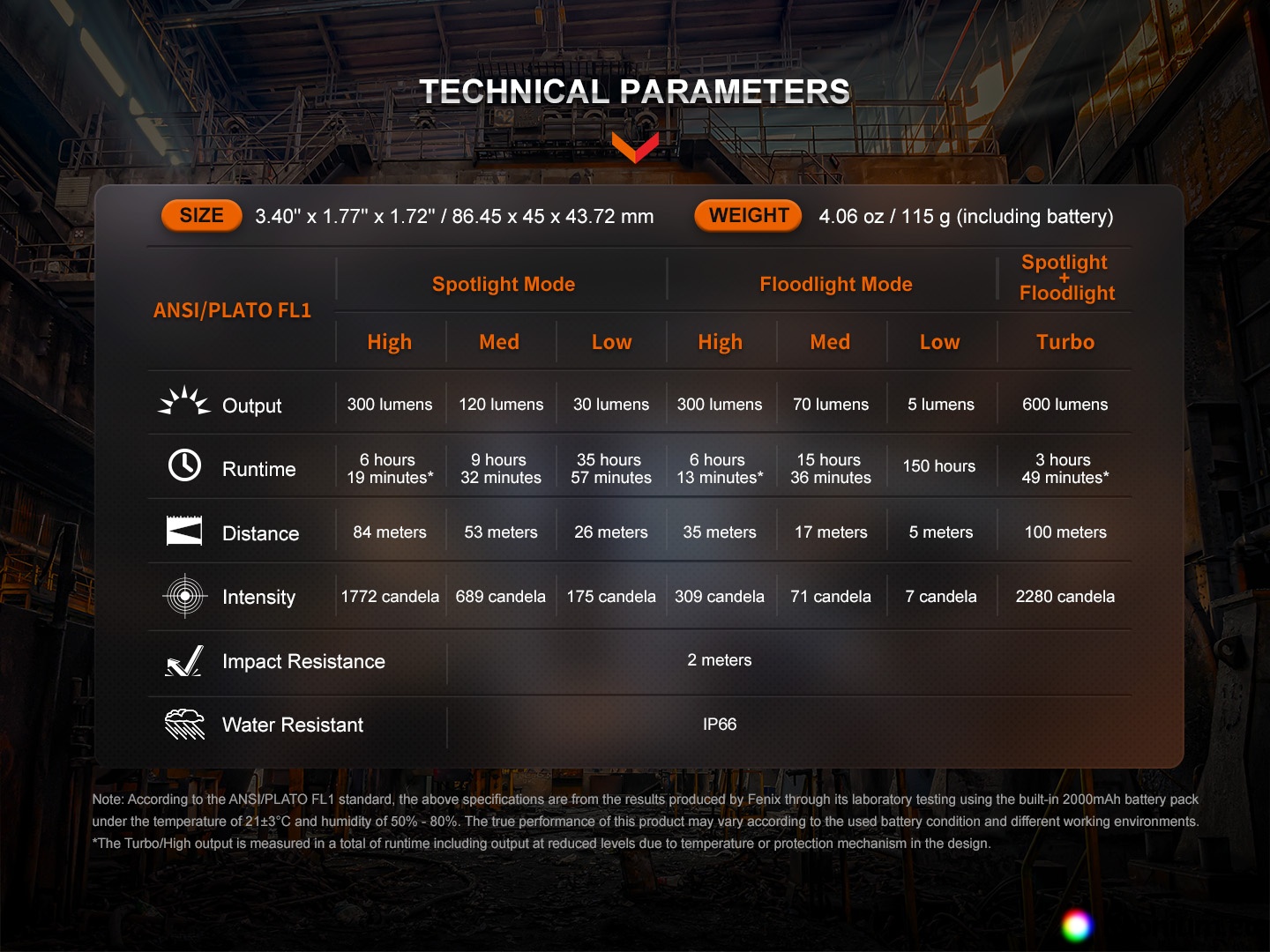

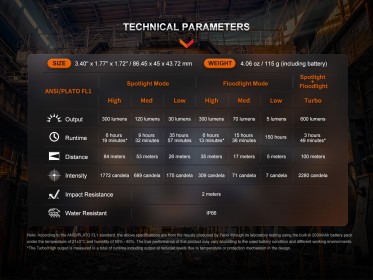

Fenix WH23R working headlamp parameters
- Two powerful LED Lumileds are used with lifetime of up to 50,000 hours.
- Lighting functions:
- Turbo combined mode of both reflectors: 600 lumens (3.8 hours)
- High beam: 300 lumens (6.3 hours) -> 120 lumens (9.5 hours) -> 30 lumens (35.9 hours).
- Wide reflector: 300 lumens (6.3 hours) -> 70 lumens (15.5 hours) -> 5 lumens (150 hours).
- It uses a built-in lithium-polymer battery with a capacity of 2000 mAh/3.7V.
- Charging via USB-C connector on the bottom of the headlight.
- Four-part battery charge status indicator.
- Range when using both reflectors up to 100 meters (1772 cd).
- Unique touchless switching on and off with Gesture-sensing (can be disabled).

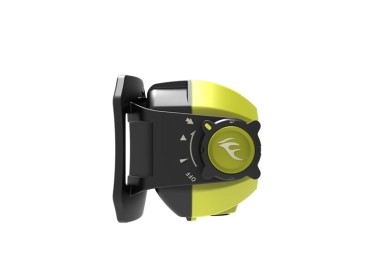

- Rotary switch that can be conveniently operated even when wearing gloves.
- Dimensions 8.65 cm (width) x 4.5 cm (depth) x 4.37 cm (height).
- Weight 115 grams (including battery).
- Impact resistant to drops from a height of 2 meters.
- Waterproof according to the IP66 standard.

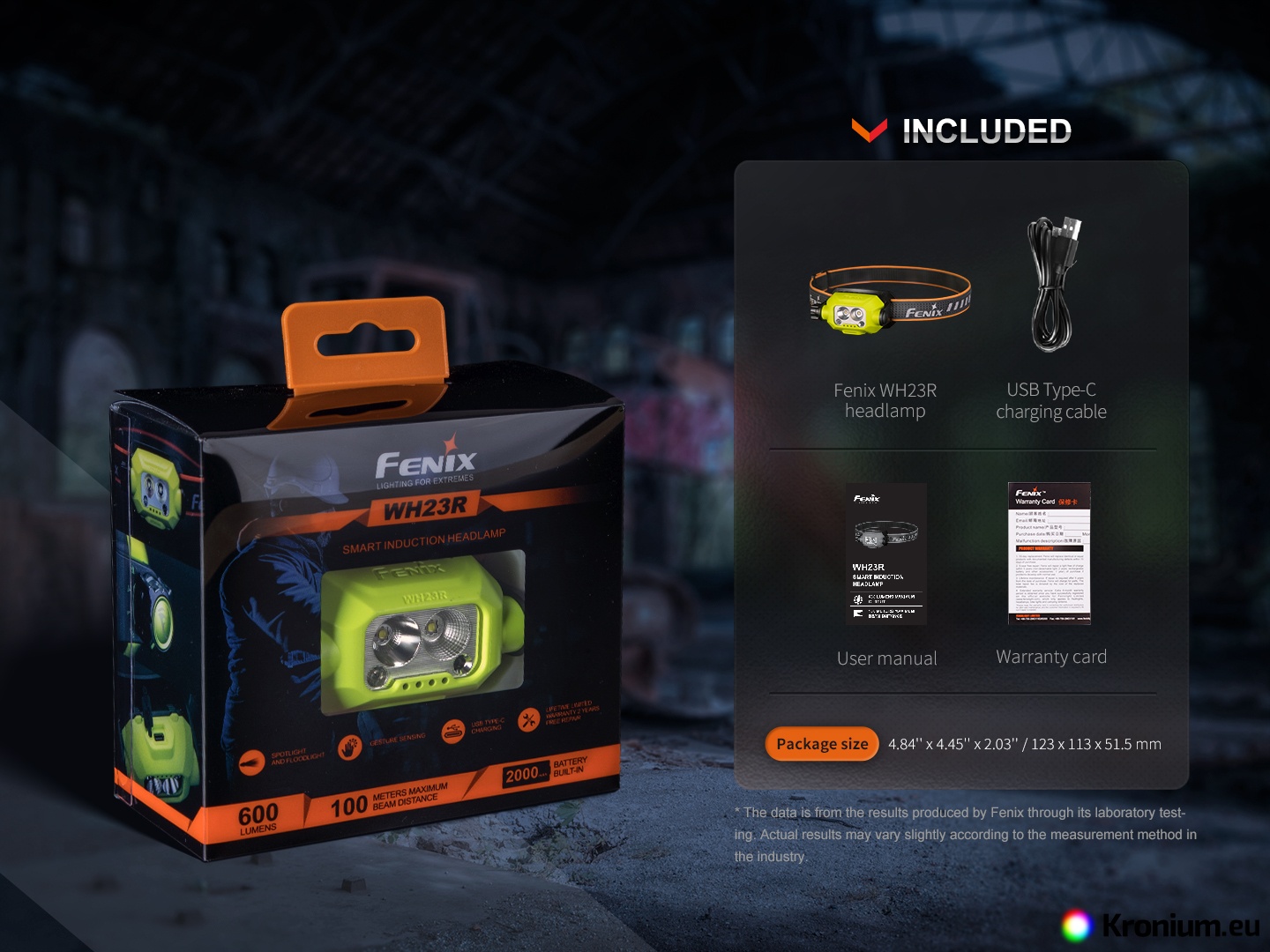

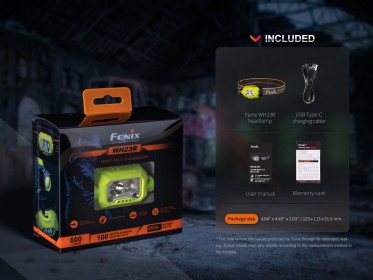

- The package includes a headlamp with strap and a USB-C charging cable.
- For the flashlight can be additionally purchased, for example, a main strap, case APB-20, USB power adapter or USB car adapter.
Using of the Fenix WH23R worklamp

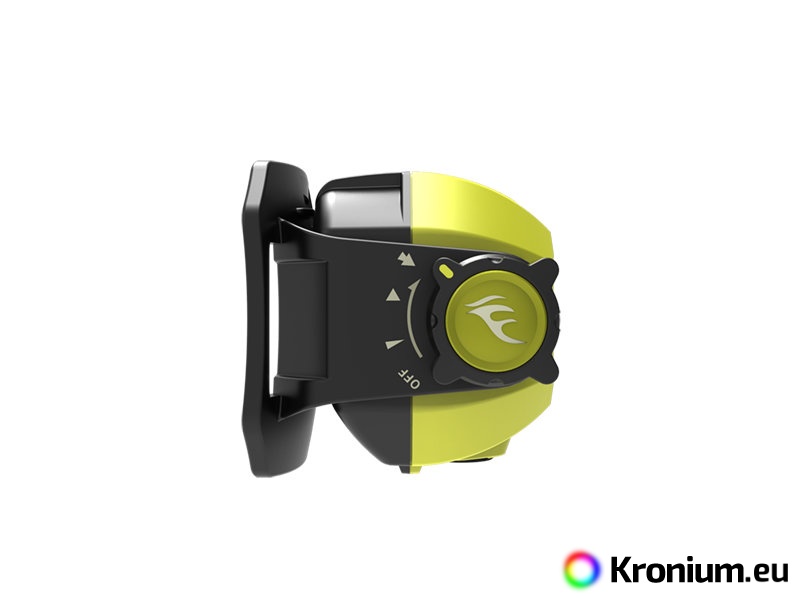

The headlamp is switched on and off with the rotary switch on the right side. In the first position, the headlamp is turned off, by turning it to the second position, it turns on the long-distance reflector mode, by turning it to the third position, it turns on the wide reflector mode, and by turning it to the fourth position, the combined turbo mode is turned on. Power modes in the long and wide reflector positions are cyclically switched by pressing the button on the side of the rotary selector. The headlamp has a memory and always turns on in the last set power mode.
Holding the button for 1.2 seconds activates/deactivates the sensors for Gesture-sensing. If the function is active and the headlamp is switched on with the rotary selector, it can later be turned off and on by waving the hand at a distance of approx. 10 centimeters in front of the headlamp. Whether the Gesture-sensing function is active is indicated by the blue diode on the side of the headlamp.

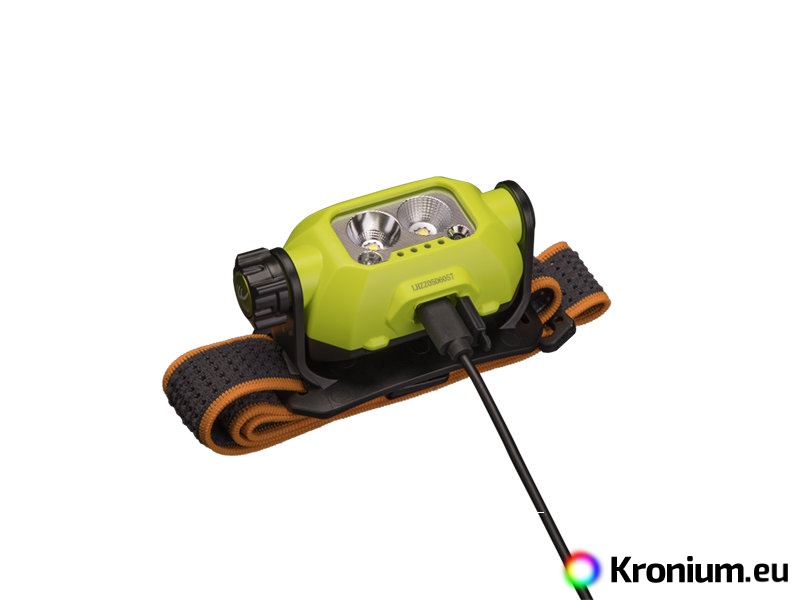

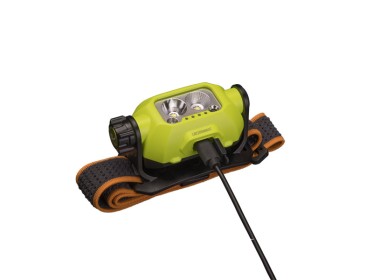

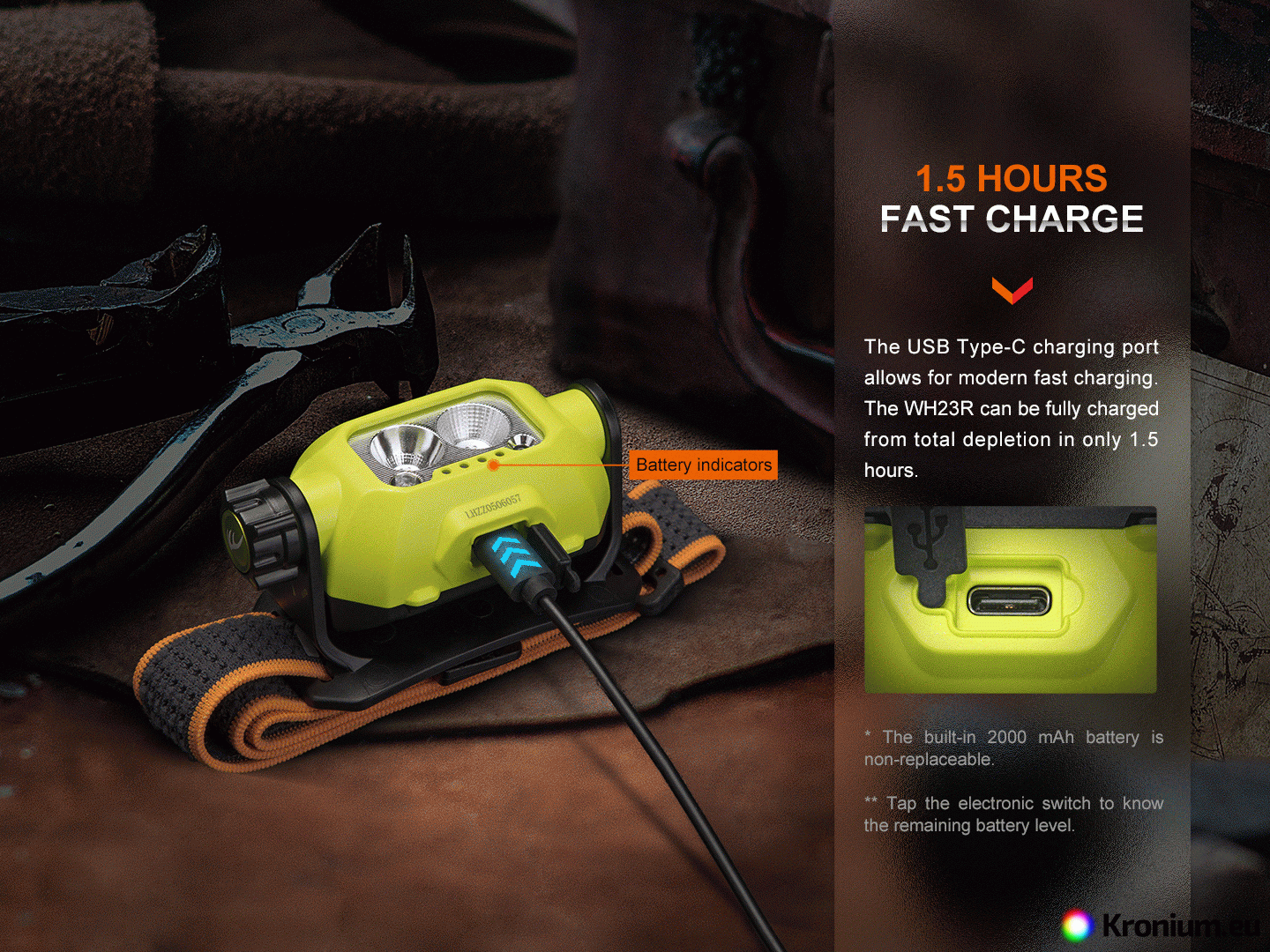

Charging - plug the charging USB-C cable into the headlamp and its other end into the USB connector of the computer, network USB adapter or USB car adapter (not included in the package). Any mobile phone charger with a USB-C connector can also be used for charging. During charging, the four indicator diodes on the front light up gradually, after full charge they all light up permanently. The charging time of a fully discharged battery takes approx. 1.5 hours. The Li-pol battery used does not suffer from a memory effect, so the headlamp can be recharged at any time. While charging, the headlamp can be used, but only in low mode.
Warning
- Do not disassemble the sealed parts yourself, this will void the warranty.
- If the headlamp flashes, does not switch to higher power modes, or does not light up, it may be for one of the following reasons:
- The battery is almost empty – charge it.
Warranty
Warranty for two years.
