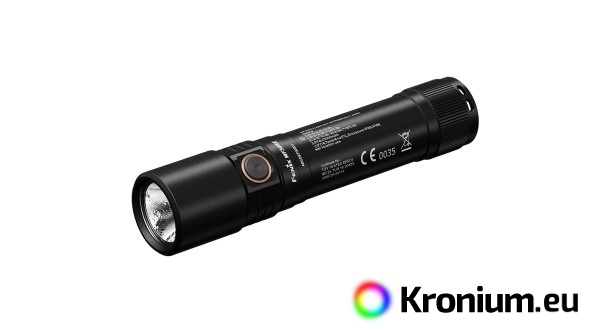

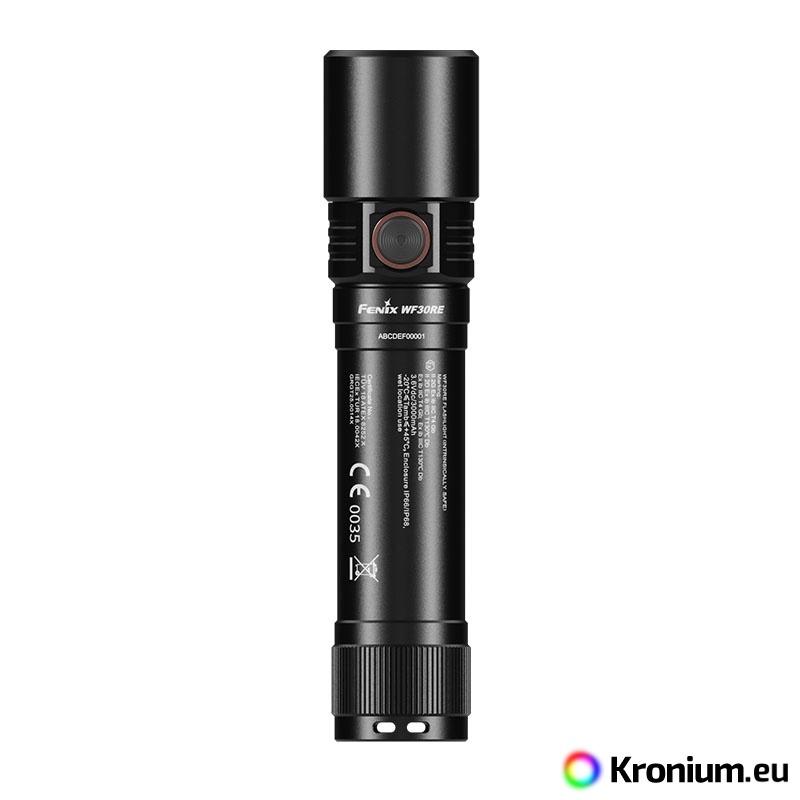

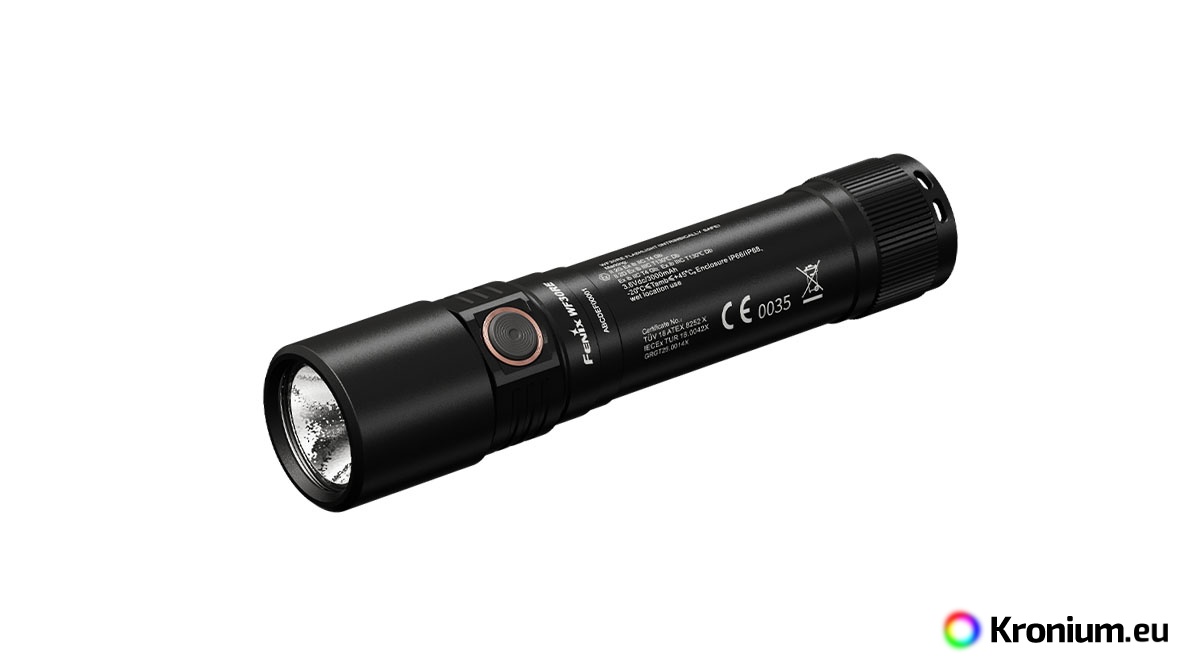

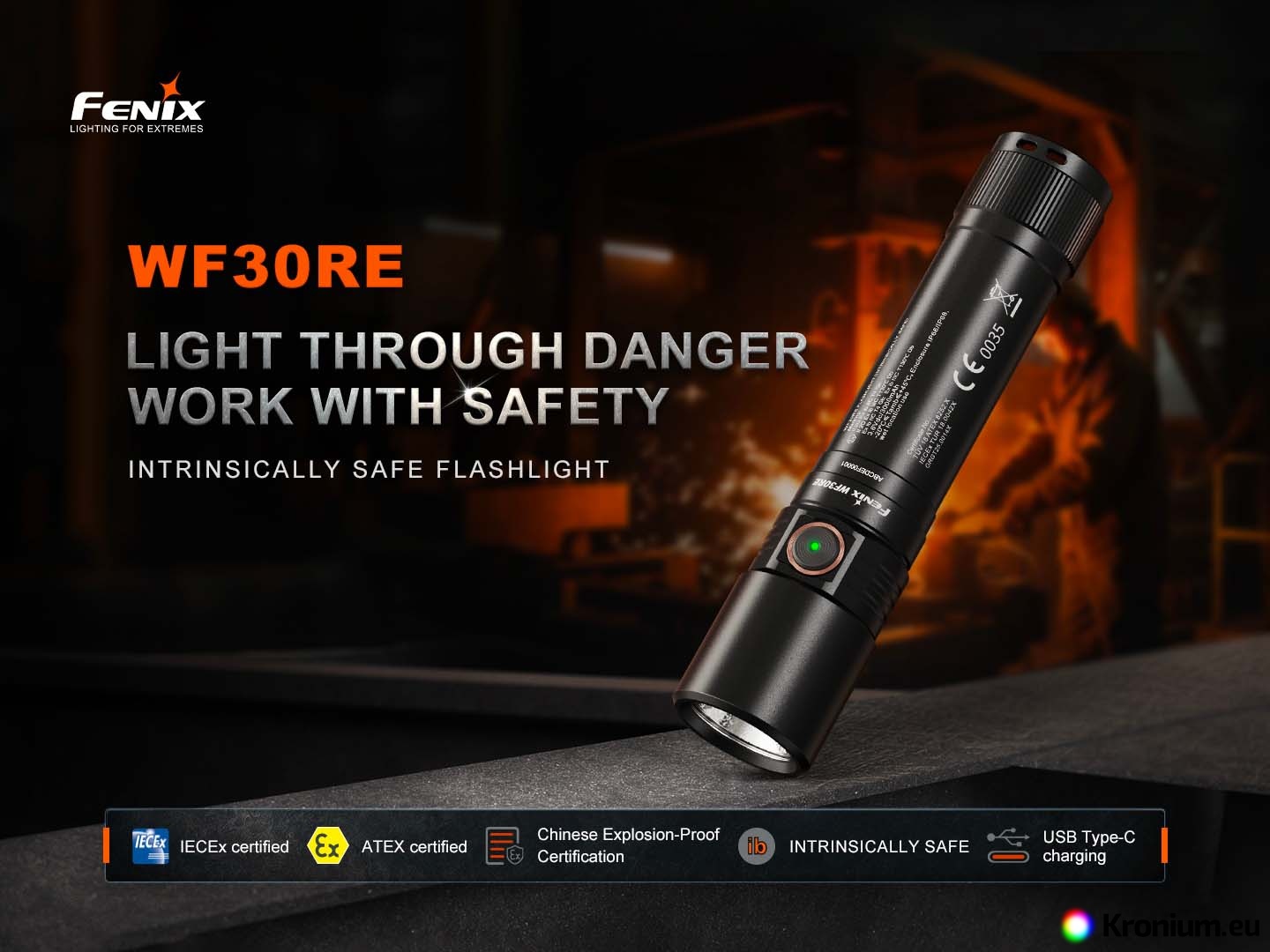

The professional rechargeable flashlight Fenix WF30RE is ATEX/IECex certified for use in explosive atmospheres. The flashlight is powered by a specially modified ARB-L21-3000Ex Li-ion battery with a capacity of 3000 mAh and provides a light output of up to 300 lumens with a beam distance of 149 meters. The battery is charged directly in the flashlight via a USB-C connector. The body of the flashlight is made of aircraft-grade aluminum, ensuring high durability and impact resistance. The flashlight is designed especially for firefighters and rescue workers, and it is also suitable as a work light in industrial facilities where explosive dusts and gases may be present. This includes, for example, chemical plants, refineries, textile mills, paper mills, flour mills, metallurgical plants, power stations, and other facilities.

Certifications:

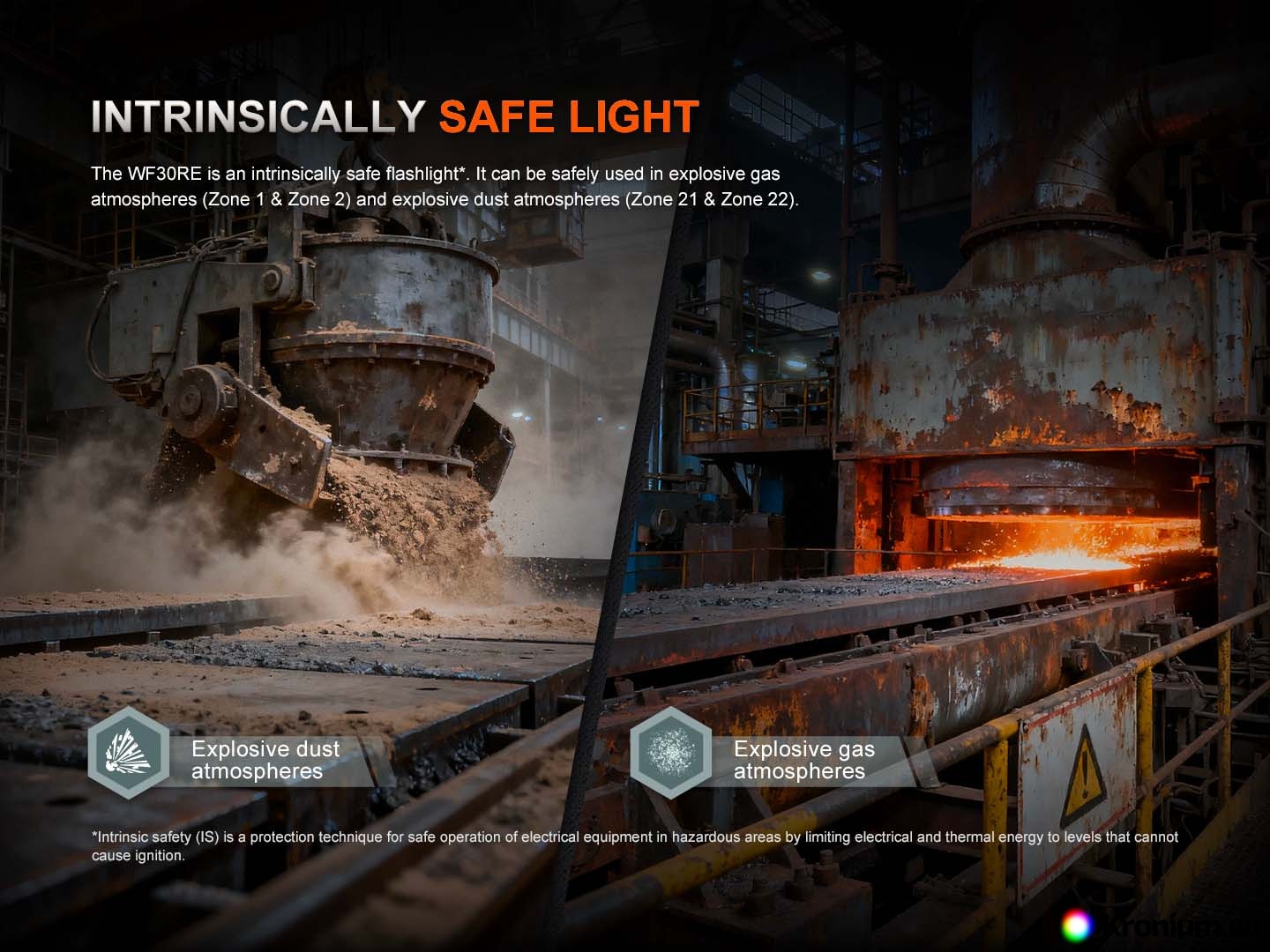

• Suitable for use in zones 1-2 (explosive gases) and zones 21-22 (explosive dust).
• Full certification details:
• IECEx: IECEx TUR 18.0042X:
  • Ex ib IIC T4 Gb
  • Ex ib IIIC T130°C Db
• ATEX: TÜV 18 ATEX 8252X:
  • II 2G Ex ib IIC T4 Gb
  • II 2D Ex ib IIIC T130°C Db
• The flashlight also holds CSA, NEPSI, and GRGT certifications.

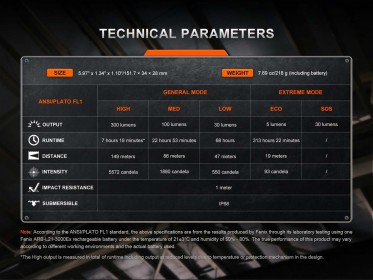

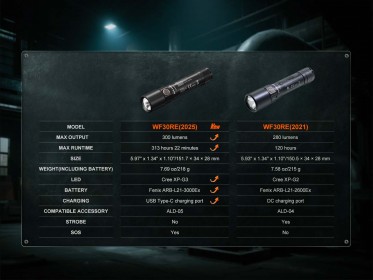

Parameters of the WF30RE ATEX Work Flashlight:

• It uses a high-performance Cree XP-G3 LED with a neutral white tint and a lifespan of 50,000 hours.

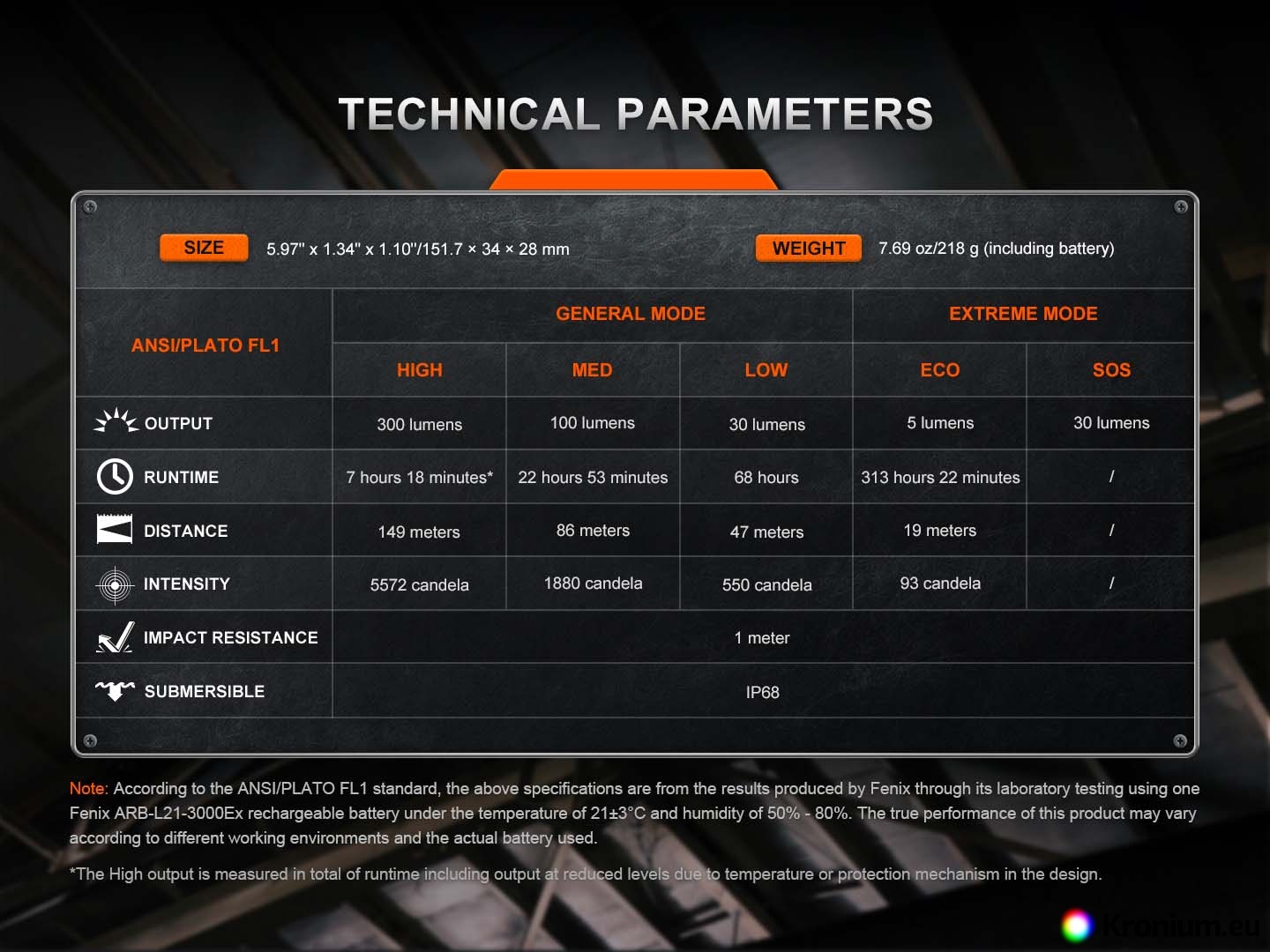

• Five output modes: 300 lumens (7.3 hours) -> 100 lumens (22.8 hours) -> 30 lumens (68 hours) -> 5 lumens (313.3 hours) -> SOS (30 lumens).

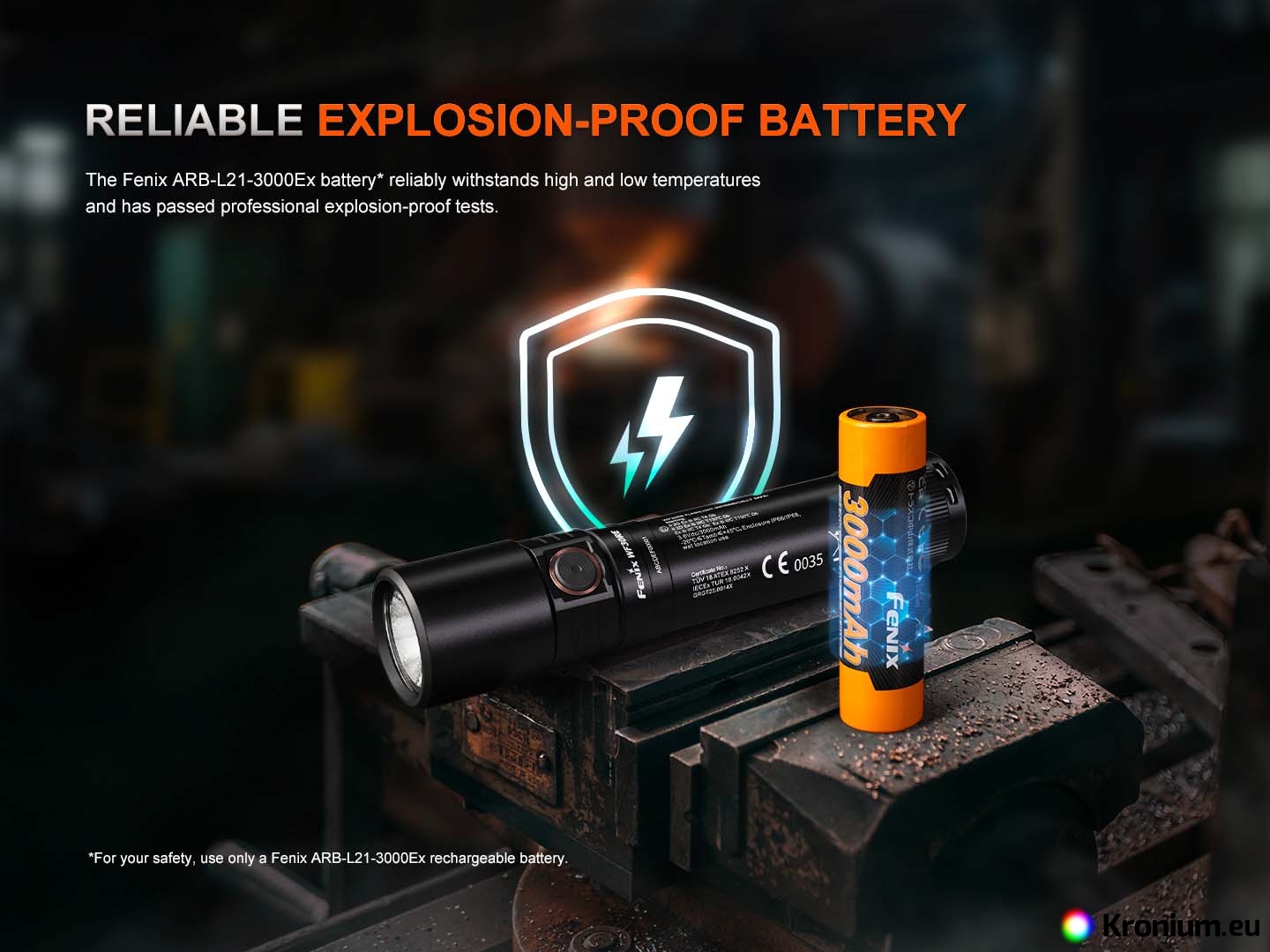

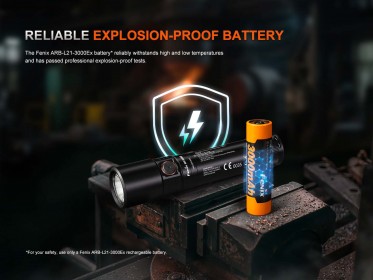

• It uses a special Fenix ARB-L21-3000Ex Li-ion battery with a 3000 mAh capacity. It is a modified type certified for explosive atmospheres.
• The battery is charged directly in the flashlight via a modern USB-C connector.
• The electronics are equipped with a protection function against over-discharge; when the voltage drops below a certain level, it automatically switches to a lower output mode.
• The flashlight features a memory function and can be turned on in the last used mode, excluding the emergency modes (Eco and SOS).
• Battery level indication.
• Made from A6061-T6 aircraft-grade hardened aluminum.
• Durable, highly scratch-resistant surface – Type III hard-anodized finish.

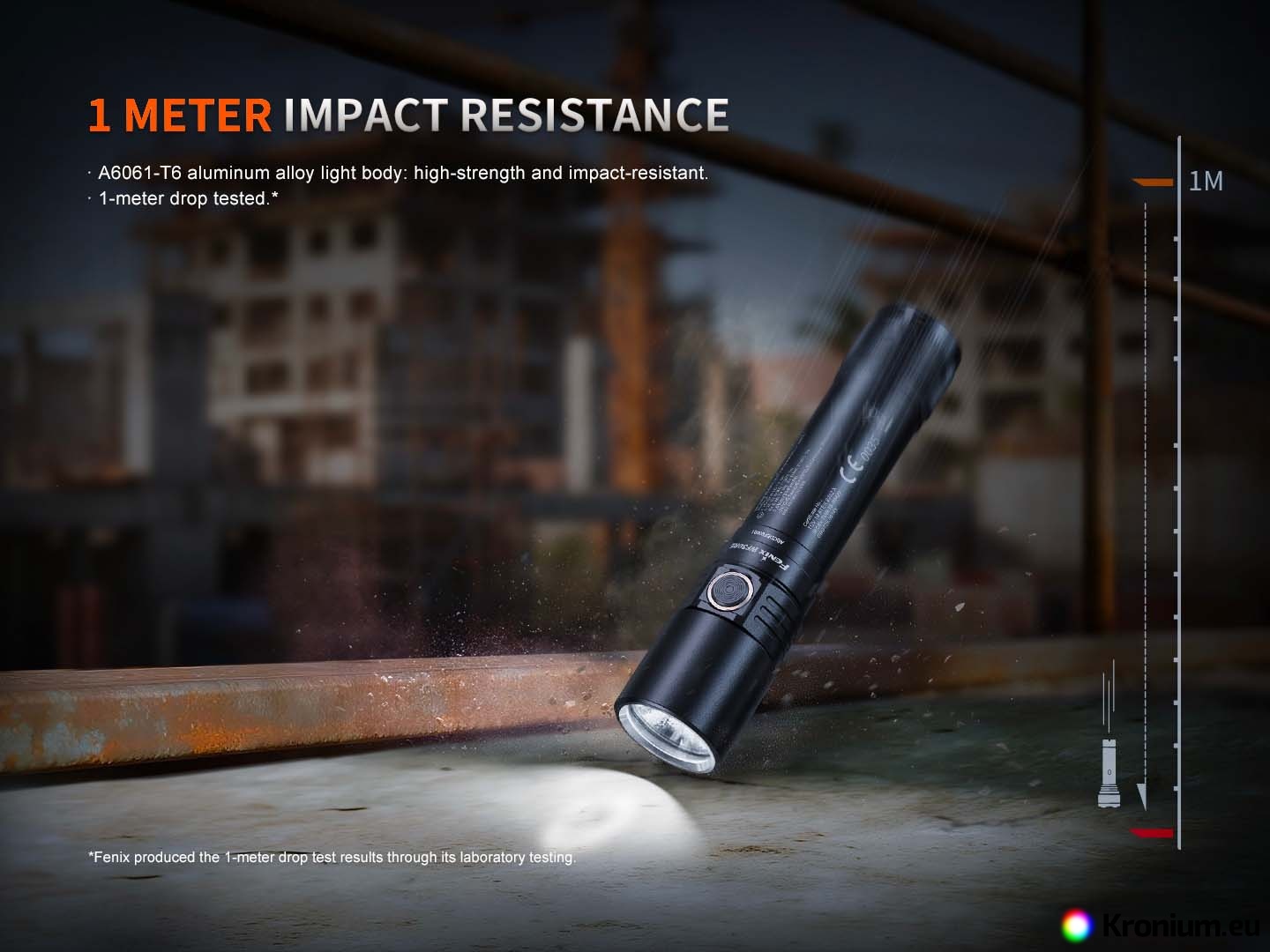

• Impact resistant to falls from a height of 1 meter.

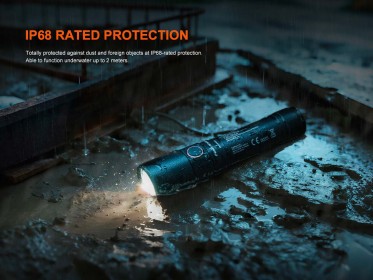

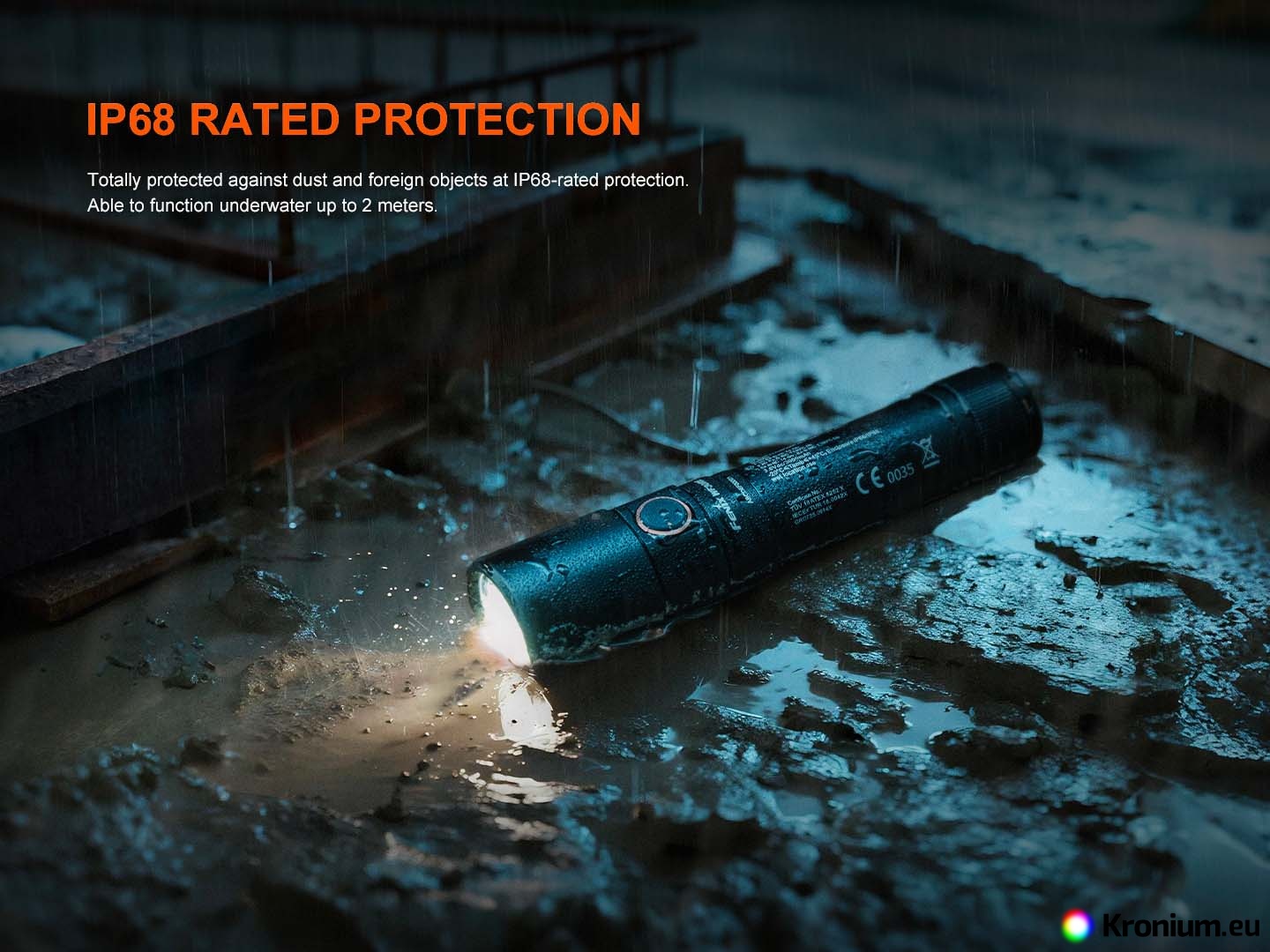

• Waterproof and dustproof according to the IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Textured aluminum reflector for a perfect light beam with a distance of 149 meters (5572 cd).
• Dimensions: 15.17 cm (length) x 3.4 cm (head diameter) x 2.8 cm (body diameter).
• Weight: 218 grams (including battery).

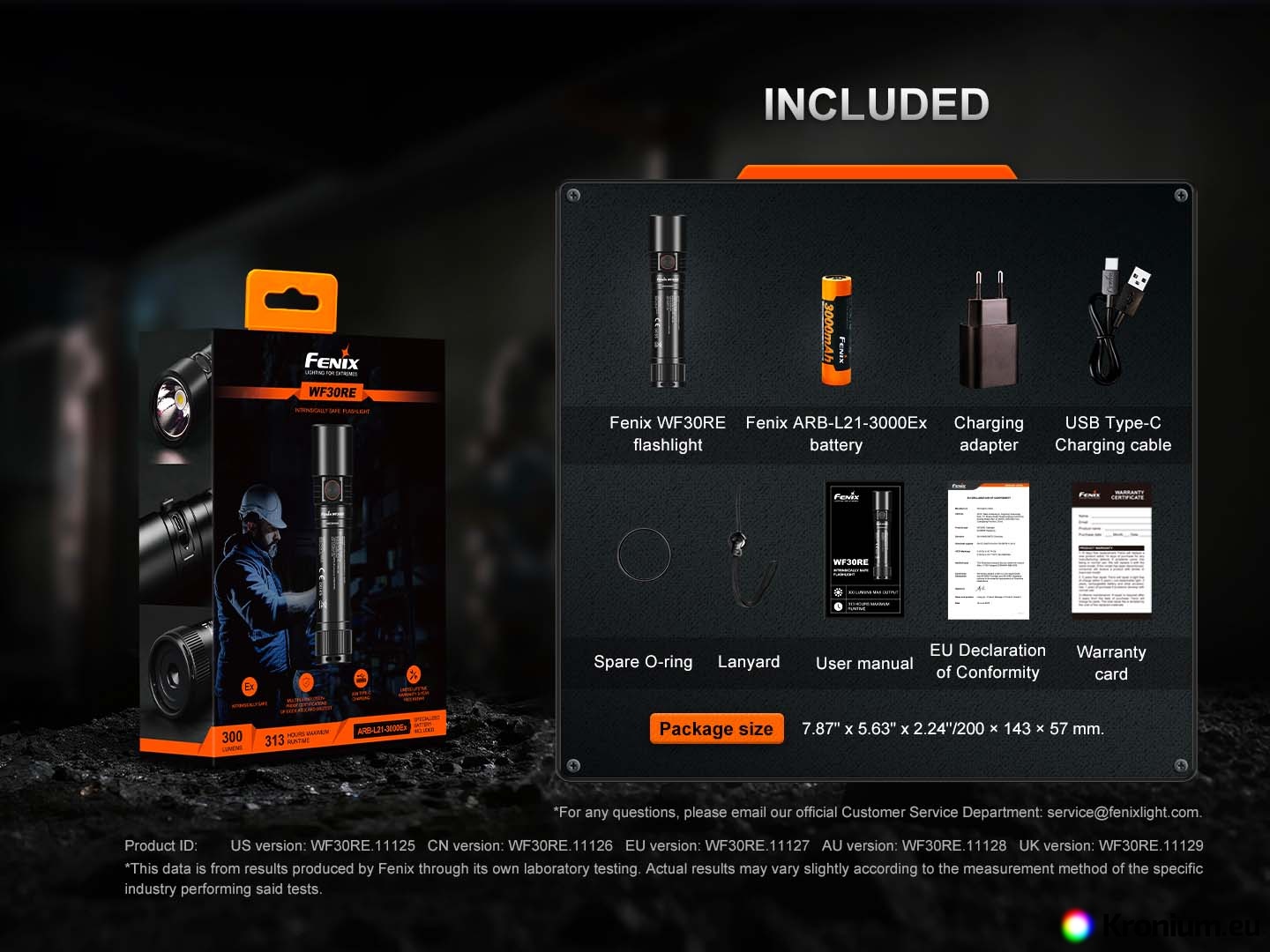

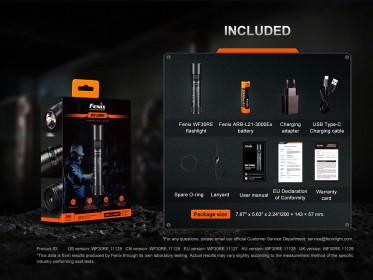

• Package contents: Fenix WF30RE flashlight, Fenix ARB-L21-3000Ex battery, charging USB adapter, USB-C charging cable, EU Declaration of Conformity, spare O-ring, lanyard, user manual, warranty card.

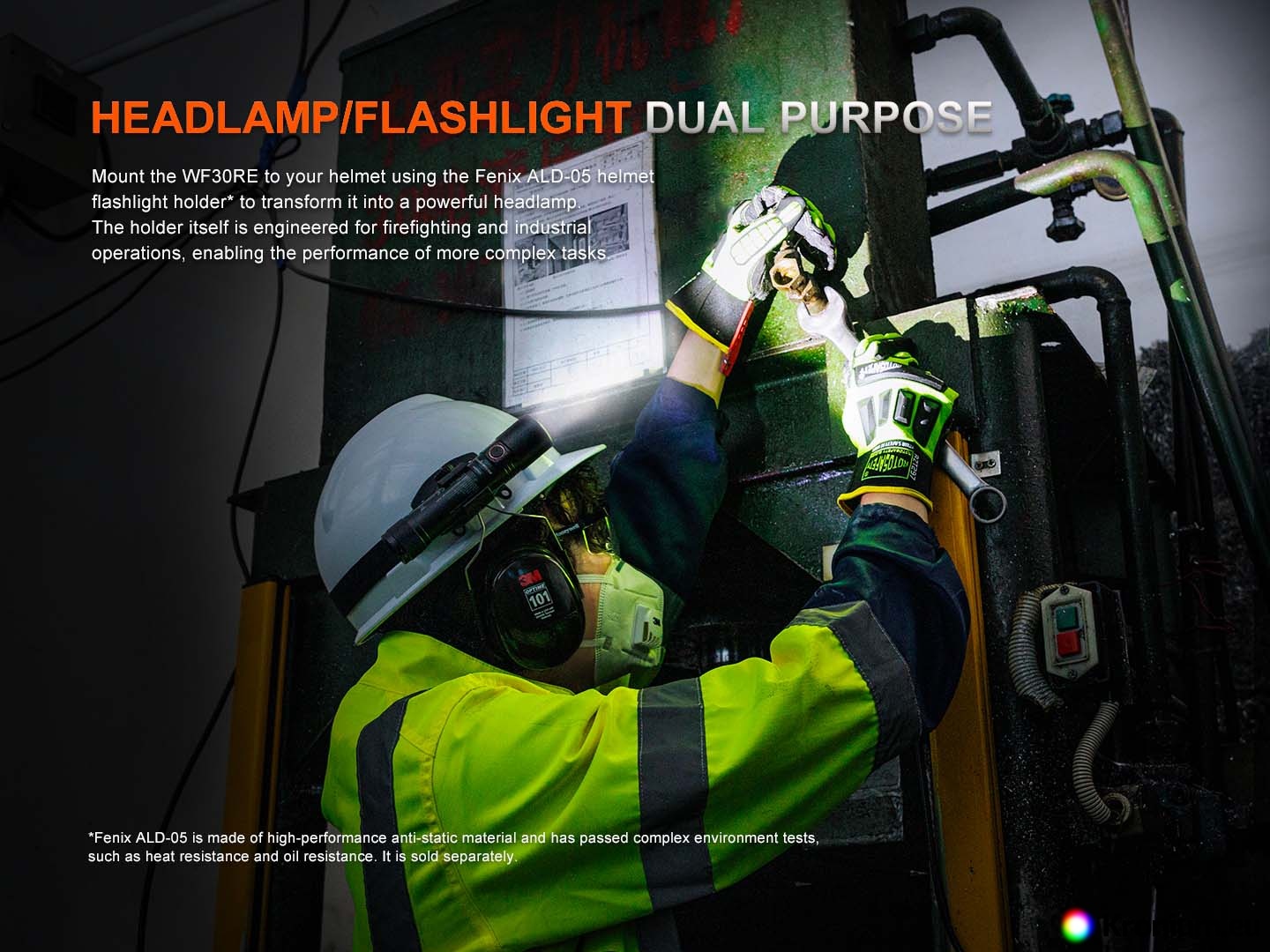

• A Fenix ALD-05 strap for helmet use can be purchased for the flashlight.

Operation:

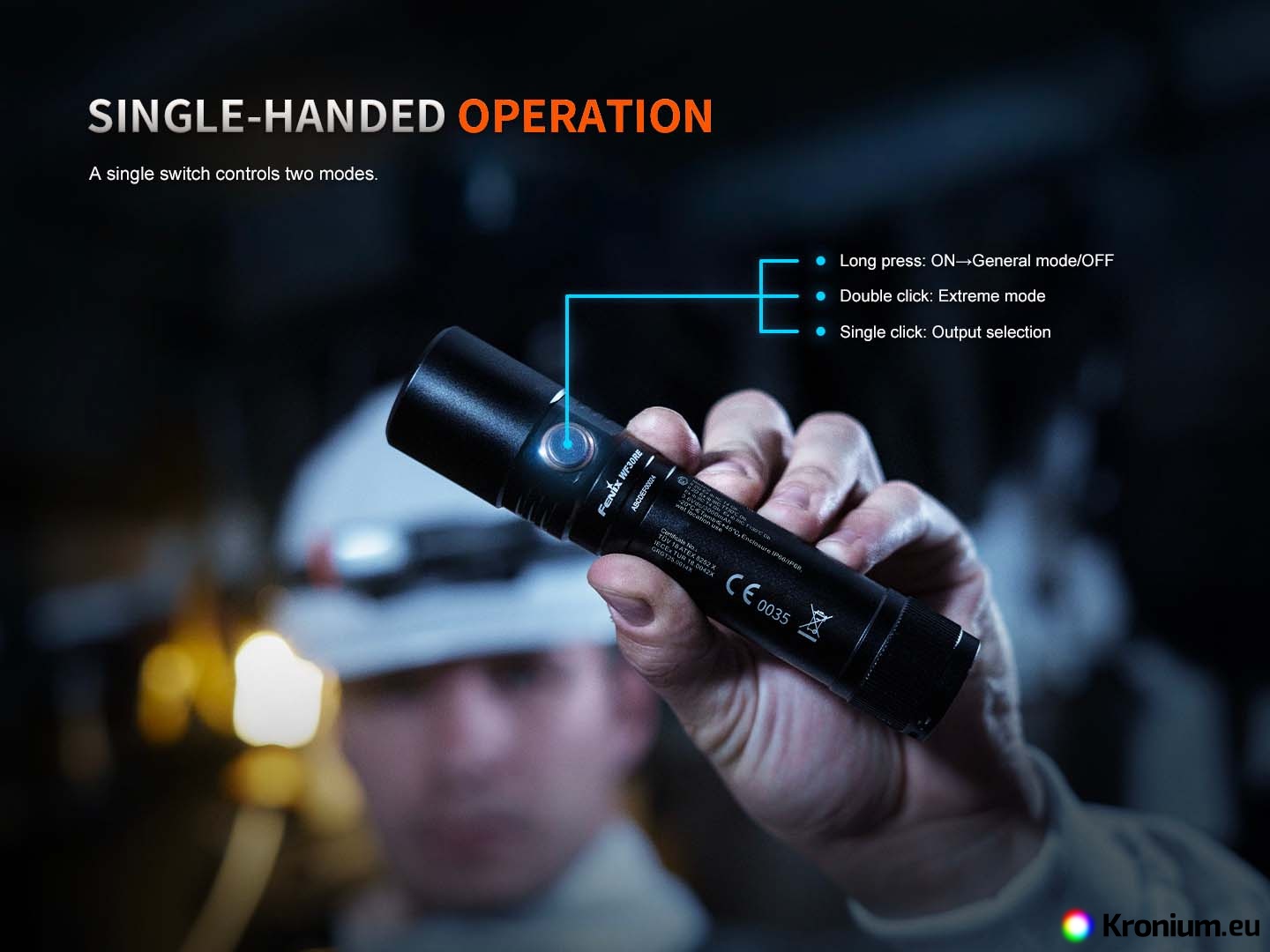

With the flashlight turned off, press and hold the switch for 0.5 seconds to turn it on in the last used general mode. With the flashlight off, double-click the switch to turn it on in the 5-lumen emergency mode (Extreme mode). You can switch between output modes at any time during operation by pressing the side button within the selected mode group. With the flashlight on, press and hold the switch for 0.5 seconds to turn it off.

Battery Level Indication – press the flashlight's button (while it is off). If the indicator diode glows green, the battery is charged to more than 85%. A flashing green light means 50-85% capacity. If it glows red, it is charged to 25-50%. A flashing red light indicates that less than 25% of the battery capacity remains.

Low-Voltage Warning - the flashlight will gradually downshift to the lowest mode automatically, and the indicator in the button will start flashing red.

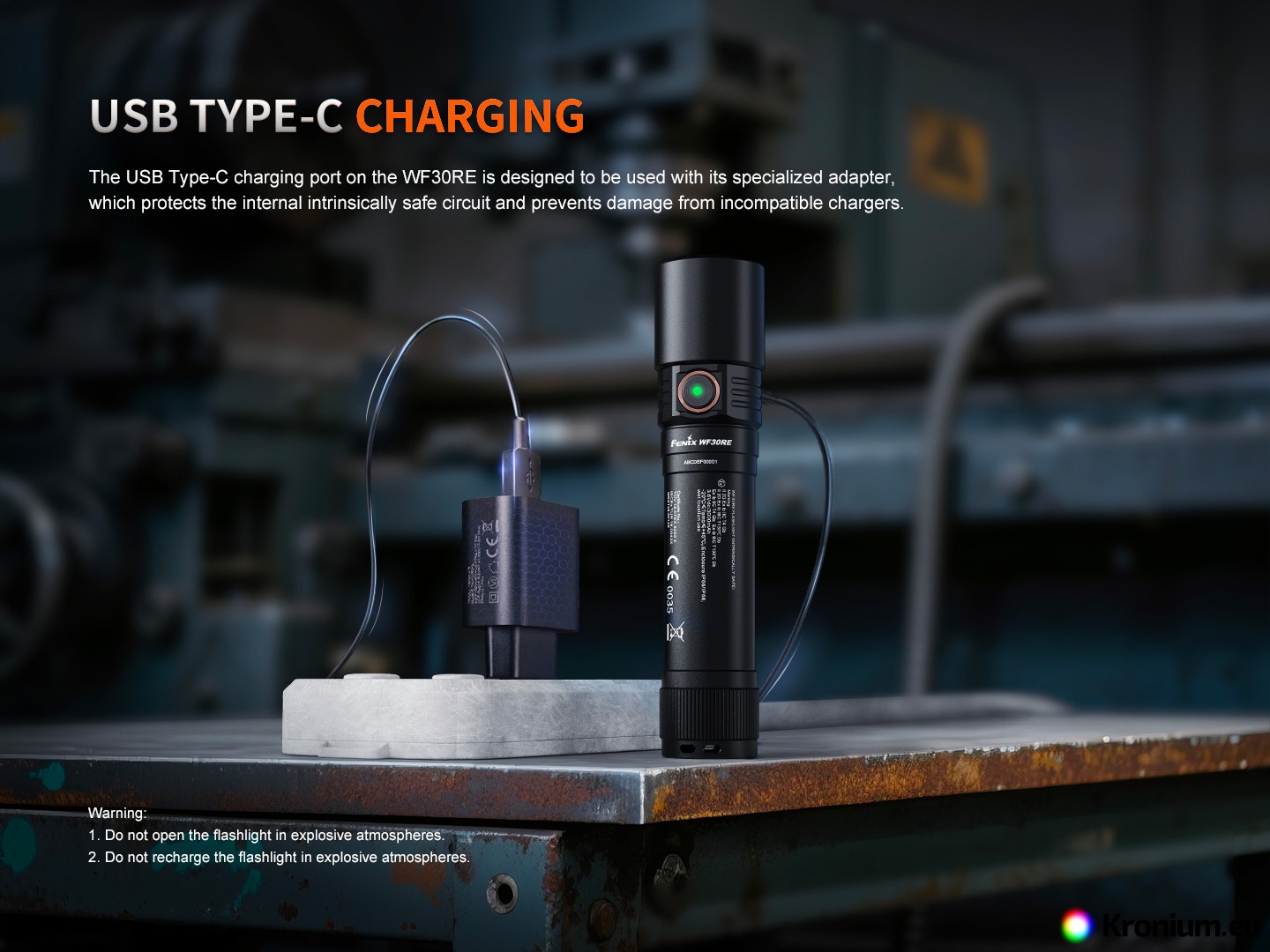

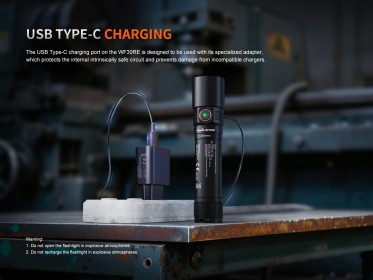

Charging - Lift the anti-dust cover and plug the USB-C charging cable into the charging port. Replace the anti-dust cover after charging is complete. During charging, the indicator in the button glows red. Once fully charged, it will turn green. Do not charge the flashlight in an explosive atmosphere. For safety, use the included USB charging adapter when charging.

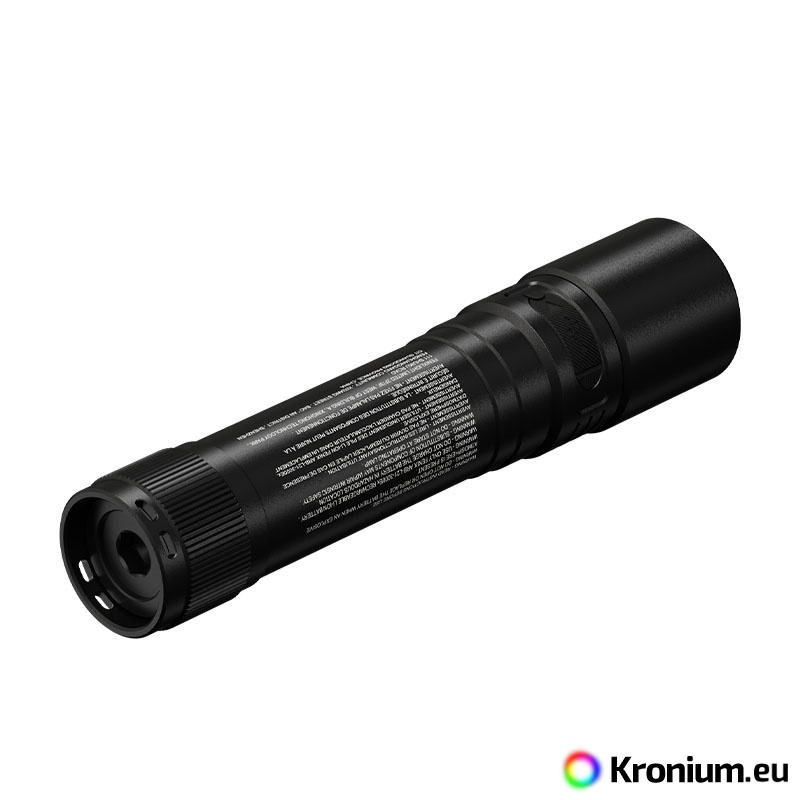

To replace the battery, unscrew the tail cap of the flashlight using an 8 mm Allen key. Never replace the battery in an explosive atmosphere.

Warning

• All servicing, charging, and battery replacement must be performed outside of an explosive atmosphere!
• Use only the manufacturer-certified Fenix battery.
• If the sealing O-ring on the tail cap thread becomes damaged, replace it with the spare one from the package.
-
• If the flashlight flickers, does not switch to higher modes, or will not turn on, it may be for one of the following reasons:
  • The battery is depleted; charge or replace it.

Warranty

Five-year warranty on the flashlight, two-year warranty on the battery.
