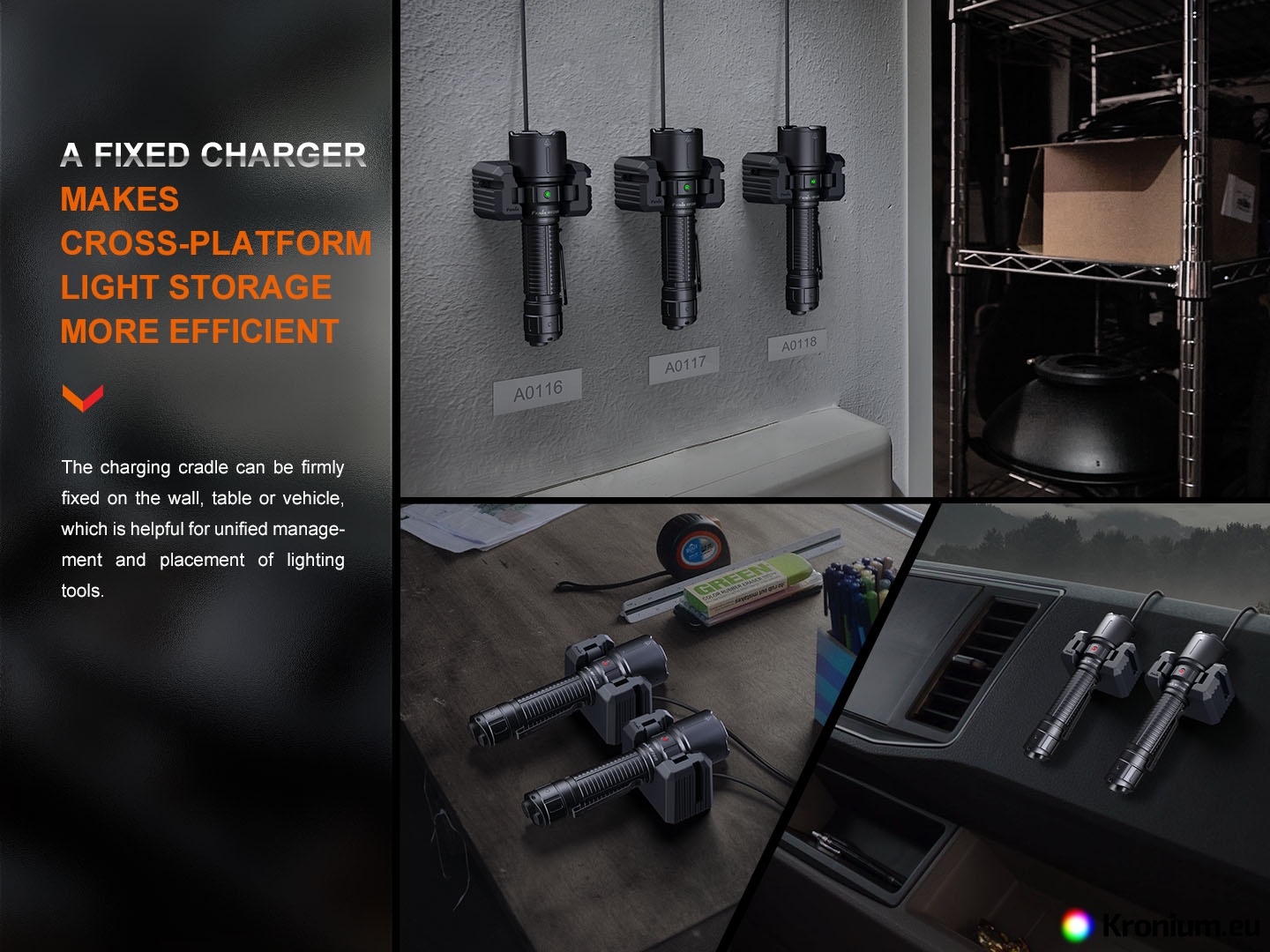

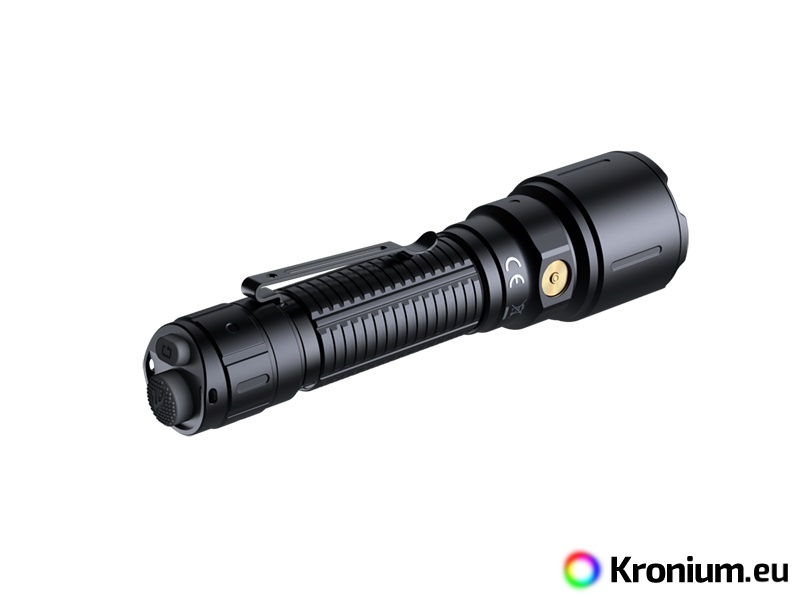

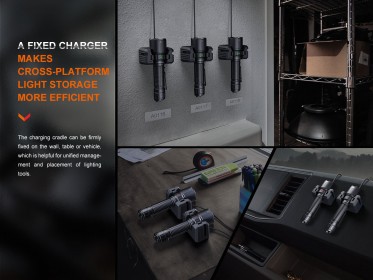

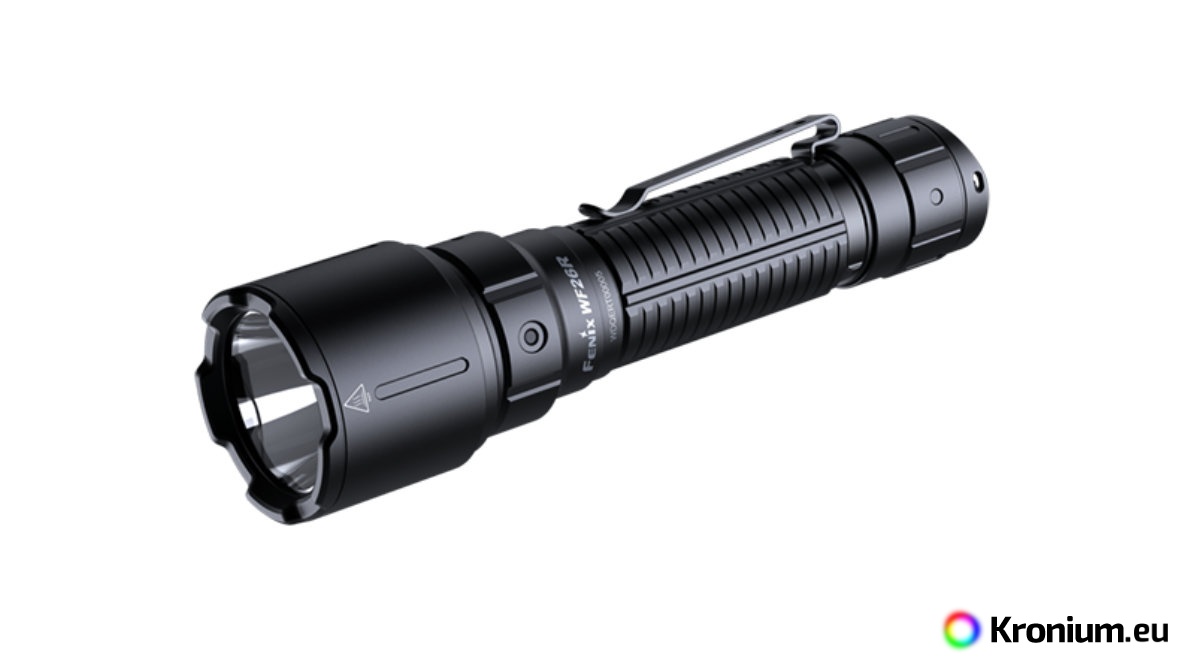

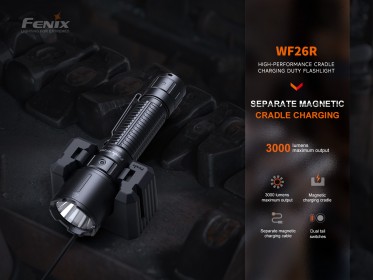

The reliable Fenix WF26R service flashlight offers a light output of up to 3000 lumens and a range of up to 450 meters. Power is provided by a Li-Ion 21700-type battery with a capacity of 5000 mAh, which is charged directly in the flashlight using the included cradle with USB cable. The flashlight simply snaps into the cradle when charging. The cradle is equipped with mounting holes so that it can be screwed onto a wall, for example. The charging cable can be removed from the cradle and the lamp can be charged outside the cradle.

The Fenix WF26R has a total of six lighting modes (including strobe and SOS) with up to 44 hours of operation time. It uses a dual tactical switch for control, which allows for faster and more reliable control in emergency situations. For example, it can be easily switched directly to stroboscopic mode.

Excellent technical parameters, waterproof and shockproof design predestine this flashlight for use in harsh outdoor conditions. It will be especially appreciated by members of the armed forces, firefighters, rescue workers and the mountain service when on duty. It will also find popularity with security agencies and facility security.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

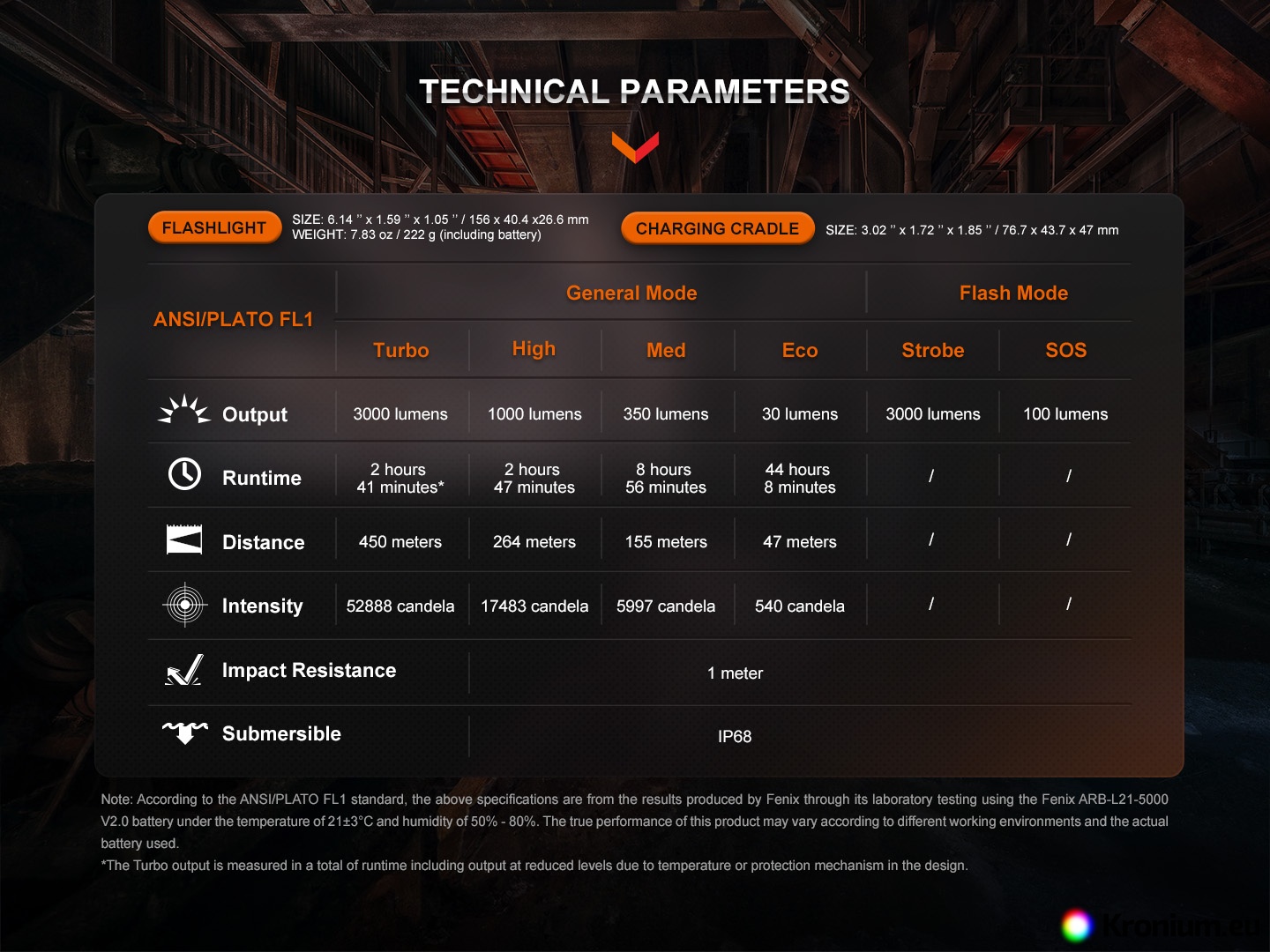

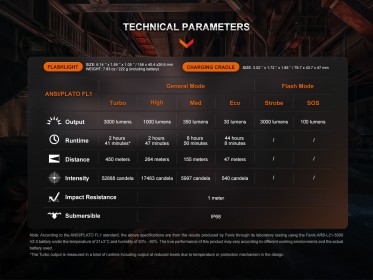

Fenix WF26R flashlight specifications

• Premium Luminus SFT-70 LED with 50,000 hours lifetime is used.
• Six power modes: 3000 lumens (2.7 hours total, reducing to 1000 lm after 1 minute) -> 1000 lumens (2.8 hours) -> 350 lumens (8.9 hours) -> 30 lumens (44 hours) - Strobe (3000 lumens) - SOS (100 lumens).

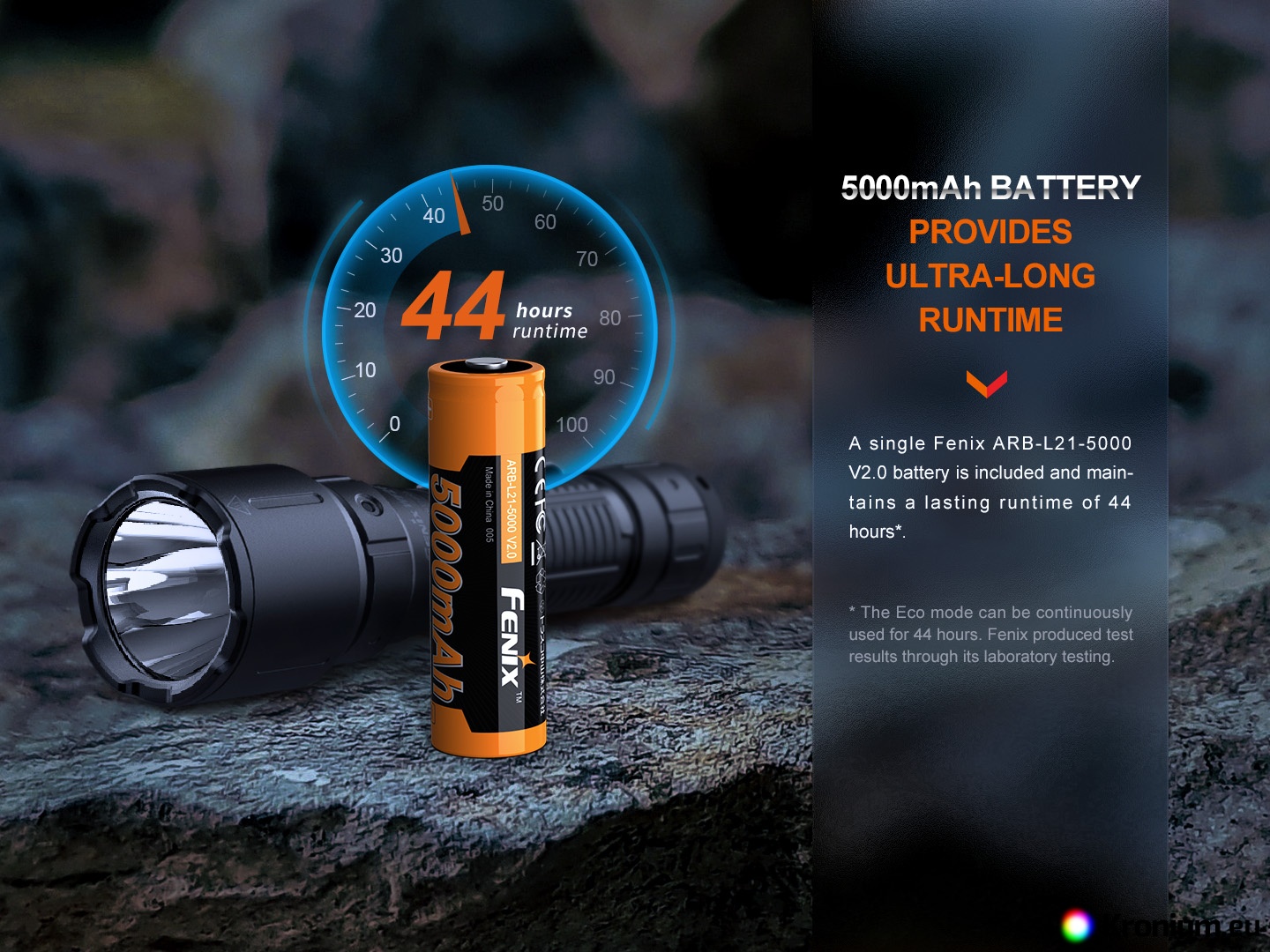

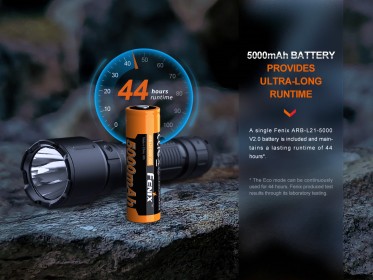

• Light output and run times are measured with the included Li-ion 21700 battery with 5000 mAh capacity.
• Max. battery diameter 22,0 mm., max. battery length 77,5 mm.
• Electronics with digital constant control and intelligent overheat protection.

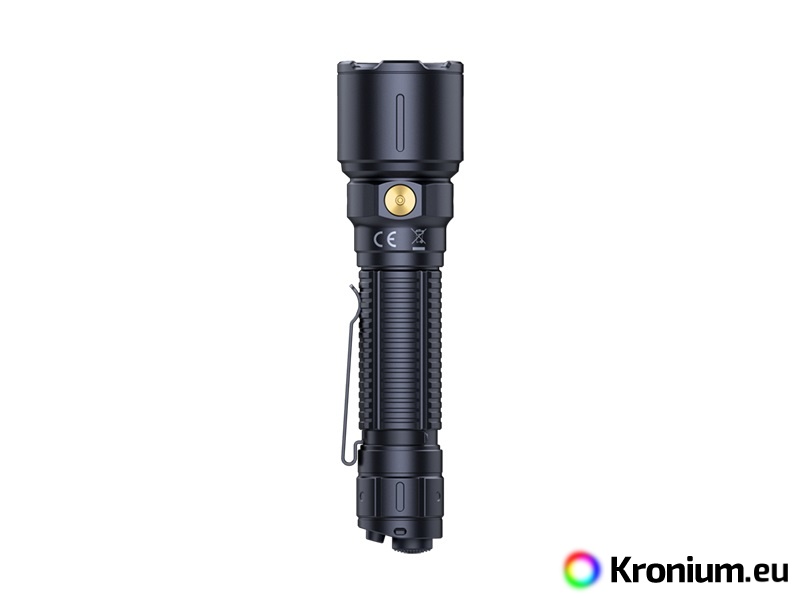

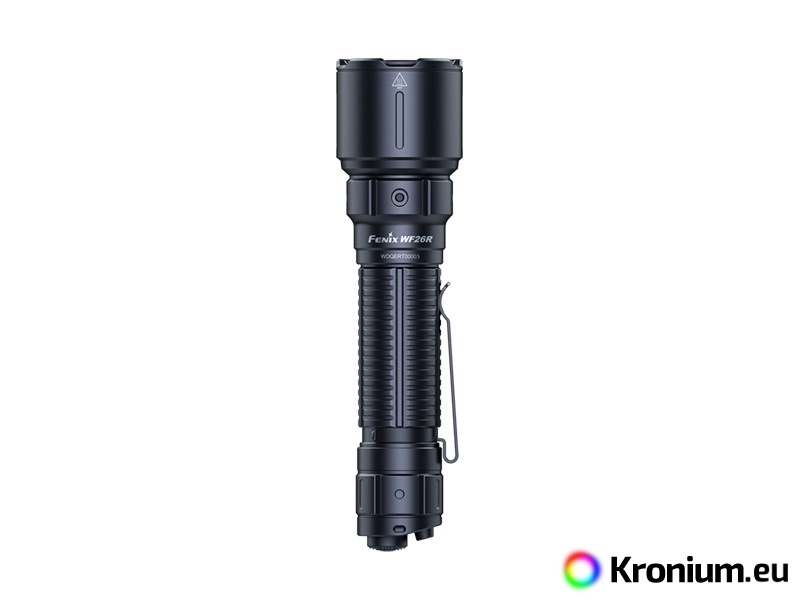

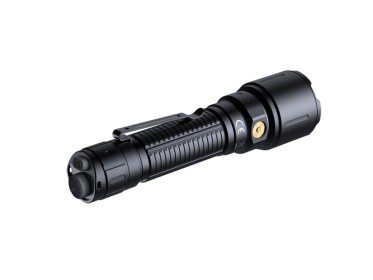

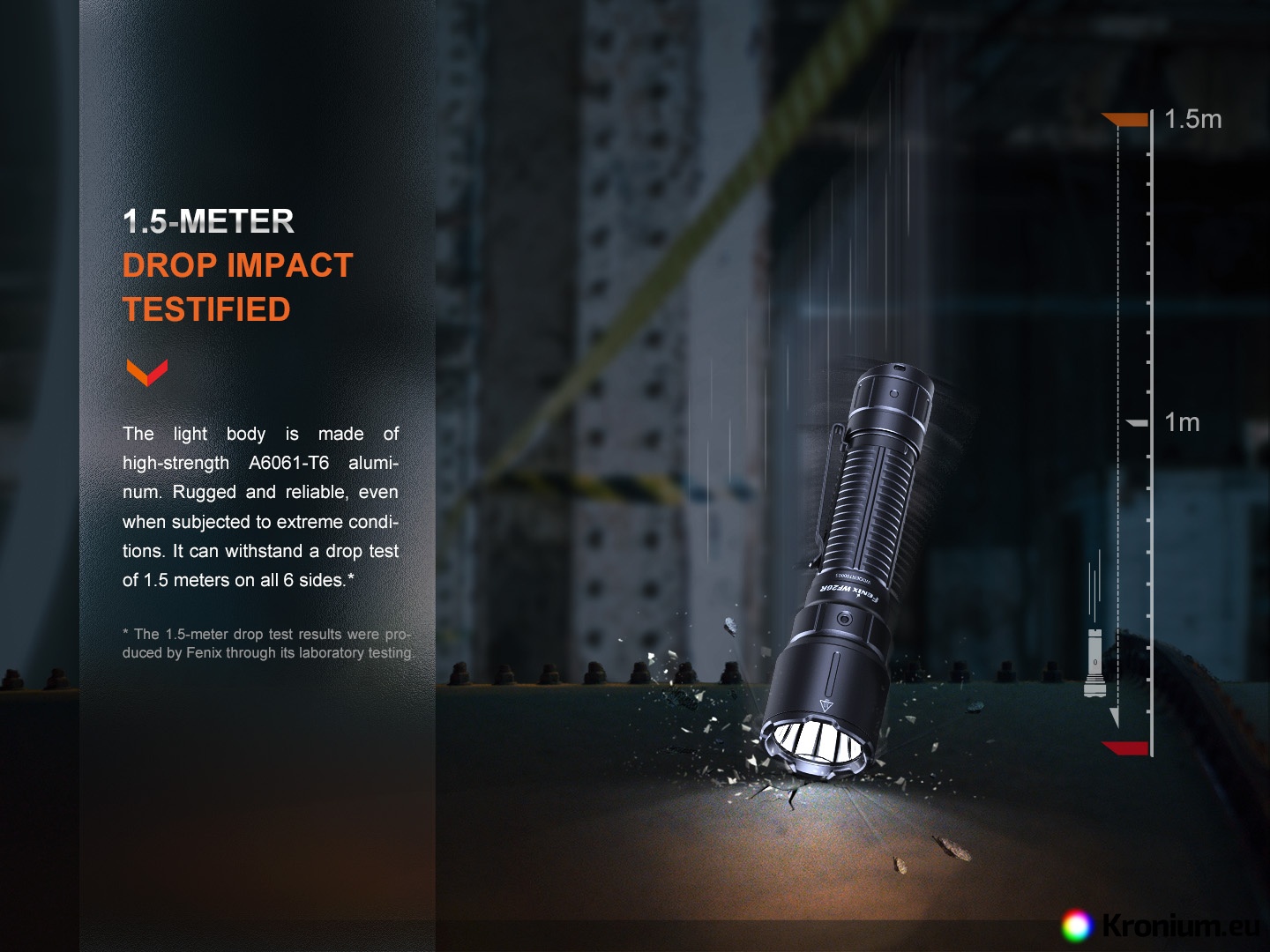

• Made of 6061-T6 aerospace-grade hardened aluminum, the flashlight is impact resistant to drops from 1.5 meters.
• Protection against accidental insertion of the battery in reverse (reverse polarity).
• Bottom surface - Type III hard anodized.
• Battery charge indication at the head of the flashlight.

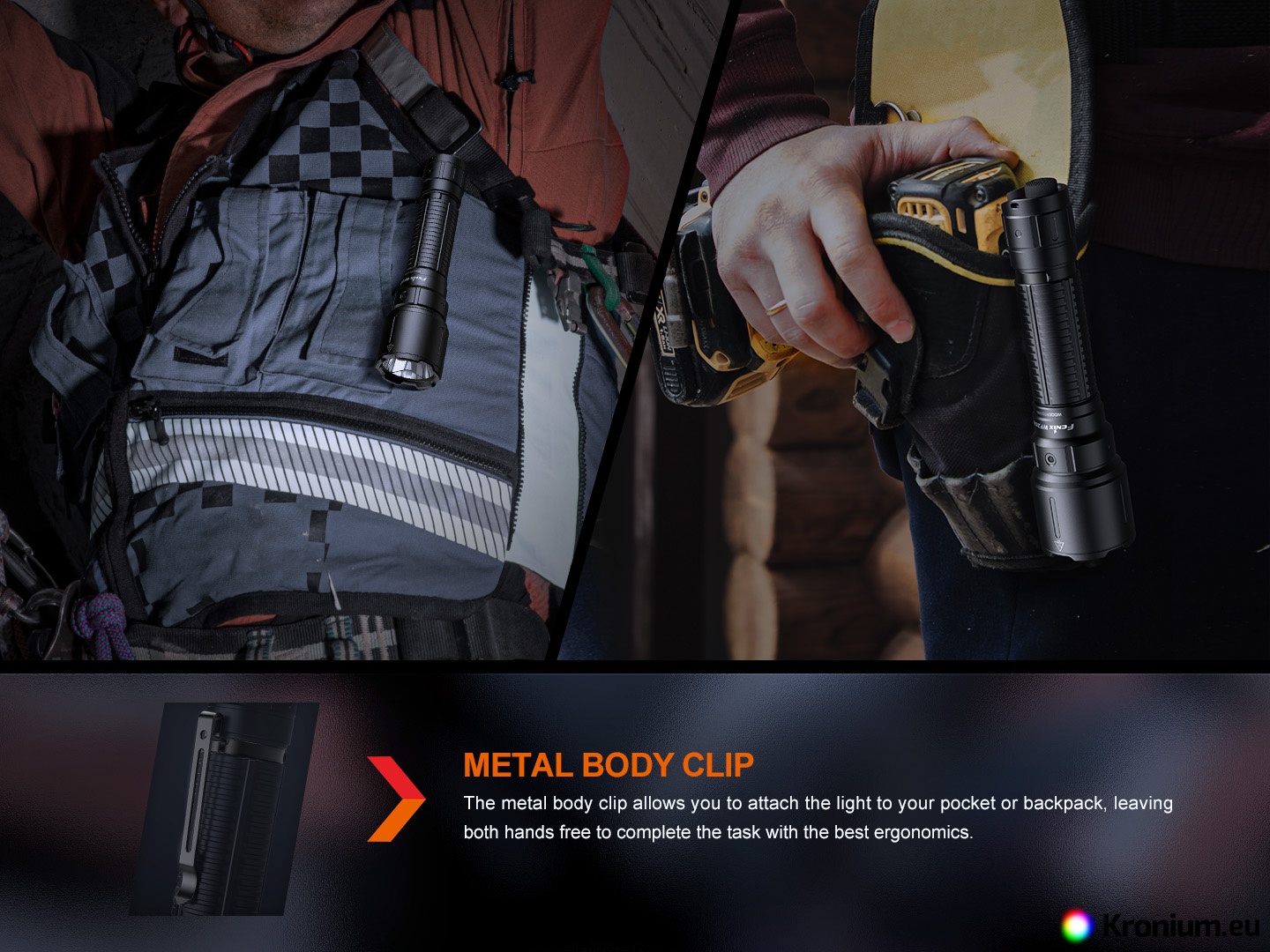

• Removable steel clip for attachment to pocket or belt.

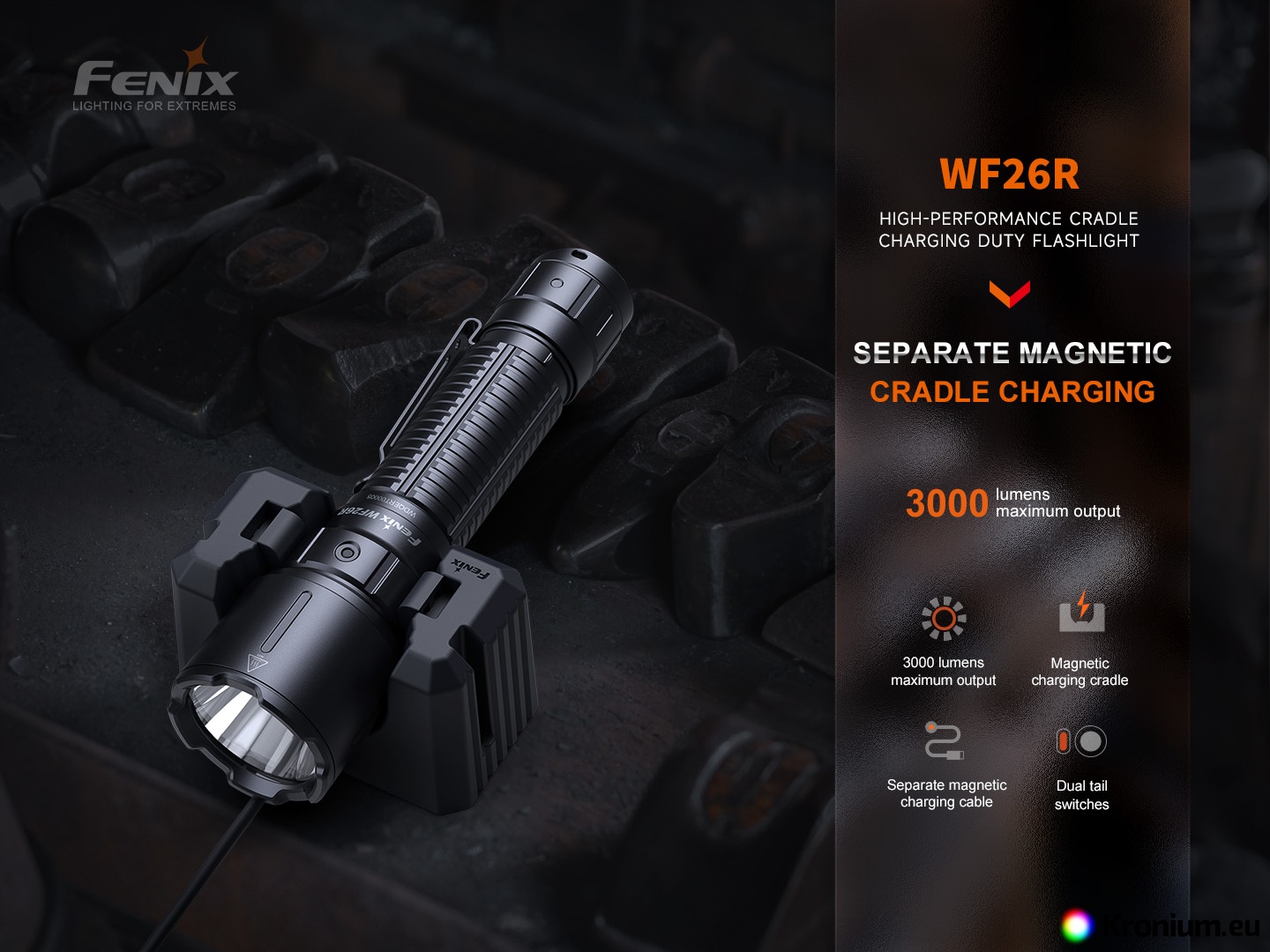

• Magnetic charging cradle, cradle is powered by standard USB cable (USB power supply not included).

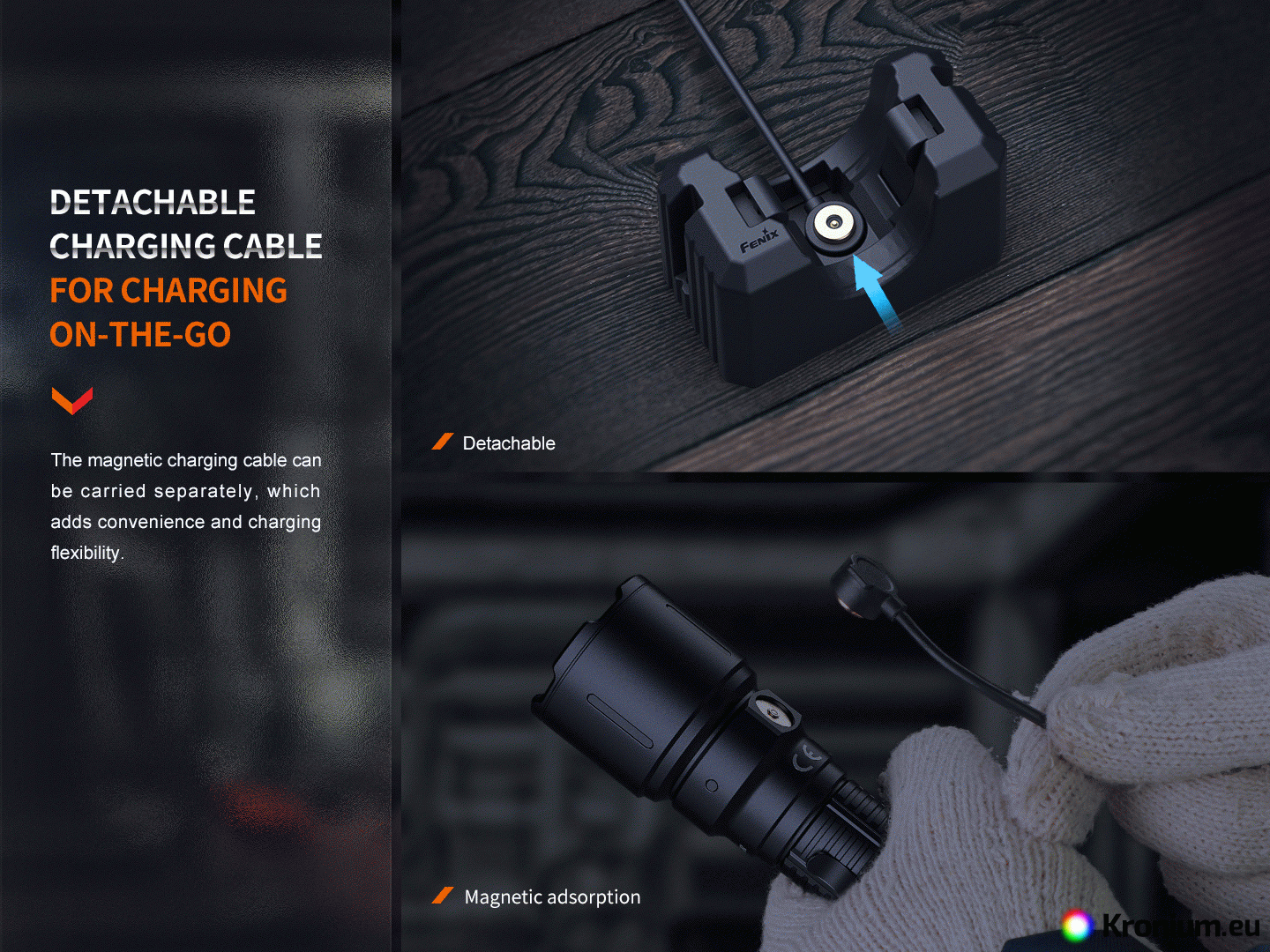

• Cable can be removed and the flashlight can be charged outside the cradle.
• The flashlight has a memory and always turns on in the last set mode (not valid for flash modes).

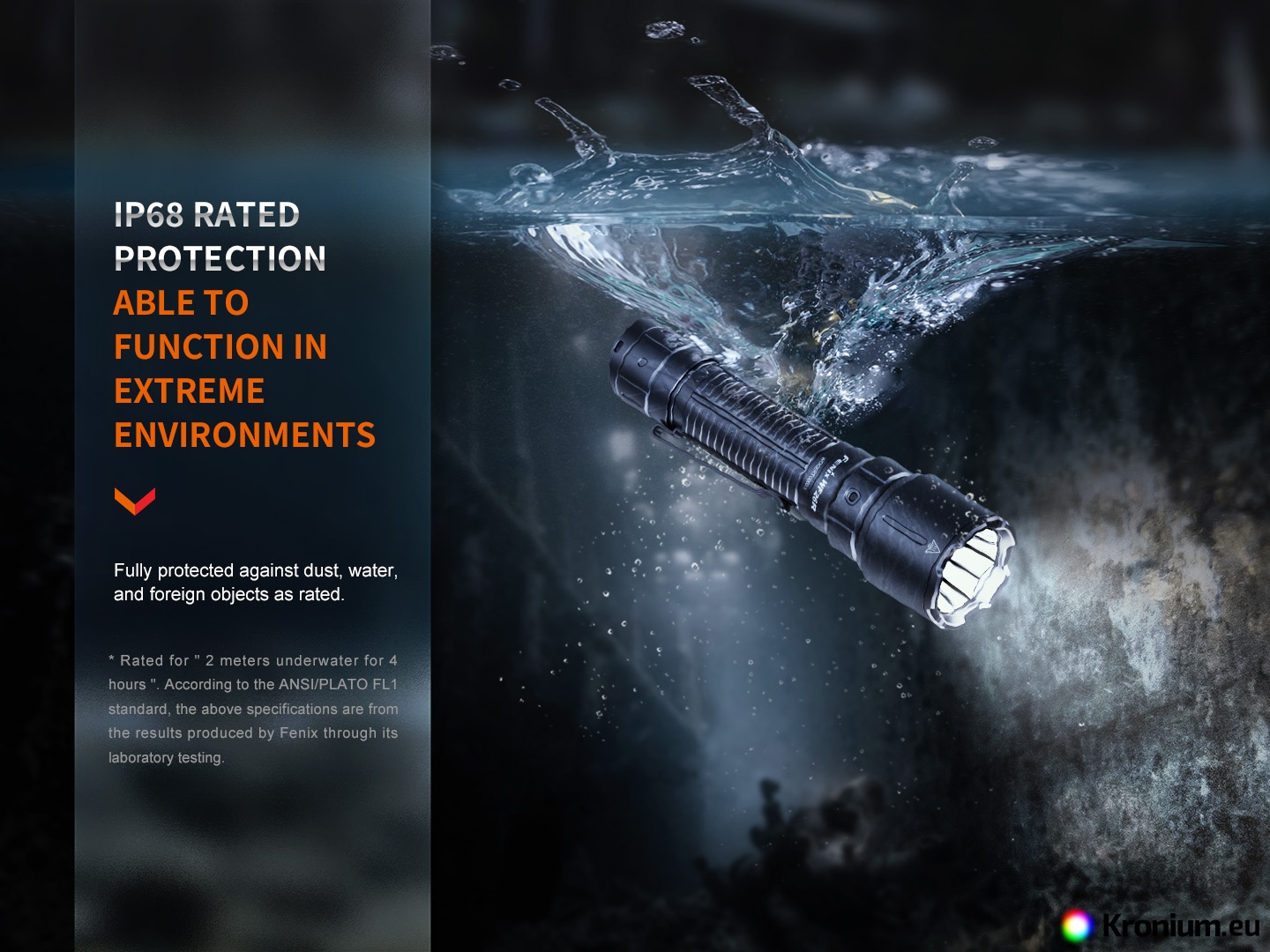

• Waterproof and dustproof according to IP68 standard (tested underwater at a depth of 2 meters for 4 hours).
• Reflector produces a well-focused light cone with a range of 450 meters (52,888 cd).
• Lamp dimensions: 15.6 cm (length) x 4.04 cm (reflector diameter) x 2.66 cm (body diameter).
• Cradle dimensions: 7.67 x 4.37 x 4.7 cm.
• Weight 222 grams with battery pack.

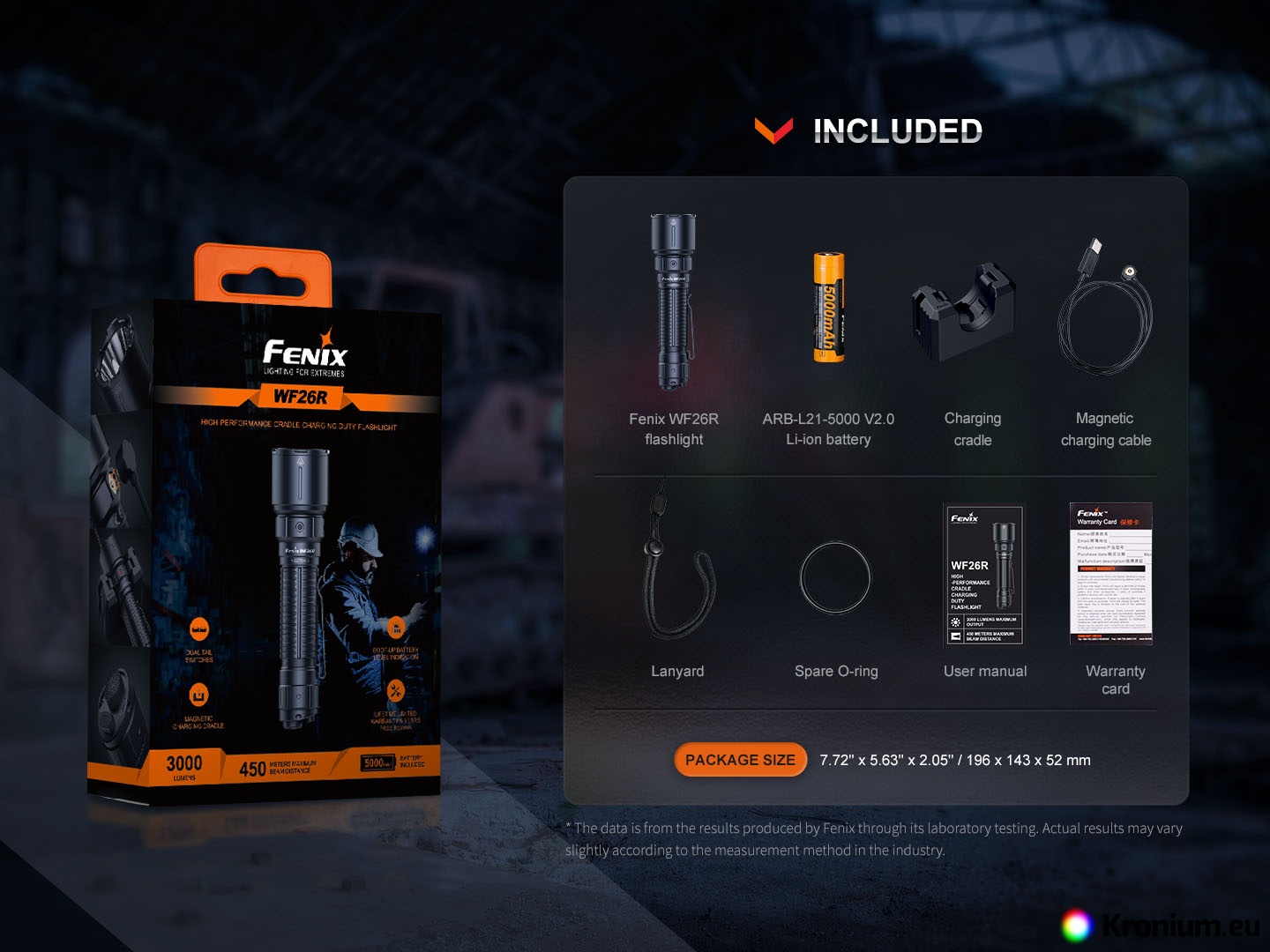

• The flashlight comes with a Fenix ARB-L21-5000 V2.0 battery, charging cradle with USB charging cable, wrist lanyard and spare o-ring.
• Model WF26R comes without a case. The textile holster can be purchased separately.
• As an optional original accessory, the Fenix ALD-05 strap for use of the flashlight on the helmet, Fenix bike holder, USB mains adapter and USB car adapter.

Using the Fenix WF26R flashlight

From manufacture, there may be an insulating cap inside the flashlight on the battery. Remove it from the battery pack before first use.

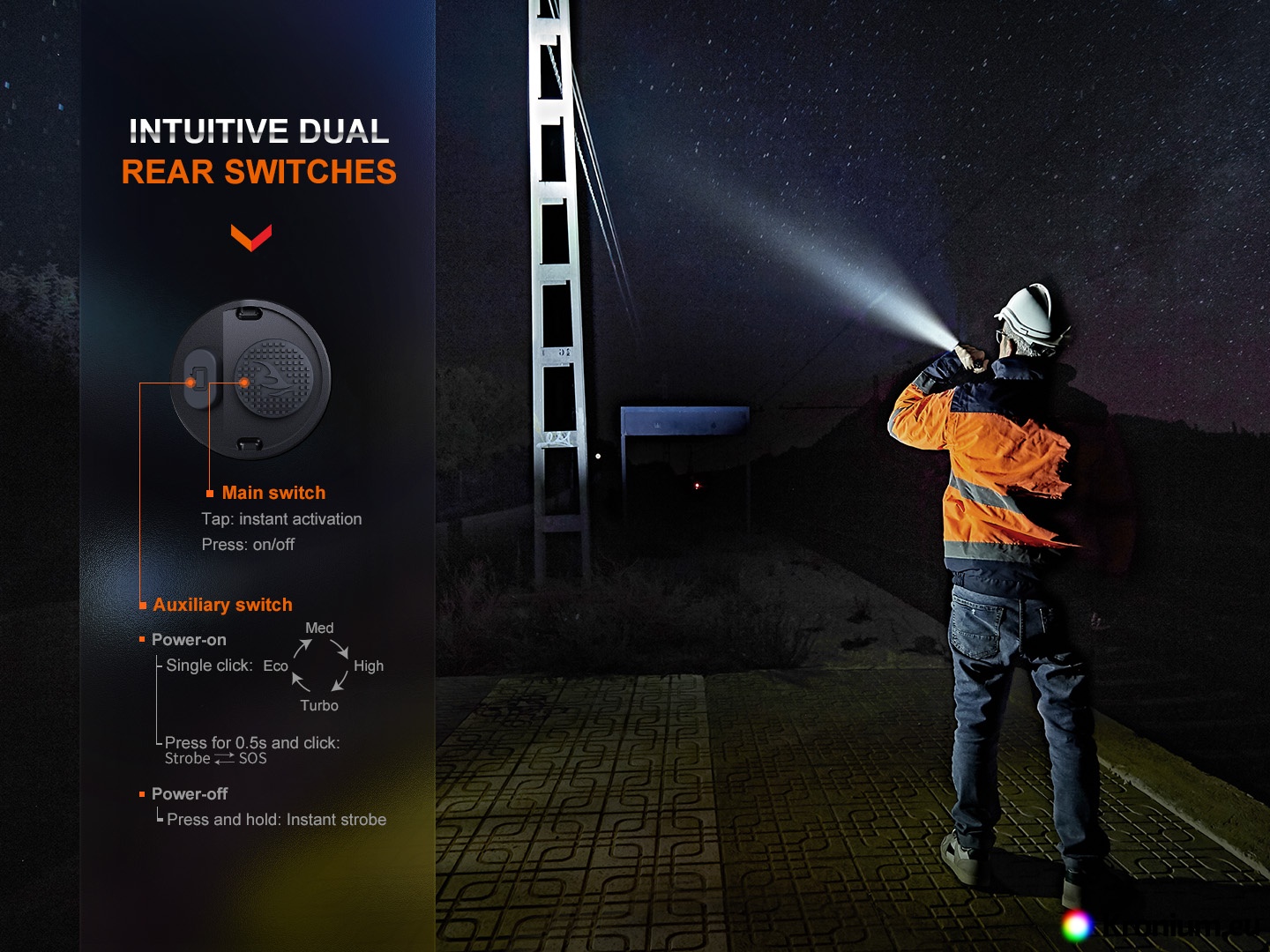

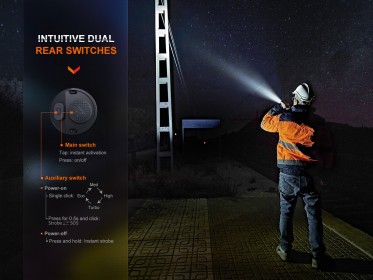

To turn on/off press the larger tactical button located on the end of the flashlight, press the button for immediate activation. Press the adjacent toggle button to switch between power modes at any time during operation. To switch to strobe mode with the flashlight on, hold the toggle button for approximately 0.5 seconds, then further presses of the button can switch between strobe and SOS mode. To access the strobe from a switched off flashlight, press and hold the smaller button.

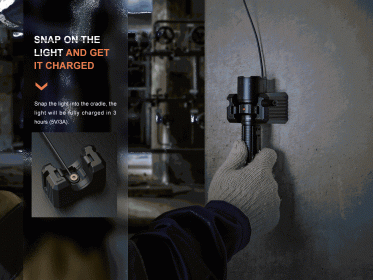

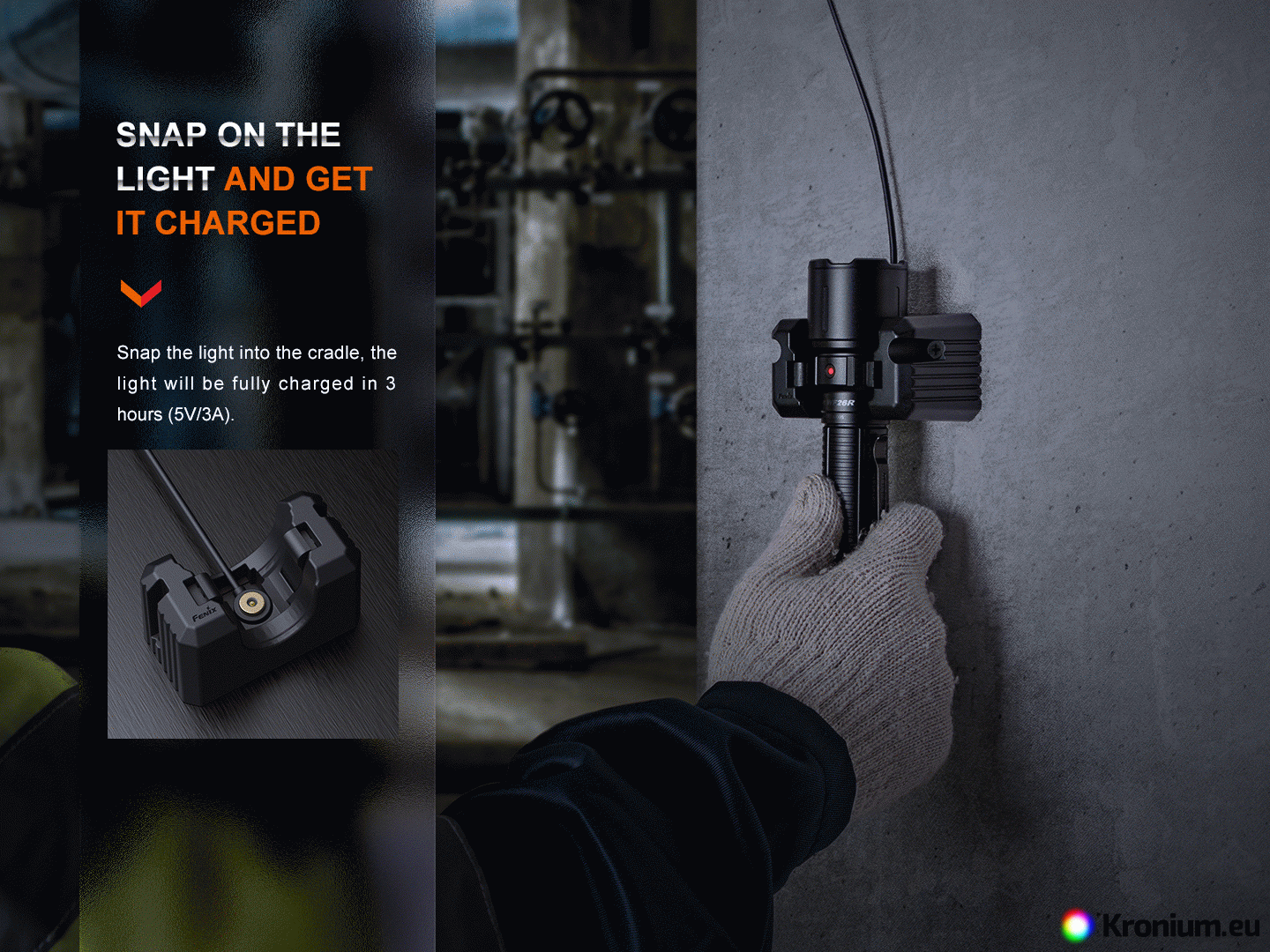

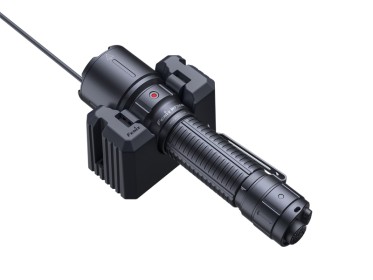

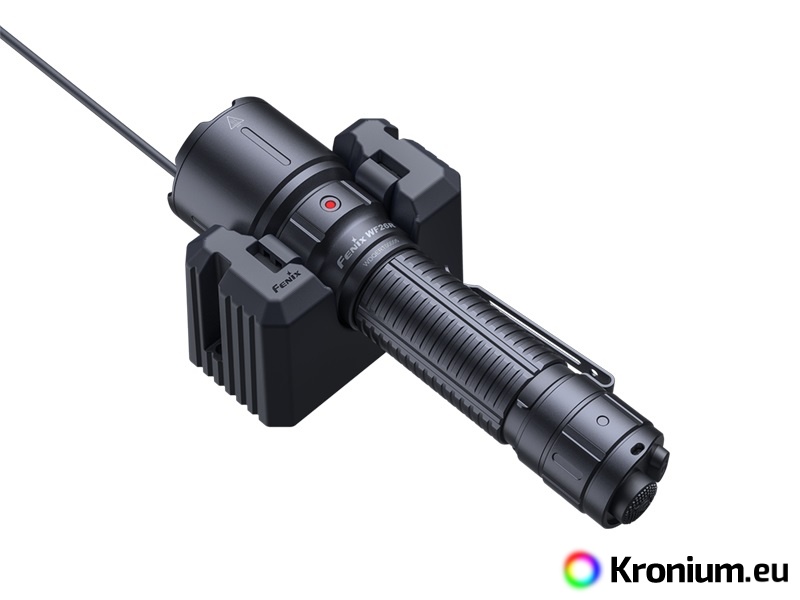

Charging - snap the flashlight with the charging connector facing inward in the cradle. Alternatively, if you have removed the charging cable from the cradle, attach the magnetic connector of the charging cable to the connector on the flashlight. Plug the other end of the cable into your computer, or USB to mains adapter or car. The side indicator lights red while charging. When fully charged, it will light up green. Charging a fully discharged battery takes approximately 3 hours using a 3A power supply. The flashlight cannot be used while charging.

Intelligent overheat protection - Due to the fact that the flashlight reaches a huge power of 3000 lumens, there is a temperature rise. If the temperature exceeds 60°C, an automatic power reduction occurs. Once the temperature drops below 60°C, the highest power output can be used again.

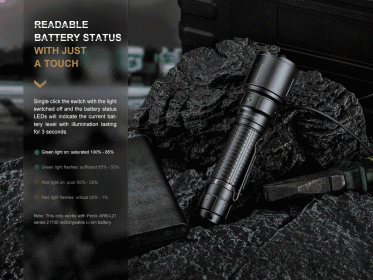

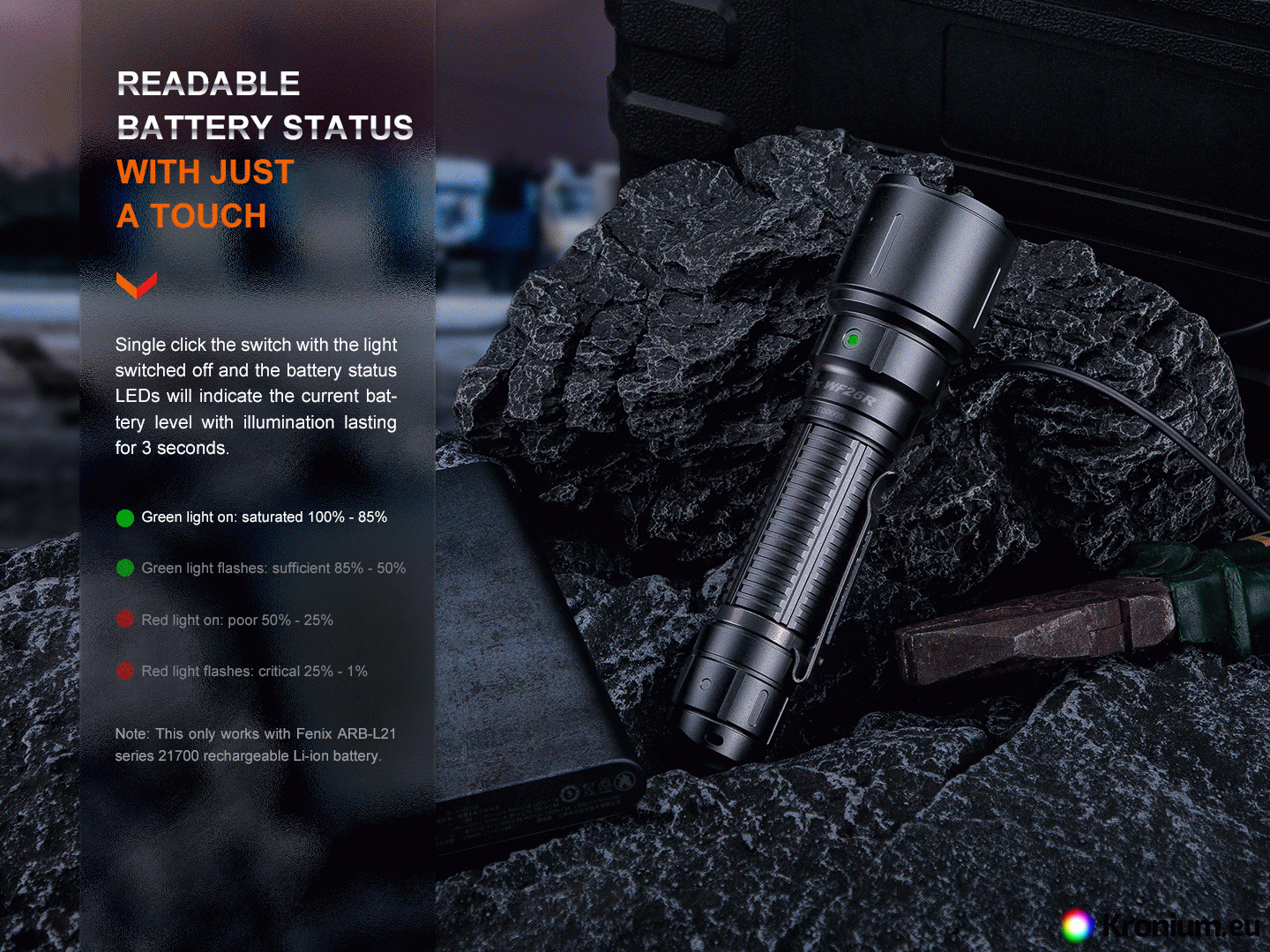

Battery charge status indication - The flashlight always indicates the battery charge status three seconds after switching on. Green indicates sufficient state of charge (100% - 85%), green flashing (85% - 50%), steady red (50% - 25%) and flashing red indicates critically low battery (25% - 1%). If the battery is low, the flashlight will automatically switch to lower power modes as the flashlight progresses.

Discharged Battery Warning - the flashlight will gradually switch automatically to the lowest power mode and then the indicator will keep flashing red.

Warning

• Do not disassemble the sealed part in the flashlight head yourself, it will violate the warranty.
• Use only high quality 21700 Li-ion batteries to prevent damage to the flashlight, for example due to leakage of substances from the battery.
• If the protective rubber rings appear damaged after prolonged use, replace them.
• If the flashlight flashes, does not switch to higher power, or does not light up, one of the following may be the cause:
  • The battery is dead, charge it.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.
  • The flashlight cap is loose, tighten it.
