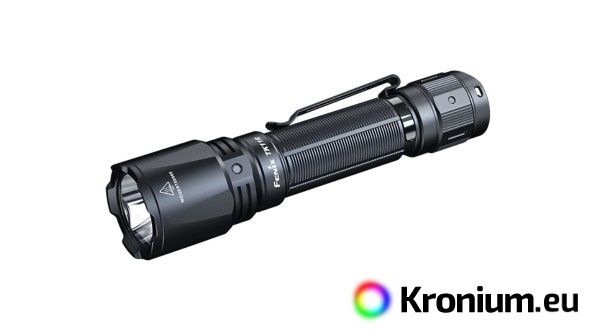

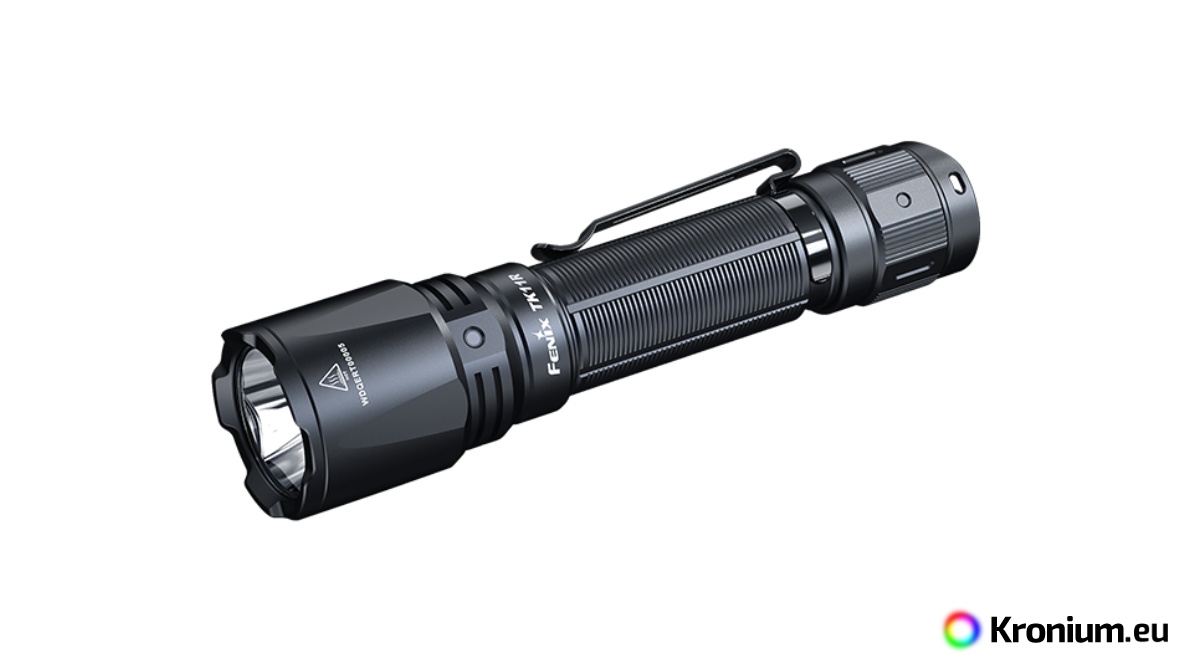

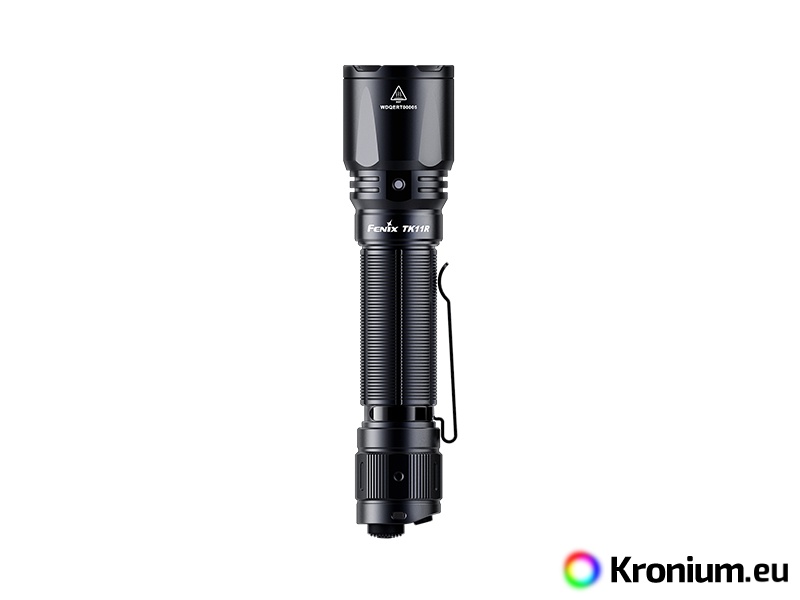

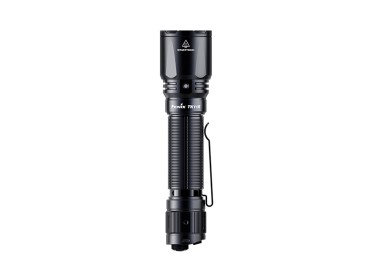

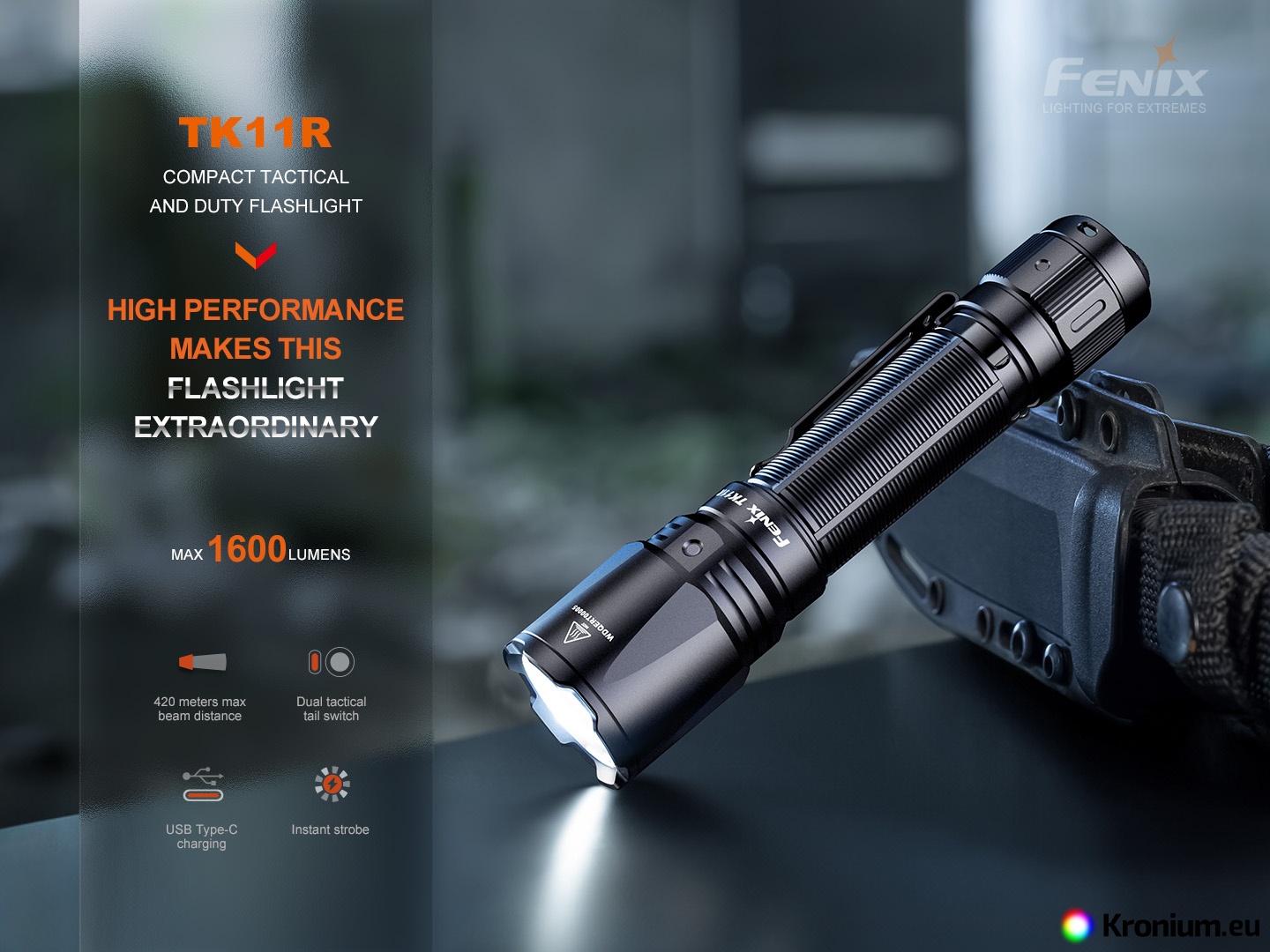

Fenix TK11R is a rechargeable tactical flashlight with simple operation with the possibility of quick activation of the strobe and an output of up to 1600 lumens. It is equipped with a top LED Luminus SFT-40, thanks to which it shines up to a distance of 420 meters. The flashlight uses a dual tactical switch that allows for faster and more reliable control in crisis situations. The head of the flashlight is equipped with a striking rim, so the flashlight can be used to break through glass or for self-defense. The robust design allows the flashlight to be used on long weapons, so it is suitable for professionals, armed forces and hunting. The flashlight is powered by one high-capacity Li-ion 18650 3400 mAh battery (included in the package), which is charged directly in the flashlight via a modern USB-C connector and supplies energy up to for 25.5 hours of lighting, or in an emergency from two disposable CR123A batteries. The solid and waterproof design predestines this tactical flashlight primarily for harsh outdoor conditions and for use in security components, in search, rescue operations and for hunting.

All parameters of the flashlight (luminous flux, battery operation time, waterproofing, throw and impact resistance) are measured in compliance with the ANSI/ NEMA FL 1-2009.

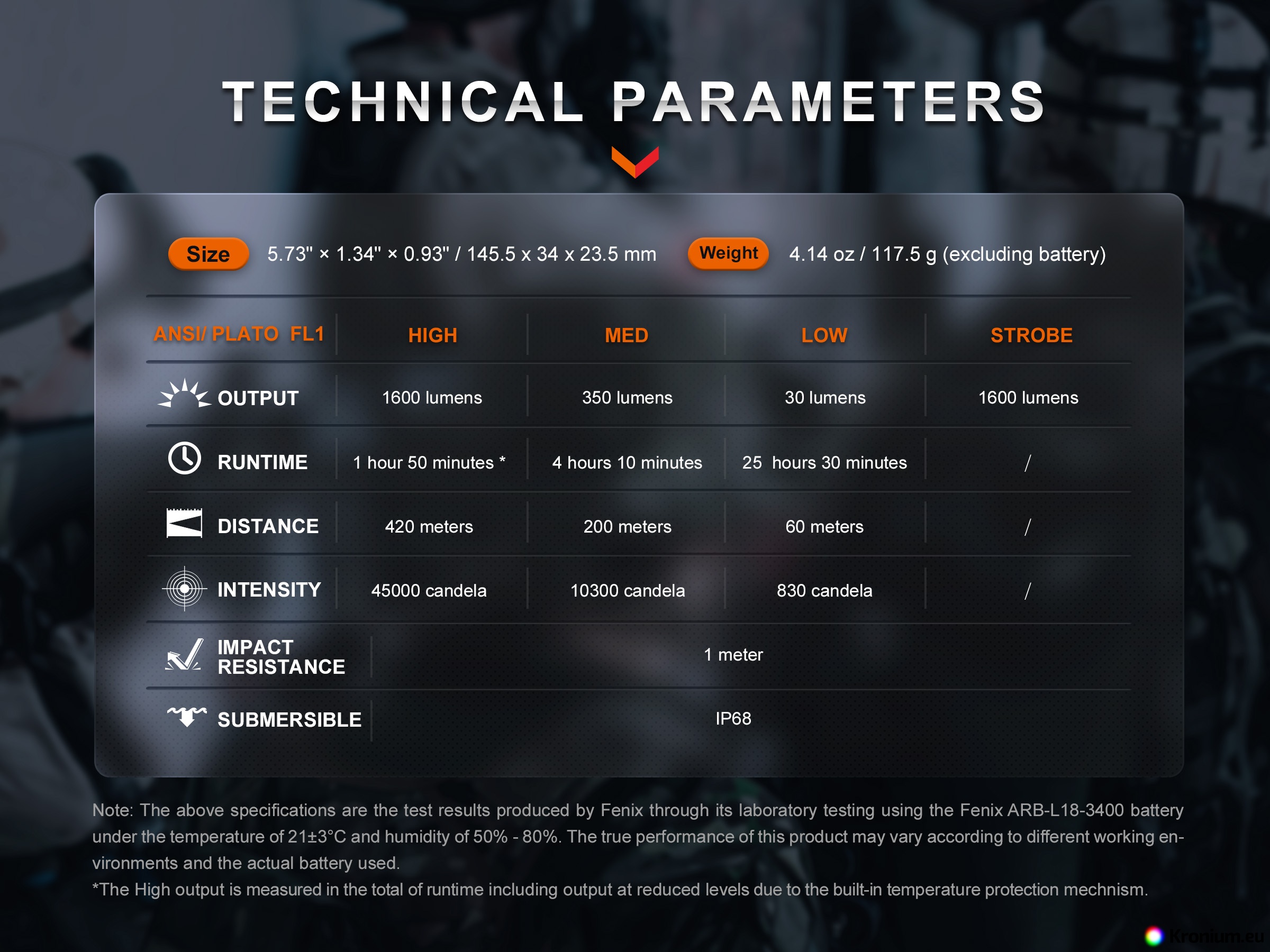

Fenix TK11R flashlight parameters

• A powerful Luminus SFT-40 LED with a lifespan of 50,000 hours is used.
• Six power modes: 1600 lumens (1.8 hours) -> 350 lumens (4.2 hours) -> 30 lumens (25.5 hours) -> stroboscope 1600 lm with variable frequency.
• Lasting times are measured with a rechargeable Li-ion battery of the type 18650 with capacity of 3400 mAh (included in the package).
• Max. battery diameter 18,7 mm., max. battery length 72,5 mm.
• Alternatively two 3V lithium batteries CR123A can be used for power supply.
• The USB-C charging port is hidden under a rubber cap on the body of the flashlight.
• Battery charge indication.
• Highly efficient smooth reflector for a light beam with a throw of up to 420 meters (45000 cd).
• Intelligent protection against overheating, low battery warning.

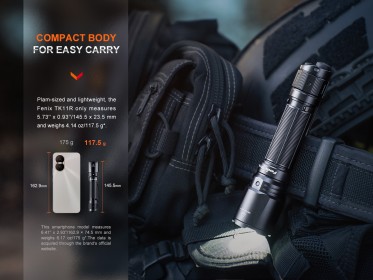

• Dimensions 14.55 cm (length) x 3.4 cm (head diameter) x 2.35 cm (body diameter).
• Weight 117.5 grams (without battery), 166.5 grams (incl. battery).

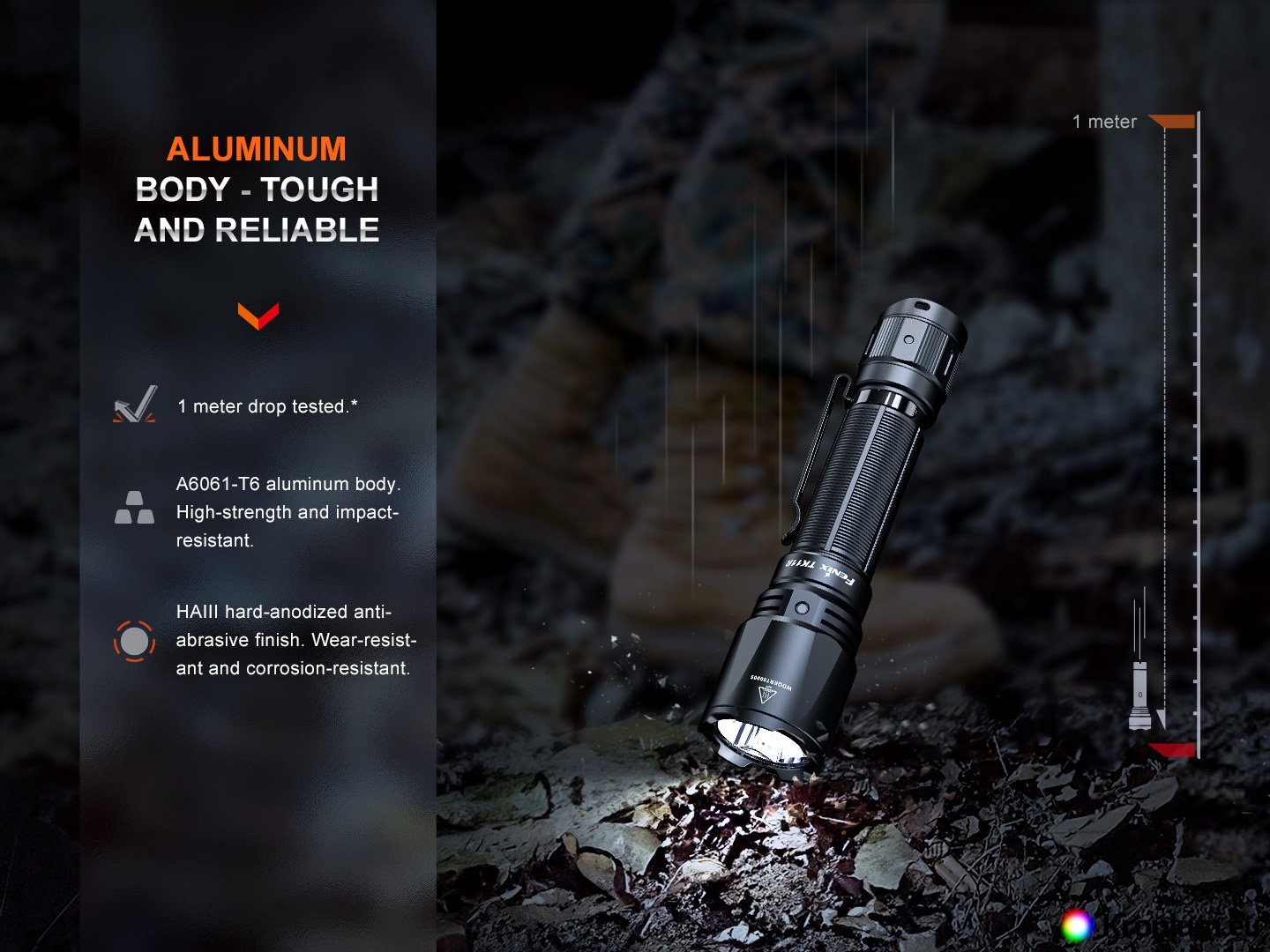

• Durable body construction from aviation-hardened aluminum.
• Resistant hard-to-scratch surface - Type III hard anodized.
• Impact resistant to drops from a height of 1 meter.
• Waterproof and dustproof according to the IP68 standard (tested under water at a depth of 2 meters for 30 minutes).
• Toughened ultra clear glass lens with anti-reflective surface.

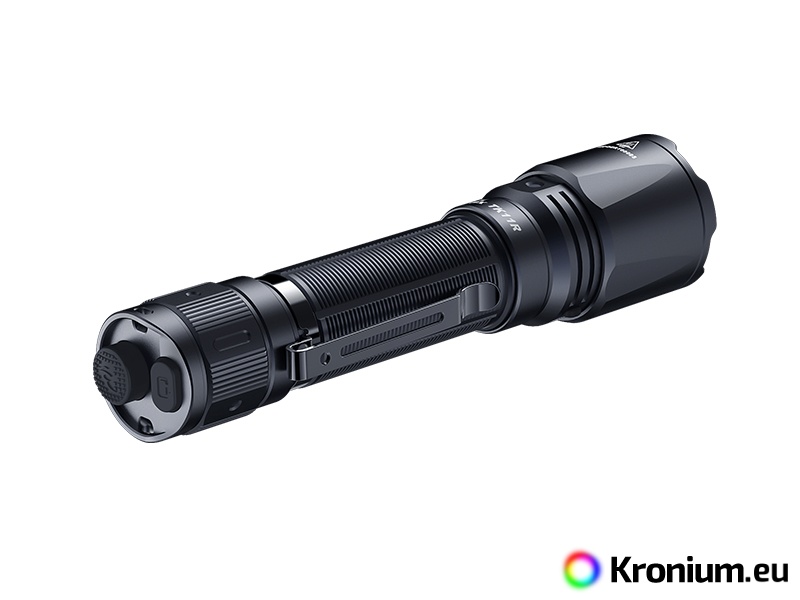

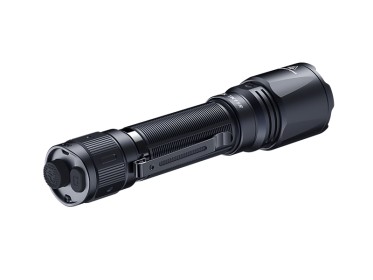

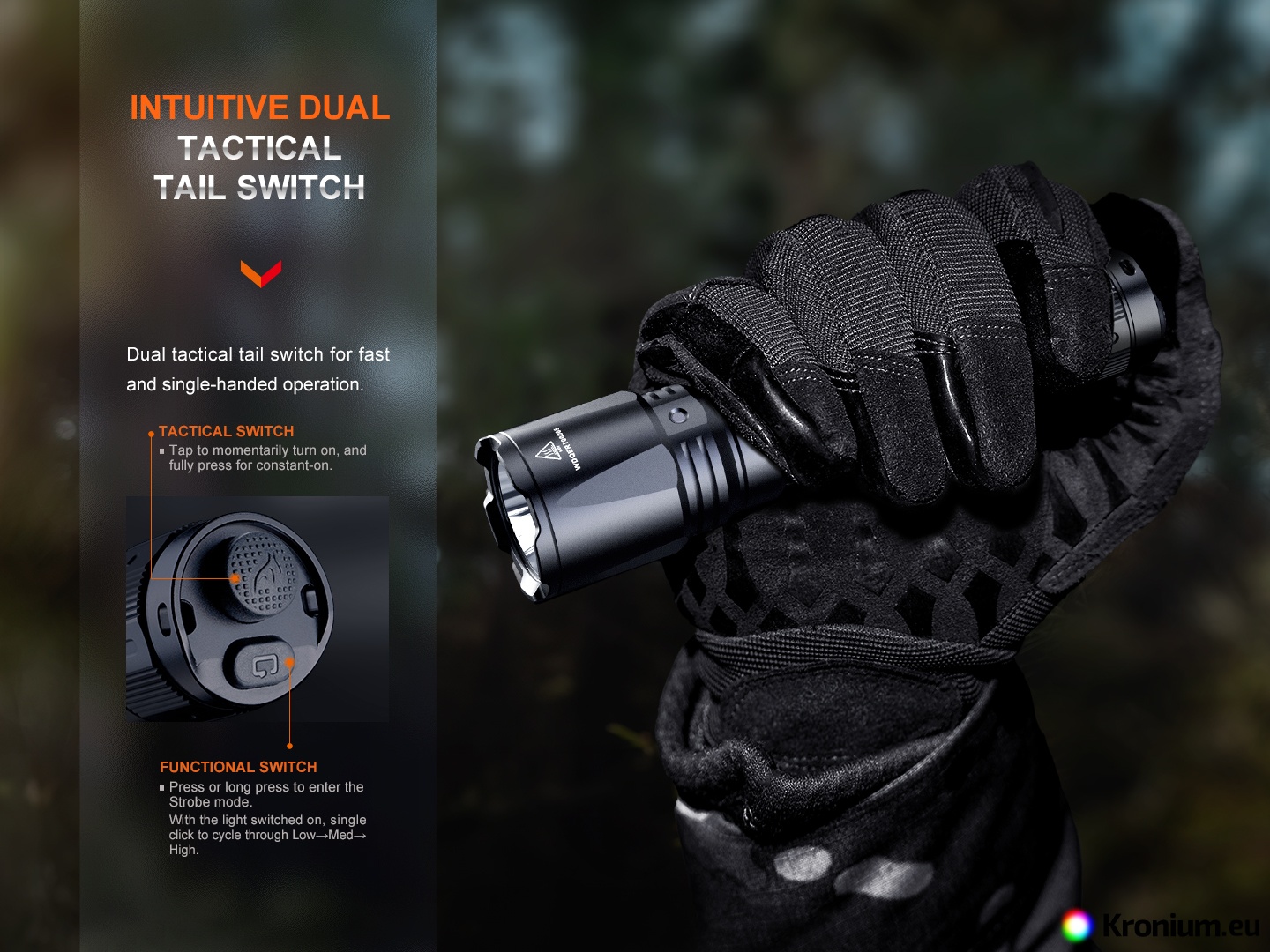

• Dual tactical switch on the end of the flashlight (instant on/off push function, instant strobe).
• Trapezoidal threads highly resistant to wear.

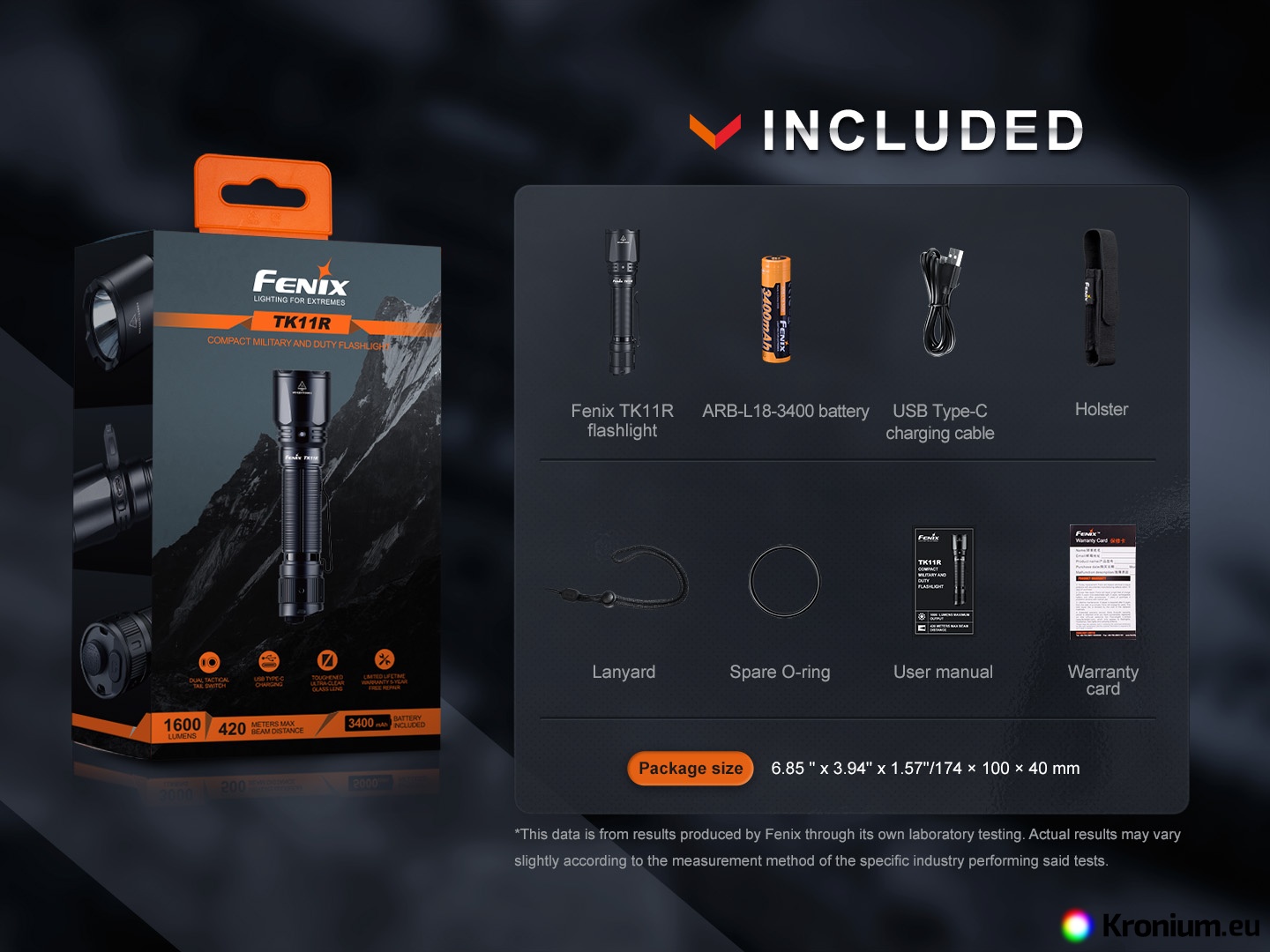

• The flashlight comes with a battery, wrist strap, USB-C charging cable, spare o-ring and belt pouch.
• As an optional accessory, you can buy: cable switch AER-02, AOT-M traffic cone, AOF-M red filter and AOD-M diffuser.
• The following accessories are also compatible with the flashlight: quick mounting on ALG-15 bar, ALG-00 quick release rail mount, M-LOK Fenix mount ALG-16, Fenix ALG-18 Barrel Mount, metal magnetic barrel mount, plastic magnetic barrel mount, optical mount, metal optic mount, strap Fenix ALD-05 for helmet flashlight use, FB-1 bike holder, Fenix bicycle holder.
• The flashlight can also be purchased with a USB adapter for electricalnetworks and USB car adapter.

Using the TK11R flashlight

There may be an insulating cap inside the lamp on the battery from the factory. Remove it from the battery before first use.

To turn on/off press the larger tactical button located at the end of the flashlight, press the button for immediate activation. By pressing the secondary switch button, you can switch between power modes at any time during operation. To switch to flash mode when the flashlight is on, hold down the switch button for about 0.5 seconds. Press and hold the toggle button to turn the flashlight directly into strobe mode.

Intelligent protection against overheating - due to the fact that the lamp achieves high performance, there is an increase in temperature. If the temperature exceeds 65°C, there will be an automatic power reduction. As soon as the temperature drops below 65°C, it is possible to use the highest power again.

Battery charge status indication - the flashlight always indicates the battery charge status three seconds after switching on. Green indicates a sufficient state of charge (100% - 85%), green flashing (85% - 50%), steady red (50% - 25%) and flashing red a critically discharged battery (25% - 1%). If the battery is discharged, the flashlight will gradually automatically switch to lower power modes.

Charging - unfold the rubber cover of the charging connector on the side of the flashlight and plug in the attached cable (USB-C connector), plug the other end of the cable into the computer or the USB adapter into the electrical network or the car. During charging, the side indicator lights up red. It lights up green when fully charged. Charging a fully discharged battery takes about 3.5 hours. The flashlight cannot be used while charging.

Warning

• Use only high-quality 18650 type rechargeable batteries with protective electronics.
• Insert the batteries with the positive pole towards the head of the torch.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings must also be lubricated to prevent rubber erosion. By following these rules, the lamp will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be for one of the following reasons:
  • The battery is dead - charge it or replace it.
  • The contacts inside the lamp are dirty – clean them with a cotton swab dipped in alcohol.
  • The head, body or back of the lamp is loose, tighten it.
