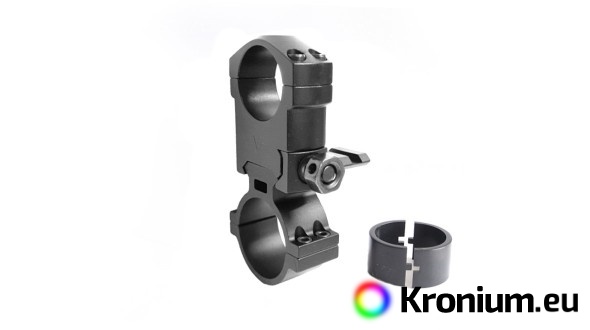

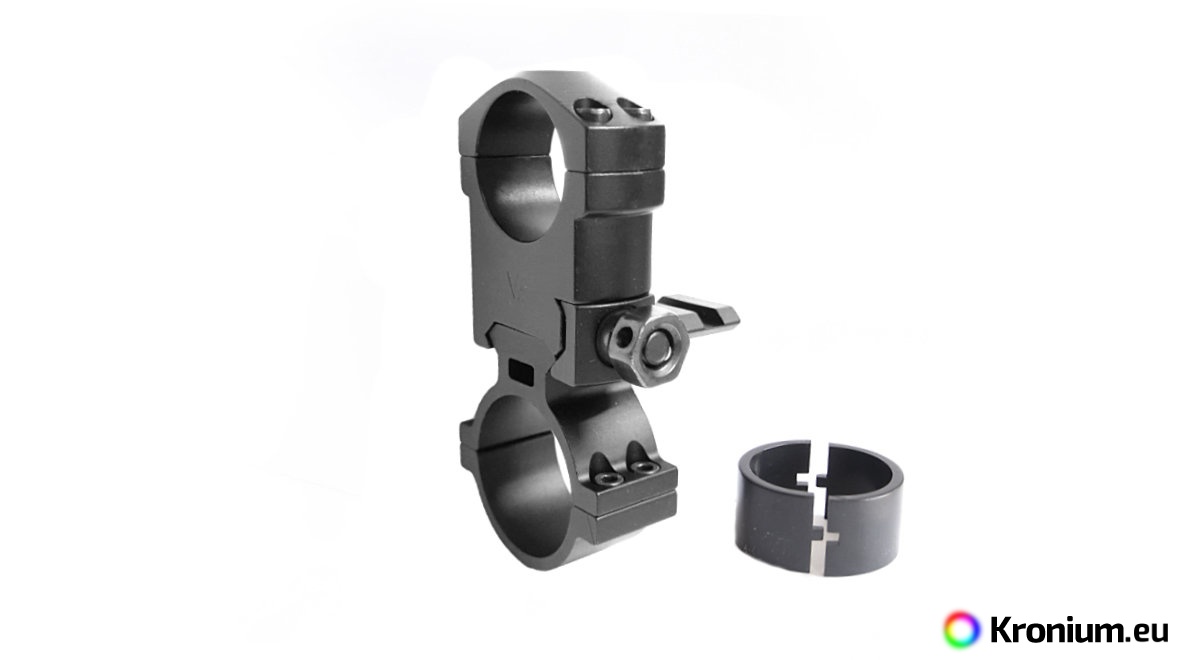

Two-piece metal mounting for attaching the flashlight to the scope. Can be used on scopes with both 30mm and 25mm diameter tubes (insert for 25mm scopes included). Fits all 1 inch diameter flashlights and other accessories. This mounting option has an overall height of 93 mm, so it is also suitable for flashlights with larger reflectors (up to 6-7 cm) and scopes with large front lens.
Mounting parameters
- Two-Piece Construction. Flashlight holder can be easily removed with the side screw (can be tightened or loosened by hand).
- Solid metal design.
- Suitable for flashlights, lasers and other accessories with a body diameter of 25-26 mm (1").
- Can be used on scopes with both 25 and 30 mm diameter.
- Total height 93 mm.
- Weight 100 grams.
- Can be used to mount for example Fenix TK05R, TK09, TK11 TAC, TK11R, TK15, TK16 V2.0, TK17, TK20R V2.0, TK21R, TK22 V2.0, TK22 UE, TK22R, TK22 TAC, TK25 IR, TK25 R&B, TK25 Red, TK25 UV, TK26R, TK30R, TK32, HT18R, PD32 V2.0, PD35, PD45R ACE, PD36R V2.0, PD36 TAC, PD36R PRO, HT30R, HT32, UC35, FD41, also for older models TK10, TK11, TK12, TK20R, TK32,TA20, TA21.
- Includes mounting and demarcation insert for 25 mm binoculars.
