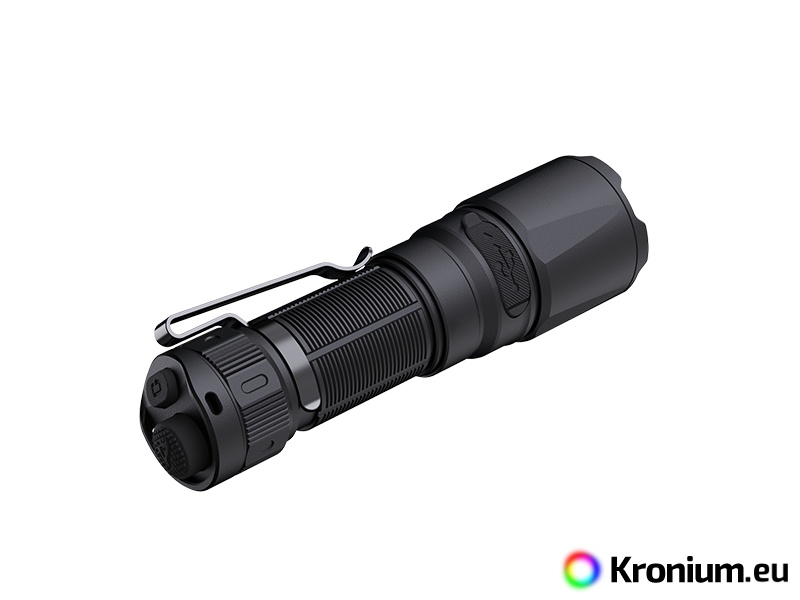

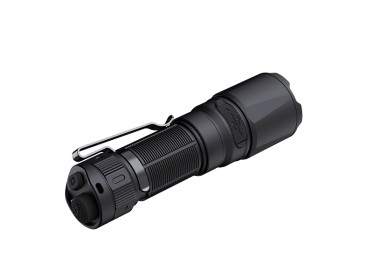

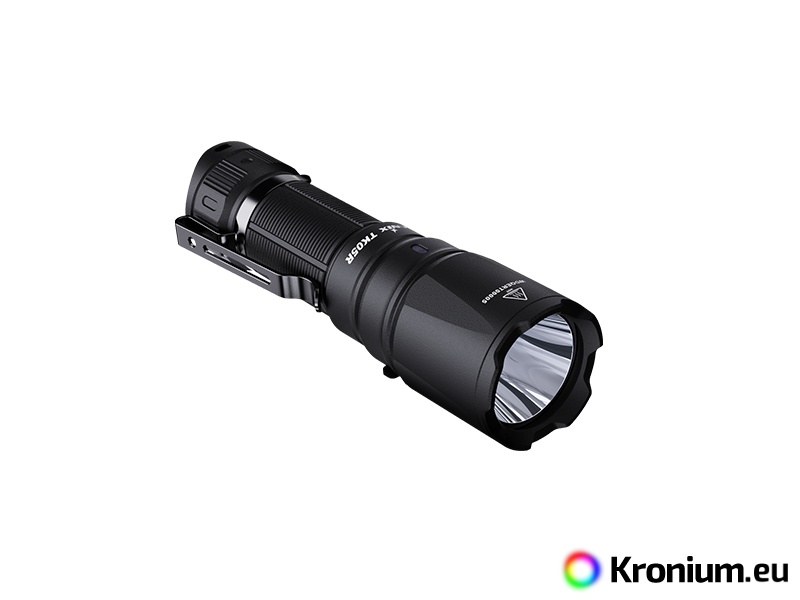

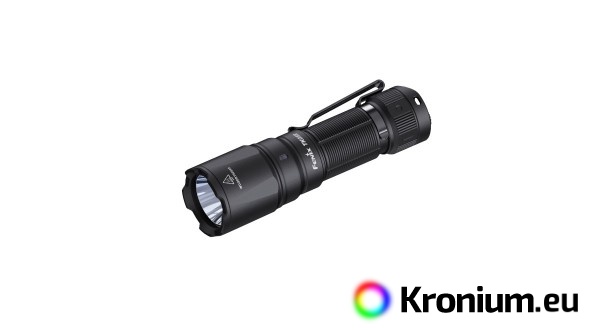

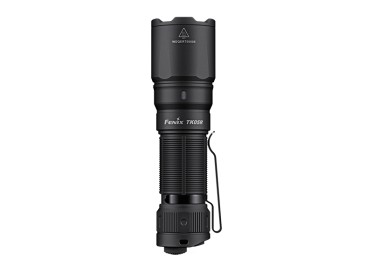

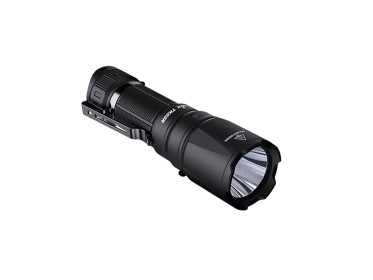

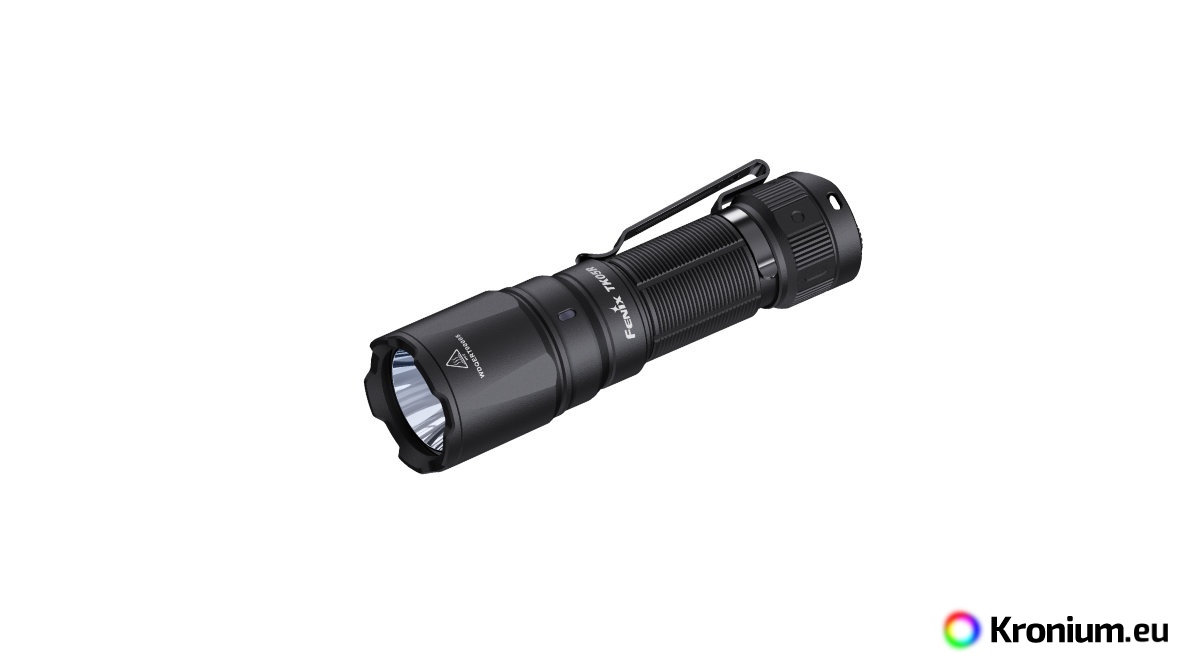

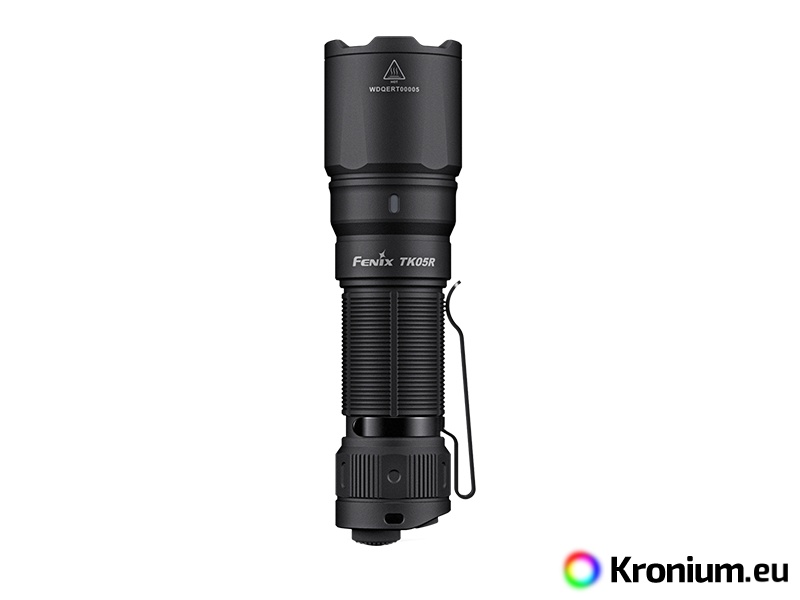

Fenix TK05R is a pocket-sized rechargeable tactical flashlight with simple operation with the possibility of quick strobe activation and output of up to 1000 lumens. It is equipped with a top LED Osram CSLPM1.TG, thanks to which it has a perfectly focused beam and shines up to a distance of 450 meters. The flashlight uses a dual tactical switch that allows for faster and more reliable control in crisis situations. The head of the flashlight is equipped with a striking rim, so the flashlight can be used to break through glass or for self-defense. The robust design allows the flashlight to be used on long weapons, so it is suitable for professionals, armed forces and hunting. The flashlight is powered by one compact Li-ion 18350 1100 mAh battery (included in the package), which is charged directly in the flashlight via a modern USB-C connector and supplies energy up to for 14.5 hours of lighting. The solid and waterproof design predestines this tactical flashlight primarily for harsh outdoor conditions and for use in security components, during search, rescue operations and for hunting.

All parameters of the flashlight (luminous flux, battery operation time, waterproofing, afterglow and impact resistance) are measured in compliance with the ANSI/ NEMA FL 1-2009.

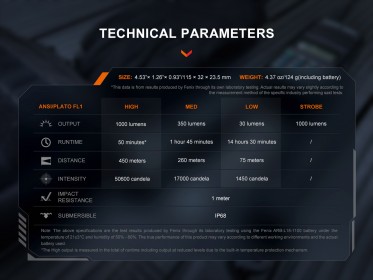

Fenix TK05R flashlight parameters

• A powerful Osram CSLPM1.TG LED with a lifespan of 50,000 hours is used.
• Four power modes: 1000 lumens (0.8 hours) -> 350 lumens (1.75 hours) -> 30 lumens (14.5 hours) -> stroboscope 1000 lm with variable frequency.

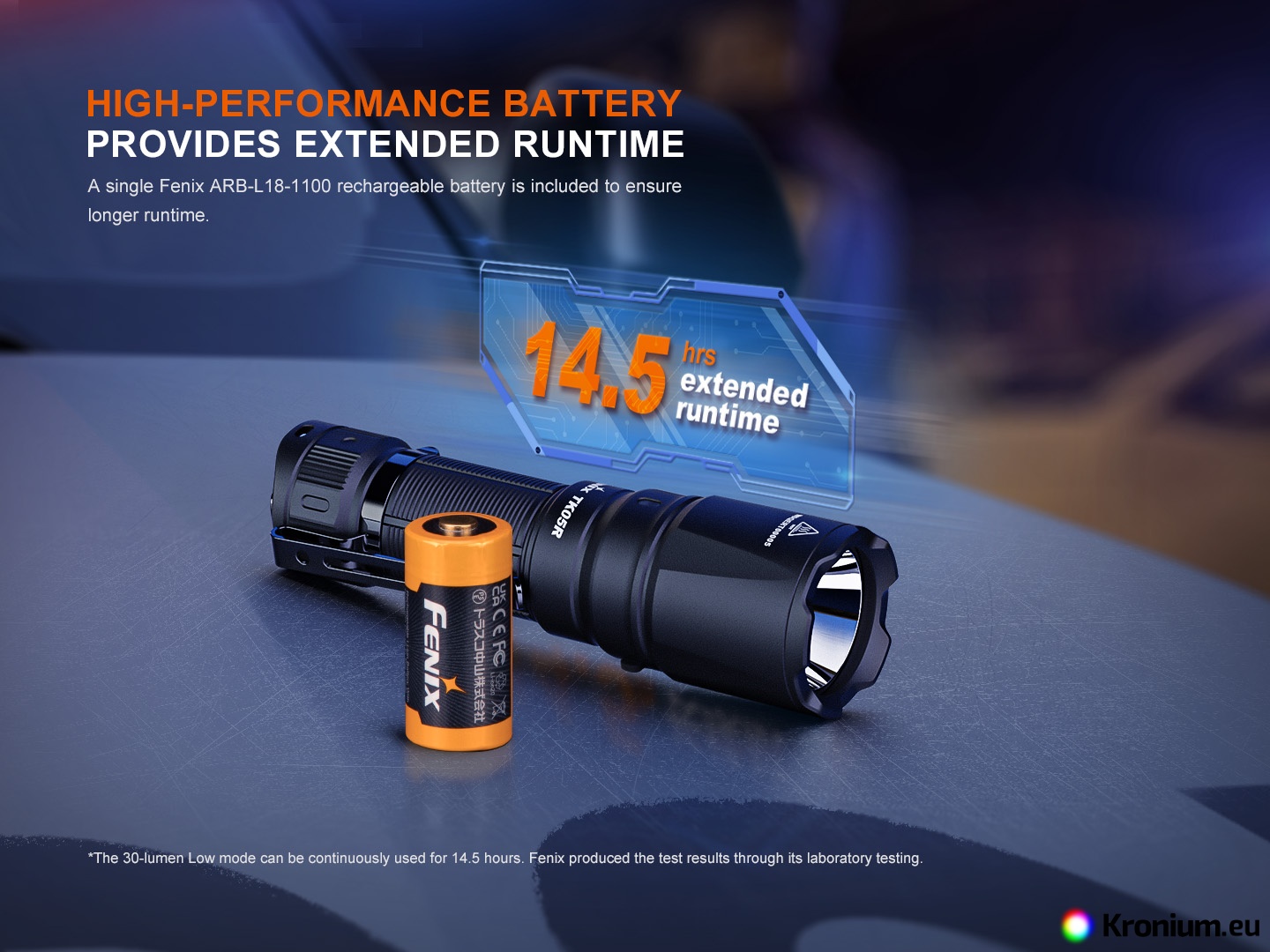

• Lasting times are measured with a 18350 rechargeable Li-ion battery with a capacity of 1100 mAh (included in the package).
• Max. battery diameter 18,6 mm., max. battery length 40,0 mm.

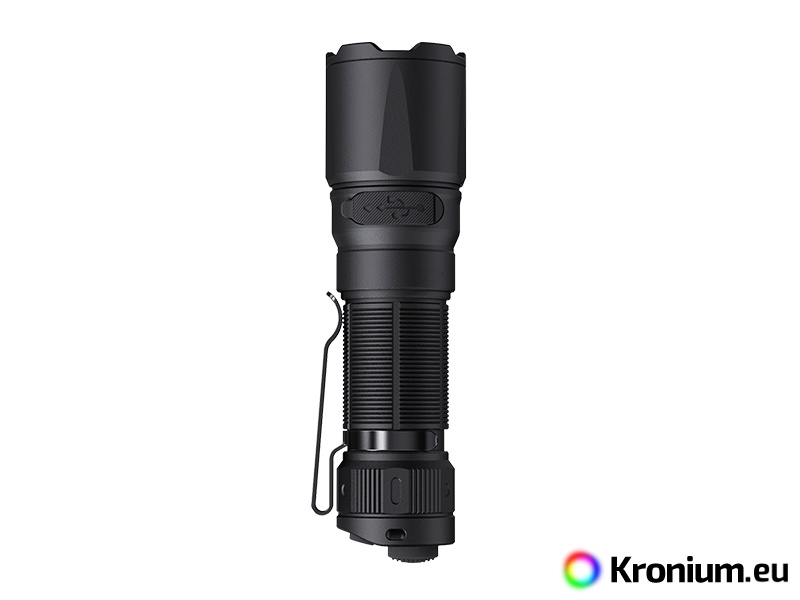

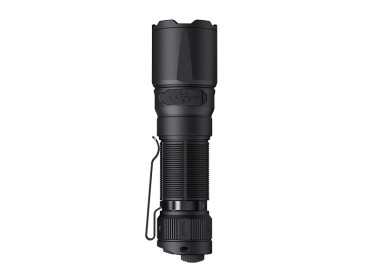

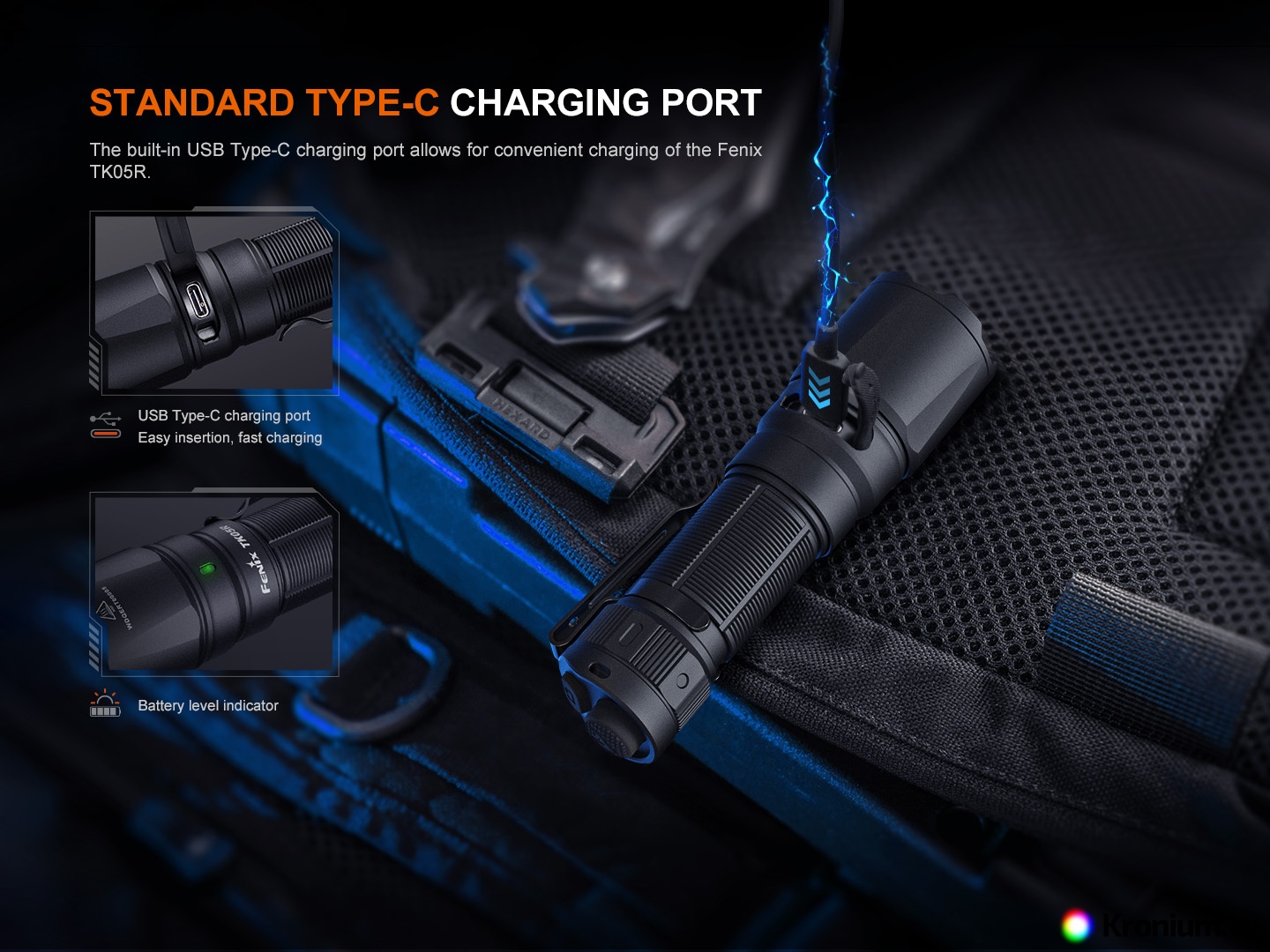

• The USB-C charging port is hidden under a rubber cap on the body of the flashlight.
• Battery charge indication.
• Highly efficient smooth reflector for a light beam with throw of up to 450 meters (50600 cd).
• Intelligent protection against overheating, low battery warning.

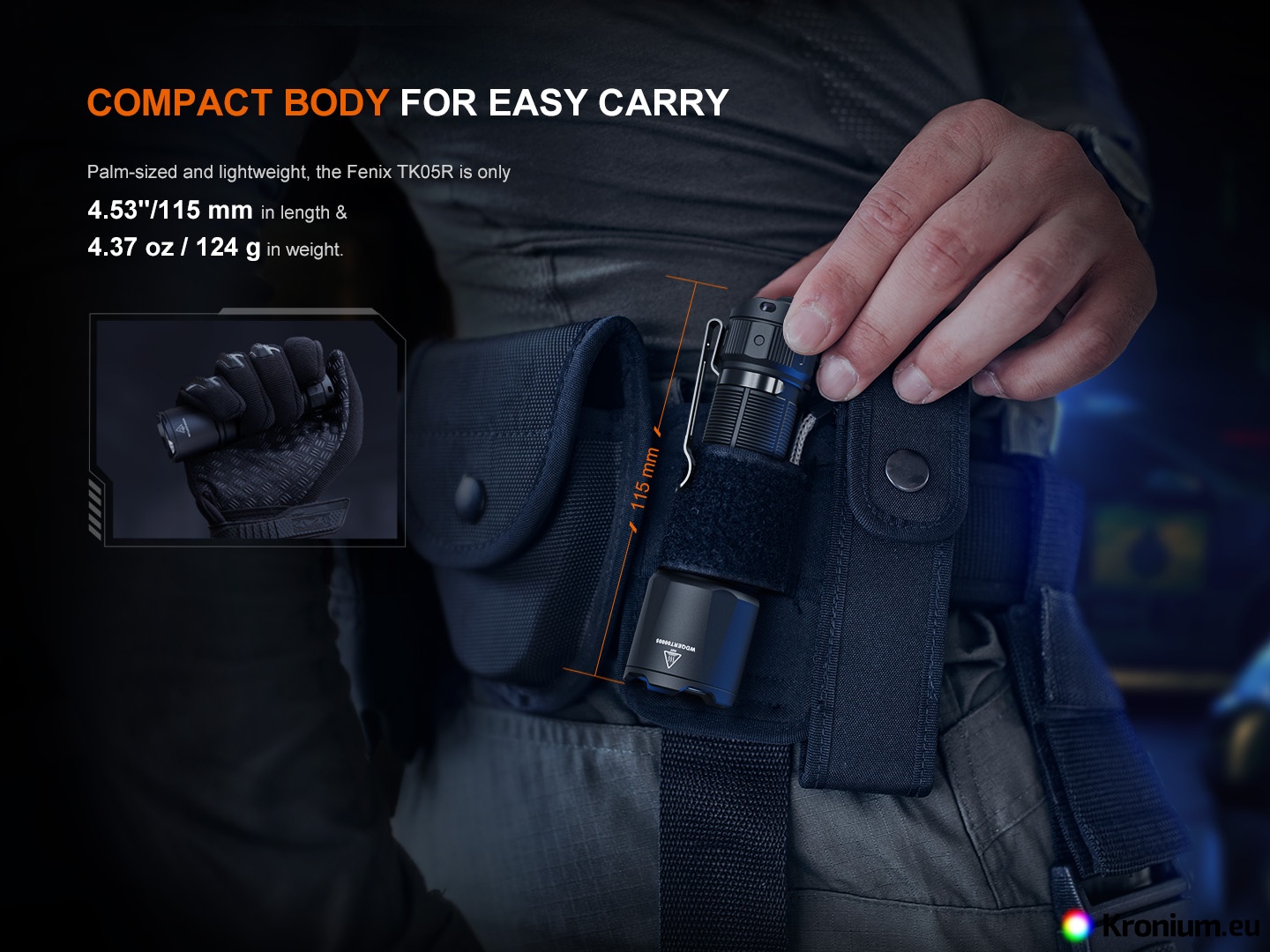

• Dimensions 11.5 cm (length) x 3.2 cm (head diameter) x 2.35 cm (body diameter).
• Weight 124 grams (including battery).

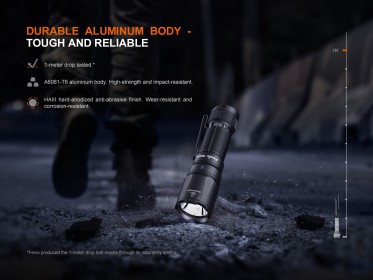

• Durable body construction from aviation-hardened aluminum.
• Resistant hard-to-scratch surface - Type III hard anodized.
• Impact resistant to drops from a height of 1 meter.

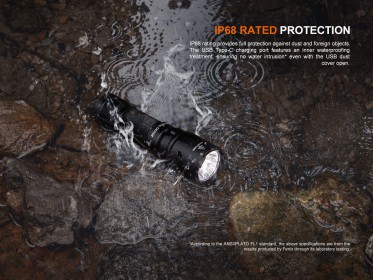

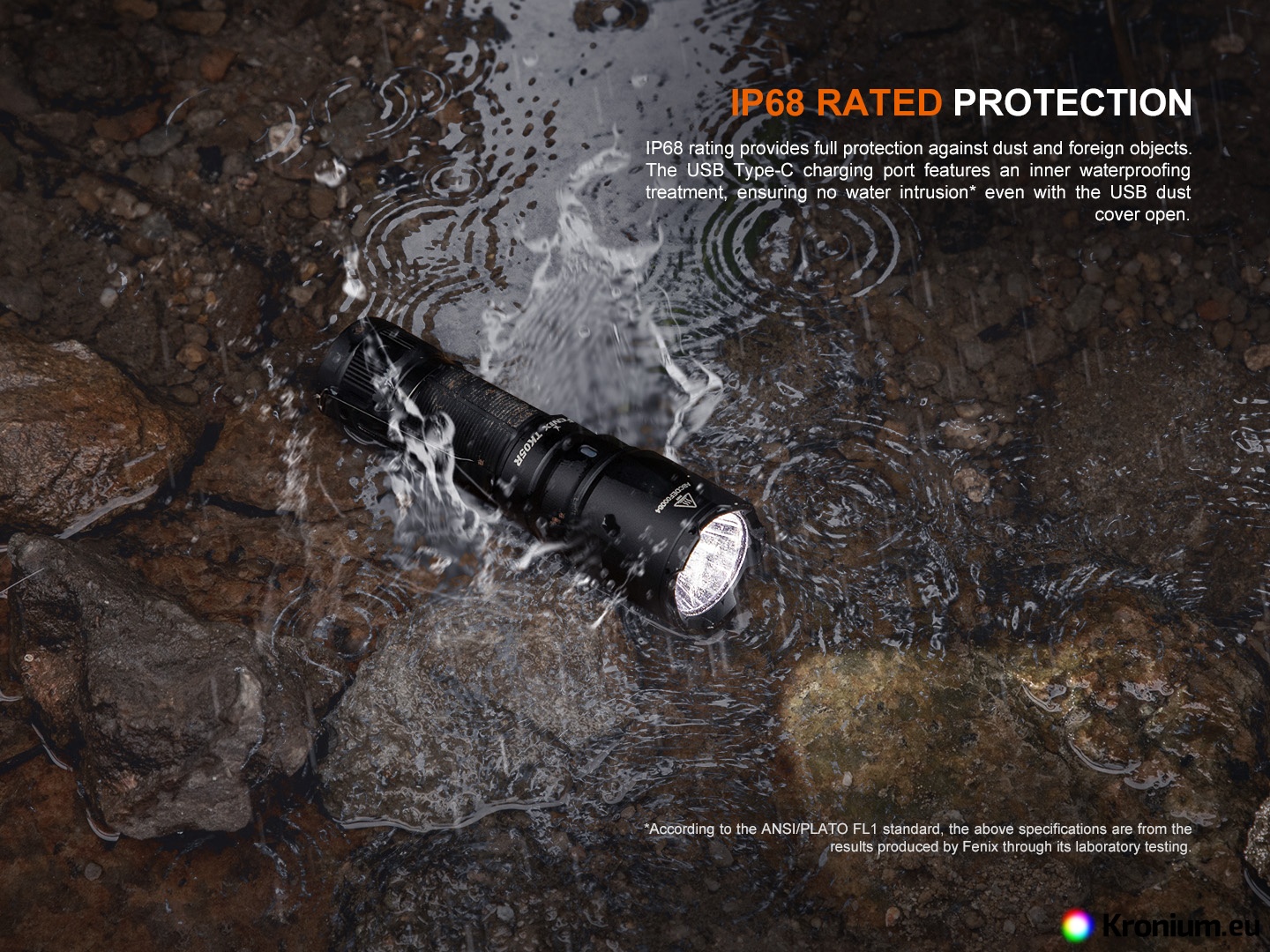

• Waterproof and dustproof according to the IP68 standard (tested under water at a depth of 2 meters for 30 minutes).
• Toughened ultra clear glass lens with anti-reflective surface.

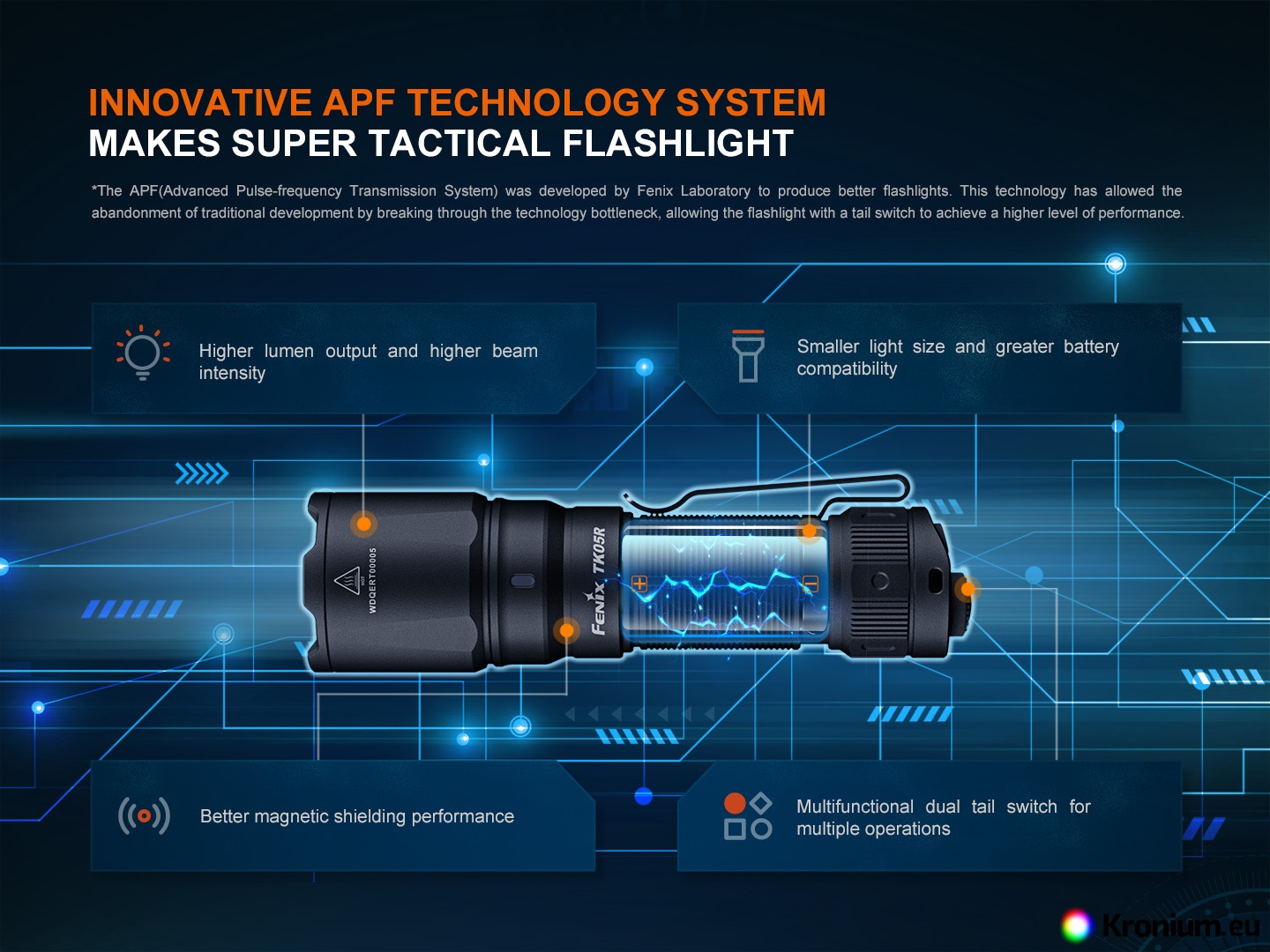

• Dual tactical switch on the end of the flashlight (instant on/off push function, instant strobe).
• Trapezoidal threads highly resistant to wear.

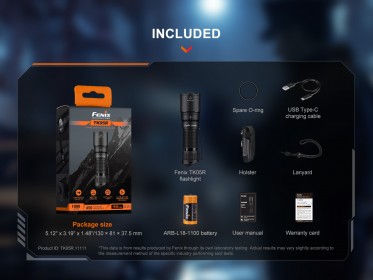

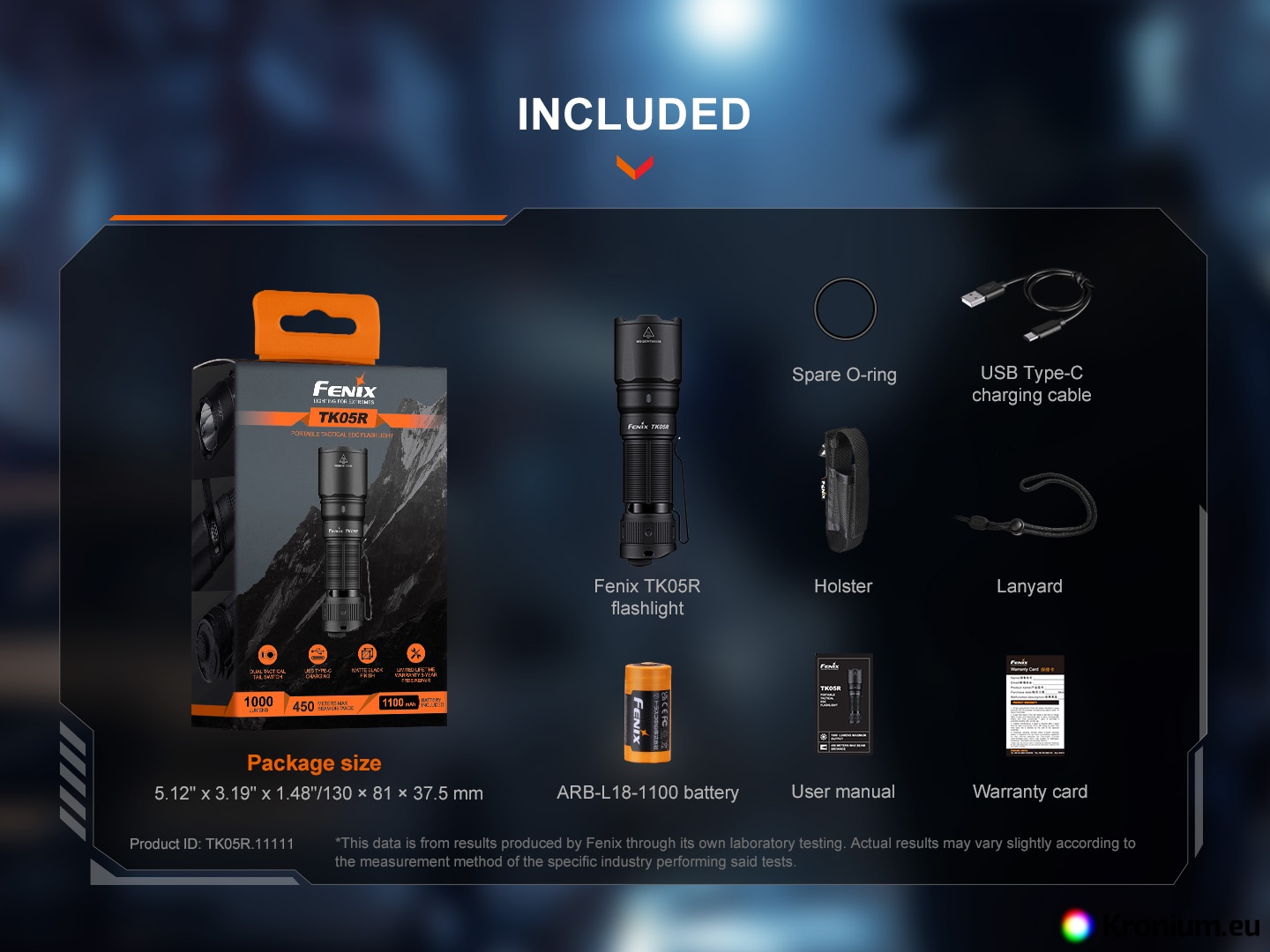

• The flashlight comes with an ARB-L18-1100 battery, a wrist strap, a USB-C charging cable, a spare o-ring and a belt pouch.
• As an optional accessory, you can buy: traffic cone AOT-03.
• The following accessories are also compatible with the flashlight: quick mounting on ALG-15 bar, ALG-00 quick release rail mount, M-LOK Fenix mount ALG-16, Fenix ALG-18 Barrel Mount, Metal Magnetic Barrel Mount, Plastic Magnetic Barrel Mount, lamp mount on optic, metal mount on optic a>, Fenix ALD-05 helmet-mounted flashlight strap, FB-1 bicycle holder, Fenix bicycle holder.
• The flashlight can also be purchased with a USB power adapter and USB car adapter.

Using the TK05R flashlight

There may be an insulation cap inside the lamp on the battery from the factory. Remove it from the battery before first use.

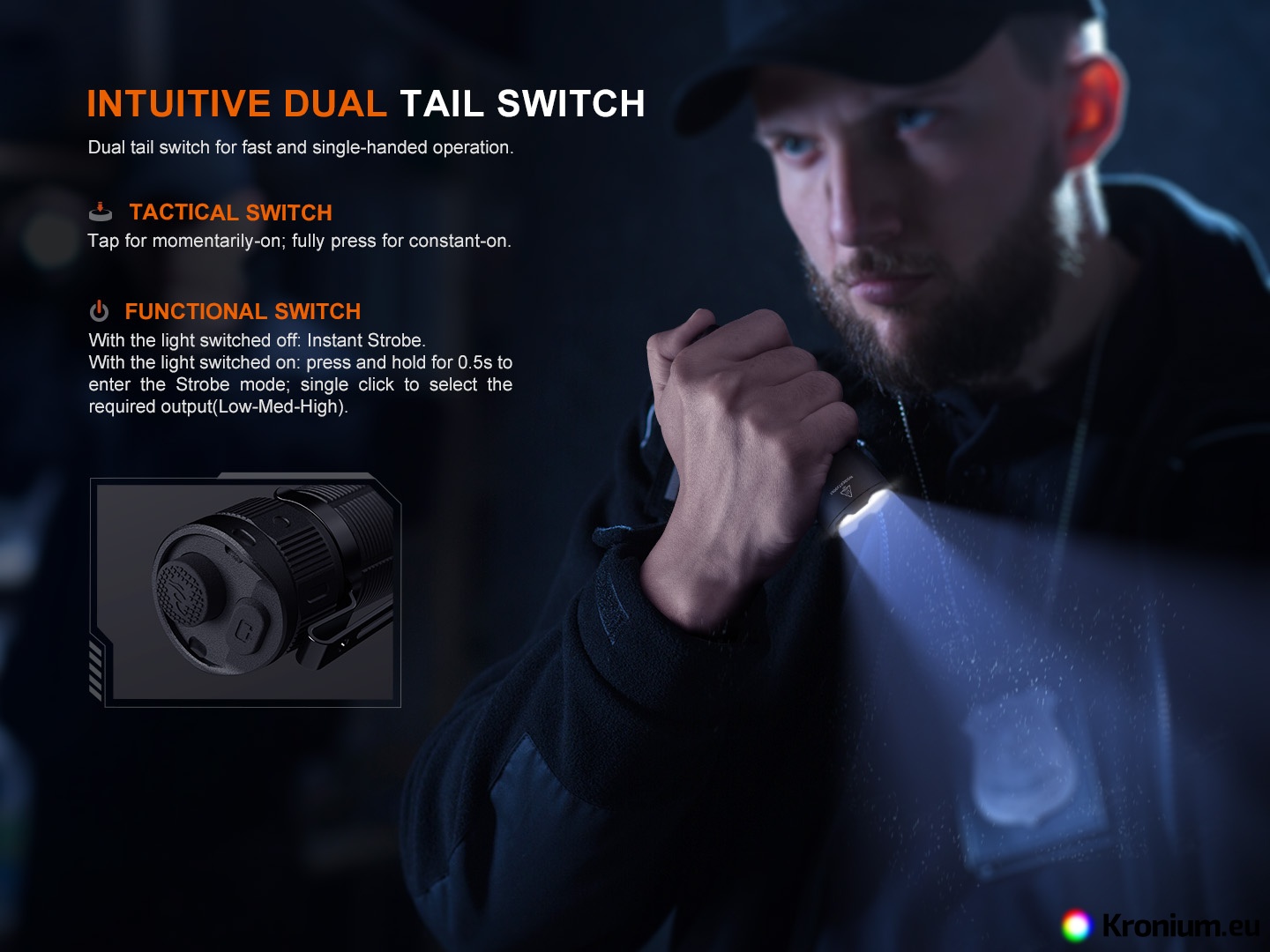

To turn on/off press the larger tactical button located at the end of the flashlight, press the button for immediate activation. By pressing the secondary switch button, you can switch between mode at any time during operationims of performance. To switch to flash mode when the flashlight is on, hold down the switch button for about 0.5 seconds. Press and hold the toggle button to turn the flashlight directly into strobe mode.

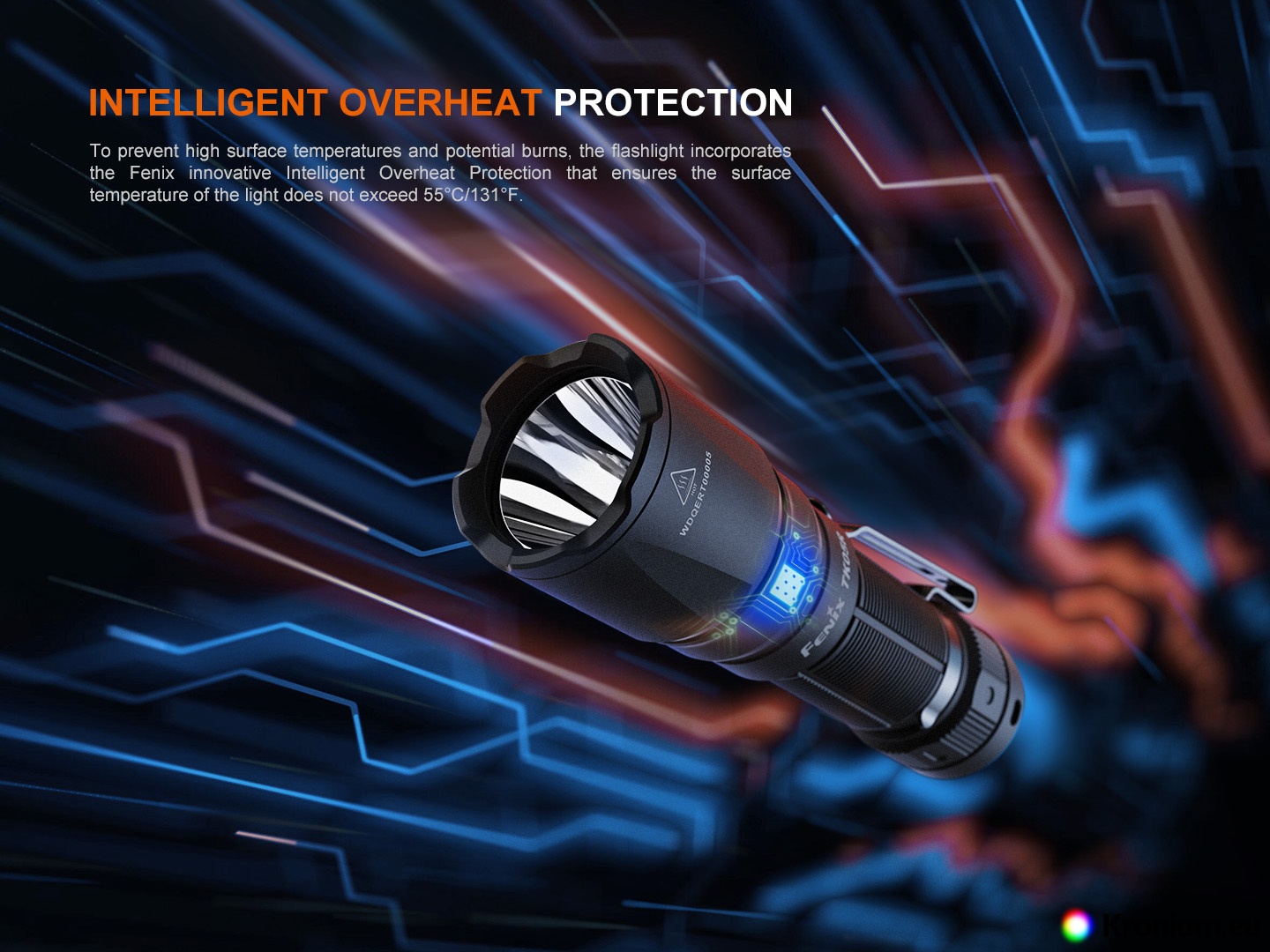

Intelligent protection against overheating - due to the fact that the lamp achieves high performance, there is an increase in temperature. If the temperature exceeds 55°C, there will be an automatic power reduction. As soon as the temperature drops below 55°C, it is possible to use the highest power again.

Battery charge status indication - the flashlight always indicates the battery charge status three seconds after switching on. Green indicates a sufficient state of charge (100% - 85%), green flashing (85% - 50%), steady red (50% - 25%) and flashing red a critically discharged battery (25% - 1%). If the battery is discharged, the flashlight will gradually automatically switch to lower power modes.

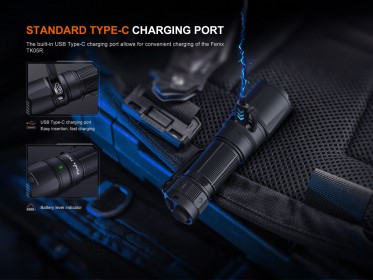

Charging - unfold the rubber cover of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into the computer or the USB adapter into the electrical network or car. The side indicator lights up red while charging. It lights up green when fully charged. Charging a fully discharged battery takes about 1.5 hours. The flashlight cannot be used while charging.

Warning

• Use only high-quality 18350 type rechargeable batteries with protective electronics.
• Insert the batteries with the positive pole towards the head of the torch.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings must also be lubricated to prevent rubber erosion. By following these rules, the lamp will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be for one of the following reasons:
  • The battery is dead - charge it or replace it.
  • The contacts inside the lamp are dirty – clean them with a cotton swab soaked in alcohol.
  • The head, body or back of the lamp is loose, tighten it.
