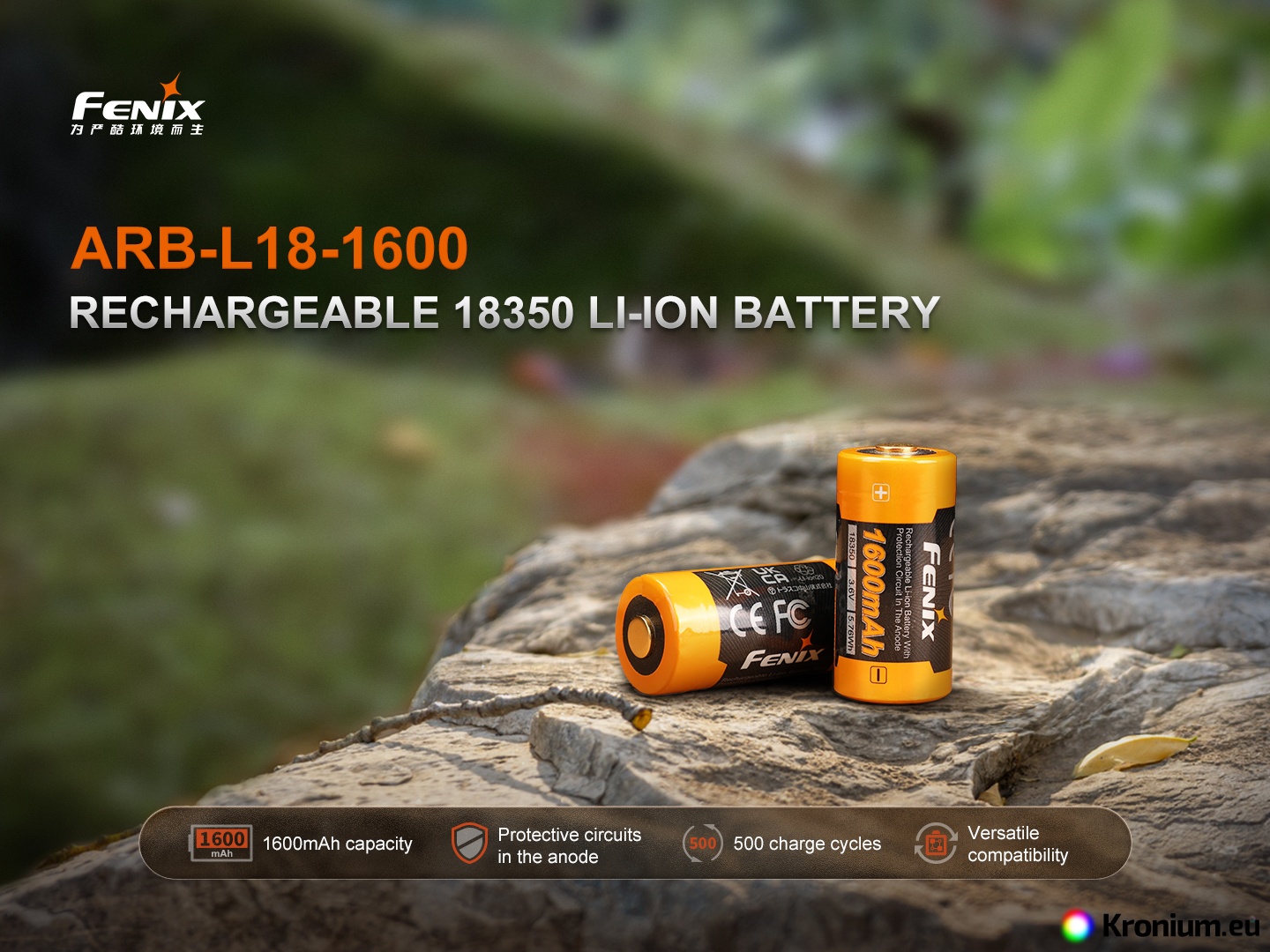

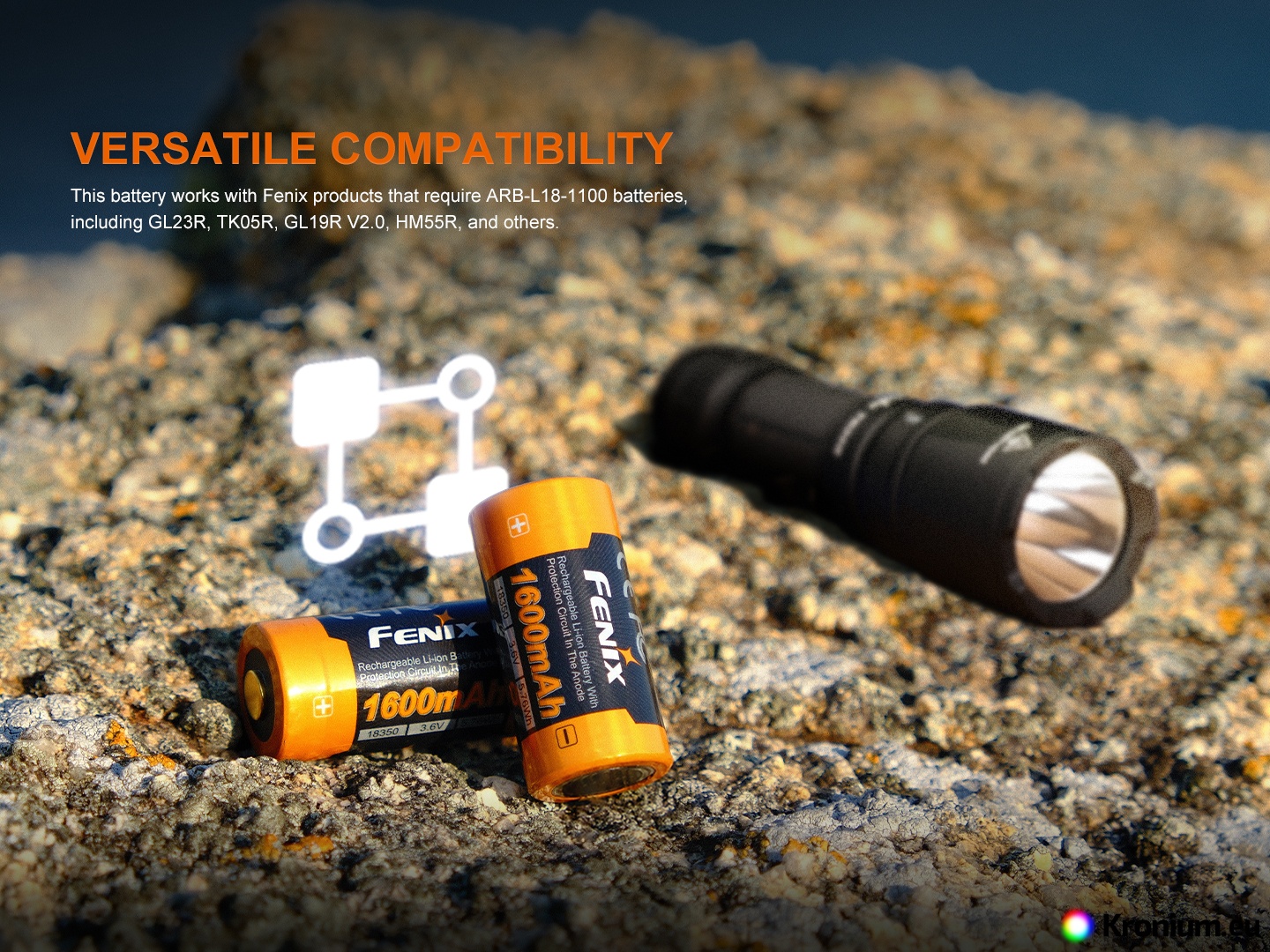

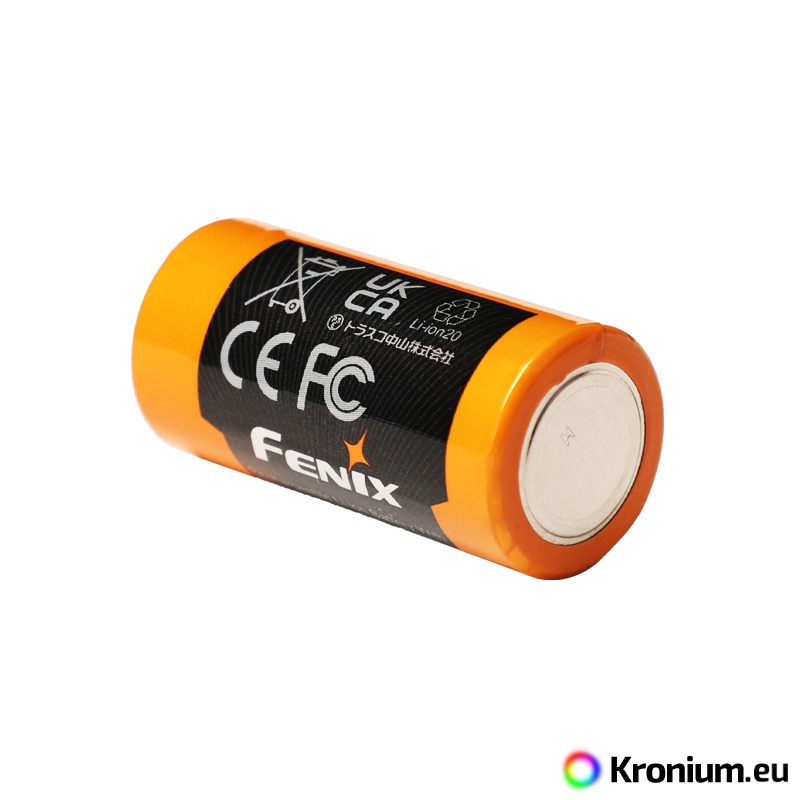

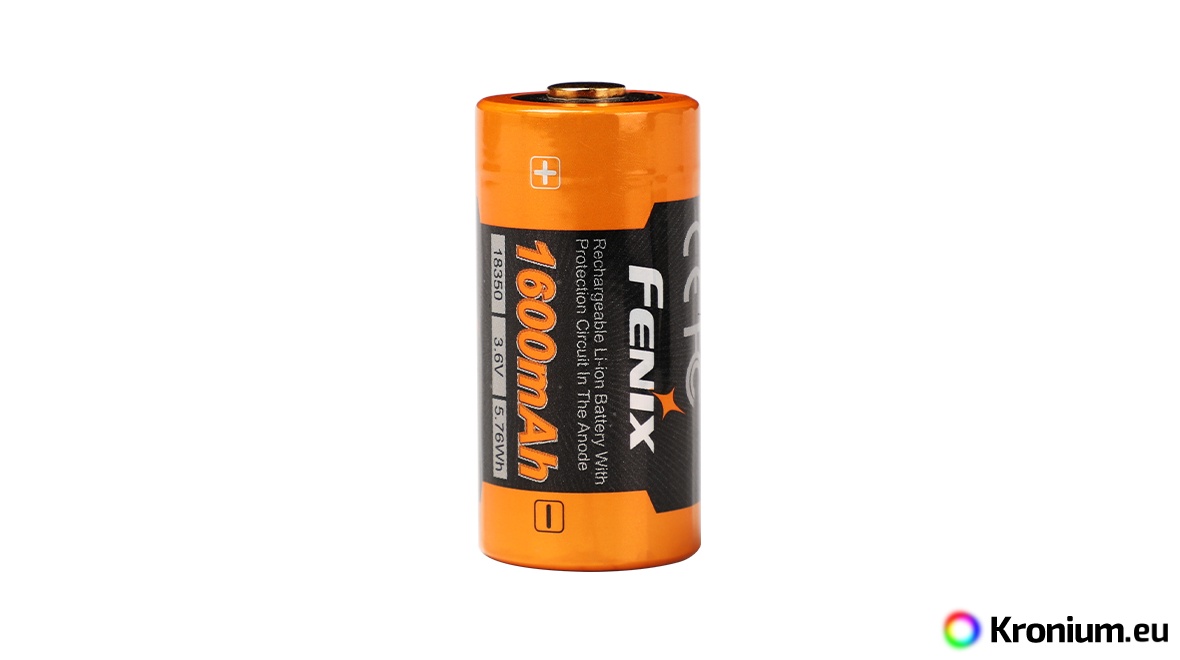

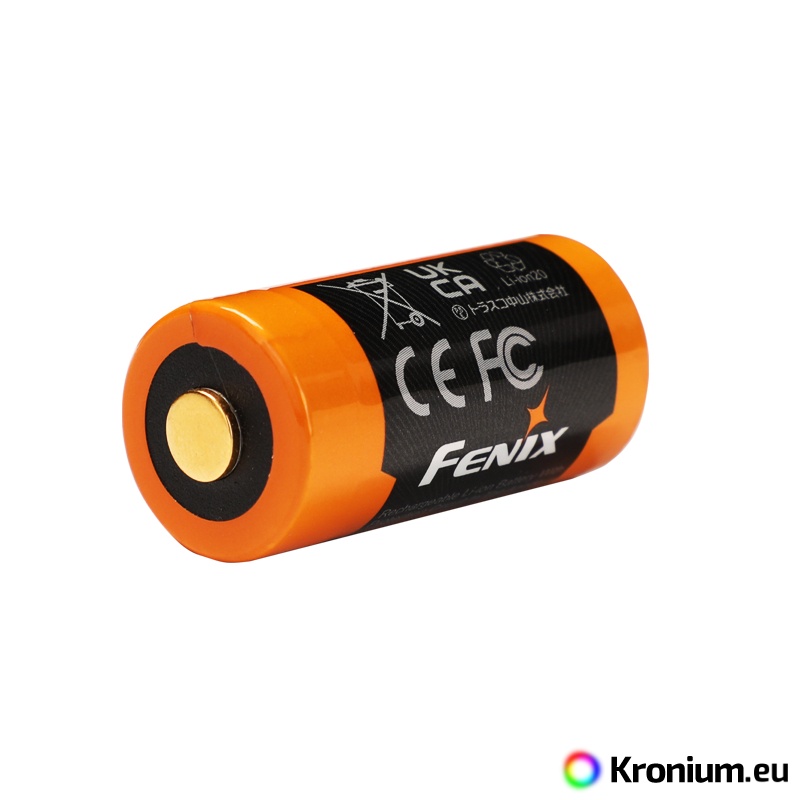

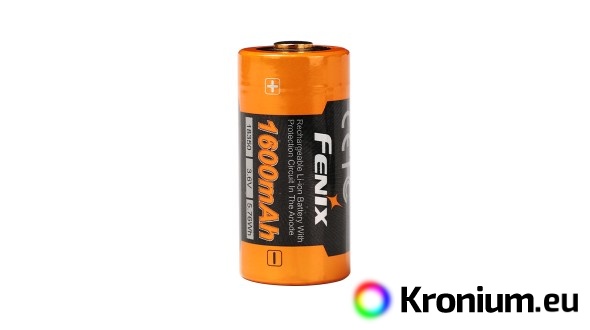

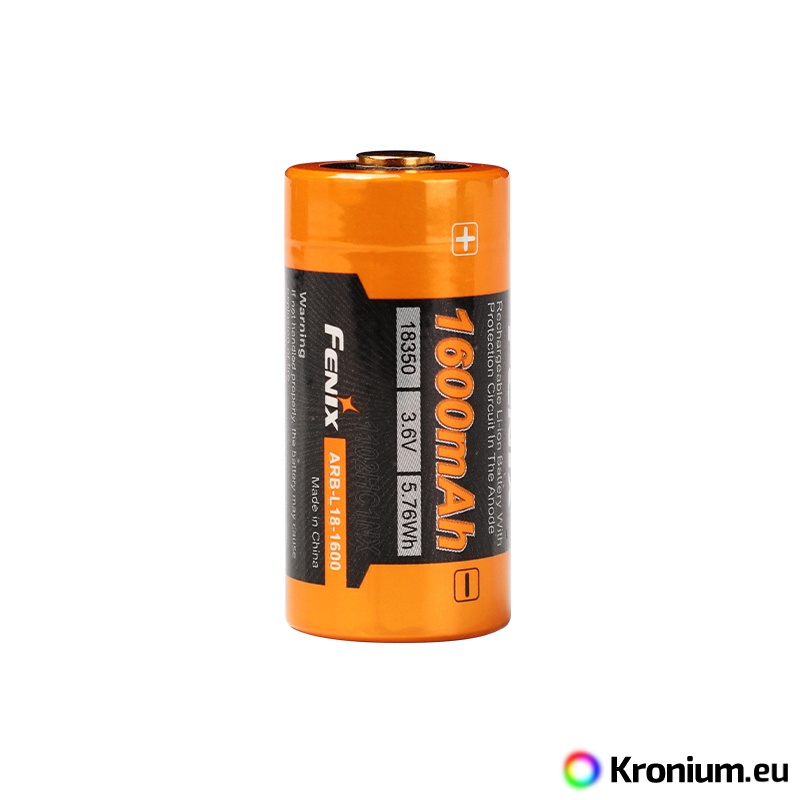

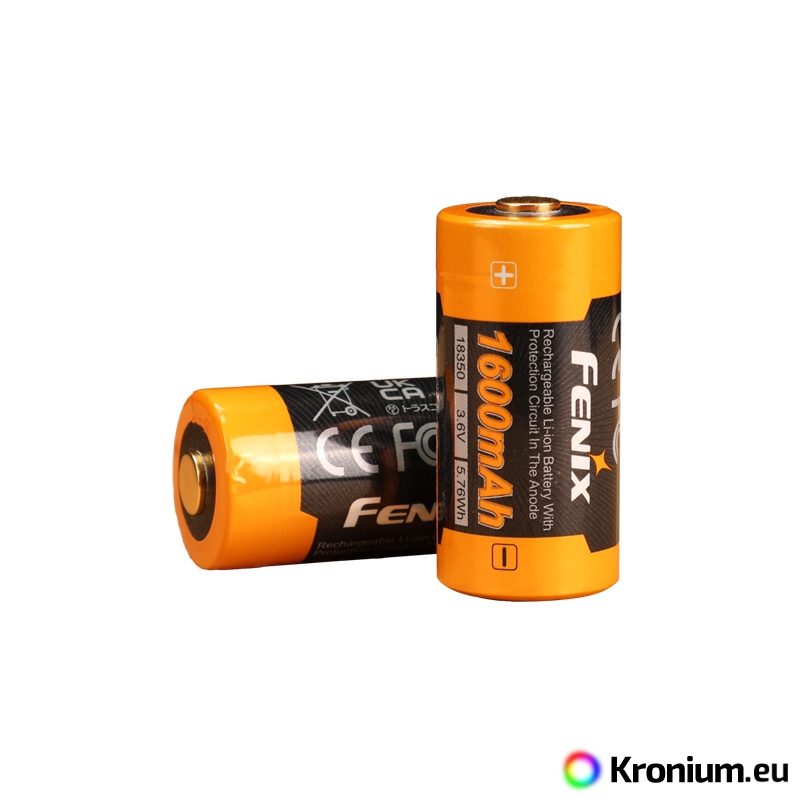

The Fenix ARB-L18-1600 (18350) rechargeable battery is suitable, for example, for the Fenix PD26R ACE, Fenix TK05R, Fenix GL23R, Fenix GL19R V2.0 flashlights, and the Fenix HM53R Garnet, Fenix HM55R headlamps. Li-ion rechargeable batteries are characterized by a very high capacity, and they do not suffer from a memory effect or self-discharge. Li-ion technology provides one of the best ratios of stored energy to cell weight.

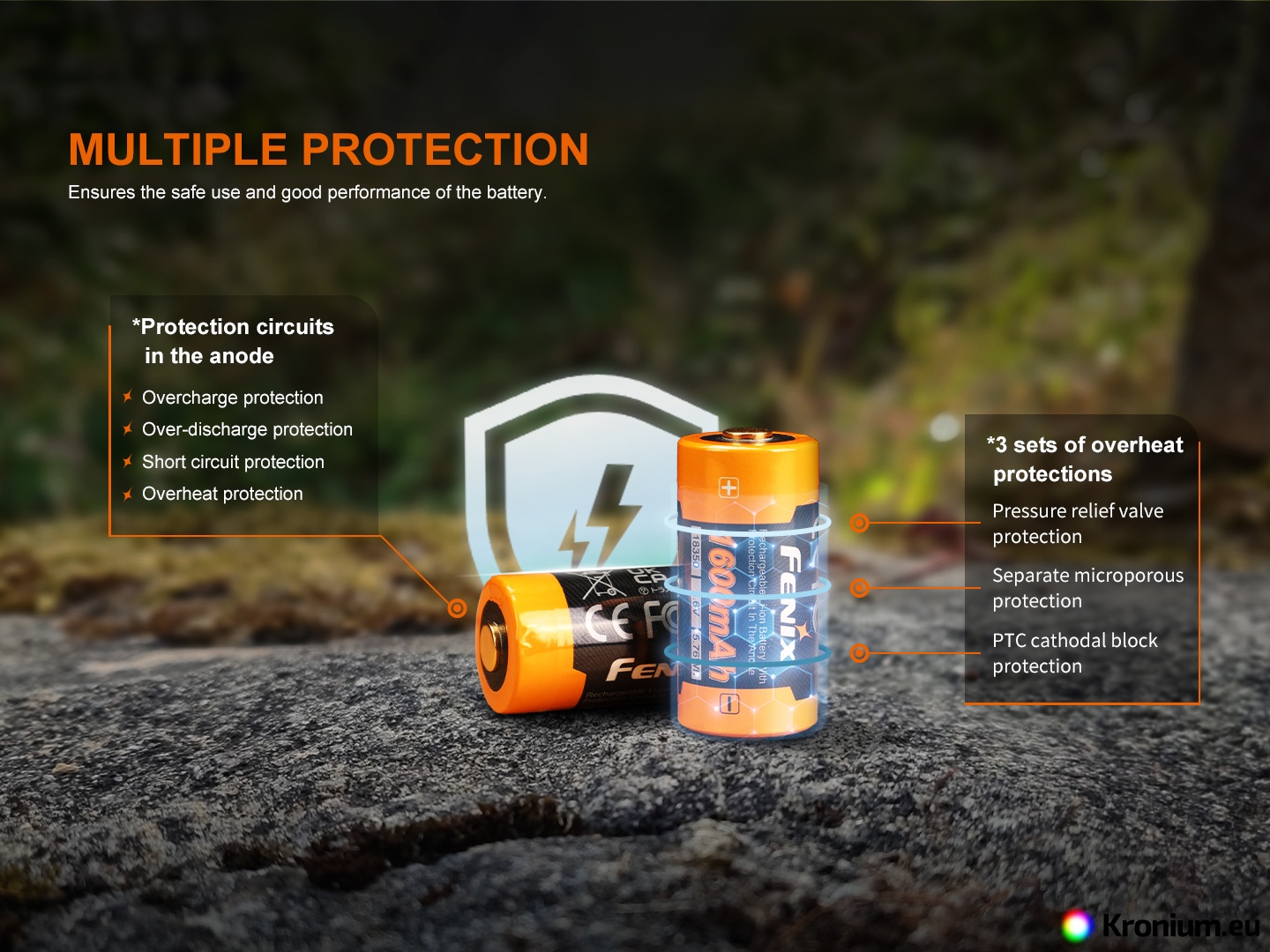

The protection of this Fenix battery consists of internal safety mechanisms and protective electronics. The built-in electronic circuits prevent overcharging, over-discharging, short circuits, and excessive current draw. If the battery electronics detect that the limit values have been reached, it safely disconnects the cell.

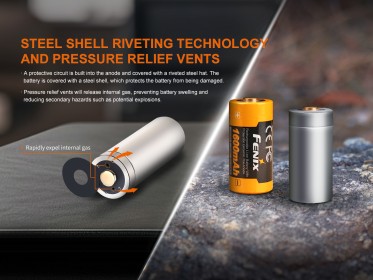

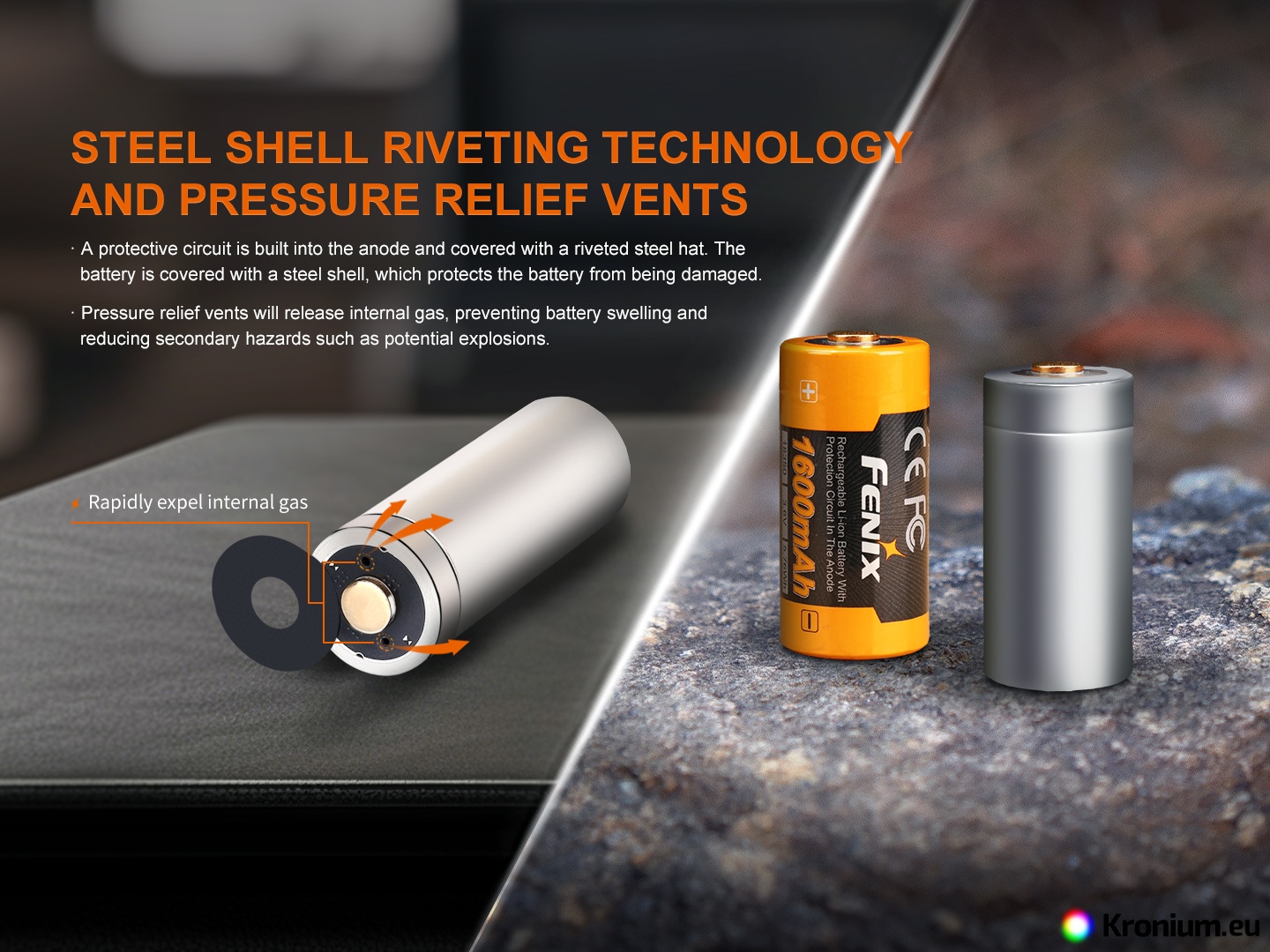

The internal protection consists of a separator, state-of-the-art overheat protection (HRL – Heat Resistance Layer), and a special pressure relief valve. In the event that the gas pressure in the cell exceeds a certain limit, the internal separator separates the electrodes inside the battery, effectively interrupting the exothermic reaction, and the pressure relief valve vents the excess gas outside the battery. Thanks to a combination of electronic and mechanical (temperature and pressure) protection, Fenix batteries are among the safest Li-ion batteries available.

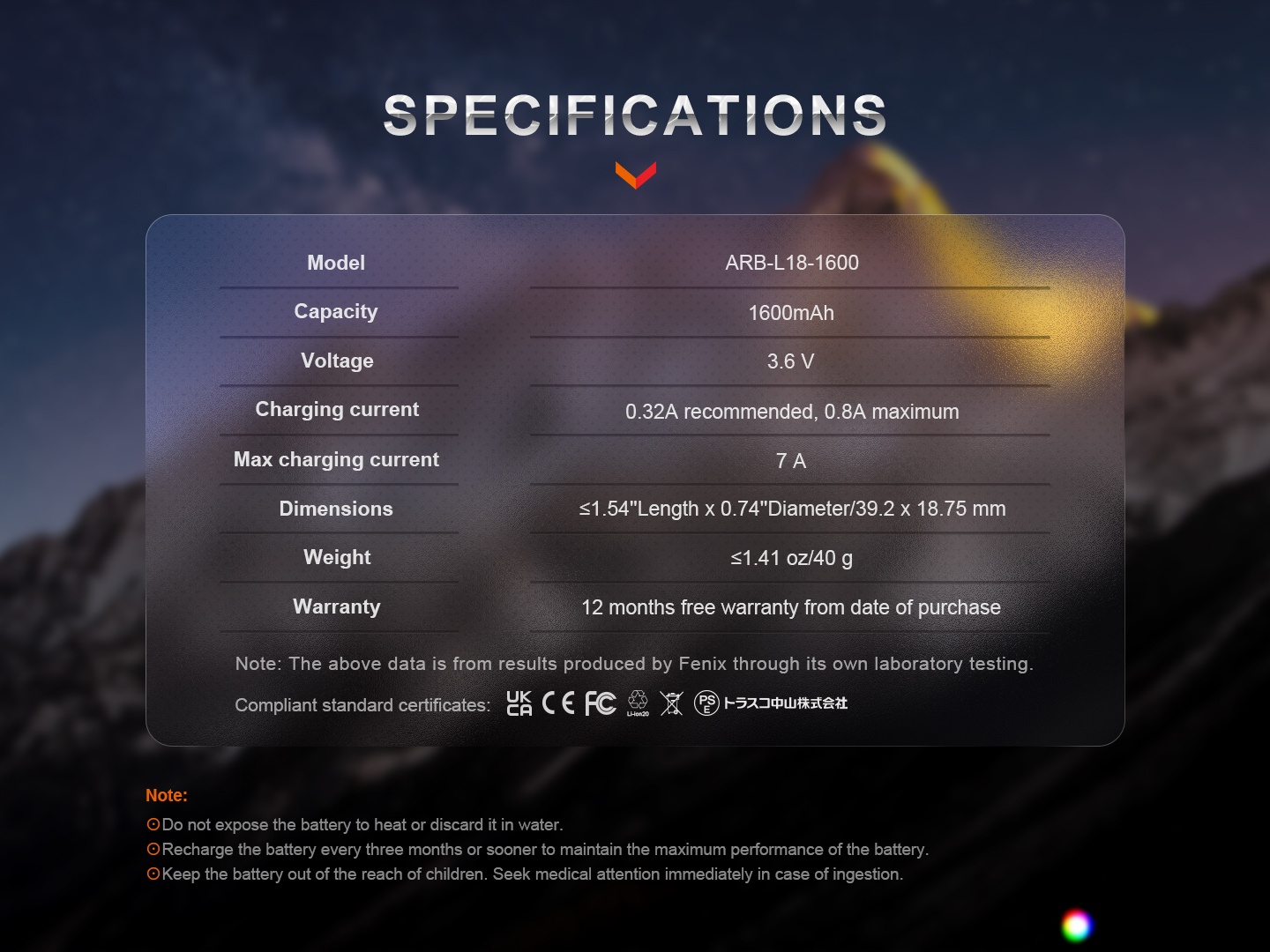

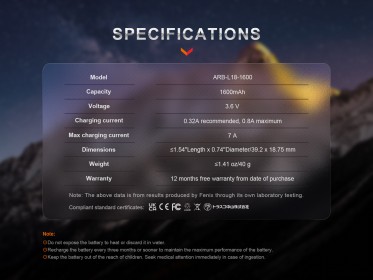

Parameters of the Fenix 18350 1600 mAh Battery
- Nominal voltage: 3.6 V.

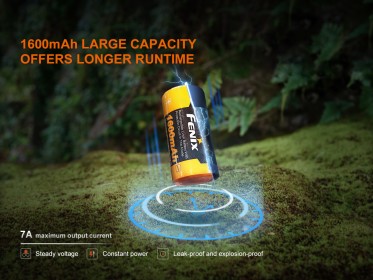

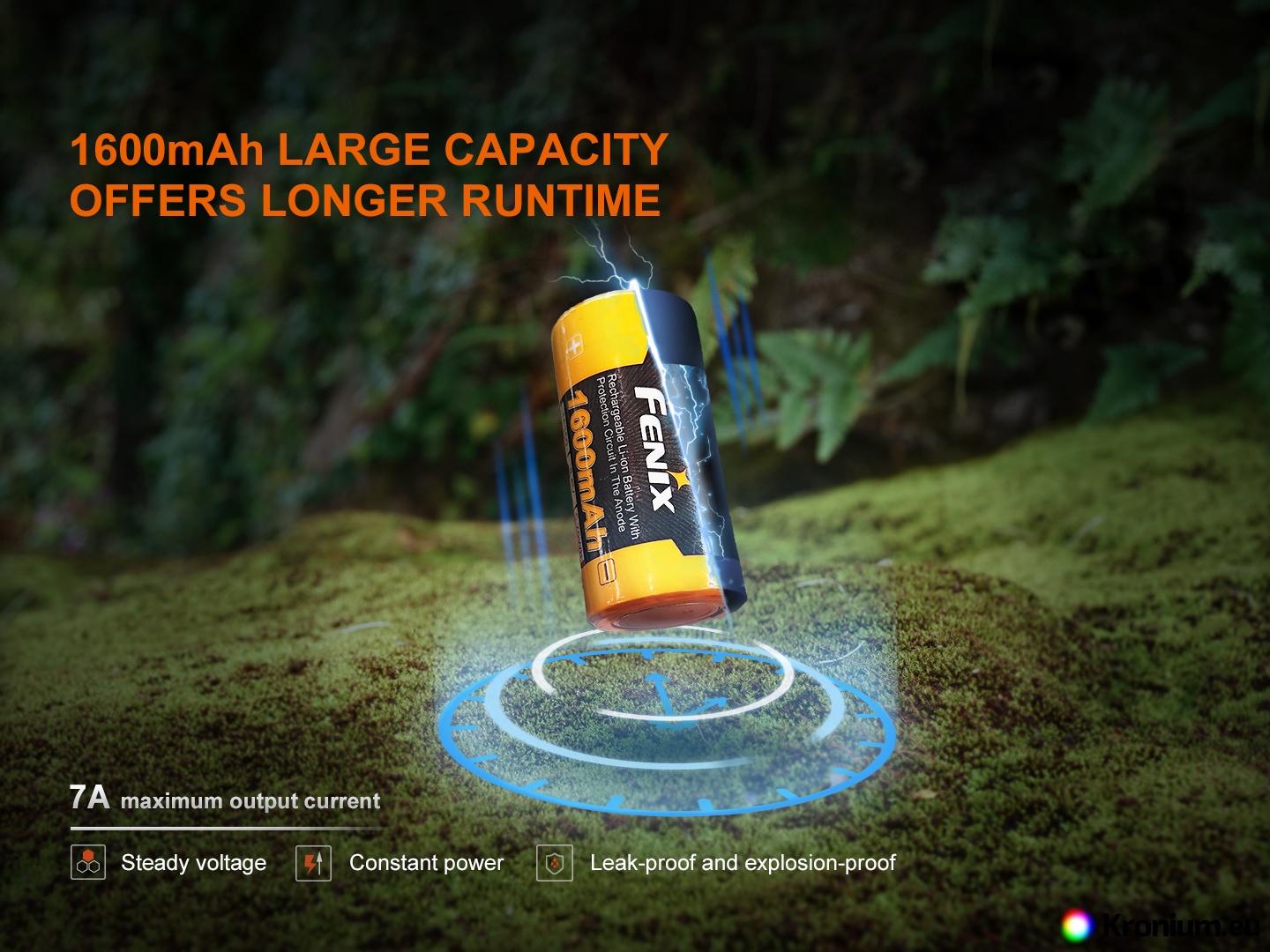

- Capacity: 1600 mAh (5.76 Wh).
- Maximum continuous discharge current: 7 A.
- Lifespan: 500 charge cycles.
- Diameter: 18.75 mm (± 0.2 mm).
- Height: 39.2 mm (± 0.2 mm).
- Weight: 26 grams.
Recommended Chargers
The battery can be charged in standard chargers for Li-ion batteries:
Fenix ARE-A2 Charger
Fenix ARE-A4 Charger
Fenix ARE-D1 USB Charger
Fenix ARE-D2 USB Charger
MC1 Mini USB Charger
Lii-100 USB Charger
VC8S 8-Channel USB Charger
Lii-600 4-Channel Diagnostic Fast Charger
SkyRC MC5000
Warnings
- Do not discharge the battery below 2.8 V.
- Do not short-circuit the battery (do not connect the cell poles with a wire).
- Do not dispose of the battery in fire or water.
- Never insert the battery into the charger backwards (with reversed polarity).
- Observe safety guidelines when using the battery.
- Use only an adequate charger that supports Li-ion batteries.
Warranty
Statutory two-year warranty.
