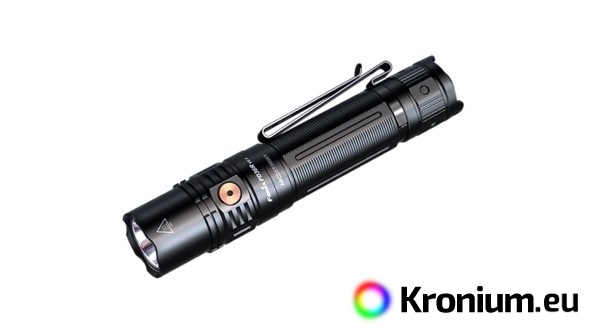

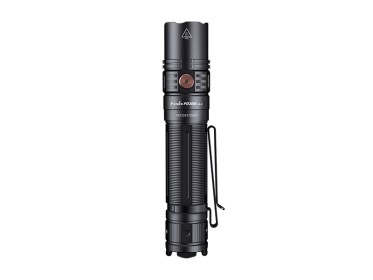

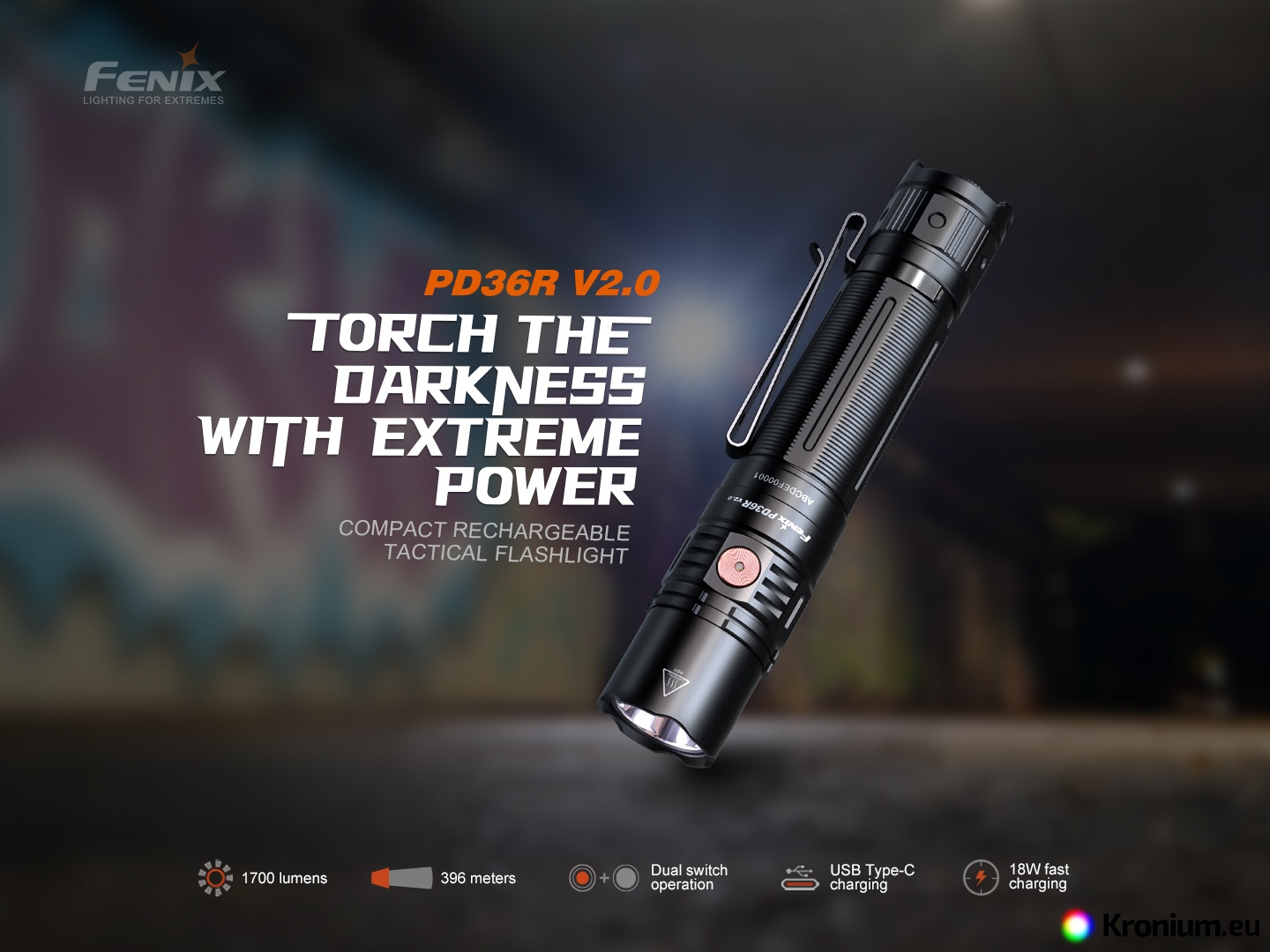

The rechargeable tactical flashlight Fenix PD36R V2.0 is fitted with a modern LED LUMINUS SFT-40 and brings luminous flux of up to 1700 lumens and glow of up to 396 meters. The package also includes a rechargeable 21700 Li-ion battery with a capacity of 5000 mAh, which is charged directly in the flashlight via a modern USB-C connector. The flashlight has six different lighting modes that allow you to choose between high performance and long endurance. On the lowest mode, it can light up to 482 hours, which is 20 days of lighting at a time. There are also stroboscopic flashes with variable frequency for crisis situations.

The flashlight supports fast charging protocols with an output of up to 18W and is equipped with an indication of the battery charge status in the side button. The Fenix PD36R V2.0 flashlight impresses not only with its compact dimensions but also with its really high light output. We can therefore recommend it also for use in security components and other demanding activities.

All parameters of the flashlight (luminous flux, battery operation time, waterproofing, throw and impact resistance) are measured in compliance with the ANSI/ NEMA FL 1-2009.

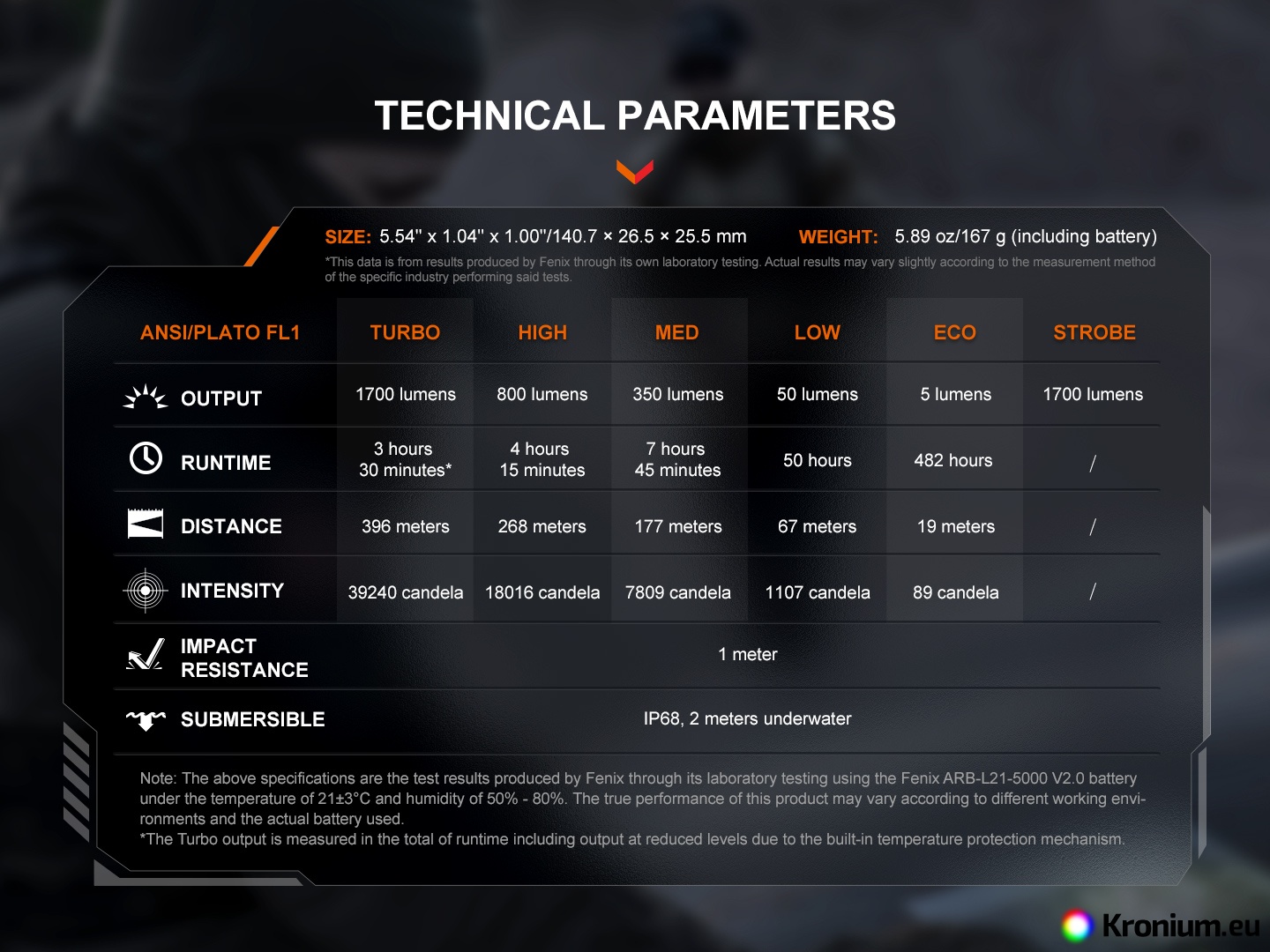

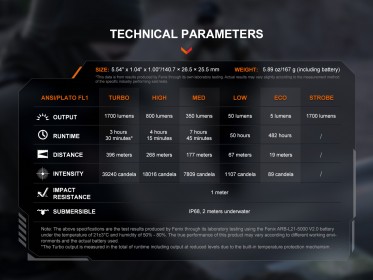

Fenix PD36R V2.0 rechargeable tactical flashlight parameters

• A high-performance LED LUMINUS SFT-40 with lifetime of 50000 hours is used.
• Six lighting modes: Turbo 1700 lumens (3.5 hours) -> 800 lumens (4.25 hours) -> 350 lumens (7.75 hours) -> 50 lumens (50 hours) -> 5 lumens (482 hours) - Strobe 1700 lumens (strobe with variable frequency).

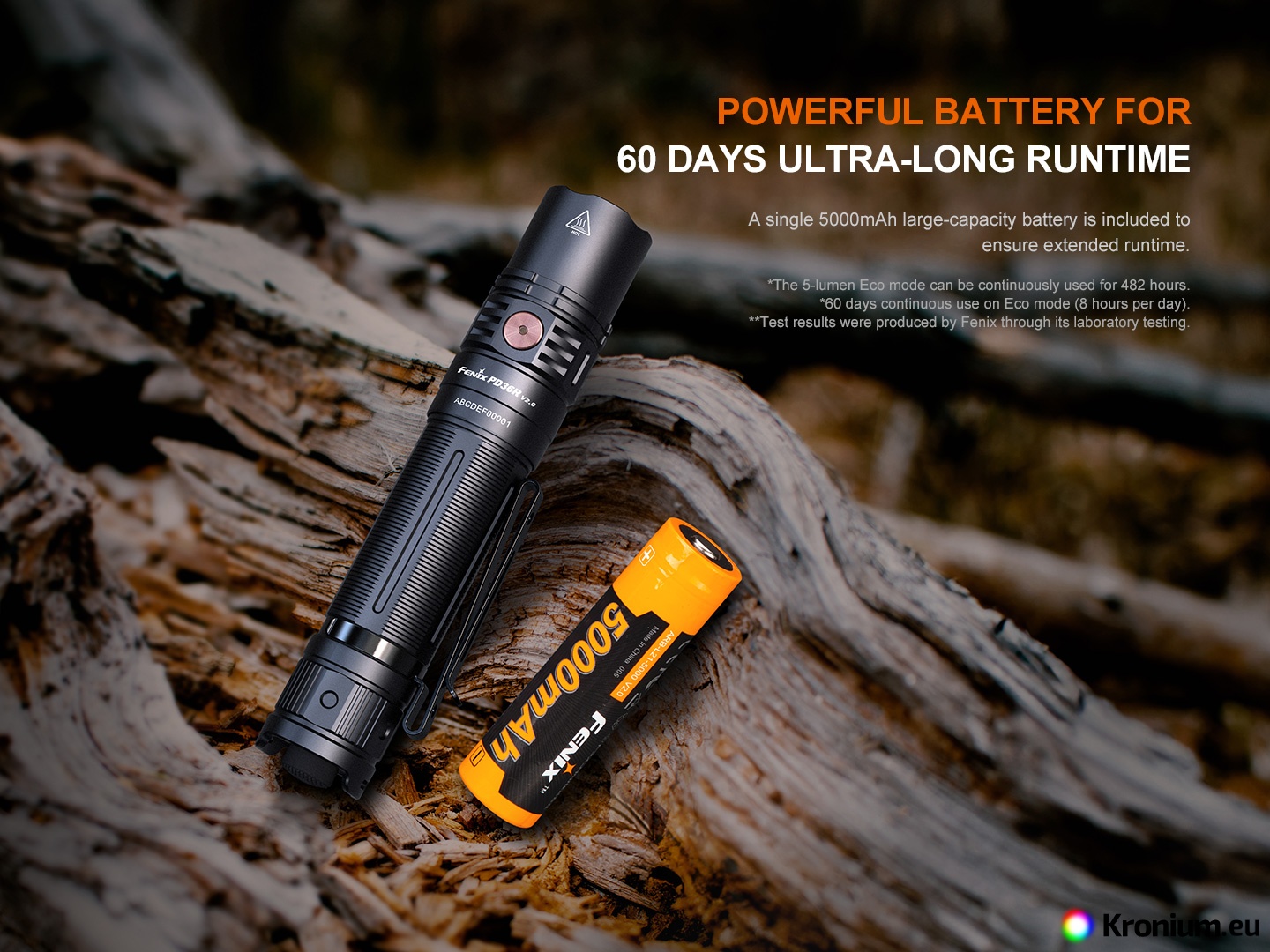

• Luminous flux and runtimes are measured with included Li-ion 21700 battery with capacity 5000 mAh.
• Max. battery diameter 22,1 mm., max. battery length 77,0 mm.
• The flashlight is equipped with intelligent overheating protection.
• Digital power regulation, low battery warning.
• Protection against accidentally inserting the battery upside down (reverse polarity).
• Smooth parabolic reflector for light beam with 396 meters (39240 cd)
• Dimensions 14.1 cm (length) x 2.65 cm (reflector diameter) x 2.55 cm (body diameter).
• Weight 167 grams including battery.

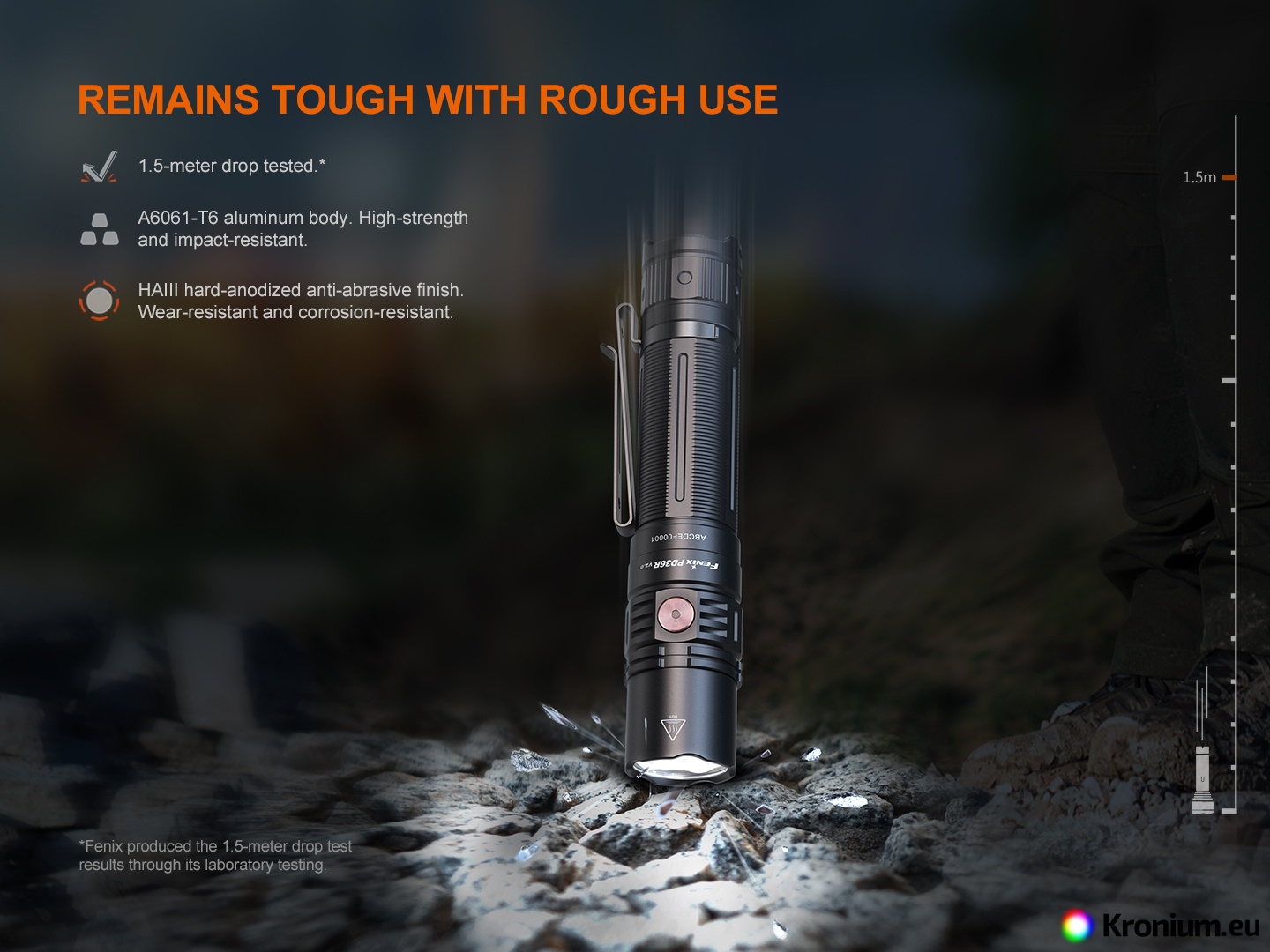

• Made of aviation-hardened aluminum, durable surface - Type III hard anodized.

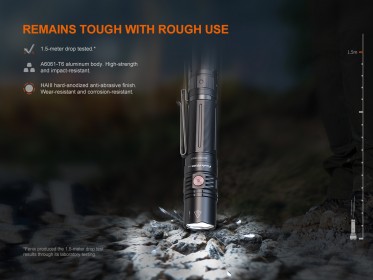

• Impact resistant to falls from a height of 1 meter.
• The flashlight has a memory and will always turn on in the last set mode (does not apply to flash mode).

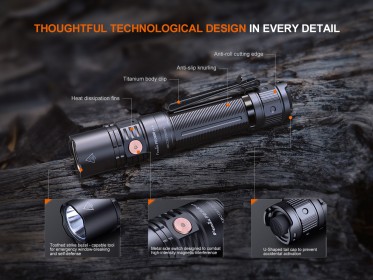

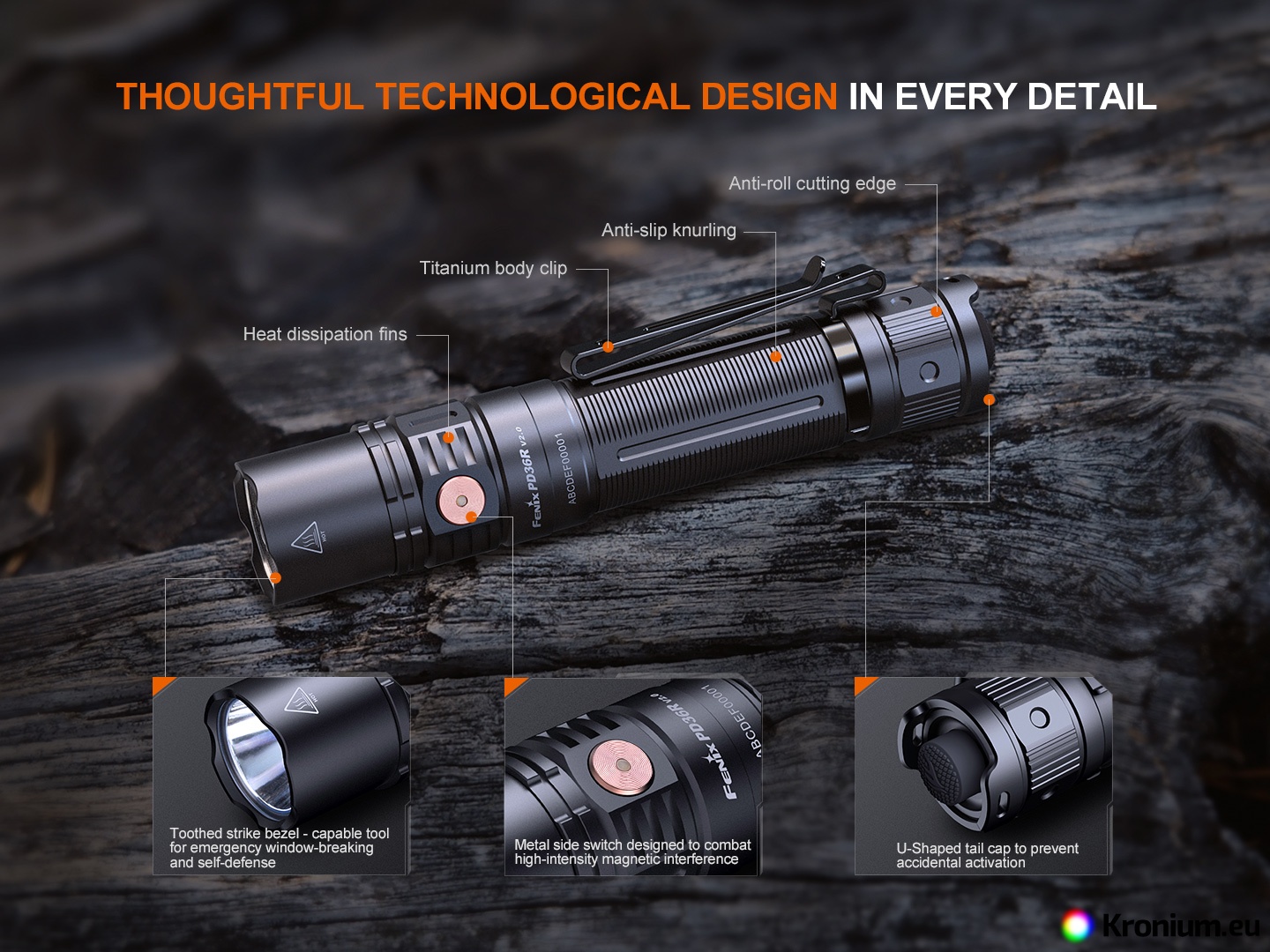

• Trapezoidal threads with increased resistance to wear.
• Significant surface grooves for a better grip, the design prevents the lamp from rotating on an uneven surface.
• Waterproof and dustproof according to the IP68 standard (tested under water at a depth of 2 meters for 30 minutes).

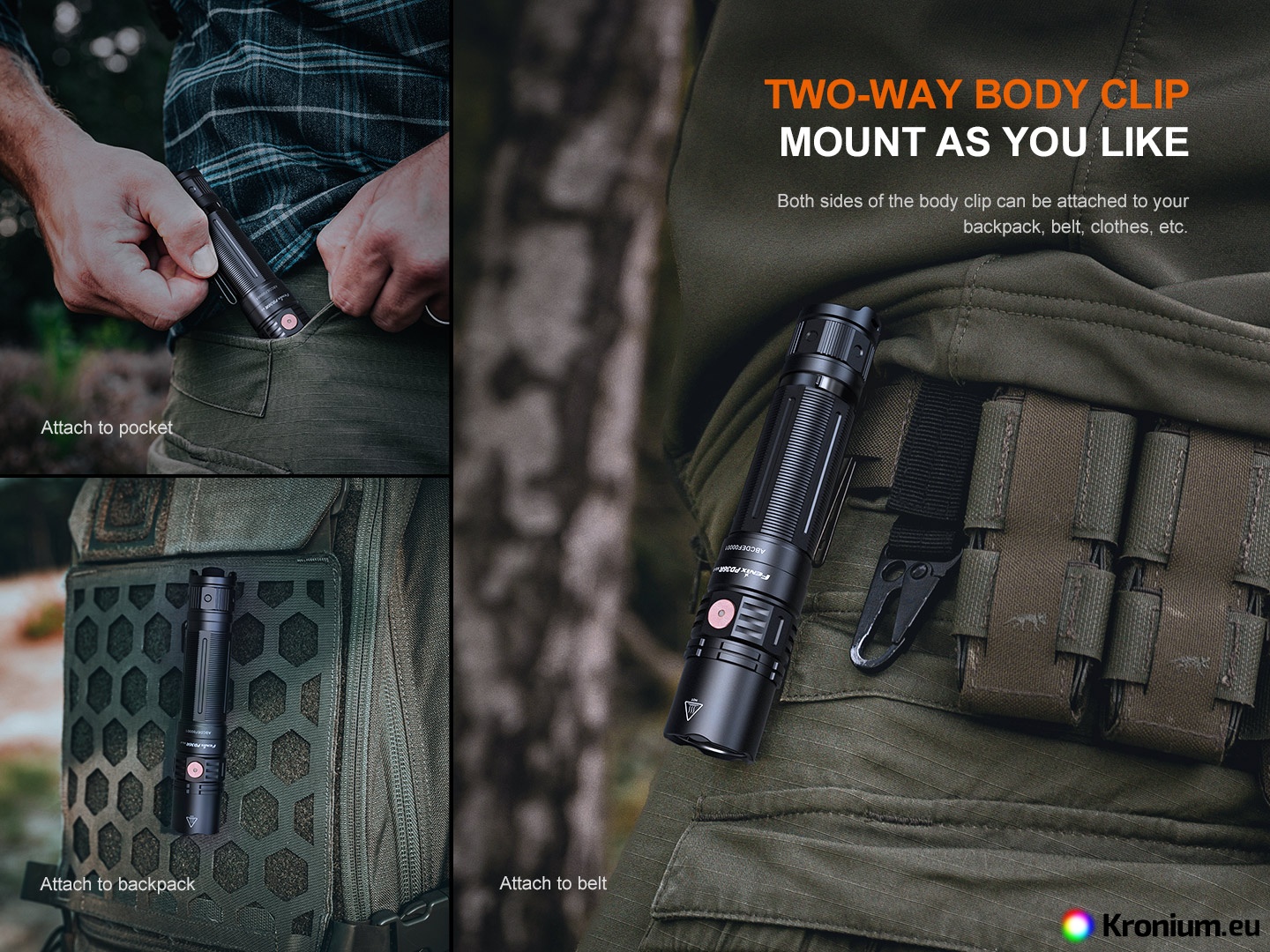

• Removable two-way steel buckle.
• Toughened ultra clear glass lens with anti-reflective coating.

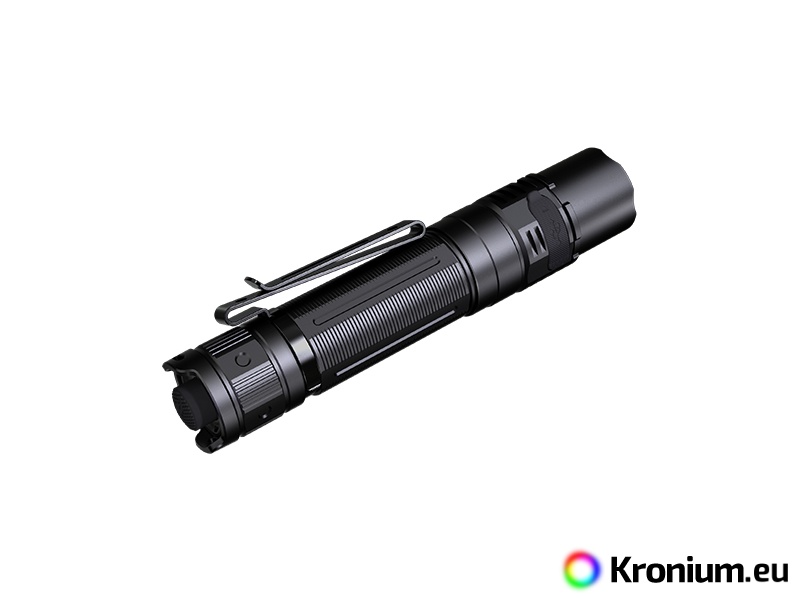

• Tactical switch at the end of the flashlight (momentary on/off function).

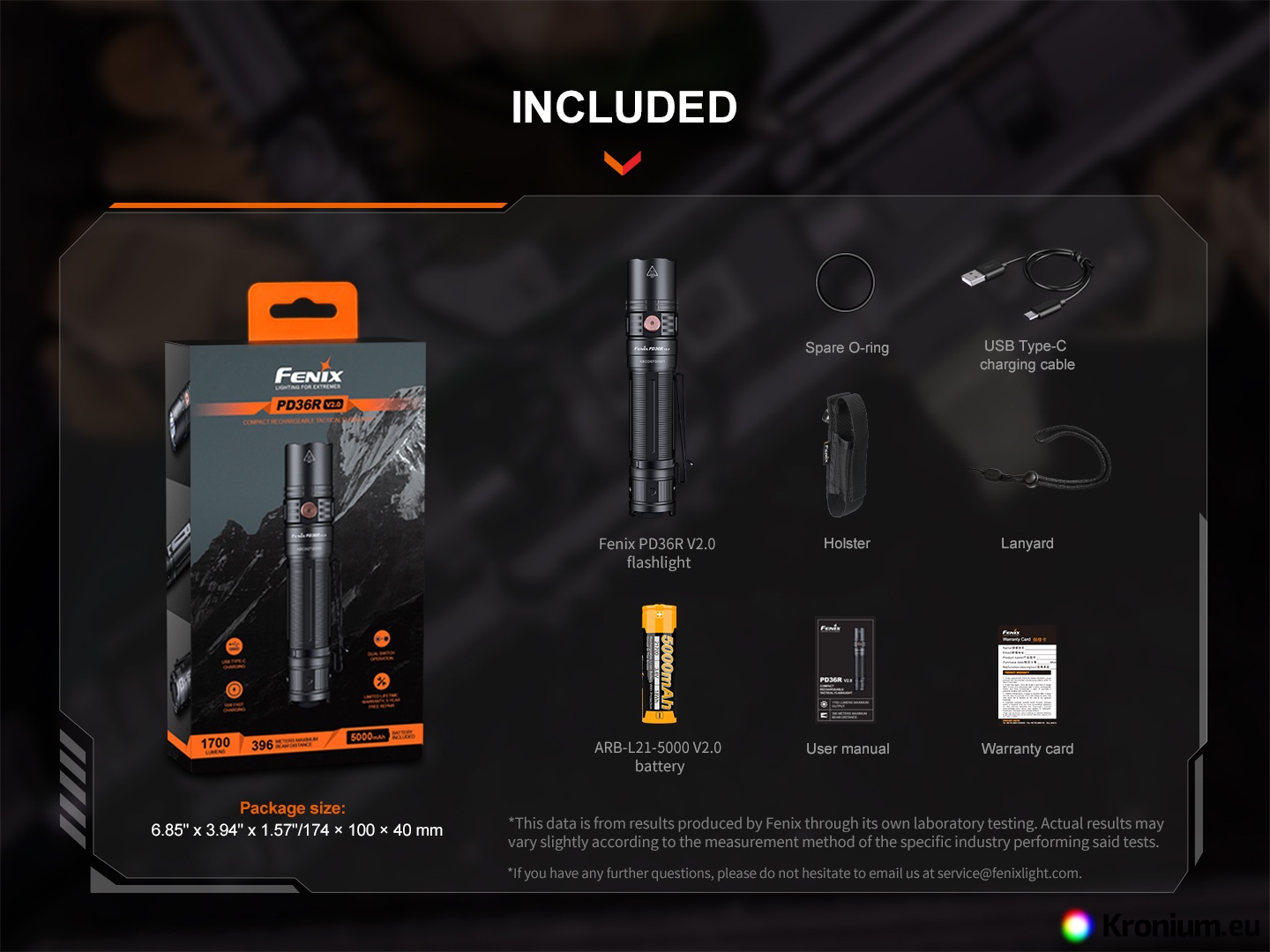

• The flashlight comes with a wrist strap, belt pouch, Fenix 21700 battery with 5000 mAh capacity, USB-C cable and spare o-ring.
• A cable switch cannot be used with the flashlight (the body and terminal are in one piece).

• The flashlight can also be purchased with a USB adapter supporting fast charging, USB-C cable, FB-1 bicycle holder, special Fenix bicycle holder, cycling helmet lamp holder BikeBlock, AOD-S V2.0 White Diffuser, AOF-S+ V2.0 red filter, red traffic cone AOT-S+.

Using the Fenix PD36R V2.0

There may be an insulating cap inside the lamp on the battery from the factory. Remove it from the battery before first use.

To turn it on press the switch located at the end of the lamp, for approxpress the button for immediate activation. By pressing the side button at the head of the lamp, you can switch between power modes at any time during operation. To switch to strobe mode, hold down the side button for about 0.5 seconds.

Intelligent protection against overheating - due to the fact that the lamp achieves high performance, there is an increase in temperature. If the temperature exceeds 60°C, there will be an automatic power reduction. As soon as the temperature drops below 60°C, it is possible to use the highest power again.

Ibattery charge status indicator - each time it is switched on, the indicator LED in the side button of the flashlight is activated for three seconds. If the indicator diode lights up green, the battery is charged to more than 85%. Green flashing means 50-85% capacity. If it glows red, it is charged at 25-50%. Red flashing means there is less than 25% battery capacity left.

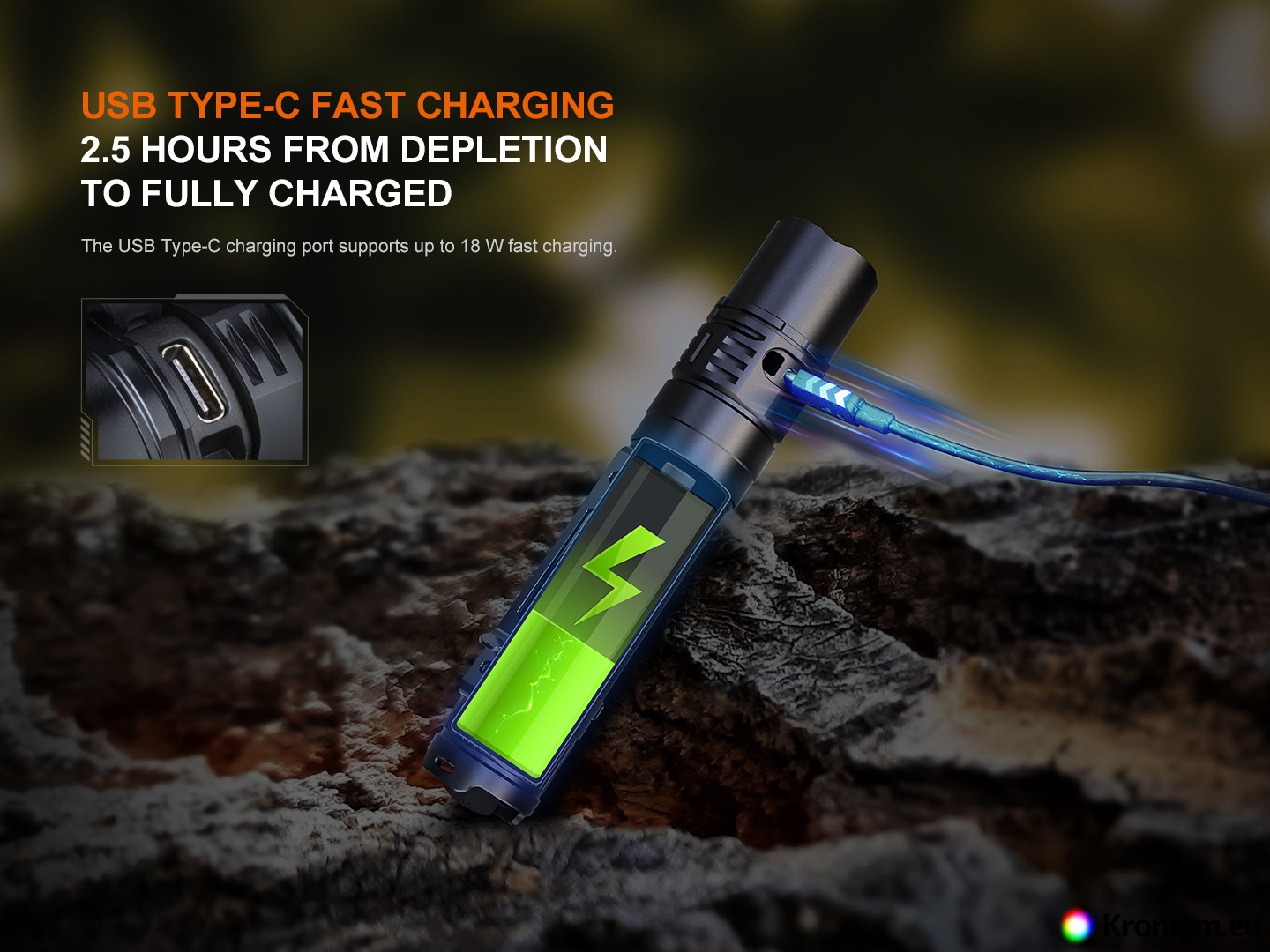

Charging - unfold the rubber cover of the charging connector on the side of the flashlight and plug in the attached cable (USB-C connector), plug the other end of the cable into the computer or the USB adapter into the electrical network or the car. The side button lights up red while charging. It lights up green when fully charged. Charging a fully discharged battery takes about 2.5 hours depending on the adapter used. The flashlight can be used while charging, but only in 5 lumen lighting mode.

Warning about low batteries - the flashlight will gradually automatically switch to the lowest mode and the indicator LED in the side button will start flashing red.

Warning

• Do not disassemble the sealed parts in the lamp head yourself, this will void the warranty.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings must also be lubricated to prevent rubber erosion. By following these rules, the lamp will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be for one of the following reasons:
  • The battery is dead, charge it.
  • The contacts inside the lamp are clogged – clean them with a cotton swab dipped in alcohol.
  • The head, body or back of the lamp is loose, tighten it.

Warranty

Five-year warranty on the flashlight, two-year warranty on the battery.
