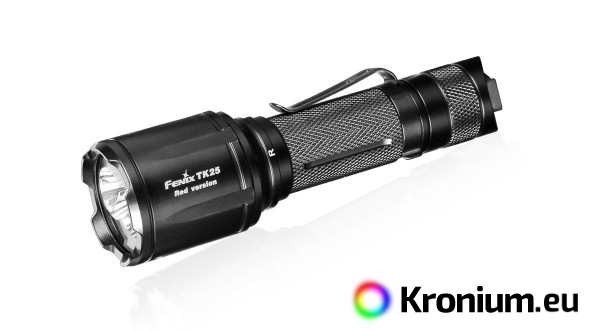

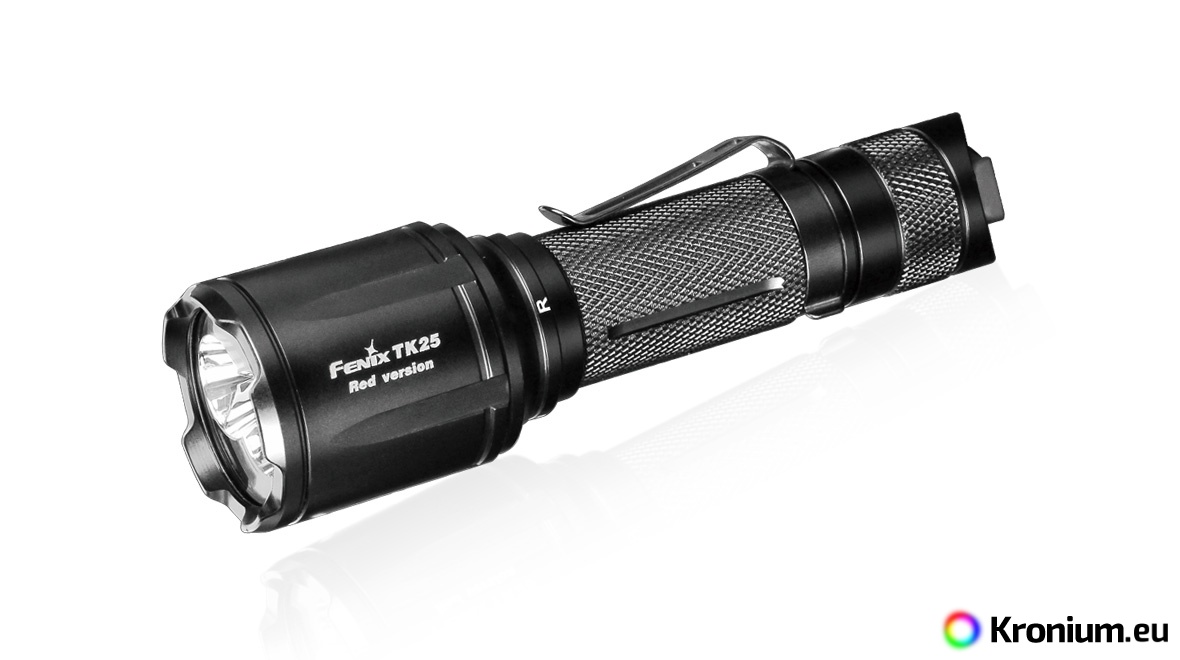

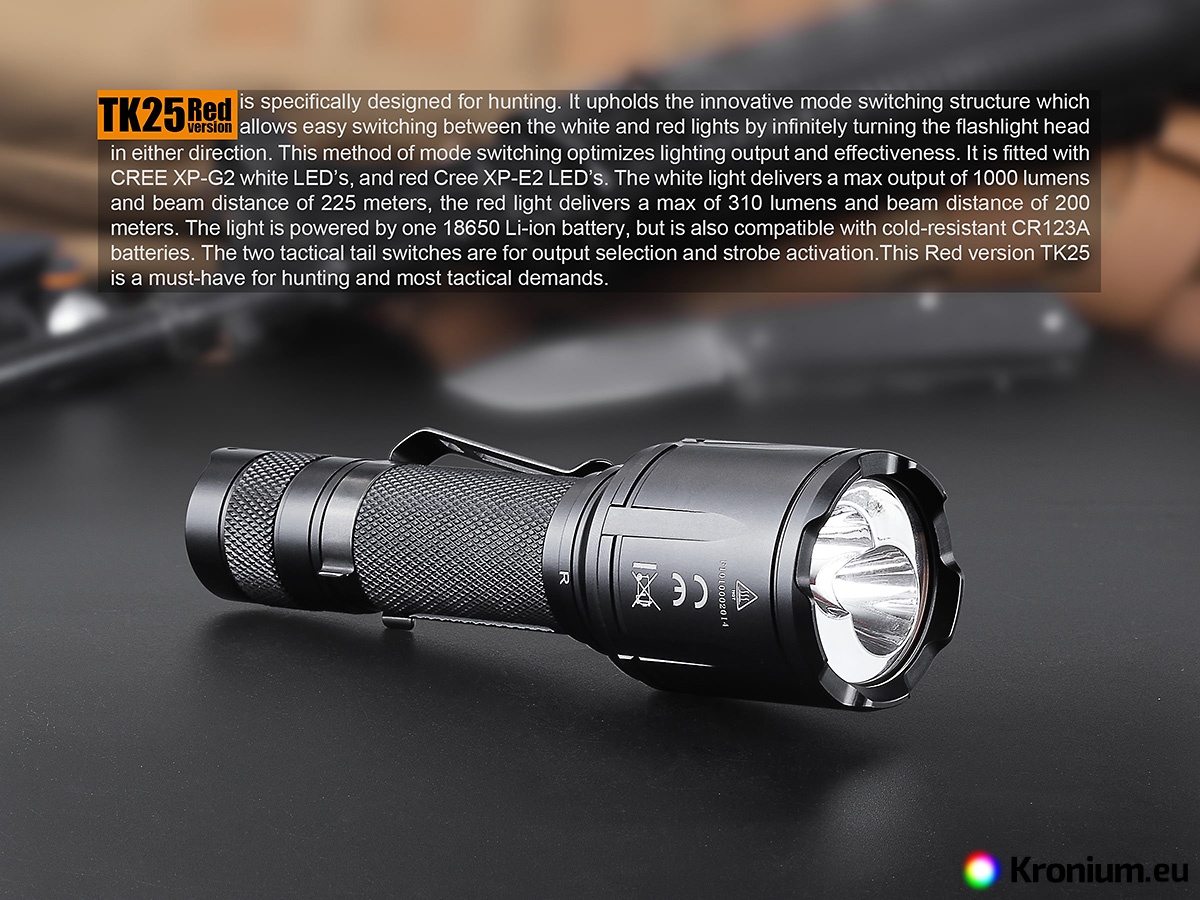

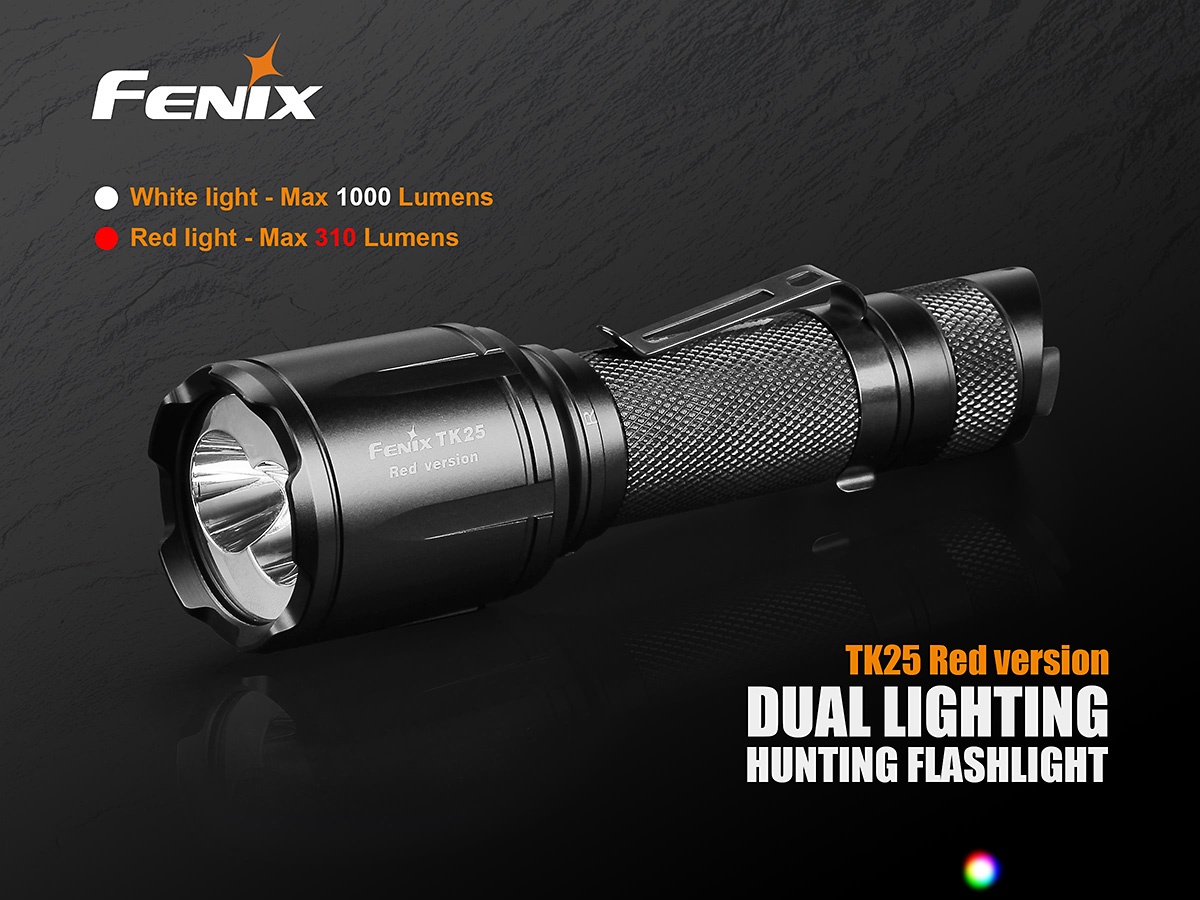

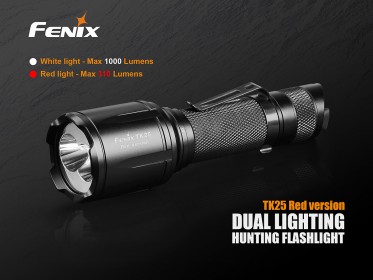

The high-performance Fenix TK25 Red tactical flashlight offers a peak lumen output of up to 1000 ANSI lumens of white light plus two red LEDs with up to 310 lumens and 200 meter range. The flashlight can be powered by two disposable CR123A batteries or one high-capacity Li-ion 18650 battery (not included). The very solid and waterproof design and double-layer body construction predestines this tactical flashlight for harsh outdoor conditions, for professionals, armed forces and hunting. The Fenix TK25 Red flashlight uses a dual tactical switch that allows for faster and more reliable control in crisis situations. For example, it can easily be switched directly into strobe mode. The flashlight is powered by a digitally controlled constant current to guarantee a constant light output even when the voltage in the batteries is reduced (during their gradual discharge).

The Fenix TK25 Red has a total of five white light modes with up to 110 hours of operation and three red light modes.

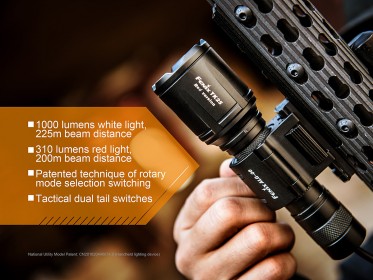

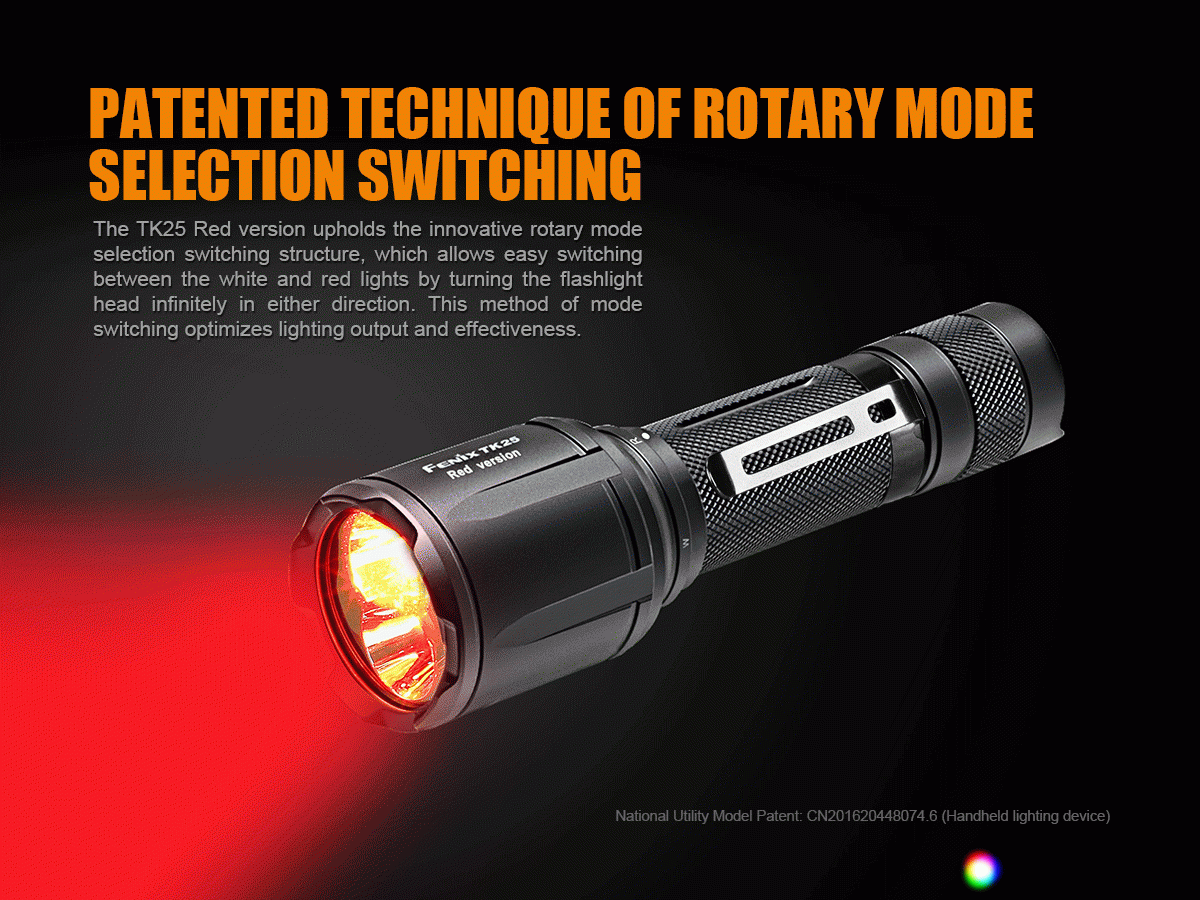

Switching between white and red light mode is very easy, just turn the flashlight head by 90°. However, due to the magnetic sensors in the flashlight head, it cannot be used with a magnetic mount on the gun, which interferes with its proper function.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

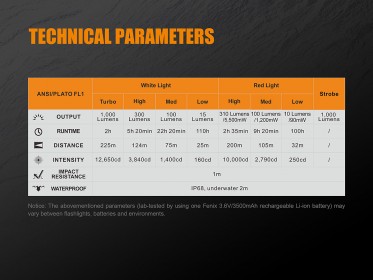

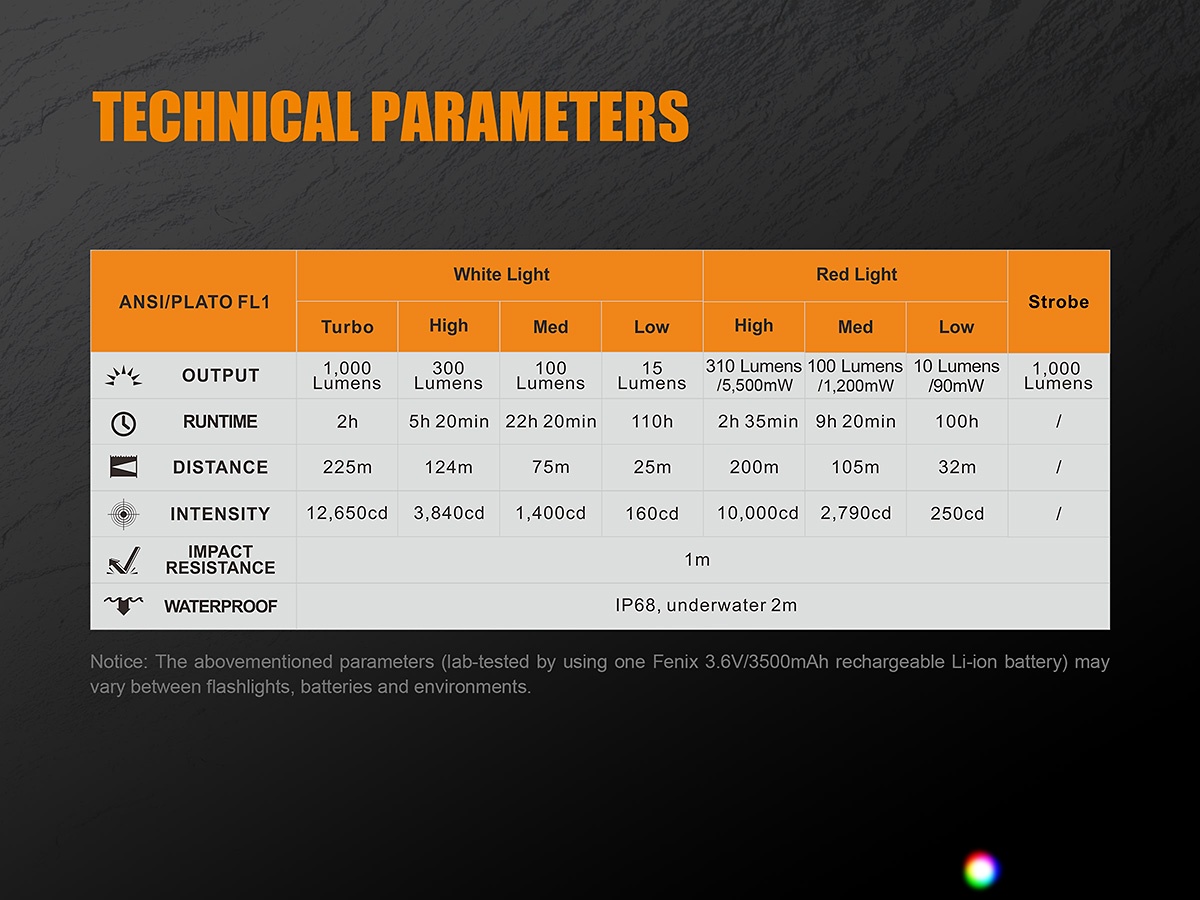

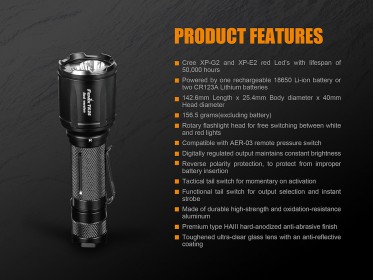

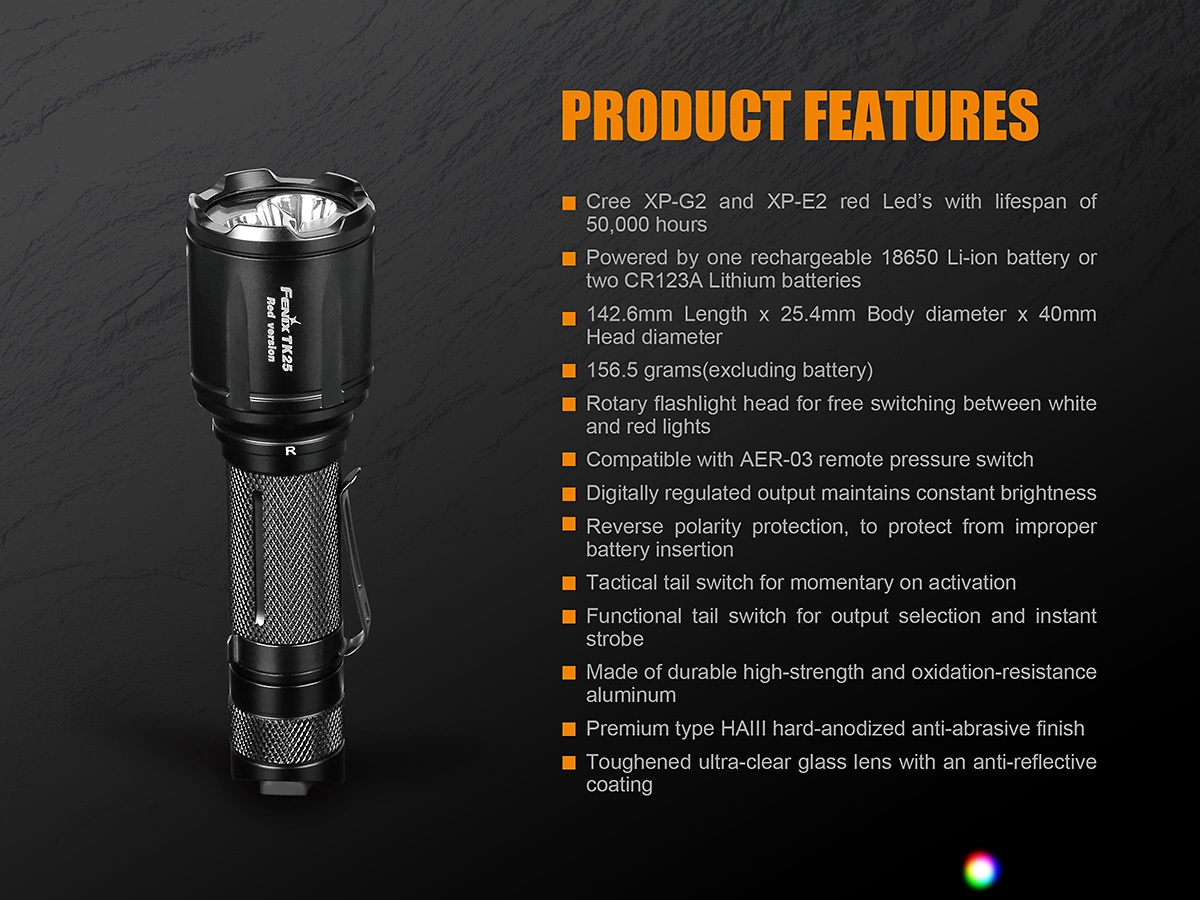

Fenix TK25 Red LED Flashlight Specifications:

• Two white powerful Cree XP-G2 S3 LEDs with a lifetime of 50000 hours and two red Cree XP-E2 LEDs are used.
• Five modes of white light output: 1000 lumens (2 hours) -> 300 lumens (5.3 hours) -> 100 lumens (22.3 hours) -> 15 lumens (110 hours) -> strobe (strobe flash).
• Three red light modes: 310 lumens/5500mW (2.5 hours) -> 100 lumens (9.3 hours) -> 10 lumens (100 hours)
• Double aluminum reflector for perfect light cone with reach up to 225 meters (12650 cd) for white light and 200 meters (10000 cd) for red light.
• Two 3V lithium batteries of type CR123A or one rechargeable high-capacity Li-ion battery 18650 can be used for power supply.
• Max. battery diameter 18,8 mm., max. battery length 70,0 mm.
• Duration times are measured with a rechargeable 18650 type Li-ion battery with 3500 mAh capacity.
• Electronics with digital constant power control and reverse battery insertion protection.
• System of two springs - high durability of the flashlight when used on a weapon.
• Intelligent overheating protection, operation in maximum mode is limited only by the temperature of the flashlight, not by time.
• Dimensions 14.26 cm (length) x 4 cm (head diameter) x 2.5 cm (body diameter).
• Weight 156.5 grams (without batteries).

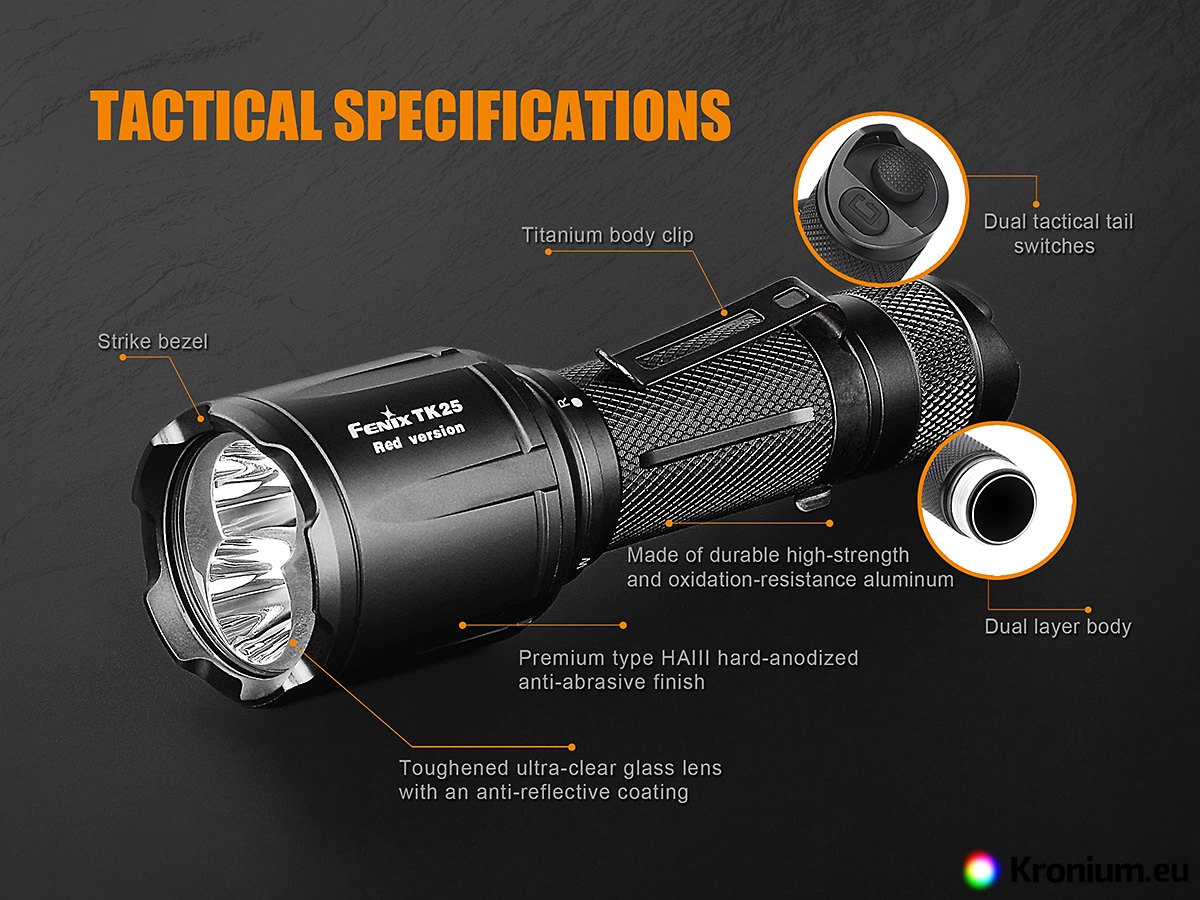

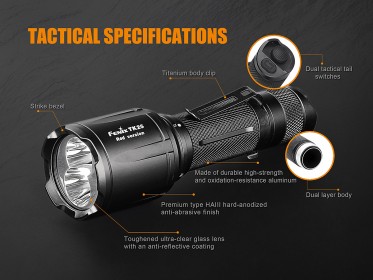

• Made of aerospace hardened aluminum.
• Resistant to drops from 1 meter.
• Highly wear-resistant arch threads.
• The flashlight has memory and always turns on in the last set mode (not valid for strobe).
• Low scratch resistant surface - Type III hard anodized.
• Waterproof and dustproof to IP68 standard (tested underwater at 2 meters depth).
• Hardened ultra clear glass lens with anti-reflective surface.

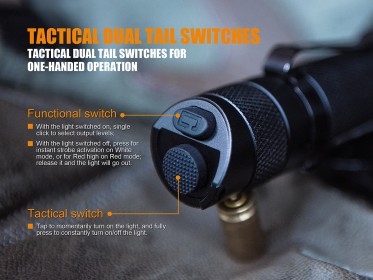

• Dual tactical switch on the end of the flashlight (momentary on/off function).
• Solid clip for safe and easy carrying of the flashlight (removable).
• The flashlight does not slip in the hand due to its design and does not rotate when put down.

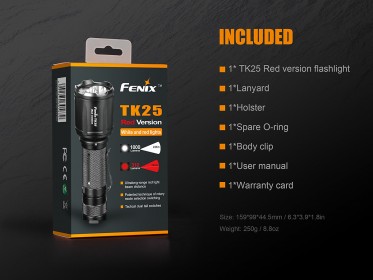

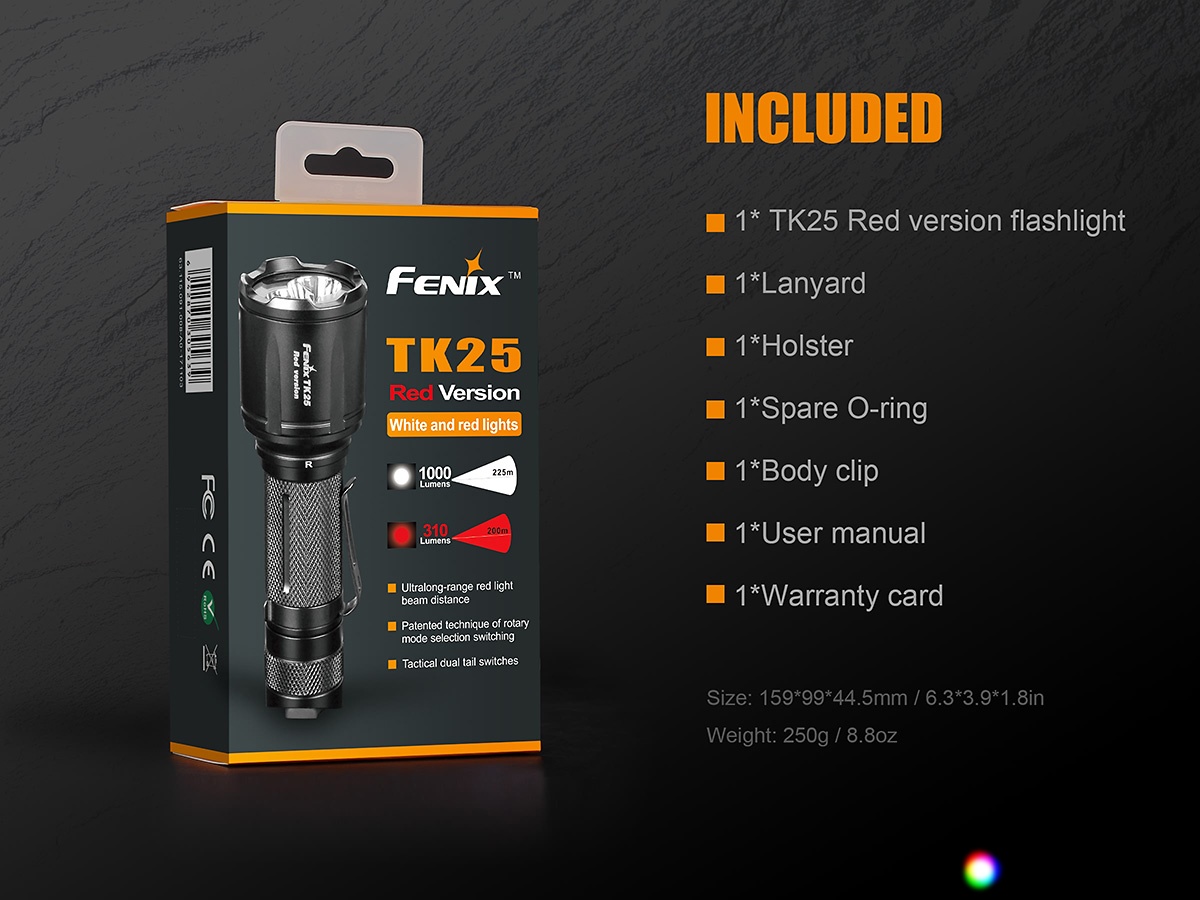

• Wrist lanyard, belt pouch and spare o-rings are included with the flashlight.
• Batteries are not included.

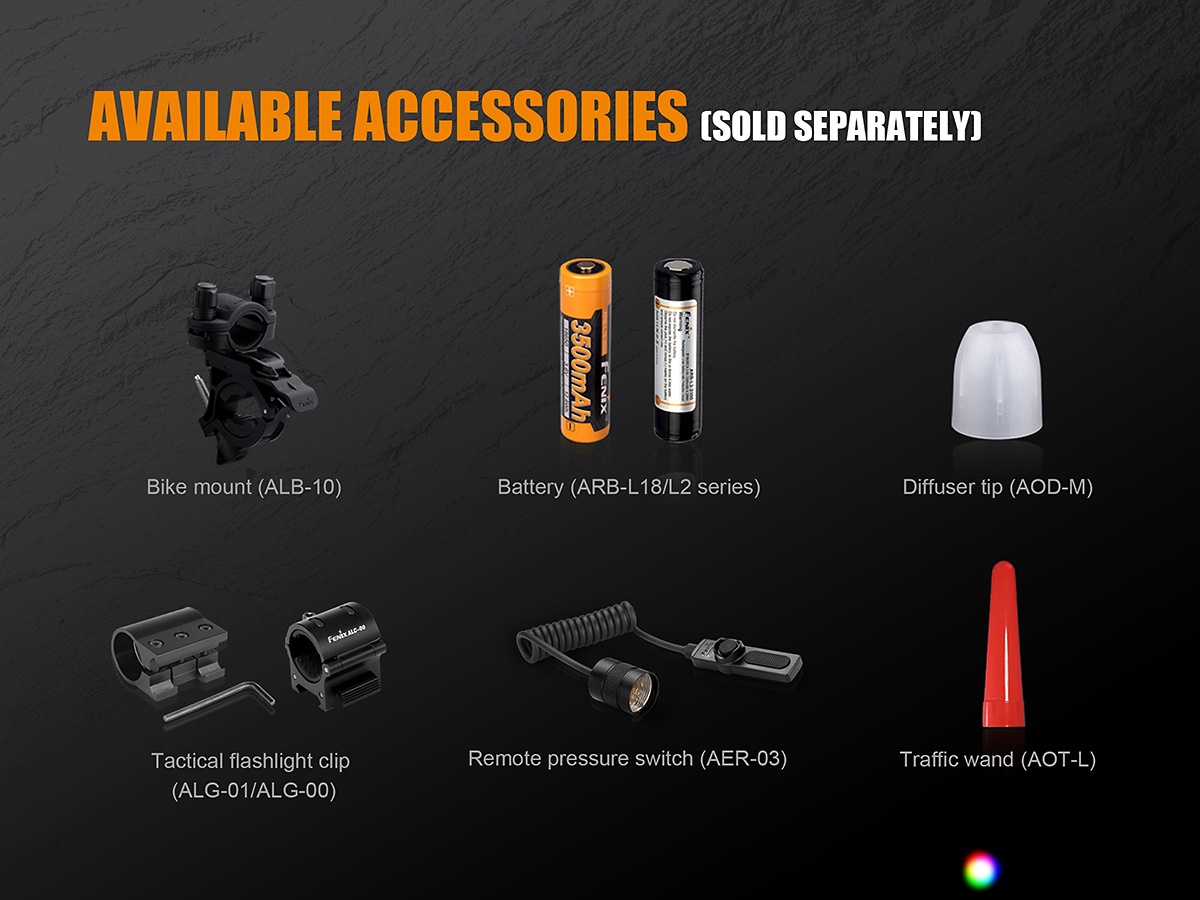

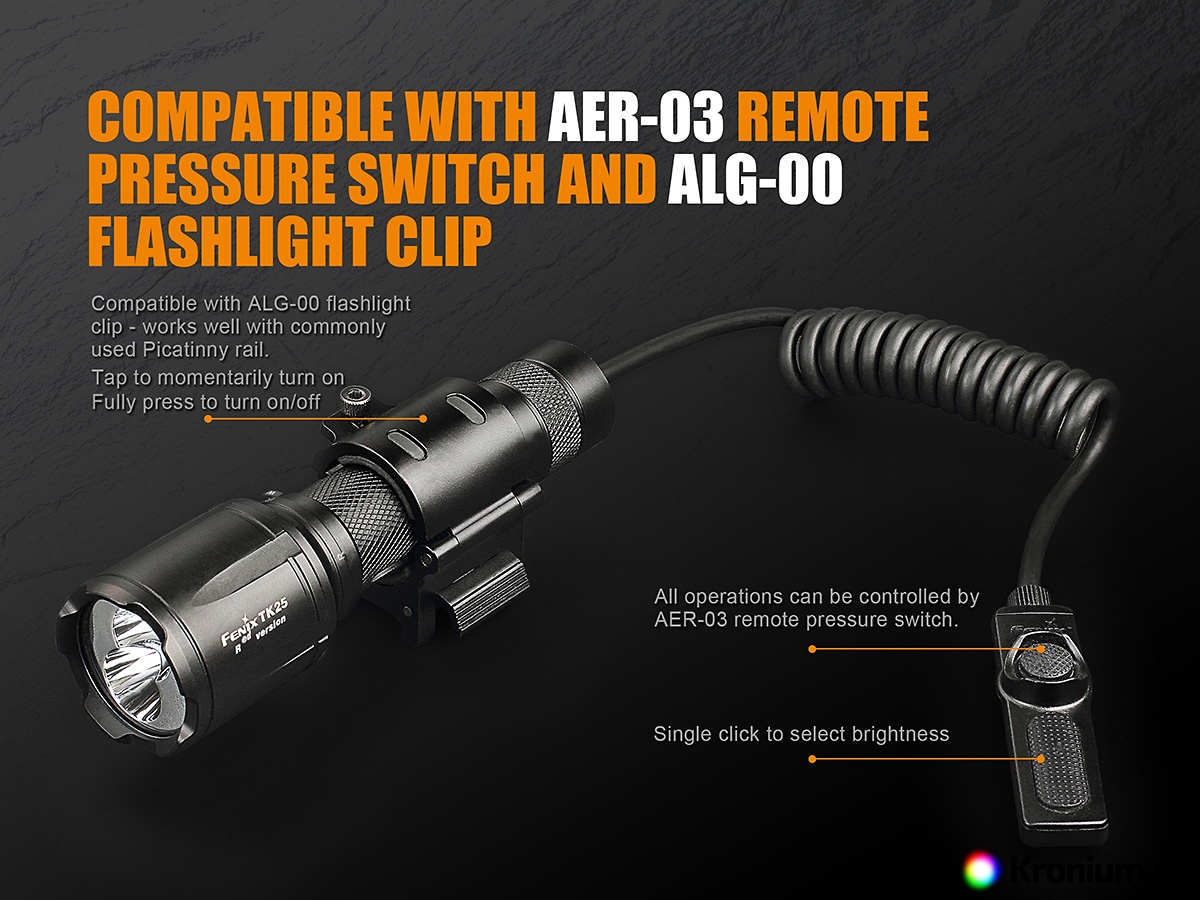

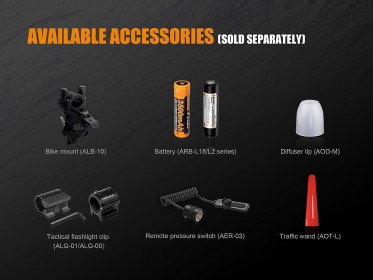

• Optional accessories can be purchased as: cable switch AER-03 V2.0, red traffic cone AOT-04, white diffuser AOD-M or AOD-04, colored filters AOF-L.

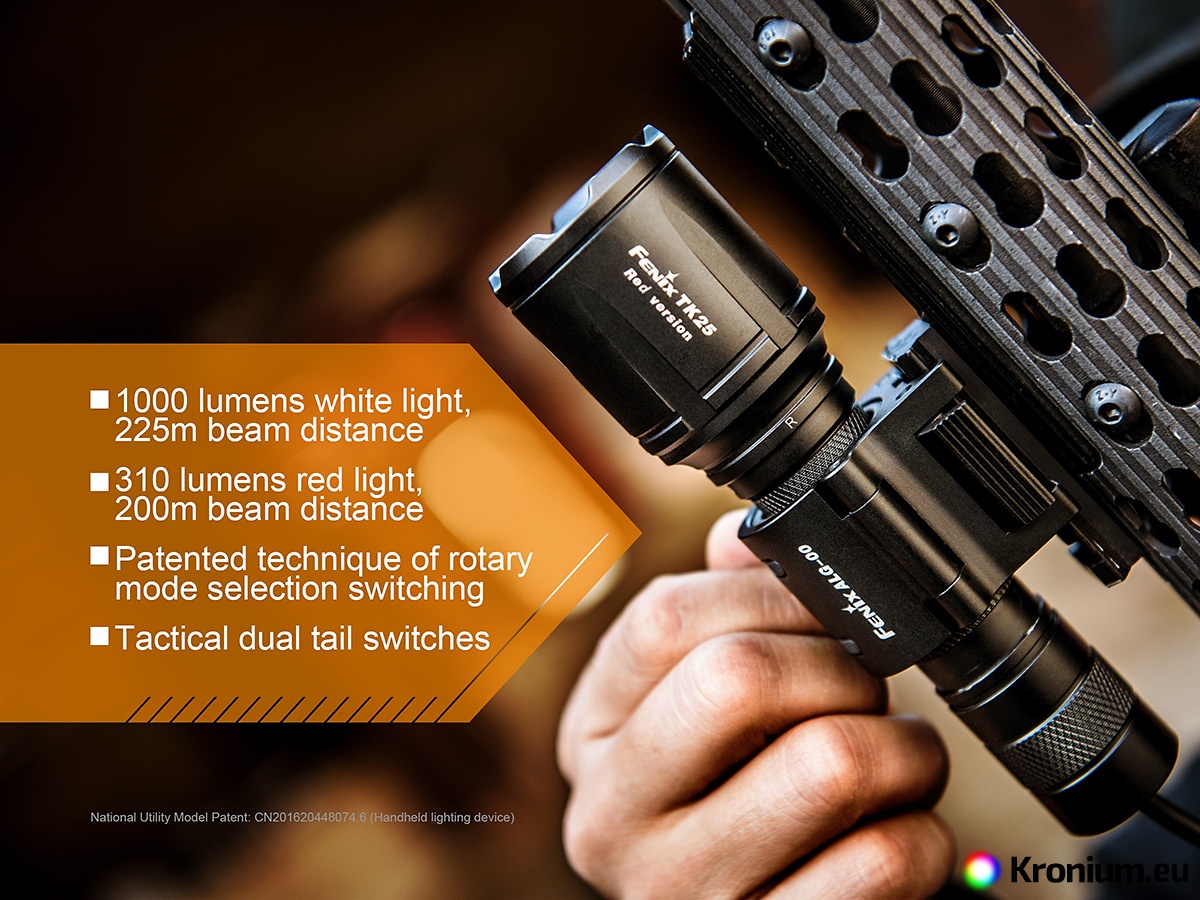

• The following accessories are also compatible with the flashlight: bike holder, Fenix bike holder, ALG-00, quick-release barrel mount ALG-15, optic mount flashlight, metallic mount scope.
• The flashlight cannot be used with any type of magnetic mounts!

Fenix TK25 Red Flashlight Controls

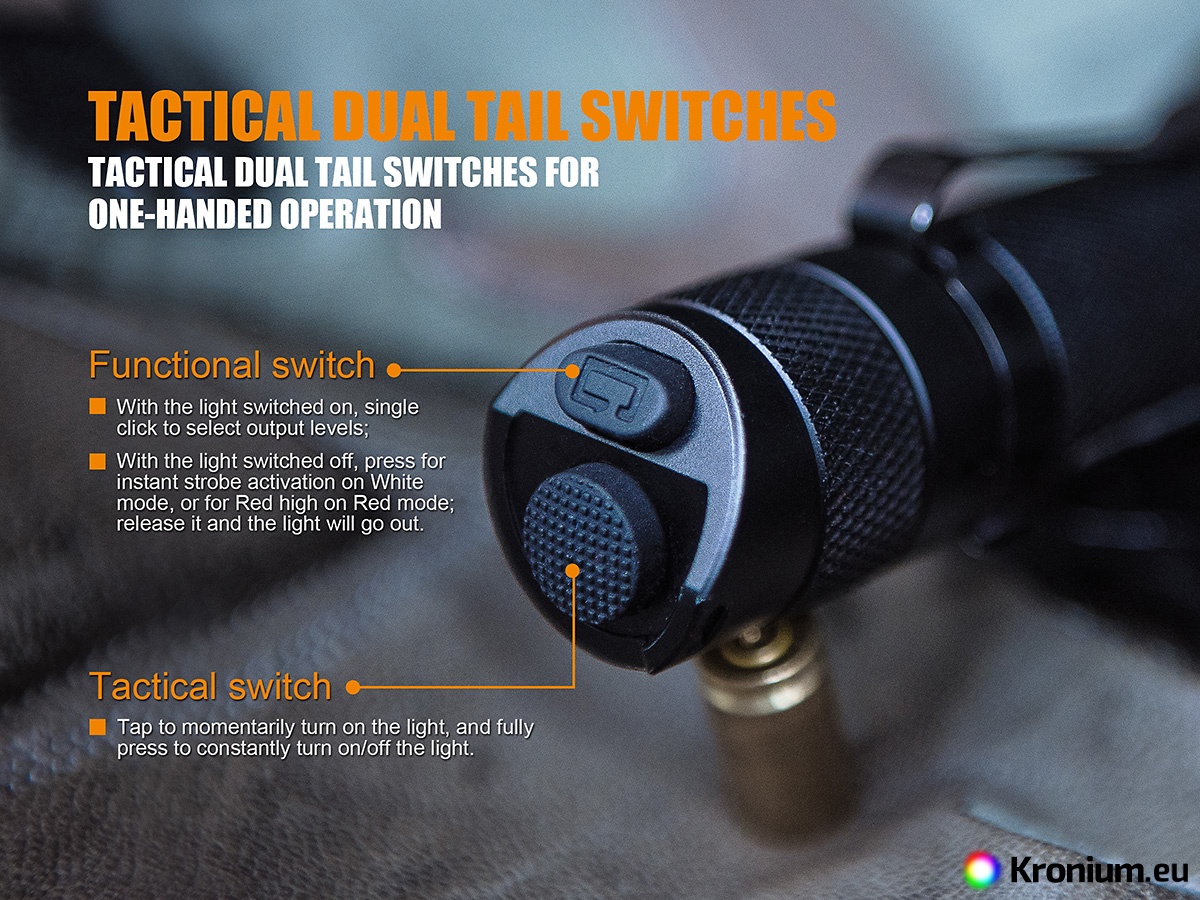

To turn on, press the larger button located on the end of the flashlight, press the button to activate immediately. Press the adjacent toggle button to switch between power modes at any time during operation. To switch to flash mode with the flashlight on, hold the toggle button for approximately 1 second. To turn the flashlight directly into strobe mode, press and hold the toggle button. Switch between white and red light modes by turning the flashlight head 90°. The red modes can be switched again with the second smaller button.

Intelligent overheat protection - if the temperature of the flashlight rises above 65°C, it will automatically start to reduce power in gradual steps of 5% every 30 seconds until its temperature stabilizes. Once the lamp temperature drops below 65°C, the power will automatically increase to the original level again. Operation at the highest power mode is thus not limited by time, but only by temperature.

Low battery warning - the flashlight automatically switches to the lowest mode and flashes 3 times every five minutes.

Warning

• Use only high quality 3V CR123A batteries and 18650 Li-ion batteries to prevent damage to the flashlight, for example due to leakage of substances from the battery.
• Insert the batteries with the positive pole towards the flashlight head.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The batteries are almost dead – replace them.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.
  • Head, body or back of the flashlight is loose, tighten them.

Warranty

Five years warranty.
