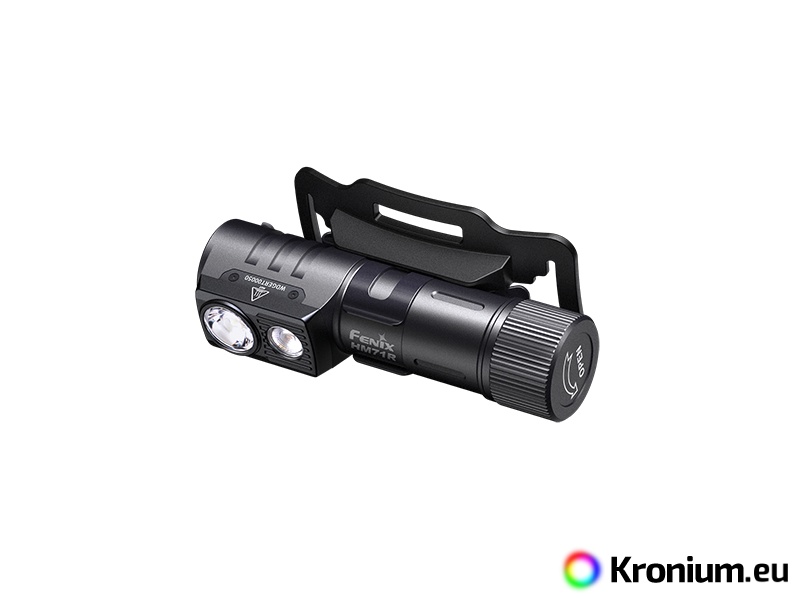

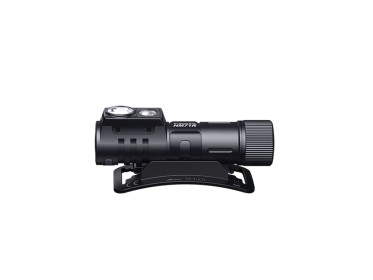

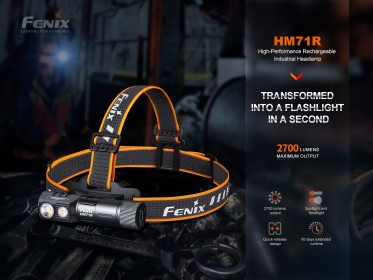

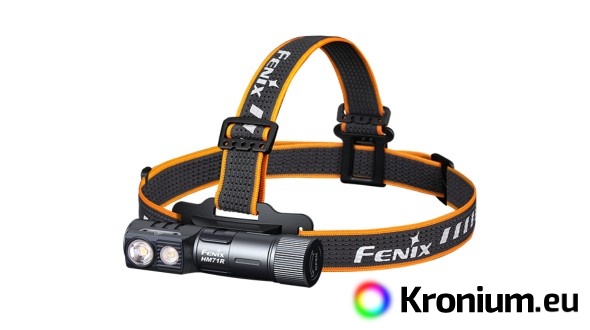

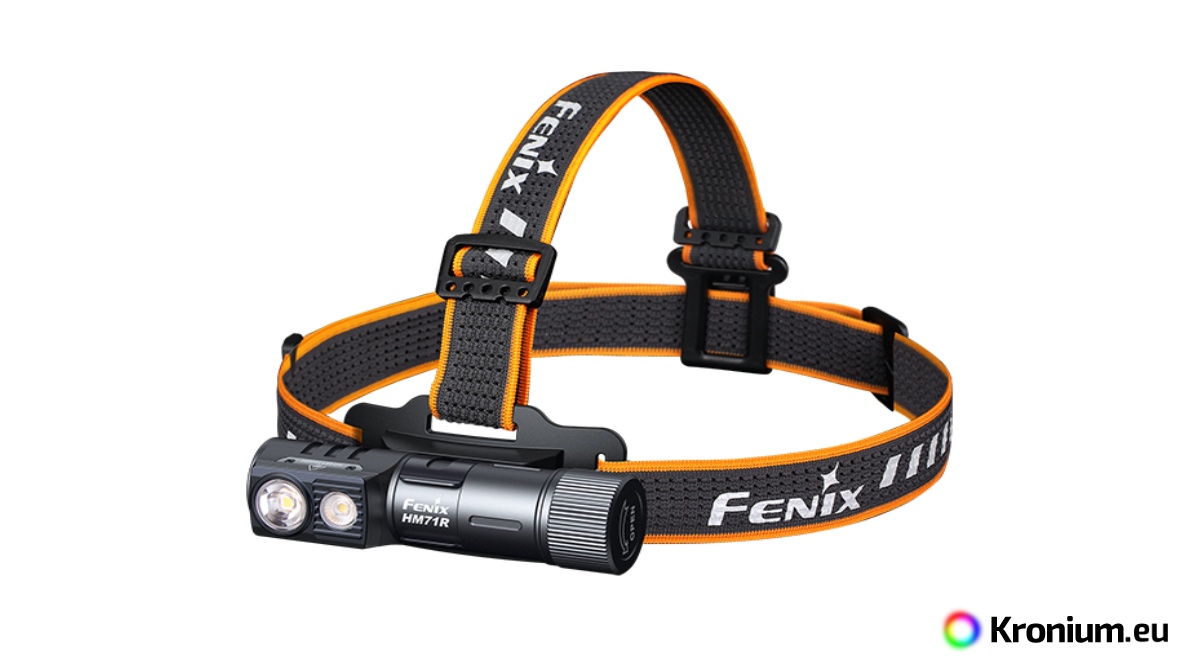

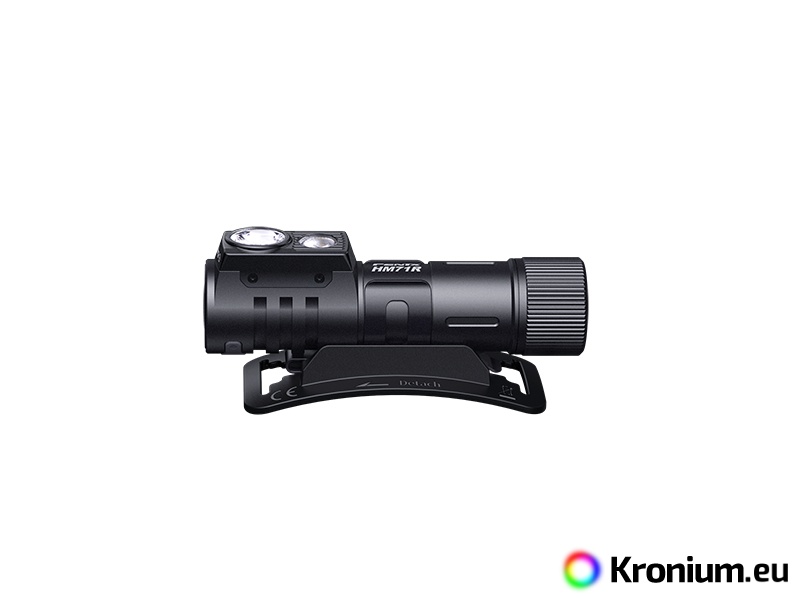

Fenix HM71R is a high-performance rechargeable headlamp that offers a luminous flux up to 2700 lumens (ANSI). The headlamp is fitted with two light sources, the long-distance reflector contains a Luminus SFT-70 LED, which shines up to a distance of 230 meters. The second wide reflector is fitted with a Luminus SST-20 LED with neutral white lightand a high color rendering quality index CRI 90 (Color Rendering Index) 500 lumens strong>, which has a very wide and smooth light trail. It is powered by one rechargeable Li-ion battery type 21700 with a capacity of 5000 mAh, which is charged directly in the headlight via USB-C connector. In the control button has a built-in indicator LED, thanks to which you will always know when to recharge the battery. The end of the torch is magnetic, so it can be easily attached to anything iron. The flashlight is powered by a digitally controlled constant current to guarantee constant light output even when the voltage in the batteries is reduced (while they are slowly discharging).

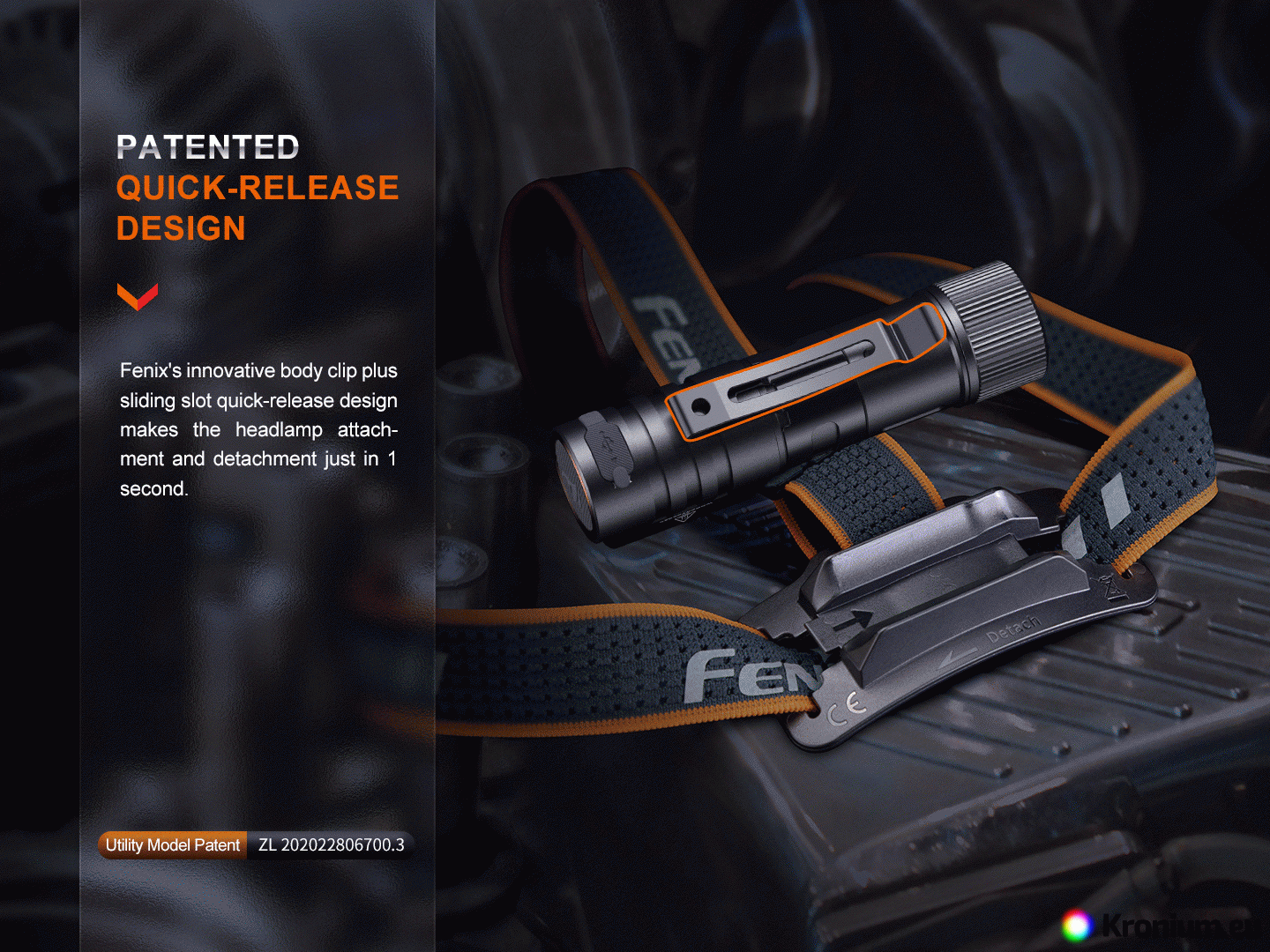

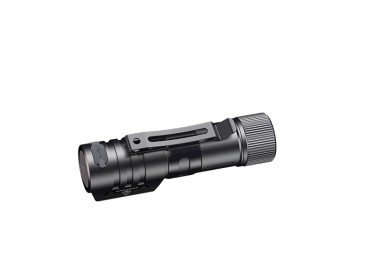

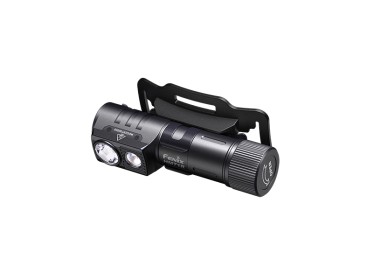

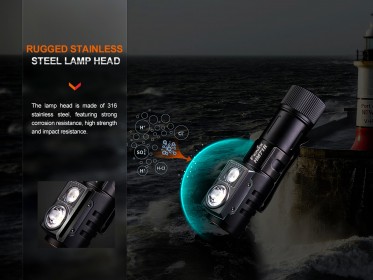

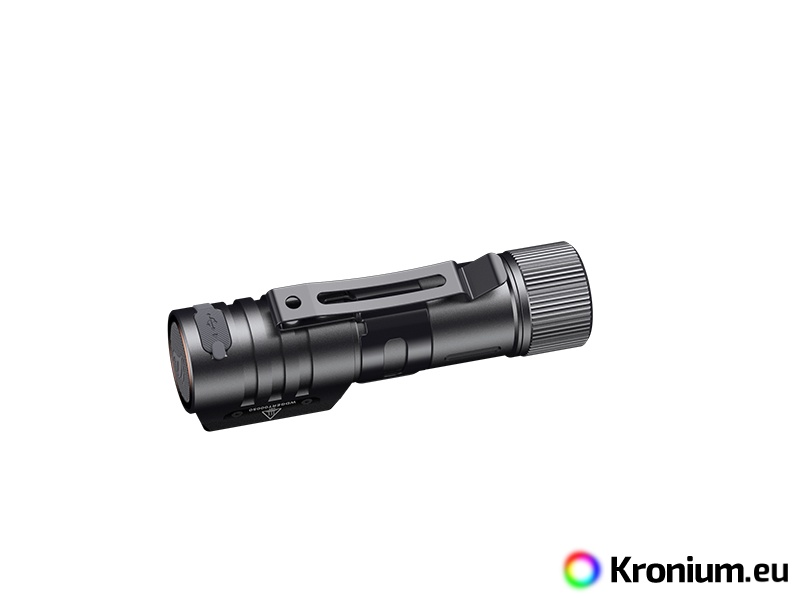

The all-metal construction ensures high resistance, optimal cooling and at the same time it is fully waterproof according to the IP68 standard up to a depth of 2 meters under water. The resistance is further enhanced by the stainless steel protective cover around the reflectors. The practicality of the headlamp increases the possibility of removing the light from the head holder and using it as a pocket or work lamp. In addition, the headlamp is equipped with a removable steel clip, so you can easily attach it to a pocket or strap. The Fenix HM71R multifunctional flashlight will be appreciated by speleologists, mountain guides, ski alpinists, climbers, cyclists, rescuers, mountain service, but also repairmen and workers in industrial sectors and ordinary tourists or fishermen.

All parameters of the flashlight (luminous flux, battery operation time, waterproofing, afterglow and impact resistance) are measured in compliance with the ANSI/ NEMA FL 1-2009.

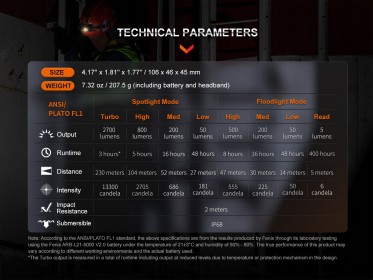

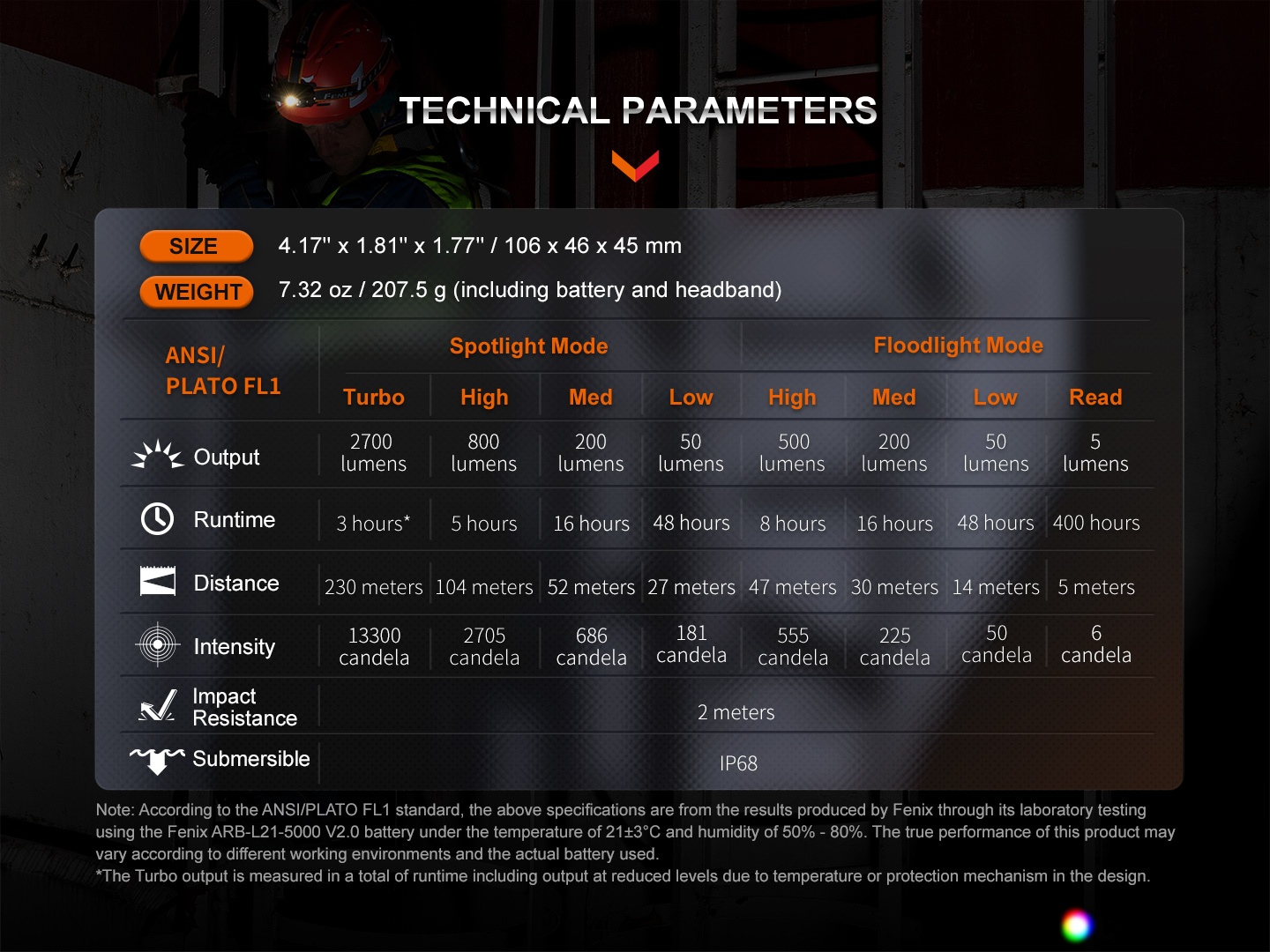

Fenix HM71R rechargeable headlamp parameters

• A premium powerful LED Luminus SFT-70 is used with a daytime light shade (approx. 6000 K) and a LED Luminus SST-20 with a CRI 90 and a neutral shade ( approx. 4000 K) with a lifetime of 50000 hours.
• Spotlight: 2700 lumens (3 hours) -> 800 lumens (5 hours) -> 200 lumens (16 hours) -> 50 lumens (48 hours).
• Floodlight: 500 lumens (8 hours) -> 200 lumens (16 hours) -> 50 lumens (48 hours) -> 5 lumens (400 hours).

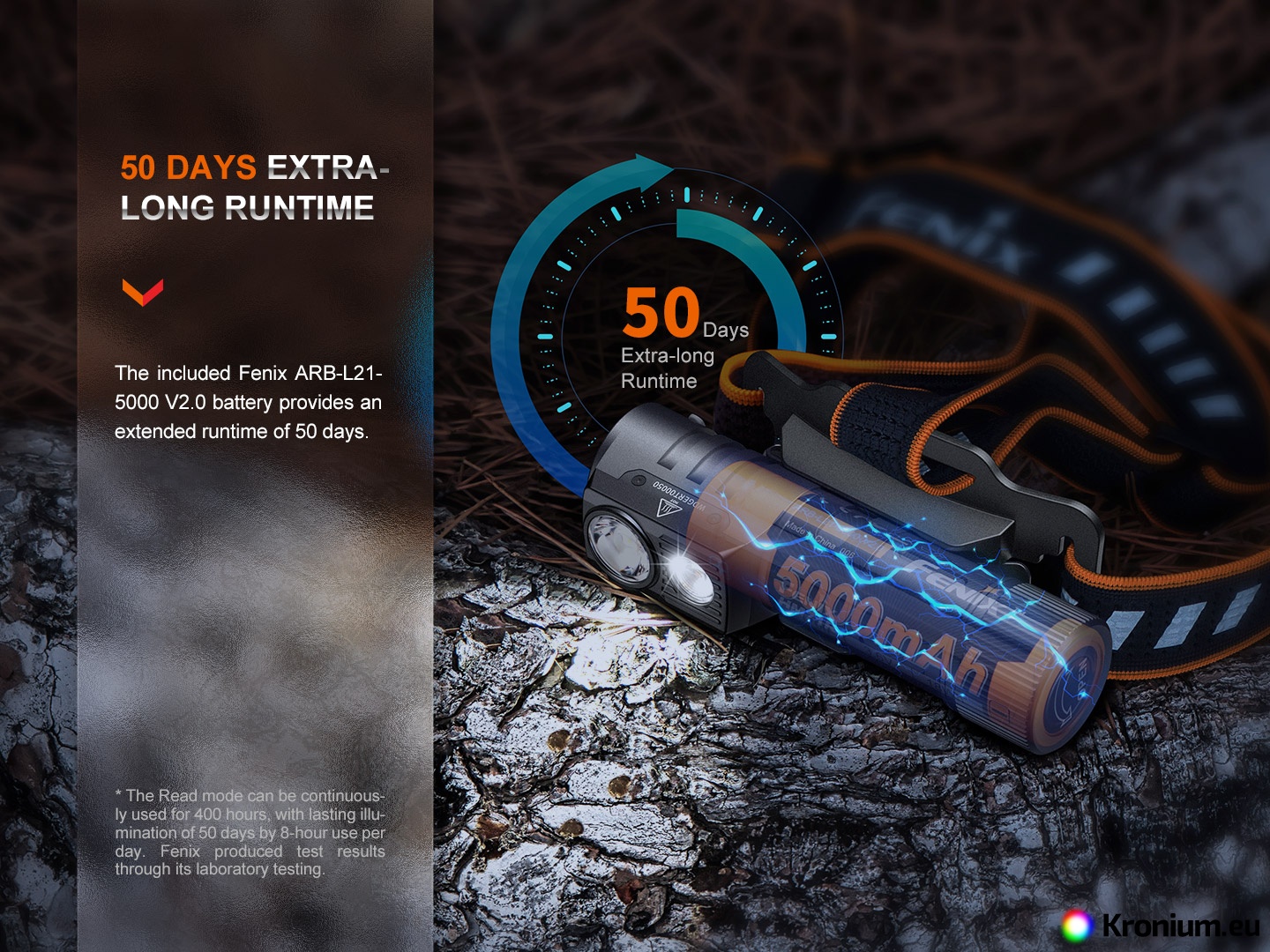

• Luminous flux and endurance times are measured with the included Li-ion 21700 battery with a capacity of 5000 mAh.
• The long-distance reflector creates a light cone with an afterglow 230 meters (13300 cd), the wide reflector shines up to a distance of 47 meters (555 cd).
• Power supply: one Li-ion battery 21700.
• Max. battery diameter 21,7 mm., max. battery length 77,0 mm.
• Intelligent protection against overheating.
• Dimensions 106 mm length x 45 mm x 46 mm including headlamp holder.
• Weight 207.5 grams (including strap and battery).
• Battery capacity indication and low voltage warning.
• Magnetic end, the headlamp can be attached to anything iron.
• Protection against reverse battery insertion (reverse polarity).
• Comfortable strap with reflective elements.
• Simple control with one switch.

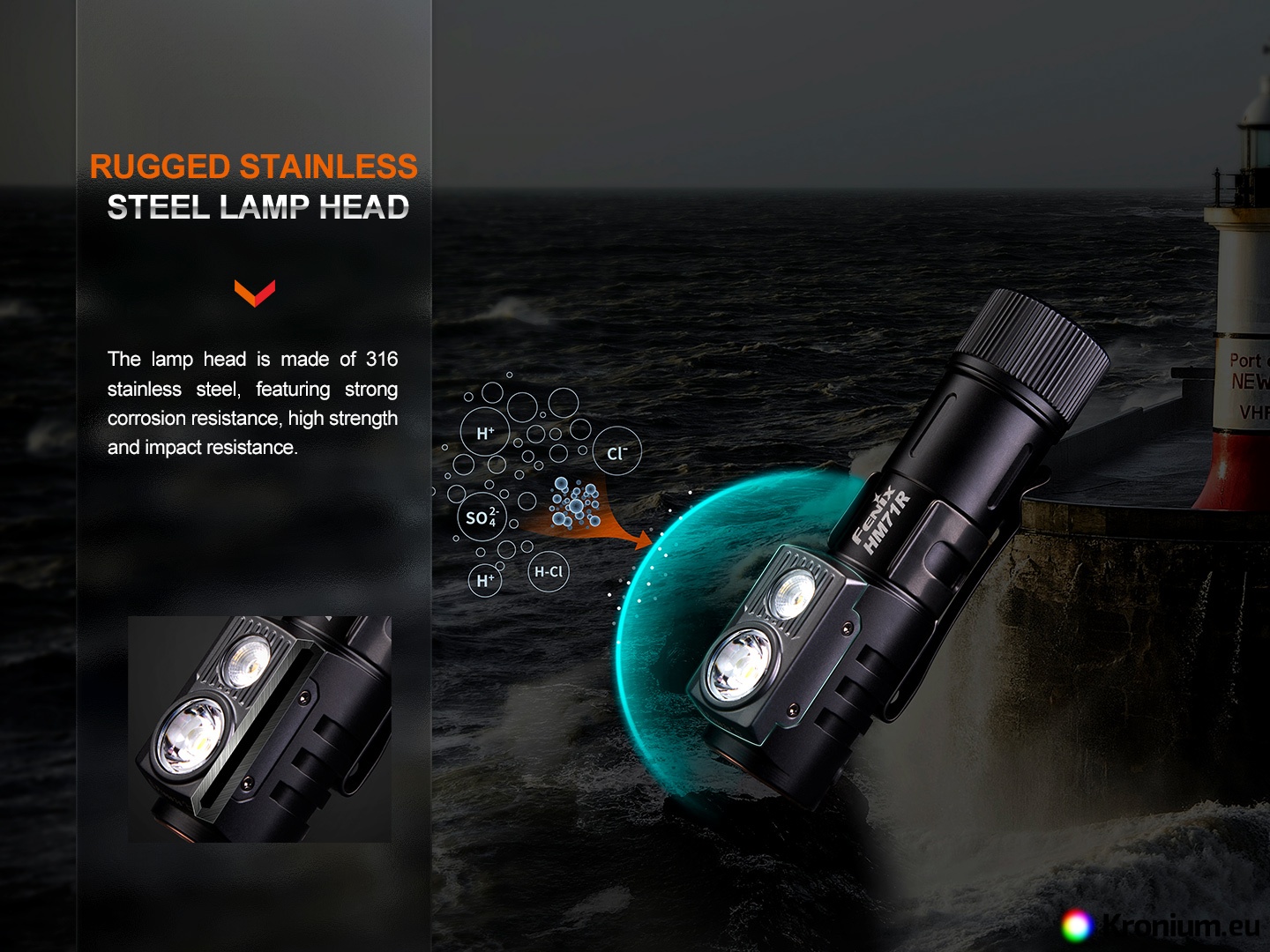

• The body is made of high-strength aviation aluminum alloy, the protective cover around the reflectors is made of stainless steel.
• Resistant hard-to-scratch surface - Type III hard anodized.
• Impact resistant to drops from a height of 2 meters.

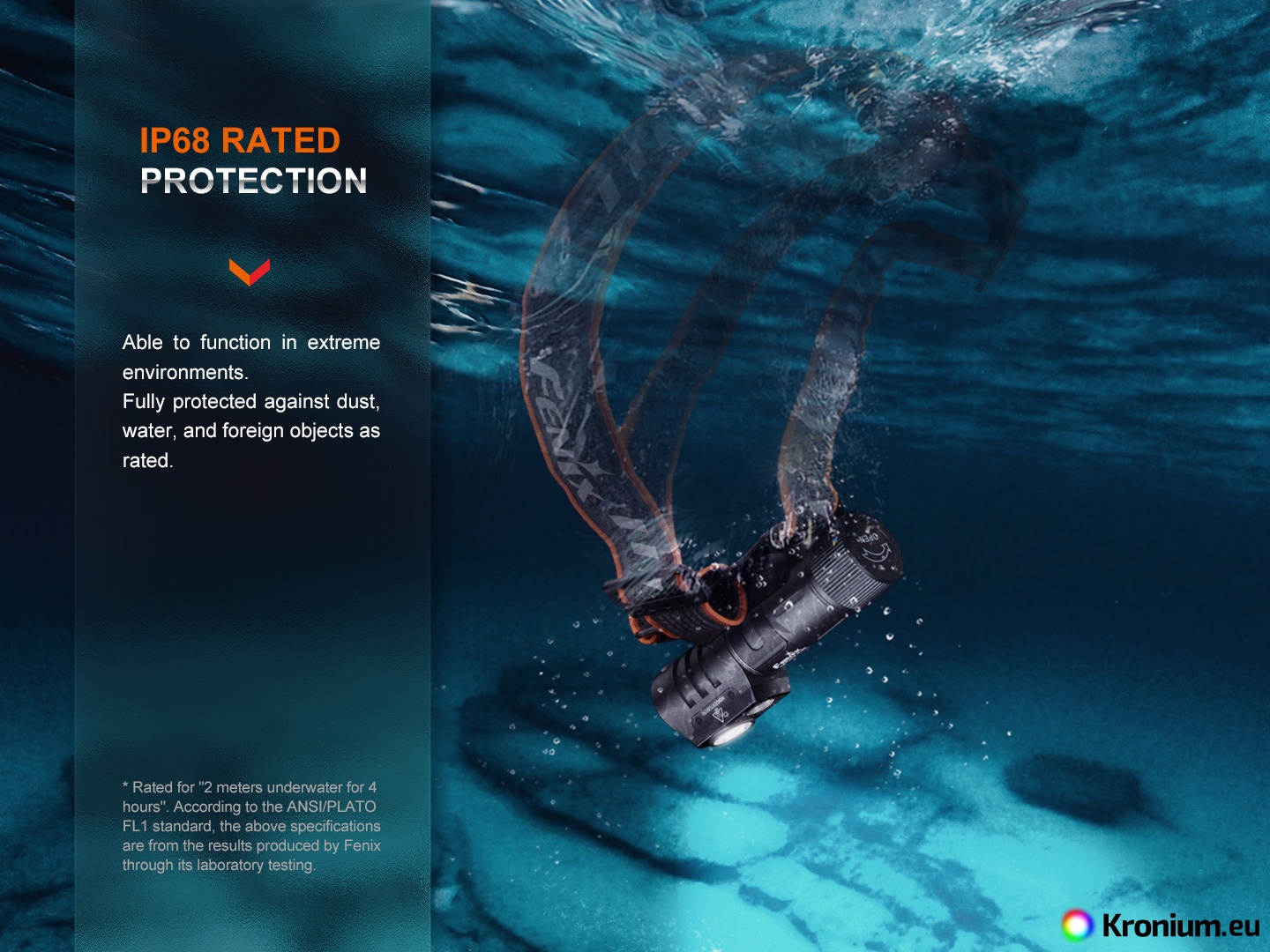

• Waterproof and dustproof to the IP68 standard (tested under water at a depth of 2 meters for 30 minutes).

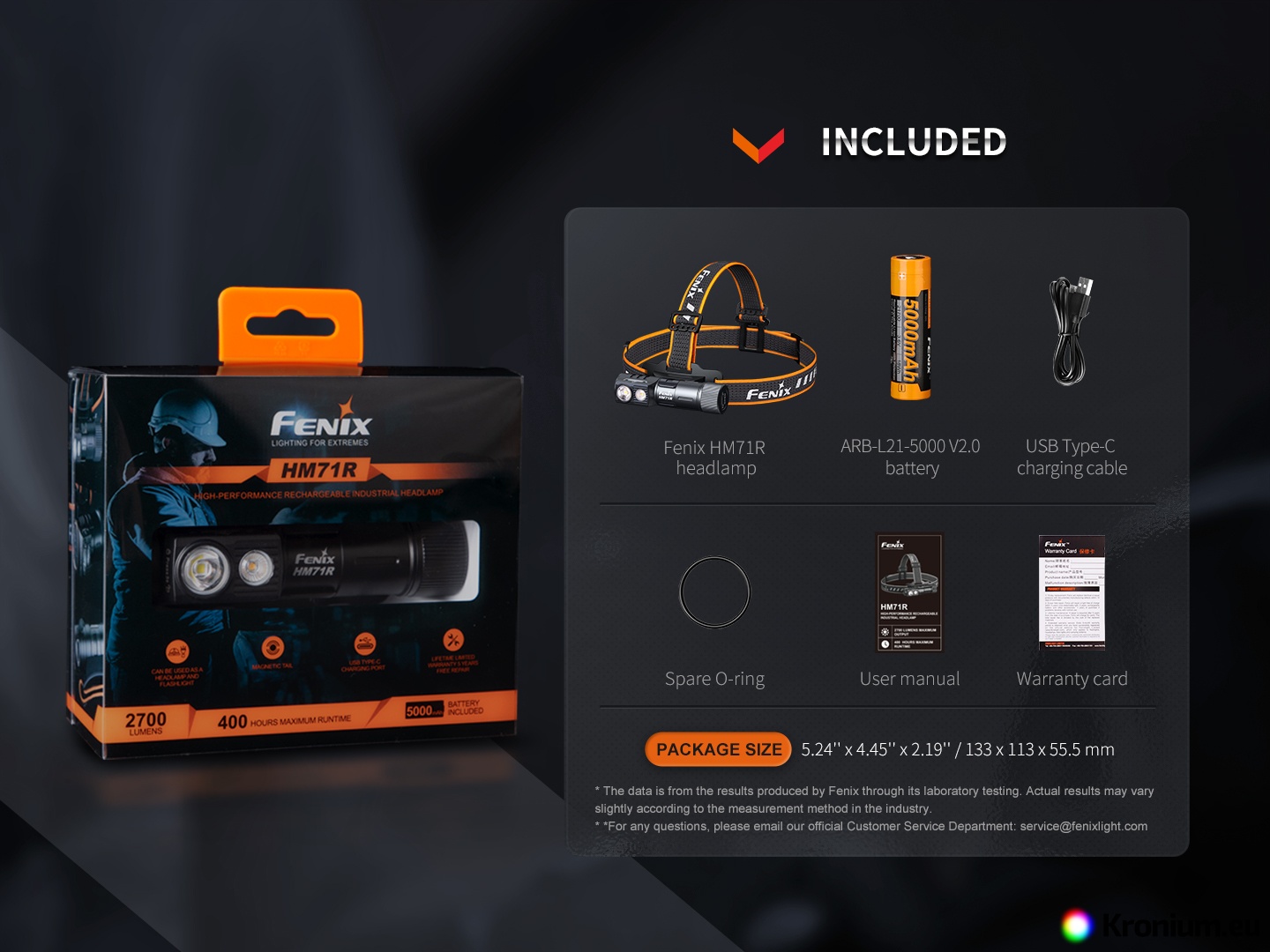

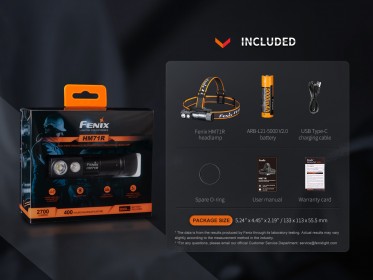

• Package includes headlamp HM71R, clip, battery ARB-L21-5000 V2.0, spare o-ring, charging USB-C cable.
• A set of black straps AFH-02 without reflective elements can also be purchased. Suitable, for example, for hunting, the army or the police.
• The headlamp can also be purchased with USB adapters for the mains or car, a case Fenix APB-30, mounts twofish bikeblock, lockblocks or holder for attachment to bicycle handlebars, main strap, top strap.
• For easy attachment to the helmet, you can purchase the Fenix adhesive holder ALG-03, or the Fenix NVG mount holder ALG-04.

Usage

From the factory, there may be an insulating cap inside the flashlight on the battery. Before first use, remove it from the battery.

•    When the headlamp is turned off, it turns on to the last used high beam mode by holding the button for 0.5 seconds (with except for shutdown in the highest mode, then next time it will turn on in   the second highest mode).
•    When the headlamp is off, it turns on to the lowest mode (5 lumens) of the wide reflector with a double quick press of the button.
•    The headlamp is turned off by holding down the button for 0.5 seconds.
•    When the headlamp is on, you can switch between the high and wide reflectors by holding down the button for 1.2 seconds. It is not possible to start both spotlights at the same time.

If the headlamp is on, short presses of the button can cyclically switch power modes in the order of 50 - 200 - 800 - 2700 lumens (when the spotlight is switched on) or 5 - 50 - 200 - 500 lumens (when switching on the wide reflector). The flashlight has a memory for the spotlight and always turns on in the last set mode (except when it turns off in the highest mode, then next time it turns on in the second highest mode). For a wide reflector, it always starts in the lowest mode.

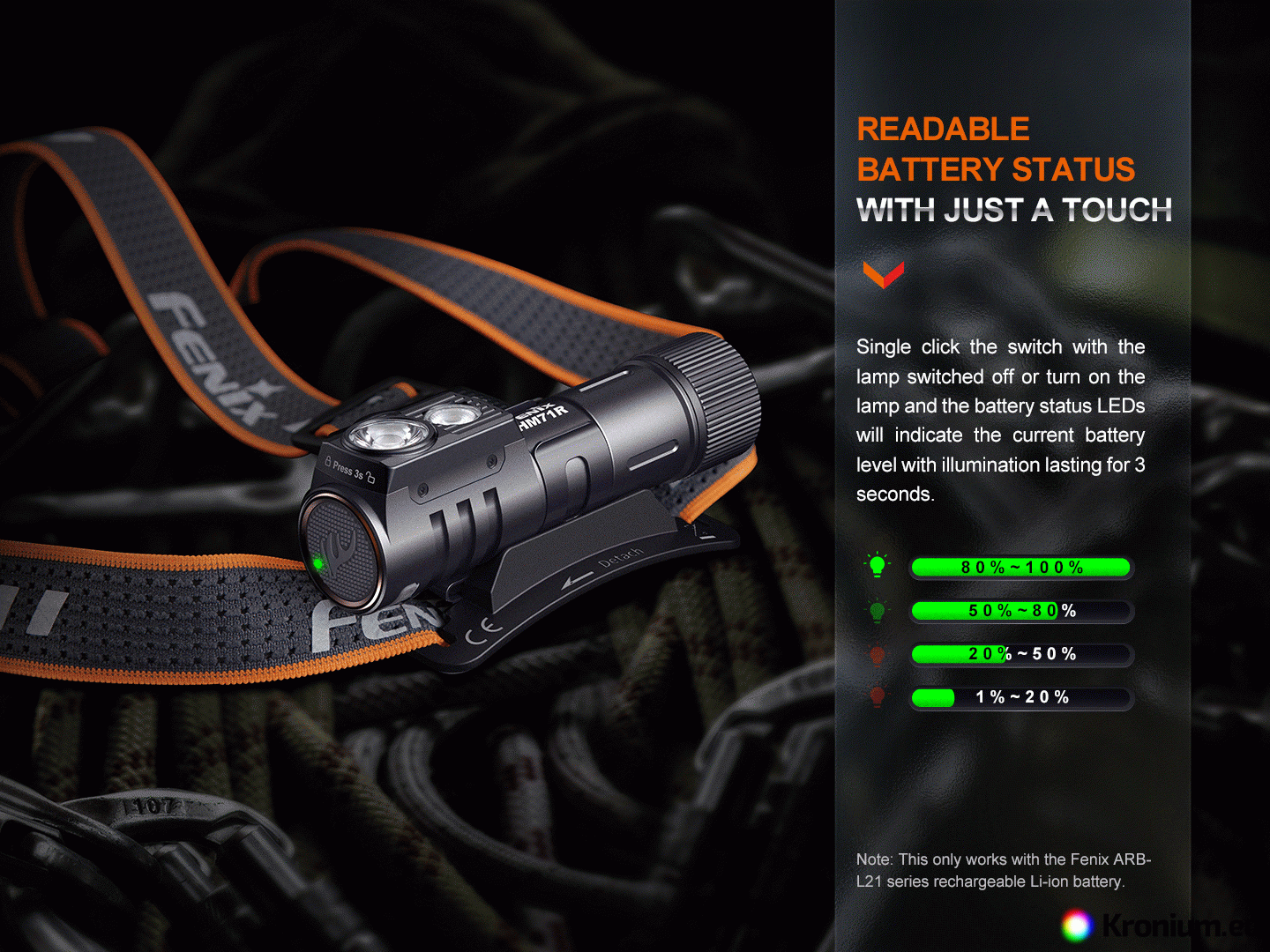

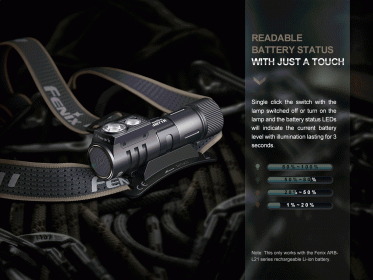

Battery charge status indication: After a short press of the button (headlight must be switched off), the LED indicator in the button is activated. If the indicator diode is green, the battery is charged to more than 80%. Green flashing means 50-80% capacity. If it glows red, it is 20-50% charged. Red flashing means less than 20% battery capacity is left.

Locking the headlamp against accidental switching on: Loosen the battery cap of the headlamp by a quarter turn, this will break the electrical contact and the headlamp cannot be switched on. The button can also be locked electronically – with the headlamp off, hold down the button for 3 seconds. After locking, the flashlight will flash four times. To unlock, hold the button for 3 seconds again.

Protection against overheating: If the temperature of the headlamp exceeds 65°C, it will automatically reduce the power in gradual steps until the temperature stabilizes. As soon as the temperature drops below 65°C, it is possible to use the highest performance modes again.

Discharged battery warning: If the battery voltage drops below the set level, the headlamp will automatically switch to lower power modes. If the headlamp is already switched to the lowest power mode and the battery is critically discharged, the indicator in the button will start flashing red. However, the headlamp will continue to shine until the battery is completely discharged.

Charging

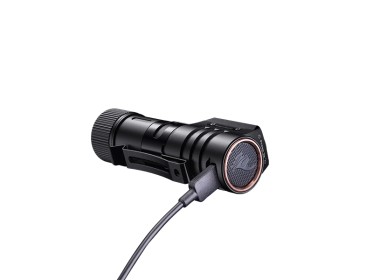

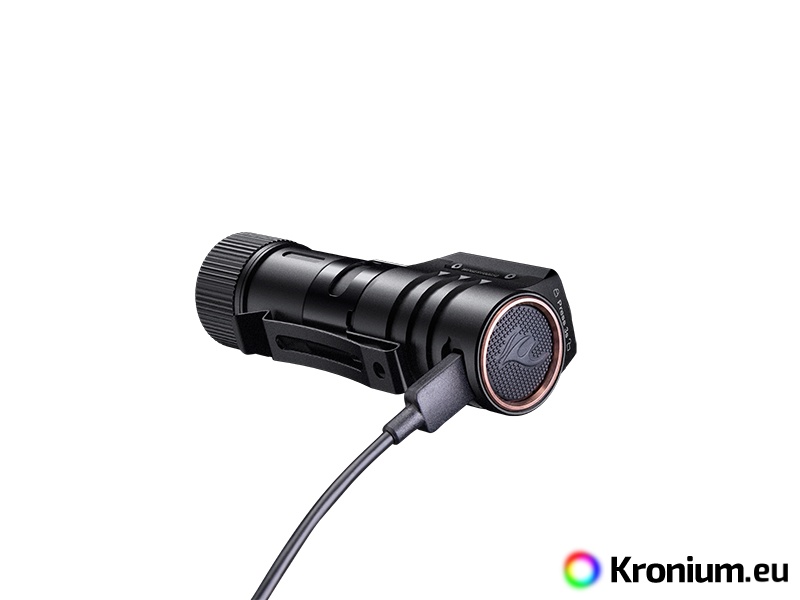

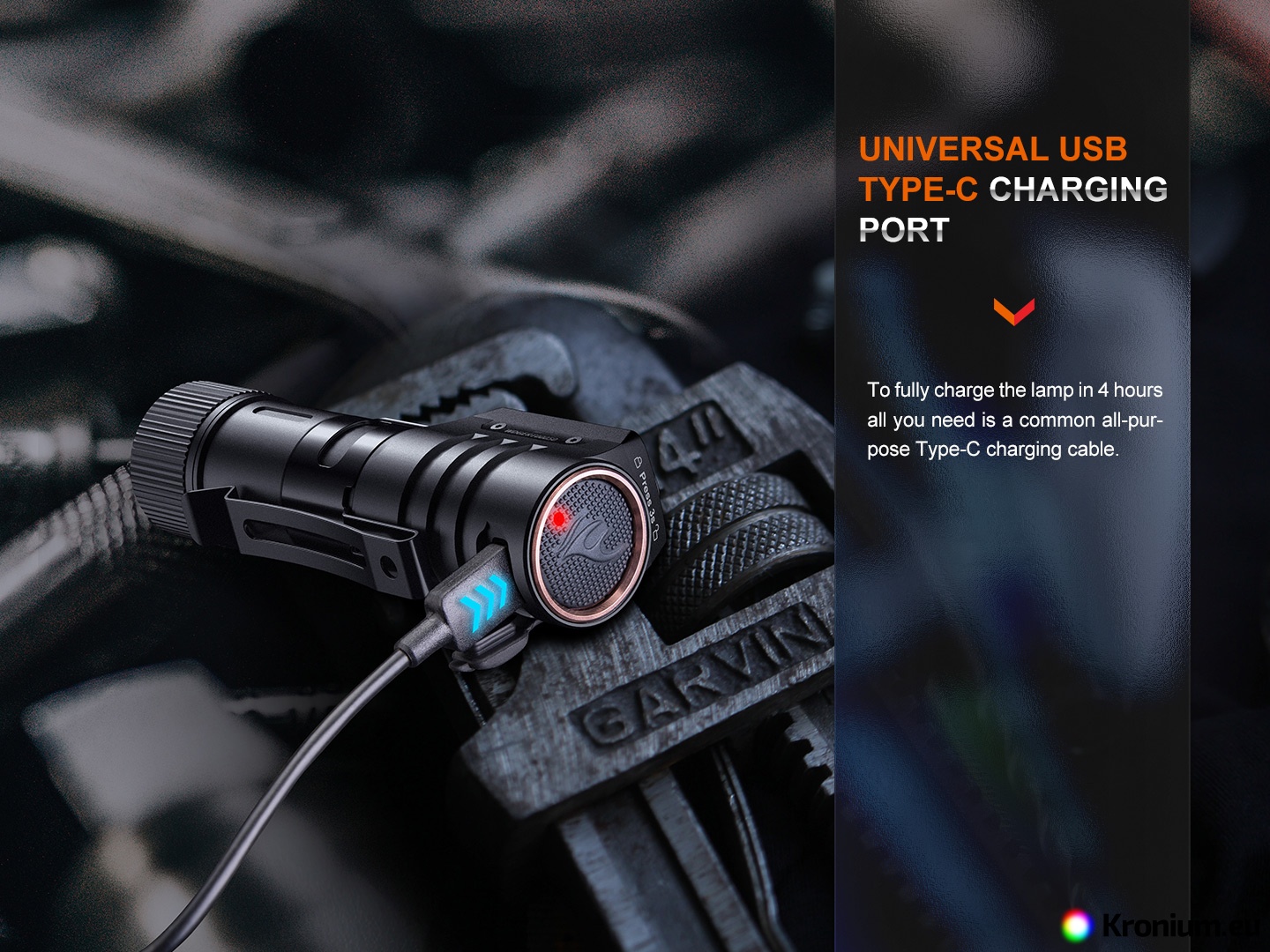

Plug the charging cable into the USB connector of the computer, the USB adapter in the network or in the car. Unfold the rubber cap on the headlamp and plug the cable into the charging USB-C port. During charging, the indicator light in the button lights up red, when charging is complete, it lights up green. The headlamp can be used in the lowest high beam mode while charging, but the charging time will be adequately extended. Charging a fully discharged Fenix ARB-L21-5000 V2.0 battery takes about 4 hours (using a 5V/2A power source).

Warning

• Do not disassemble the sealed part in the head of the lamp yourself, this will void the warranty.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings must also be lubricated to prevent rubber erosion. By following these rules, the lamp will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be for one of the following reasons:
  • The battery is almost empty – charge it or replace it.
  • The contacts inside the lamp are dirty – clean them with a cotton swab dipped in alcohol.
  • The back of the lamp is loose – tighten it.
