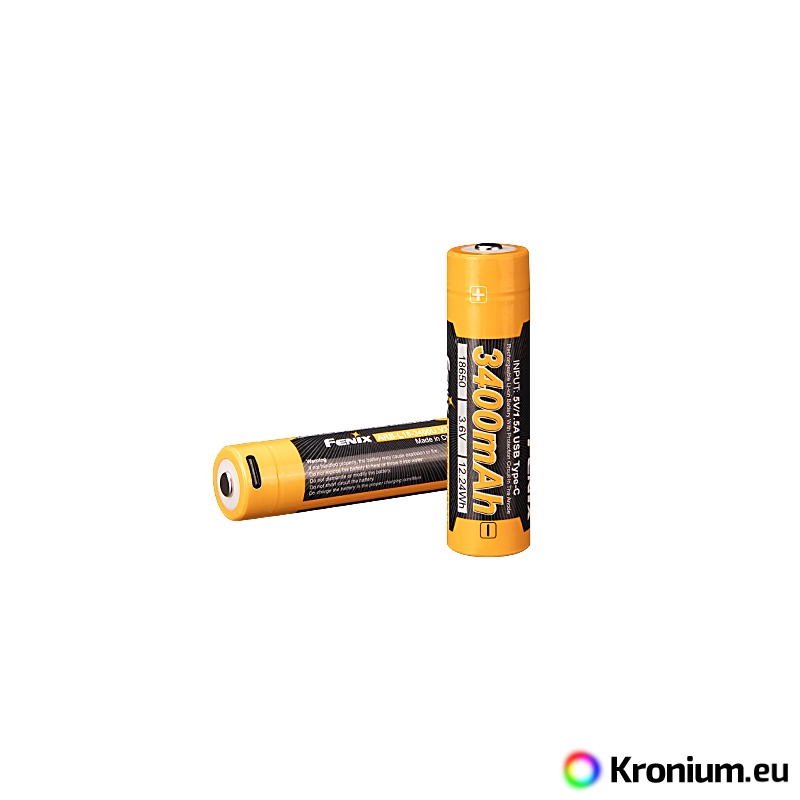

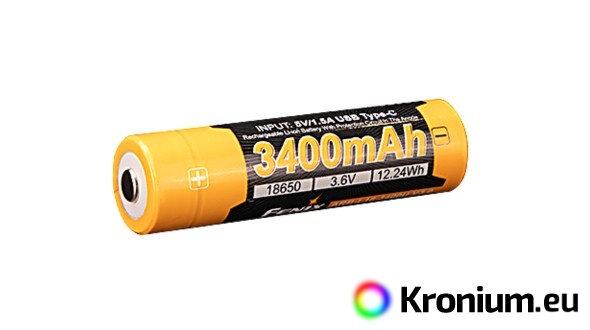

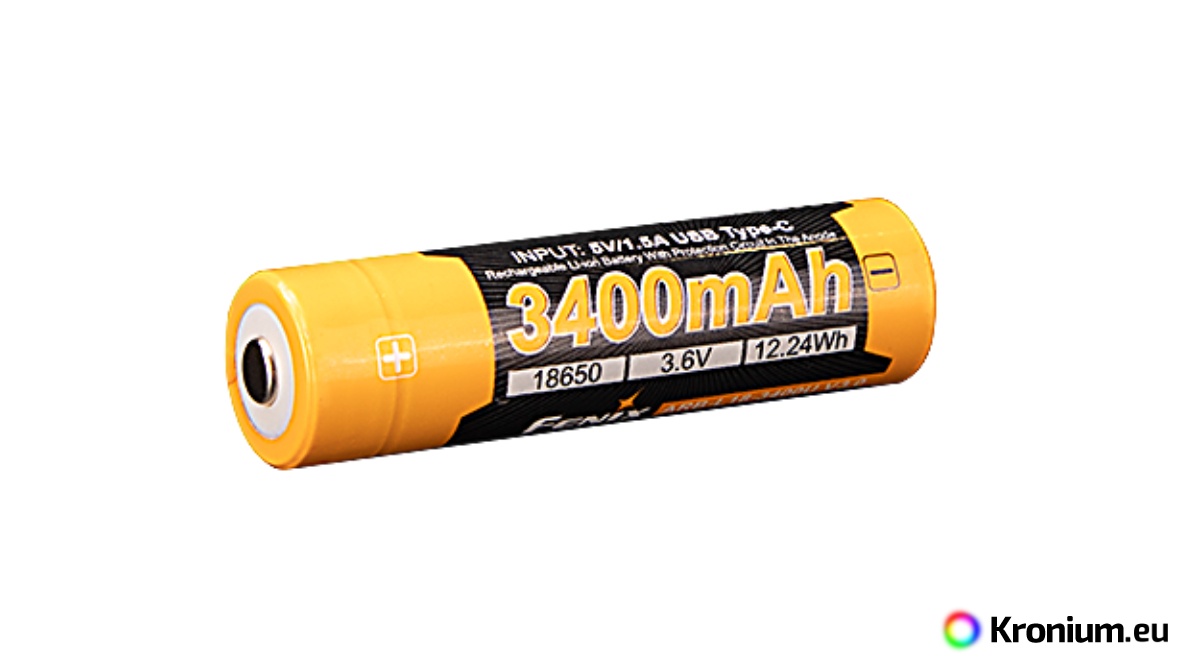

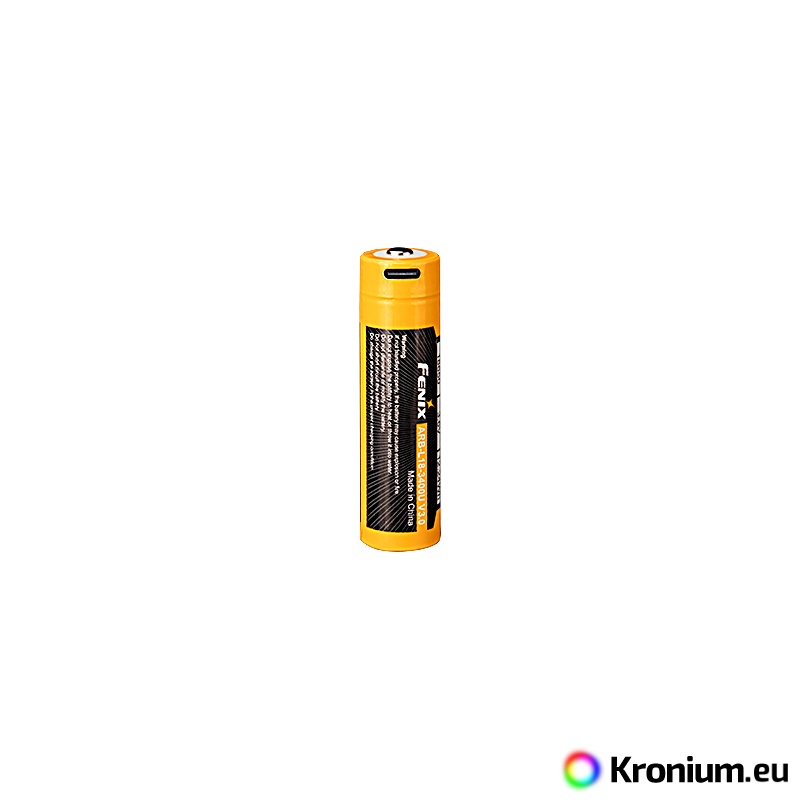

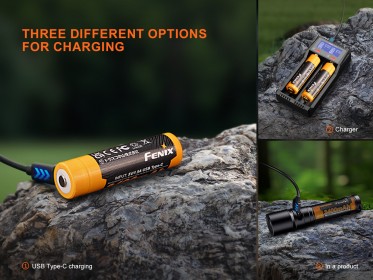

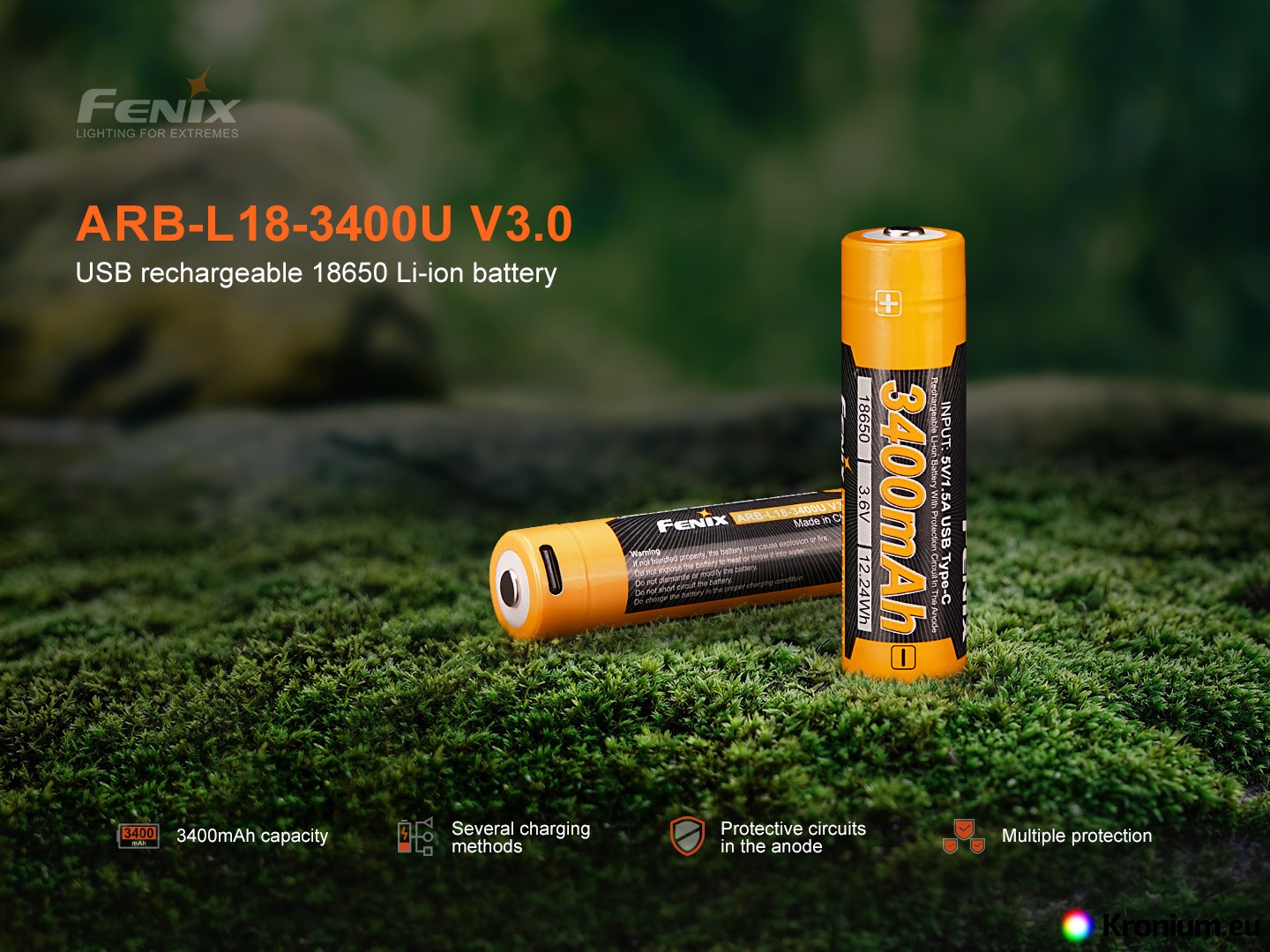

Fenix 18650 3400 mAh rechargeable battery with built-in USB-C charging connector (ARB-L18-3400U V3.0). It can be charged by connecting a cable to the USB-C connector (e.g., from a computer or a mobile phone charger) or in a charger that accommodates Li-ion batteries with a length of 70 millimeters. Li-ion rechargeable batteries feature a very high capacity, do not suffer from memory effect, and do not experience self-discharge. This new version of the battery is 2 mm shorter than the previous one. This gives it better compatibility with Fenix flashlights and headlamps compared to other USB-C batteries.

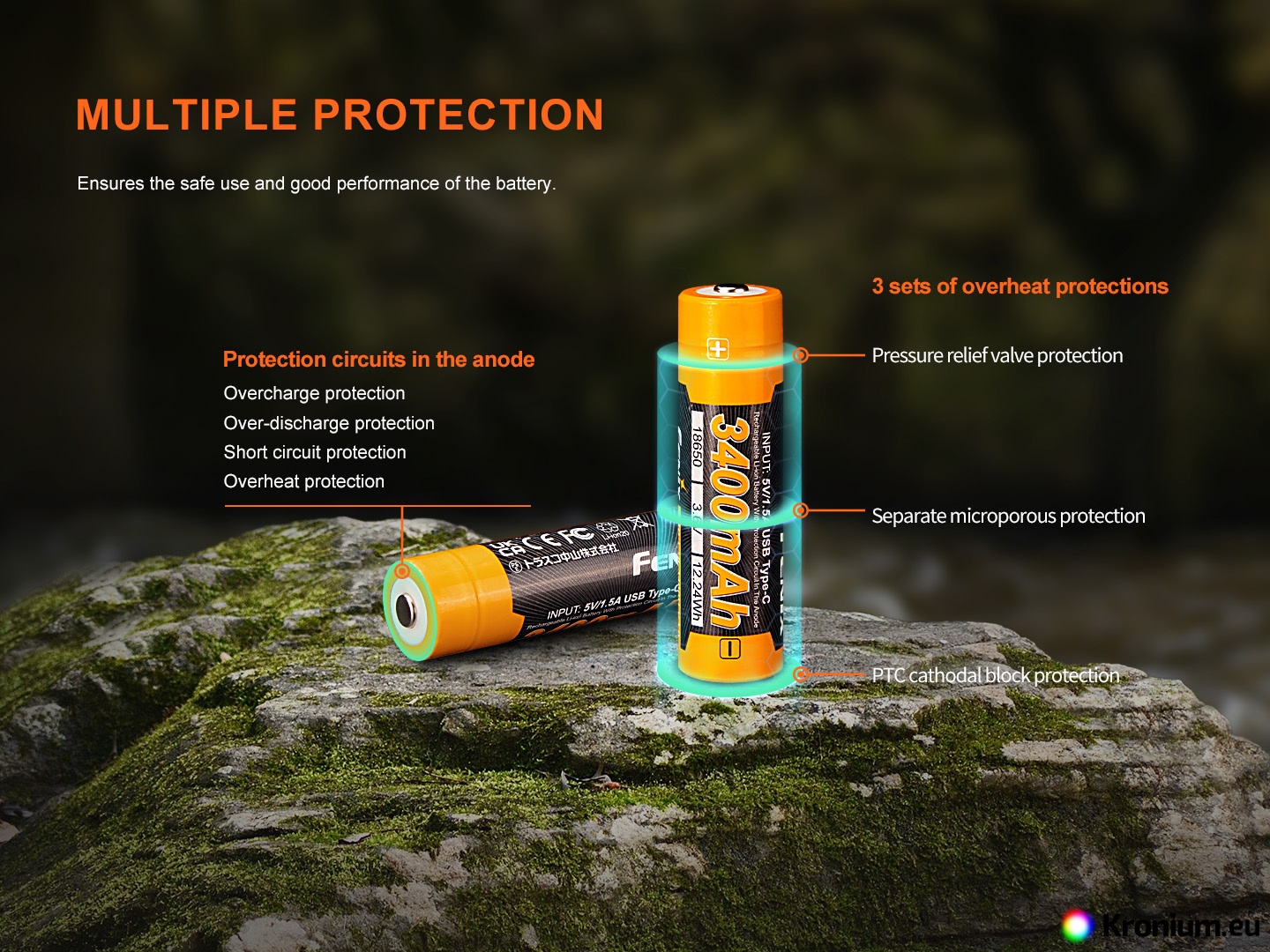

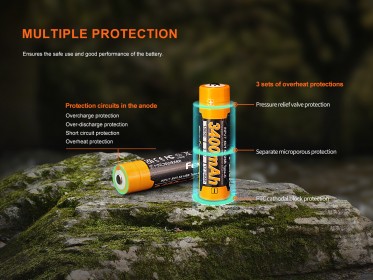

The Fenix battery protection consists of internal safety mechanisms and protective electronics. The added electronic circuits prevent overcharging, deep discharge, and short circuits or excessive current draw. If the battery’s electronics detect that a limit has been reached, it safely disconnects the cell.

The internal protection consists of a separator, overheat protection (PTC thermal protection), and a special anti-explosion valve. In case the gas pressure inside the cell exceeds a certain limit, the internal separator will separate the electrodes inside the battery, effectively interrupting the exothermic reaction, and the anti-explosion valve will release the gas pressure outside the battery. Thanks to the combination of electronic and mechanical (temperature and pressure) protection, Fenix batteries are among the safest available Li-ion batteries.

In terms of size, the 18650 battery is roughly equivalent to two CR123A lithium batteries, which is why it is often used in flashlights as a rechargeable alternative to these primary cells. First, make sure that your device supports this cell. This battery is intended for use in Fenix LED flashlights likeFenix E28R V2.0, E30R, Fenix E35 UE (not intended for E35 V3. 0 and E35R), PD32R, PD35 V3.0, PD35R ACE, TK11 TAC, TK11R, TK15, TK16 (1000 lm version only), TK25 UV, TK25 IR, TK25 Red, TK25 R&B, TK35R, TK75, FD41, LD30, LD30R, LD35R, WT25R. LED headlamps Fenix HL55, HL60R, HP12R-T, HP25R (1000lm version only), HP30R (1750lm version only), HM60R, HM61R, HM62-T, HM65R, HM65R-T, HM75R, HM75R Topaz, lanterns CL26R, CL30R and the Fenix BC21R, BC22R and BC30 bike lights.

Warning: due to its length of 70 mm and diameter, this battery may not fit some older models - for example, Fenix PD31, TK11, TK21, TK30, Zebralight, Solarforce. The battery is also not compatible with Fenix FD65 and Fenix TK47 models.

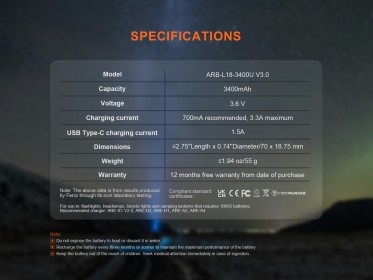

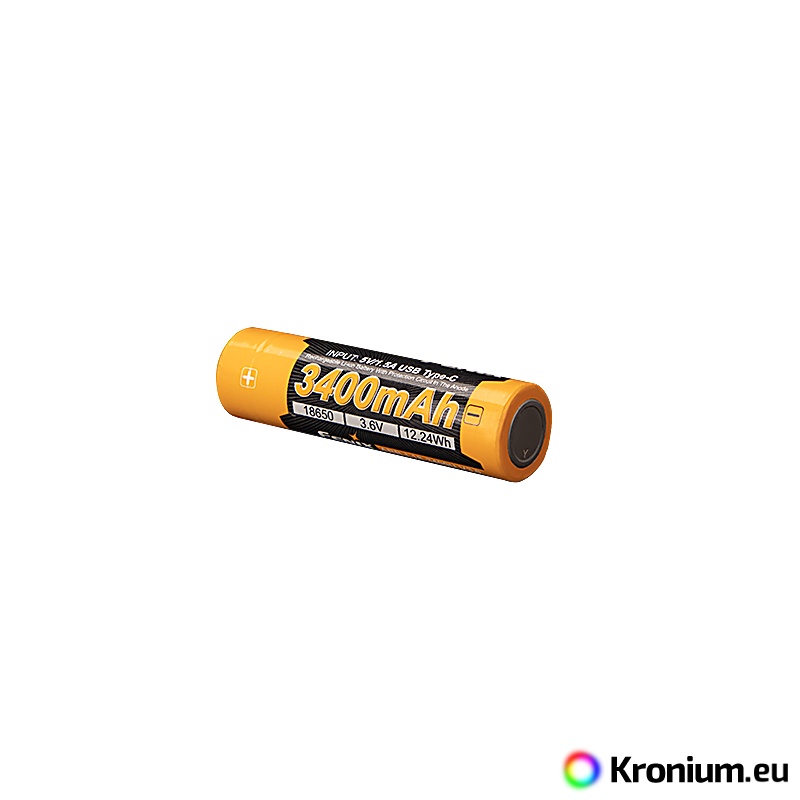

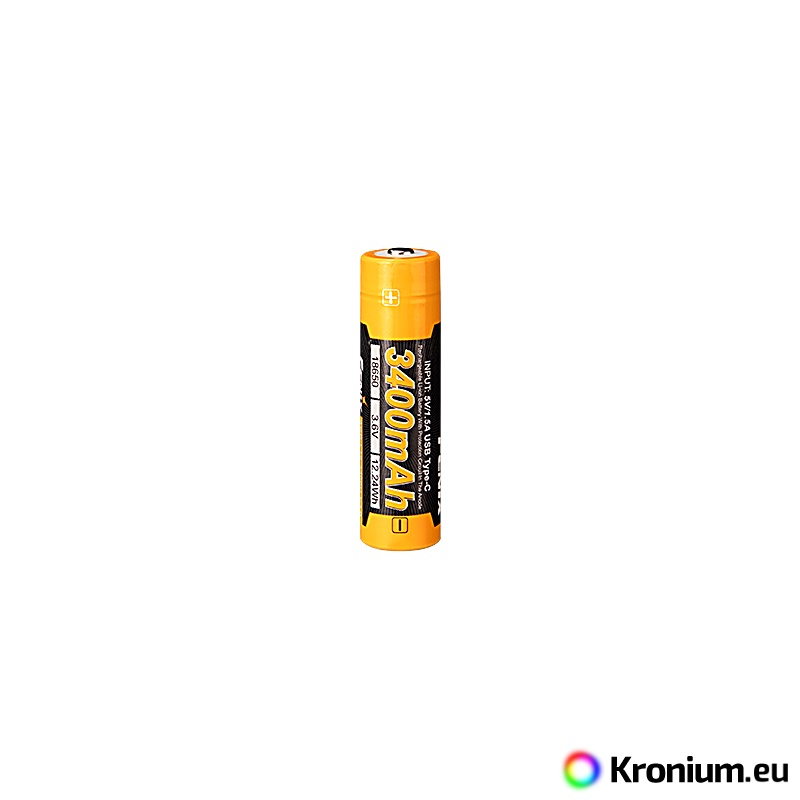

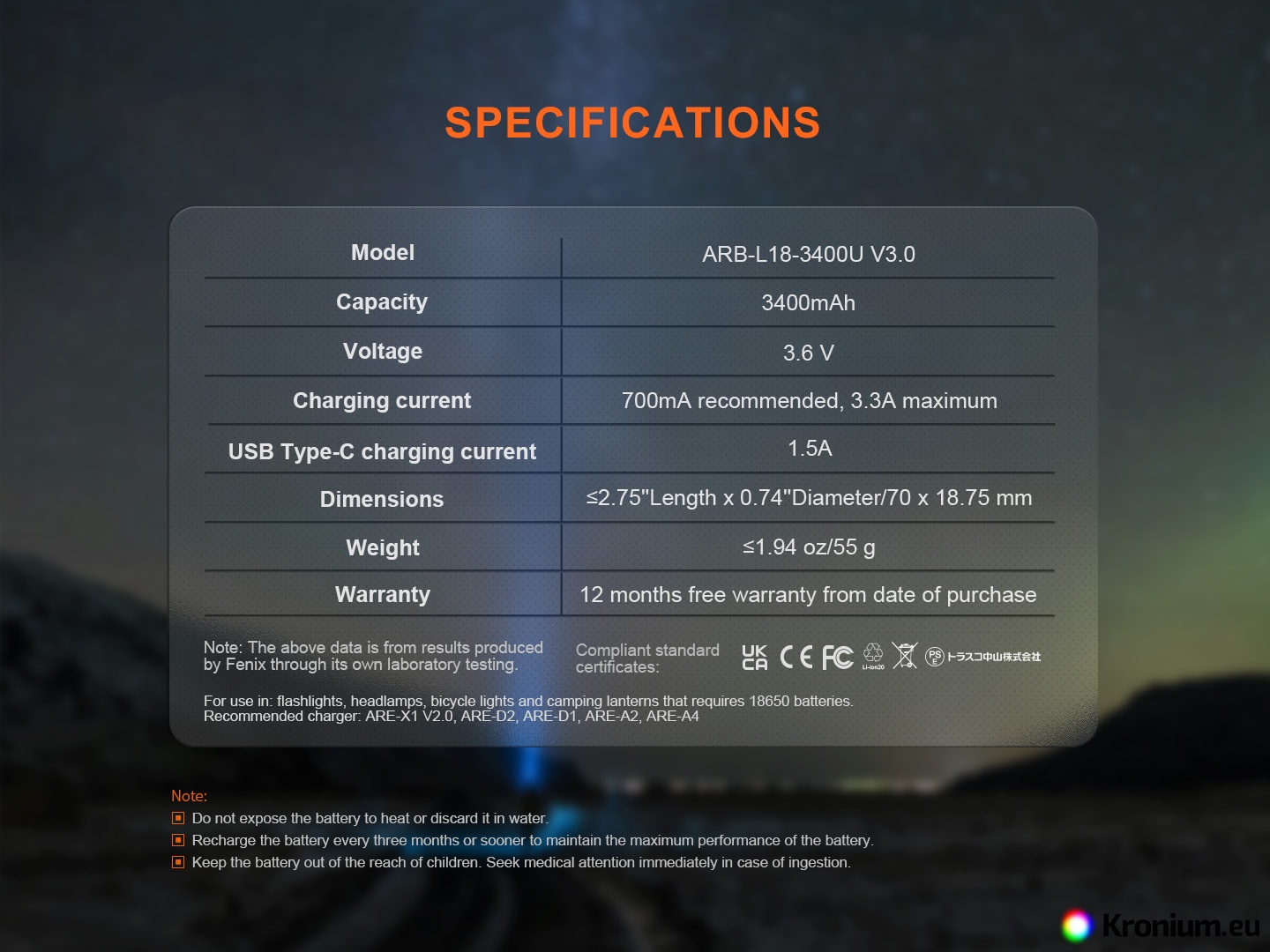

Specifications of the Fenix 18650 3400 mAh USB-C Battery V3.0

• Nominal voltage: 3.6 V
• Capacity: 3400 mAh, tested with a discharge current of 0.2C, ending at 2.5 V and a temperature of 25°C
• Maximum continuous discharge current: 2C (7 A)
• Maximum charging current: 3.3 A, charging current of the built-in USB-C input: 1.5 A
• Dimensions: 18.75 mm (diameter) x 70 mm (length) (+/- 0.1 mm)
• Weight: 50 grams
• Protection against overcharging, deep discharge, and short circuit (>11 A)
• Life expectancy: more than 500 charging cycles
• Recommended operating temperatures: 0-45°C (charging), -20 to +60°C (discharging)
• Package contents: one Fenix 18650 3400mAh USB battery (ARB-L18-3400U V3.0)
• The USB-C cable is not included but can be purchased separately.

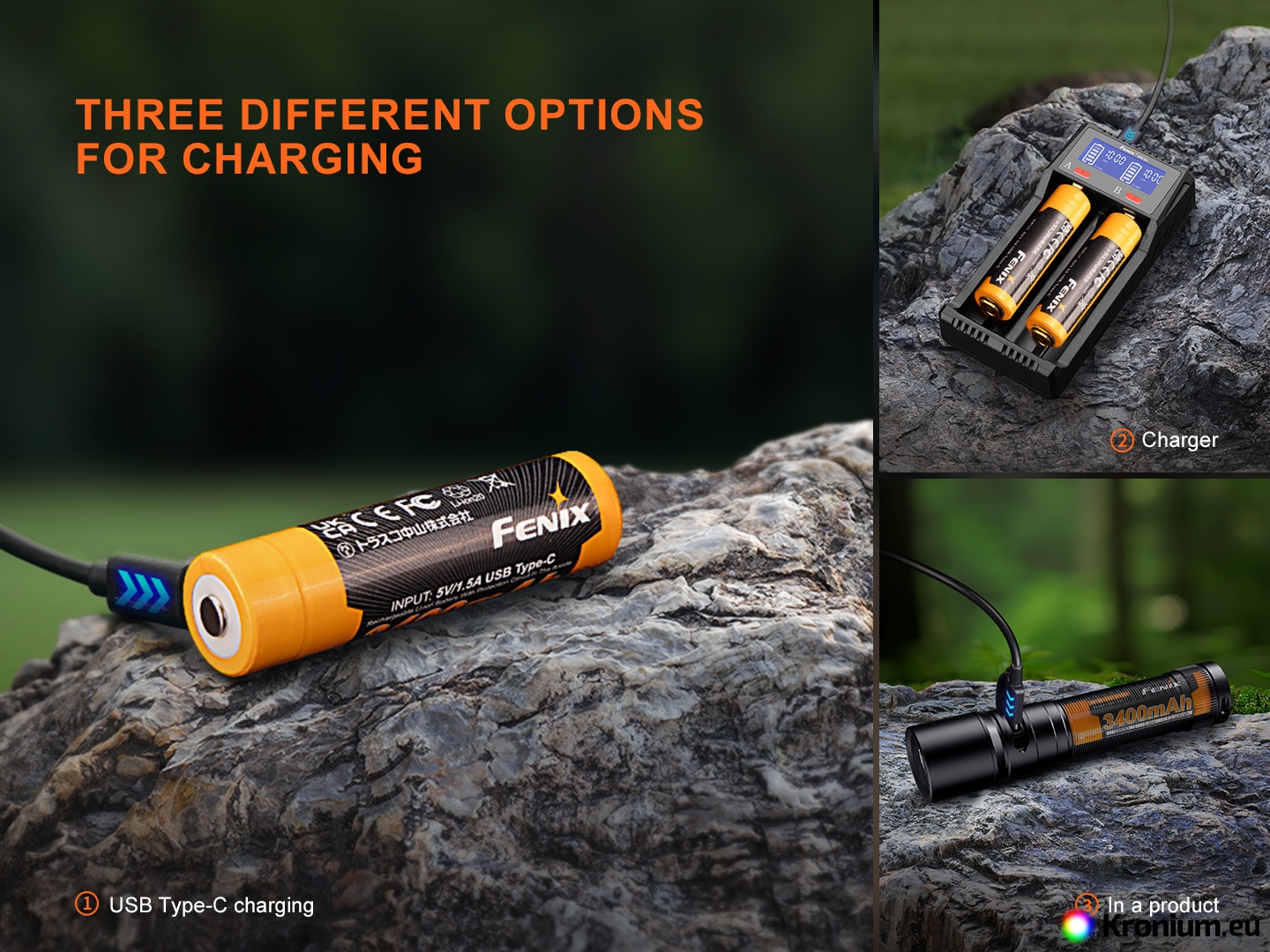

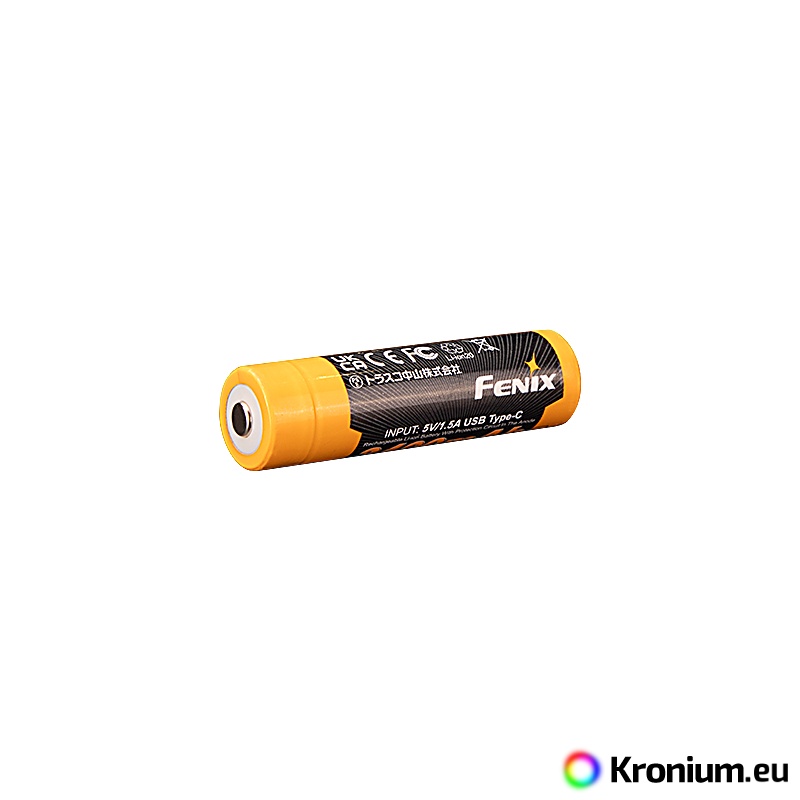

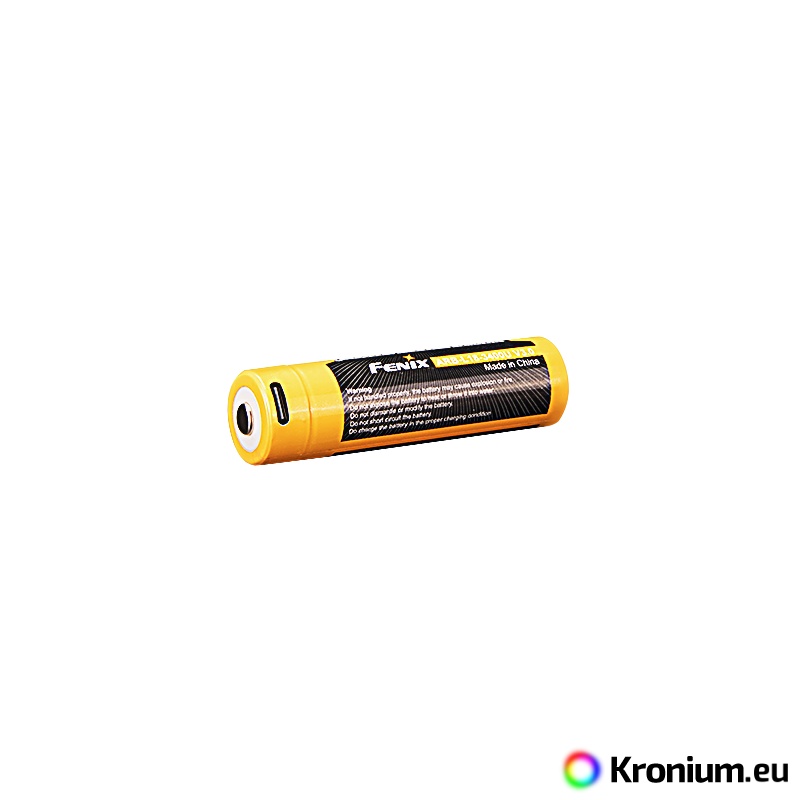

Charging via USB-C Connector

Plug the USB cable into the side USB-C connector. During charging, the indicator light on the top of the battery will glow red. Once fully charged, it will glow blue. When using a USB power source with a current of 1500 mA or higher, the charging time is approximately 2.5 hours.

Compatible Chargers

Fenix ARE-A2 Charger
Fenix ARE-A4 Charger
Fenix ARE-D1 USB Charger
Fenix ARE-D2 USB Charger
8-channel USB charger VC8S
VC4SL Four-Channel USB Charger
SkyRC MC3000

Warning

• The battery is approximately 70 mm in length, so make sure it fits in your device first!
• Avoid discharging the battery below 2.5 V if possible.
• Do not short-circuit the battery (do not connect the poles of the cell with a wire).
• Do not throw the battery into fire or water.
• Never insert the battery into the charger with reversed polarity.
• Follow safety precautions when using the battery.
• Only use a suitable charger that supports Li-ion batteries.

Warranty

Two-year warranty.
