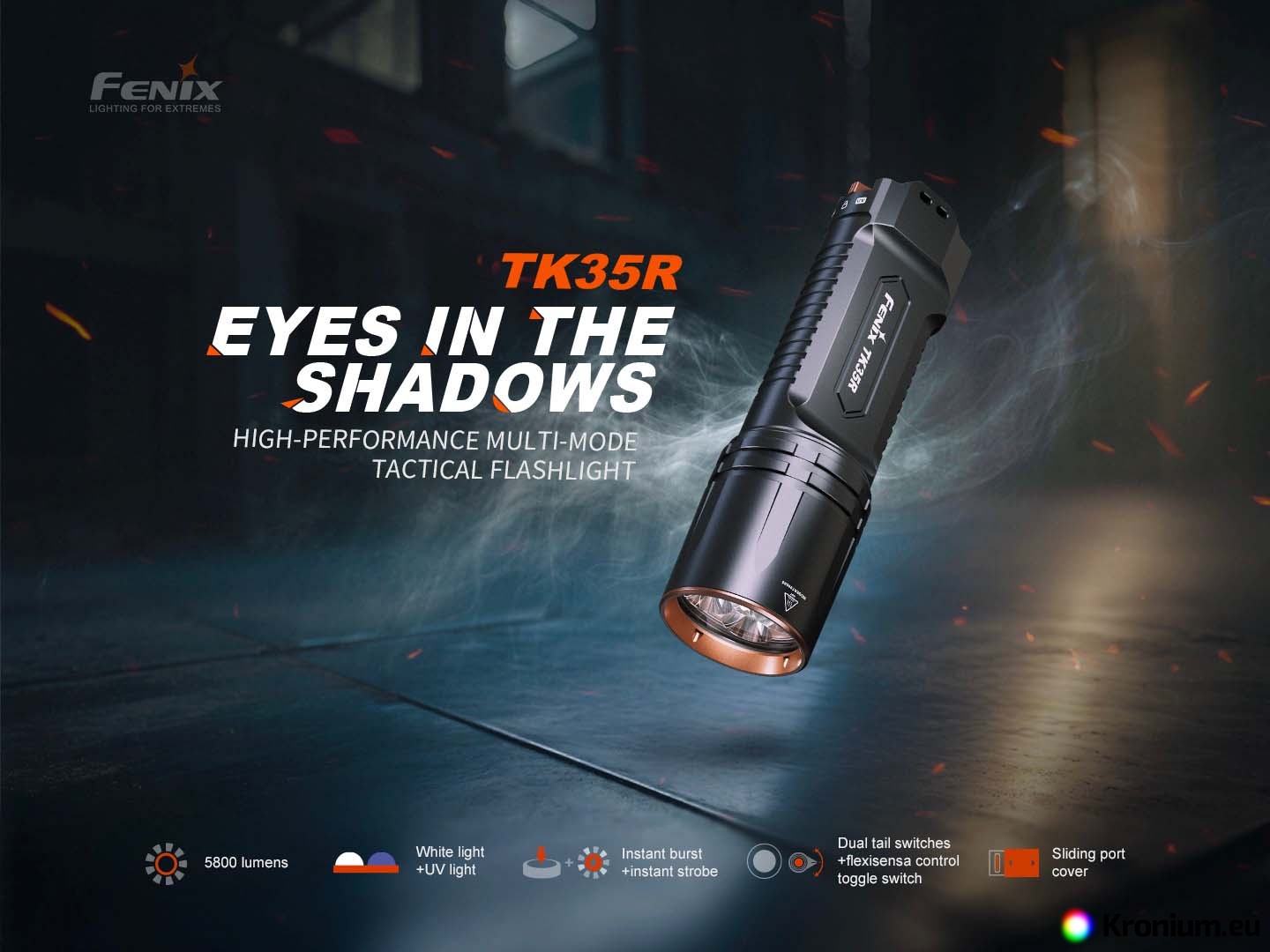

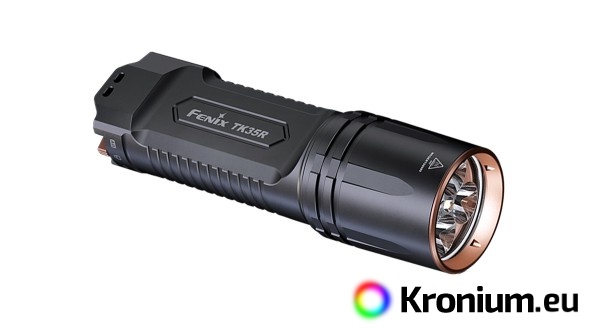

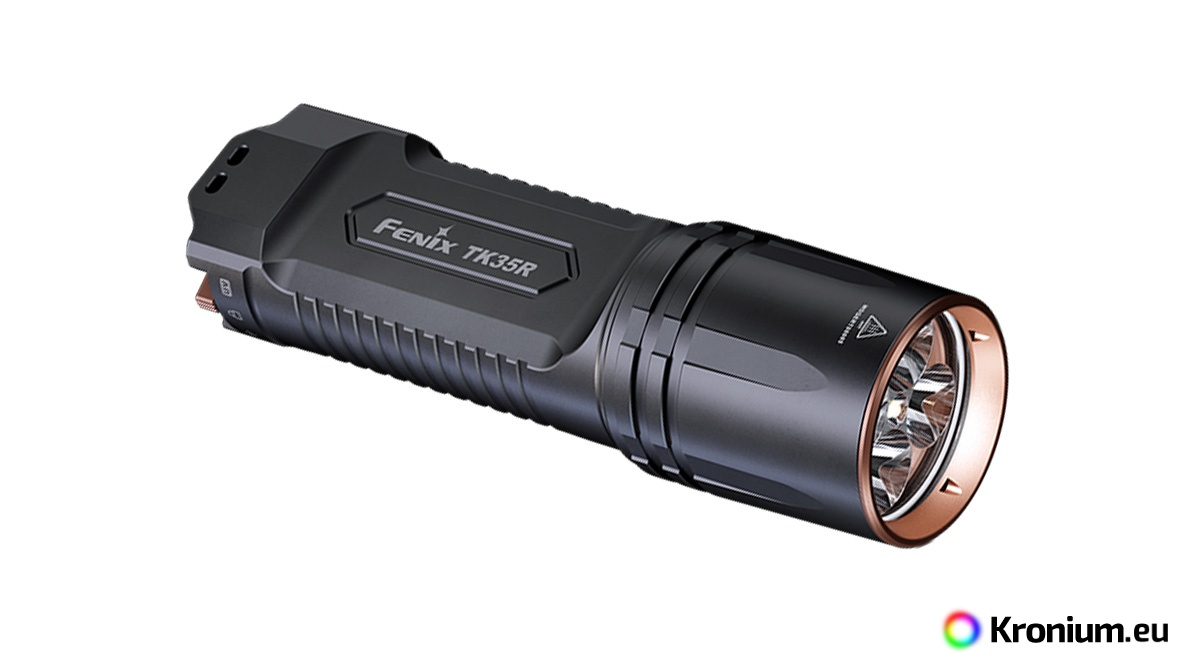

Enter a new era of tactical lighting with the rechargeable Fenix TK35R flashlight. This flagship of the TK series will provide you with a light output of up to 5800 lumens (ANSI) and the ability to cut through darkness up to a distance of 610 meters. Behind this impressive power are four high-performance Luminus SFT-25R LEDs. In addition to dazzling white light, the TK35R is also equipped with a powerful UV light (365 nm) with an output of up to 3000 mW, which will open up new possibilities for detection and exploration. Power is supplied by a pair of robust 18650 type batteries, each with a capacity of 4000 mAh (included in the package), which can be conveniently recharged directly in the flashlight via a modern USB-C connector. Operation is intuitive and lightning-fast thanks to the tactical switch and the innovative FlexiSensa control toggle lever. This allows not only locking the flashlight against unintentional activation but also choosing between white and UV light. Need maximum runtime? On the lowest mode, the TK35R will light your way for up to 105 hours. The flat design, thanks to the side-by-side battery arrangement, ensures that the flashlight fits perfectly in the palm and allows for a firm grip. Its robust, waterproof construction (IP68) is designed to withstand the harshest conditions, from downpours to extreme use. Whether you are a member of security forces, participating in search and rescue missions, engaged in hunting, or looking for an uncompromising companion for your outdoor adventures, the Fenix TK35R is ready to exceed your expectations.

All flashlight parameters (luminous flux, battery life, waterproofness, beam distance, and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

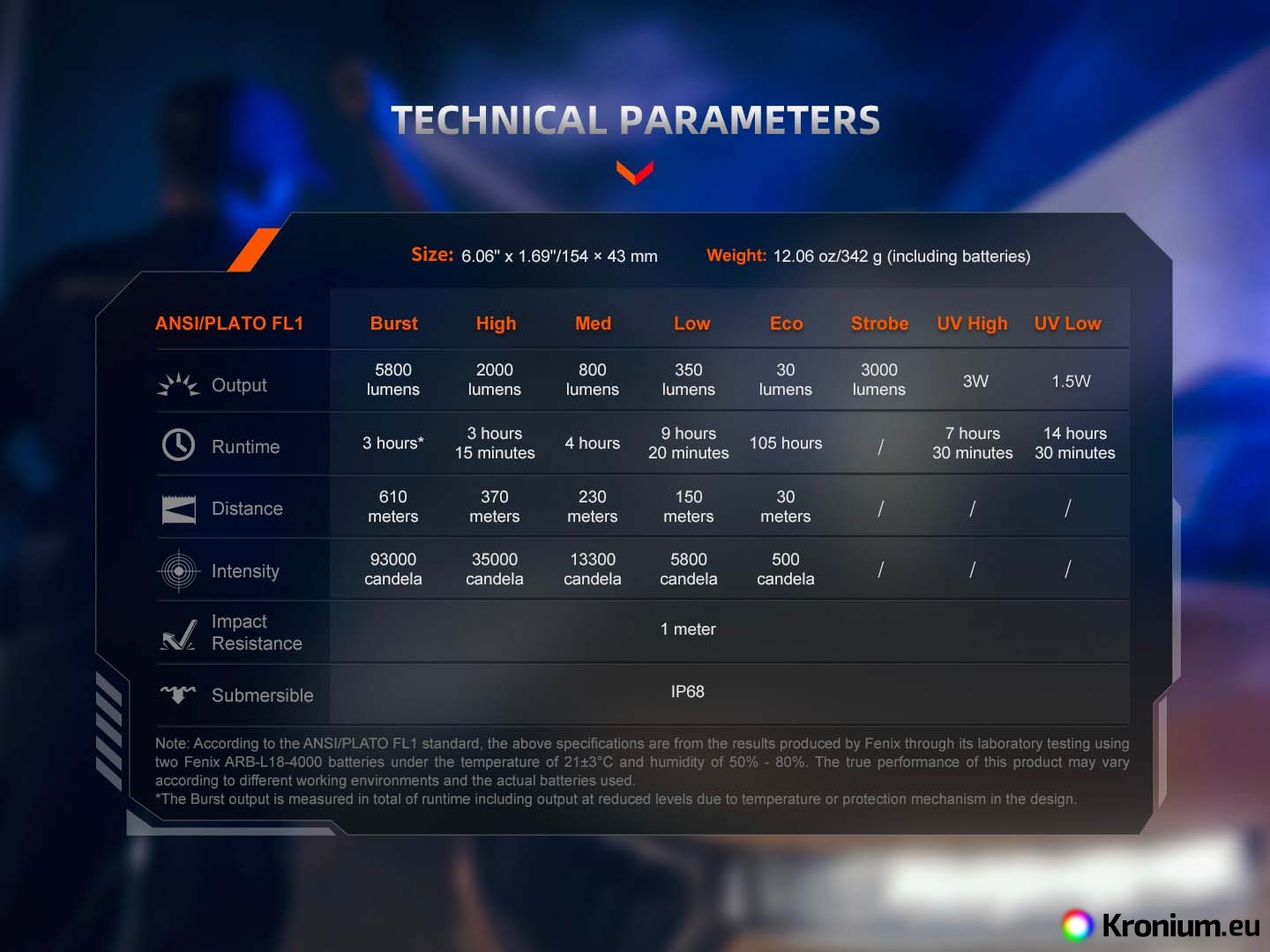

Fenix TK35R Flashlight Parameters

• Four high-performance Luminus SFT-25R LEDs and one UV LED Luminus SST-08 are used, both with a lifespan of 50,000 hours.
• A total of eight power modes:

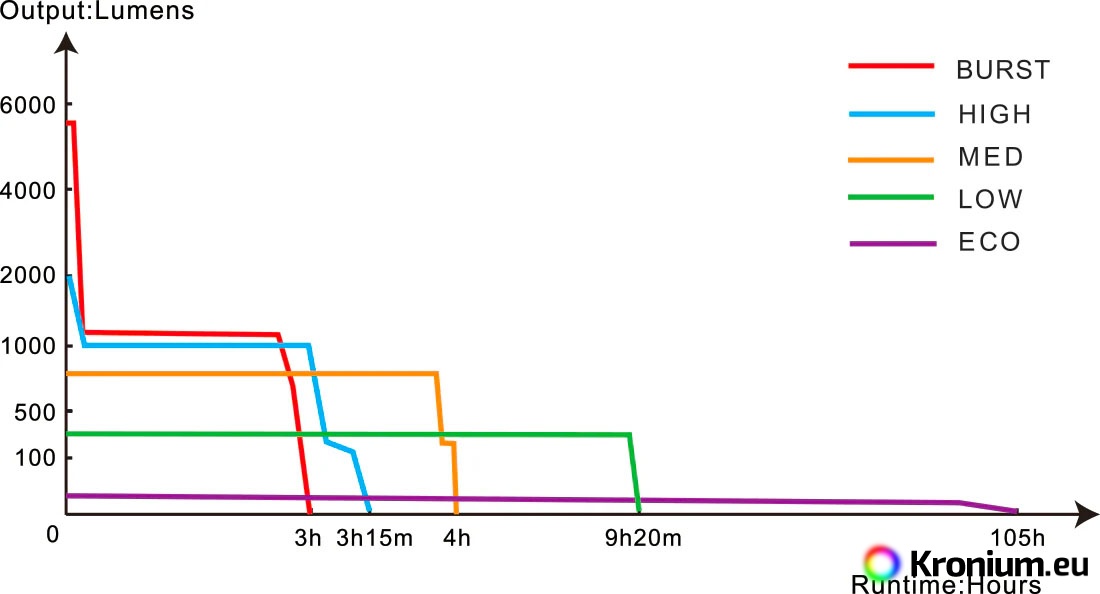

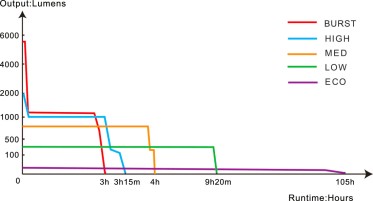

  • Six white light modes: 5800 lumens (3 hours) -> 2000 lumens (3 h 15 min) -> 800 lumens (4 hours) -> 350 lumens (9 h 20 min) -> 30 lumens (105 hours) -> Strobe 3000 lumens

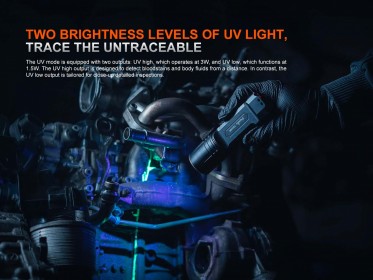

  • Two Ultraviolet modes: 3000 mW (7.5 hours) -> 1500 mW (14.5 hours)

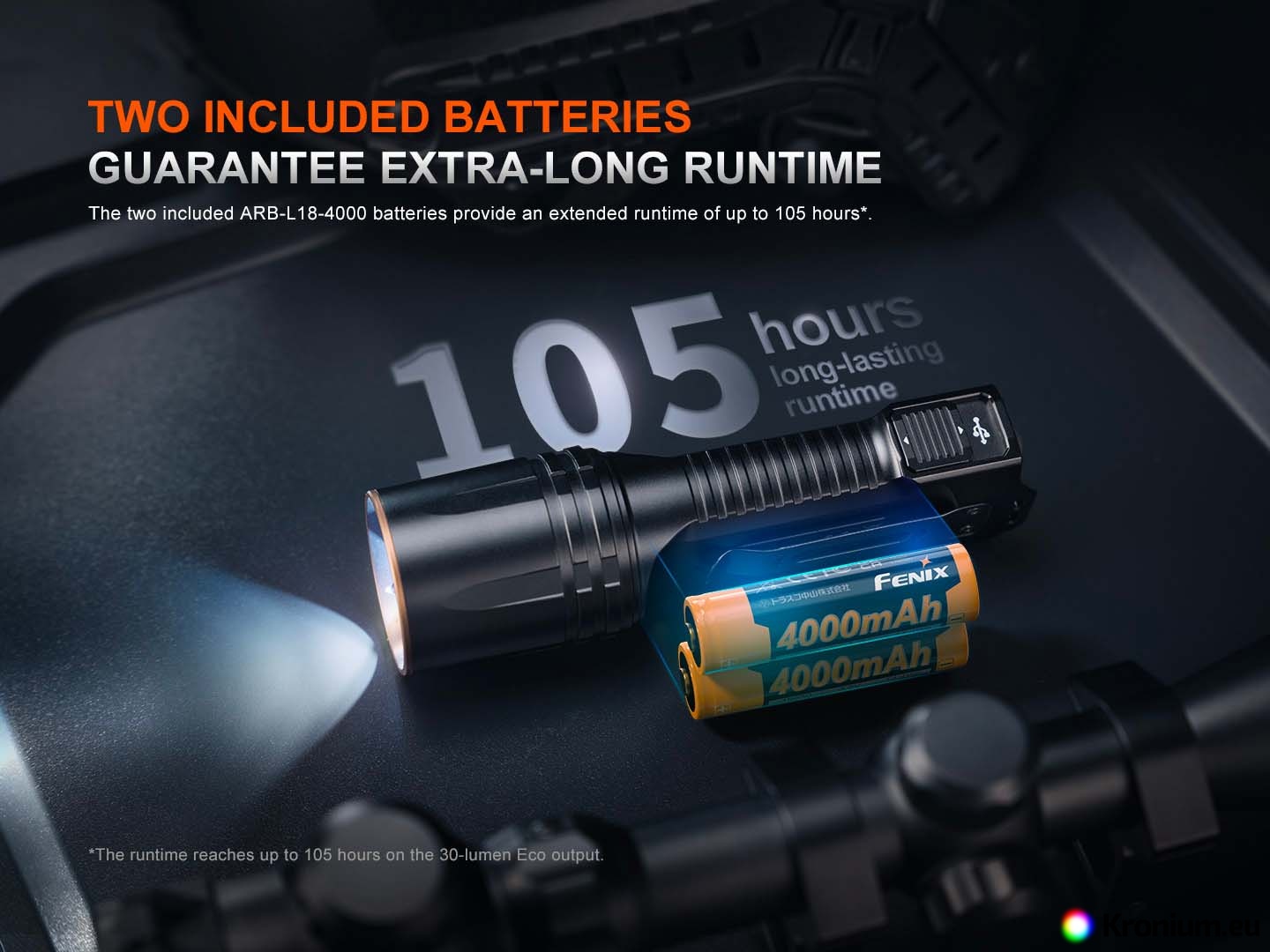

• Supports power from two 18650 Li-ion batteries. Two 18650 4000 mAh batteries are included in the package.
• Max. battery diameter 18,6 mm., max. battery length 72,0 mm.
• Note: The runtime in the highest mode is stated including gradual power reduction due to overheat protection.
• Smooth reflector for a well-focused light beam with a range of up to 610 meters (93000 cd).
• Digitally regulated output, overheat protection.
• The flashlight has memory and will always turn on in the last set mode of that type (does not apply to strobe).
• Switch for quick strobe activation.
• Reverse polarity protection (protection against incorrect battery insertion).
• Made from A6061-T6 aircraft-grade hardened aluminum.
• Trapezoidal threads highly resistant to wear.
• Durable, hard-to-scratch surface - Type III hard anodized.

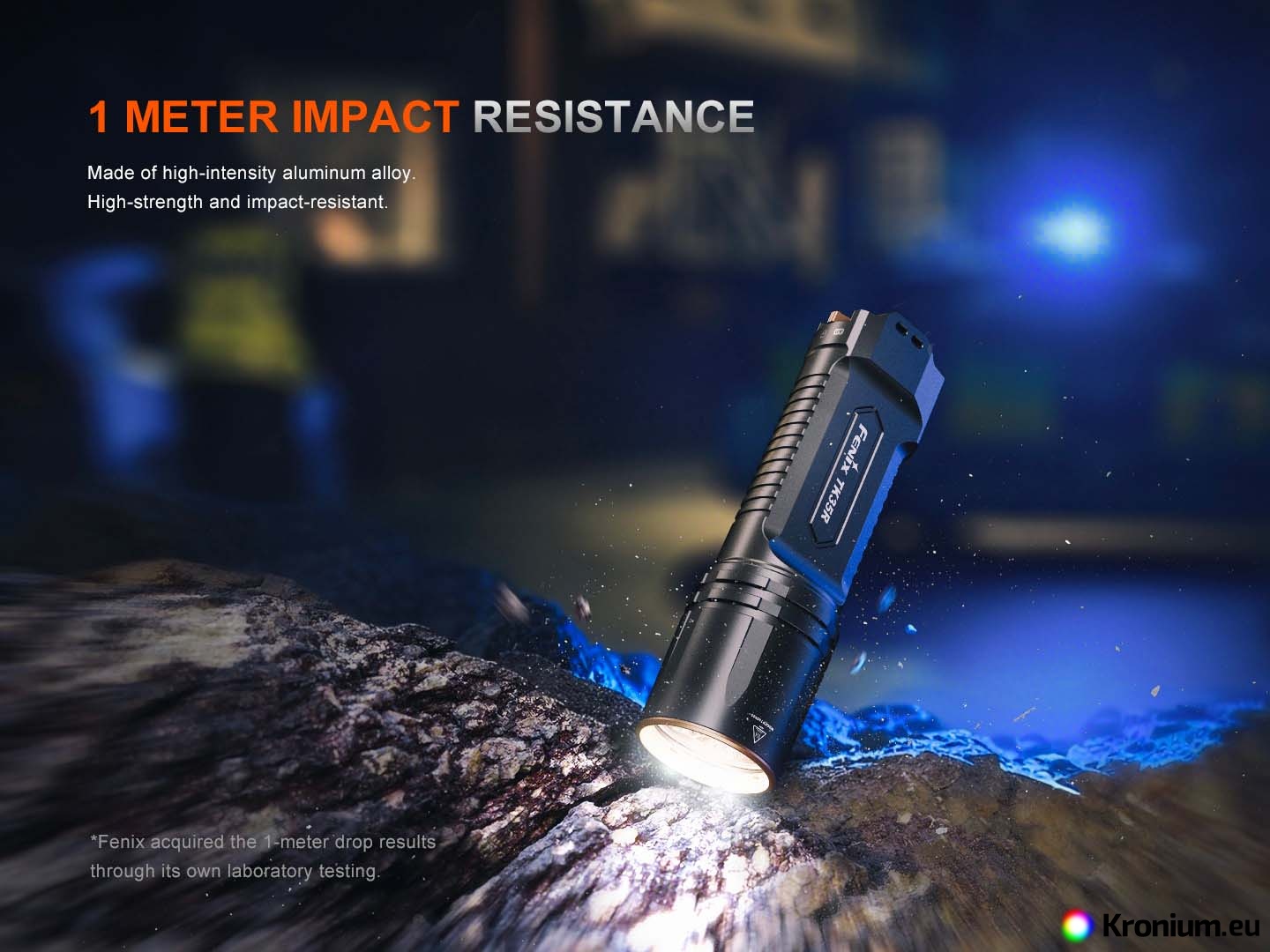

• Impact resistant to drops from a height of 1 meter.

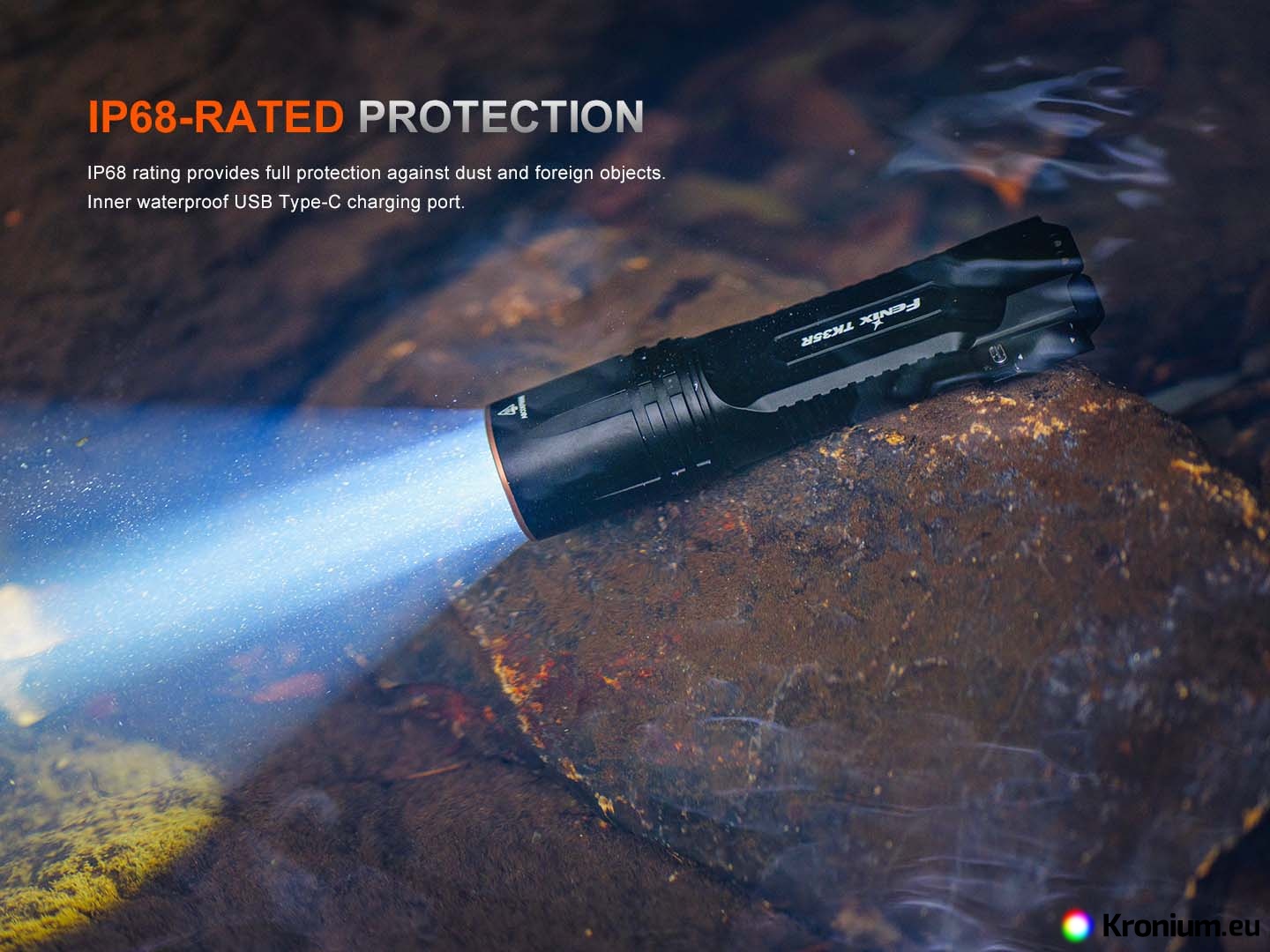

• Waterproof according to IP68 standard (to a depth of 2 meters for 30 minutes).

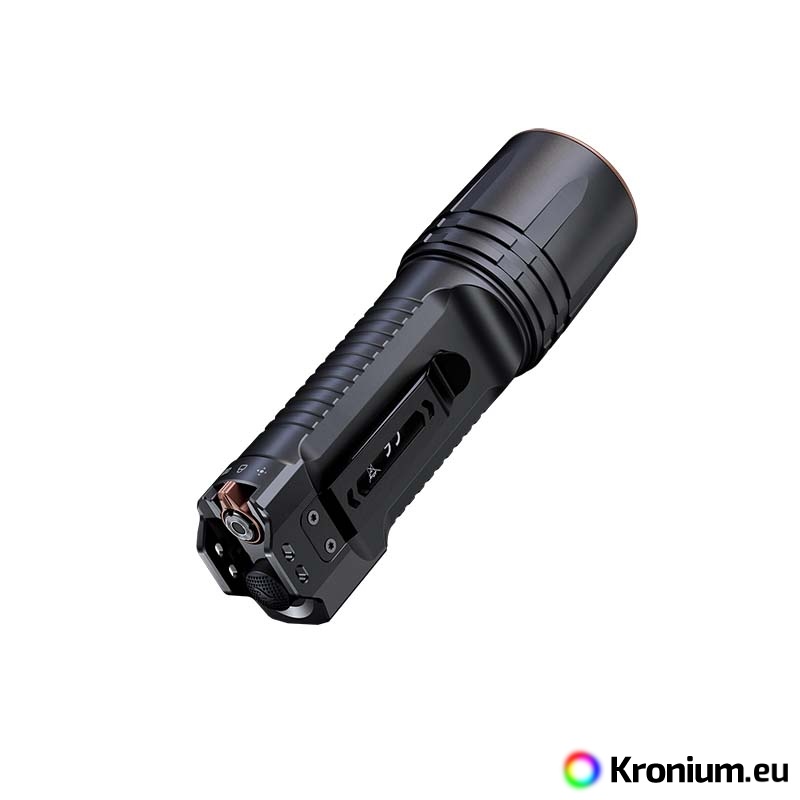

• Tactical switch on the end of the flashlight (momentary on/off function by half-pressing).

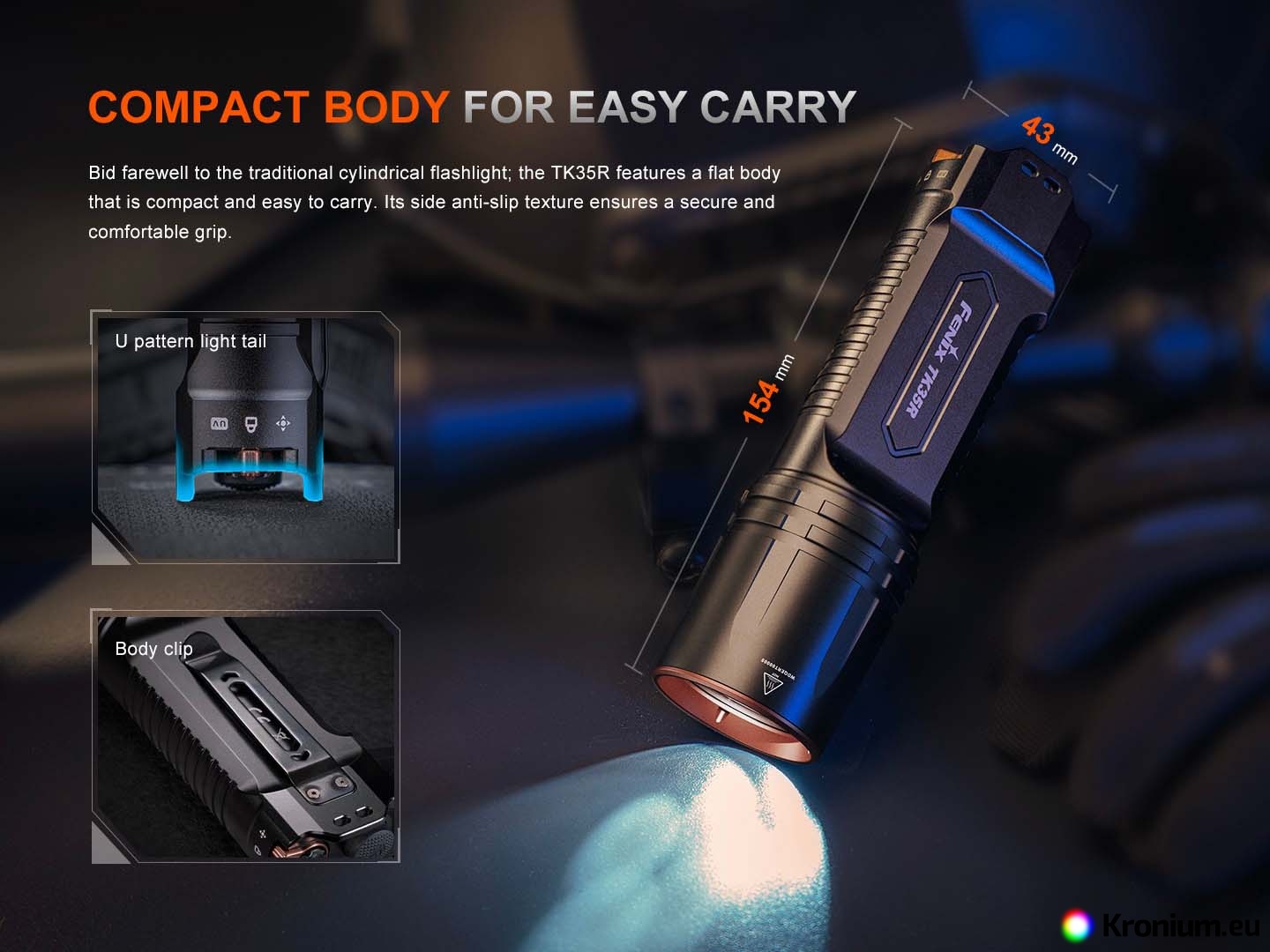

• Dimensions 15.4 cm (length) x 4.3 cm (reflector diameter).
• Weight 342 grams (including batteries).
• Toughened ultra-clear glass lens with anti-reflective coating.

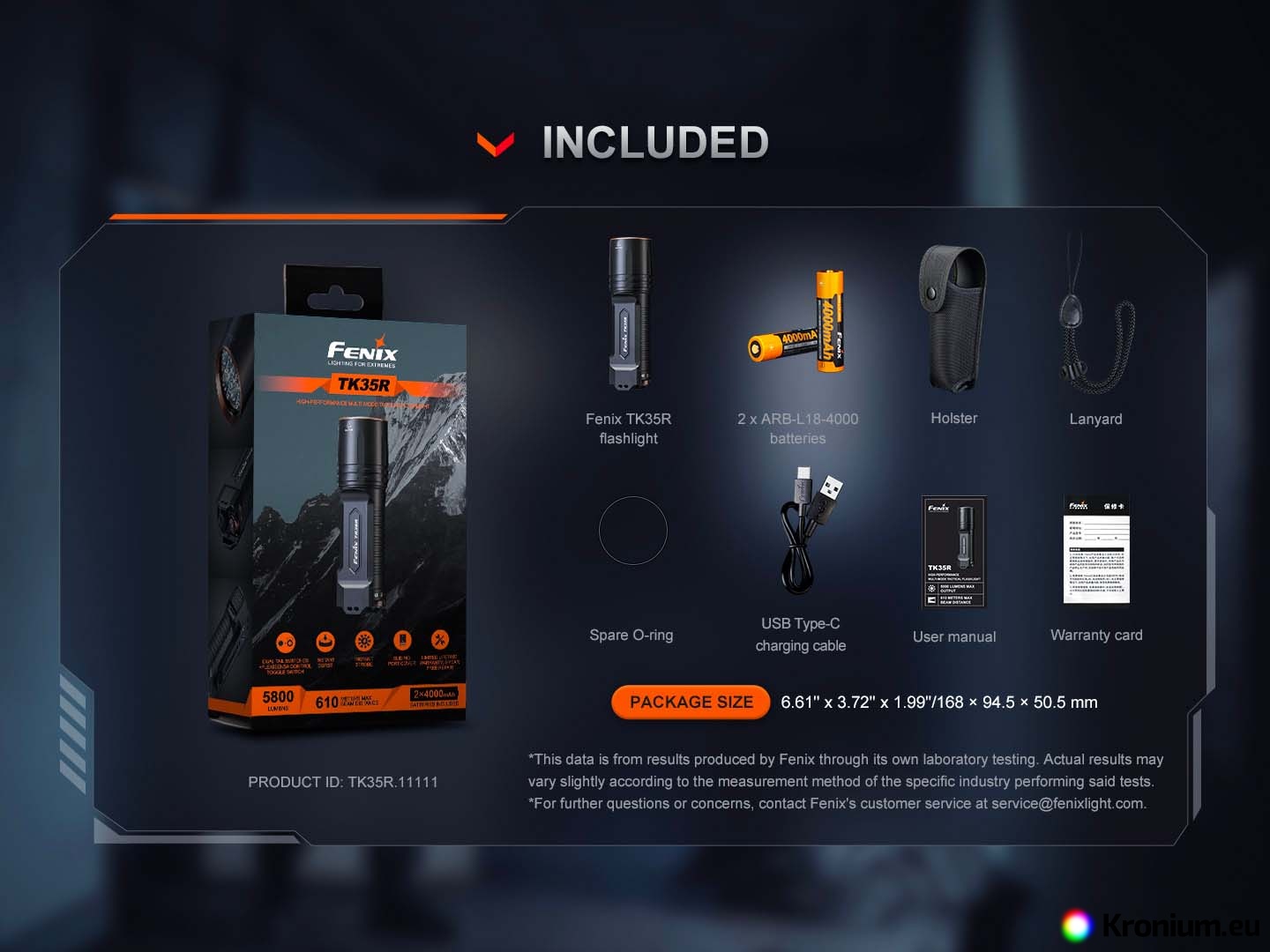

• The flashlight comes with a wrist lanyard, 2x ARB-L18-4000 batteries, a holster, a USB-C charging cable, and a spare O-ring.

Using the Fenix TK35R Flashlight

The battery may have insulating caps from the factory. Remove them before first use.

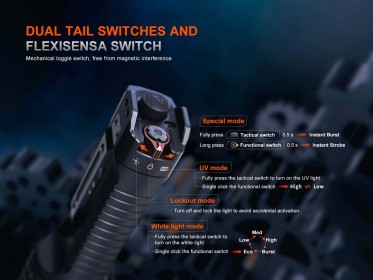

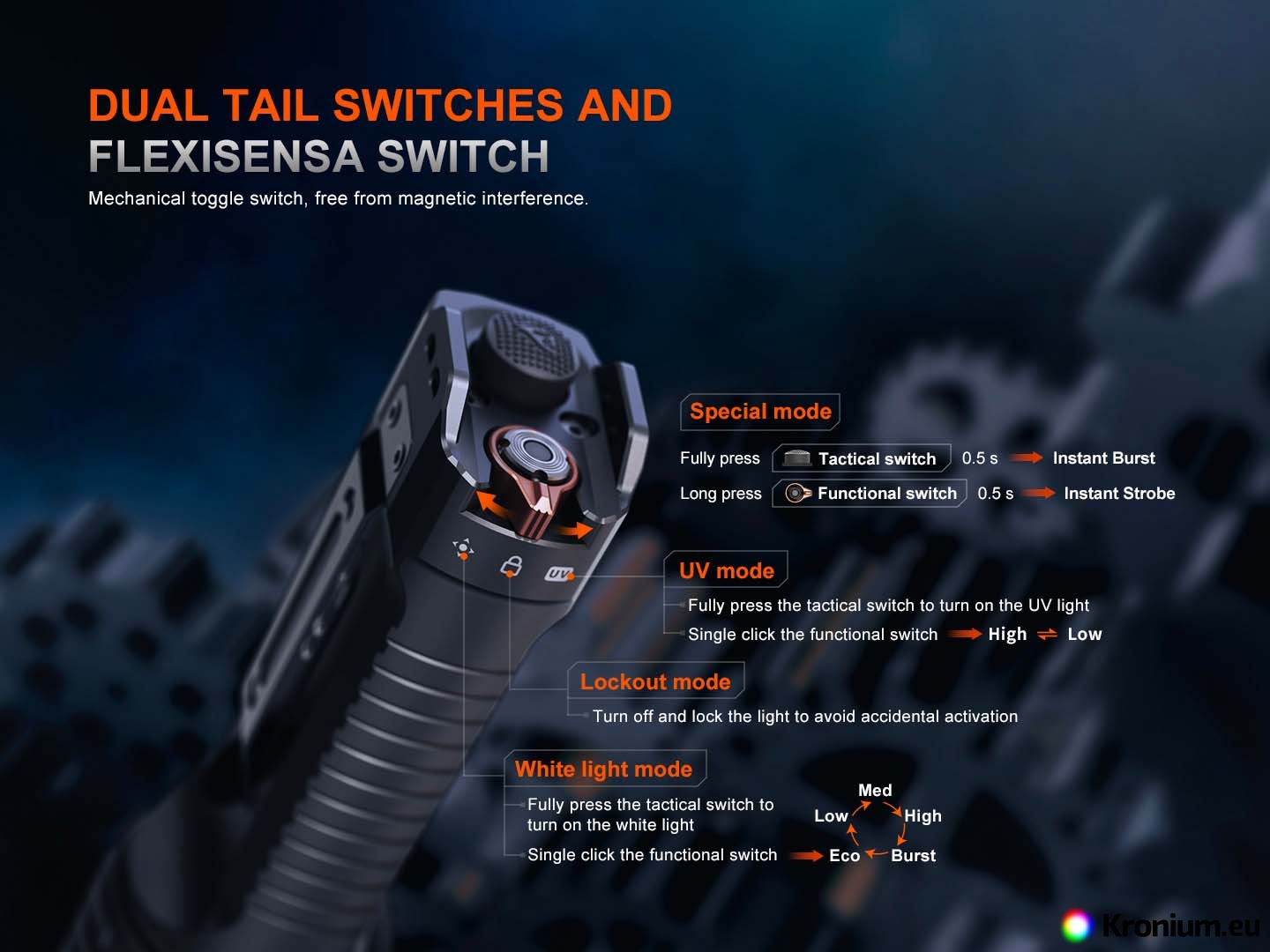

Use the rotary FlexiSensa Control switch at the end of the flashlight to select the desired lighting mode: white light – locked – blacklight.

Turning On/Off - When the flashlight is unlocked, press the main tactical button on the end of the flashlight to turn it on; for momentary activation, half-press the button.

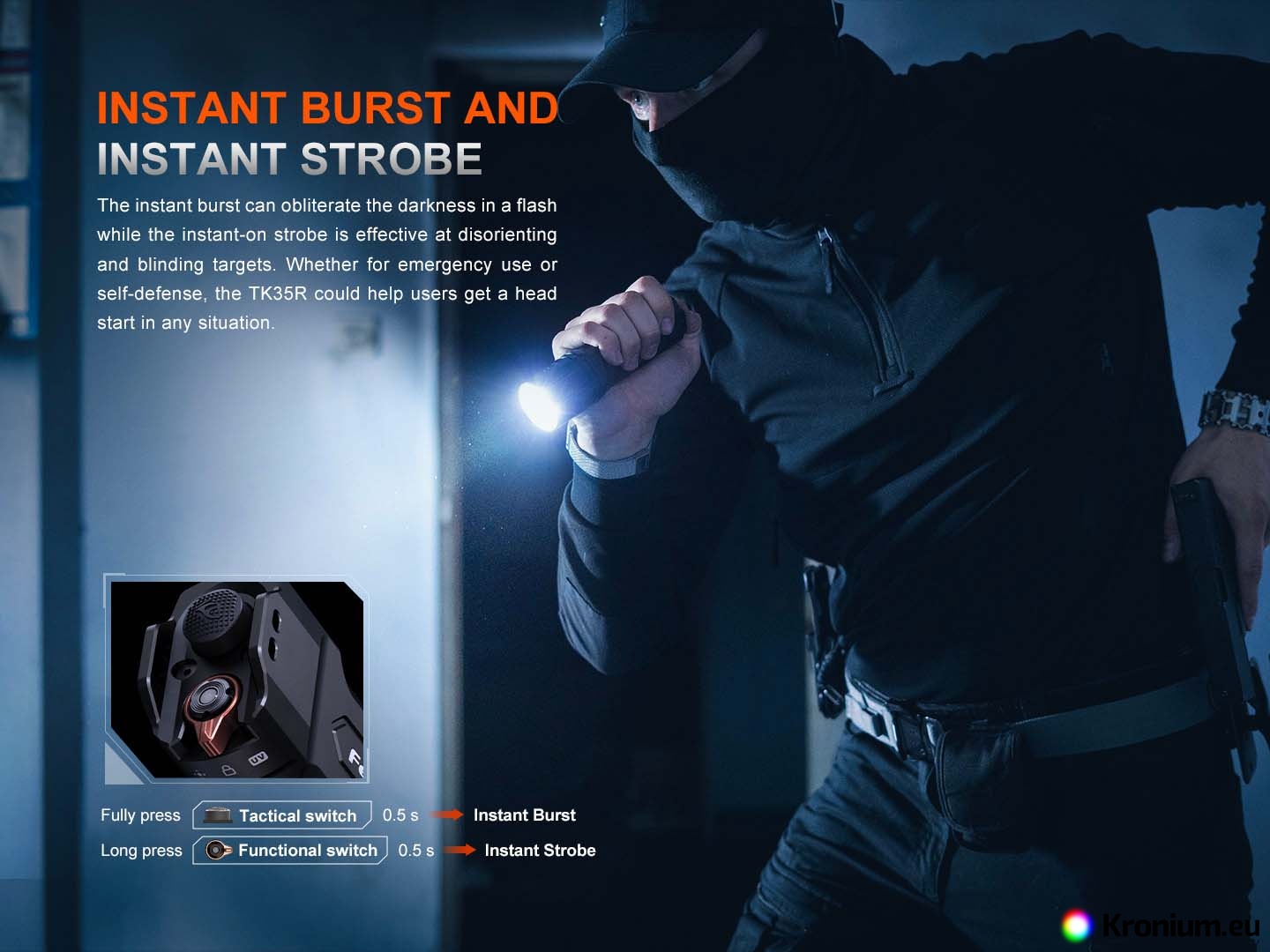

Switching Power Modes and Strobe - Press the secondary function button at any time during operation to cycle through the power modes of the selected light color. The maximum mode of 5800 lumens can be directly activated at any time when the flashlight is unlocked by holding the main tactical button for 0.5 seconds. To switch to strobe mode when the flashlight is on, hold the toggle button for 0.5 seconds. To turn the flashlight on directly into strobe mode, press and hold the toggle button.

Note: Since Blacklight light is generally invisible to the human eye, users may overlook its activation in bright environments. To prevent unnecessary risks or damage caused by accidentally leaving the UV light on, the indicator in the function switch flashes red and green alternately when the UV light is on.

Lockout/Off Mode - When the flashlight is on, in any state, turn the rotary switch to the Lockout/Off Mode to turn off and lock the flashlight. Pressing the buttons will then not turn the flashlight on.

Memory for Last Set Mode - The flashlight has memory and will always turn on in the last set mode, except for strobe.

Replacing Batteries - Unscrew the flashlight body and insert the batteries with the positive pole towards the head of the flashlight. Then fully tighten the body again.

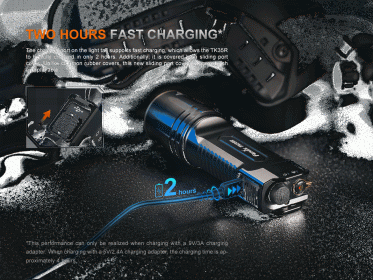

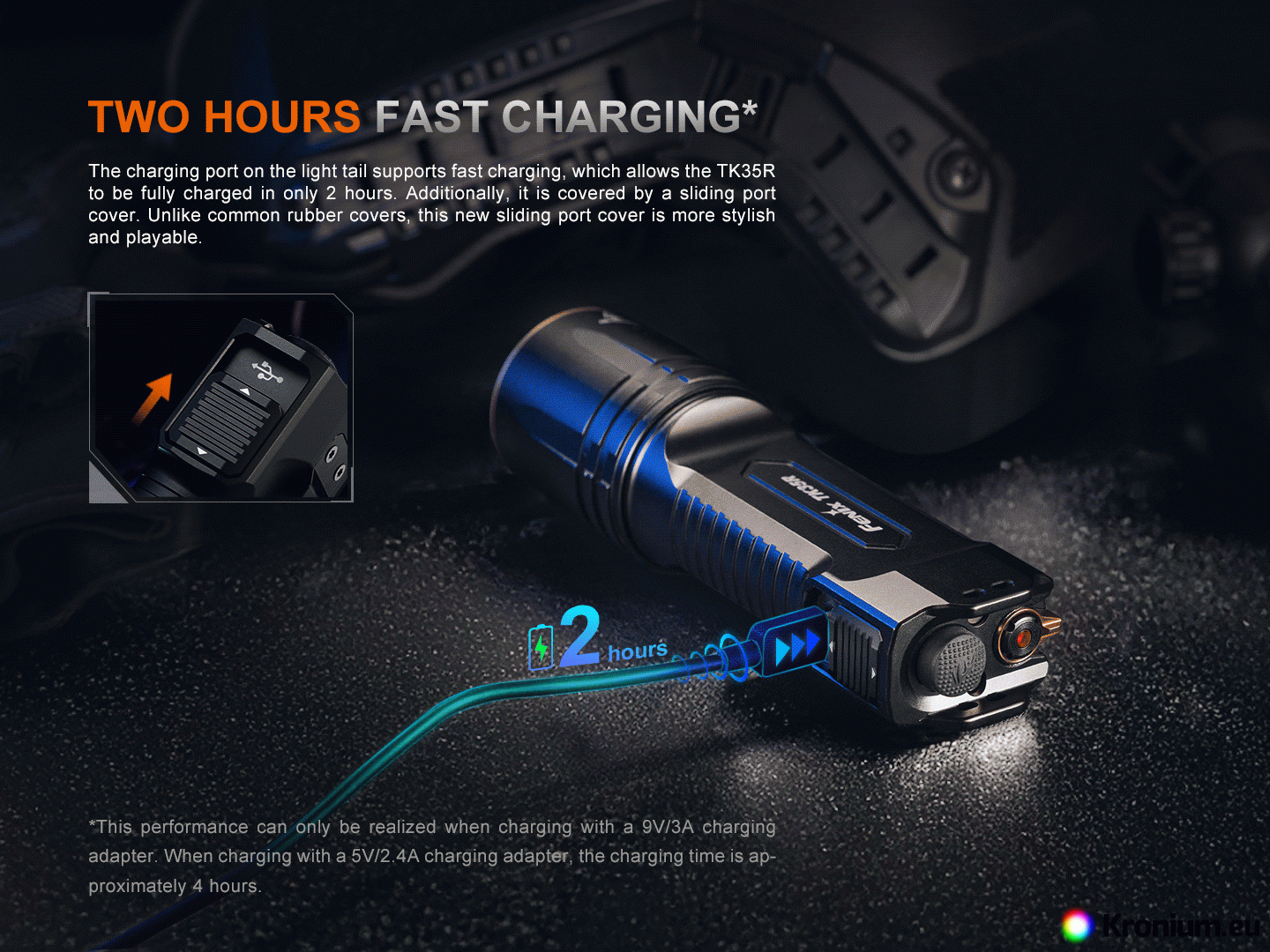

Charging - Slide the charging port cover at the end of the flashlight, then connect the USB-C charging cable to the flashlight. The indicator in the toggle button glows red during charging and turns green when fully charged. If charging fails or the batteries are inserted incorrectly, the battery status indicator will flash red or remain off to alert the user to check the batteries. When using a powerful 9V/3A USB power source, fully discharged batteries will charge in 2 hours; when using a 5V/2.4A USB source, they will charge in 4 hours.

Battery Level Indication - Each time the flashlight is turned on, the indicator LED in the toggle button activates for three seconds. If the indicator LED is green, the battery is charged to more than 85%. Green flashing means 50-85% capacity. If it is red, it is charged to 25-50%. Red flashing indicates that less than 25% of battery capacity remains.

Low Battery Warning - If the battery voltage drops below the set level, the flashlight will reduce brightness to a lower level. After reaching the lowest power output, the battery status indicator will start flashing red slowly to remind users to recharge or replace the battery in time.

Intelligent Overheat Protection - If the flashlight temperature exceeds 60 °C, the power will be automatically reduced. Once the temperature drops below 60 °C, the power will gradually increase again.

Warning

• Do not disassemble the sealed parts of the flashlight yourself, as this will void the warranty.
• Place the flashlight out of reach of children!
• Do not shine the flashlight directly into your own or anyone else's eyes!
• When using UV light, protect your eyes with UV filter-equipped glasses.
• Never use batteries with different charge levels or different capacities.
• Lock the flashlight or loosen the body by a few turns to prevent accidental activation during storage or transport.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings also need to be lubricated to prevent rubber erosion. By following these rules, the flashlight will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
  • The batteries are nearly depleted – replace them.
  • The contacts inside the flashlight or battery holder are dirty – clean them with a cotton swab dipped in alcohol.
  • The flashlight body is loose – add lubricant to the sealing rings and tighten.

Warranty

Five-year warranty on the flashlight, two-year warranty on the batteries.
