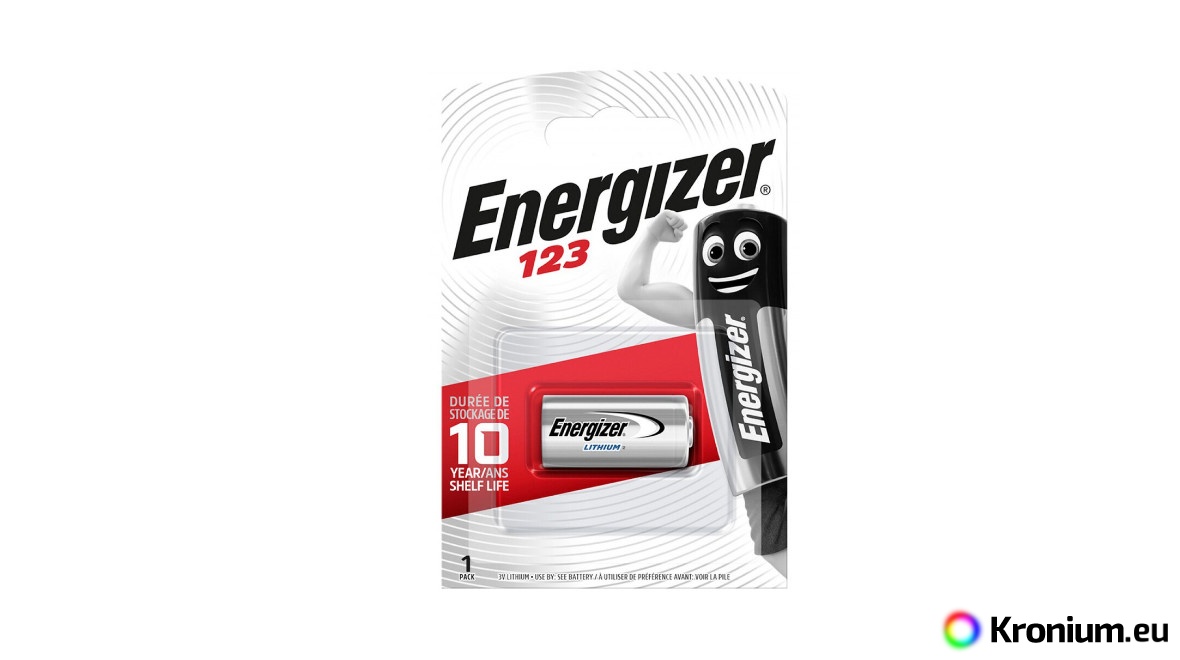

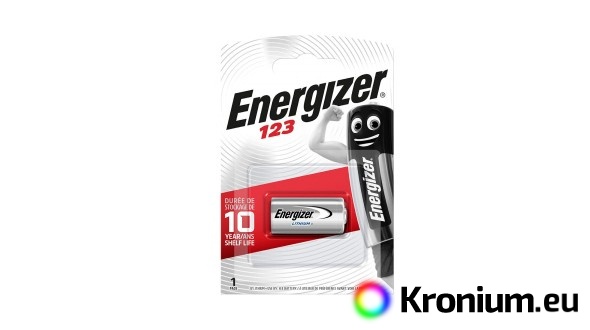

One piece of Energizer CR123 single-use lithium battery (CR123A, DL123, DL123A, CR17345, EL123AP, photo battery). It features one of the highest capacities on the market, extreme durability, and resistance to low temperatures.
The battery is designed for use in, for example, Fenix flashlights GL06, GL07, GL22R, BC21R, BC30, CL09, CL26R, LD30R, Fenix E15 XP-G2, E16, E18R, E28R V2.0, E30R, E35, PD25R, PD32R, PD35, TK09, TK11R, TK15, TK16 (1000 lm version only), TK25 Red, TK25 UV, TK25 IR, TK25 R&B, TK26R and Fenix headlamps HL50, HL55, HM50R, HM51R Ruby, HM55R, HM60R, HM61R Amber, HM62-T, HM65R and HM65R-T.
Battery Parameters of Energizer CR123
- Nominal voltage: 3 V
- Chemical composition: Li/MnO2
- Capacity: 1500 mAh (at 30 mA current down to 2.0 V)
- Non-rechargeable primary cell for single use
- Excellent performance at low temperatures
- Operating temperature: -40 to +60 °C
- Long shelf life: 10 years
- Diameter: 16.5 mm (+/- 0.5 mm)
- Height: 34.0 mm (+/- 0.5 mm)
- Weight: 16.5 g
- The manufacturer's full datasheet is available for download here.
- A plastic case can be purchased for the battery.
Warning
- Never use batteries with different charge levels together in one device!
- Do not short-circuit the battery (do not connect the poles with a wire).
- Do not dispose of the battery in fire.
- Do not attempt to recharge this primary battery.
