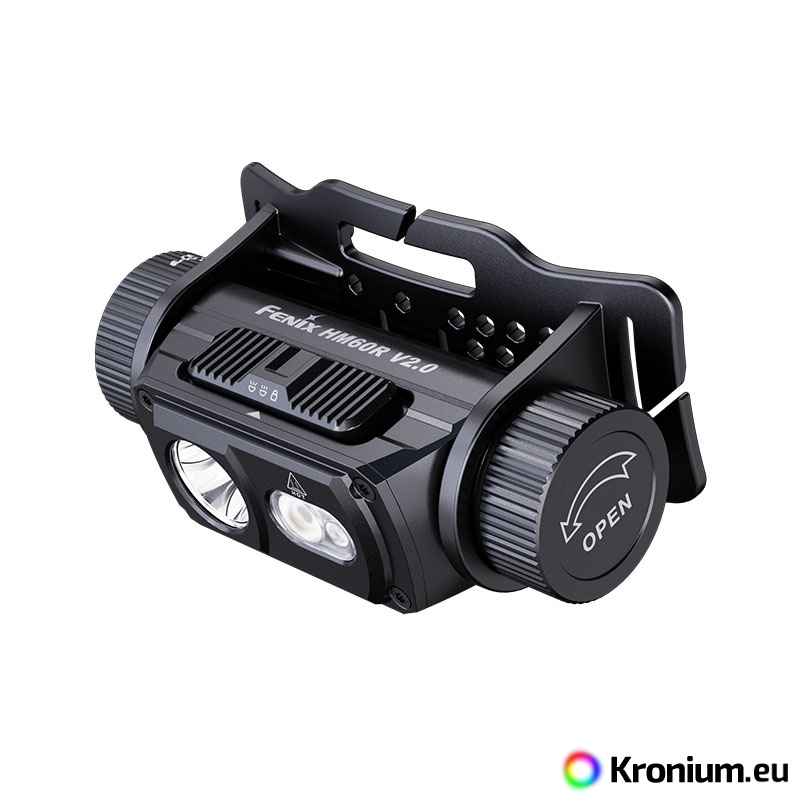

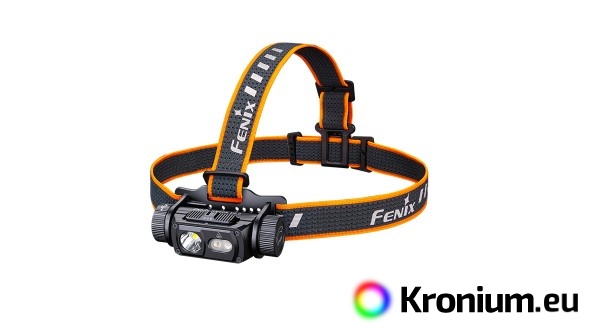

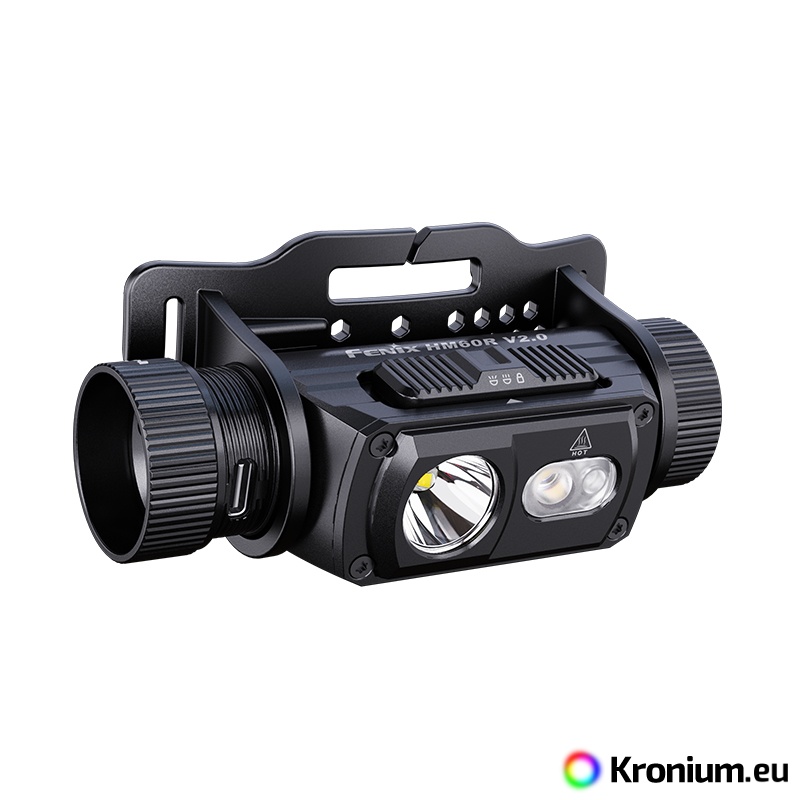

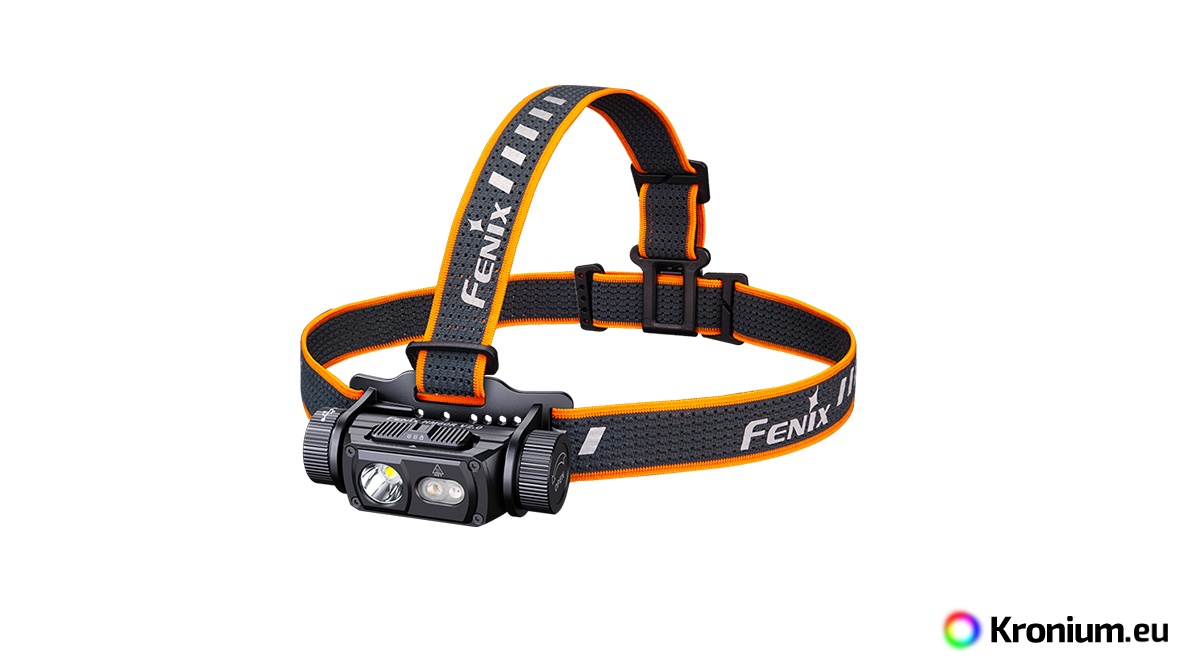

The Fenix HM60R V2.0 is a high-performance rechargeable headlamp that offers a light output of up to 1600 lumens in the main reflector with a beam distance of 170 meters. The second reflector, with an output of up to 350 lumens, has a very wide and smooth beam with a neutral light tint and a high color rendering index of CRI >90 (Color Rendering Index). You can switch between the reflectors using an innovative sliding selector on the top of the headlamp, which also has a lockout function. The headlamp also features a red light with an output of up to 20 lumens. Included in the package is a rechargeable 18650 Li-ion battery with a capacity of 4000 mAh, which is charged directly in the headlamp via a USB-C connector. Given its features, it is suitable for professional use, a variety of sports activities (hiking, camping, running, cycling, skiing...), underground exploration, fishing, and other uses. It is guaranteed to serve you perfectly in any situation! The all-metal construction ensures high durability, optimal cooling, and is also fully waterproof according to the IP68 standard, submersible up to 2 meters underwater.

All flashlight parameters (luminous flux, battery life, waterproofness, beam distance, and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

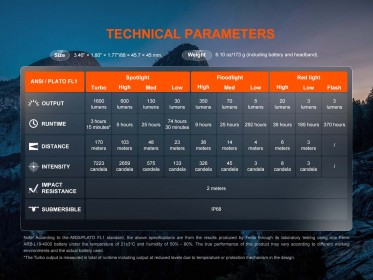

Parameters of the Fenix HM60R V2.0 Rechargeable Headlamp

• It uses a powerful Luminus SST-40 G2 LED, a Luminus SST-20 G2 LED with high CRI and a neutral white light tint, and an auxiliary OSRAM 2835 red LED with a lifespan of 50,000 hours.

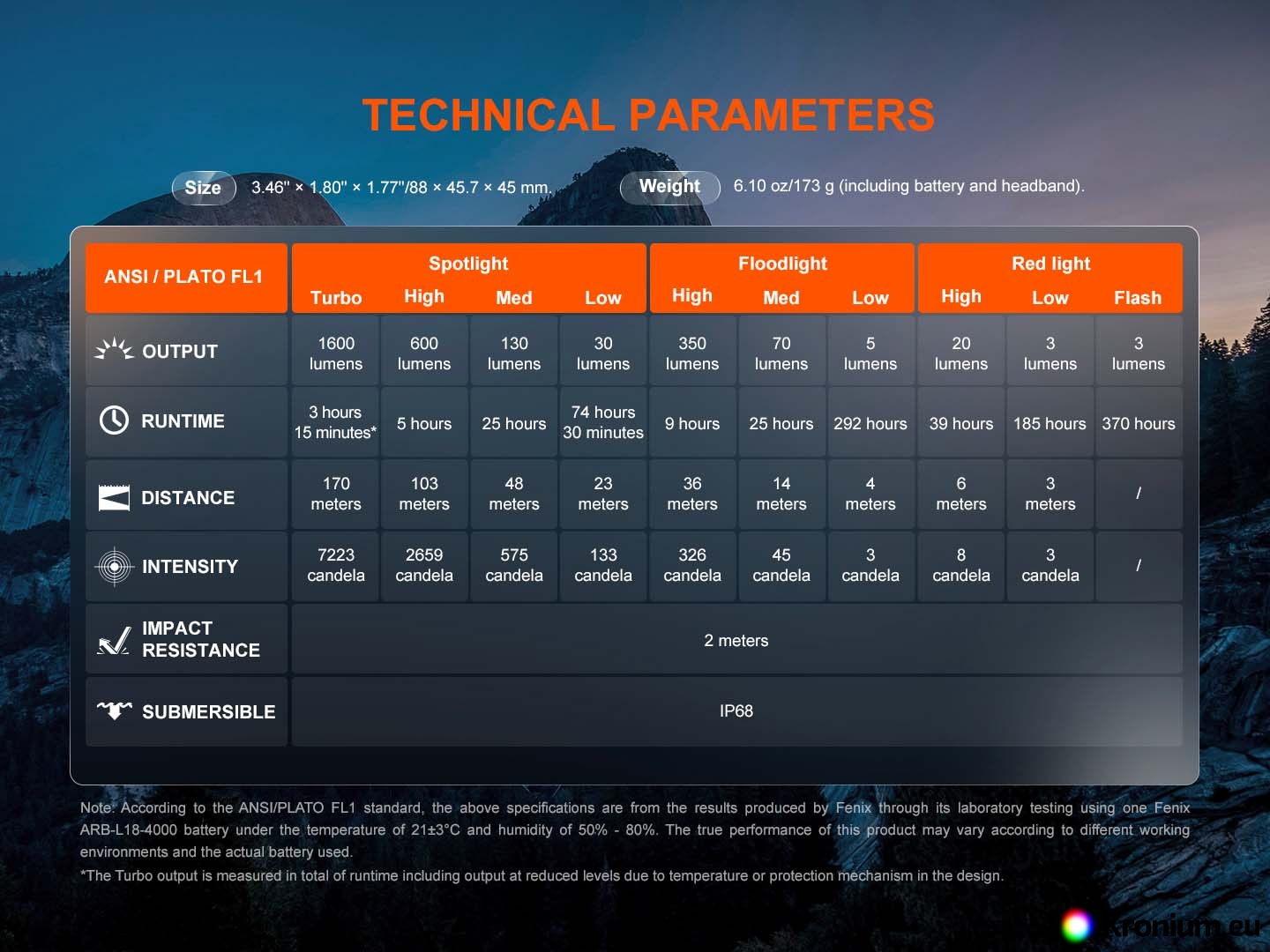

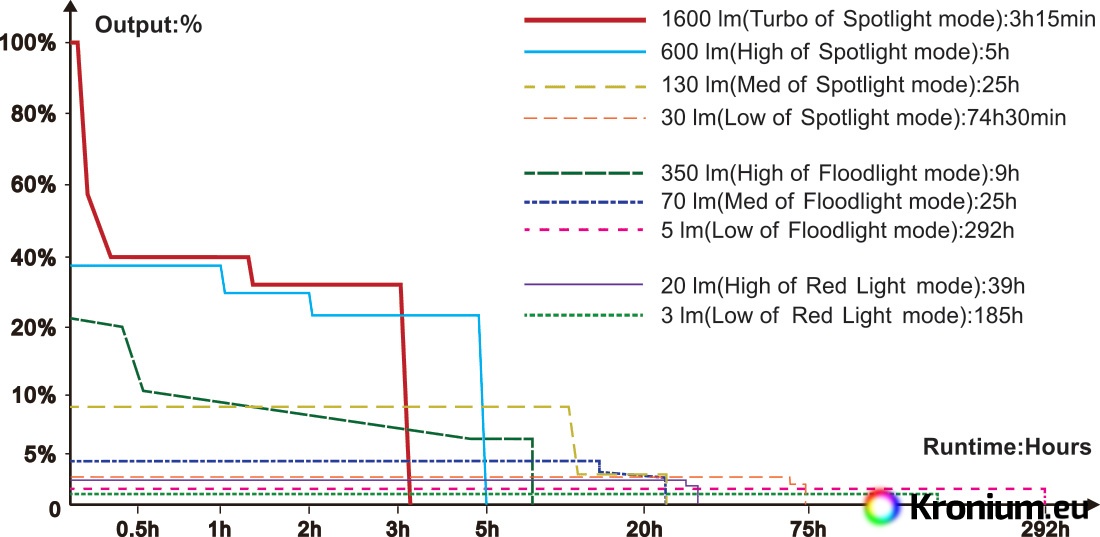

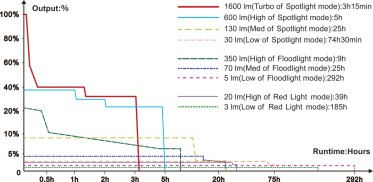

• Spotlight reflector: 1600 lumens (3.25 hours) -> 600 lumens (5 hours) -> 130 lumens (25 hours) -> 30 lumens (74.5 hours).
• Floodlight reflector: 350 lumens (9 hours) -> 70 lumens (25 hours) -> 5 lumens (292 hours) -> red 20 lumens (39 hours) -> red 3 lumens (185 hours) -> red flash 3 lumens (370 hours).
• The luminous flux and runtimes are measured with the included 4000 mAh Li-ion 18650 battery.
• The spotlight reflector creates a light beam with a distance of 170 meters (7223 cd), the floodlight reflector shines up to a distance of 36 meters (326 cd), and the red light has a beam distance of 6 meters (8 cd).
• Electronics with digital regulation, protection against reverse battery insertion, and overheating protection.

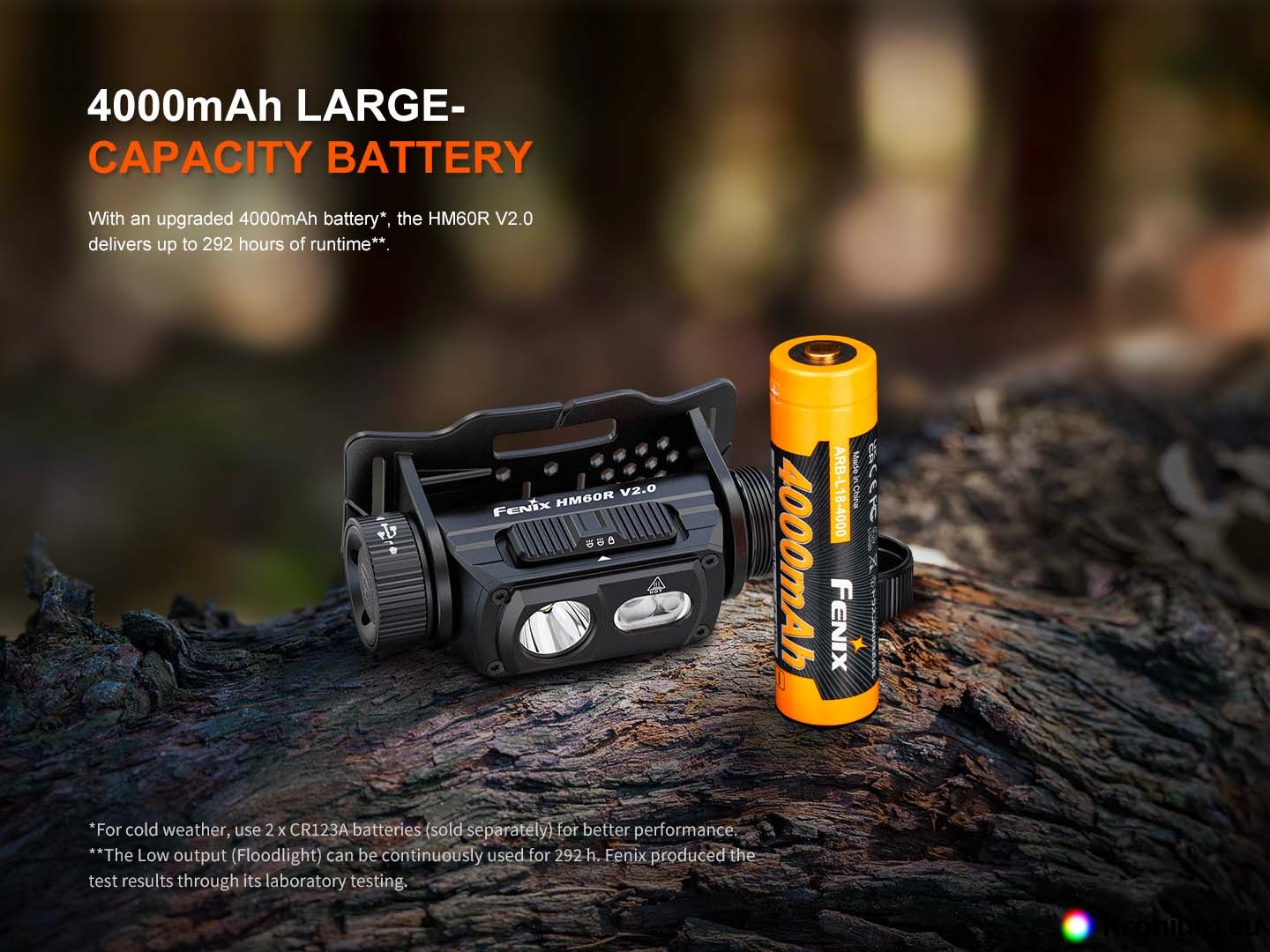

• It is powered by one rechargeable Li-ion 18650 battery with a capacity of 4000 mAh, which is included in the package. In an emergency, two lithium CR123A batteries can also be used.
• Max. battery diameter 18.7 mm, max. battery length 70.0 mm.
• Memory for the last used output mode, except for the highest spotlight mode and the red light.

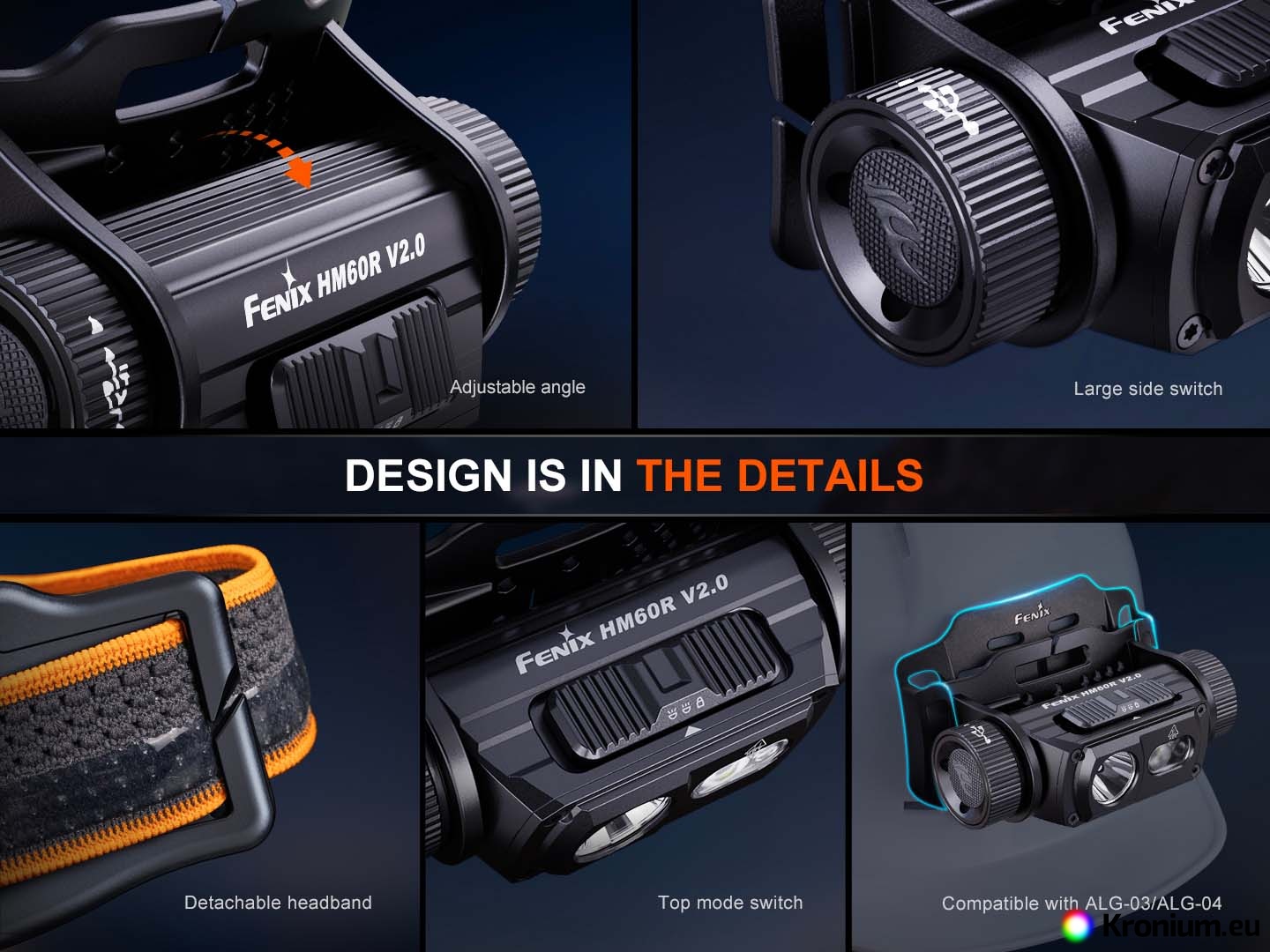

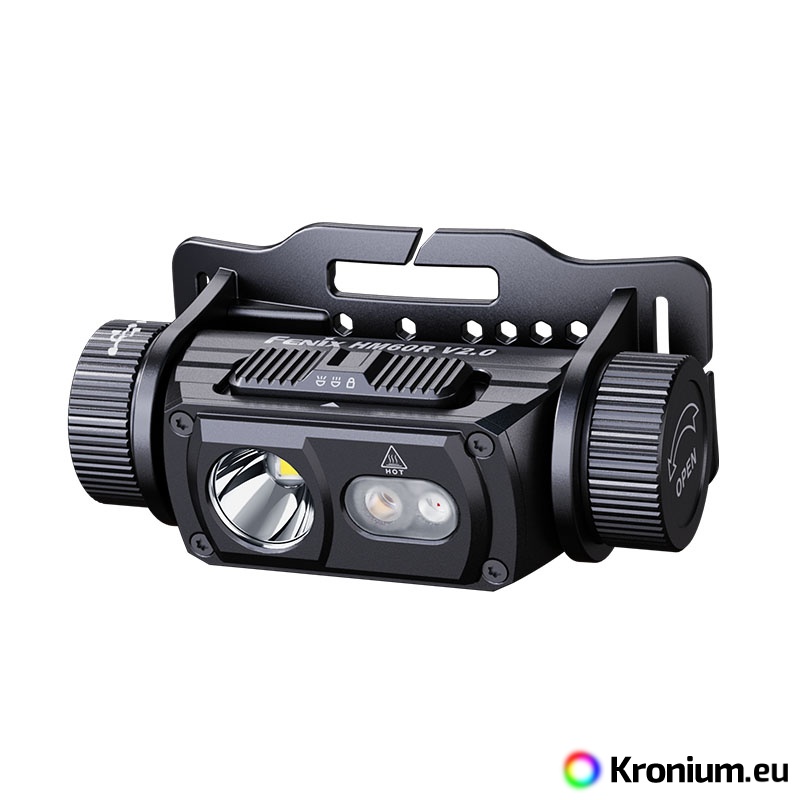

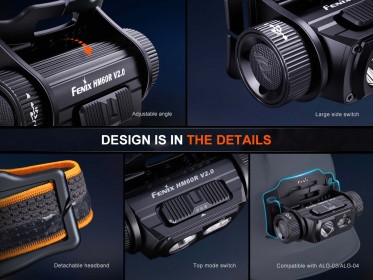

• Innovative reflector switch on the top of the headlamp with a lockout function.
• The headlamp can be rotated in its holder over a wide range to set the desired lighting direction.
• Made of a durable aluminum alloy with a hard-to-scratch surface - Type III hard anodized.

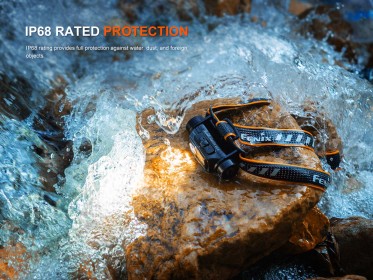

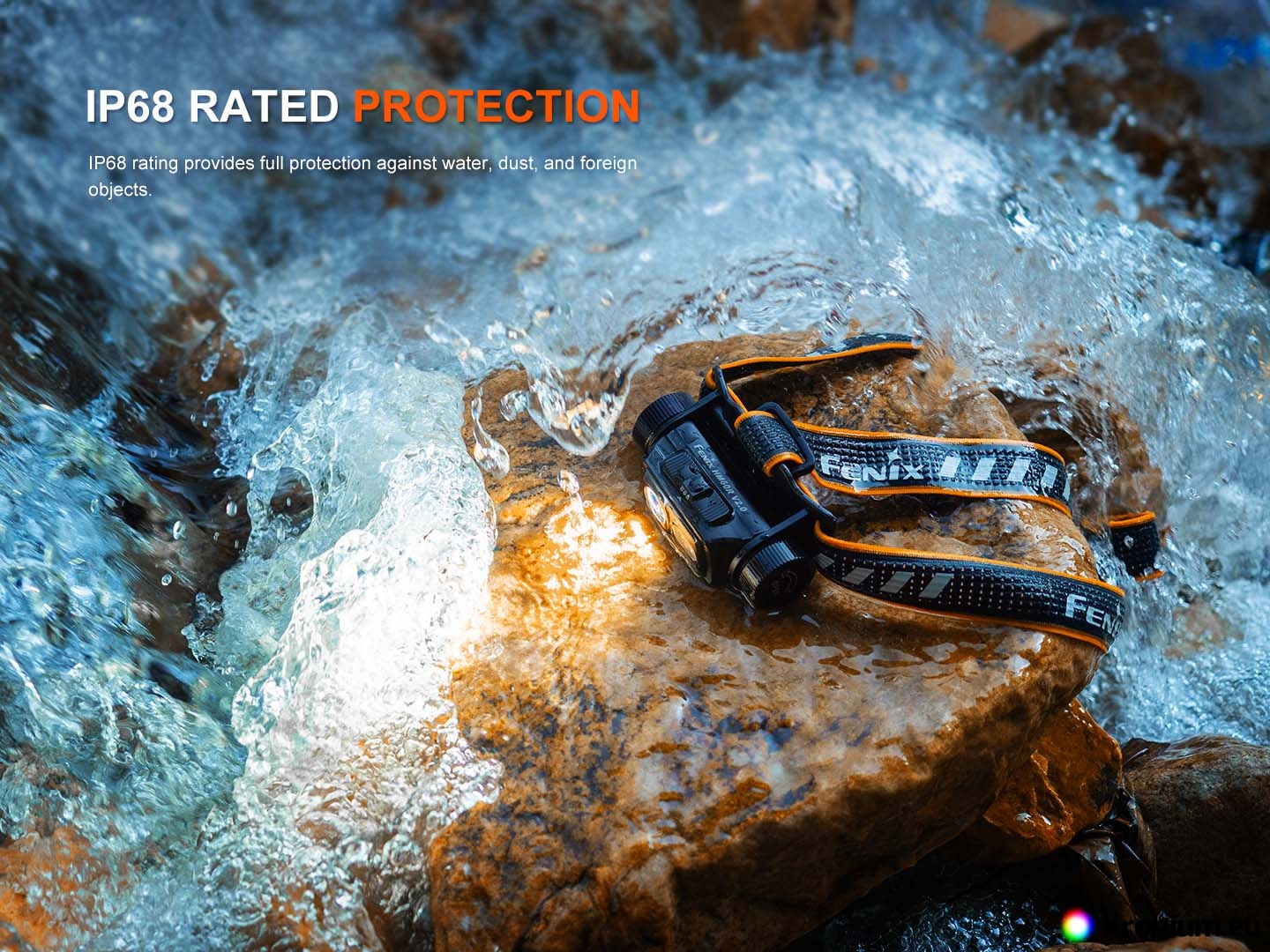

• Waterproof according to the IP68 standard (tested underwater at a depth of 2 meters).
• Headlamp dimensions: 8.8 cm x 4.57 cm x 4.5 cm.
• Weight 173 grams (including battery and strap).

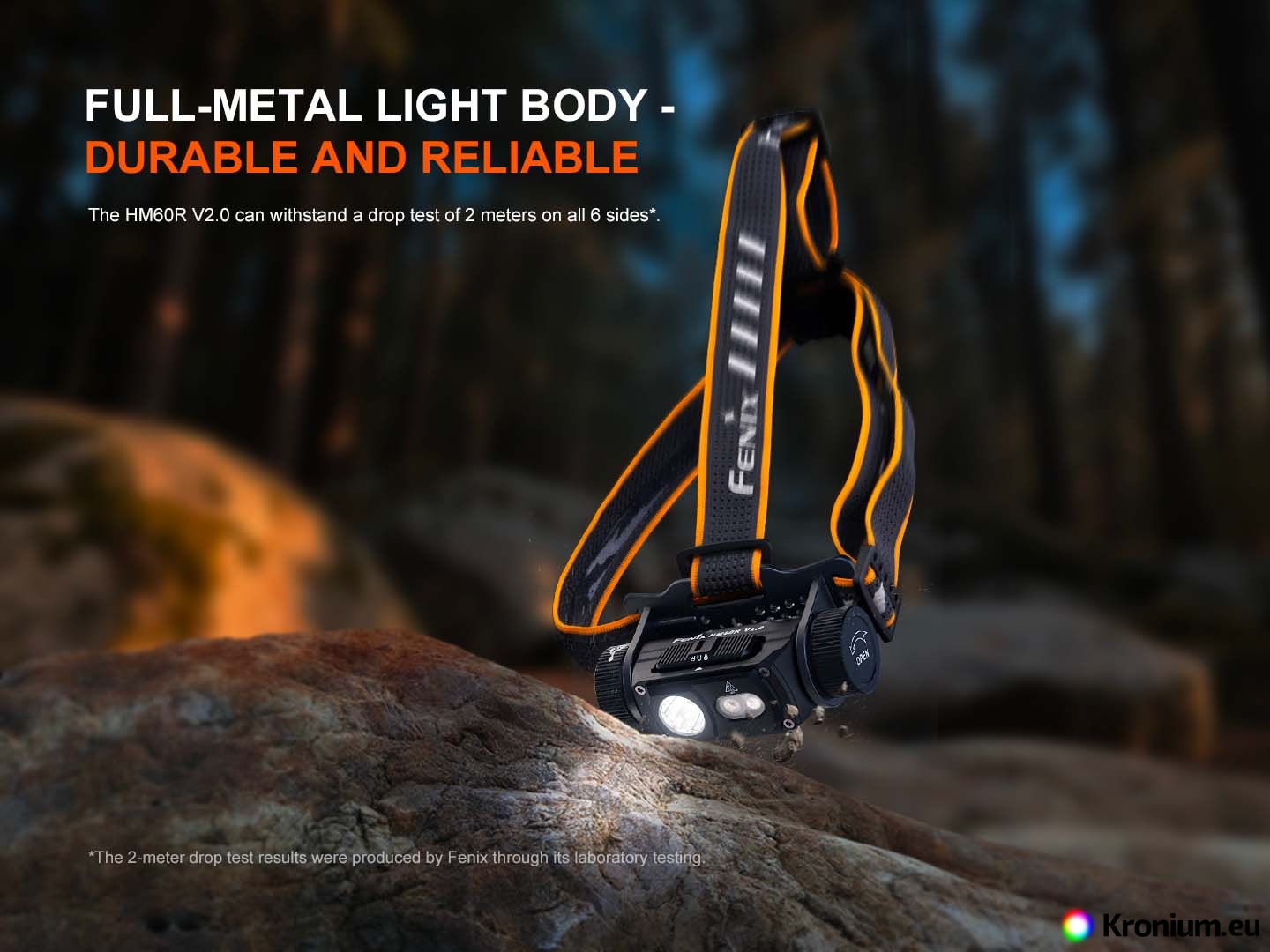

• Impact resistant to falls from a height of 2 meters.
• Toughened ultra-clear glass lens with an anti-reflective coating.

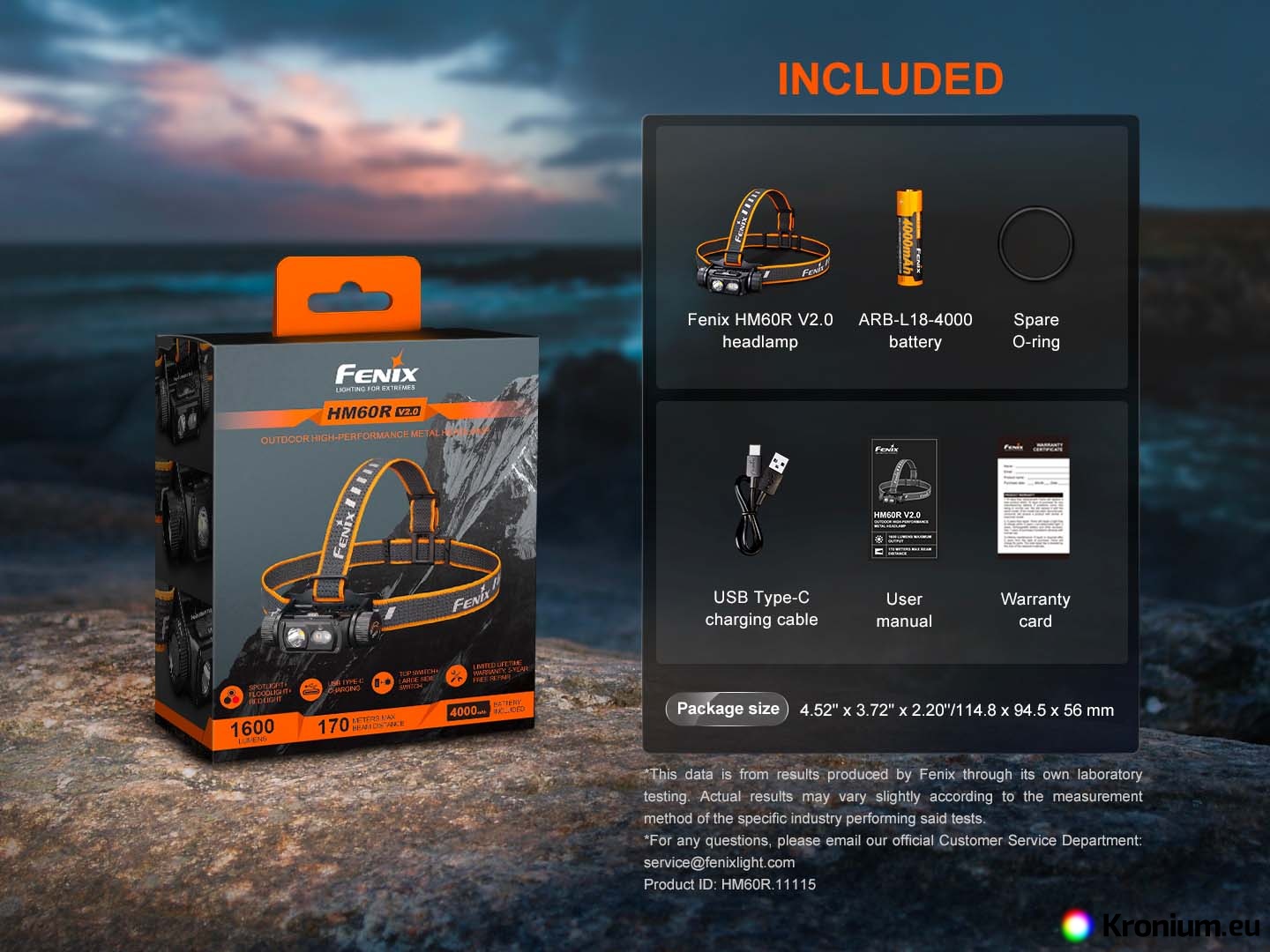

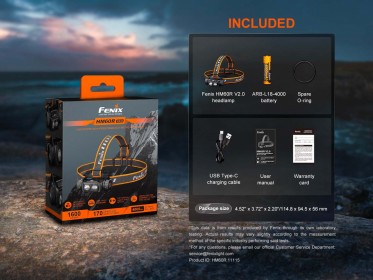

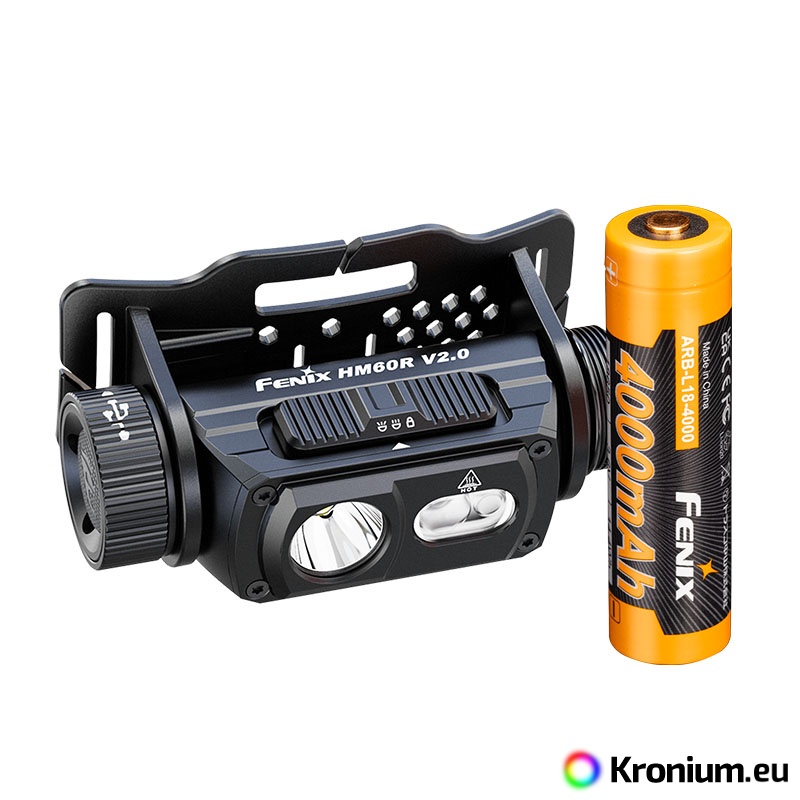

• The package includes the headlamp, a Fenix 18650 4000 mAh battery, a USB-C cable, head straps, and a spare o-ring.
• You can also purchase a replacement main strap, replacement top strap, a replacement SportFit strap with a dial adjustment, Fenix AFH-02 black straps without reflective elements, a Fenix APB-20 case, a Fenix APB-30 case, a USB power adapter, and a USB car adapter.
• For easy mounting on a helmet, you can purchase the Fenix ALG-03 or ALG-04 mount.

Usage

There may be an insulating cap on the battery inside the flashlight from the factory. Remove it from the battery before first use.

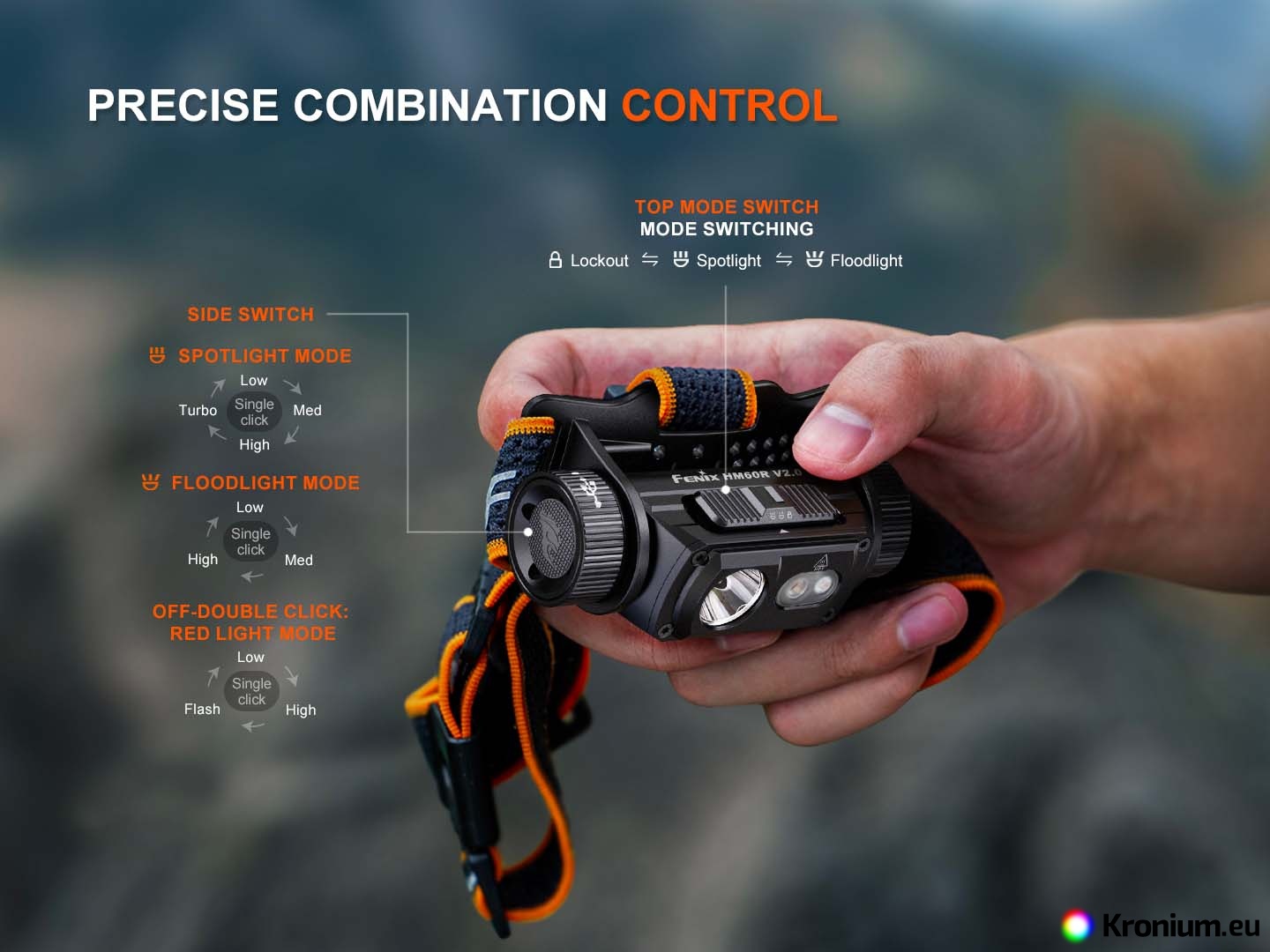

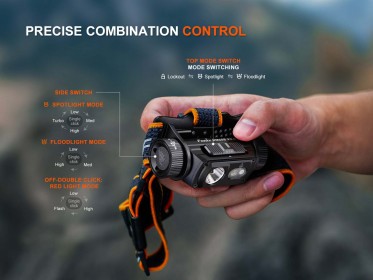

Turning on/off and switching modes - If the headlamp is unlocked and off, the white light is turned on by holding the switch for 0.5 seconds, and the red light is activated by a quick double-press of the switch. The output modes of the on light are then cycled by a short press of the switch. The light is turned off again by holding the switch for 0.5 seconds or by locking it with the slide switch.

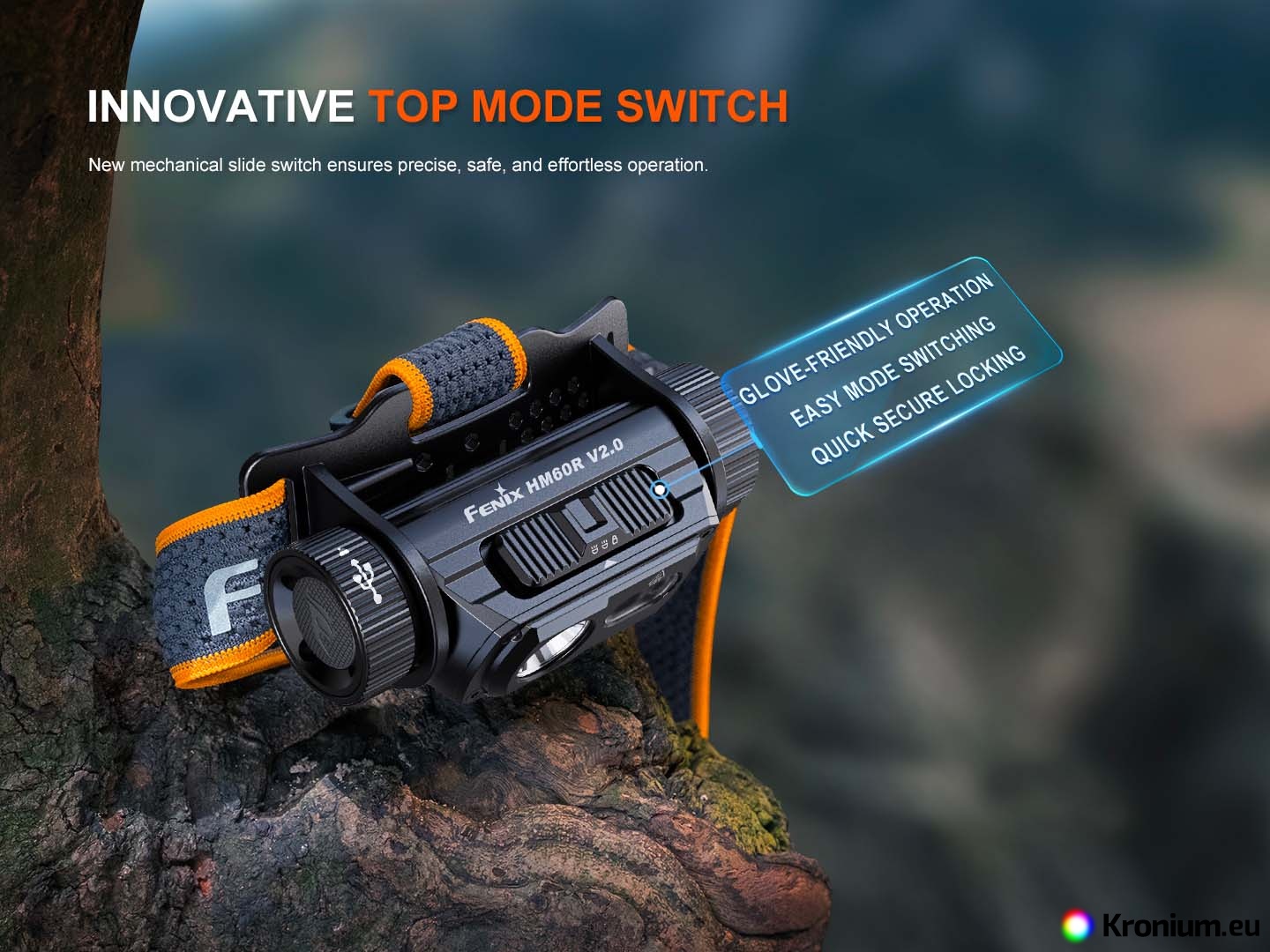

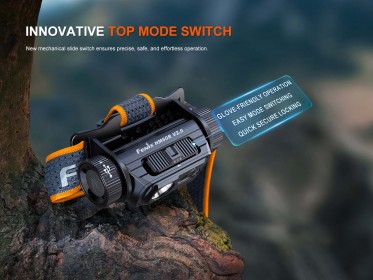

Switching between spotlight and floodlight reflectors and locking out - By sliding the top mode switch, you can cycle between Lockout ⇋ Spotlight Reflector ⇋ Floodlight Reflector. When the headlamp is locked, sliding the mode switch to the spotlight or floodlight position will also turn it on.

Memory for the last used output mode - The headlamp has a memory and will turn on in the last set output mode for the respective reflector, with the exception of the highest spotlight mode (it will always turn on in high mode) and the red light modes.

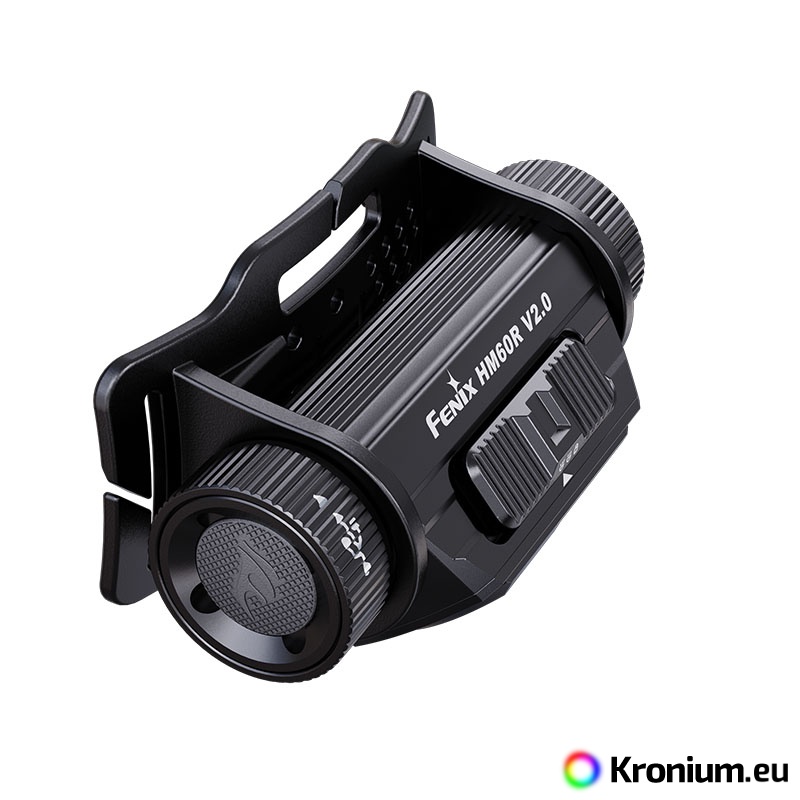

Battery replacement - Unscrew the battery cap of the headlamp and insert the battery according to the marked polarity. Then, fully tighten the cap again.

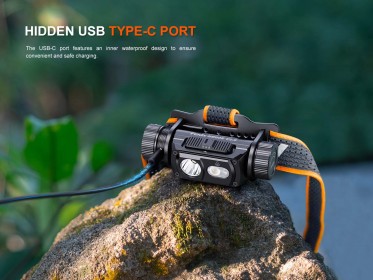

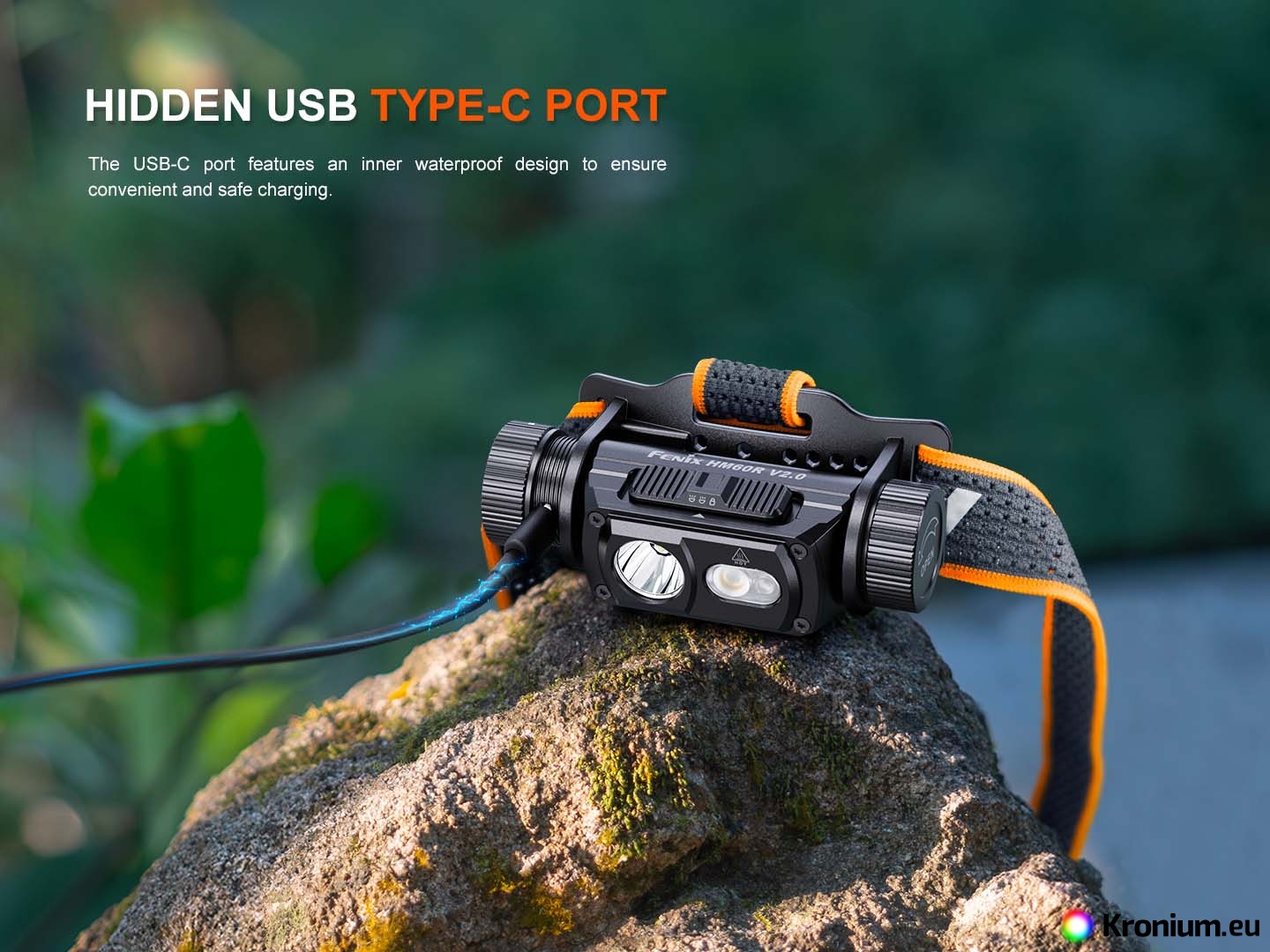

Charging - Unscrew the dust cover, plug the USB-C charging cable into the headlamp's charging port and its other end into a computer's USB port, a mains USB adapter, or a car USB adapter. After charging is complete, tighten the dust cover back on. During charging, the indicator glows red. After a full charge, it will light up green. The typical charging time is 2.5 hours with a 5V/2A USB source for a fully discharged headlamp. The headlamp can be used while charging, but the charging time will be extended, and the available output modes will depend on the current battery charge level. Fenix 18650 type batteries can be charged.

Battery level indication - Each time the headlamp is turned on, or after pressing the button when the headlamp is off, the indicator LED is activated for three seconds. If the indicator diode is green, the battery is charged to more than 85%. A flashing green light means 50-85% capacity. If it is red, it is charged to 20-50%. A flashing red light indicates that less than 20% of the battery capacity remains. This only works with Fenix 18650 rechargeable batteries.

Intelligent overheat protection - When the headlamp is used for extended periods in high output modes, a large amount of heat is generated. When the headlamp reaches a temperature of 55°C or higher, it will automatically reduce the output by a few lumens to lower the temperature. When the temperature drops below 55°C, the output will gradually increase again.

Low battery warning - If the battery voltage drops below a set level, the headlamp will reduce the brightness to a lower level. After reaching the lowest output, the battery status indicator will start flashing red to remind you to recharge or replace the battery. This only works with Fenix 18650 rechargeable batteries.

Warning

• Do not disassemble the sealed parts yourself, as this will void the warranty.
• If using disposable CR123A batteries, do not attempt to charge them in the headlamp.
• Remove the batteries from the flashlight if you will not be using it for an extended period or if the batteries are already depleted. Otherwise, some lower-quality batteries may cause damage to the headlamp.
• If the headlamp is flickering, not switching to higher output modes, or not turning on, it may be for one of the following reasons:
  • The batteries are nearly depleted – charge or replace them.
  • The headlamp's cap is loose – tighten it.
  • The electrical contacts are dirty – clean them with a cotton swab soaked in alcohol.

Warranty

Five-year warranty on the headlamp, two-year warranty on the battery.
