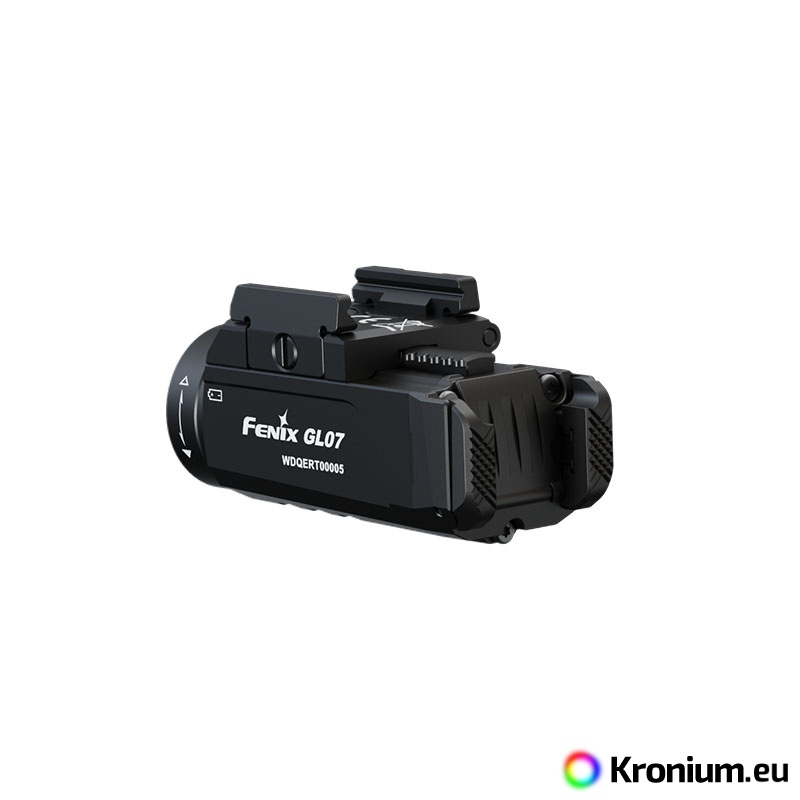

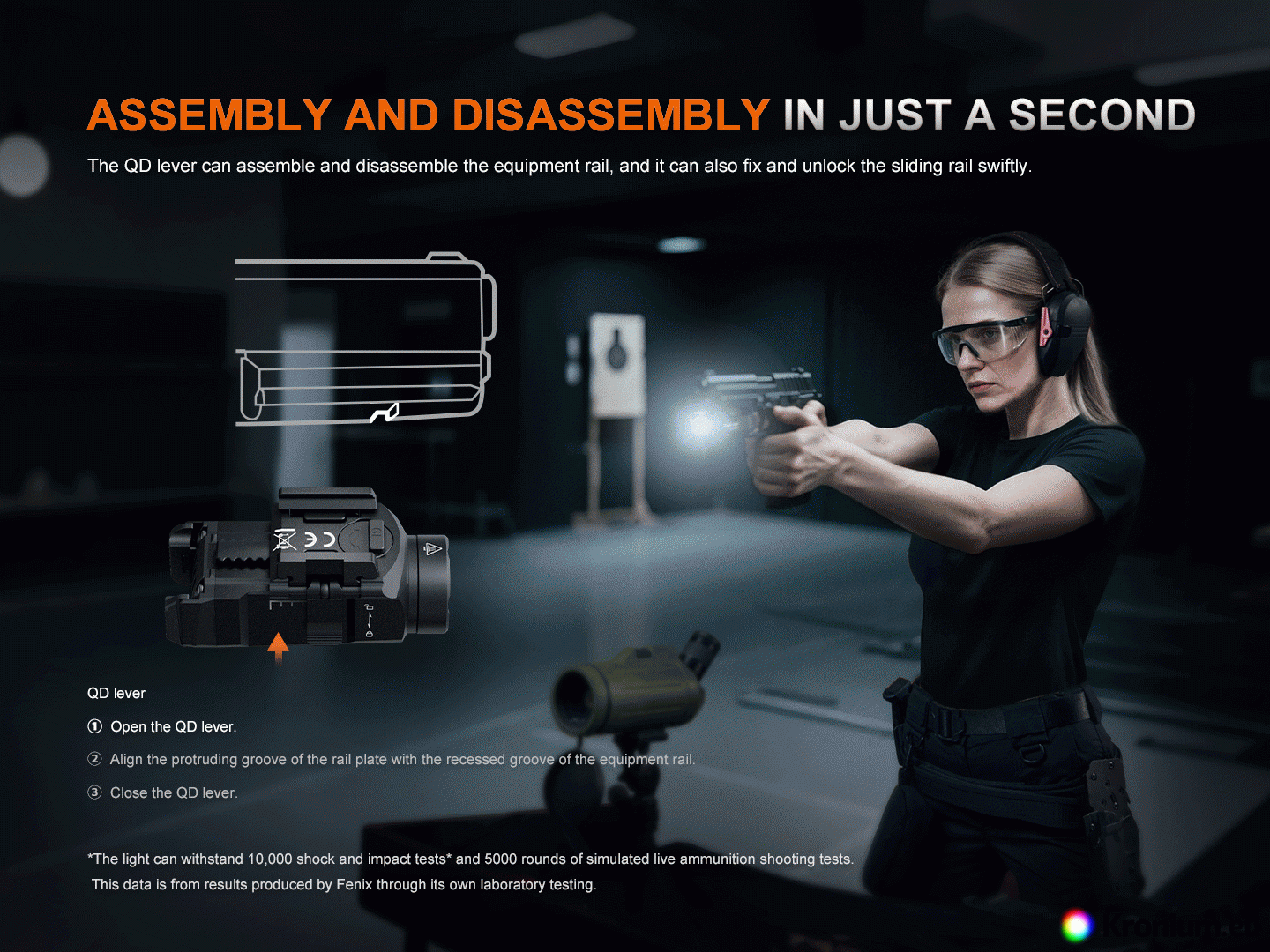

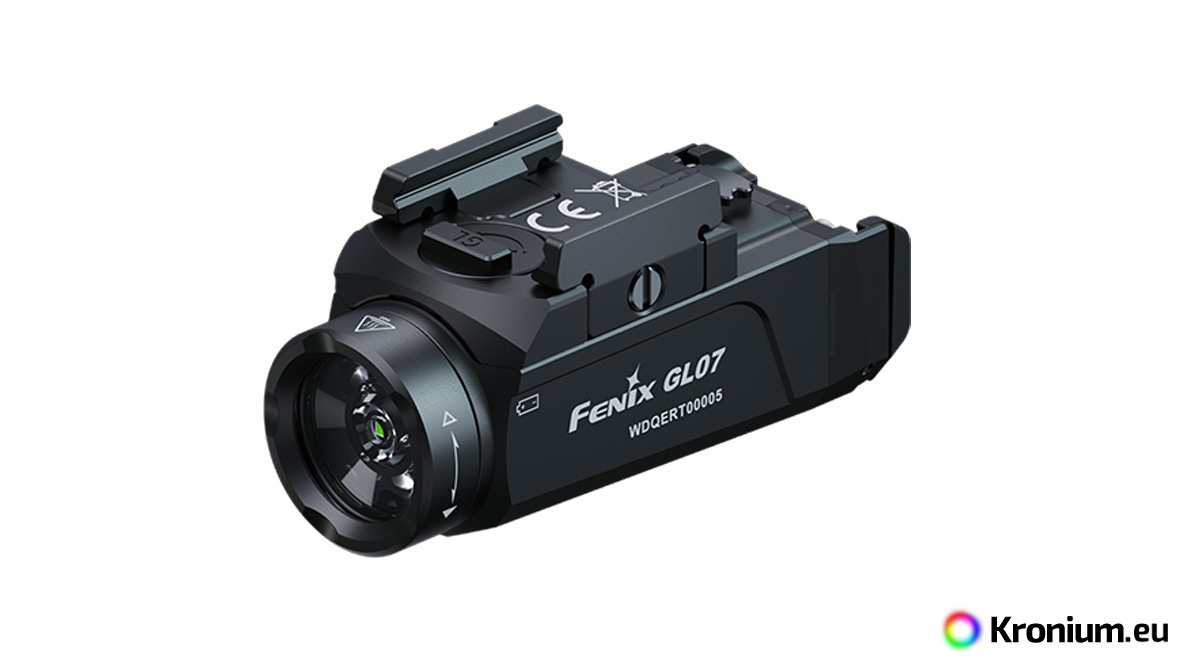

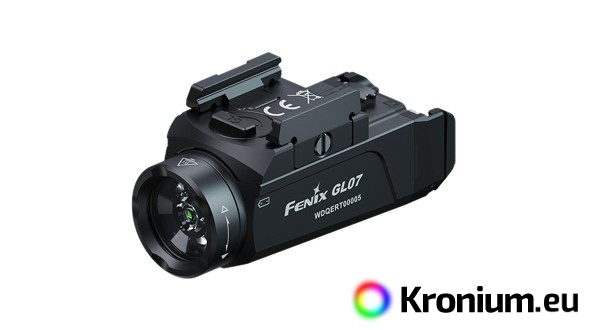

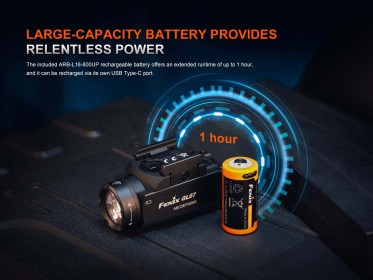

The Fenix GL07 pistol LED light is designed specifically for short firearms. It offers a maximum output of 700 lumens with a beam distance of up to 240 meters. The light is powered by a single Fenix ARB-L16-800UP Li-ion battery, which is recharged via a modern USB-C connector on its side (both battery and cable are included). If needed, a disposable CR123A lithium battery can also be used. The light's operation is fully ambidextrous, ideal for both right- and left-handed users. Mounting on a weapon rail is lightning-fast and requires no tools – the light easily slides on and secures thanks to its quick-release design. It can be attached to Picatinny MIL-STD-1913 and GLOCK standard rails (it does not fit slimline category firearms, e.g., the Glock 30 model). It fits the service weapons of the Police of the Czech Republic (CZ 75D).

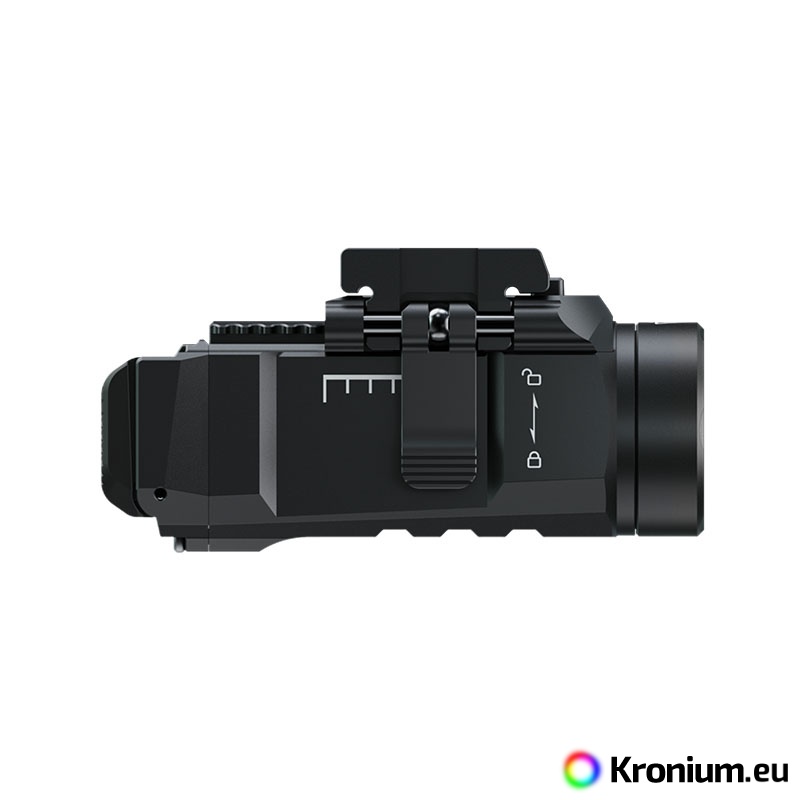

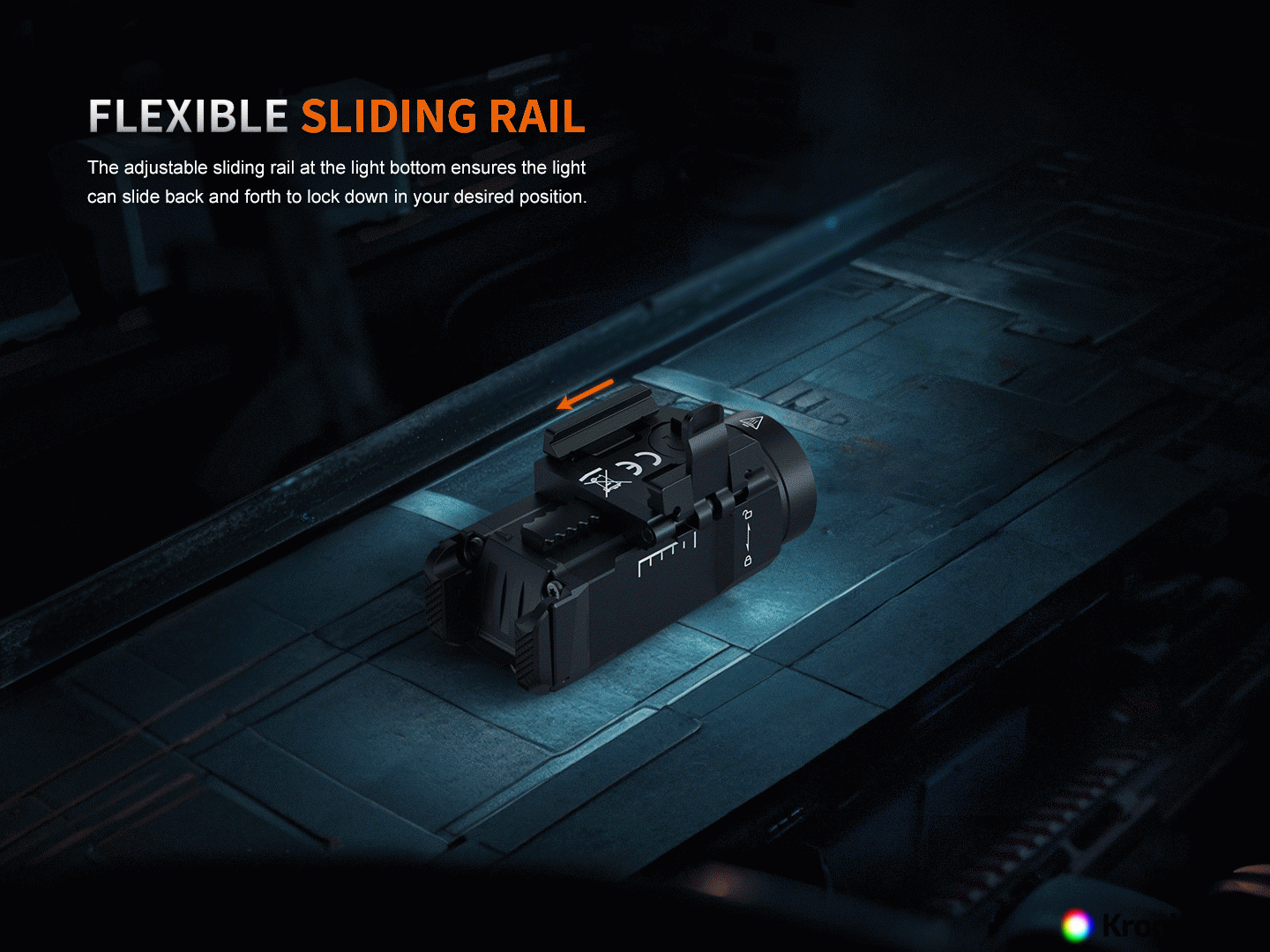

Its major advantage is the modular sliding rail, which ensures the light can be moved forward and backward to lock in the best position on the weapon. This guarantees broad compatibility with various weapon models. The light is therefore suitable for professionals, sport and hobby shooters, and airsoft players.

All flashlight parameters (lumen output, battery life, waterproofness, beam distance, and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

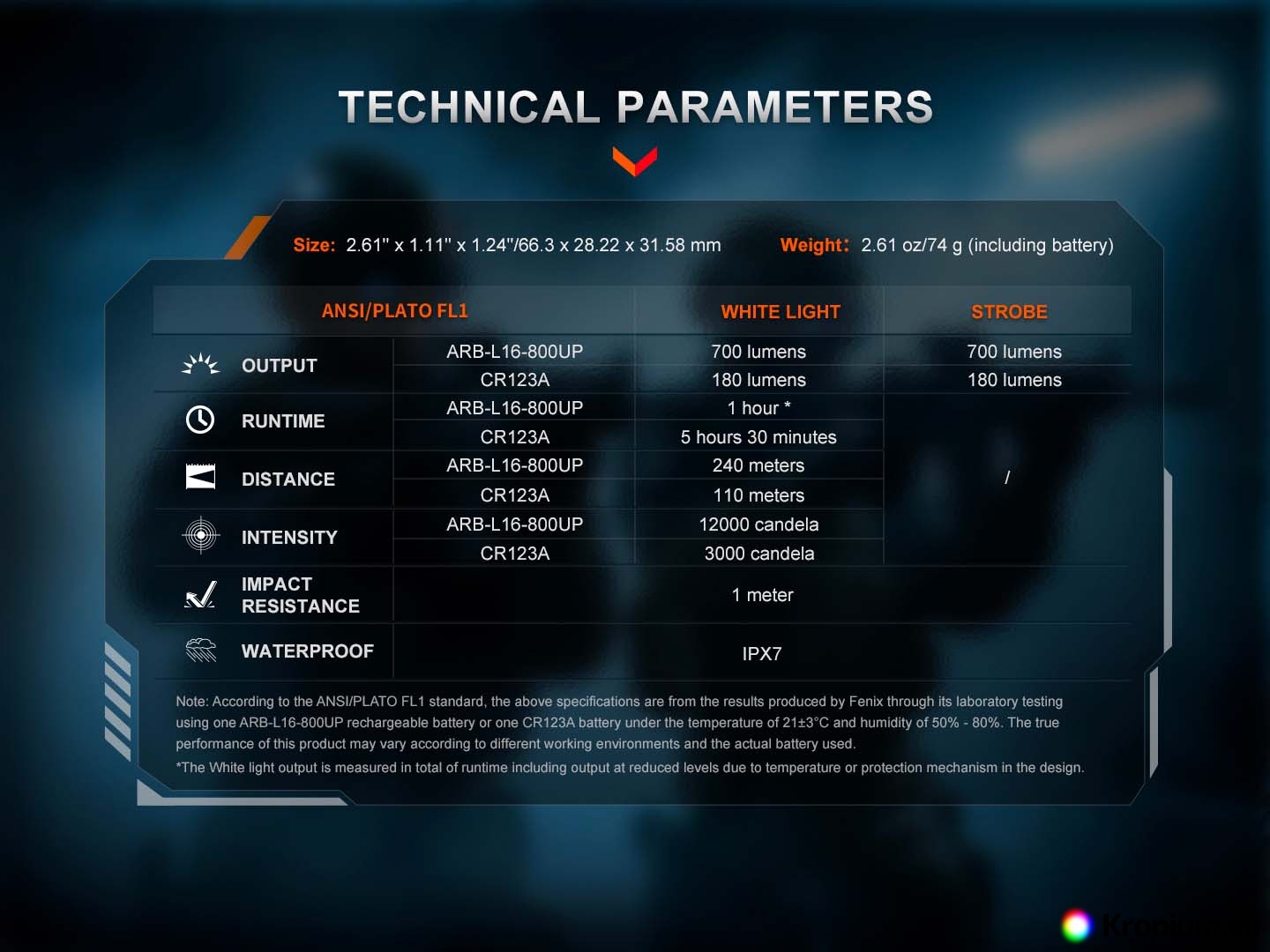

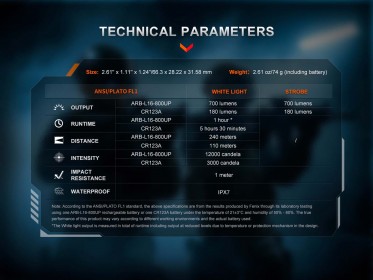

Fenix GL07 Pistol Light Parameters

• Uses a premium Luminus SFT-12R LED with a lifespan of 50,000 hours.
• Lighting modes:

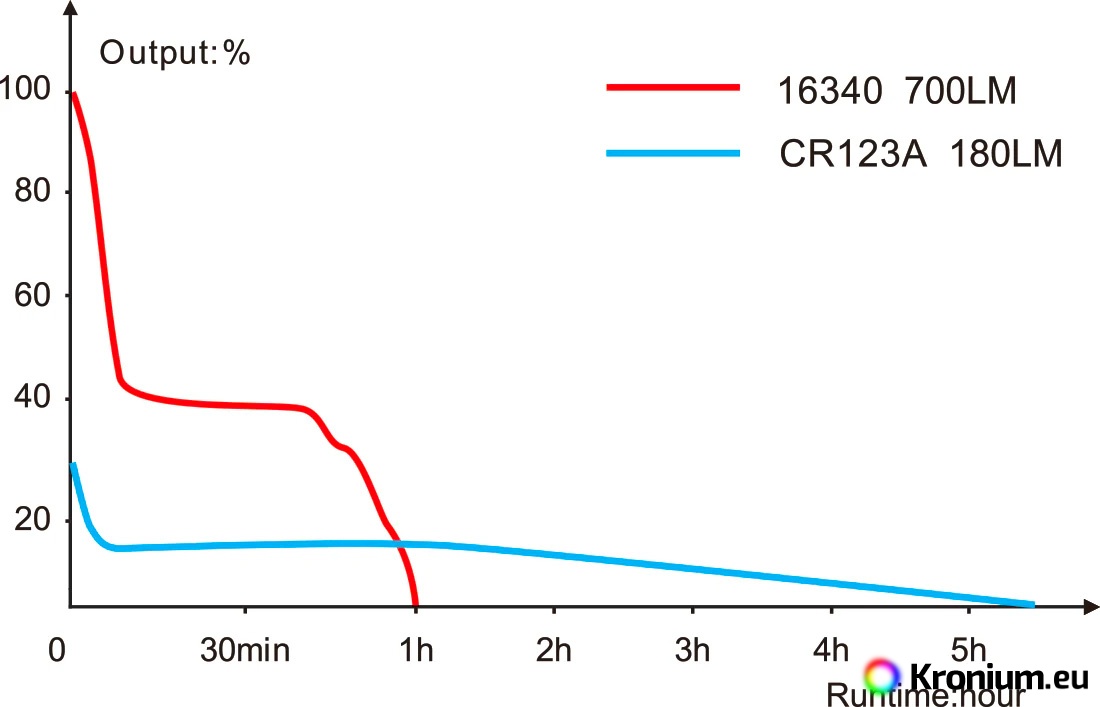

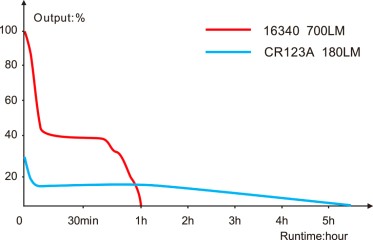

  • With Fenix ARB-L16-800UP battery: 700 lumens (1 hour) -> strobe.
  • With a disposable CR123A battery: 180 lumens (5.5 hours) -> strobe.
• The TIR optic creates a light beam with a distance of 240 meters (12,000 cd) - measured with the included battery.
• Reverse polarity protection and protection against over-discharging the battery.

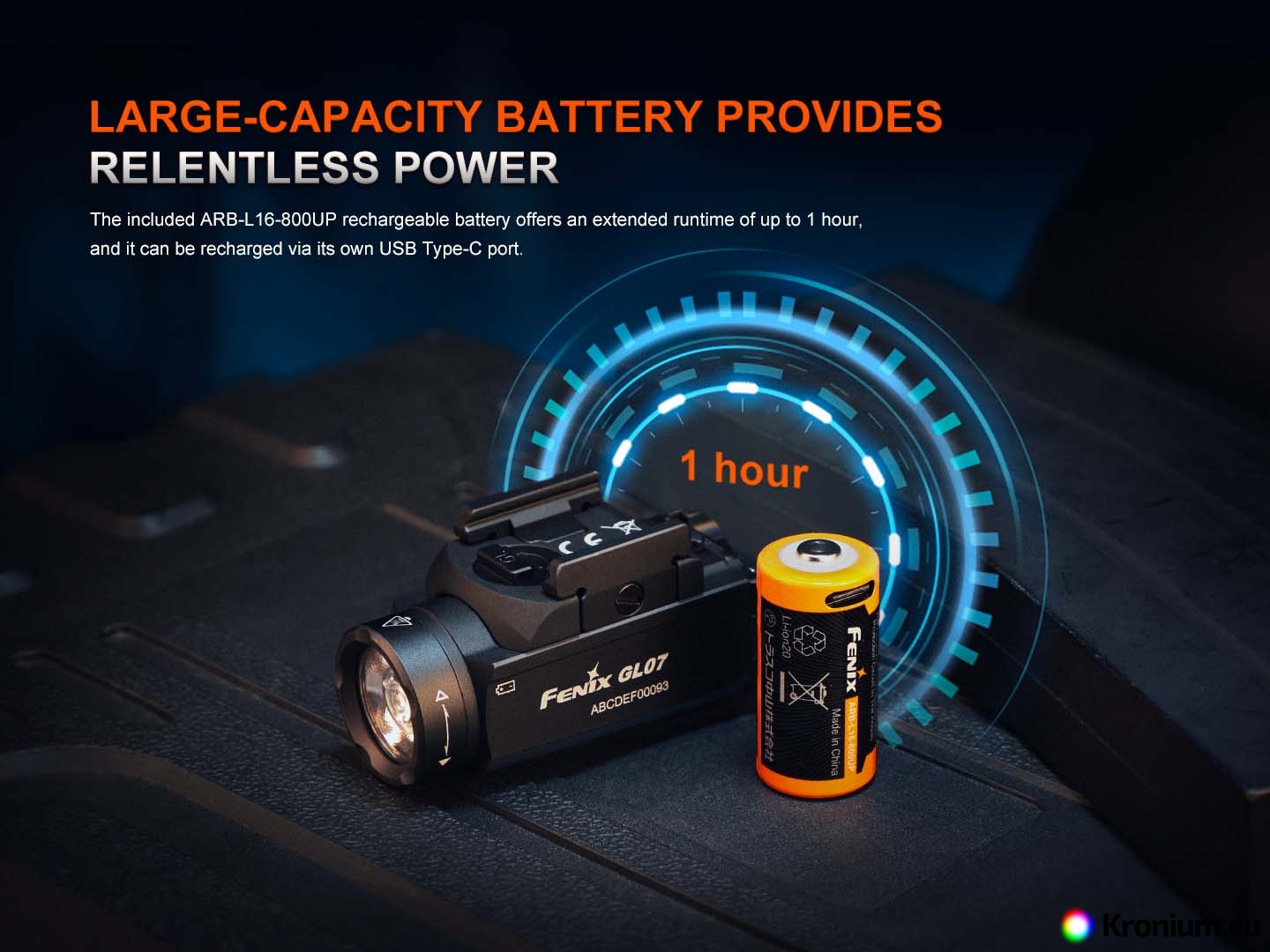

• Powered by one Fenix ARB-L16-800UP Li-ion battery (included), or alternatively other Li-ion RCR123A / 16340 batteries.
• Max. battery diameter 16,8 mm., max. battery length 35,2 mm.
• One disposable CR123A lithium battery can also be used, but the light's output is reduced to 180 lumens.

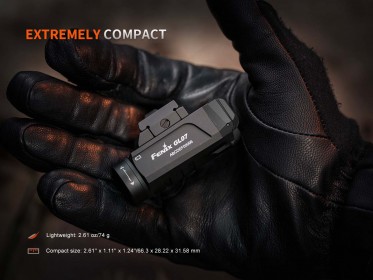

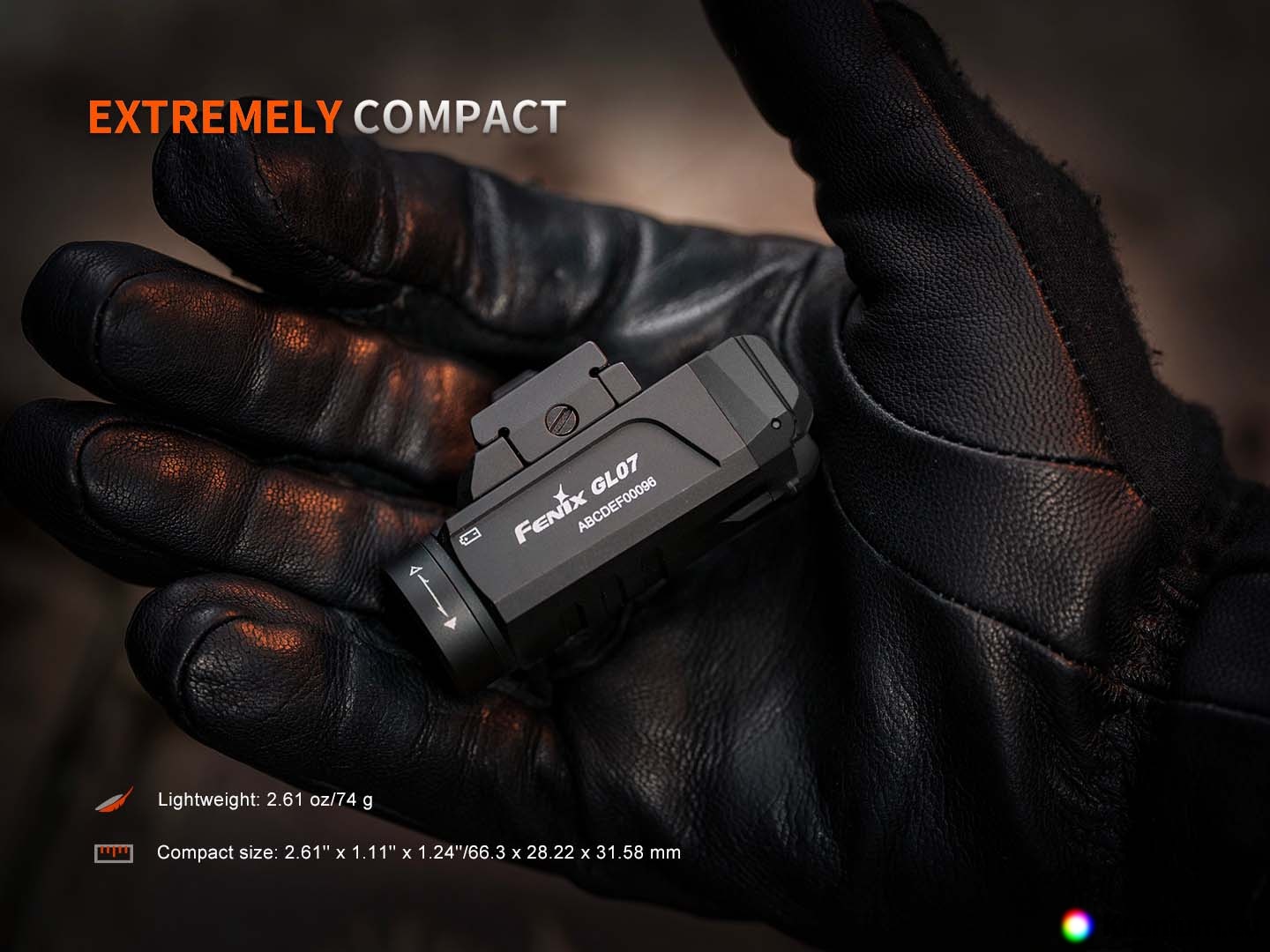

• Dimensions 6.63 cm x 2.82 cm x 3.16 cm.

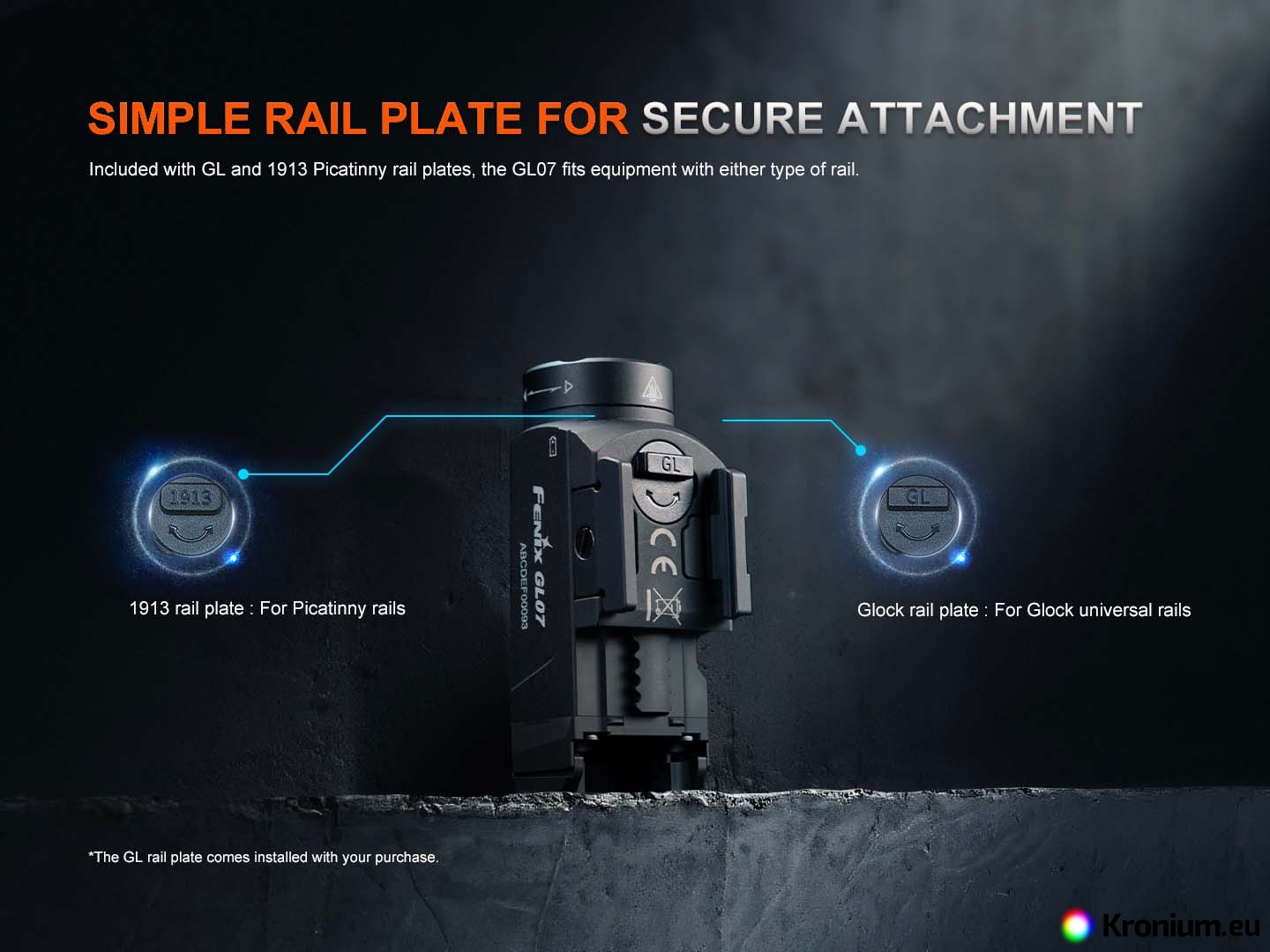

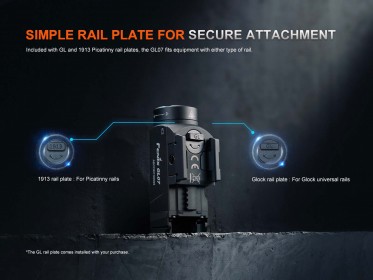

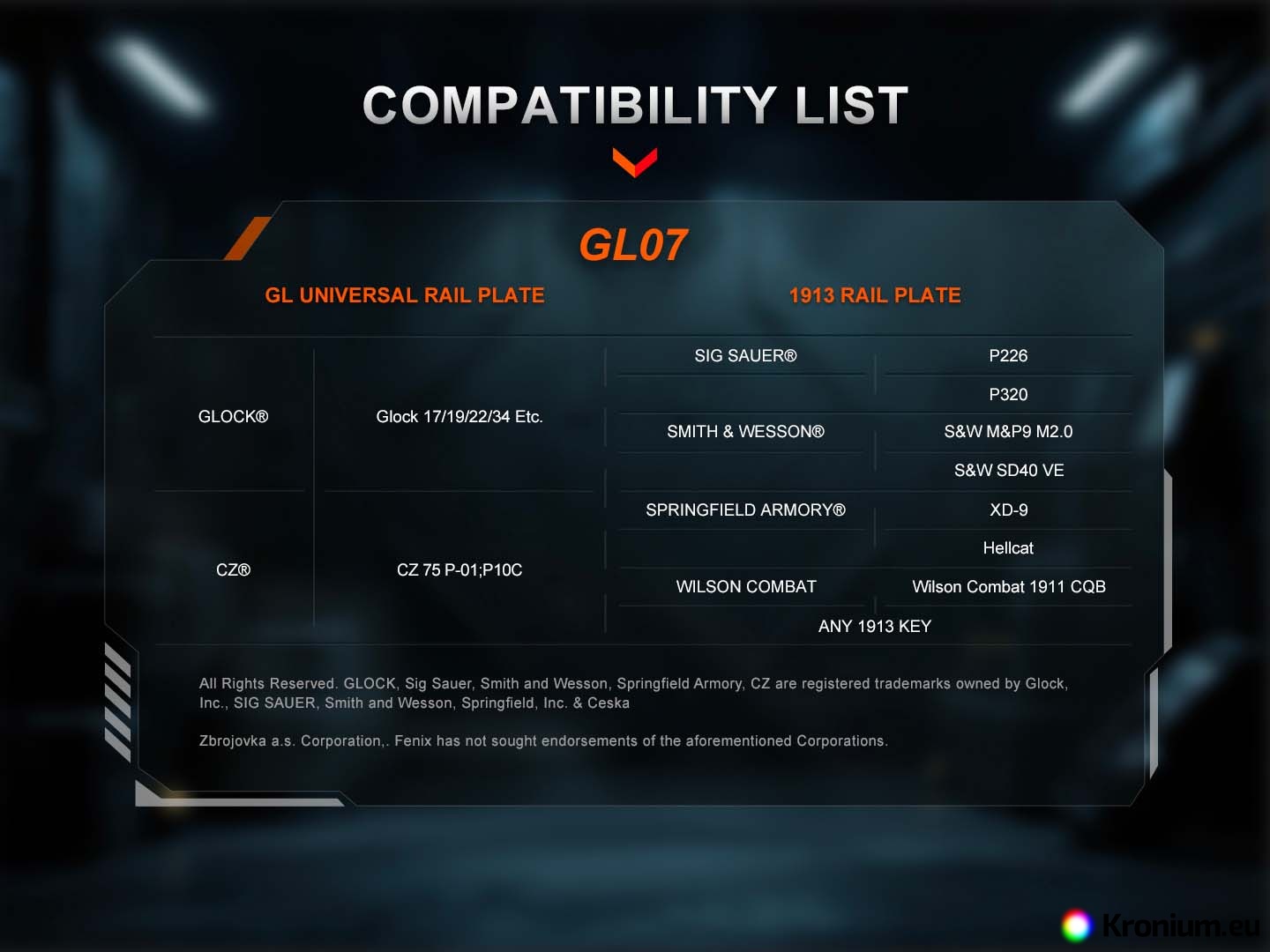

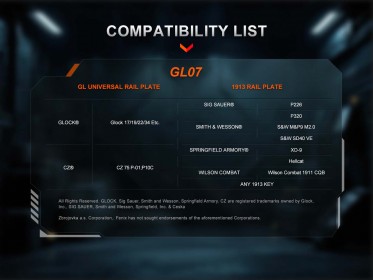

• Compatible with Picatinny MIL-STD-1913 and GLOCK standard weapon rails.
• Weight 74 grams (including battery).
• Intelligent overheat protection.
• The body of the light is made of aircraft-grade hardened aluminum.
• Durable, scratch-resistant surface - Type III hard anodized.
• Impact resistant to drops from a height of 1 meter.
• Trapezoidal threads are highly resistant to wear.

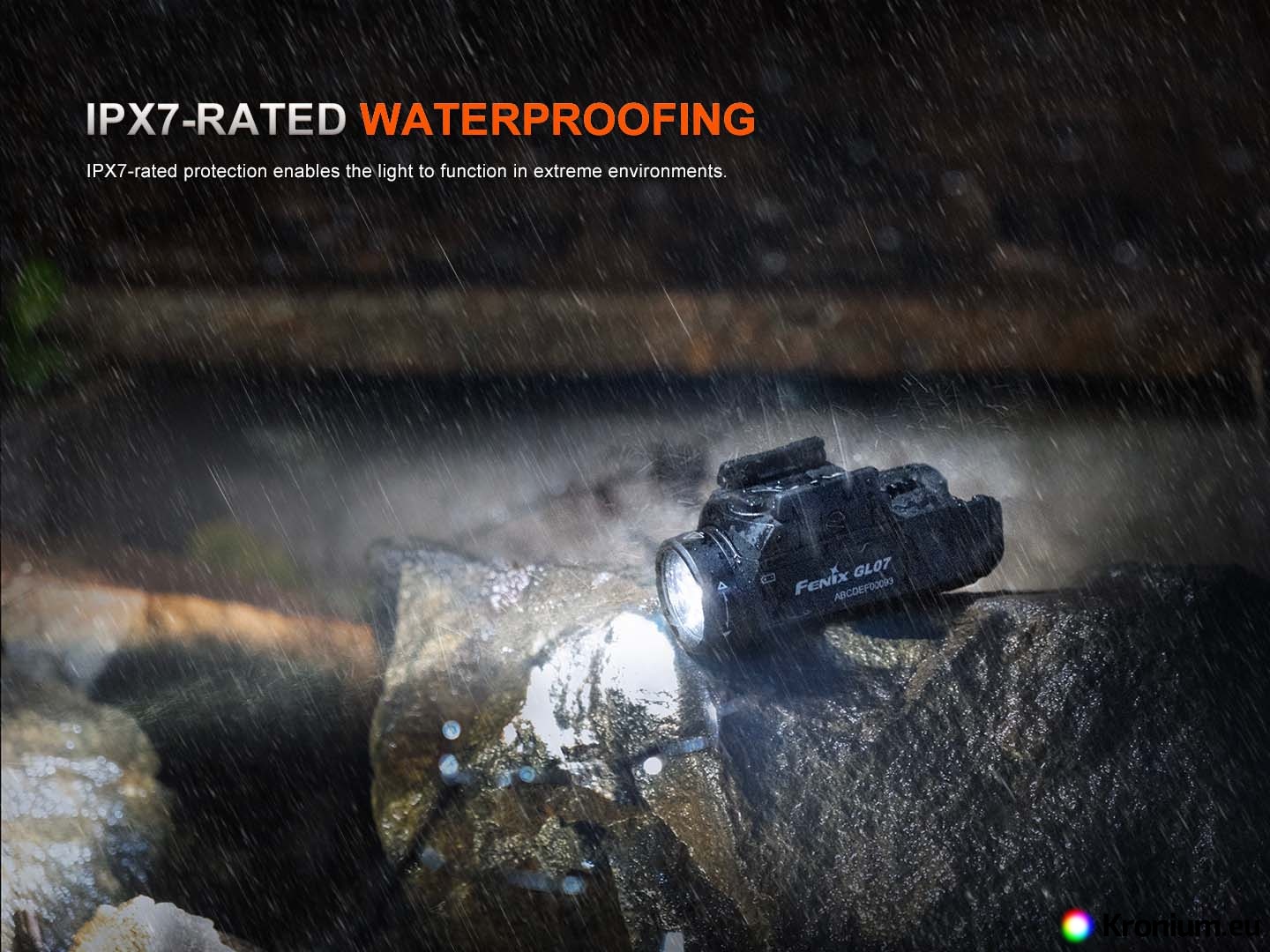

• Waterproof according to the IPX7 standard (tested under water at a depth of 1 meter).

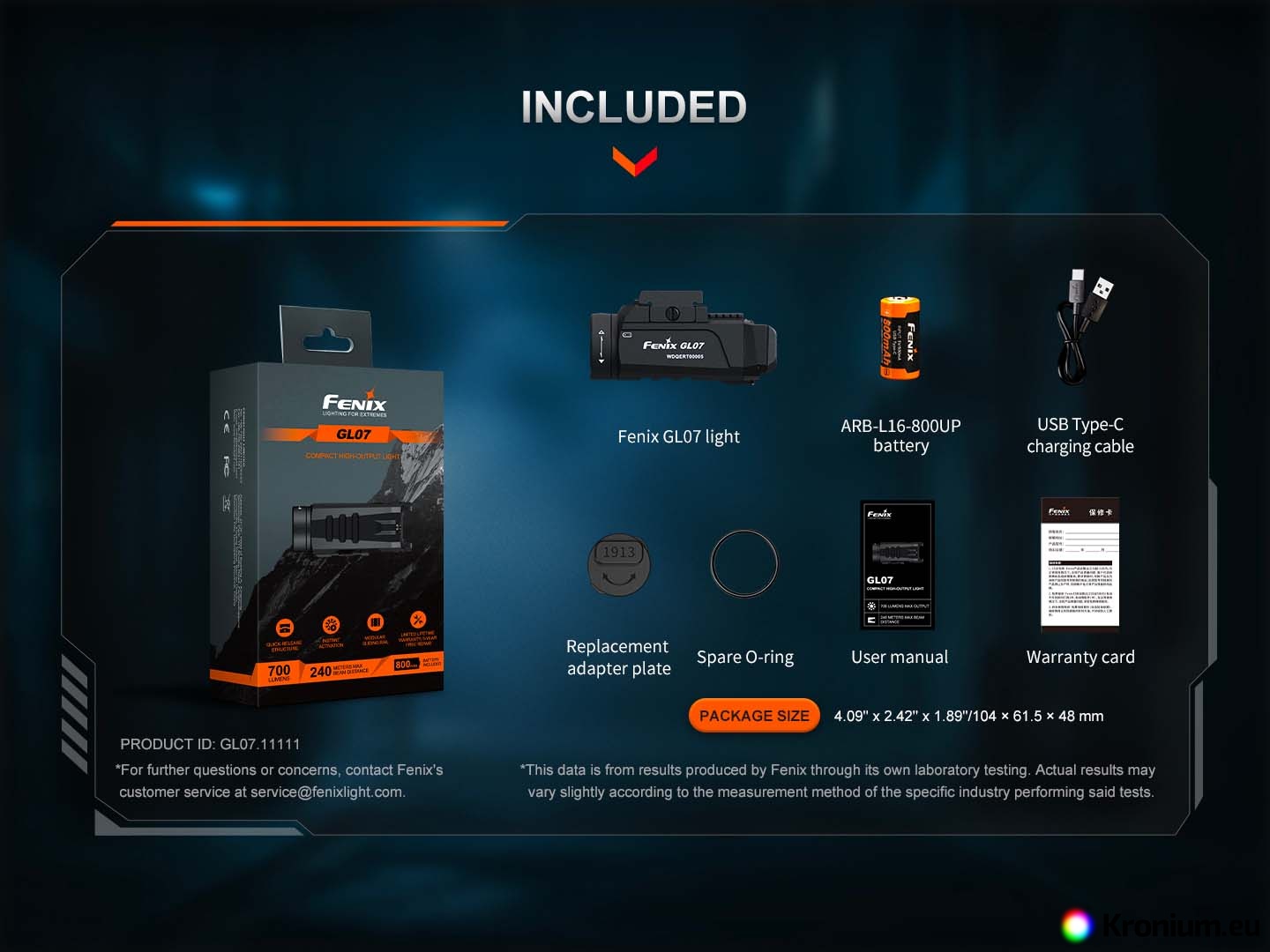

• The package includes the Fenix ARB-L16-800UP battery, a USB-C charging cable, a Picatinny rail key (the GLOCK rail key is pre-installed on the light), a spare o-ring, and a manual.

Operating the Fenix GL07 Flashlight

Important Notice

WHEN HANDLING THE GL07 LIGHT, ALWAYS FOLLOW THE INSTRUCTIONS AND SAFETY PRINCIPLES.

From the factory, there may be an insulating cap on the battery inside the light. Remove it from the battery before first use.

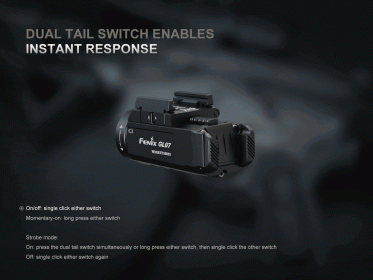

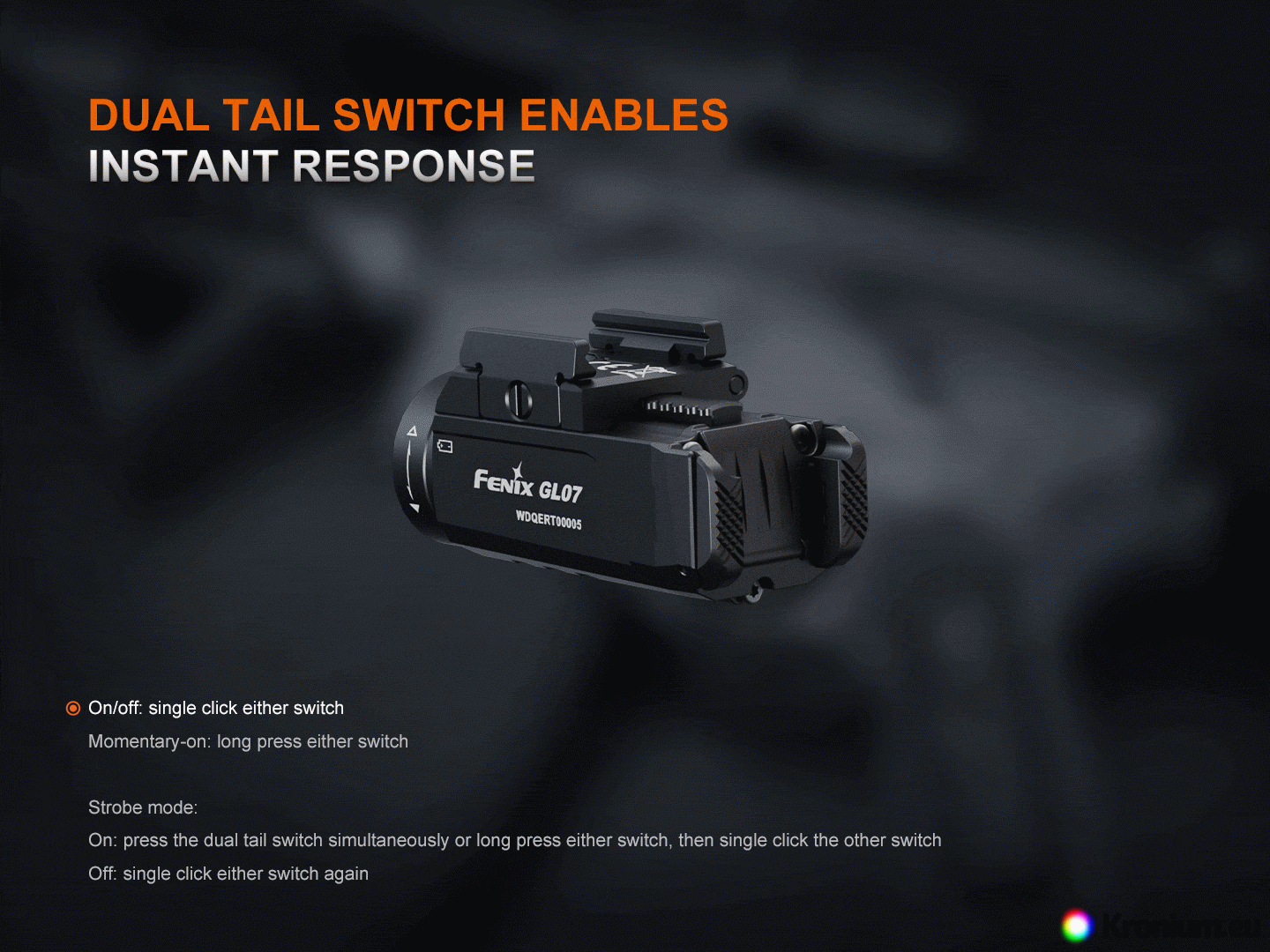

A single click on either switch turns the light on/off.

For momentary-on, press and hold either switch. The light will stay on as long as you hold it and will turn off upon release.

Strobe Activation - Pressing both switches simultaneously activates the strobe. The strobe can also be activated by pressing and holding one switch and then clicking the other. Pressing a single switch again will exit the momentary strobe mode, or pressing both switches simultaneously will return to the last used output.

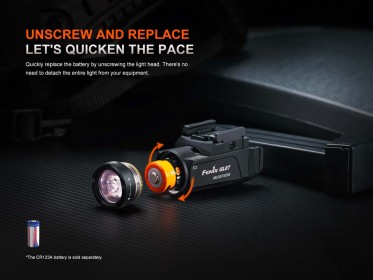

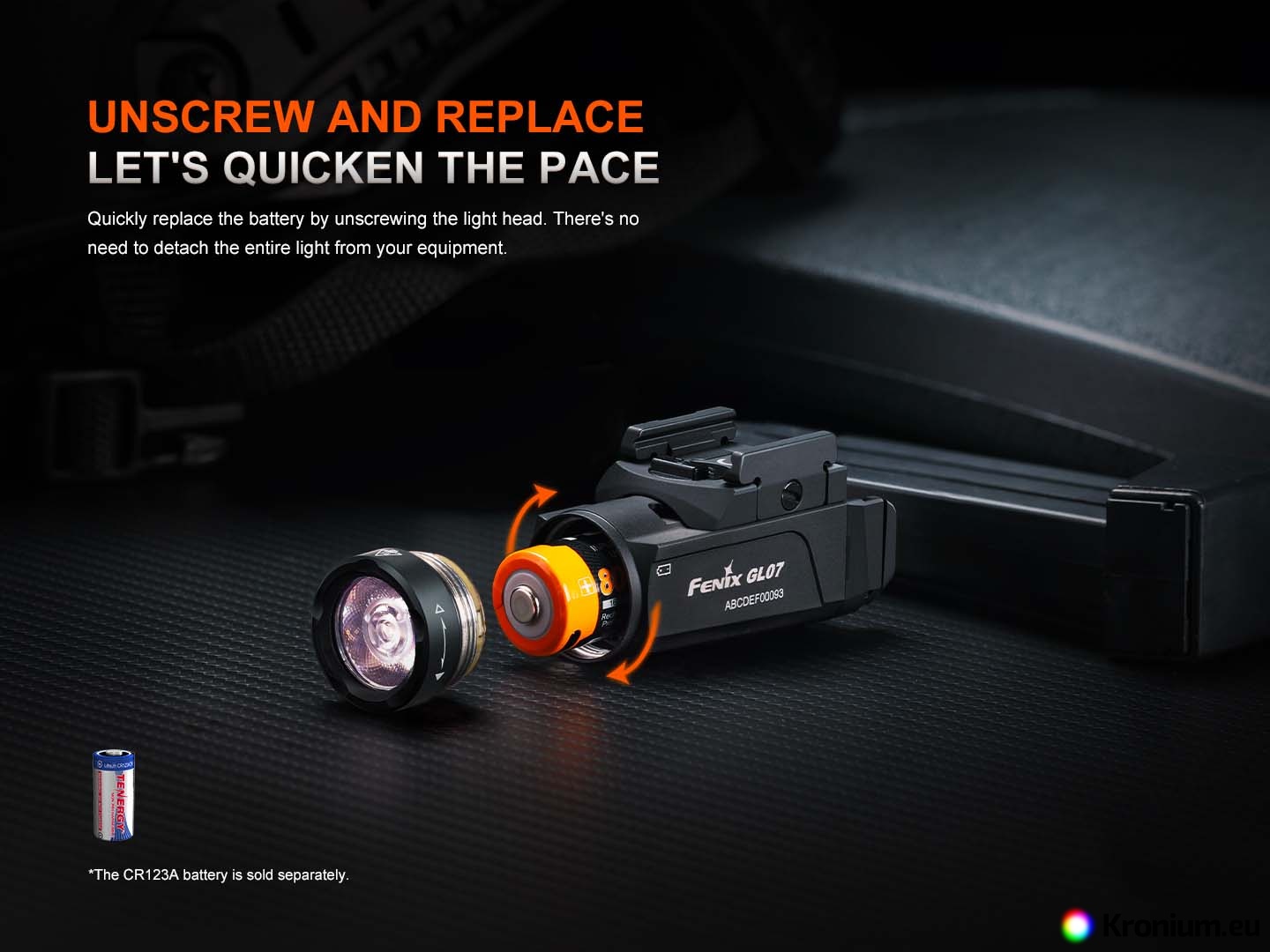

Battery Replacement - Unscrew the head of the light and insert the battery with the positive pole (+) facing the head, then screw the head back on.

Intelligent Overheat Protection - A large amount of heat is generated during prolonged use. When the light reaches a temperature of 55°C or higher, it will automatically step down the output by a few lumens to reduce the temperature. When the temperature drops below 55°C, it will return to the standard output.

Low-Voltage Warning - If the voltage of the rechargeable battery drops below the set level, the light will automatically step down the output. If the battery voltage drops below 3V, the light will flash three times every 2 minutes to remind you to recharge or replace the battery.
Note: This function is only active when using rechargeable batteries.

Warnings

• Do not disassemble the sealed parts in the head of the light yourself; this will void the warranty and may cause damage.
• Fenix recommends using only high-quality batteries.
• If the light will not be used for an extended period, remove the battery.
• If the lens is contaminated with powder residue after shooting, try cleaning it with fine steel wool or a gun cleaning paste.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with a spare.
• As weapon maintenance requires the use of organic solvents, avoid contaminating the key components of the light. This could cause damage to the light and void the warranty.
• Regularly cleaning the electrical contacts ensures flawless operation, as dirty contacts can cause the light to flicker, shine intermittently, or not light up at all for the following reasons:
  • The battery is depleted – replace or recharge it.
  • The contacts inside the light are dirty – clean them with a cotton swab soaked in alcohol.

Warranty

Five-year warranty on the flashlight. Two-year warranty on the battery.
