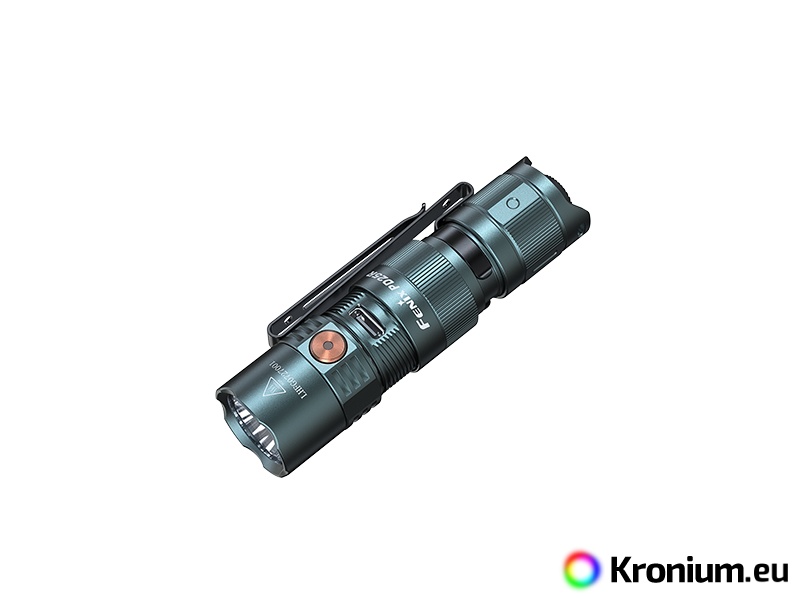

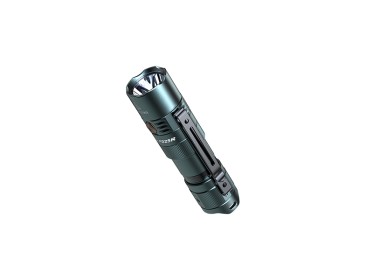

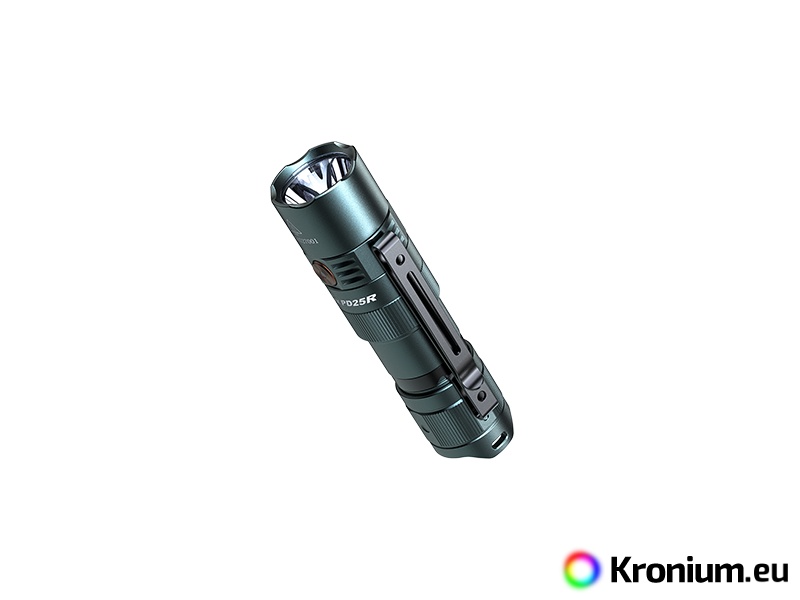

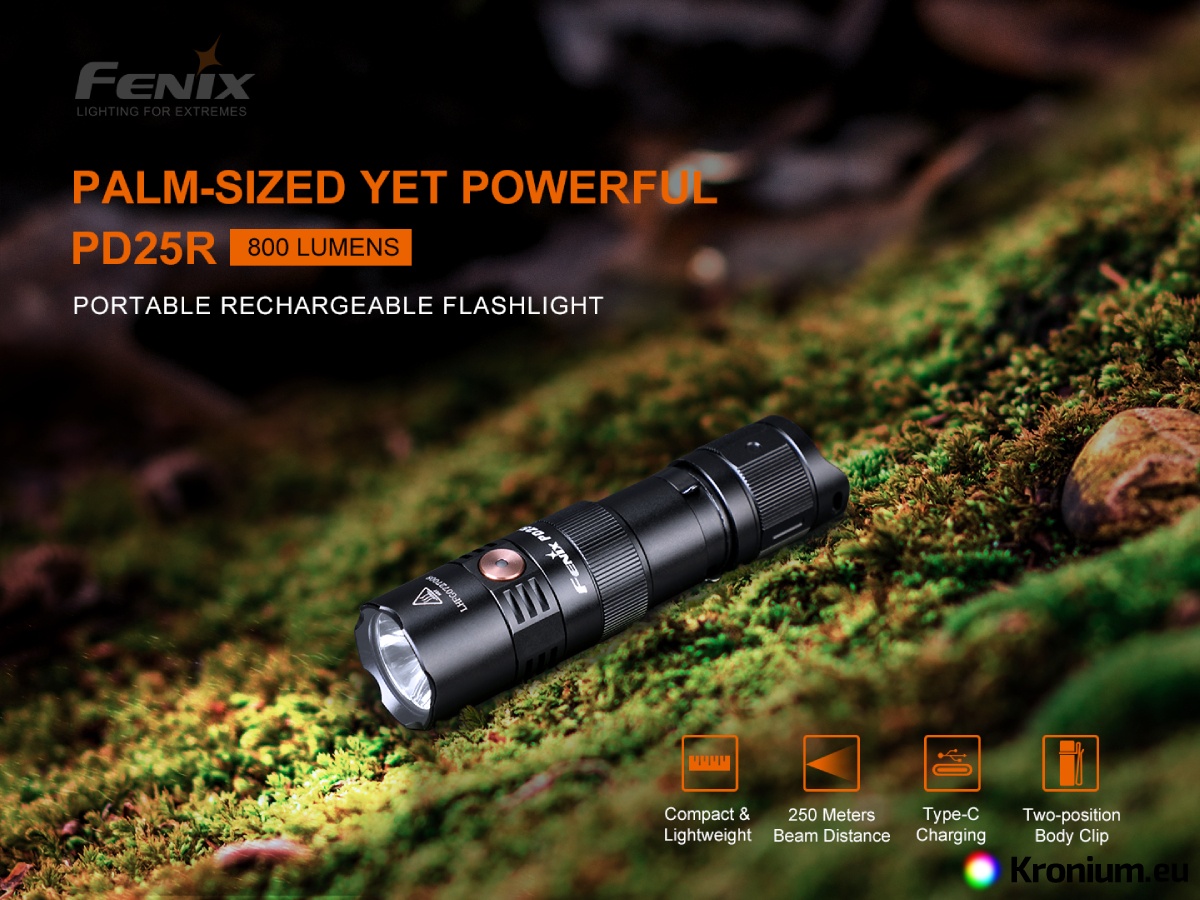

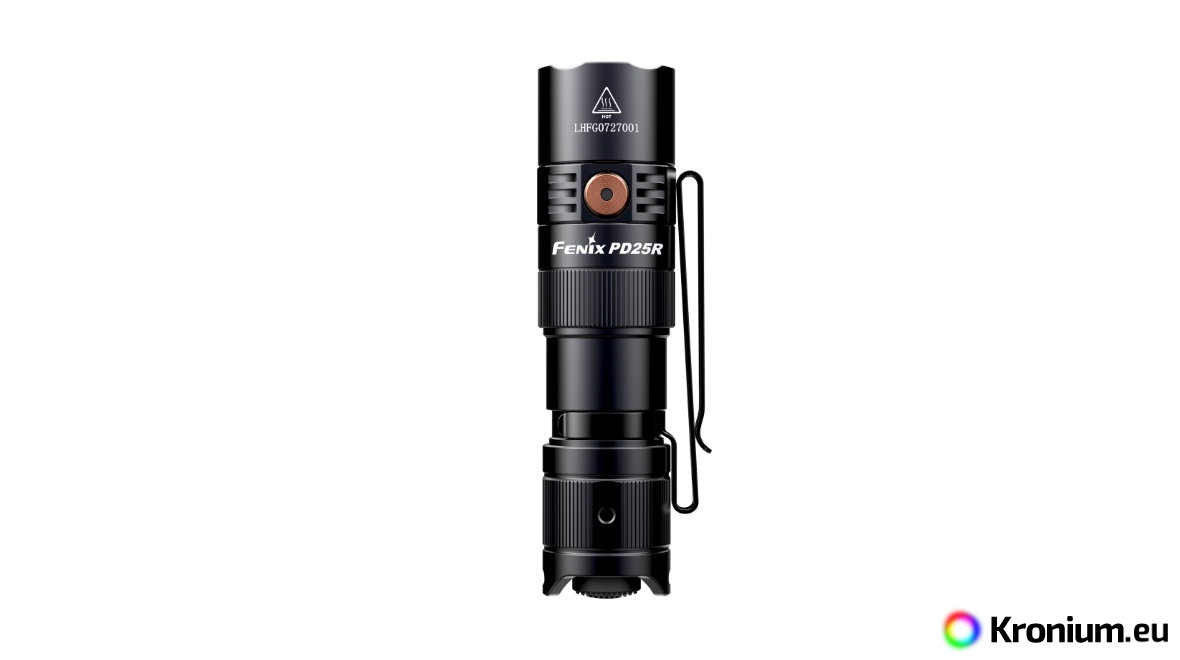

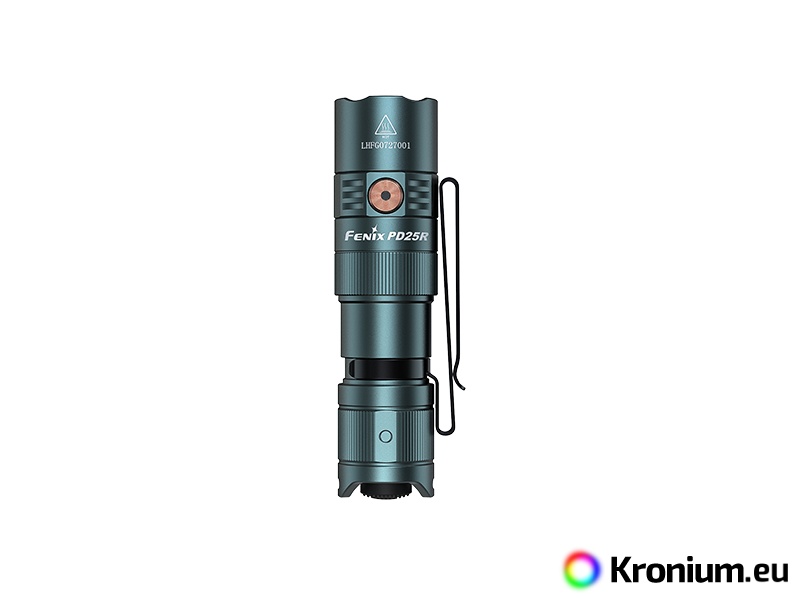

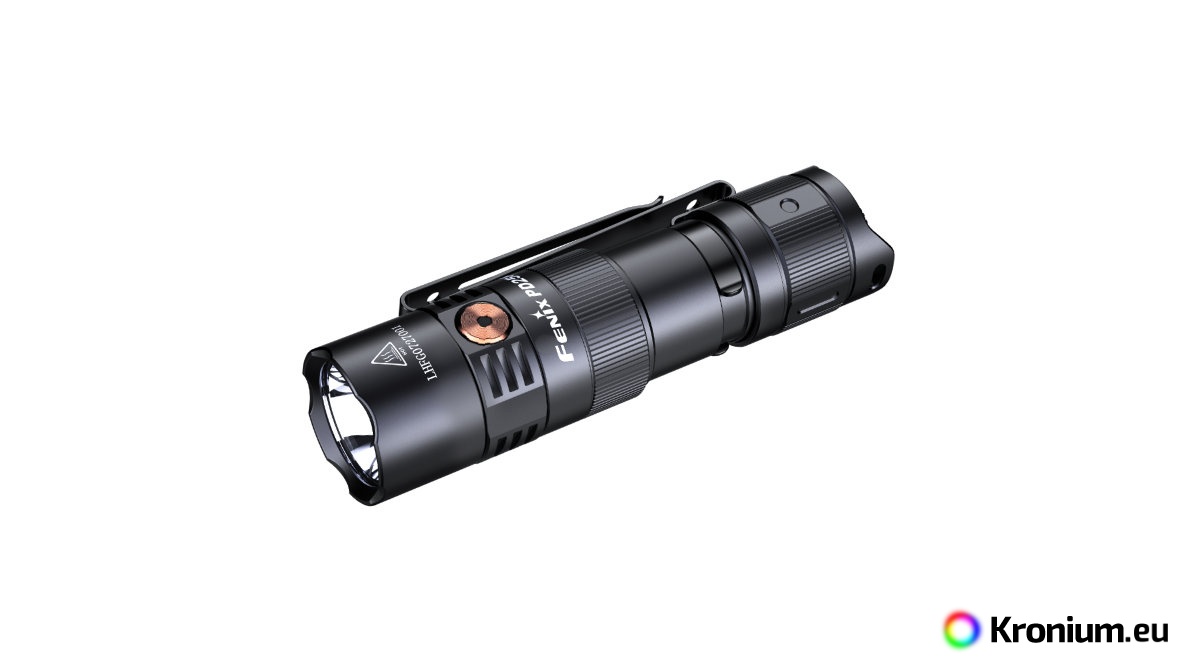

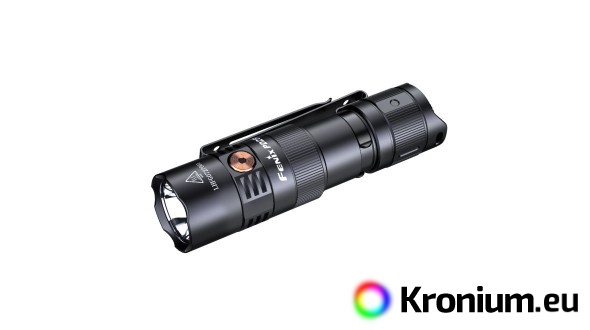

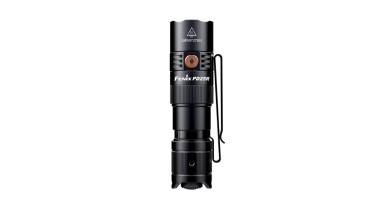

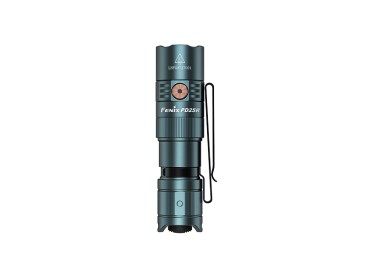

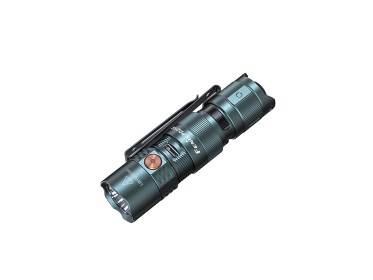

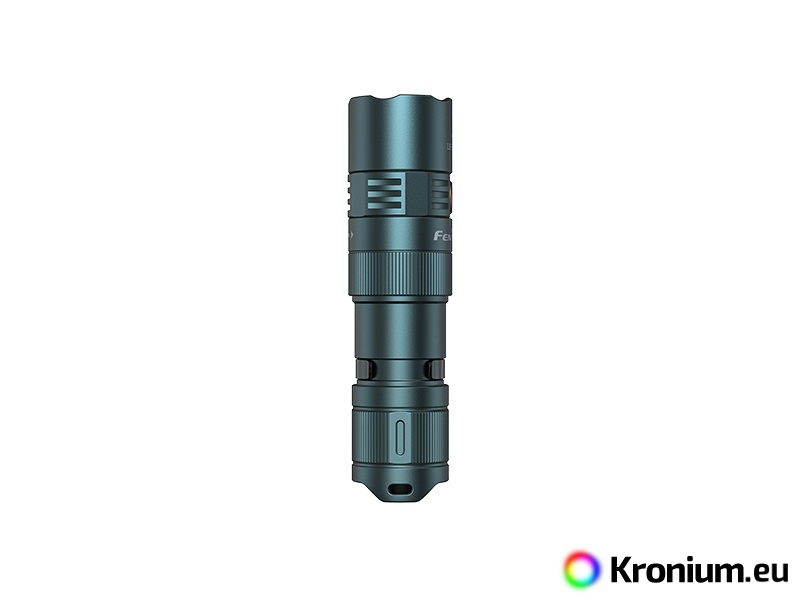

The Fenix PD25R pocket sized rechargeable flashlight offers up to 800 lumens (ANSI) and a range of up to 250 meters. It is powered by a RCR123A rechargeable battery (included) that can be charged directly in the flashlight via a USB-C connector located on the side. The charging socket is covered with a screw nut, so it is perfectly protected against water and dirt. The battery can also be replaced with a disposable CR123A battery in an emergency. The light source used is a high-end LED Luminus SST-20 with a lifetime of 50,000 hours. The flashlights tail is equipped with a tactical switch for quickly powering on and off, the power modes are switched by a second button on the side. The flashlight has six modes of lighting, including a strobe flashing light. In the lowest mode, it will last up to 70 hours. Weighing just 78 grams, the flashlight can be carried with you at all times (EDC) for everyday use, at work and during sports.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

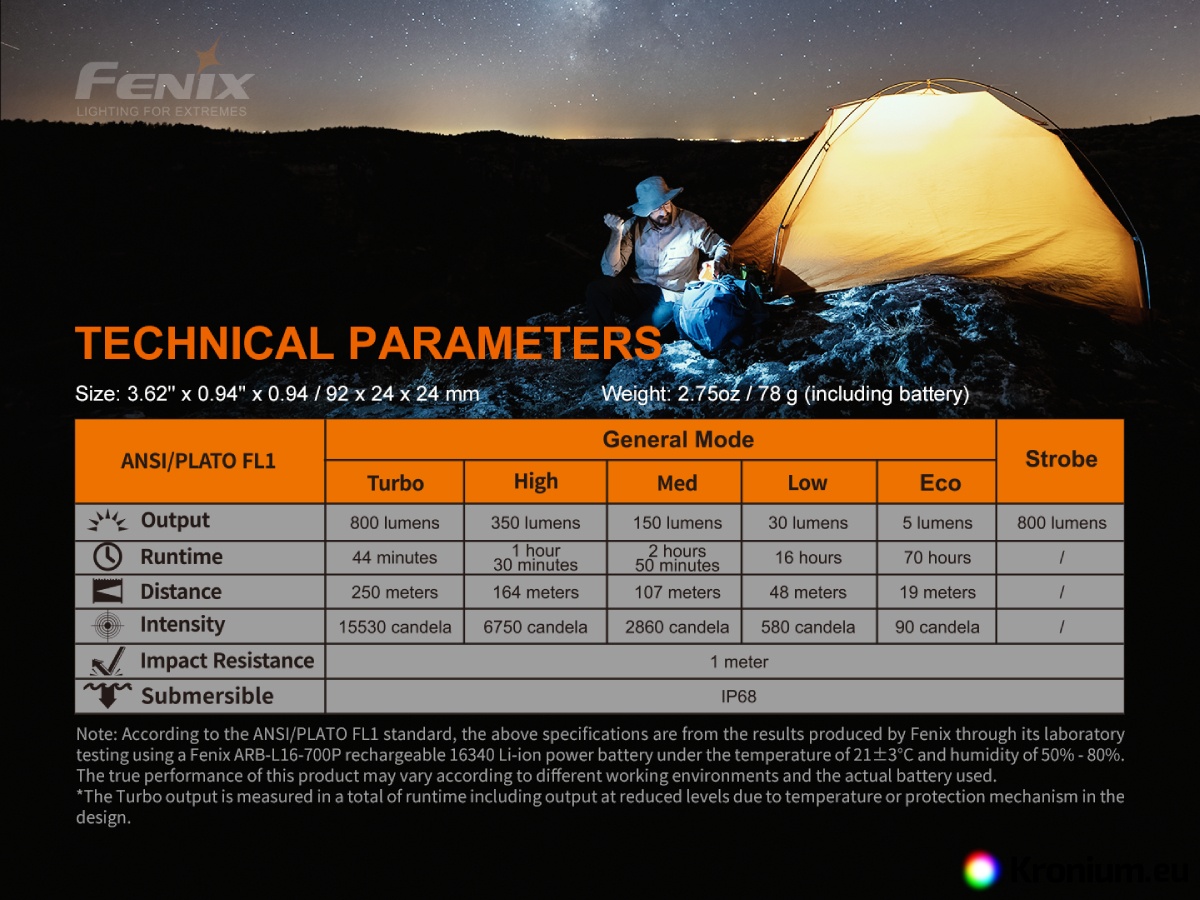

Fenix PD25R flashlight specifications

• Premium performance Luminus SST-20 LED with 50,000 hours lifetime is used.

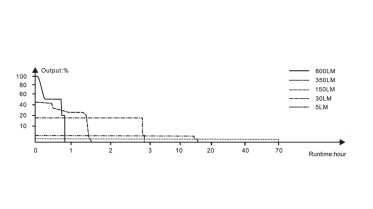

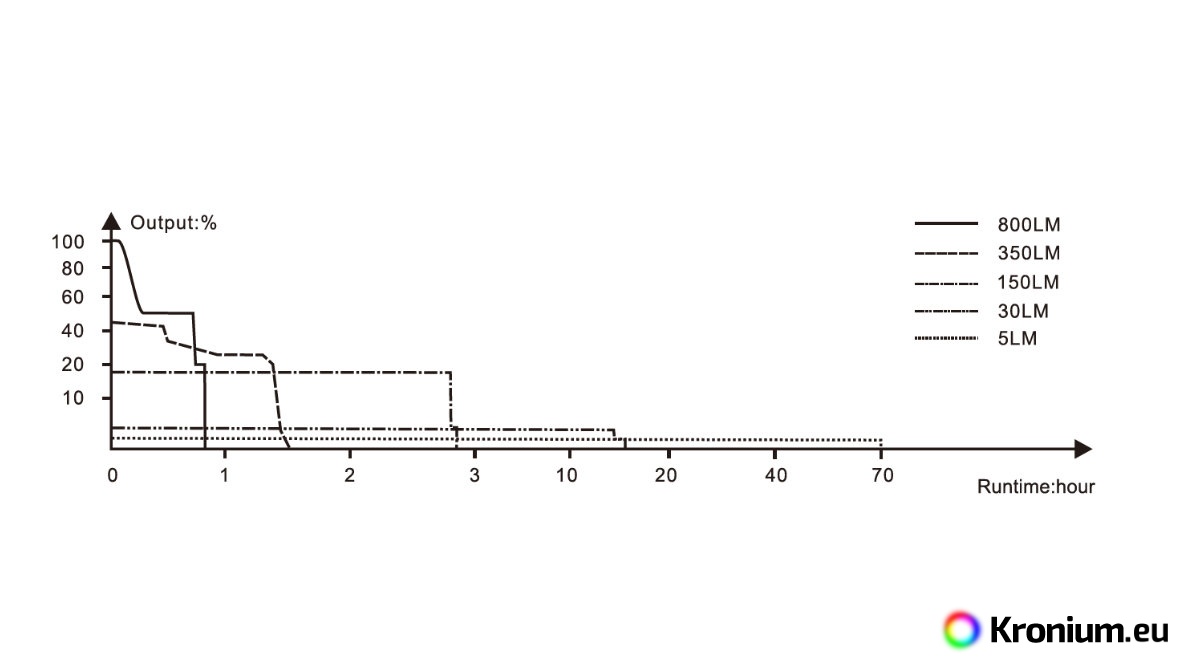

• Six lighting modes: 800 lumens (44 minutes) -> 350 lumens (1.5 hours) -> 150 lumens (2.8 hours) -> 30 lumens (16 hours) -> 5 lumens (70 hours) -> 800 lumens strobe
• Runtimes are measured with a RRCR123A type Li-ion rechargeable battery with 700 mAh capacity, which is included in the package.
• Max. battery diameter 16,9 mm., max. battery length 37,0 mm.
• A disposable 3V CR123A battery can also be used for power in an emergency, but the highest power output will not be available.
• Digitally regulated for constant brightness, intelligent overheat protection.
• Well-focused light cone with a range of up to 250 meters (15,530 cd)

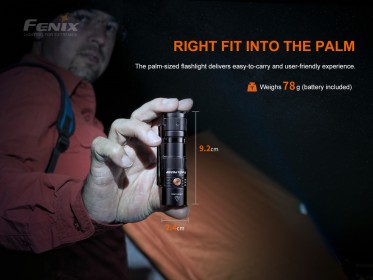

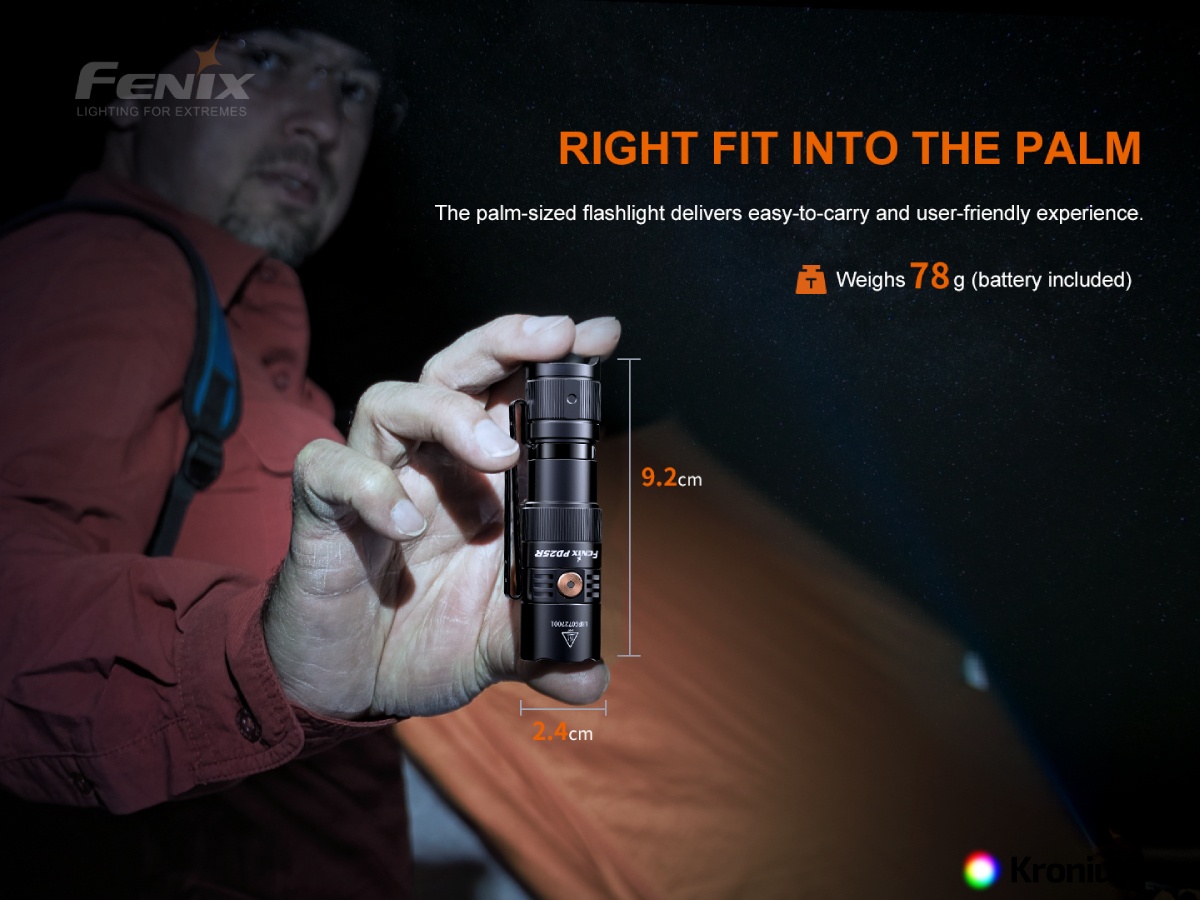

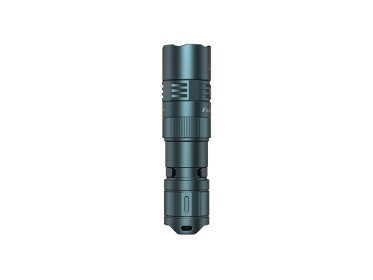

• Dimensions 9.2 cm (length) x 2.4 cm (diameter).
• Weight 78 grams (including battery).

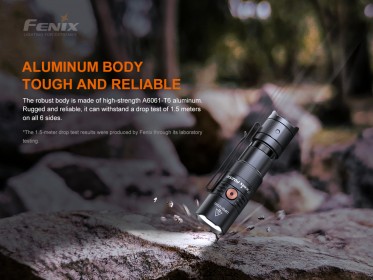

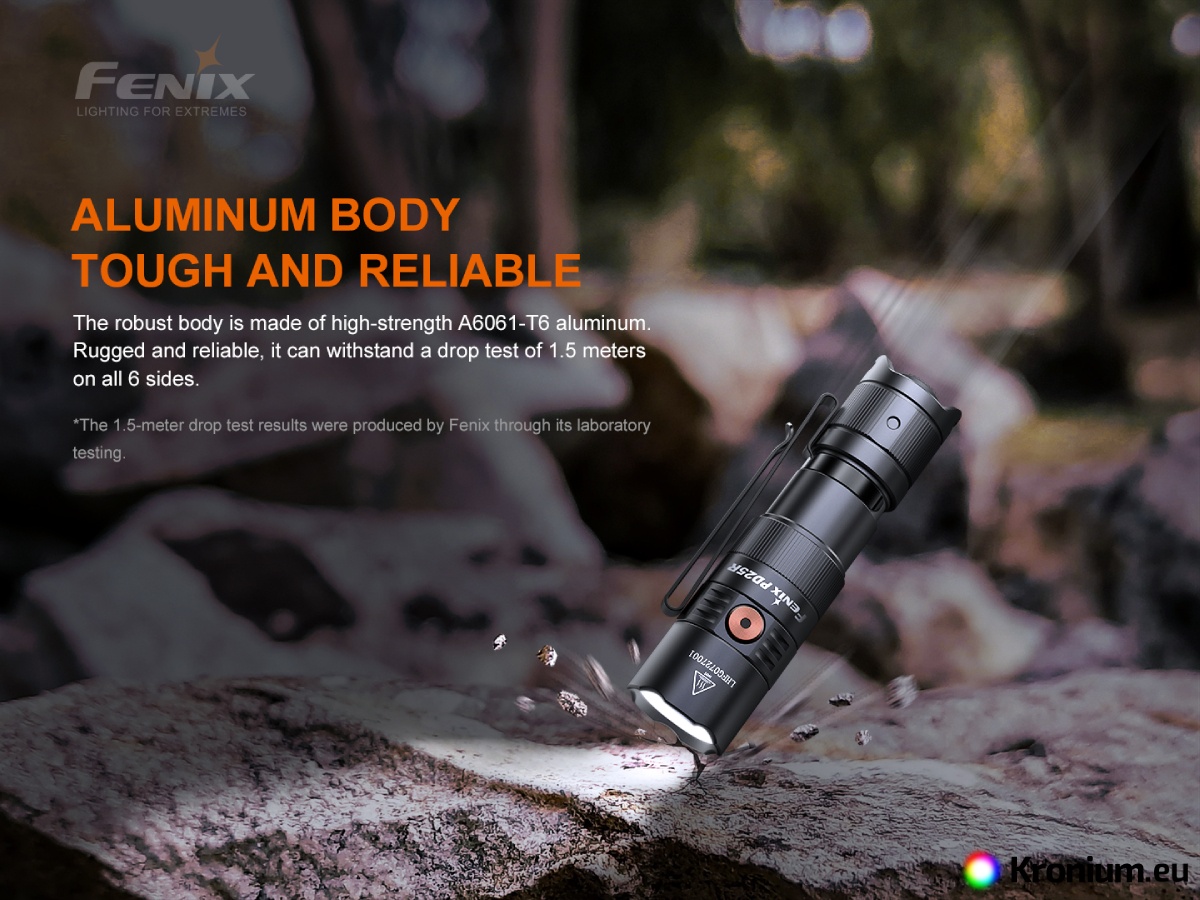

• Made of A6061-T6 type aerospace hardened aluminum.
• The flashlight has memory and will always turn on in last mode setting (not valid for flash mode).

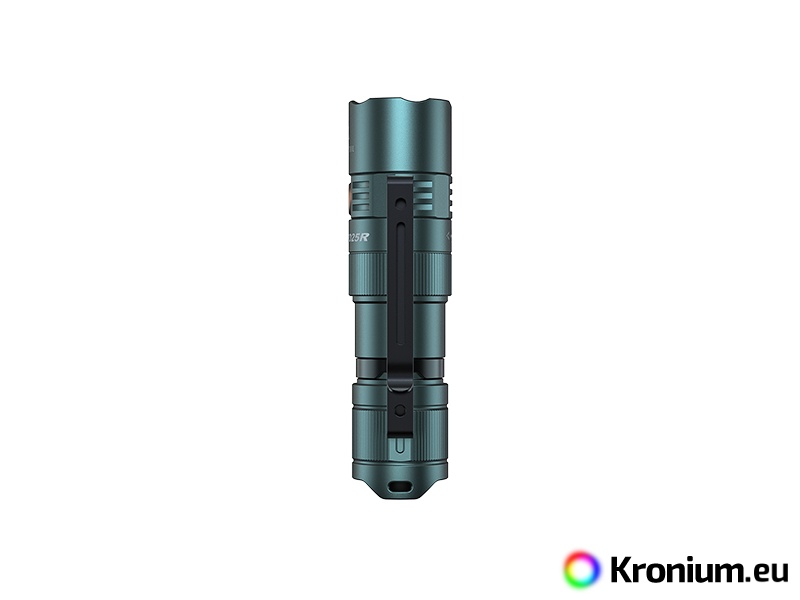

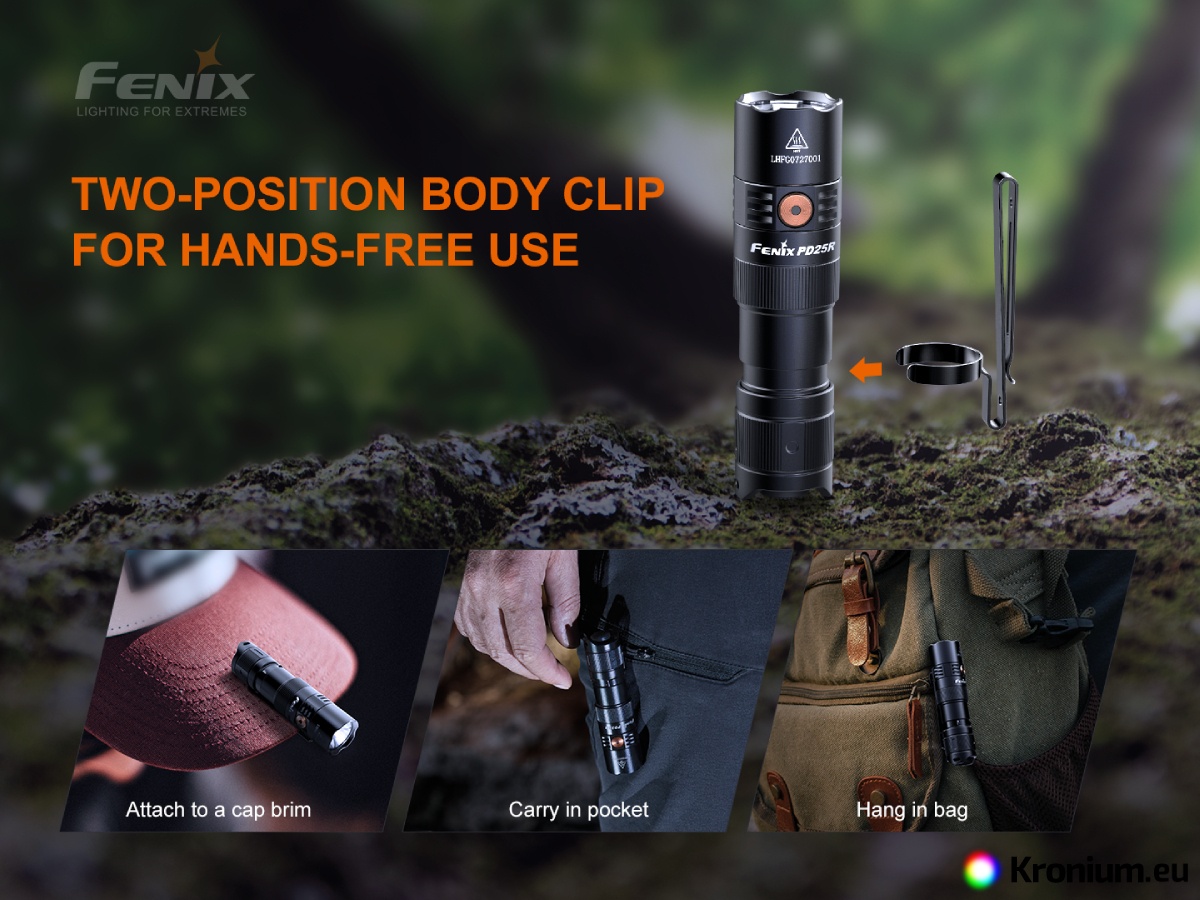

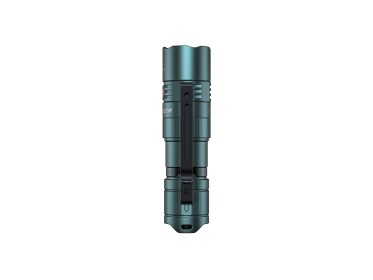

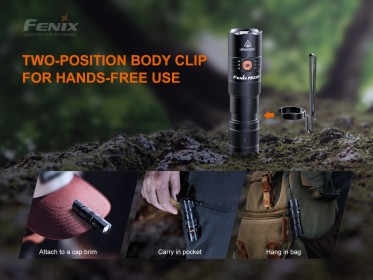

• Reversible clasp for attaching on pocket, baseball cap or Molle binding.
• Resistant surface - Type III hard anodized.
• Shockproof to falls from a height of 1 meter.

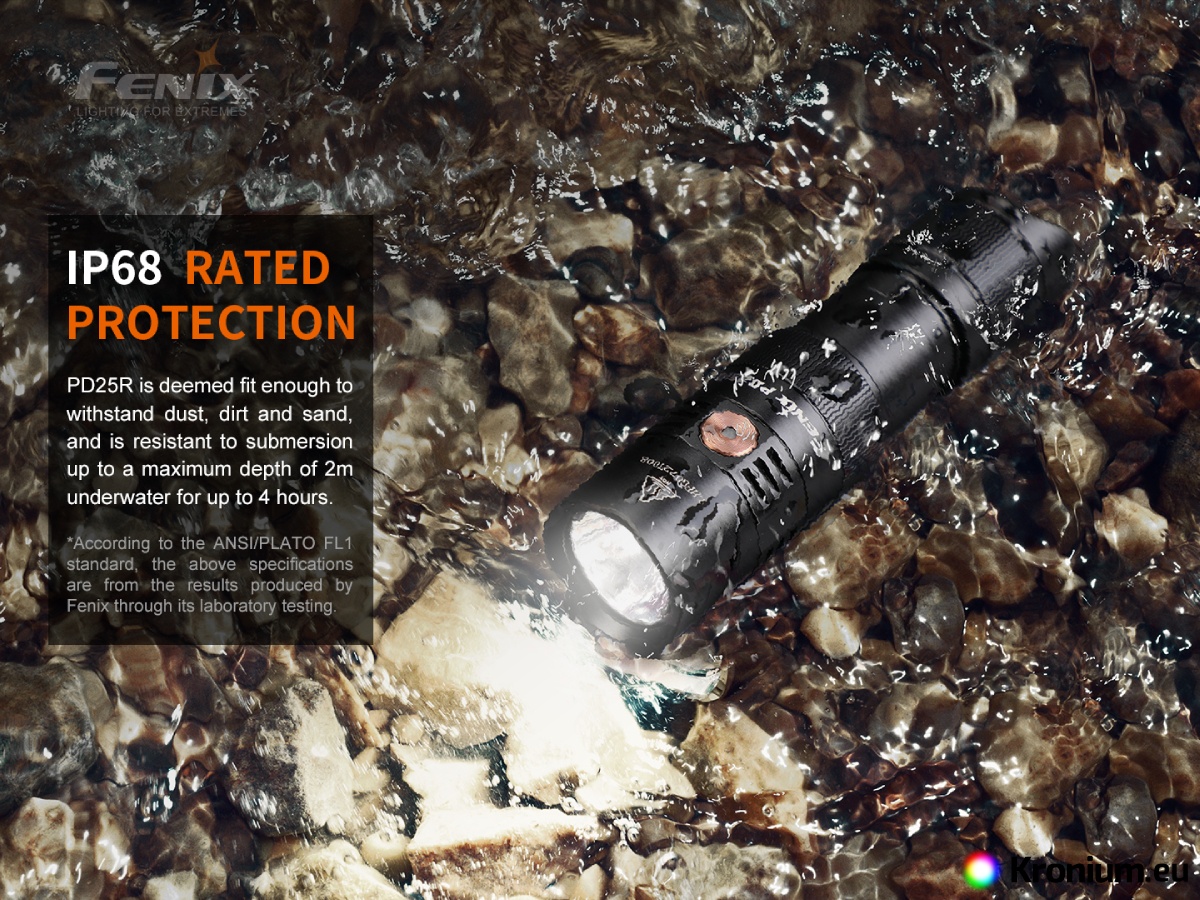

• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Hardened ultra clear glass lens with anti-reflective surface.

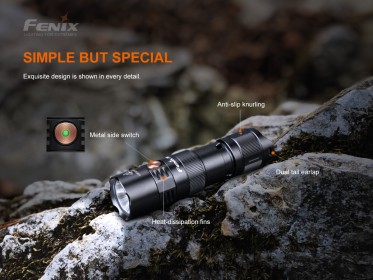

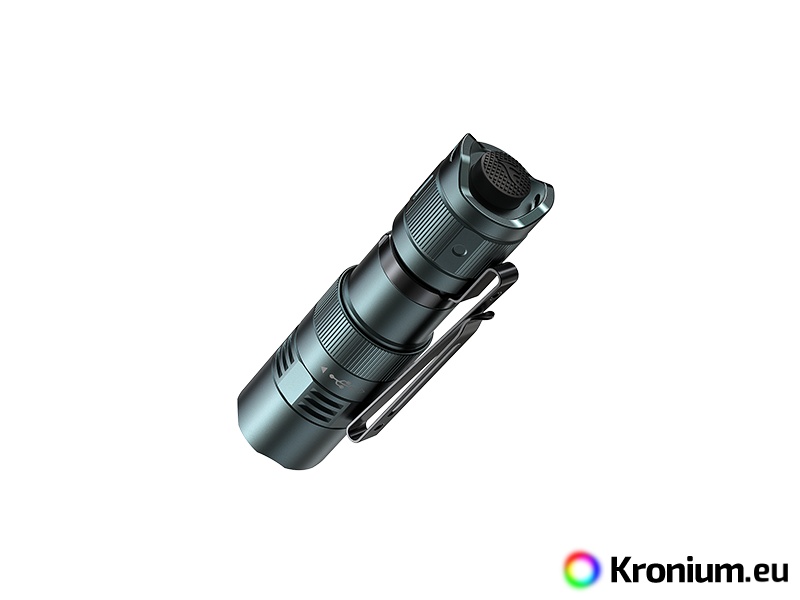

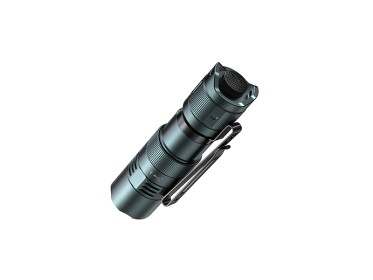

• Tactical switch at the tail of the flashlight (momentary on/off function).

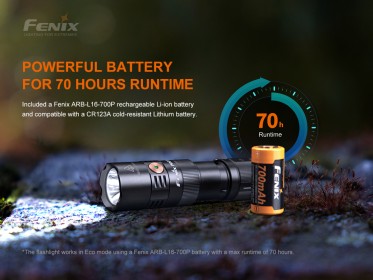

• Wrist lanyard, steel double-sided buckle, belt pouch and spare o-rings, Fenix ARB-L16-700P/RCR123A battery included with flashlight.
• Optional original accessories available: AOD-S diffuser.
• Also compatible with the flashlight are rotating wrist holder ALW-01, wrist holster AB02, bike flashlight holder, BikeBlock helmet holder, LampFix helmet mount, Fenix bike holder or replacement battery RCR123A with USB-C connector or replacement battery with higher capacity 950 mAh.

Using the Fenix PD25R flashlight

From manufacture, there may be an insulating cap on the battery inside the flashlight. Remove it from the battery before first use.

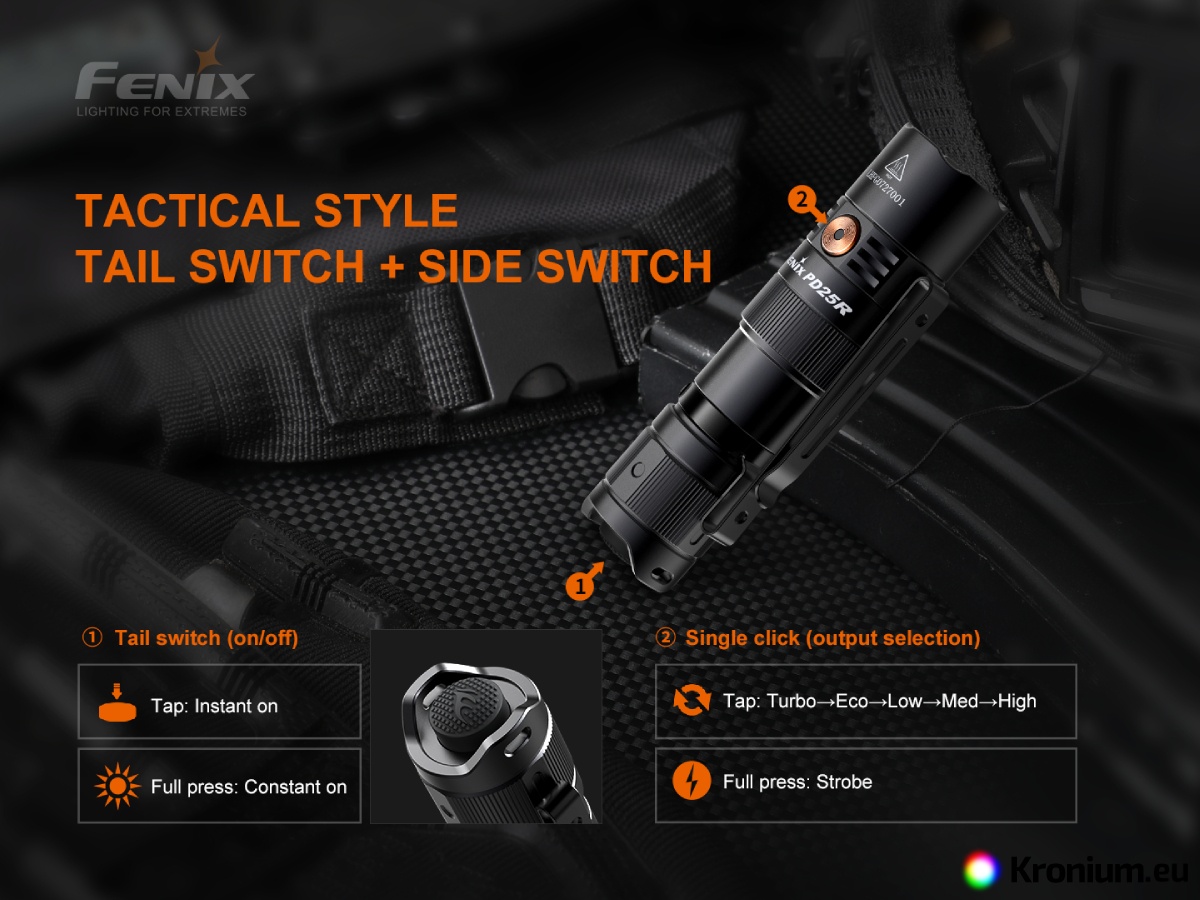

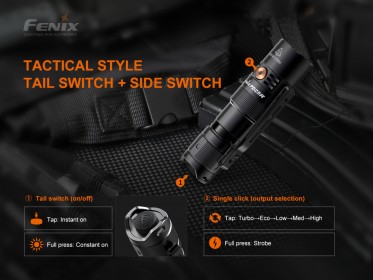

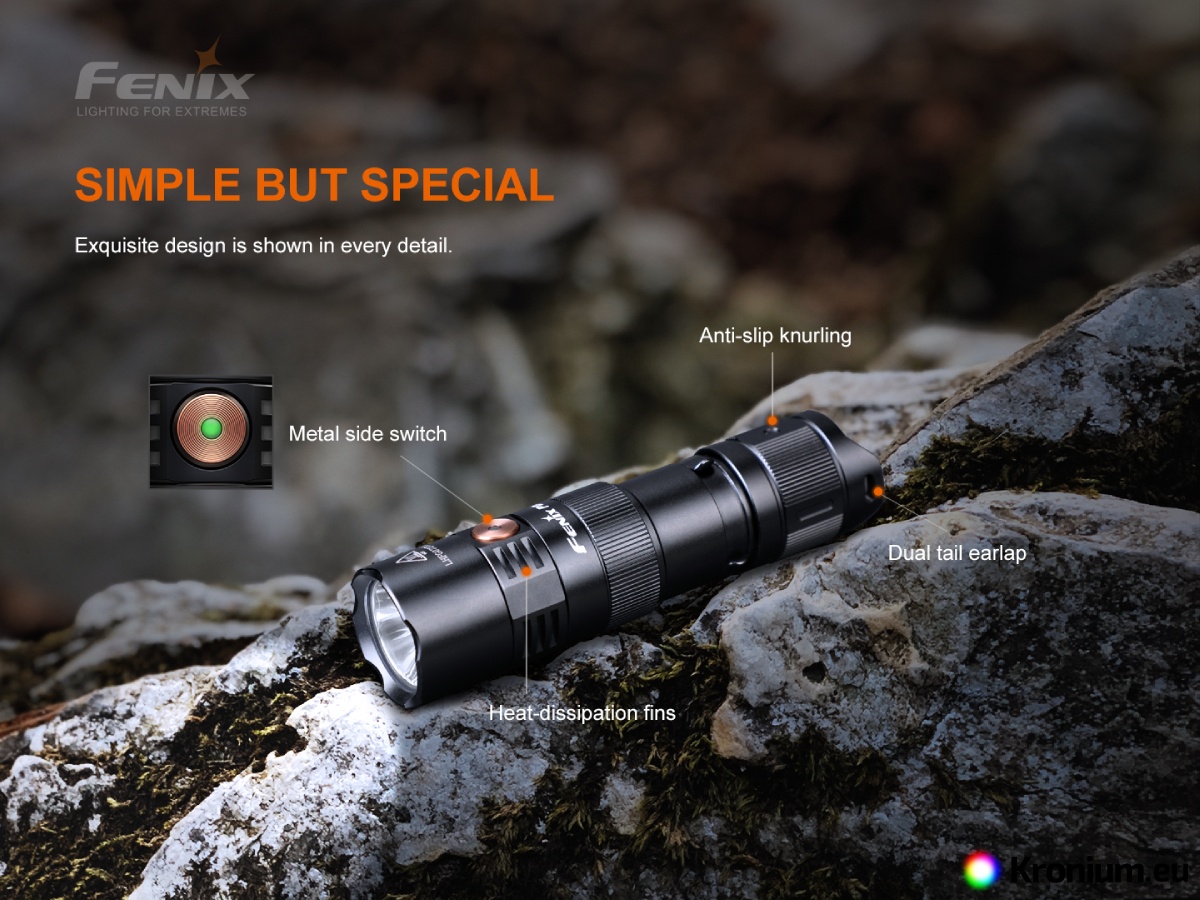

To turn on, press the tactical switch located on the end of the flashlight, press the button halfway for immediate activation. Press the side button at the head of the flashlight to switch between power modes at any time during operation. To switch to strobe mode, hold the side button for approximately 0.5 seconds.

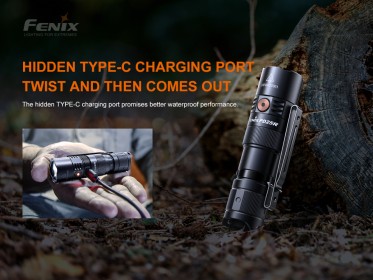

Charging - unscrew the protective nut underneath the flashlight head and use the included USB-C cable to plug it into a computer, network USB adapter or USB car adapter (not included). Alternatively, any mobile phone charger with a USB-C connector can be used for charging. During charging, the indicator LED in the button is red, after a full charge it glows green. Charging a fully discharged battery takes about 2 hours. The Li-ion battery used does not suffer from memory effect, so the flashlight can be recharged at any time. During charging, the flashlight can only be lit in the lowest mode by holding the side button for 0.5 seconds.

Intelligent overheat protection - if the temperature of the flashlight rises above 60°C, it will automatically start to reduce power in gradual steps.

Battery charge status indication- each time the flashlight is switched on, the indicator LED in the flashlight's side button is activated for three seconds. If the indicator LED is green the battery is more than 85% charged. Green flashing indicates 50-85% capacity. If it is red, the battery is 25-50% charged. Red flashing indicates less than 25% battery capacity remaining (only works when using RCR123A / 16340 Li-ion battery).

Battery Low Warning - the flashlight gradually switches automatically to the lowest mode, then the red indicator LED in the button flashes red in the lowest mode. This indicates the need to charge the battery or replace it with a fully charged one.

Warning

• Do not disassemble the sealed part in the head of the flashlight yourself, it will violate the warranty.
• Use only high quality CR123A or RCR123A batteries.
• If the protective rubber rings appear damaged after extended use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:

• The battery is almost dead – charge the battery or replace it.
• The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.
• The back of the flashlight is loose – tighten it.

Warranty

Five years warranty on the flashlight, two years on the battery.
