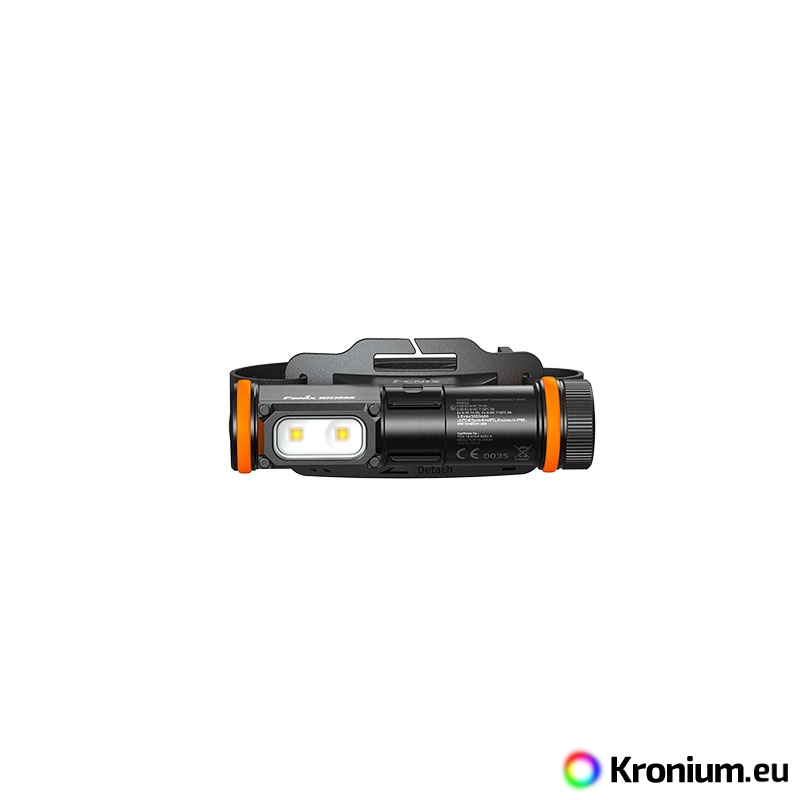

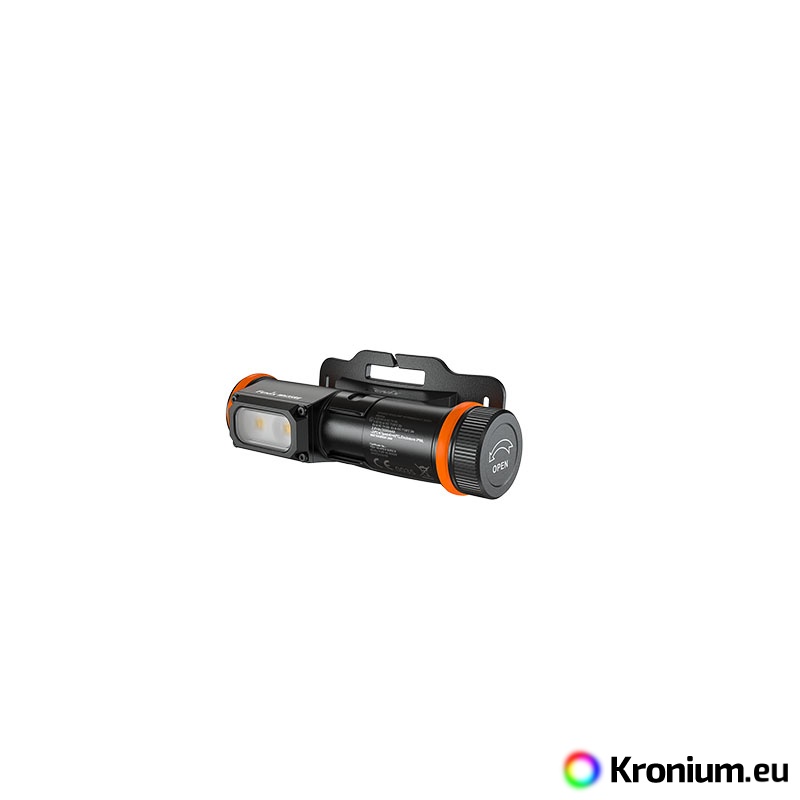

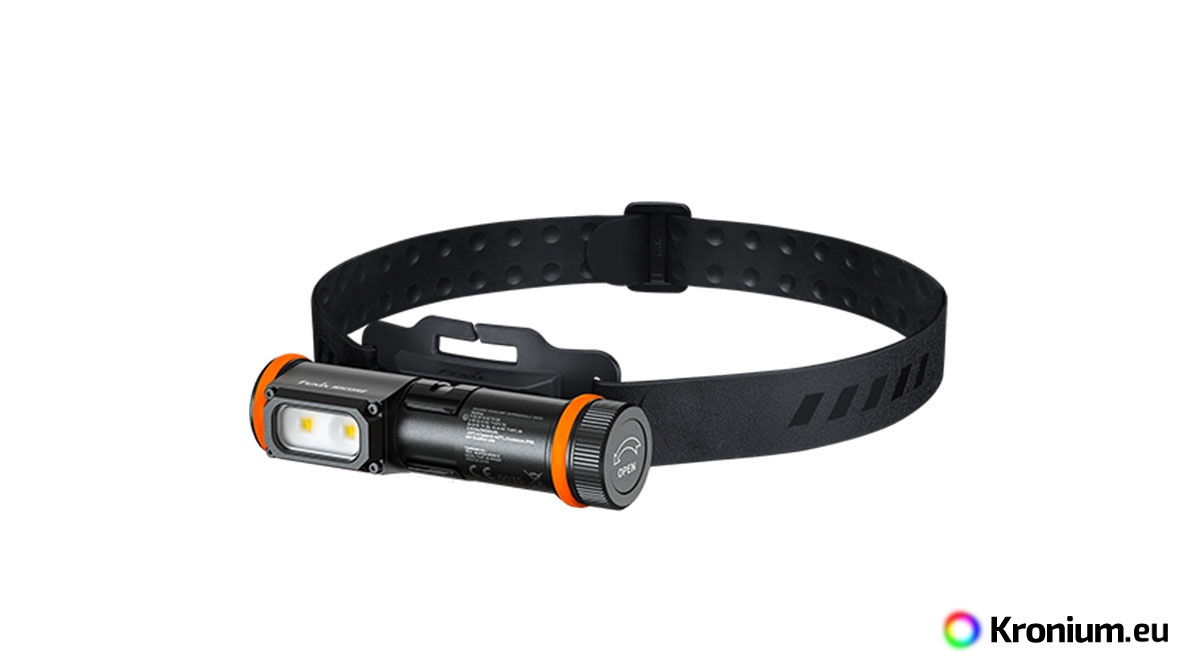

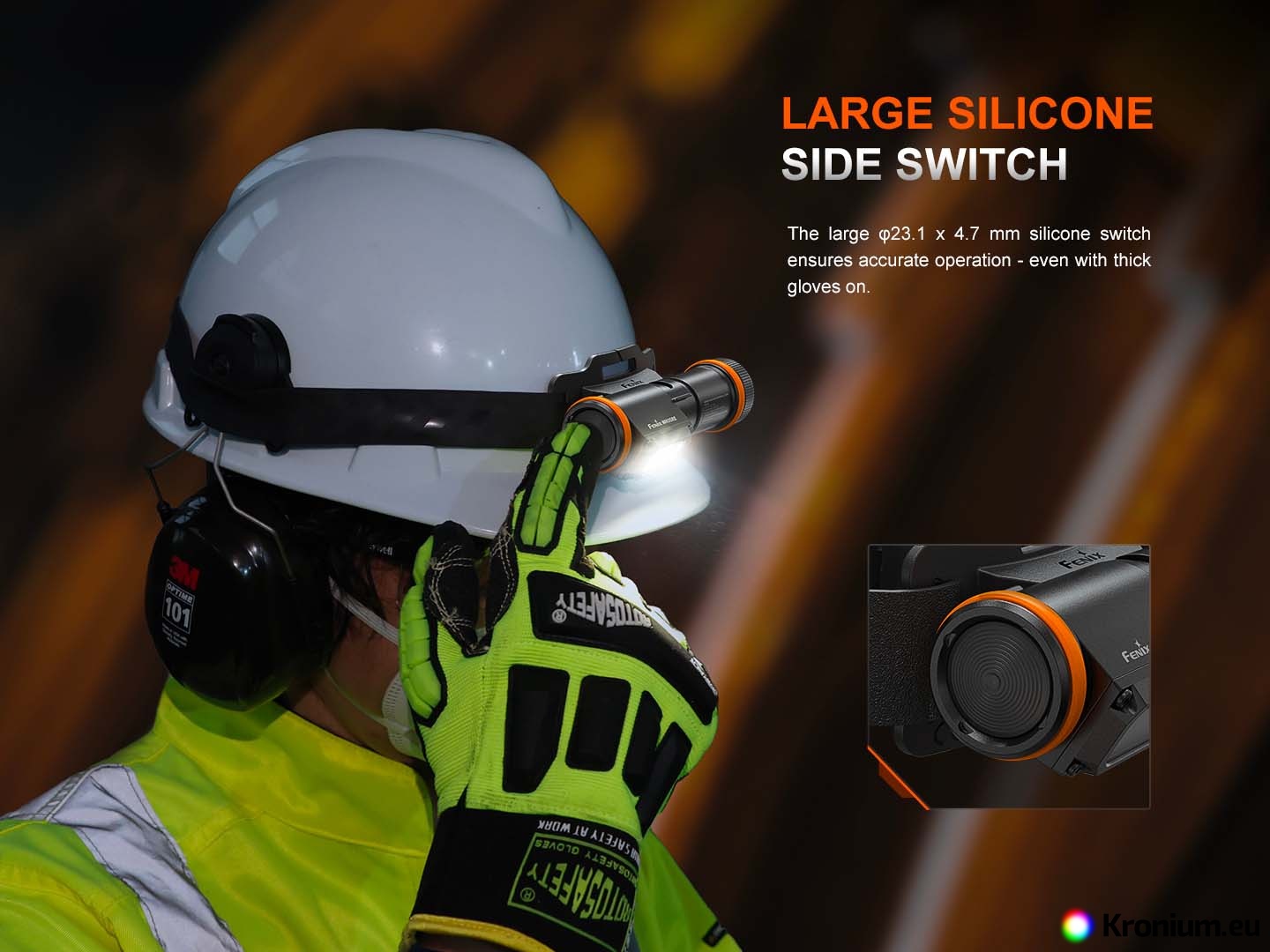

The Fenix WH35RE is a safe work headlamp for explosive environments, designed for various areas with explosion risk, excluding underground mines. It is equipped with ATEX/IECex certification. It offers a maximum output of 280 lumens and is powered by a specially modified ARB-L21-3000Ex Li-ion battery with a capacity of 3000 mAh (included in the package), which is recharged directly in the flashlight via a modern USB-C connector. The practicality of the headlamp is enhanced by the ability to remove the light from the head mount and use it as a handheld or work flashlight. Additionally, the headlamp is equipped with a detachable steel clip, so you can easily attach it to a pocket or strap. Its large switch allows for simple and precise operation – even with gloves on.

The WH35RE has been certified by several explosion-proof certifications, including IECEx, ATEX, and GRGT. Therefore, this product is safe to use in explosive atmospheres classified as Zone 1 and Zone 2, as well as in combustible dust areas classified as Zone 21 and Zone 22. This includes environments such as petroleum, chemical, and textile industries, firefighting, metallurgical areas, power stations, and paper plants, etc.

Certificates:

• Applicable in Zones 1-2 for explosive gases and Zones 21-22 for explosive dust.
• Full text of certificates:
• IECEx: IECEx TUR 18.0042X:
  • Ex ib IIC T4 Gb
  • Ex ib IIIC T130°C Db
• ATEX: TÜV 18 ATEX 8252X:
  • II 2G Ex ib IIC T4 Gb
  • II 2D Ex ib IIIC T130°C Db IP66
• GRGT: GRGT25.0015X
  • Ex ib IIC T4 Gb
  • Ex ib IIIC T130°C Db

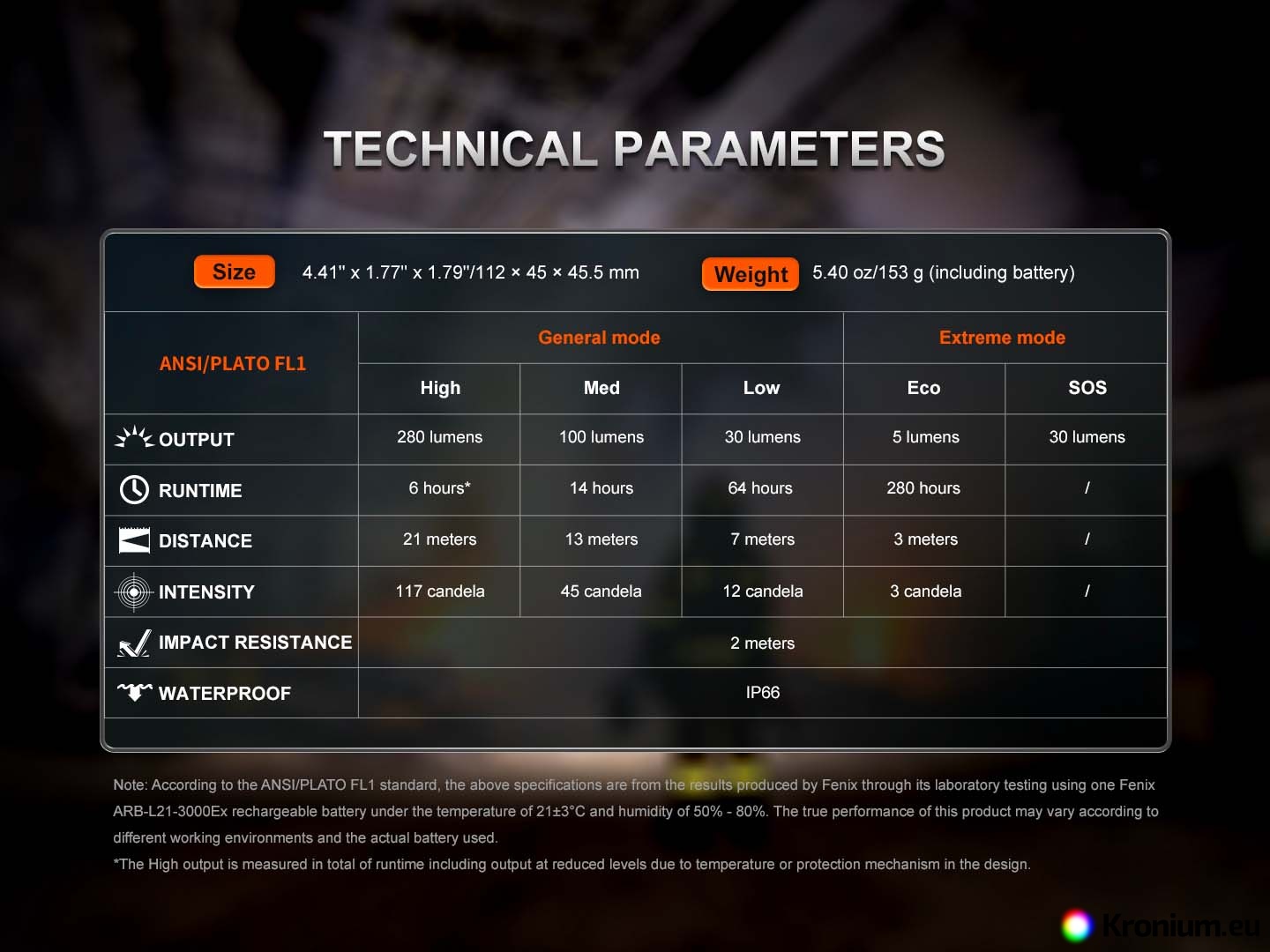

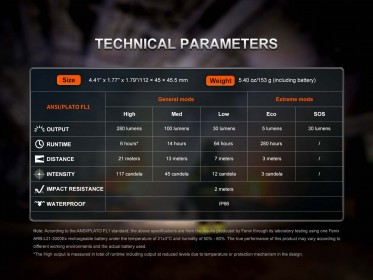

Parameters of the Fenix WH35RE Work Headlamp

• Intrinsically safe and explosion-proof.
• Two powerful CREE XP-G3 LEDs are used, each with a lifespan of up to 50,000 hours.
• Five white light modes: 280 lumens (6 hours) -> 100 lumens (14 hours) -> 30 lumens (64 hours) -> 5 lumens (280 hours) -> SOS 30 lumens.

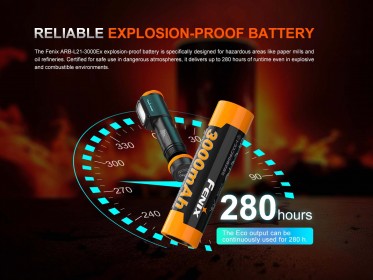

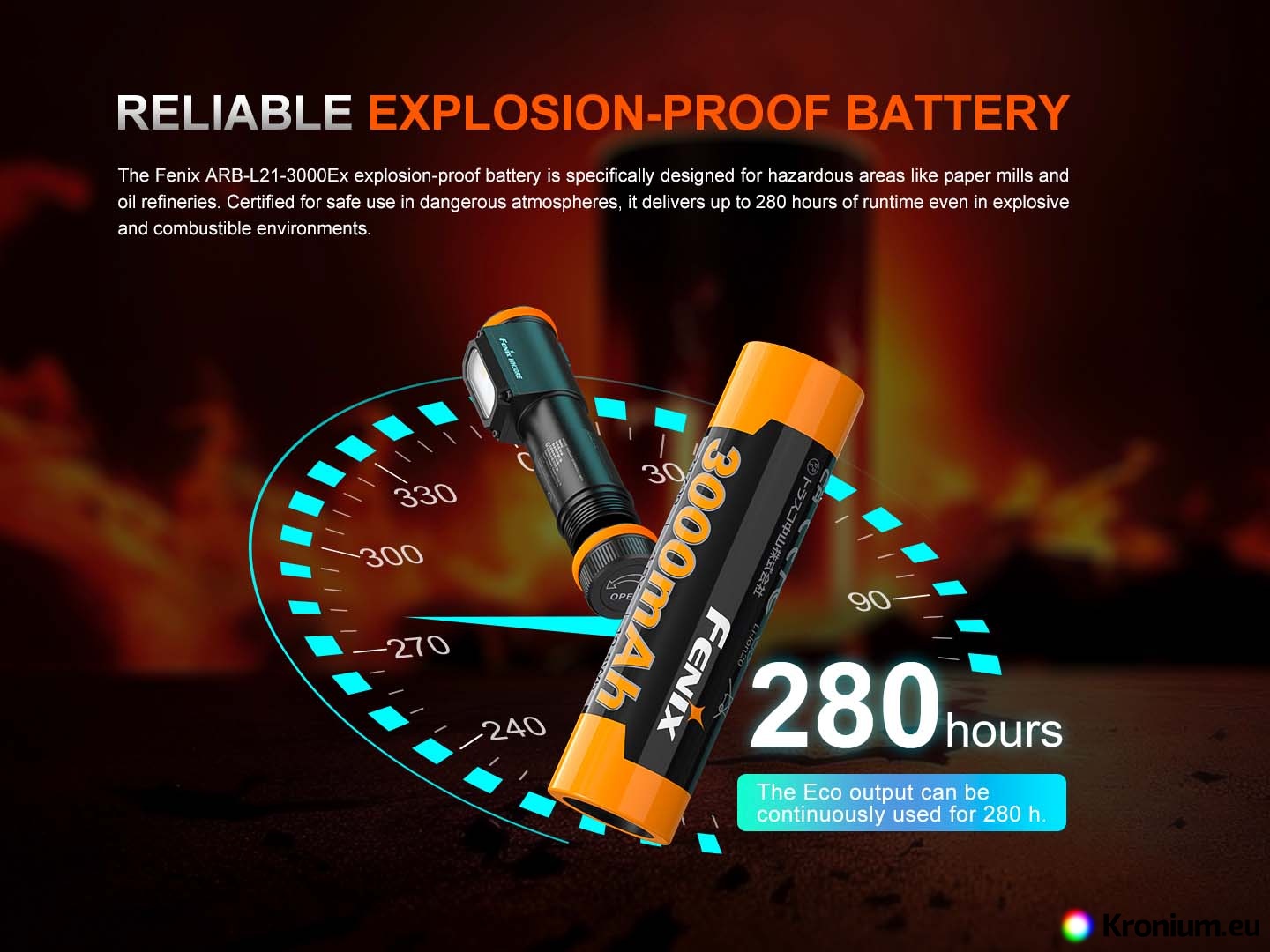

• Uses a special Fenix ARB-L21-3000Ex Li-ion battery with a capacity of 3000 mAh. This is a modified type certified for explosive environments.

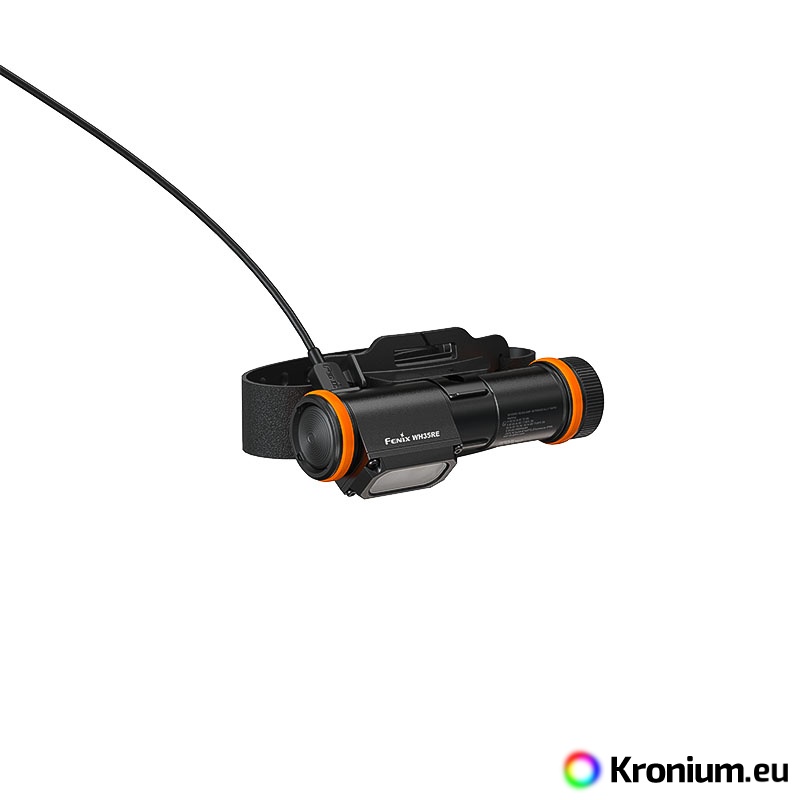

• Charging via USB-C connector on the back of the headlamp.
• The reflector creates a very wide, uniform light beam with a range of 21 meters (117 cd).

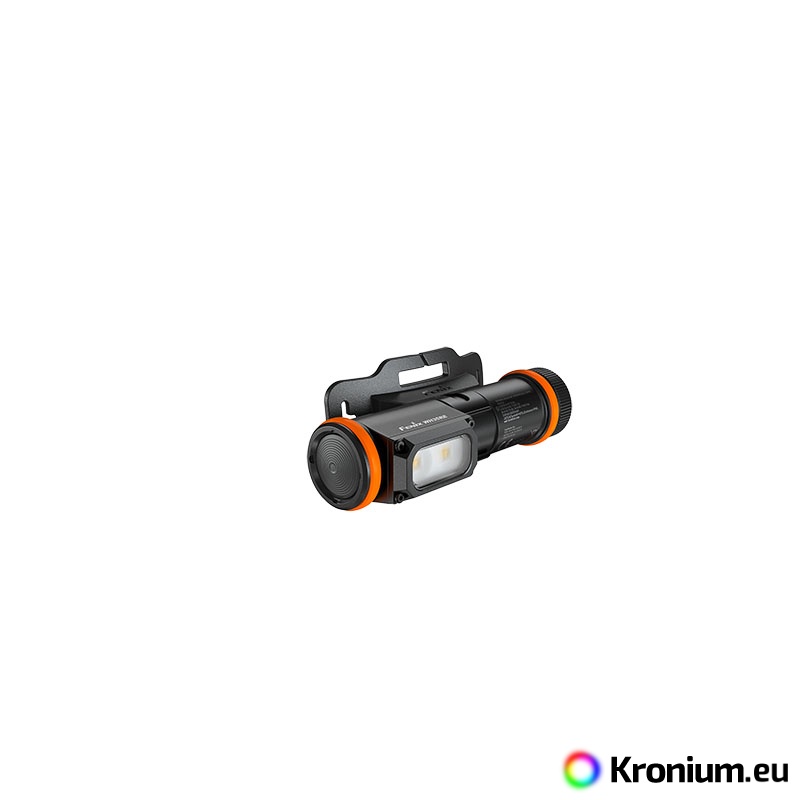

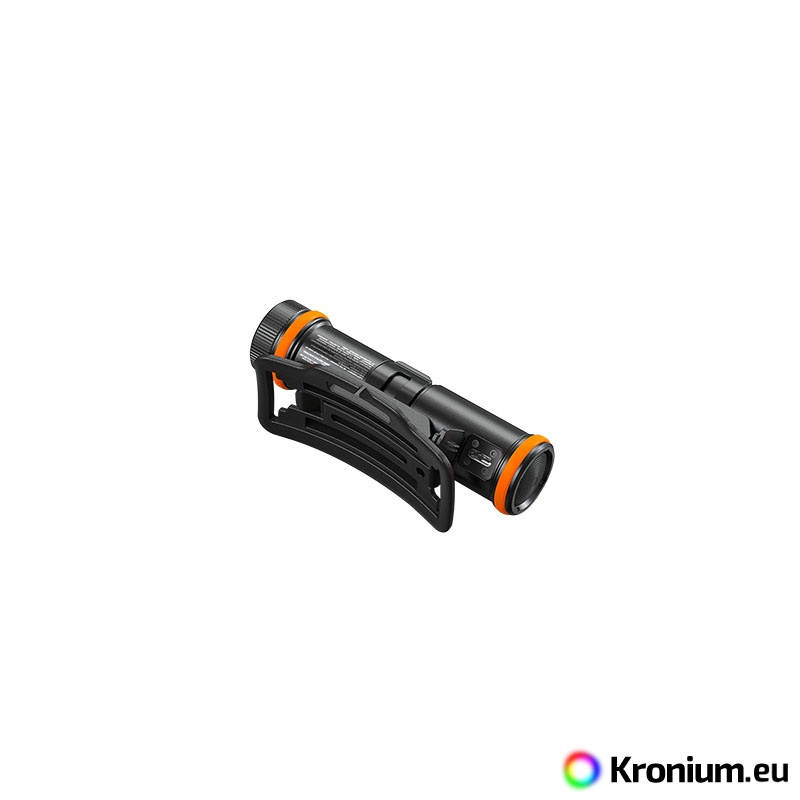

• The detachable light can be used as a handheld or chest light.
• Explosion-proof certifications: IECEx, ATEX, and GRGT.

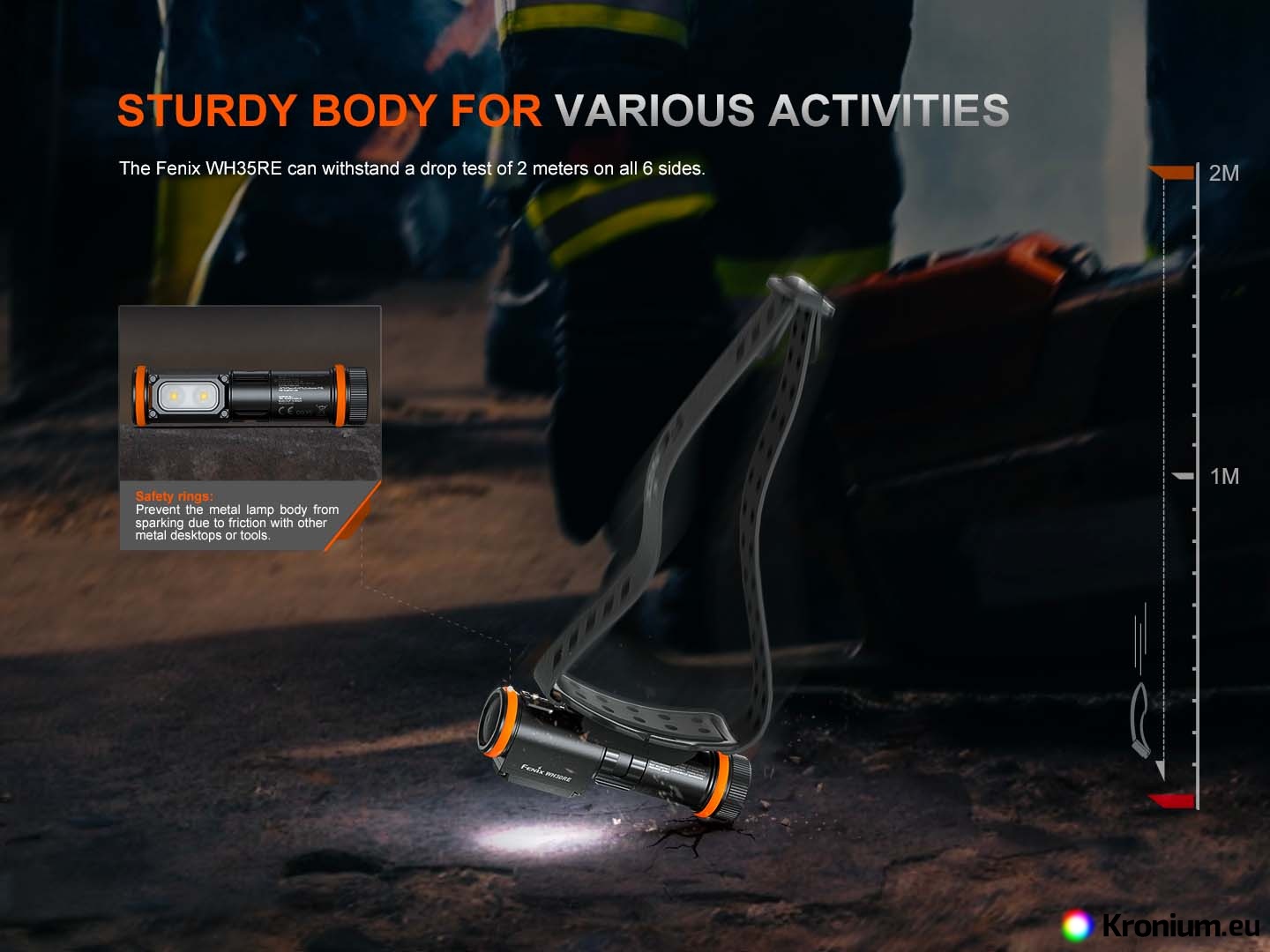

• Impact resistant to falls from a height of 2 meters.
• Waterproof and dustproof according to IP66 standard (spraying with powerful water jets from all directions).
• Battery level indication.
• Low voltage warning.
• Made of durable A6061-T6 aluminum alloy material.
• Dimensions: 11.2 cm × 4.5 cm × 4.55 cm
• Weight of the headlamp body: 153 g (including battery).

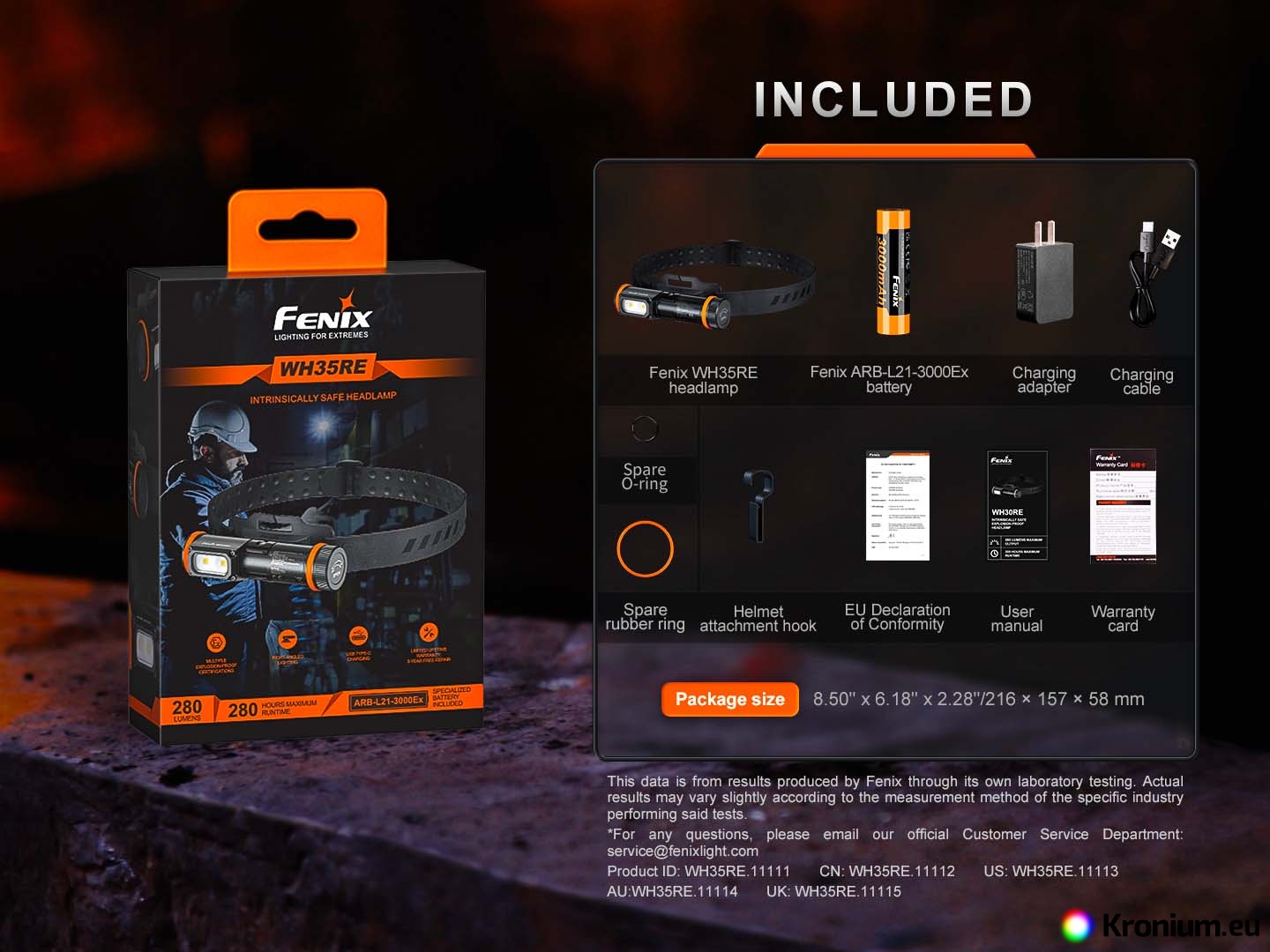

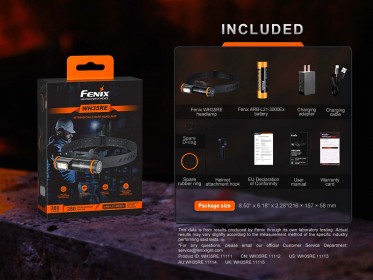

• Fenix WH35RE headlamp, Fenix ARB-L21-3200Ex battery, USB charging adapter, USB-C charging cable, EU Declaration of Conformity, spare O-ring, spare rubber ring, hook for helmet attachment, antistatic rubber head strap, sliding buckle, user manual, warranty card.

Operation

From the factory, there may be an insulating cover on the battery inside the flashlight. Before first use, remove it from the battery.

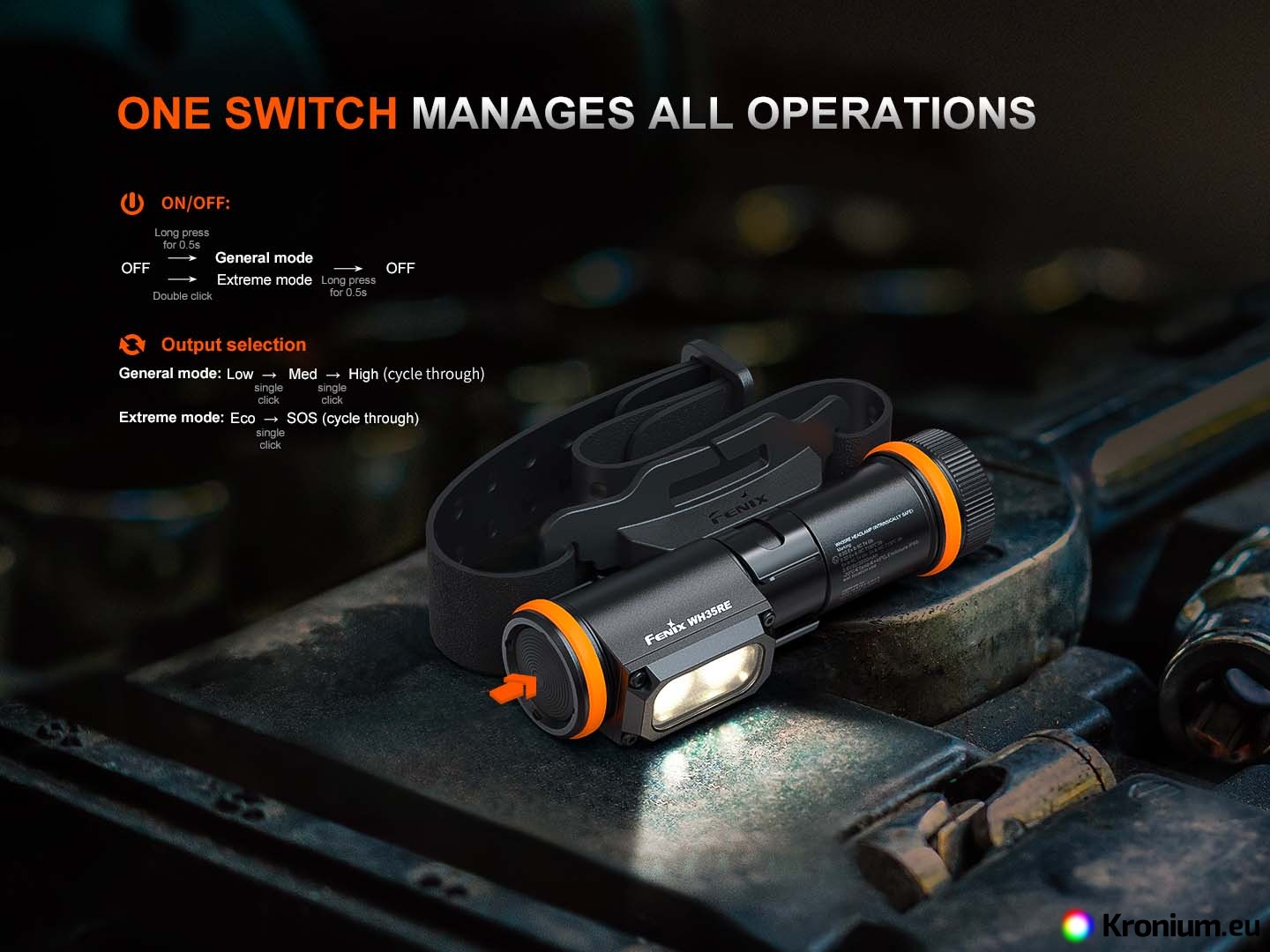

On/Off: When the headlamp is off, press and hold the switch for 0.5 seconds to turn on to normal power modes (General mode). When the headlamp is off, quickly double-press the switch to turn on to emergency modes (Extreme mode). When the headlamp is on, press and hold the switch for 0.5 seconds to turn off.

Switching Power Modes: In normal mode, a single press of the switch cycles between 30 → 100 → 280 lumens. In emergency mode, a single press of the switch selects between 5 lumens and SOS.

Battery Level Indication: If the headlamp is off, a single short press of the button will activate the battery level indicator for 3 seconds, displayed by the colored backlight of the button:

• Constant green: 100 % - 85 %
• Green flashing: 85 % - 50 %
• Constant red: 50 % - 25 %
• Red flashing: 25 % and less (recharge the headlamp as soon as possible)

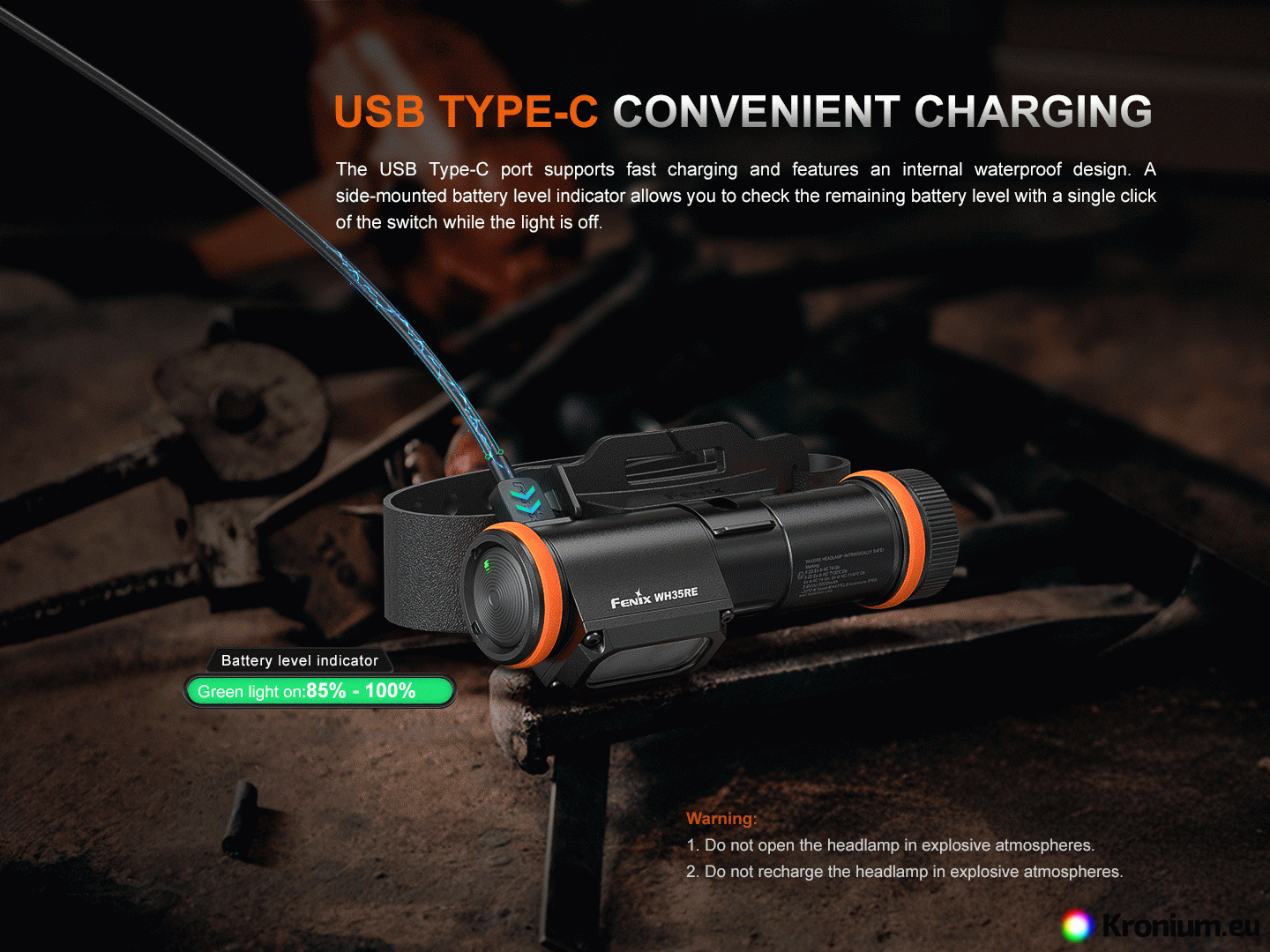

Charging: Plug the charging cable into the USB adapter, then plug the adapter into the wall socket. Flip open the dust cover on the headlamp and plug the USB-C charging cable into the charging port. After charging is complete, replace the dust cover. During charging, the indicator in the button glows red. Once fully charged, it will turn green. Do not charge the headlamp in an explosive environment. Use the included charging adapter for charging to ensure safety.

Low Battery Warning: If the battery voltage drops below the set level, the headlamp will reduce brightness to a lower level. After reaching the lowest output, the battery level indicator will start flashing red to remind you to recharge or replace the battery.

Warning

• Do not disassemble sealed parts yourself, this will void the warranty.
• If the headlamp flashes, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
  • The battery is almost discharged – recharge it.

Warranty

Five-year warranty on the headlamp and two years on the battery.
