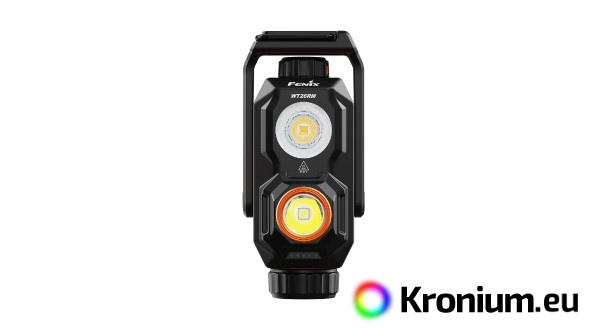

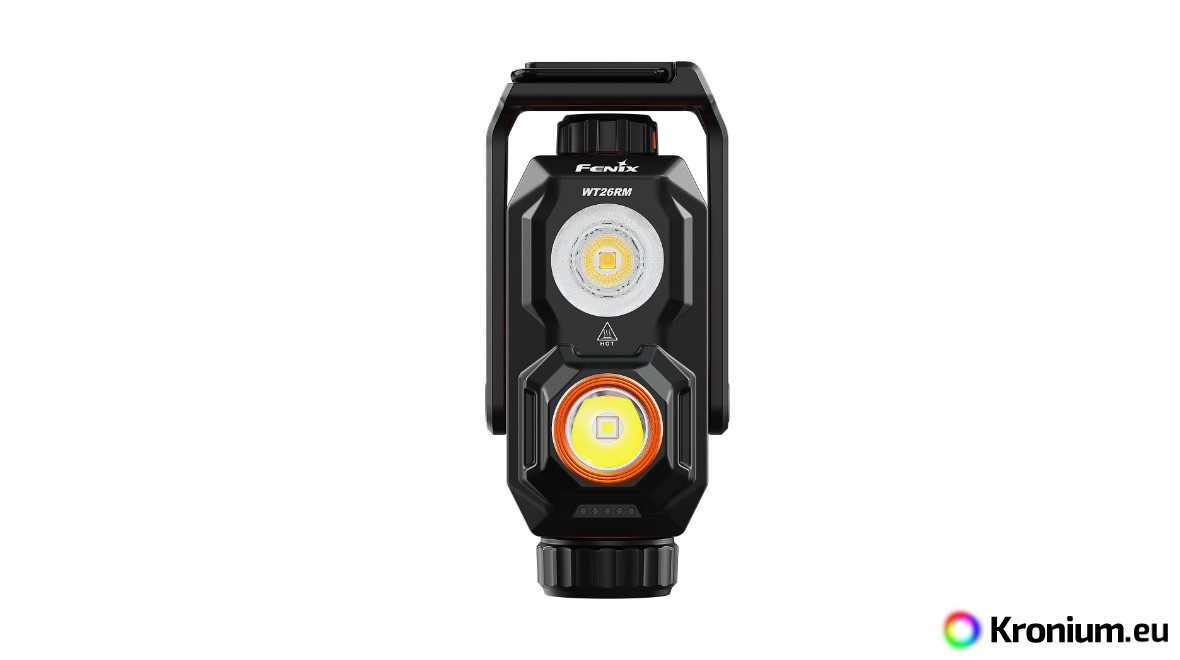

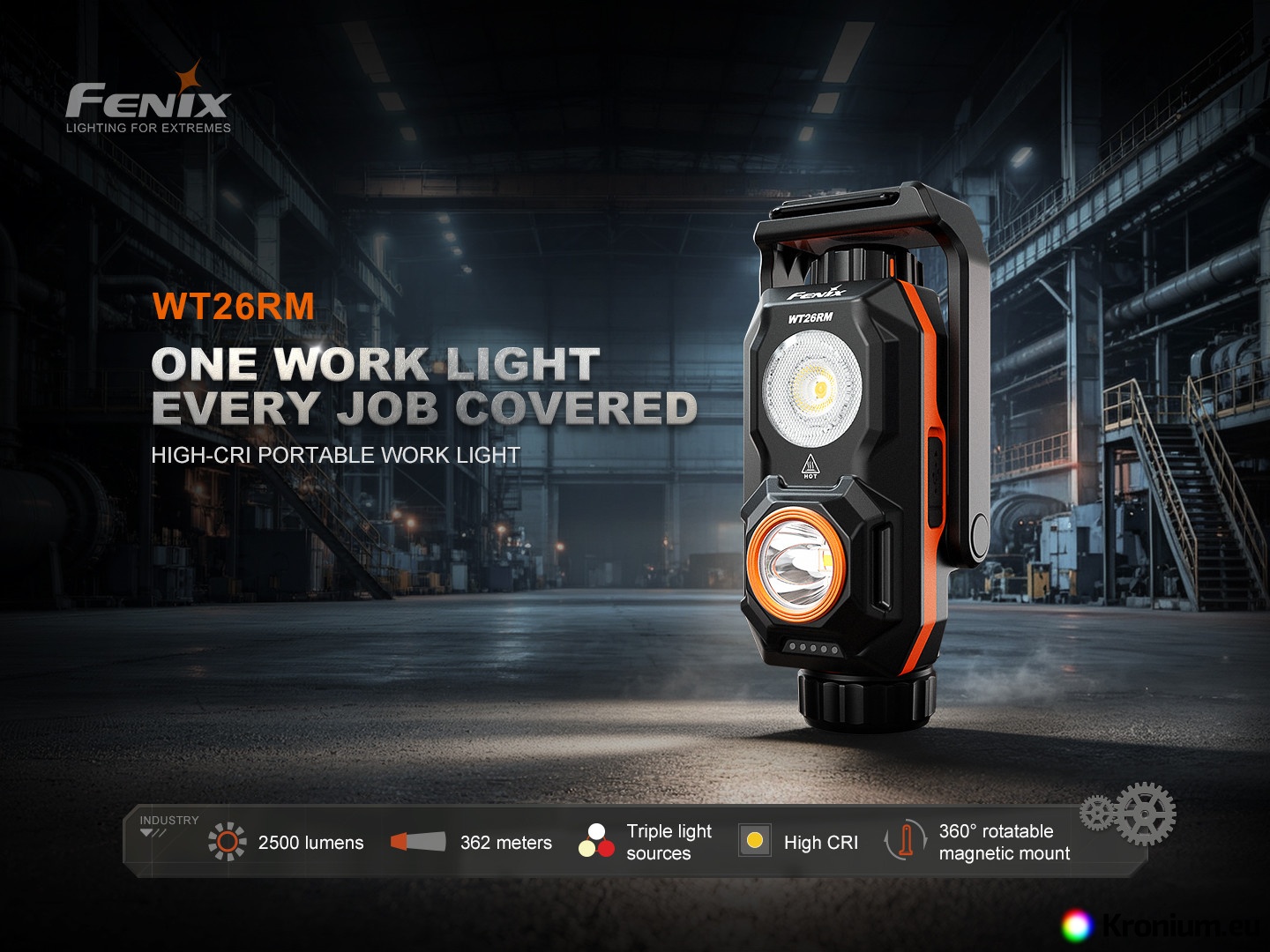

The Fenix WT26R is a multifunctional rechargeable work flashlight with a unique design. It works perfectly as a maintenance light, for the workshop, household, and outdoor activities. The high-performance LED for the spotlight provides a beam with an output of up to 2500 lumens (ANSI) and a distance of 362 meters. Furthermore, a floodlight equipped with a high-CRI LED (≥90) with an output of 600 lumens is available, as well as an additional red light. The flashlight is operated by an innovative combination of a rotary switch and an electronic switch for fast and simple mode selection. The WT26R is powered by an included 21700 Li-ion battery with a capacity of 5000 mAh. The battery is charged directly in the flashlight using a hidden waterproof USB Type-C port.

Thanks to its durable construction with IP66 protection, the light withstands adverse weather conditions and impacts from a height of 1 meter. Wide mounting options and hands-free use are provided by the 360° rotatable mount, which contains built-in strong magnets for easy attachment to iron surfaces.

All flashlight parameters (luminous flux, battery runtime, waterproofness, beam distance, and impact resistance) are measured in accordance with the ANSI/PLATO FL 1 standard.

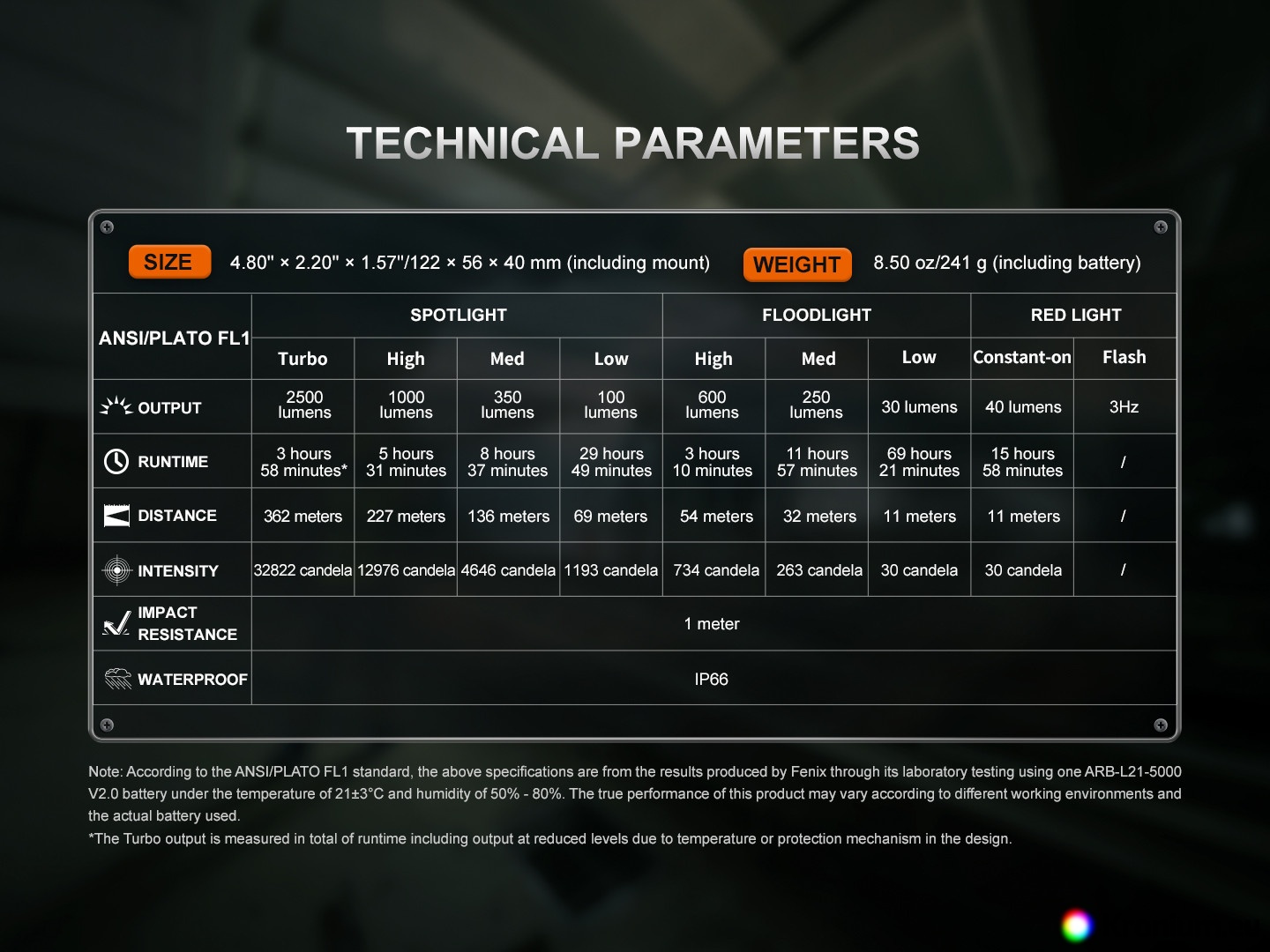

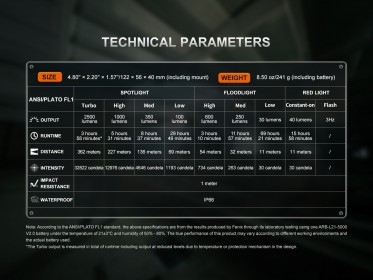

Parameters of the Fenix WT26R rechargeable work flashlight

• Utilizes a high-performance LED for the spotlight (cold white), a high-CRI LED (≥90) for the floodlight (warm white), and a red LED, all with a lifespan of 50,000 hours.
• Output levels:
  • Spotlight: 2500 lumens (3 hours 58 minutes) – 1000 lumens (5 hours 31 minutes) – 350 lumens (8 hours 37 minutes) – 100 lumens (29 hours 49 minutes).
  • Floodlight: 600 lumens (3 hours 10 minutes) – 250 lumens (11 hours 57 minutes) – 30 lumens (69 hours 21 minutes).
  • Red light: 40 lumens (15 hours 58 minutes) – Flash 3 Hz.

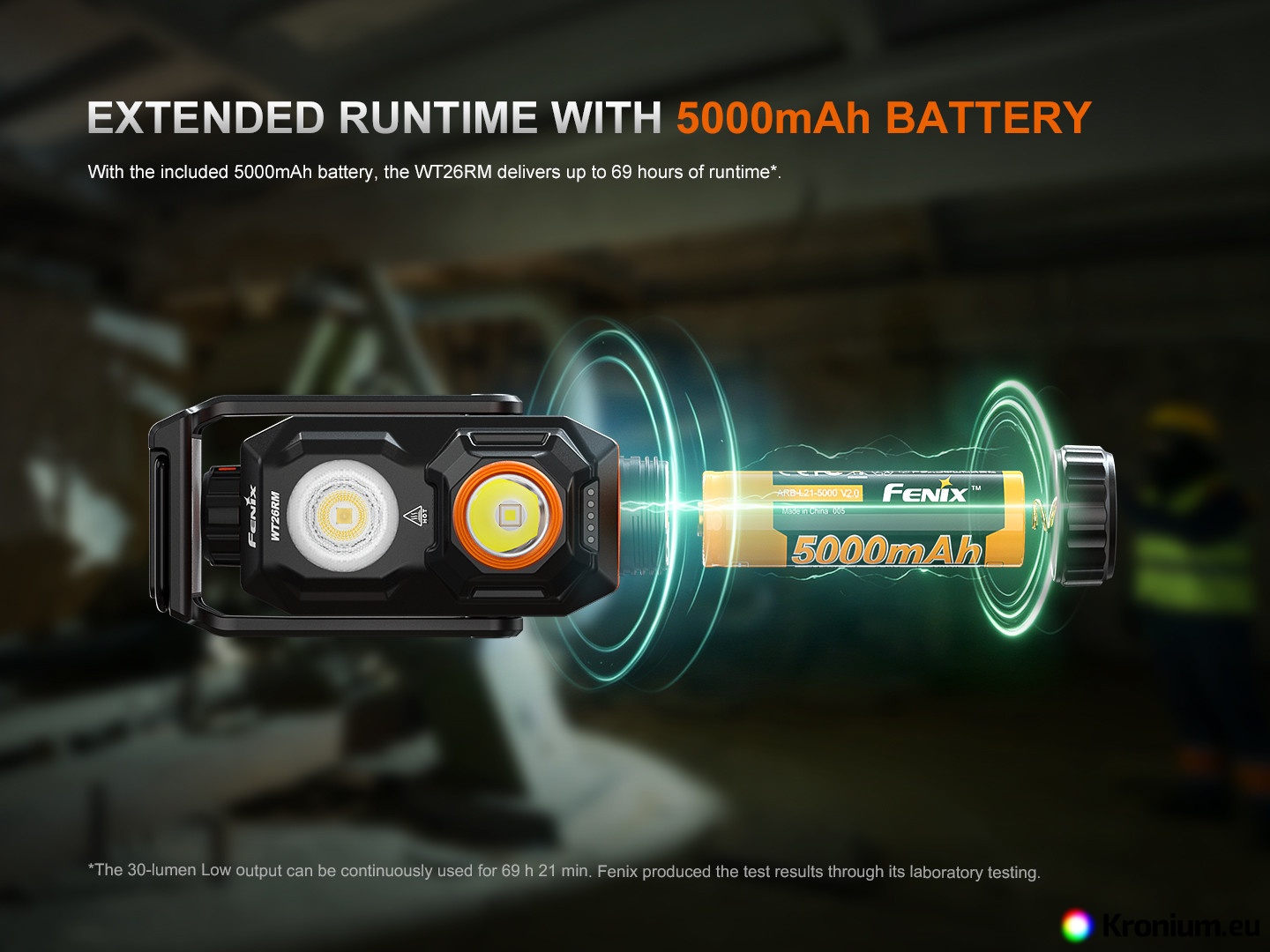

• Powered by one included high-capacity 21700 Li-ion battery (5000 mAh).
• Max battery diameter 21.8 mm, max battery length 77.0 mm.
• Spotlight beam distance 362 meters (32,822 cd), floodlight 54 meters (734 cd), and red light 11 meters (30 cd).
• Charging via hidden inner USB Type-C port, normal charging time for a depleted battery is approx. 3.5 hours (using a 5 V / 2 A adapter).
• Battery level indication with five LEDs and low-voltage warning.
• Intelligent Memory Circuit: the flashlight automatically memorizes the last selected output of each mode (excluding Red light).

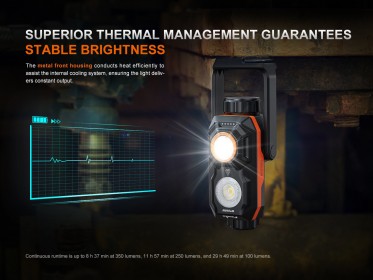

• Intelligent Overheat Protection: if the flashlight reaches a temperature of 60 °C or above, it will automatically step down the output. When the temperature drops, the output gradually increases.

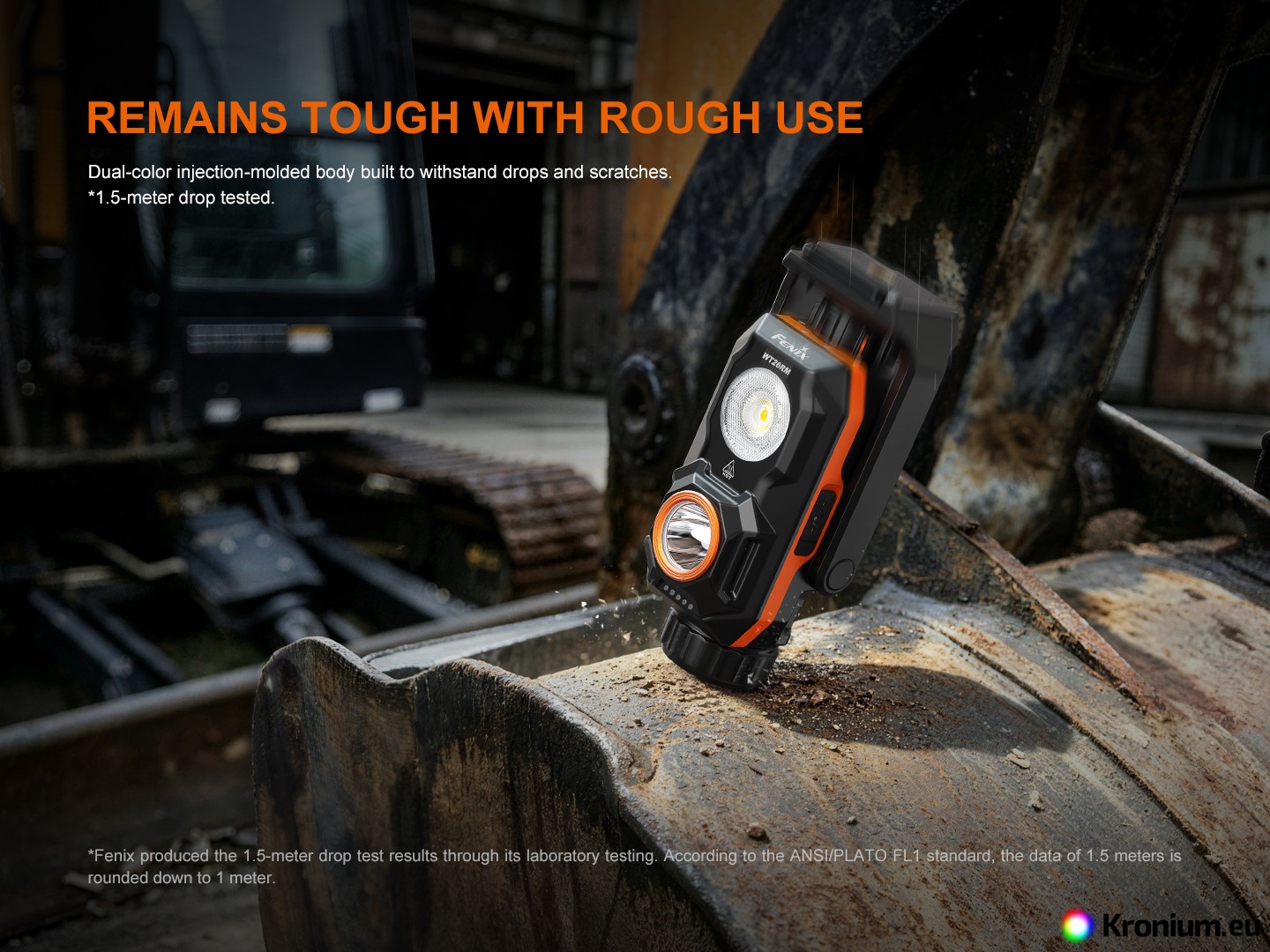

• Made of durable plastic and aluminum alloy, the flashlight is impact-resistant to drops from 1 meter.
• Waterproof according to the IP66 standard (heavy rain).

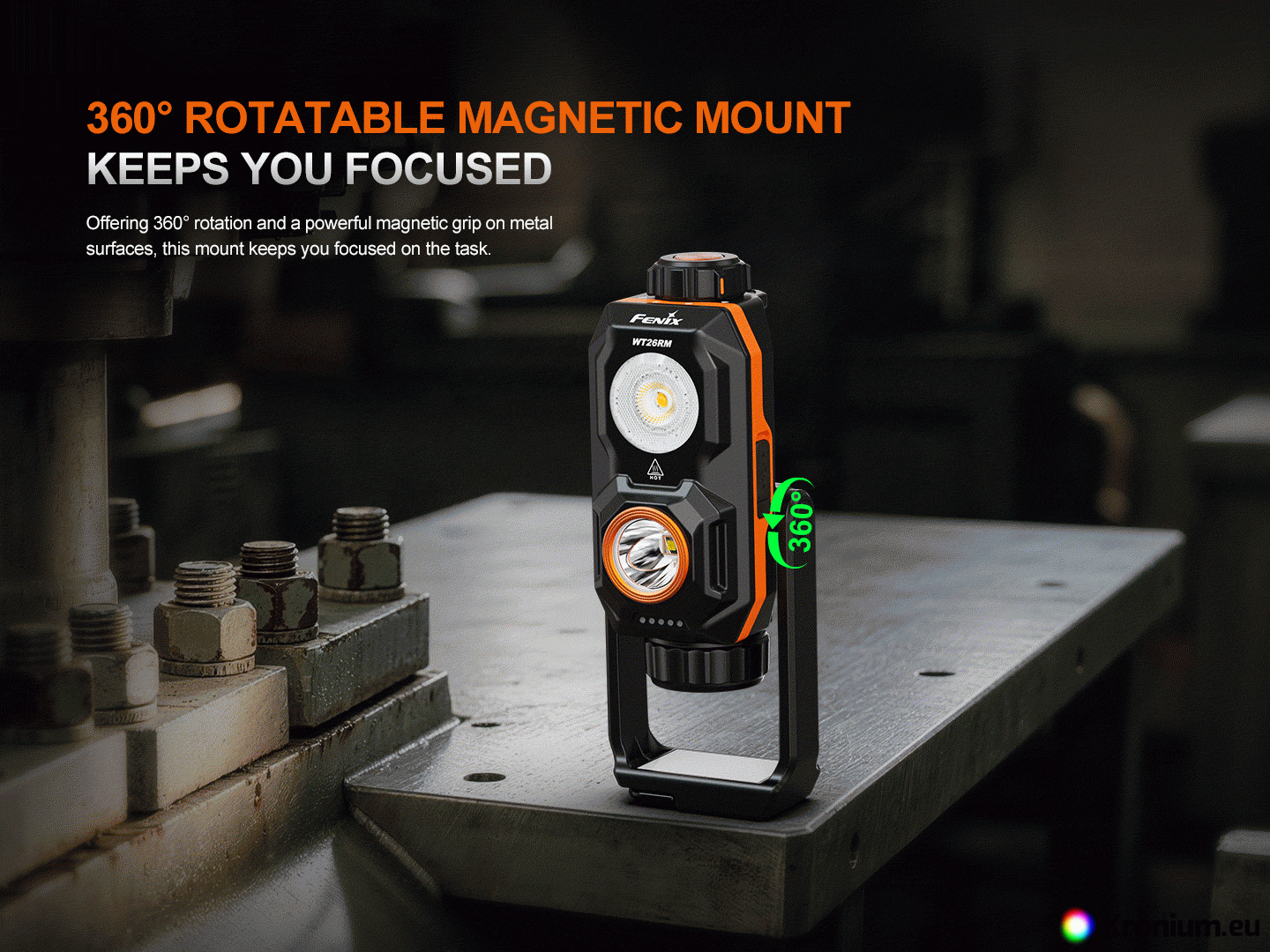

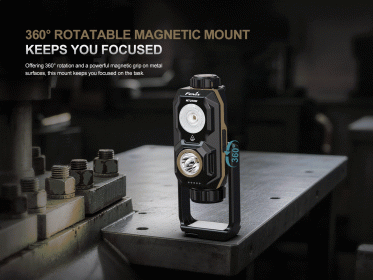

• Equipped with a 360° rotatable mount with an integrated magnet.
• Dimensions 4.80" x 2.20" x 1.57" / 122 mm x 56 mm x 40 mm (including mount).
• Weight 8.50 oz / 241 grams (including battery).

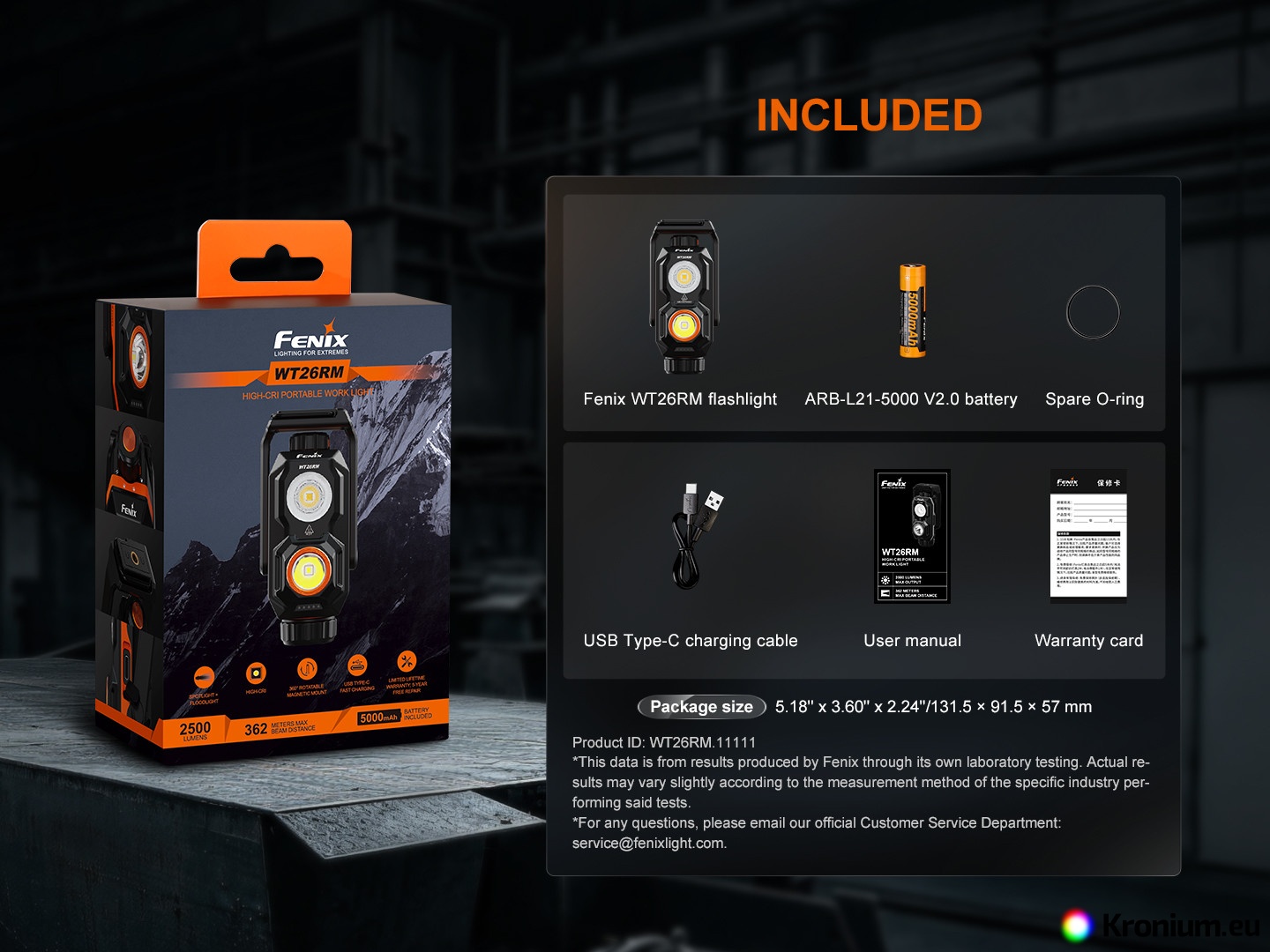

• Included: Fenix WT26R flashlight, ARB-L21-5000 V2.0 battery, USB Type-C charging cable, spare O-ring, user manual, and warranty card.

 Operating the Fenix WT26R rechargeable flashlight

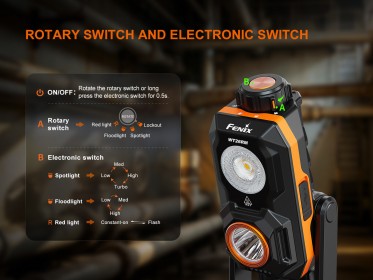

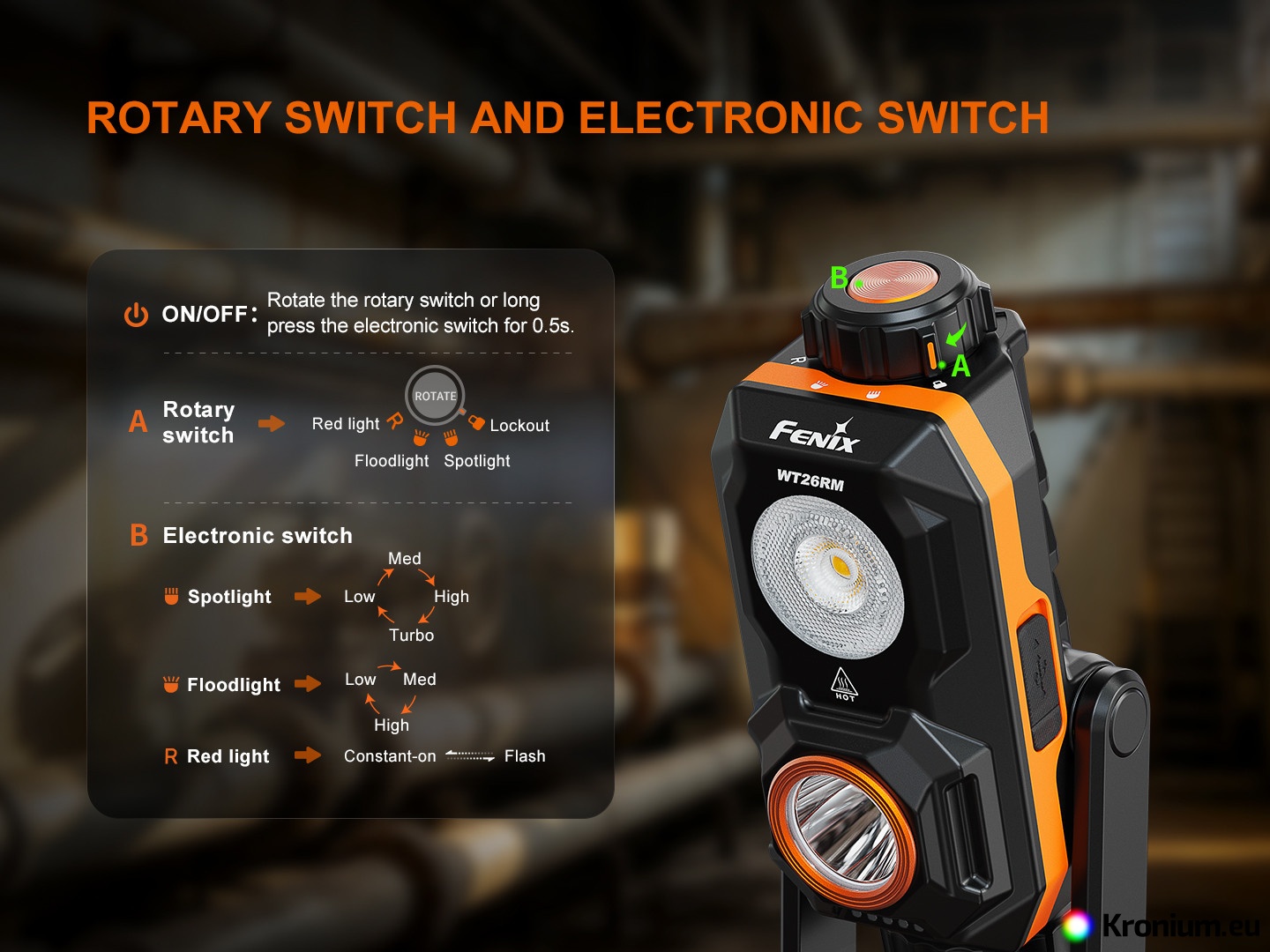

On/Off and Mode Switching - When the rotary switch is in the Lockout position (ICON), rotate it to turn on the flashlight to any other mode in the order Lockout ↔ Spotlight ↔ Floodlight ↔ Red light. The output of the selected mode is cycled by single-clicking the electronic switch located on the side of the rotary switch. In Spotlight mode: Low - Med - High - Turbo. In Floodlight mode: Low - Med - High. In Red light mode, it cycles between Constant-on and Flash. When the light is unlocked (the rotary switch is in any mode other than Lockout), press and hold the electronic switch for 0.5 seconds to turn the flashlight on or off.

Battery Replacement - Unscrew the bottom battery cover and insert the battery with the anode side (+) towards the light head. Then screw the battery cover back on completely.

Battery Level Indication - With the light turned off, single click the electronic switch to check the battery status; the LED indicator will last for 3 seconds. Five green lights on: 100-80 %, four: 80-60 %, three: 60-40 %, two: 40-20 %, one green light on or flashing red indicates 20-1 % and a critically depleted battery.

Low-voltage Warning - When the voltage level drops below the preset level, the flashlight automatically downshifts to a lower brightness level until Low output is reached. When Low output is reached, the battery level indicator blinks red to remind you to recharge or replace the battery.

Charging the Fenix WT26R

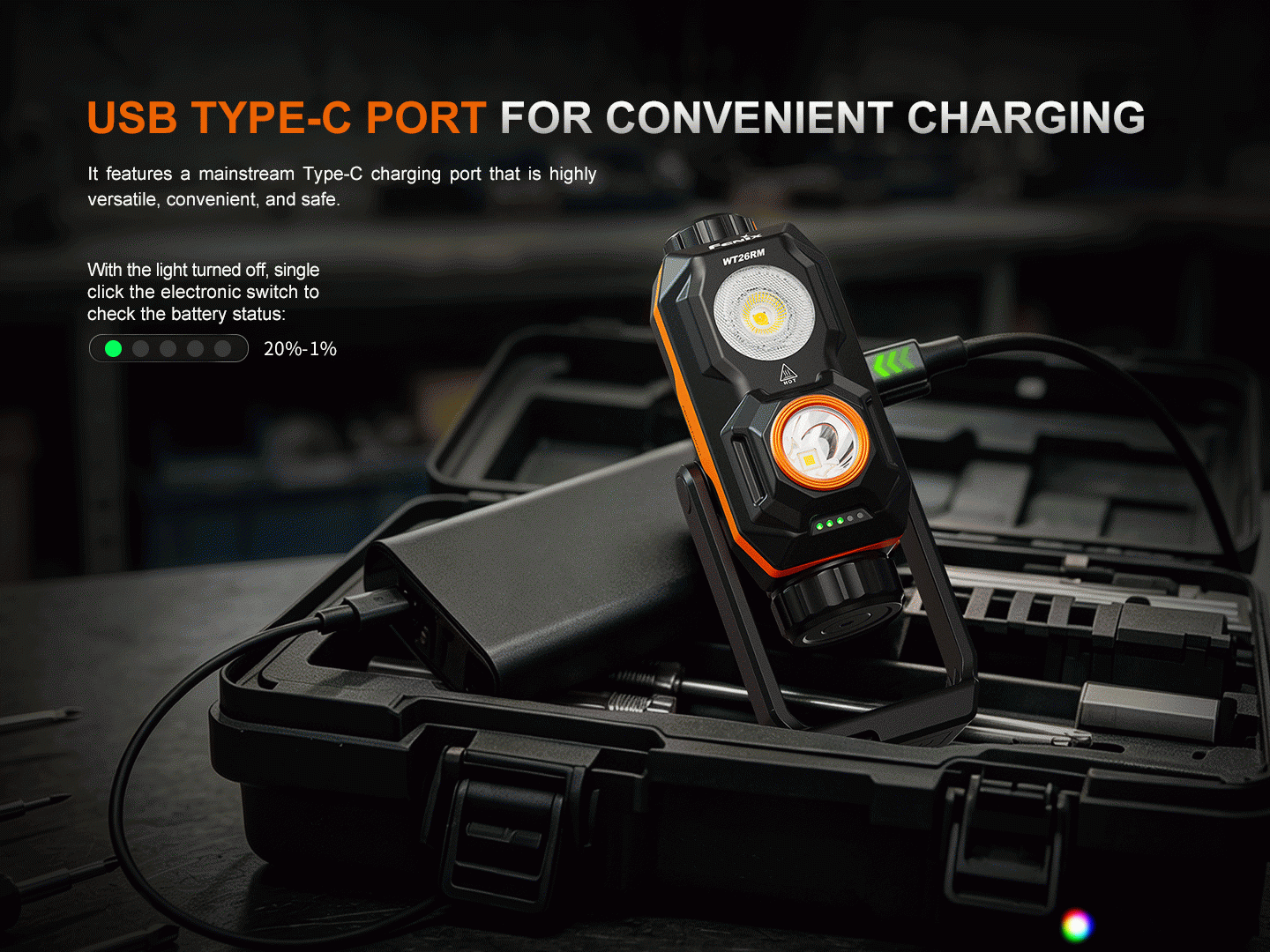

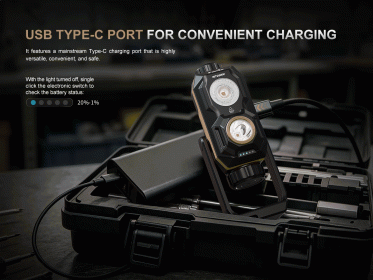

Open the anti-dust plug and connect the USB Type-C charging cable to the flashlight's charging port. When charging, the indicators will flash green. Five constant-on indicators signify that charging is completed. Once charging is completed, be sure to carefully close the anti-dust plug. The normal charging time is approximately 3.5 hours from depleted to fully charged with a 5 V/2 A (10 W) charging adapter. The flashlight can be used while charging.

Warning

• Disassembling the sealed head can cause damage to the flashlight and will void the warranty.
• Remove the battery if the flashlight will not be used for an extended period, or lock the flashlight using the rotary switch to prevent accidental activation.
• Periodic cleaning of the electrical contacts improves the flashlight's performance, as dirty contacts may cause the flashlight to flicker, shine intermittently, or even fail to illuminate for the following reasons:
  • Low battery level. Recharge or replace the battery.
  • The electrical contacts inside the flashlight are dirty. Clean them with a cotton swab soaked in rubbing alcohol.

Warranty

Five-year warranty on the flashlight, two years on the battery.
