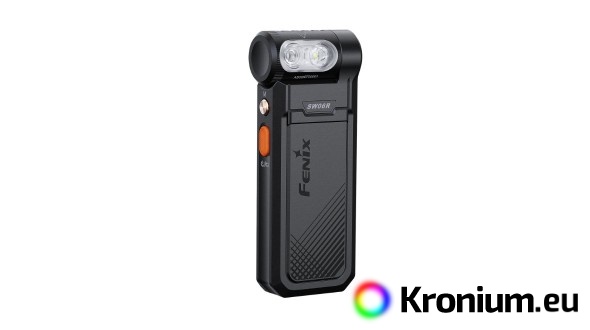

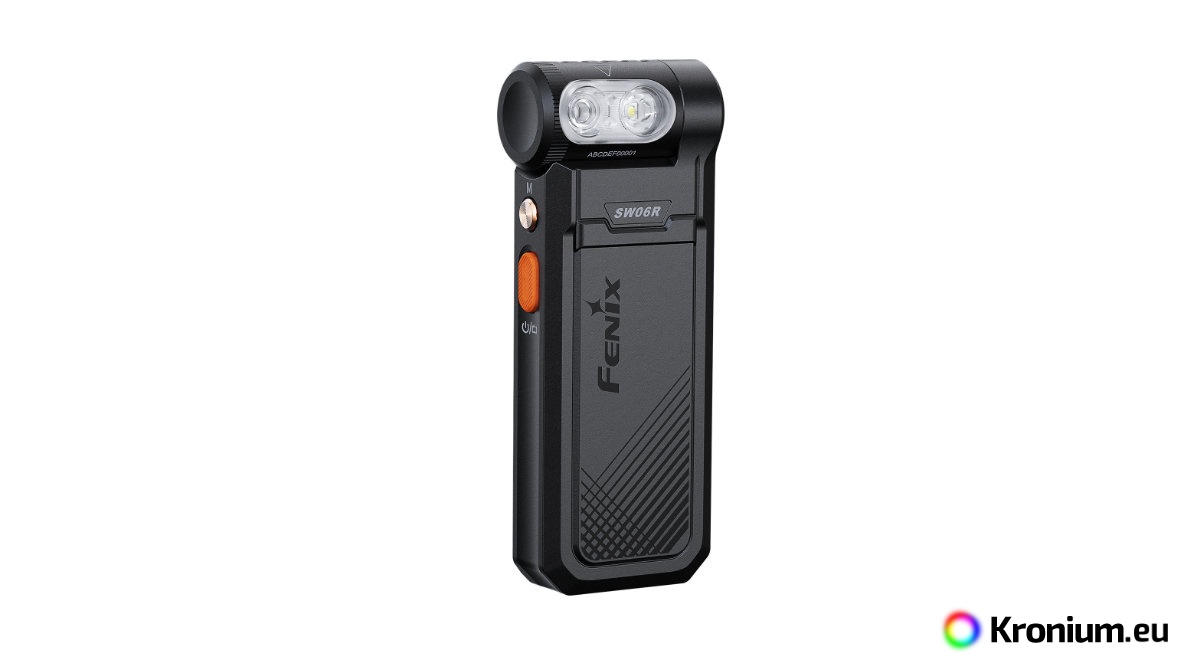

The Fenix SW06R is a multifunctional flashlight with an adjustable head, compact dimensions, and a weight of only 88 grams. It offers an output of up to 500 lumens (ANSI). The light beam evenly illuminates a wide area up to a distance of 100 meters. It is powered by a built-in 1300 mAh battery, which is charged via a modern USB-C port on the side of the flashlight. Available are a total of four white light modes, red and blue light including flashing modes, and newly also a powerful UV light (365 nm). The flashlight comes with a two-way sturdy clip, allowing you to attach it to a pocket, backpack strap, or cap visor, leaving your hands free while lighting. Thanks to the magnetic tail, you can attach it to anything made of iron. The LED head is adjustable within a 200-degree range. Combined with the mounting options and precise 360° aiming, this makes the flashlight highly practical. The SW06R will be used primarily by law enforcement and other professionals on duty (e.g., for document checking and UV fluorescence detection), but it is also great for EDC. Thanks to its small size, flat shape, and low weight, you can carry it with you at all times.

All parameters of the flashlight (luminous flux, battery runtime, waterproofness, impact resistance, and beam distance) are measured in accordance with the ANSI/PLATO FL1 standard.

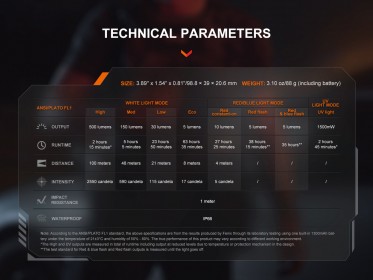

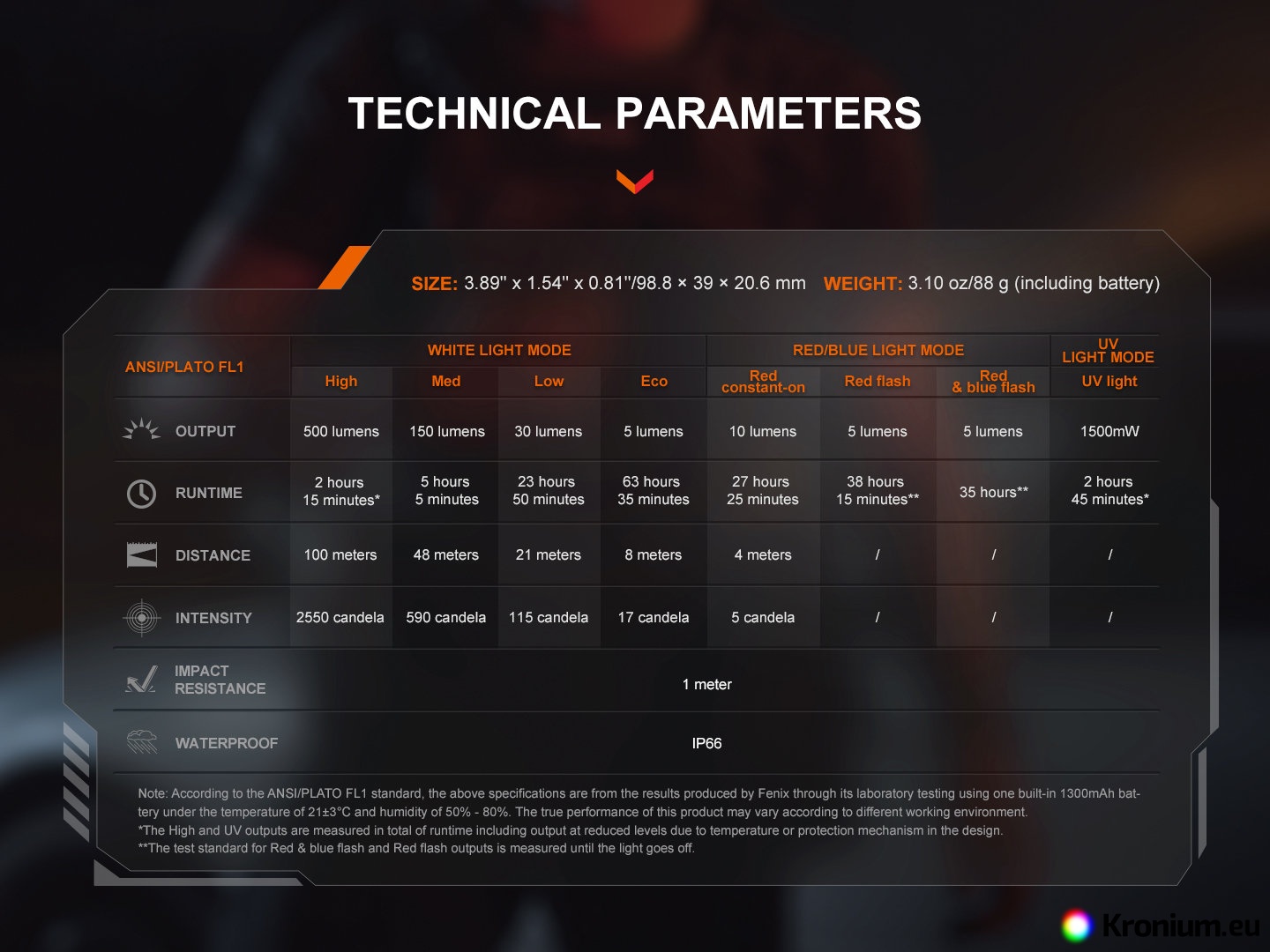

Fenix SW06R Flashlight Parameters

• Utilizes high-performance white, red, blue, and UV LEDs with a lifespan of 50,000 hours.
• Four white light modes: 500 lumens (2 h 15 min) - 150 lumens (5 h 5 min) - 30 lumens (23 h 50 min) -> 5 lumens (63 h 35 min).
• Three color light modes: 10 lumens red constant-on (27 h 25 min) - 5 lumens red flash (38 h 15 min) - 5 lumens red & blue flash (35 hours).
• One UV light mode: 1500 mW (wavelength 365 nm) with a runtime of 2 h 45 min.
• The flashlight is powered by a built-in 1300 mAh rechargeable battery.
• Battery level indicator located in the main switch.
• Charging via a modern USB-C port, which is inner waterproof.
• Memory for the last selected mode (white/color/UV) and, for white light, the output level as well.

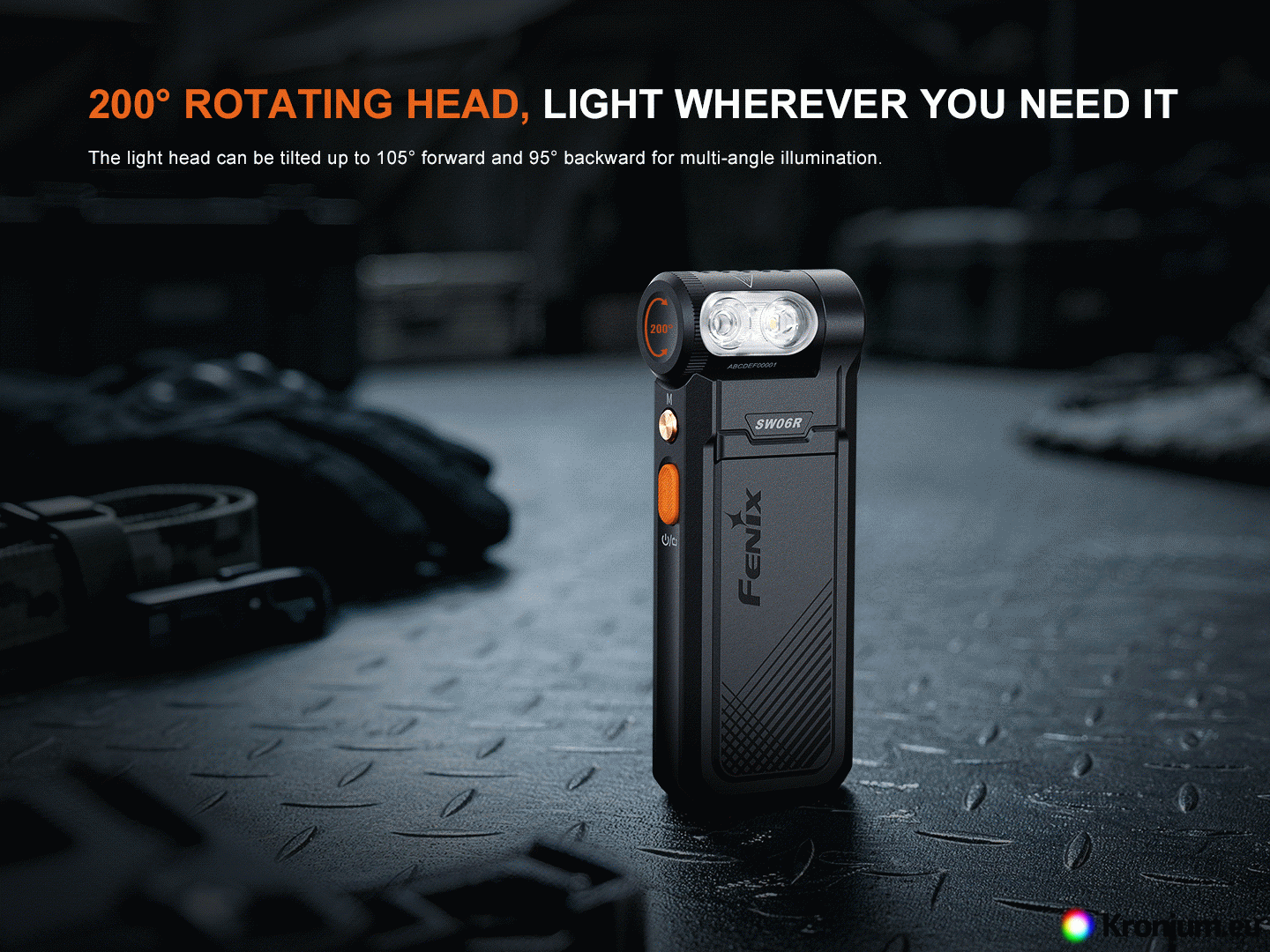

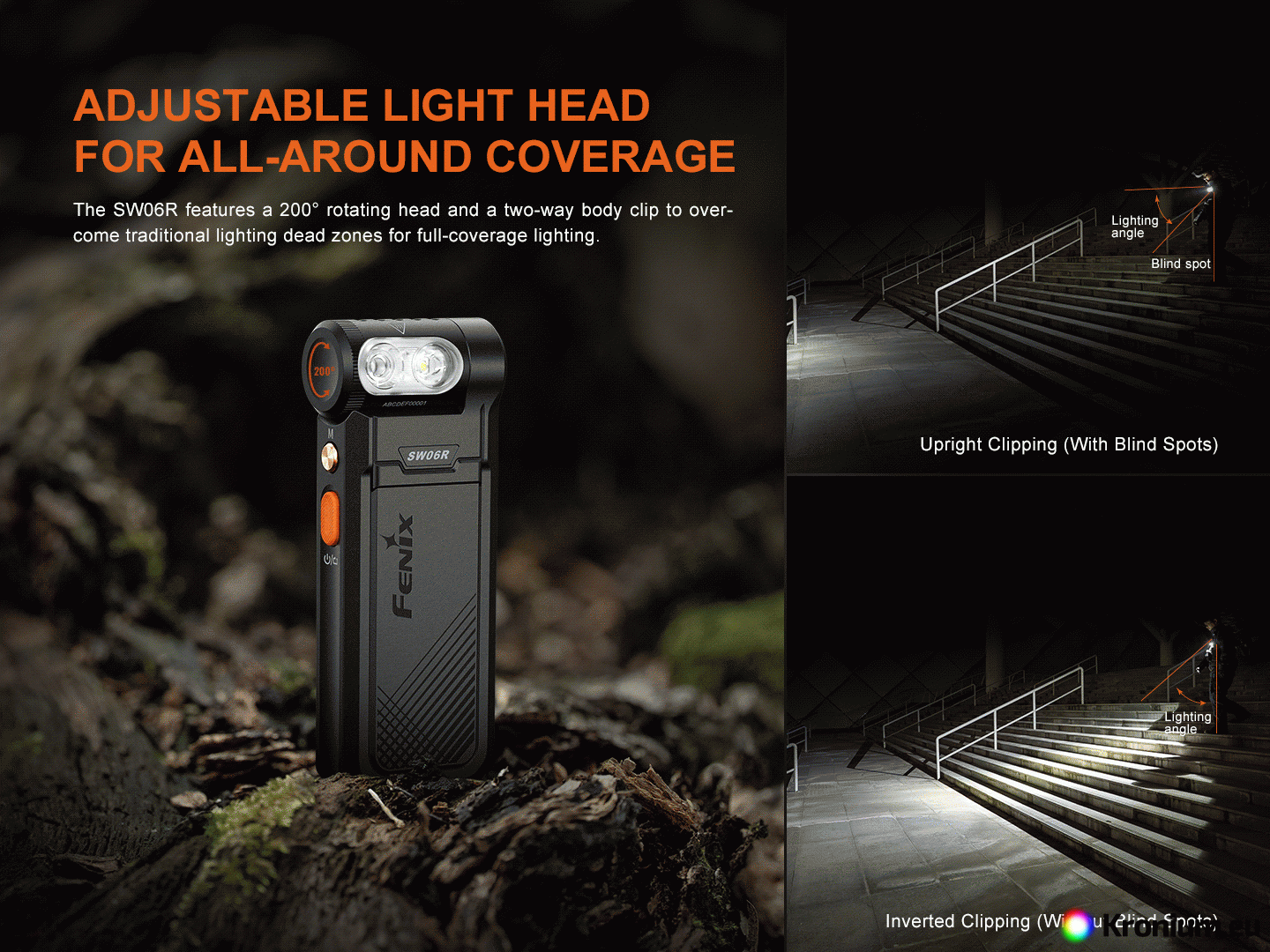

• The head with LEDs is adjustable within a 200-degree range.
• Two-way clip for attachment to a backpack strap, pocket, cap visor, etc.
• Magnetic tail for attachment to anything iron.
• CNC-machined aluminum alloy body with anti-scratch finish.
• Dimensions: 9.88 cm (length) x 3.9 cm (width) x 2.06 cm (height).
• Beam distance: 100 meters (2550 cd).
• Weight: 88 grams (including battery).

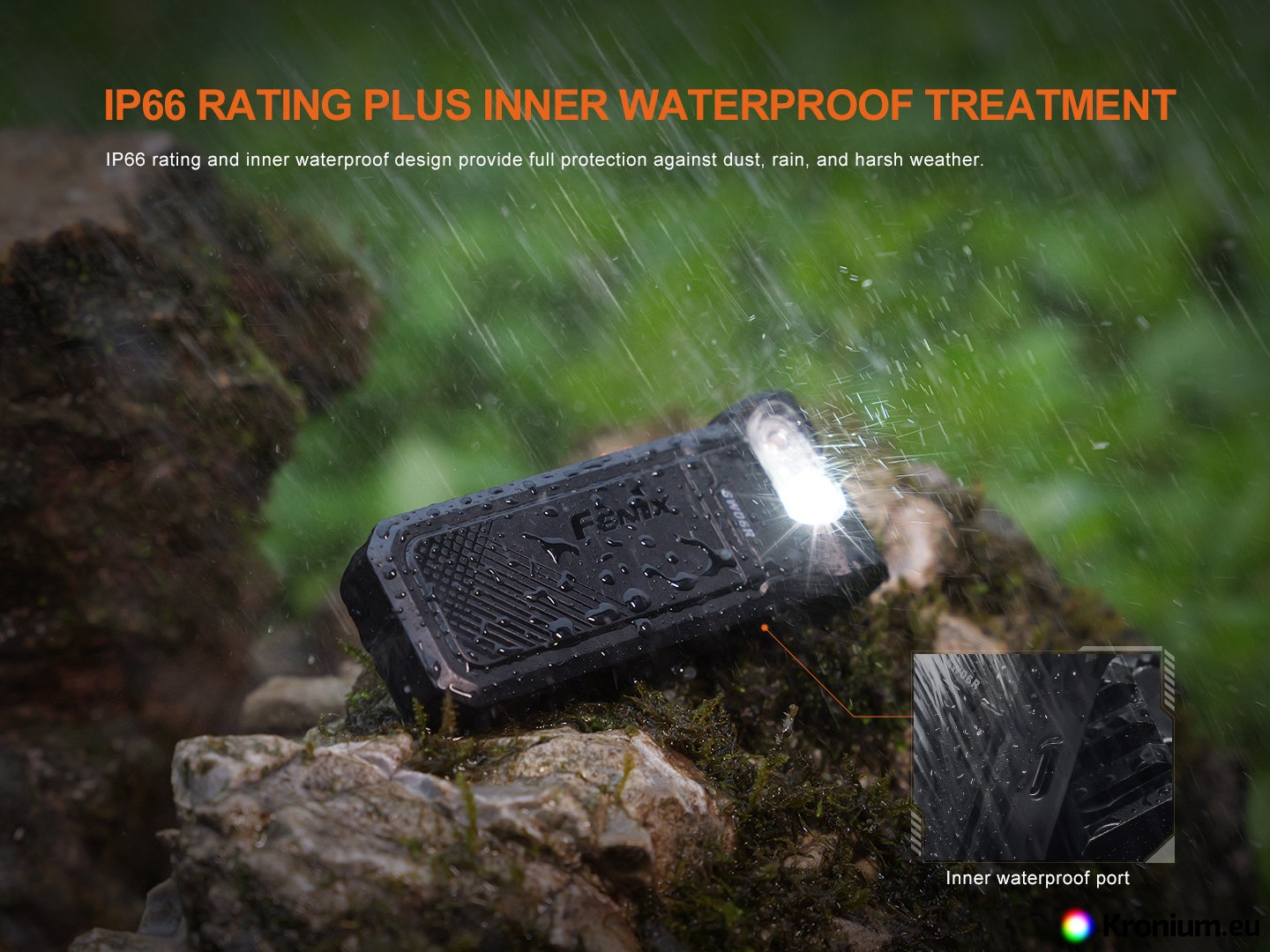

• Waterproof and dustproof according to the IP66 standard (protection against strong jets of water from all directions).

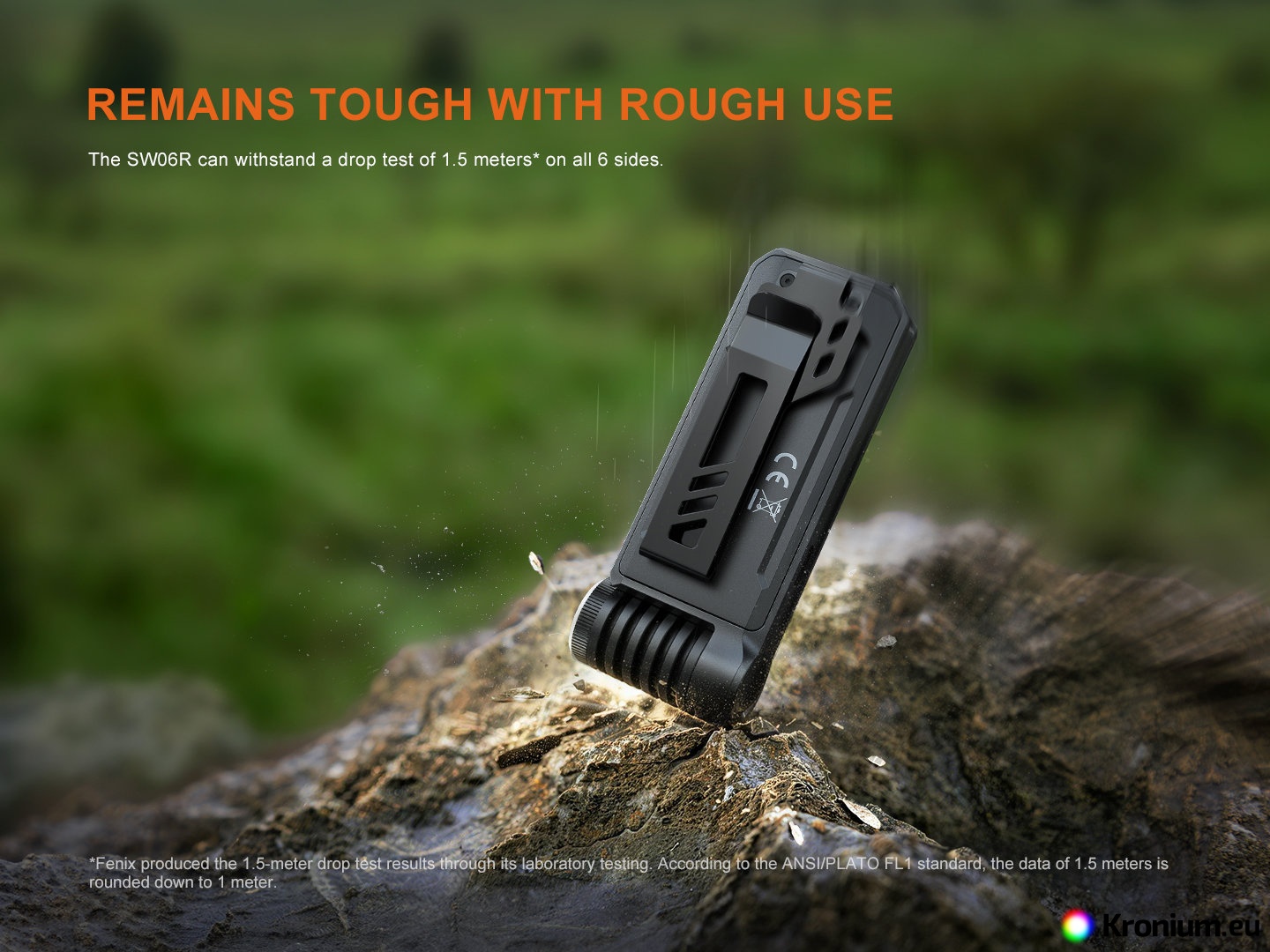

• Impact resistant to falls from a height of 1 meter.
• Package includes the flashlight and a USB-C charging cable.
• Optional accessories include a USB mains adapter and a car USB adapter.

Usage

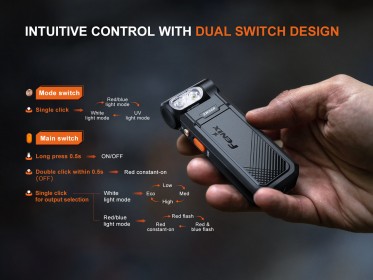

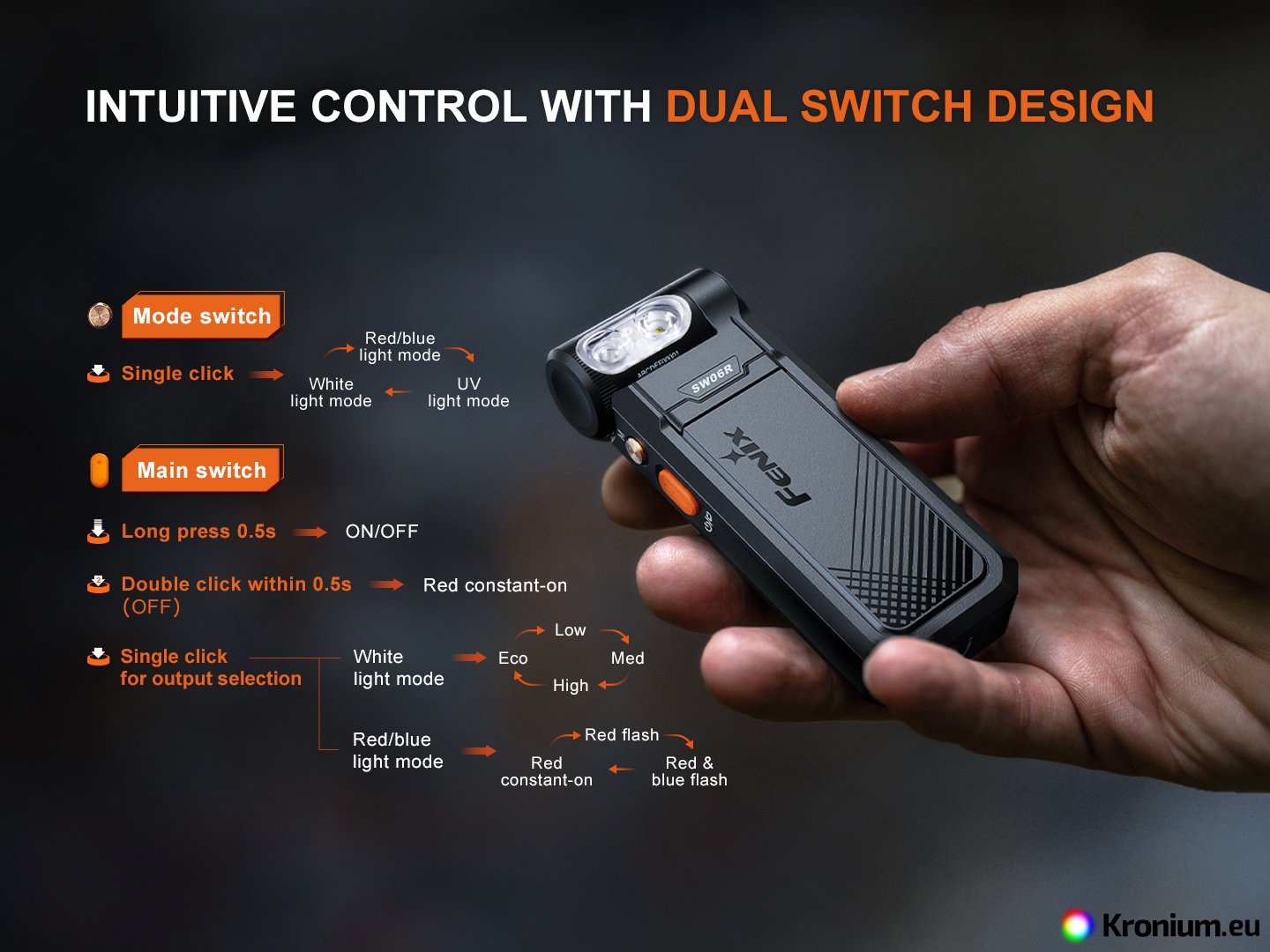

On/Off: The flashlight is turned on and off by pressing and holding the main switch (approx. 0.5 s). Quickly double-clicking the main switch while the light is off instantly activates the red & blue flash mode.

Mode Switching: With the light turned on, a single click on the secondary (mode) switch cycles through the modes: white light -> red/blue light -> UV light.

Output Selection: Output levels within a given mode are switched by a single click on the main switch. In white light mode, the output cycles through 5 - 30 - 150 - 500 lumens. In color light mode, it cycles through red constant-on - red flash - red & blue flash. The UV light has one fixed output level.

Intelligent Memory Circuit: The flashlight memorizes the last selected mode (white/color/UV). When turned on again in white light mode, the flashlight will always turn on in the last selected output level. For the color light mode, it defaults to red constant-on upon activation.

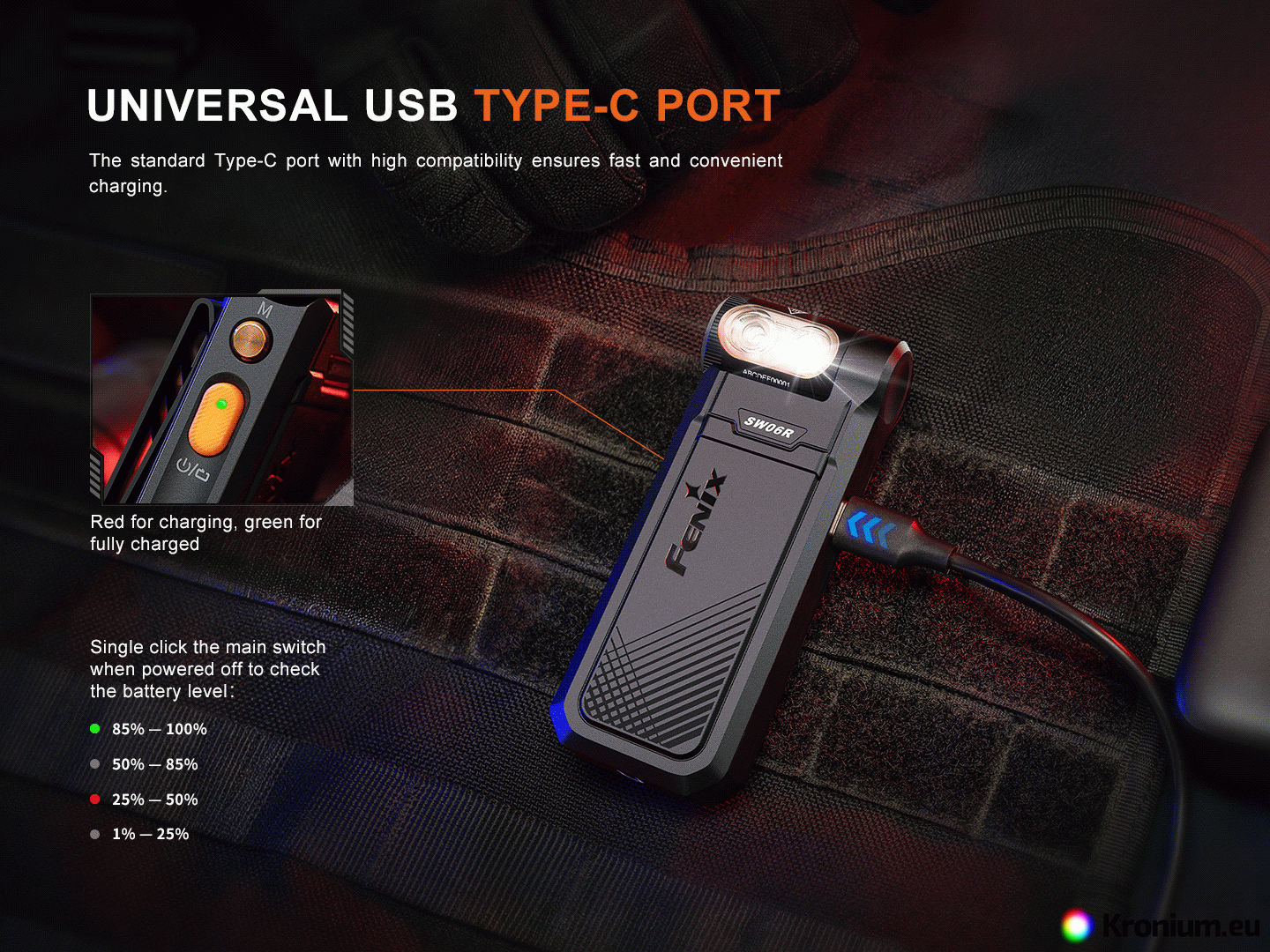

Battery Level Indication: With the light turned off, single click the main switch once; a small indicator LED in the switch will light up for three seconds. Green light indicates a battery level of 100-85%, green flashing indicates 85-50%, red light signals 50-25%, and red flashing means the battery is below 25%.

Low-Voltage Warning: When the voltage drops below 3 V, the flashlight is programmed to downshift to the lowest output level (Eco). The indicator diode in the main switch will then blink red to remind you to recharge the battery.

Charging

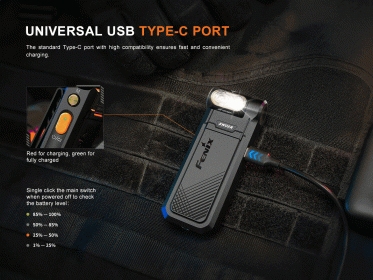

• Connect the flashlight using a USB-C cable to a computer, USB mains adapter, or car USB adapter. Any mobile phone charger with a USB-C connector can also be used (charging voltage 5 V, max. power 5 W).
• During charging, the indicator LED in the switch glows red, and turns green when fully charged.
• The charging time is approx. 2 hours. The flashlight can be used in all modes while charging (actual brightness may vary depending on the battery level).
• The built-in battery has no memory effect, so the flashlight can be recharged at any time.

Warning

• Do not disassemble the sealed parts yourself, as this will void the warranty.
• If the light flickers, shines intermittently, fails to switch to higher output modes, or does not turn on at all, the battery is depleted - please recharge the flashlight.
