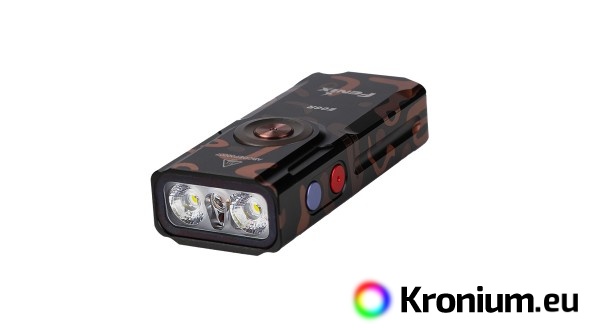

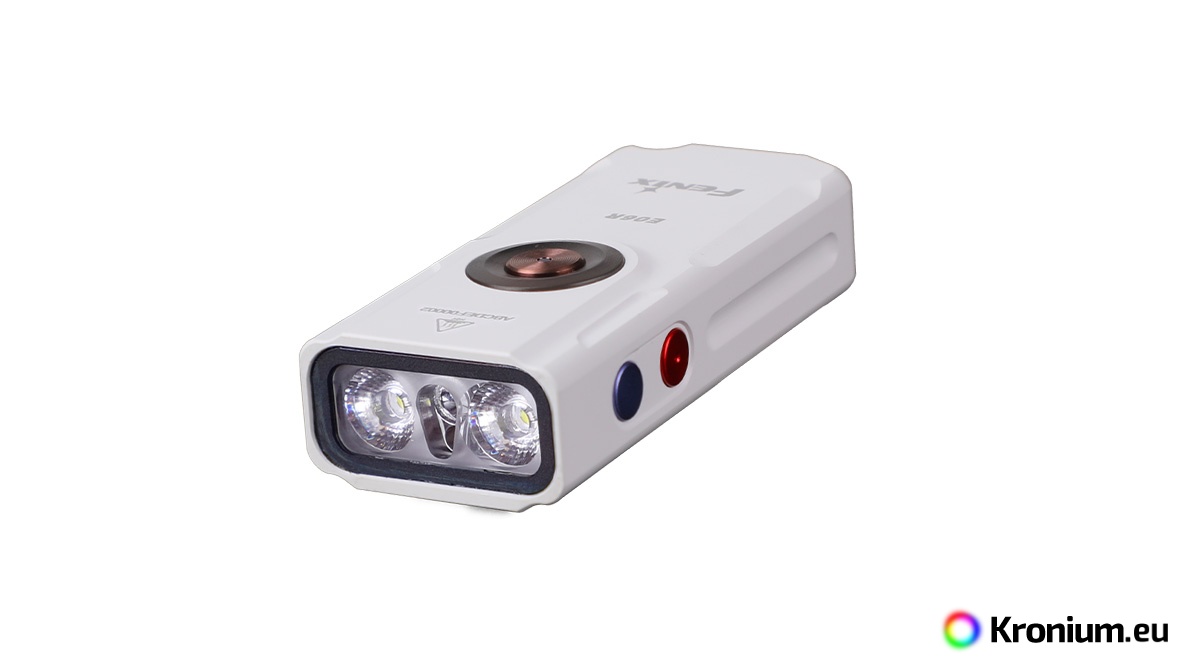

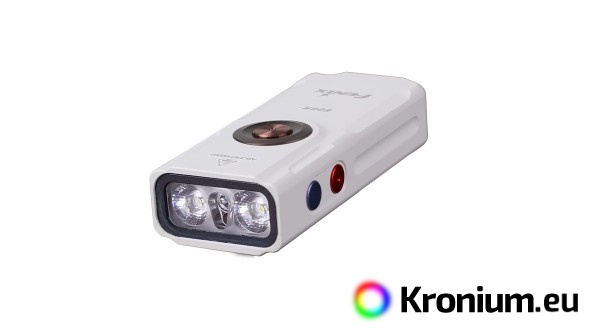

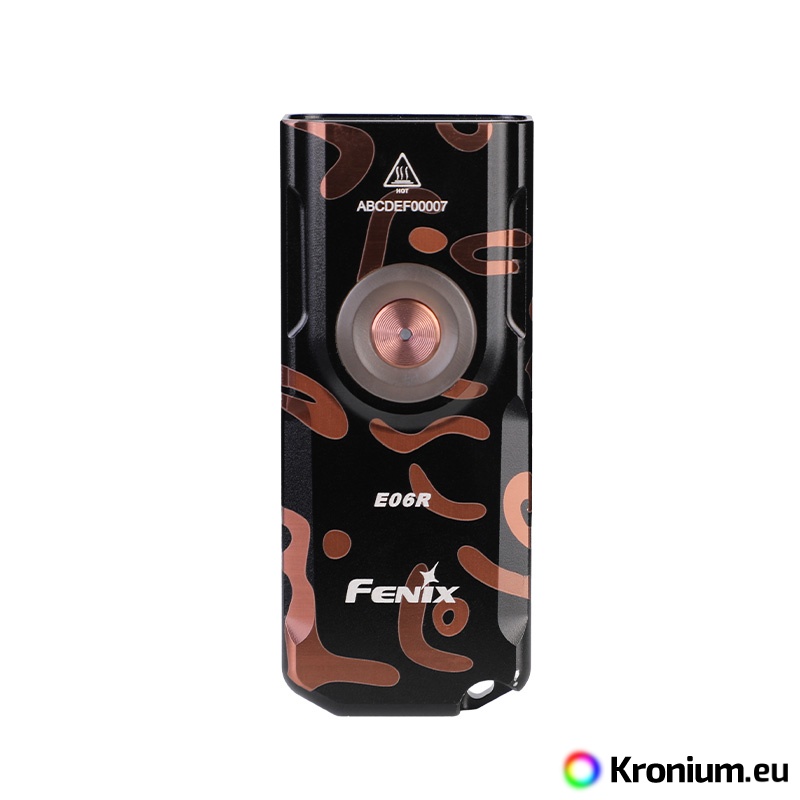

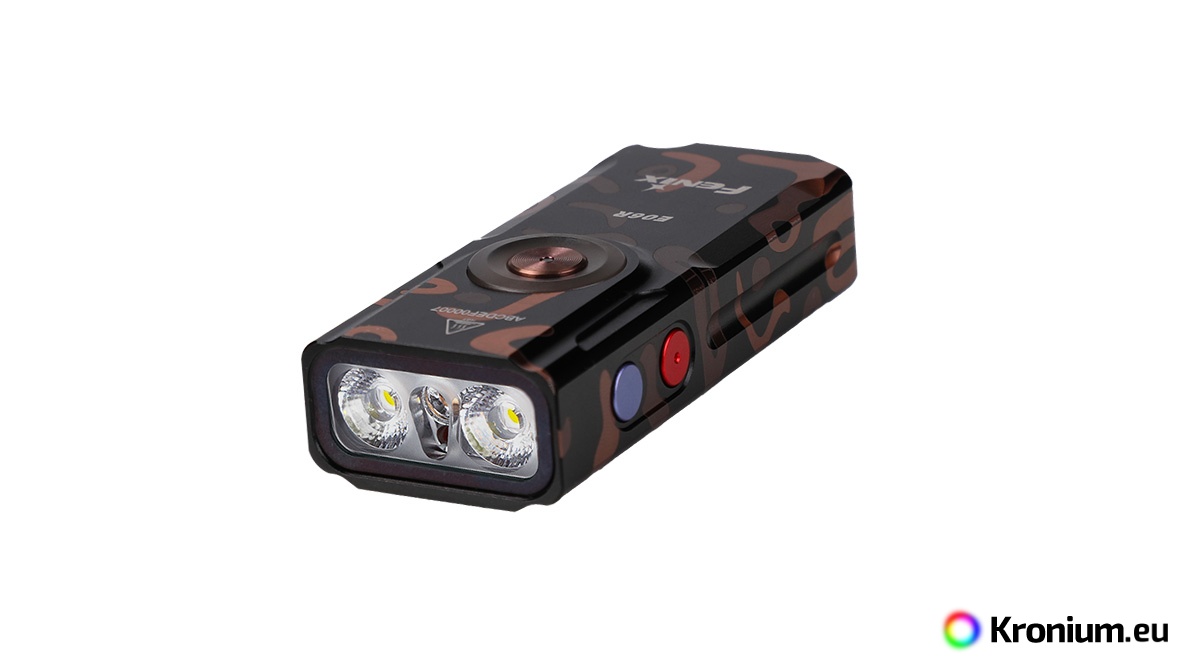

Fenix E06R is a larger version of the successful miniature rechargeable flashlight Fenix E03R V2.0. Compared to it, it not only has more power, but also an ultraviolet light and a laser pointer. Despite its compact size and weight of just 54 grams, it offers a high lumen output of up to 700 lumens (ANSI). The light cone evenly illuminates a wide area up to 110 meters. Power is provided by an integrated 750 mAh battery that charges via the modern USB-C connector on the side of the flashlight. There are a total of four white light modes, a UV light with a wavelength of 365 nm with a power of 580 mW, a red laser (pointer ≤0.39 mW) and several modes of the so-called Breathing light - lights around the switch button with 0.5 to 1 lumen, which you can use for unobtrusive signalling or identification of the flashlight location. The flashlight comes with a sturdy clip, so you can attach it to your pocket, backpack strap or hat visor to free your hands while using the light. Thanks to the magnet in the foot of the flashlight, you can attach it to anything iron. The battery indicator in the button is also practical. The flashlight is great for EDC and thanks to its small size, flat shape and weight, you can keep it with you at all times.

All flashlight parameters (lumen output, battery life, waterproof, shockproof and range) are measured in accordance with ANSI/NEMA FL 1-2009.

Fenix E06R Flashlight Specifications

• Two white Luminus SST-12 LEDs, a 365 nm UV diode Luminus SST-08, and a Class 1 red laser are used, all with a 50,000 hour lifetime.
• Four white light modes: 700 lumens (1.3 hours) -> 150 lumens (2.8 hours) -> 30 lumens (12 hours) -> 5 lumens (60 hours).
• Ultraviolet light: 580 mW/365 nm.
• Red laser (pointer): ≤0.39 mW.
• Pulsating light around the switch button (Breathing light): red blinking, blue blinking, red and blue pulsing of 1 lumen strength and RGB pulsing of 0.5 lumen strength.
• The flashlight is powered by a built-in 750 mAh rechargeable battery.
• Battery charge status indication in button.
• Charging via modern inner waterproof USB-C connector.
• Memory for the last set white light power mode.
• Intelligent overheat protection.

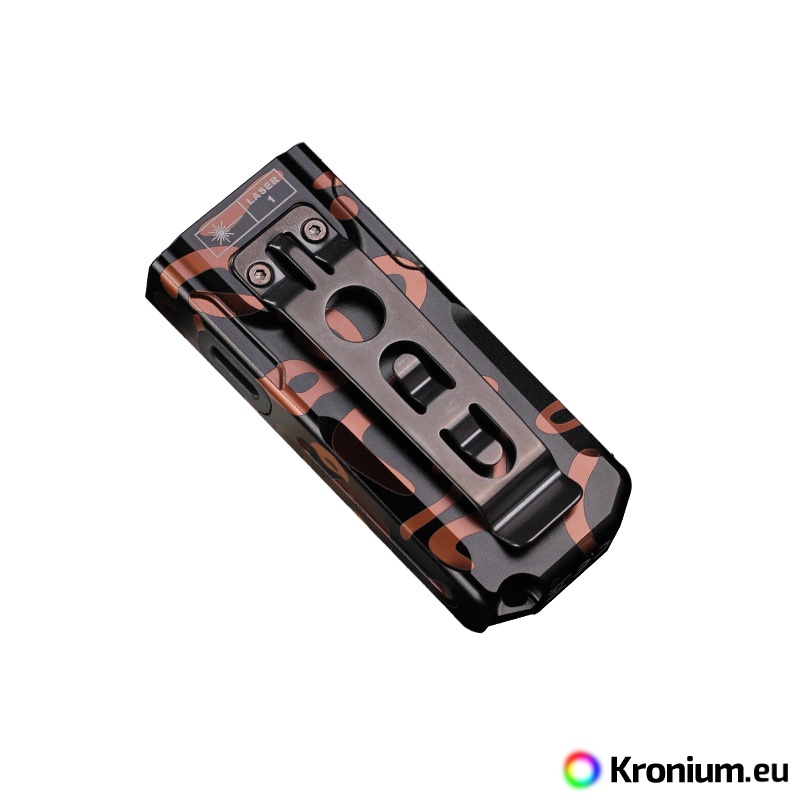

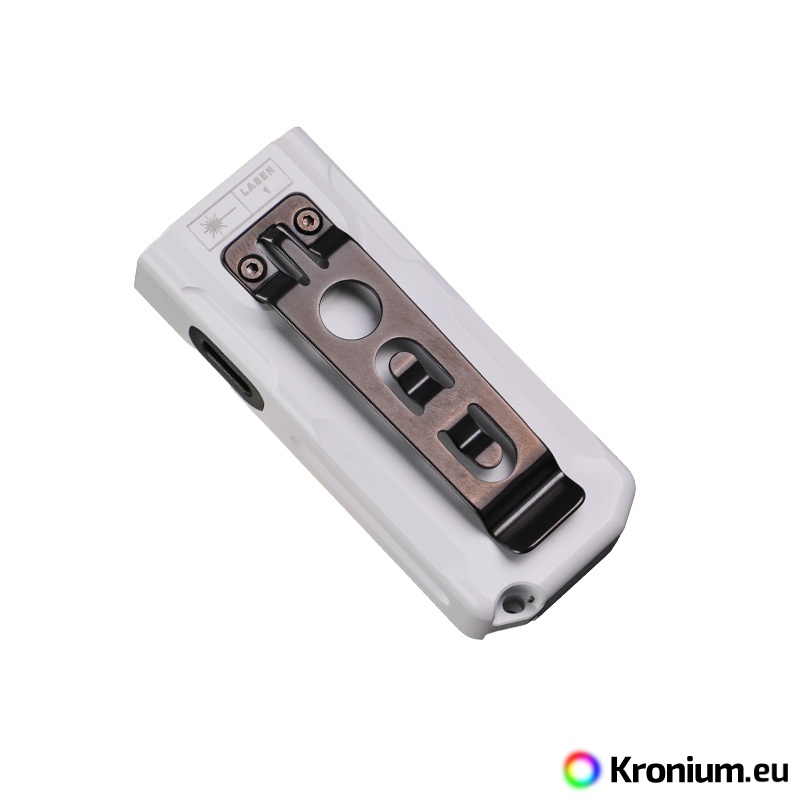

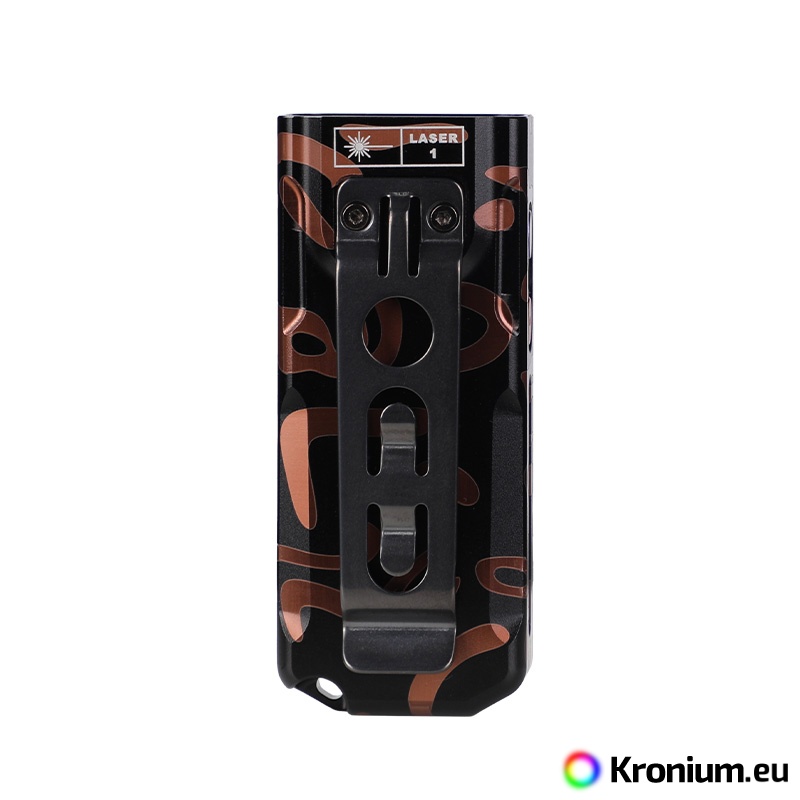

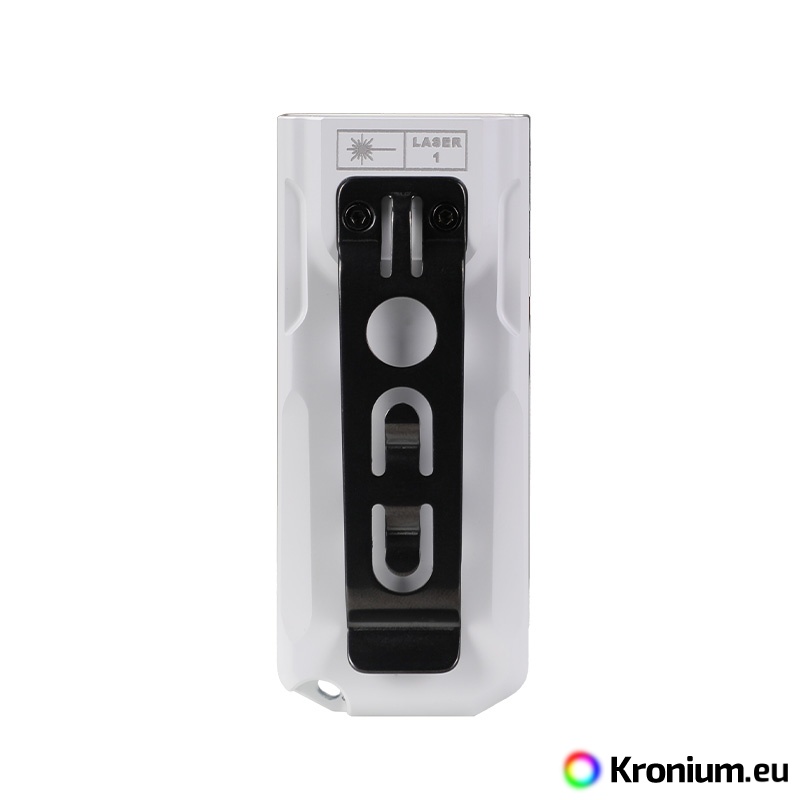

• Clip for attaching to backpack strap, pocket, cap visor, etc.
• CNC milled aluminum alloy body with Type III hard anodized anti-scratch finish.
• Dimensions 6.9 cm (length) x 2.9 cm (width) x 1.6 cm (height).
• Illuminance 110 meters (3100 cd).
• Weight 54 grams (including battery).
• Waterproof to IP66 standard (spraying with strong jets of water from all directions).
• Resistant to falls from a height of 1 meter.
• Includes key ring, hand strap and USB-C charging cable.
• Can be purchased reduction from micro-USB to USB-C.

Using the EDC flashlight

To turn the white light on and off, hold the main button for approximately 0.5 seconds. You can switch power modes at any time during operation by pressing the button. To turn on the Breathing light, turn off the flashlight and press the button twice quickly. To turn off, hold for 0.5 seconds.

Blacklight is turned on and off by holding the purple button on the side of the flashlight for approximately 0.5 seconds.

Red laser is turned on and off by holding the red button on the side of the flashlight for approximately 0.5 seconds.

The control buttons can be locked to prevent the flashlight from turning on by itself, e.g. when transported in luggage - to lock, turn off the flashlight and hold the red and purple buttons on the side of the flashlight simultaneously for 2 seconds. The flashlight will then flash twice to signal locking. To unlock, hold the button again for 2 seconds.

Battery charge indication - With the flashlight off, press the main button once briefly, then the small LED in the button will light for three seconds. A green light indicates a 100-85% charged battery, a green flash indicates 85-50%, a red light indicates a 50-25% charged battery, and a red flash indicates a battery less than 25% charged.

Overheat protection- If the temperature of the flashlight exceeds 65°C, the power will be automatically reduced. Once the temperature drops below 65°C the power will increase again.

Discharged Battery Warning - the flashlight automatically switches to the lowest power mode and the indicator LED in the switch button starts flashing red.

Charging

• Plug the flashlight via USB-C connector into a computer, USB network adapter or USB car adapter. Alternatively, any mobile phone charger with a USB-C connector can also be used for charging.
• During charging, the indicator LED in the button glows red, after a full charge it glows green.
• The battery used does not suffer from memory effect, so the flashlight can be recharged at any time.

Warning

• Do not disassemble the sealed parts yourself, it will violate the warranty.
• If the flashlight does not switch to higher power modes or does not light up, the battery is dead - charge the flashlight.
