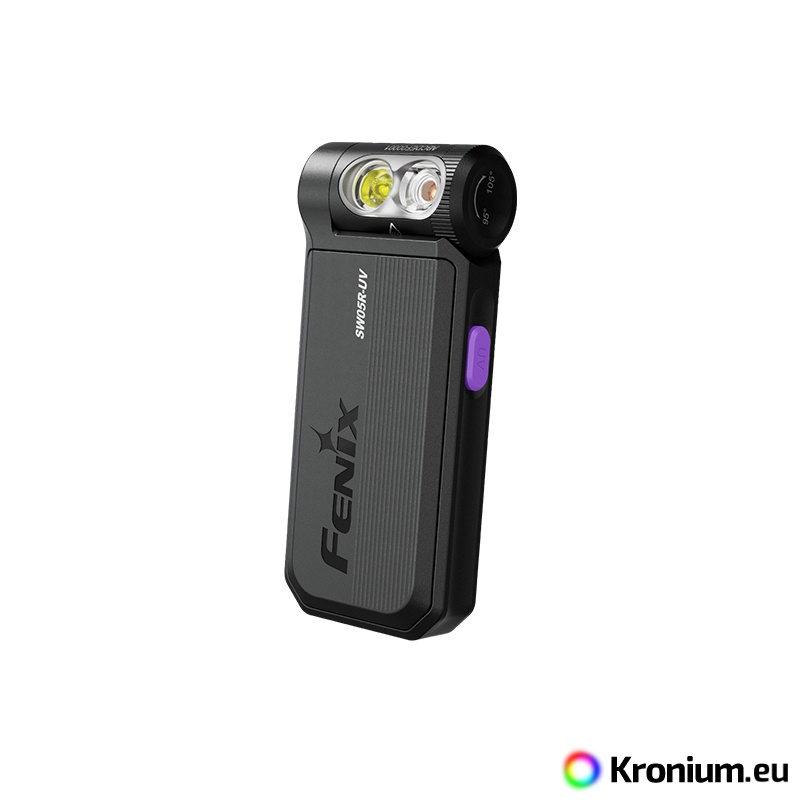

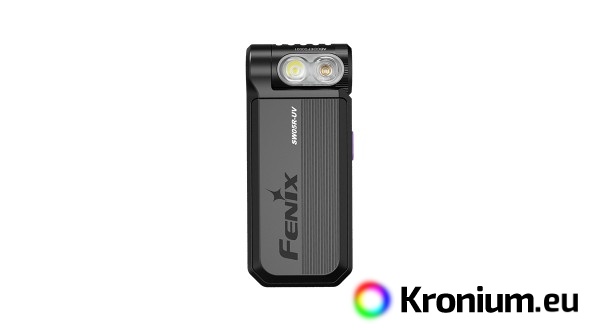

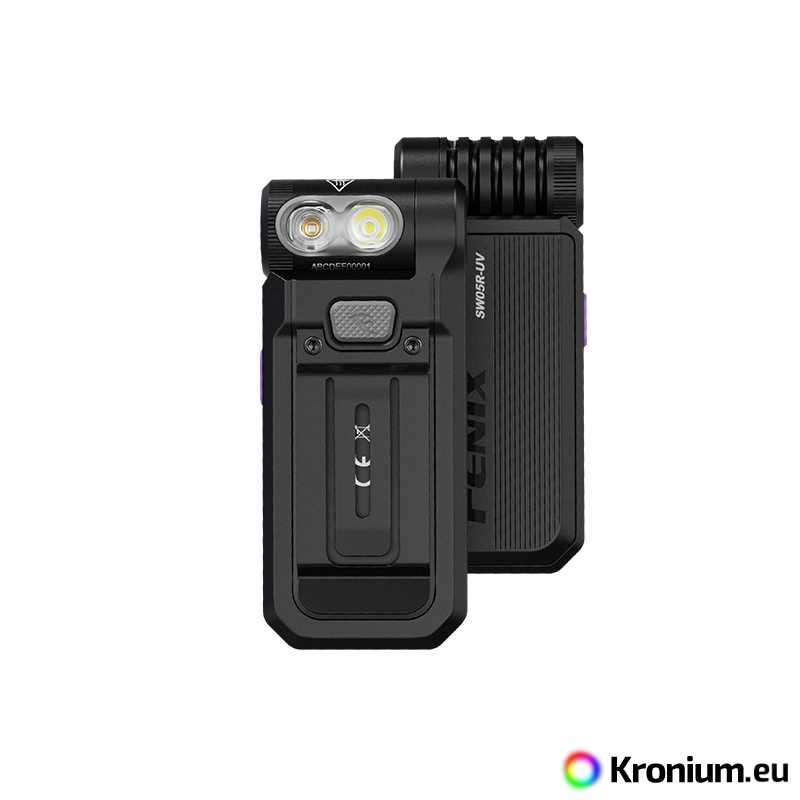

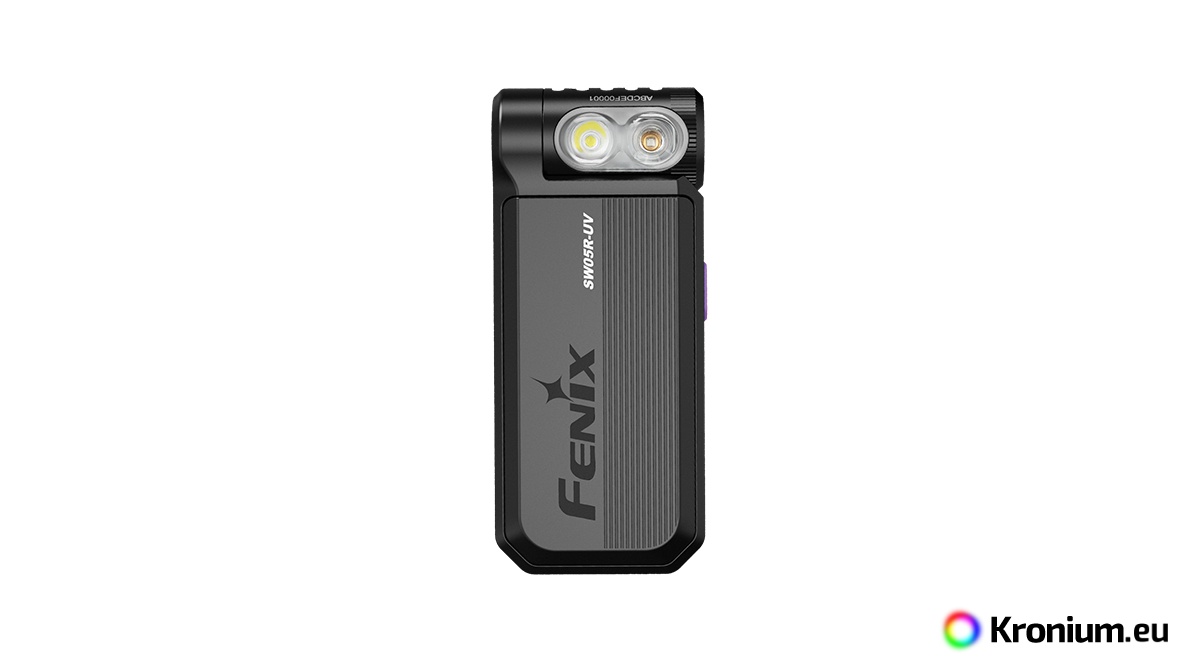

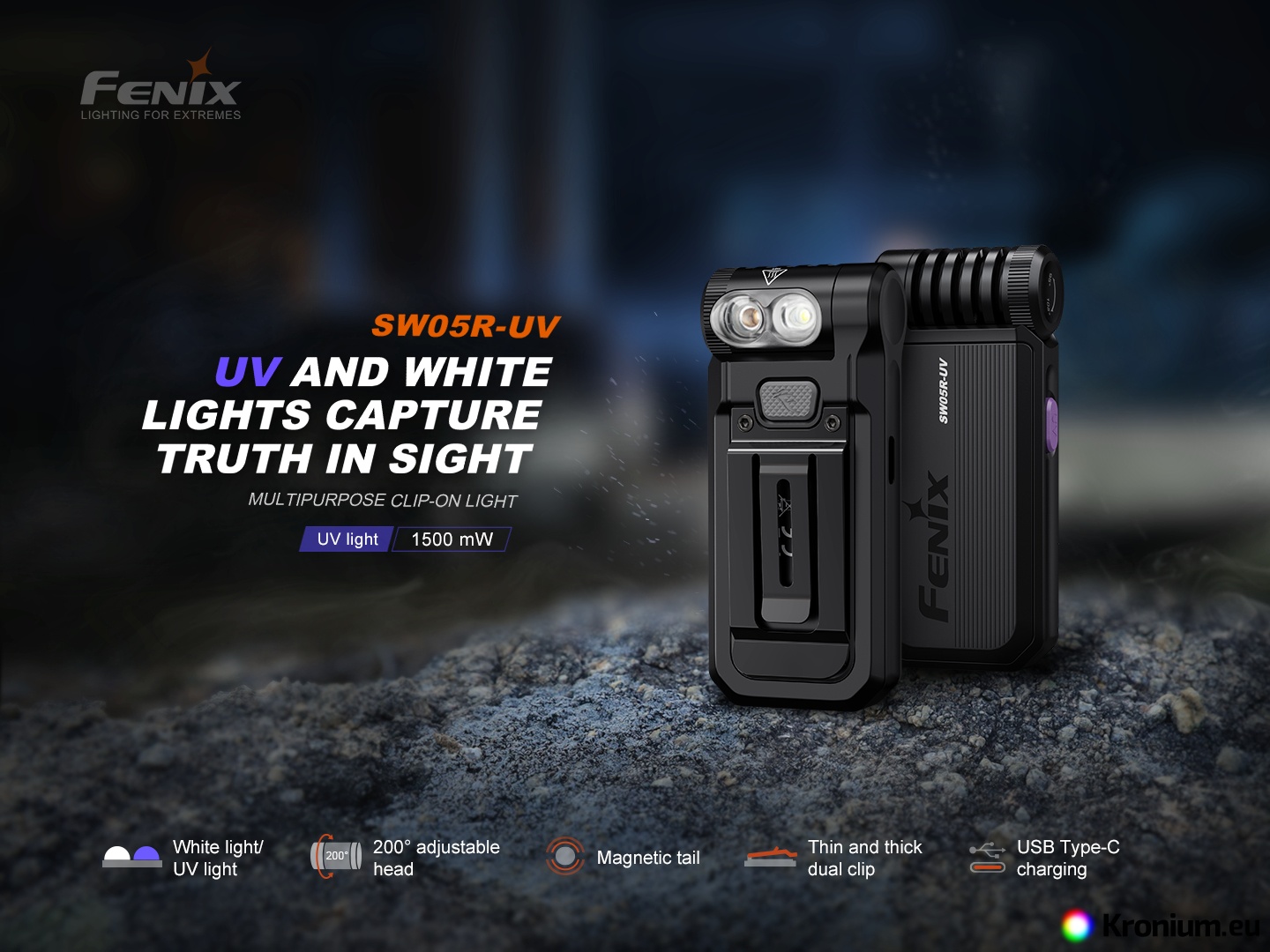

Fenix SW05R-UV is a multifunction flashlight with a rotatable head, compact dimensions and a weight of just 55 grams. It offers a light output of up to 150 lumens (ANSI). The light cone evenly illuminates a wide area up to 39 meters. Power is supplied by an integrated 700 mAh battery that charges via the modern USB-C connector on the side of the flashlight. There are a total of three white light modes and UV light with a wavelength of 365 nm at 1500 mW. The flashlight comes with a strong clip so you can attach it to your cap, backpack strap or hat visor to free your hands while shining. Thanks to the magnet in the foot of the flashlight, you can attach it to . This makes the flashlight in combination with mounting options very practical. The SW05R will be used especially by police officers and other professionals on duty and on the job, but it is also great for EDC. Thanks to its small size, flat shape and weight, you can keep it with you at all times.
All flashlight parameters (lumen output, battery life, waterproof, shockproof and range) are measured in accordance with ANSI/NEMA FL 1-2009.

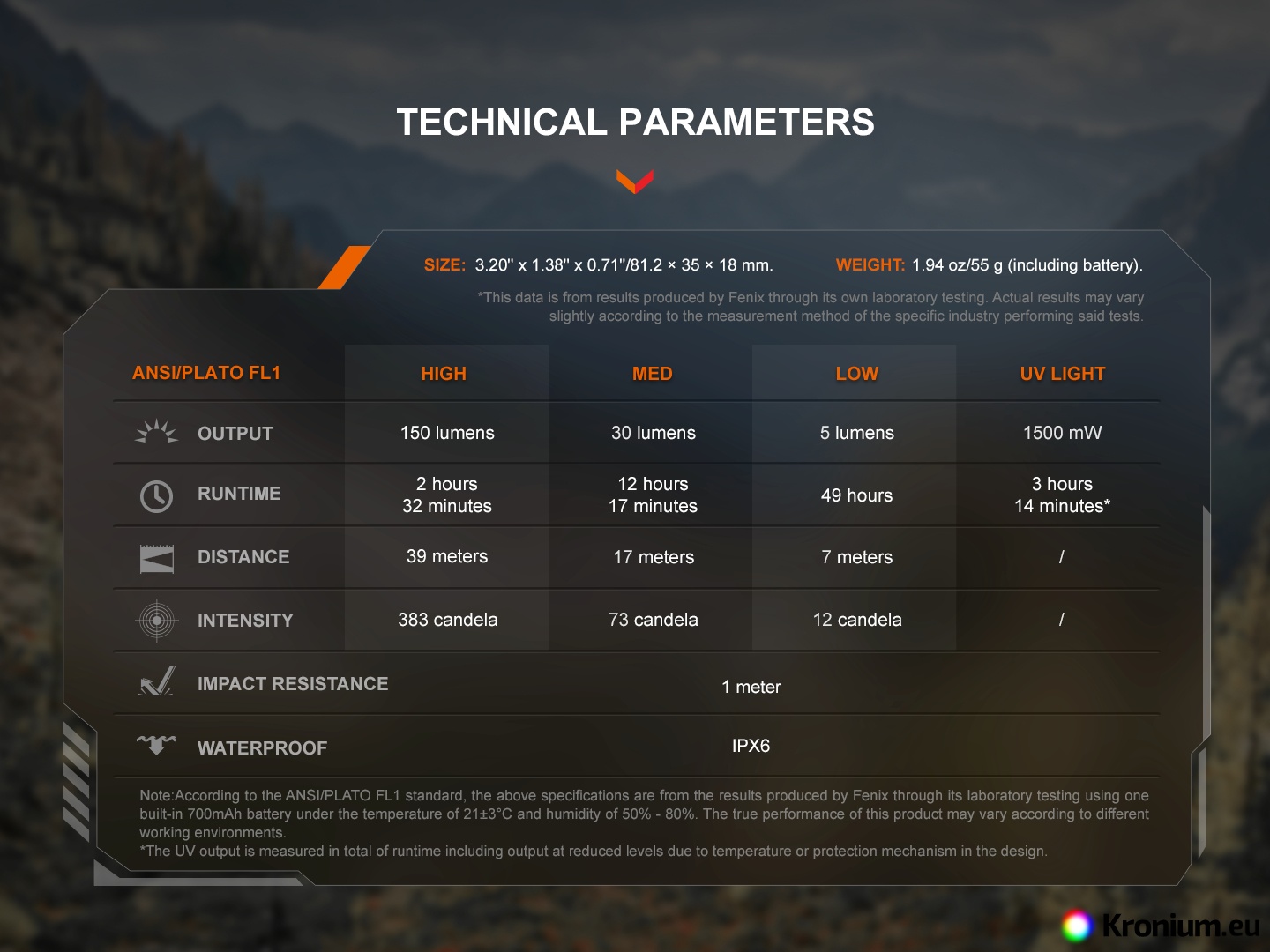

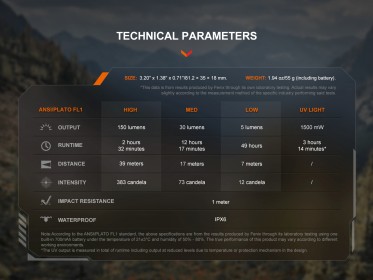

Fenix SW05R-UV Flashlight Specifications
- White LED and UV LED both with 50,000 hours lifetime are used.

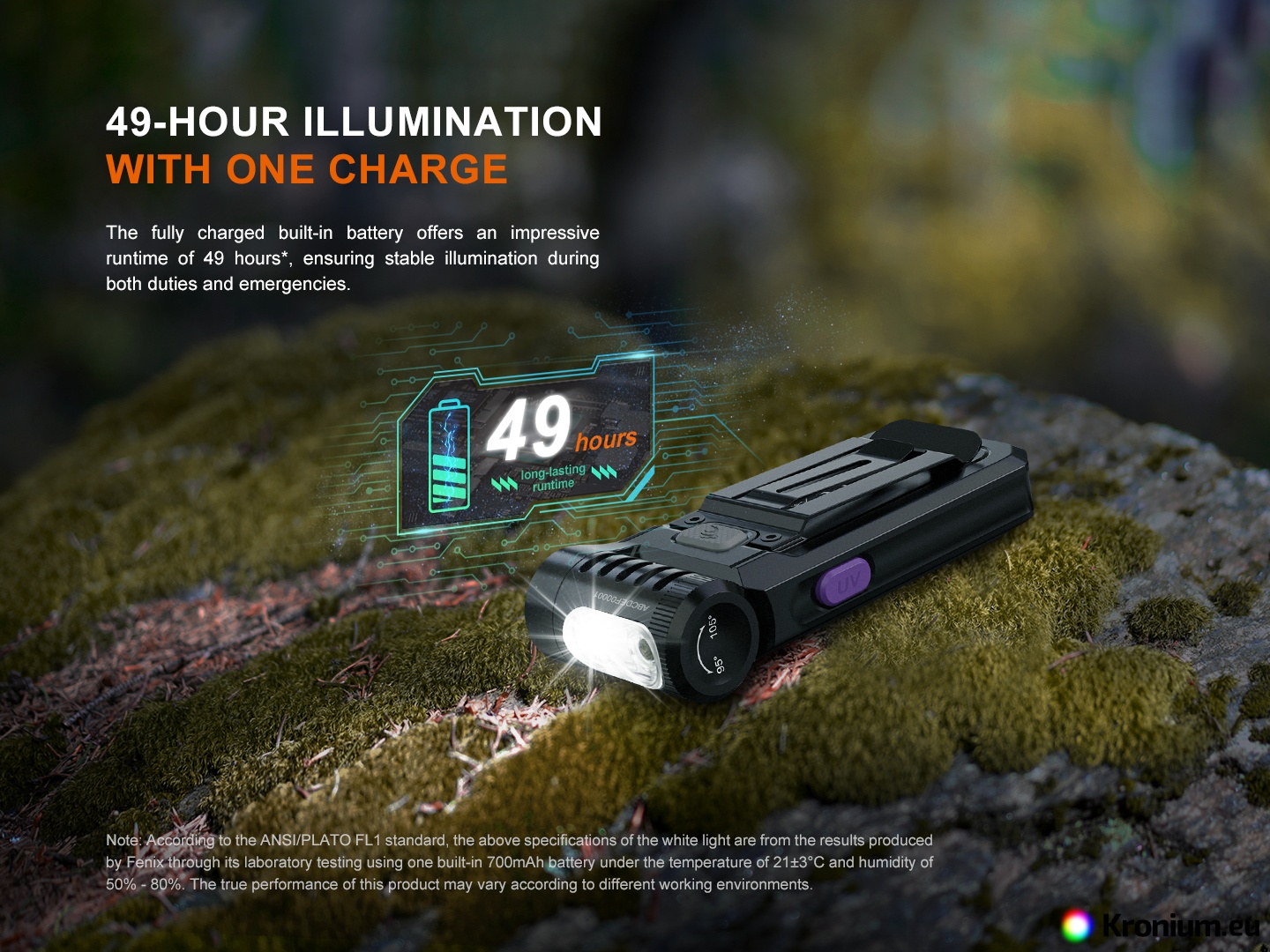

- Three white light modes: 150 lumens (2.5 hours)-> 30 lumens (12.3 hours)-> 5 lumens (49 hours).
- UV light: 1500 mW (3.25 hours).
- The flashlight is powered by a built-in rechargeable battery with a 700 mAh capacity.
- Battery charge status indication in the button.

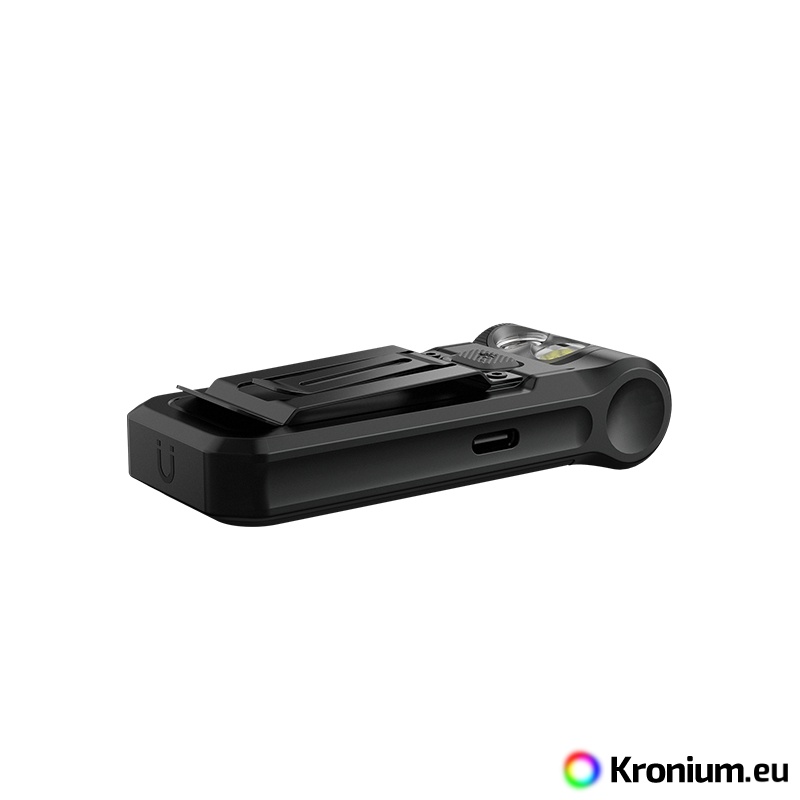

- Charging via a modern USB-C connector, which is waterproof inside.
- Memory for the last set white light power mode.

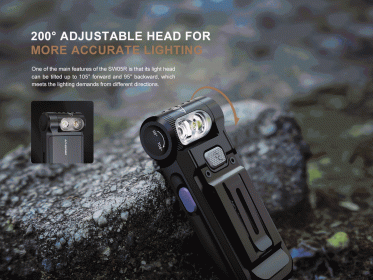

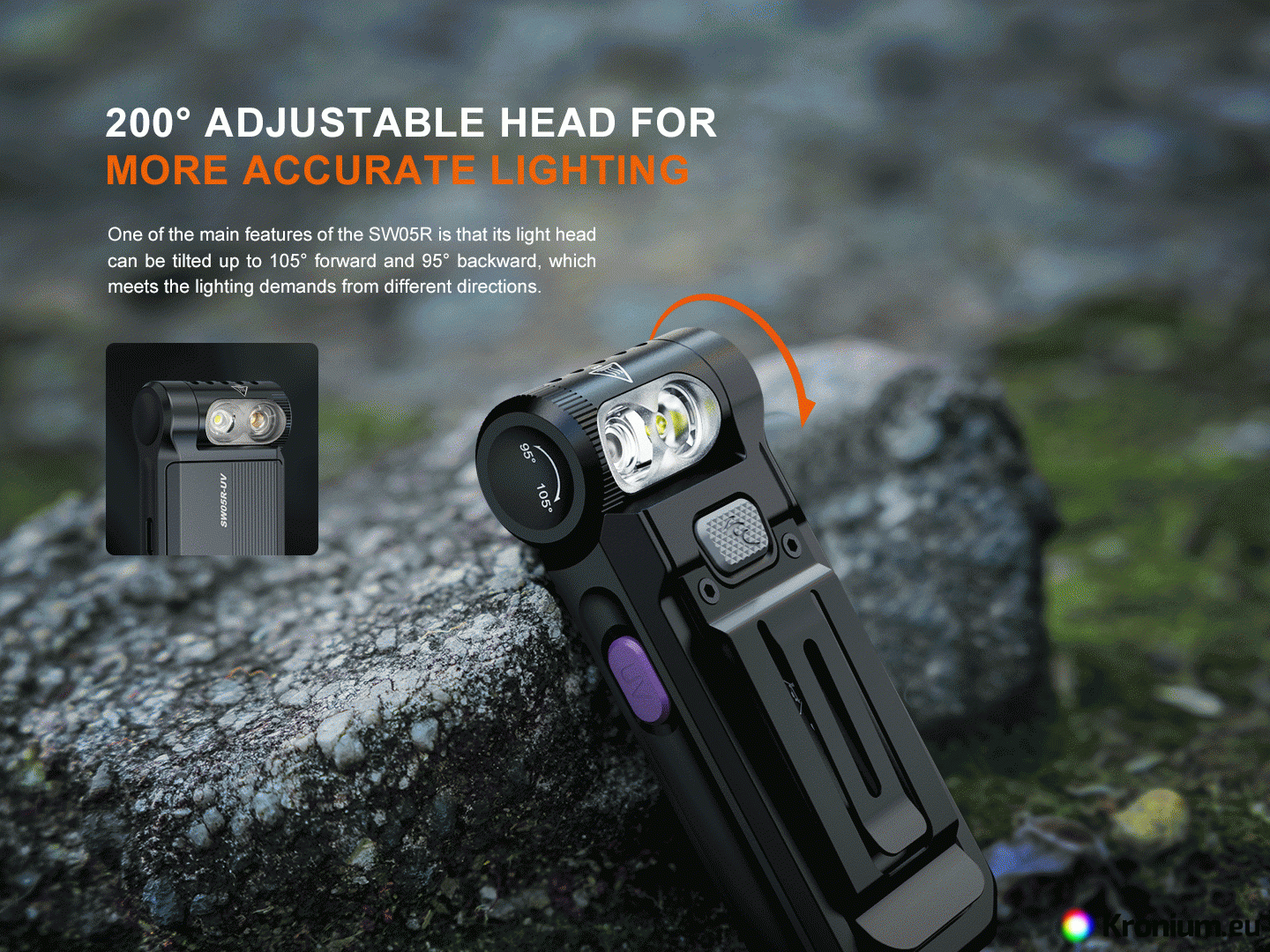

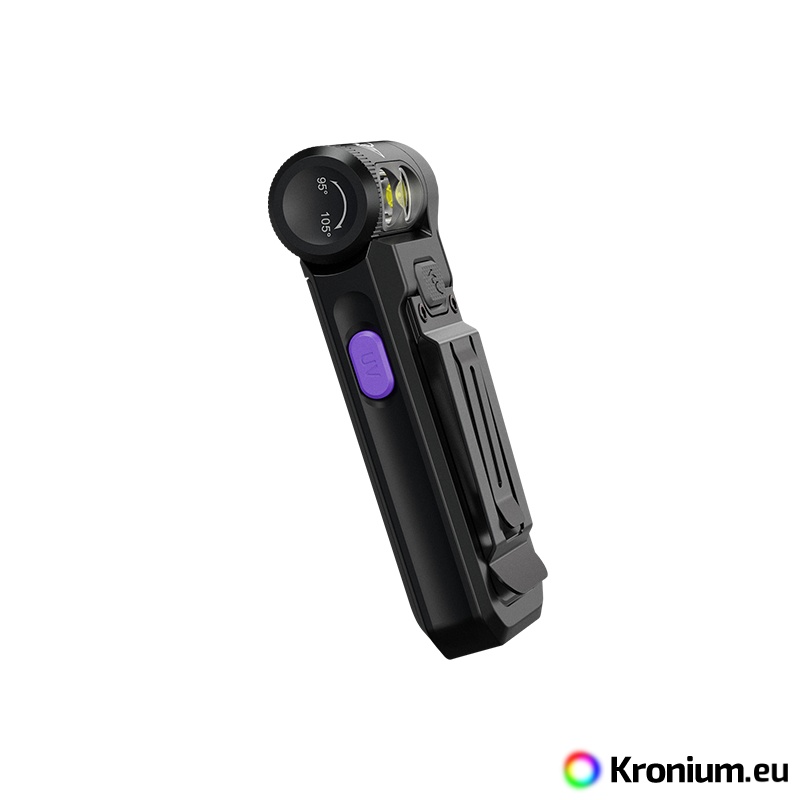

- Head with LEDs is rotatable in 200 degree range.

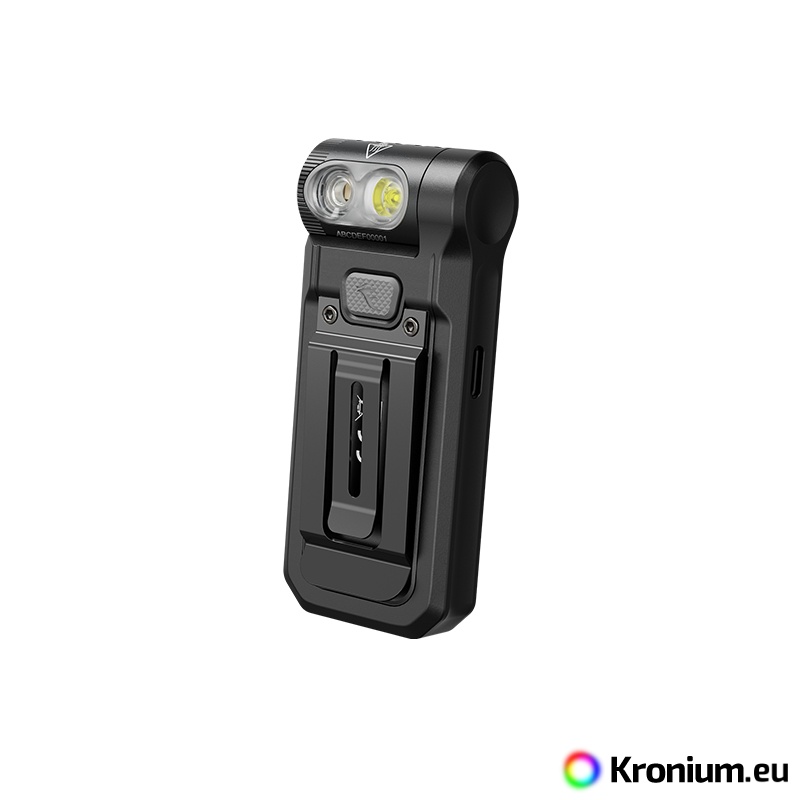

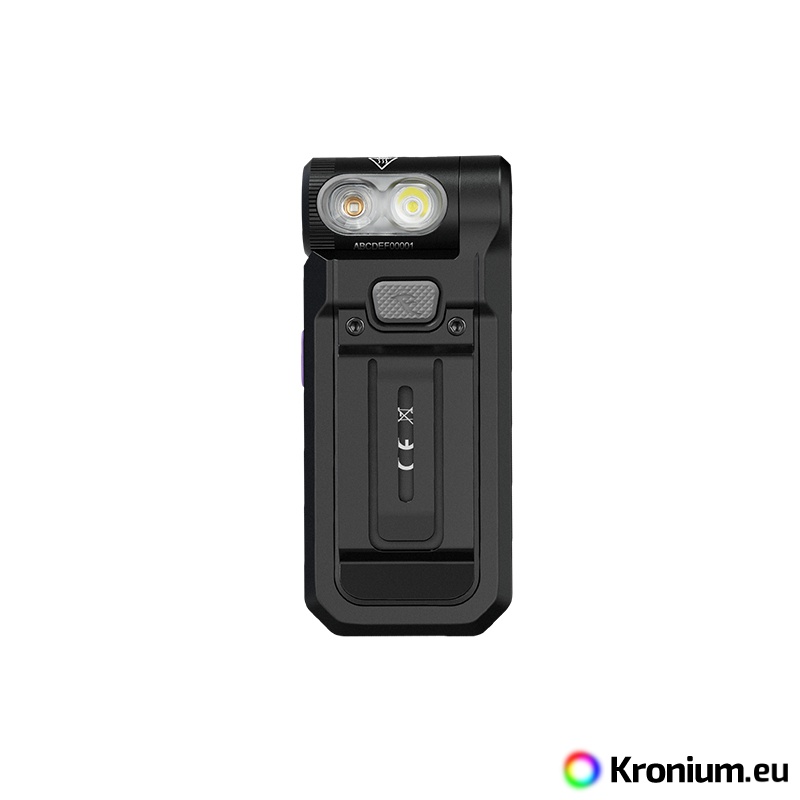

- Clip to attach to backpack strap, behind pocket, on hat visor, etc.

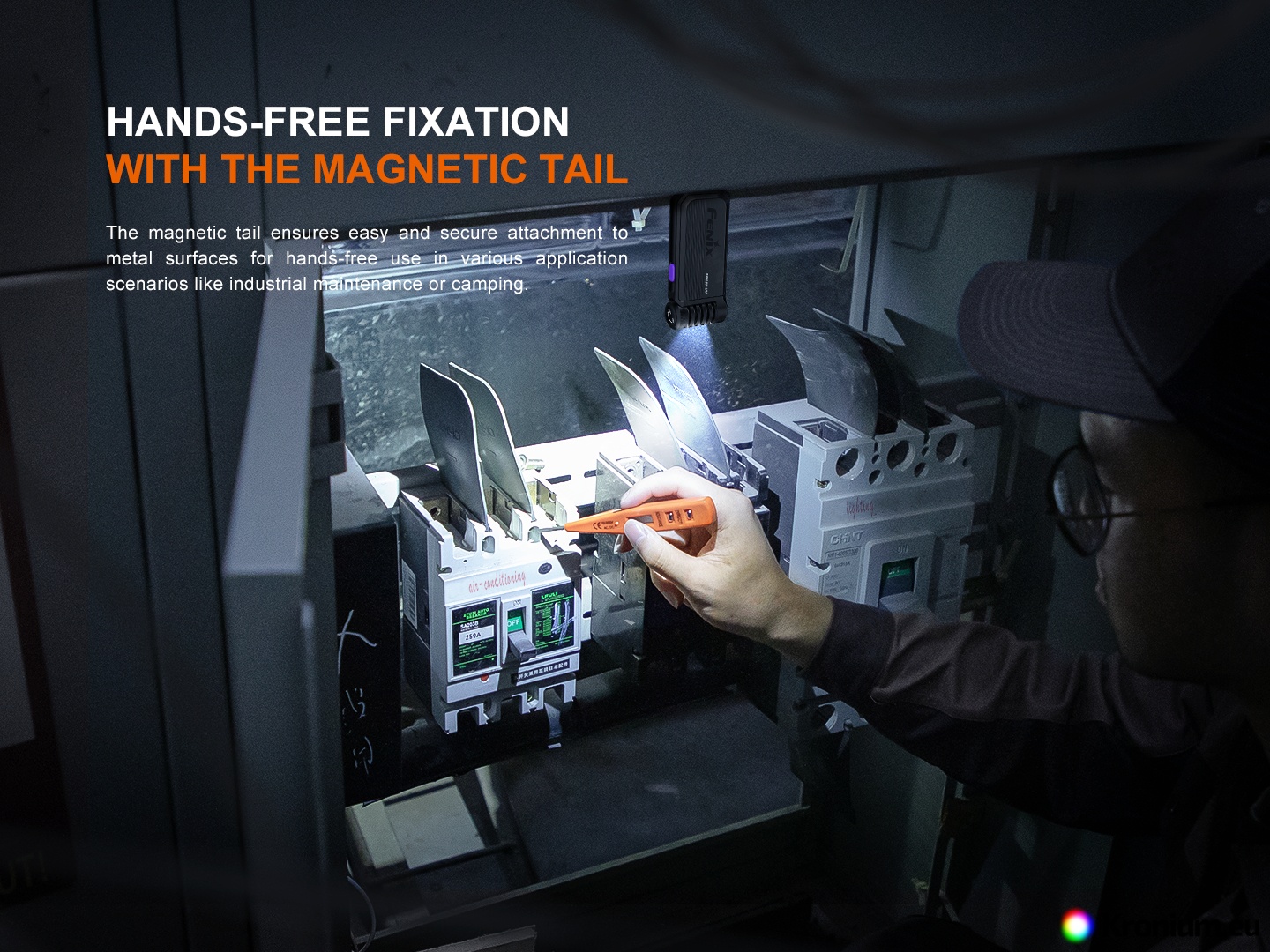

- Magnetic foot for attaching to anything iron.
- CNC milled aluminum alloy body with Type III hard anodized anti-scratch finish.

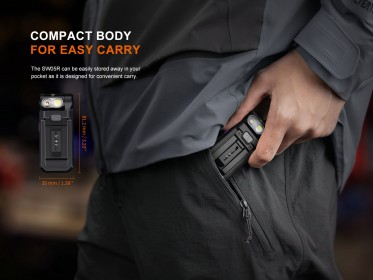

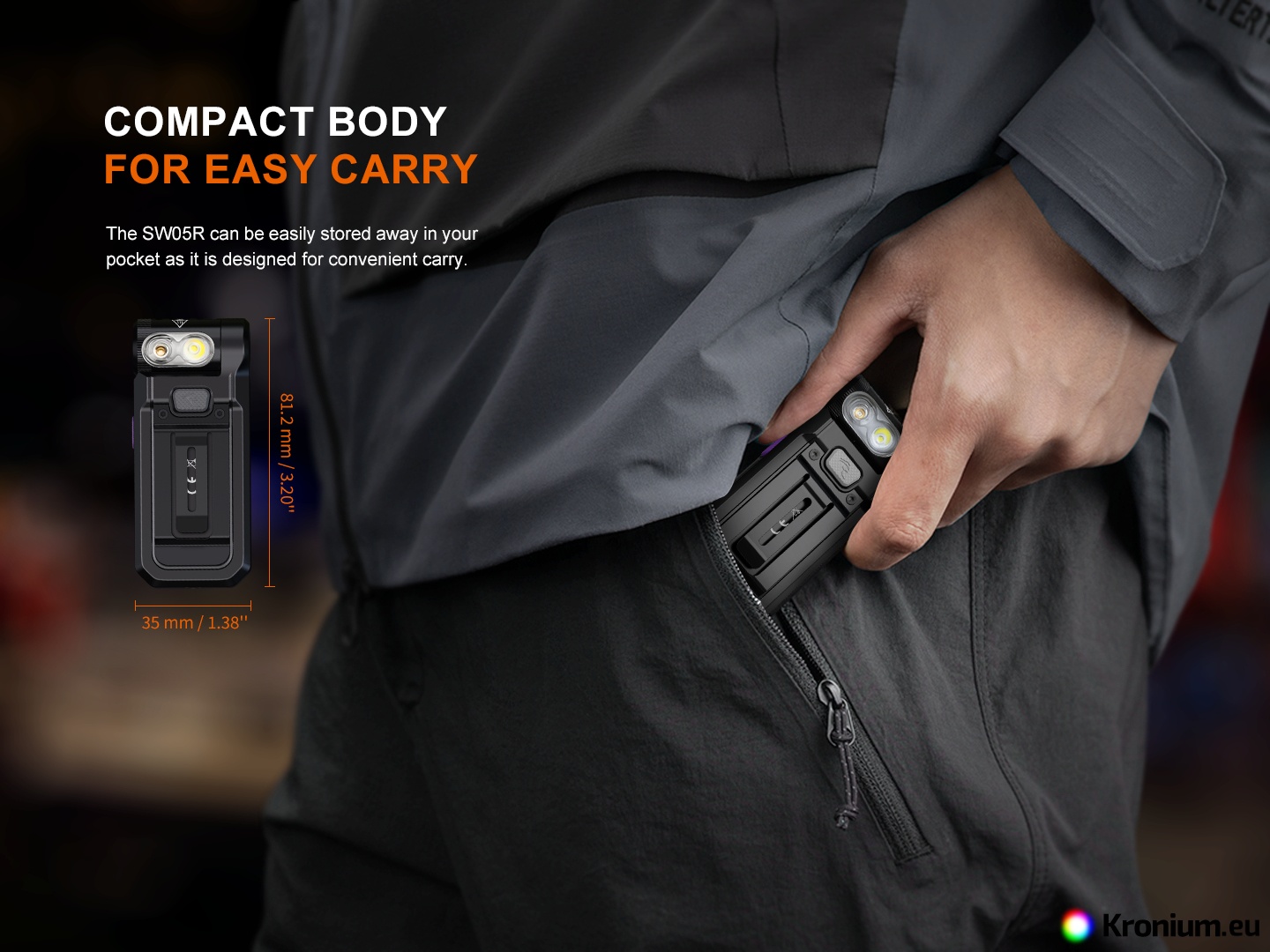

- Dimensions 8.1 cm (length) x 3.5 cm (width) x 1.8 cm (height).
- Illuminance 39 meters (383 cd).
- Weight 55 grams (including battery).
- Waterproof to IPX6 standard (spraying with strong jets of water from all directions).

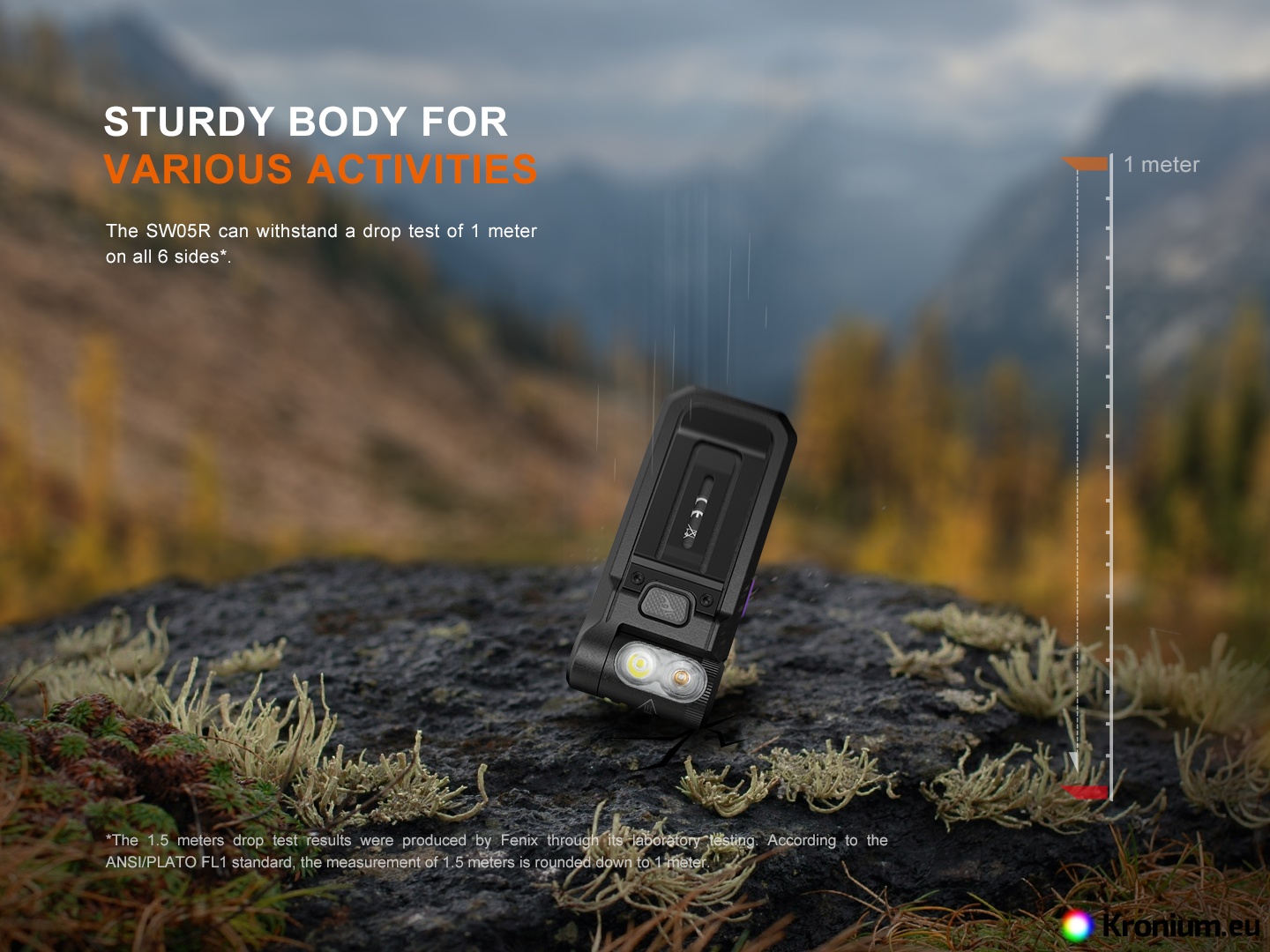

- Resistant to falls from a height of 1 meter.
- Includes flashlight and USB-C charging cable.
- Can be purchased with USB mains adapter and USB car adapter.

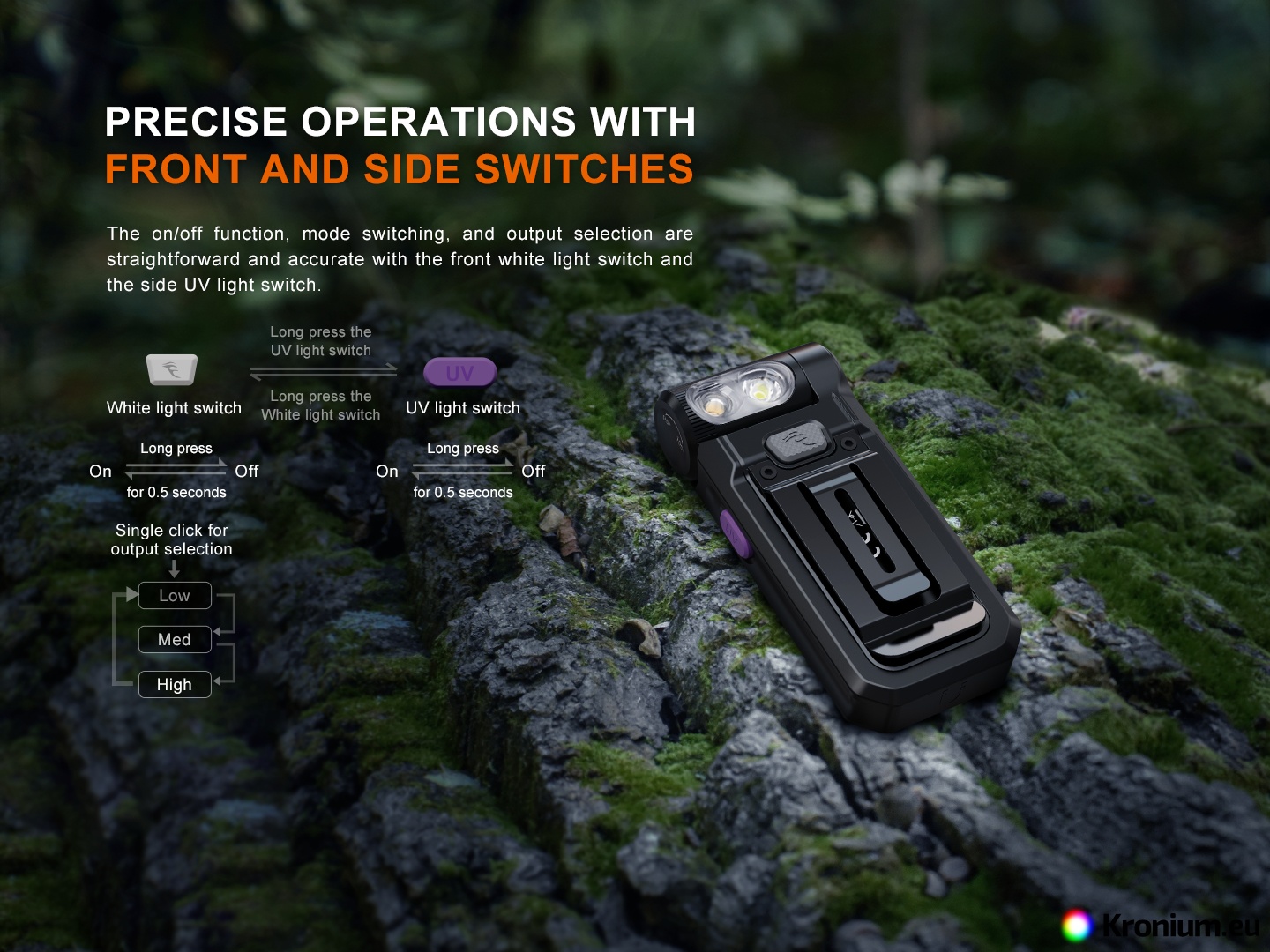

Using the flashlight

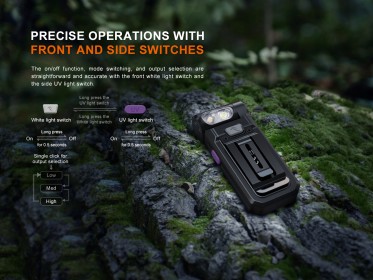

White light is turned on by holding the grey button (approx. 0.5s), ultraviolet light is turned on by holding the purple button on the side (0.5s). The UV and white light cannot be switched on at the same time, but can easily be switched between them by holding the button of the opposite colour. The light functions are switched by briefly pressing the illuminated reflector button. The light is switched off again by holding the corresponding button for 0.5 s.
Memory for last set mode - when the white light is switched on, the lamp always switches to the last selected power mode.
Battery charge indication - with the flashlight off, press the main button once briefly, then the small LED in the button will illuminate for three seconds. A green light indicates a 100-85% charged battery, a green flash indicates 85-50%, a red light indicates a 50-25% charged battery, and a red flash indicates a battery less than 25% charged.
Battery Low Warning - the flashlight will automatically switch to the lowest power mode and the indicator LED in the switch button will flash red.

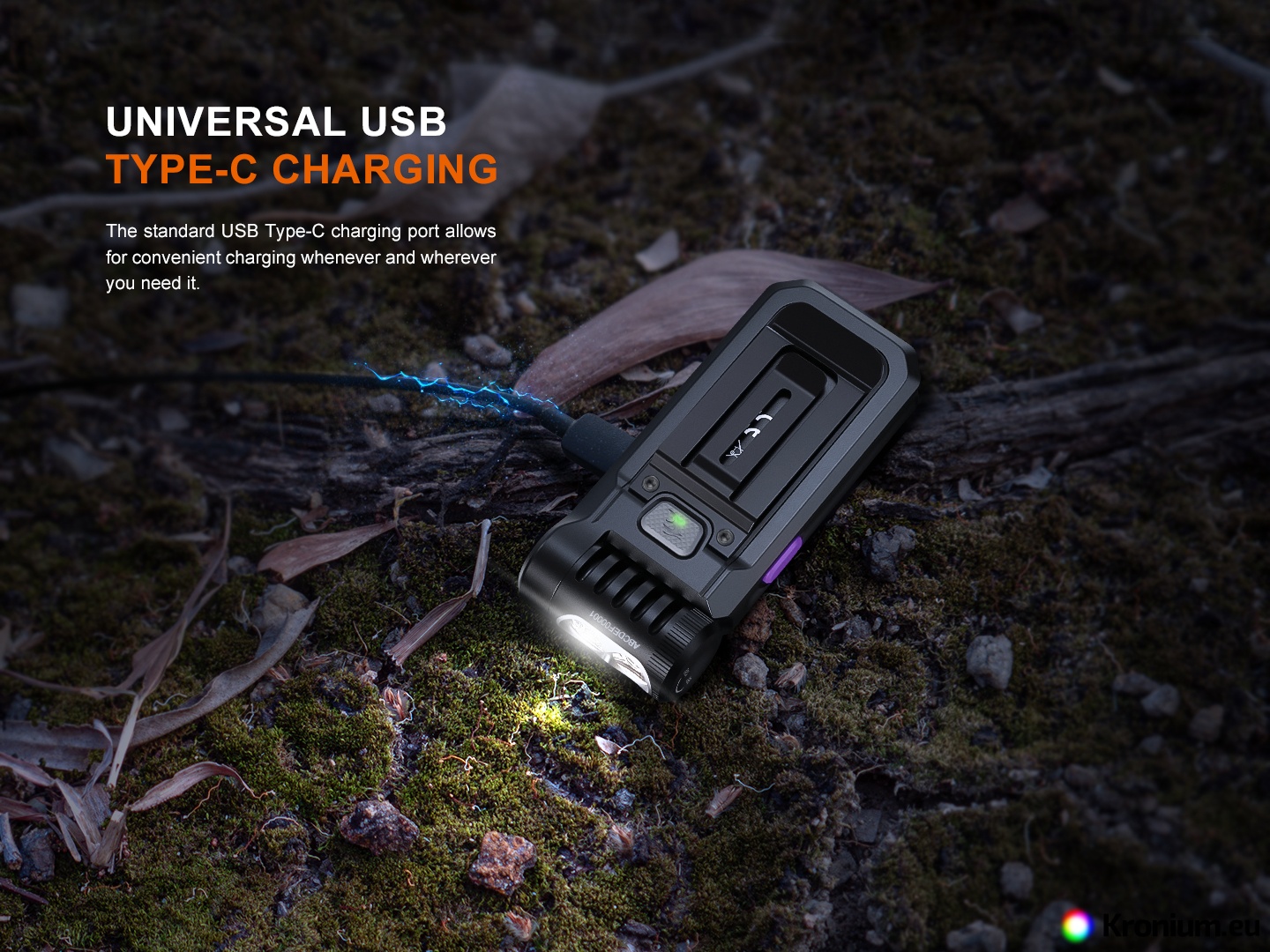

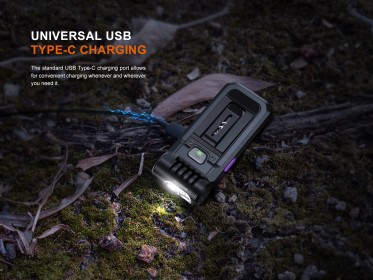

Charging
- Wire the flashlight with a USB-C cable to a computer, USB network adapter or USB car adapter. Alternatively, any mobile phone charger with a USB-C connector can also be used to charge it.
- During charging, the indicator LED in the button glows red, after a full charge it glows green.
- The charging time is about 2 hours, during charging the flashlight can be used in all modes.
- The battery used does not suffer from memory effect, so the flashlight can be recharged at any time.
Warning
- Do not disassemble the sealed parts yourself, it will violate the warranty.
- If the flashlight does not switch to higher power modes or does not light up, the battery is dead - charge the flashlight.
Warranty
Warranty two years.
