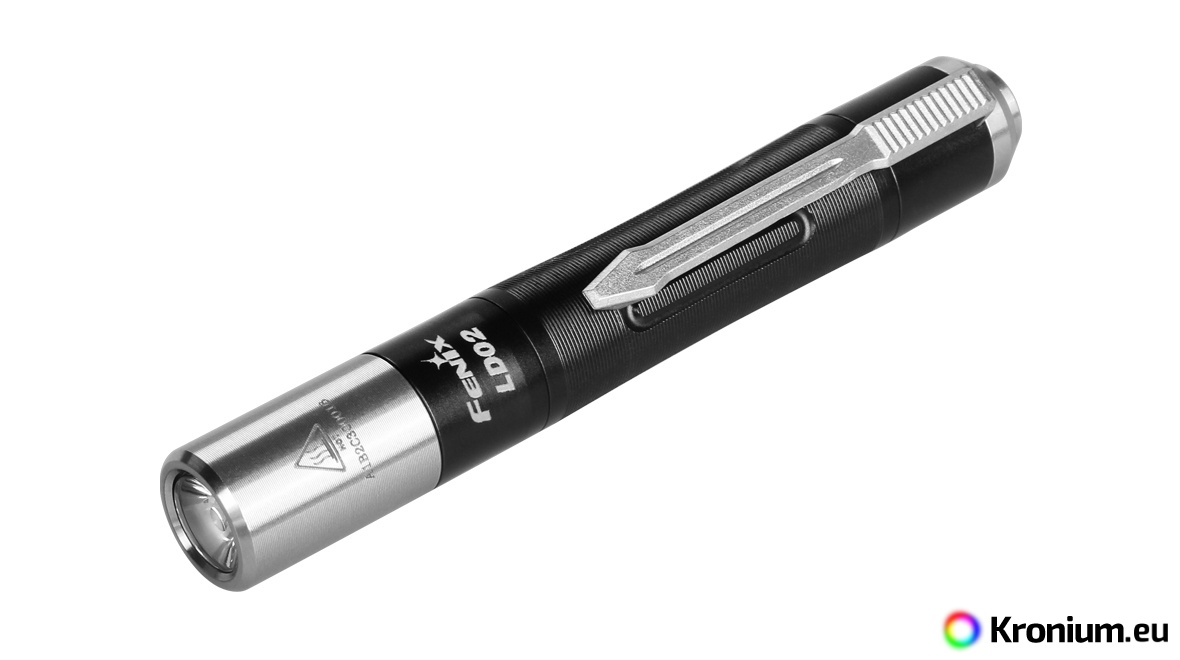

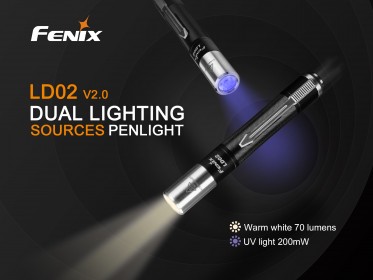

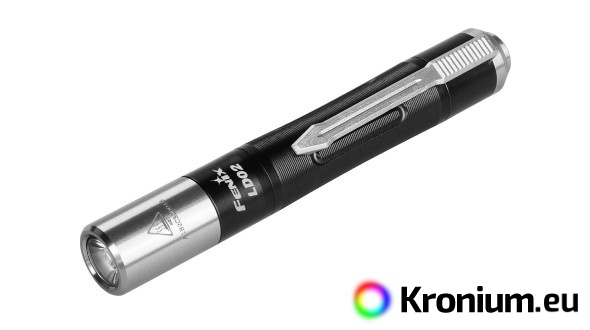

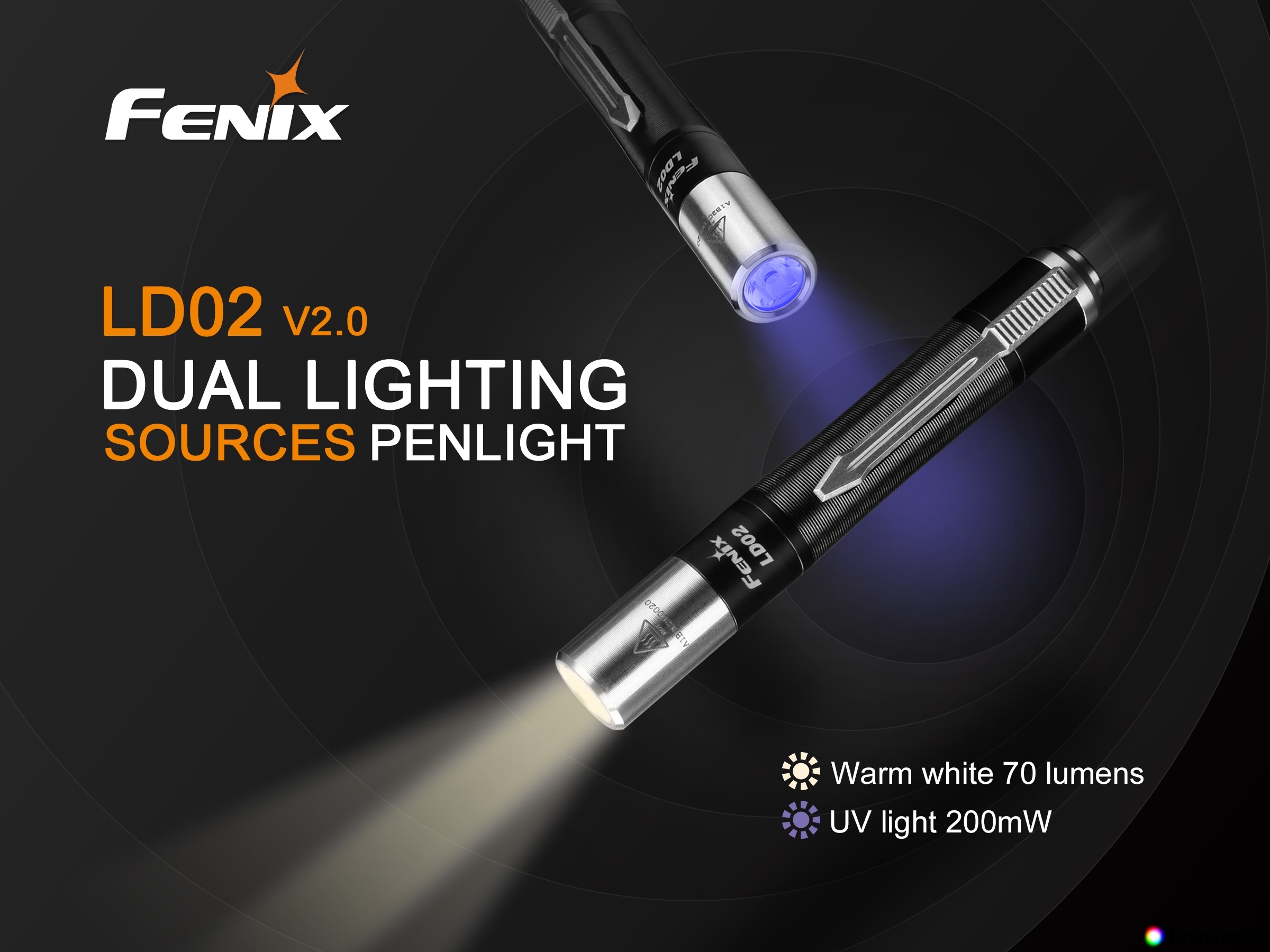

The second generation of the Fenix LD02 is extremely small but powerful - offering lumen output up to 70 lumens (ANSI) and a range of 48 meters. It is equipped with a powerful Cree XQ-E LED with a warmer shade of light and a high CRI 90 (Color Rendering Index). Its true-to-life colour rendering makes it suitable for applications such as medical examinations.

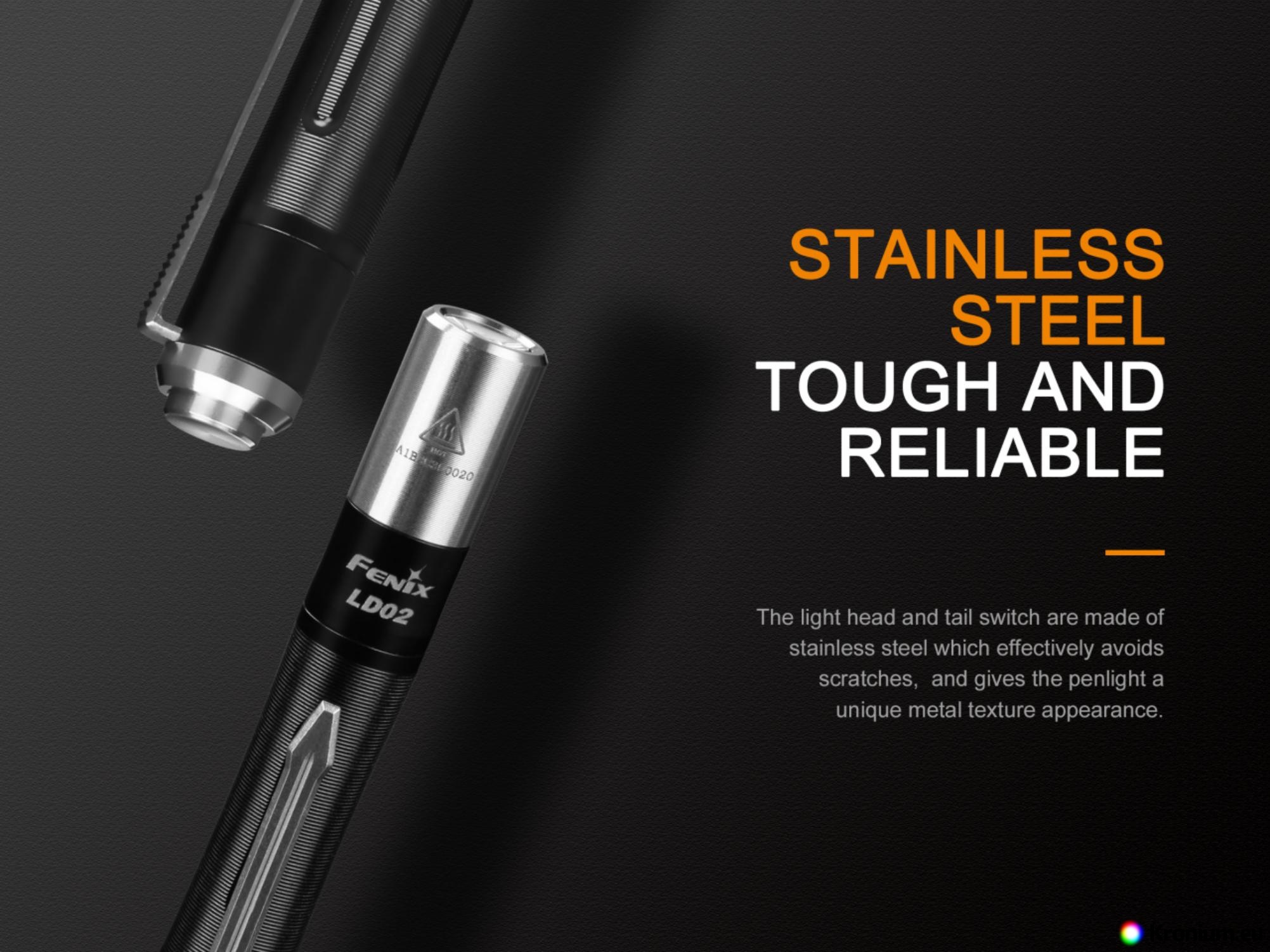

It is equipped with an ultraviolet LED with a wavelength of 365 nm and a luminous flux of 200 mW. The ultraviolet light enables, for example, quick authenticity check of documents, banknotes and credit cards. It is also used for checking the purity or quality of materials or for forensic analysis. The flashlight is not much larger than an AAA battery from which it is powered. The head and tail of the flashlight are made of stainless steel, and in addition, this UV flashlight is equipped with a clip for carrying in a pocket or on a belt. With a length of 9.2 centimeters and a weight of 24 grams, the LD02 is the ideal flashlight for Everyday Carry (EDC). With a diameter of 1.35 centimetres, it is also suitable for illuminating hard-to-reach areas. Due to its parameters, we recommend it as a flashlight for doctors, police officers and as a working flashlight.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

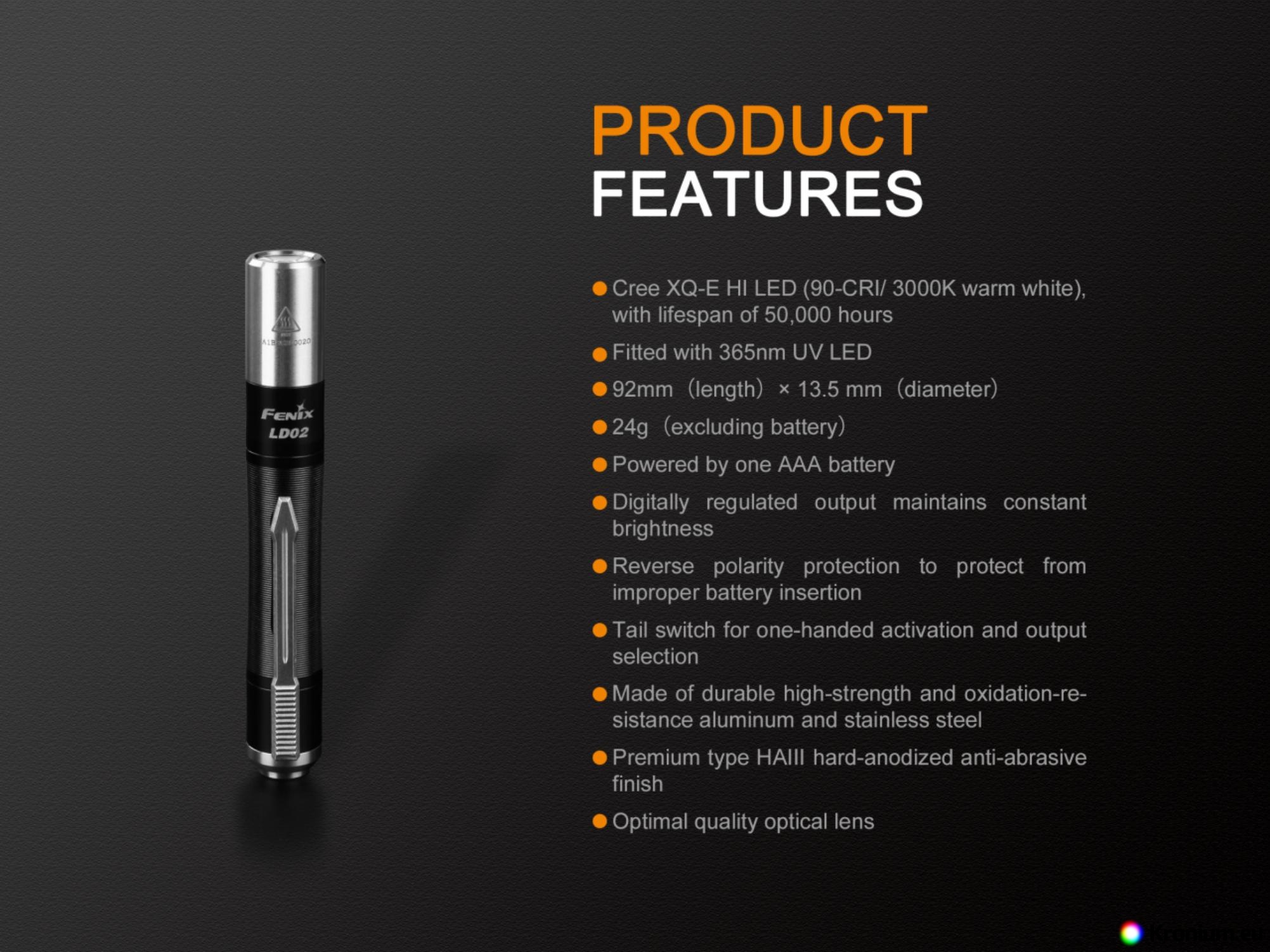

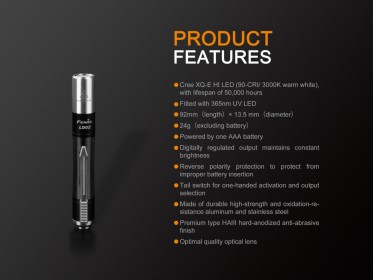

Fenix LD02 High CRI + UV flashlight specifications

• Powerful LED Cree XQ-E HI Warm with warmer light tint, CRI index of 90 and lifetime of 50000 hours and UV LED with 365 nm wavelength are used.
• Four power levels:

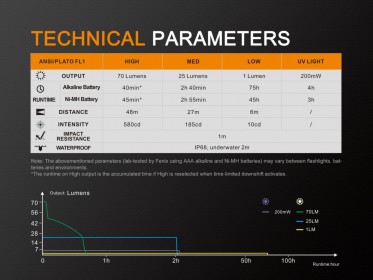

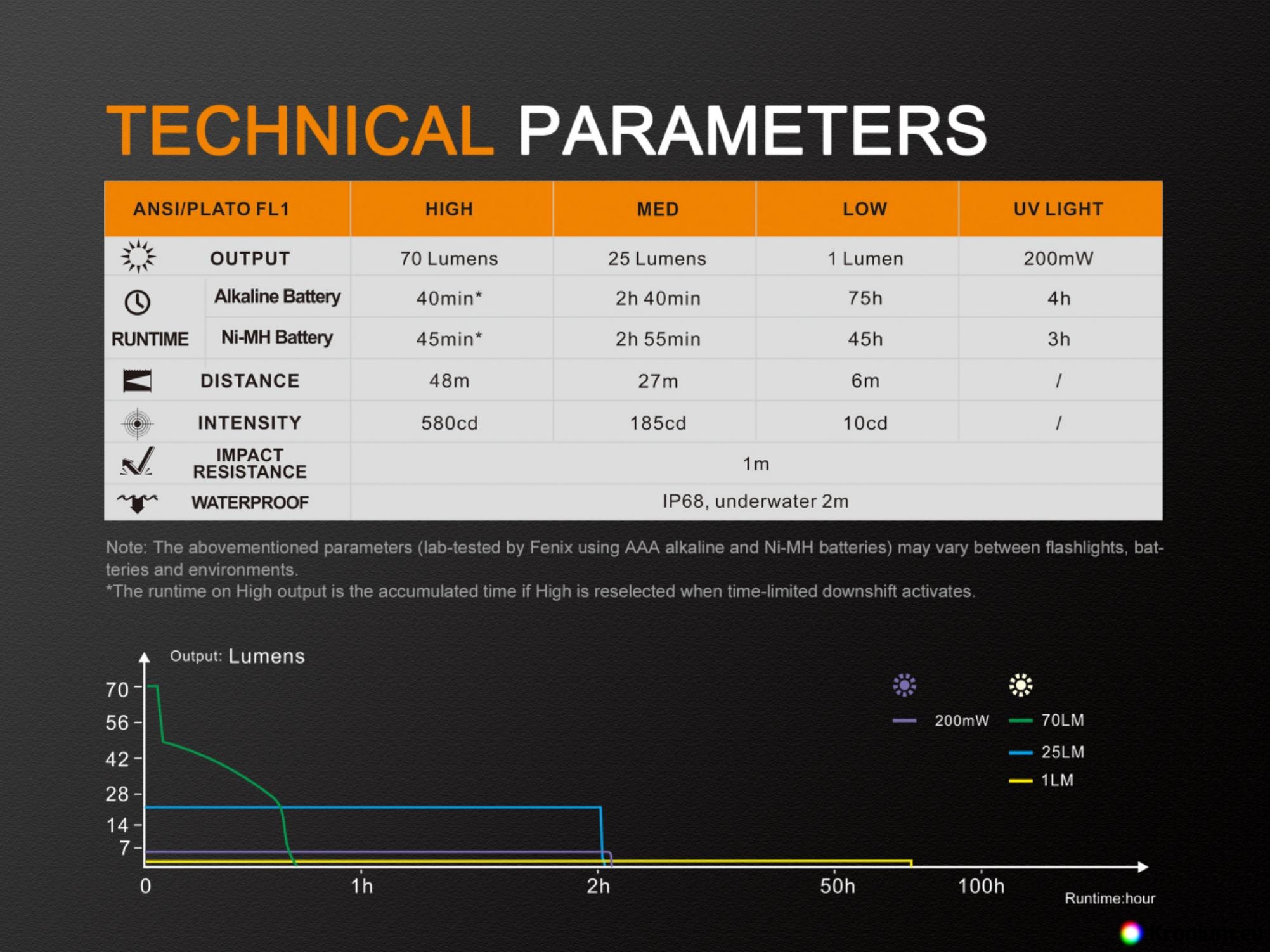

  • Measured with NiMH 750 mAh battery: 70 lumens (0.75 hours) -> 25 lumens (2.9 hours) -> 1 lumen (45 hours) -> Ultraviolet 200 mW (3 hours).
  • Measured with alkaline battery: 70 lumens (0.65 hours) -> 25 lumens (2.65 hours) -> 1 lumen (75 hours) -> UV 200 mW (4 hours).

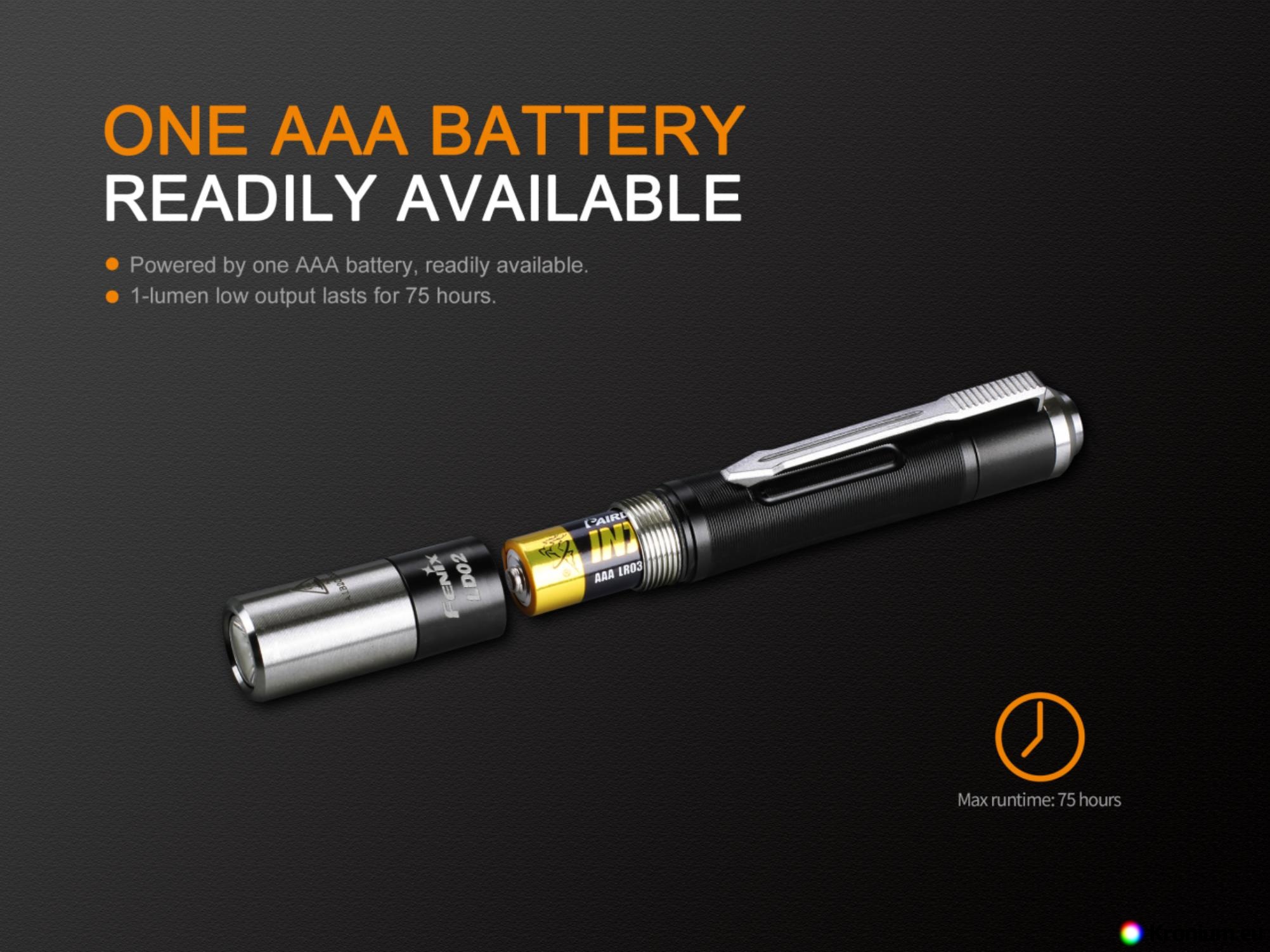

• Uses only one AAA battery (alkaline, lithium or rechargeable NiMH). These batteries are cheap and widely available.
• The longest lasting batteries will be the Energizer L92 lithium micro-rechargeable batteries (especially suitable for extreme temperature conditions)
• Supported battery voltage 0.9-1.7V.
• The flashlight has a memory and always turns on in the last set mode.
• Dimensions 9.2 cm (length) x 1.35 cm (diameter).
• Weight 24 grams (without batteries).

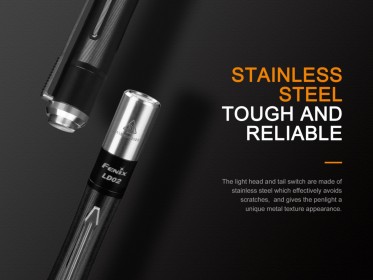

• Made of aerospace hardened aluminum and stainless steel, with durable surface - Type III hard anodized.
• Resistant to drops from 1 meter.

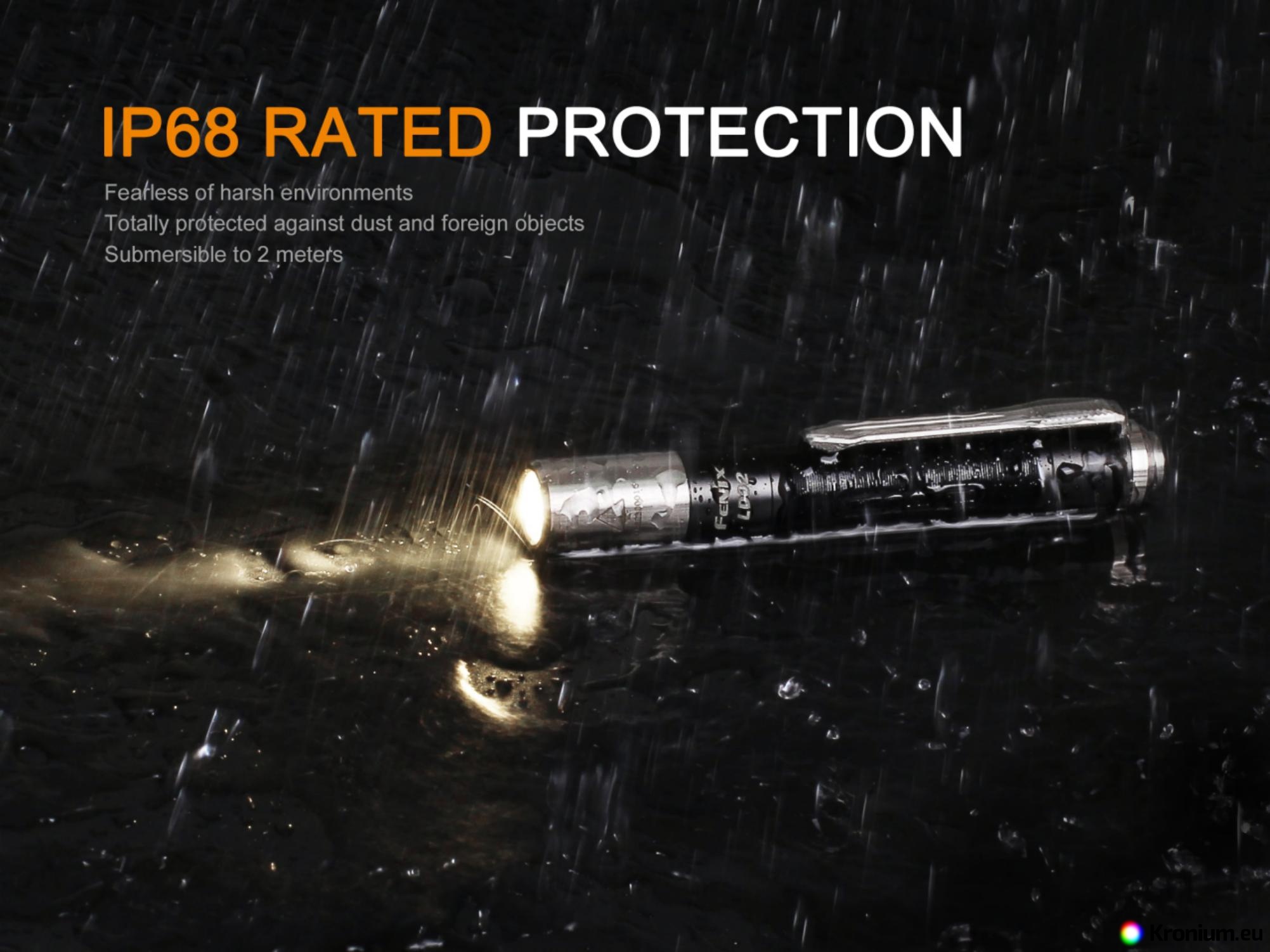

• Dustproof and waterproof to IP68 standard (tested underwater at 2 meters depth for 30 minutes).
• Hardened ultra clear glass lens with anti-reflective surface.
• Collimator produces a smooth light cone with a range of 48 meters (580 cd).
• Solid steel clasp.
• Switch on and switch modes with a tailswitch.

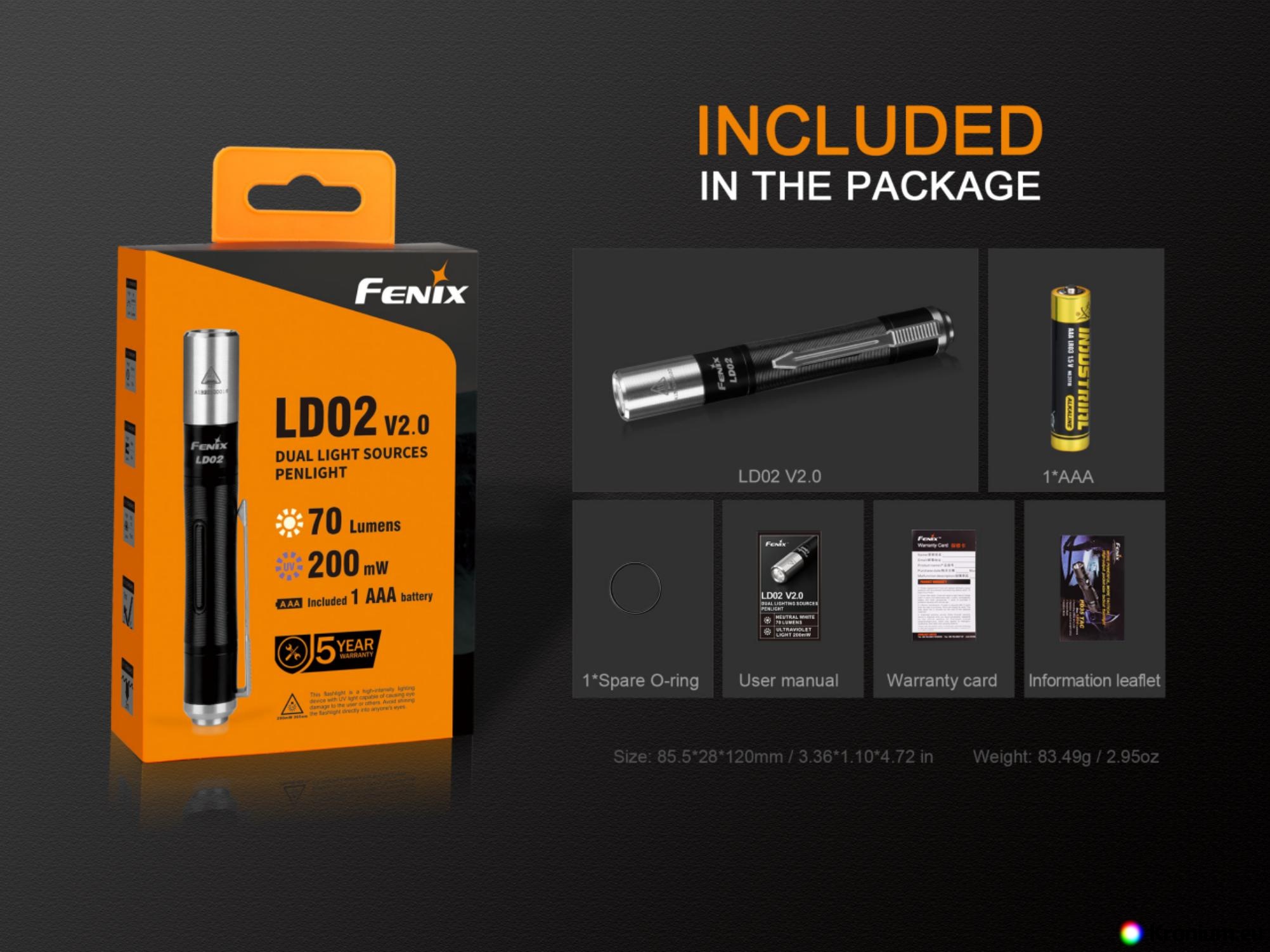

• Includes spare o-ring and disposable AAA battery.

Using the Fenix LD02 V2.0 flashlight

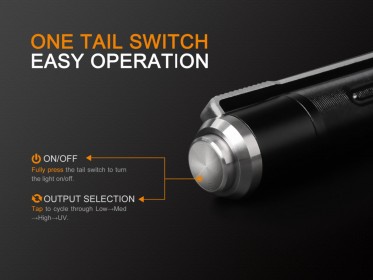

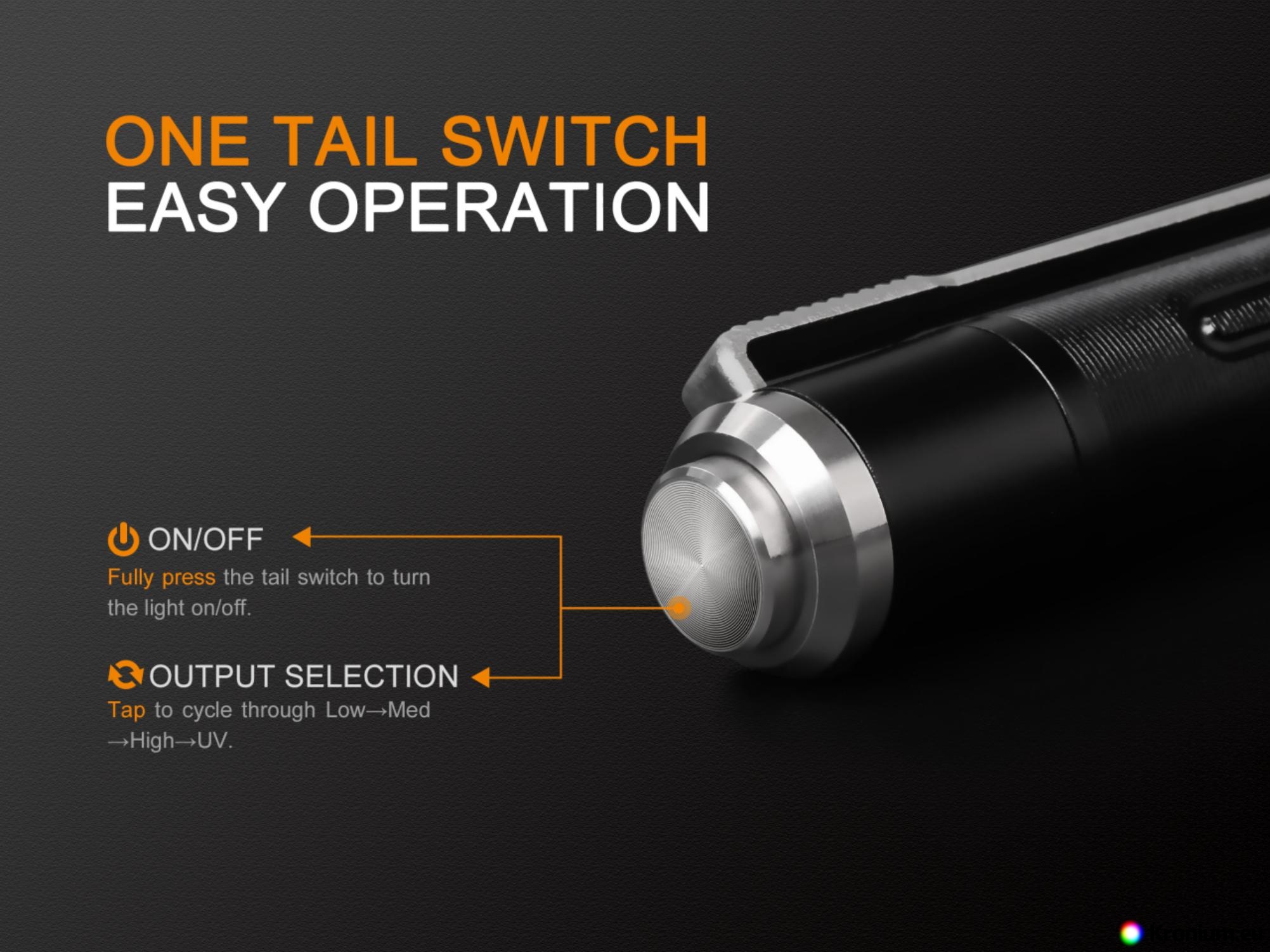

To turn on, press the power switch located at the end of the flashlight. The flashlight has a memory and will always turn on in the last set mode. When the flashlight is on, you can change the power modes at any time by pressing the button (they switch cyclically: low - medium - high - blacklight).

Overheat protection - after 3 minutes of operation in the highest mode, the power will gradually decrease to 50 lumens.

Warning

• Do not disassemble the sealed part in the head of the flashlight yourself, it will violate the warranty.
• Insert the batteries with the positive pole facing the flashlight head.
• Remove the battery from the flashlight if you will not be using it for an extended period of time or if it is already dead. This will prevent the battery from draining and subsequently damaging the device.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The battery is almost dead – replace it.
  • The head of the flashlight is loose; tighten it.
  • Contacts inside the flashlight are clogged – clean them with a cotton ball dipped in alcohol.

Warranty

Five years warranty.
