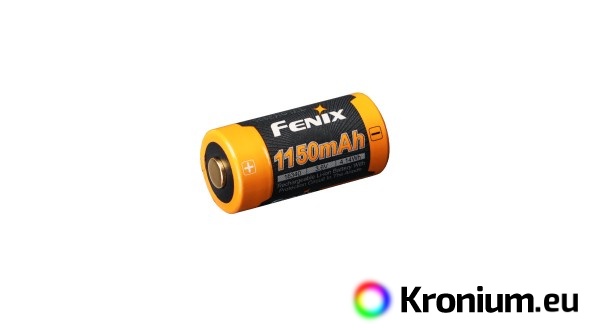

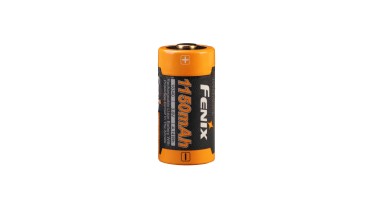

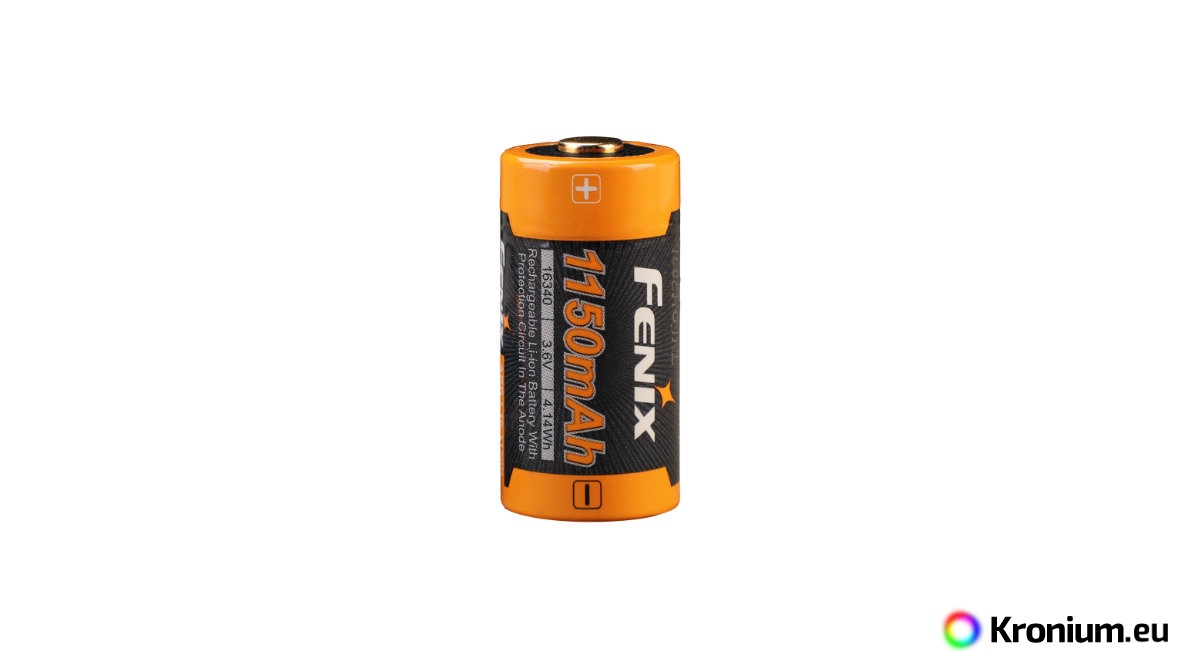

The top-class rechargeable Li-ion battery Fenix ARB-L16-1150P (RCR123A / 16340 size) comes with an exceptionally high capacity of 1150 mAh. Thanks to this, it ensures significantly longer runtime for your devices. It is the ideal choice for high-drain flashlights and headlamps such as the Fenix E18R V2.0, Fenix HM50R V2.0, Fenix HM51R V3.0, Fenix Vitae or Fenix PD25R. This battery can be charged directly in rechargeable flashlights or in external chargers. Thanks to modern Li-ion technology, it suffers from no memory effect and has minimal self-discharge, so it is always ready for use.

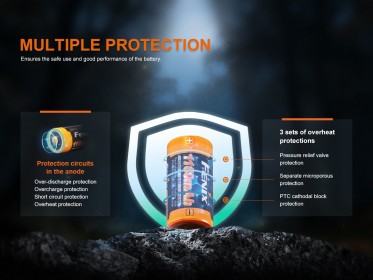

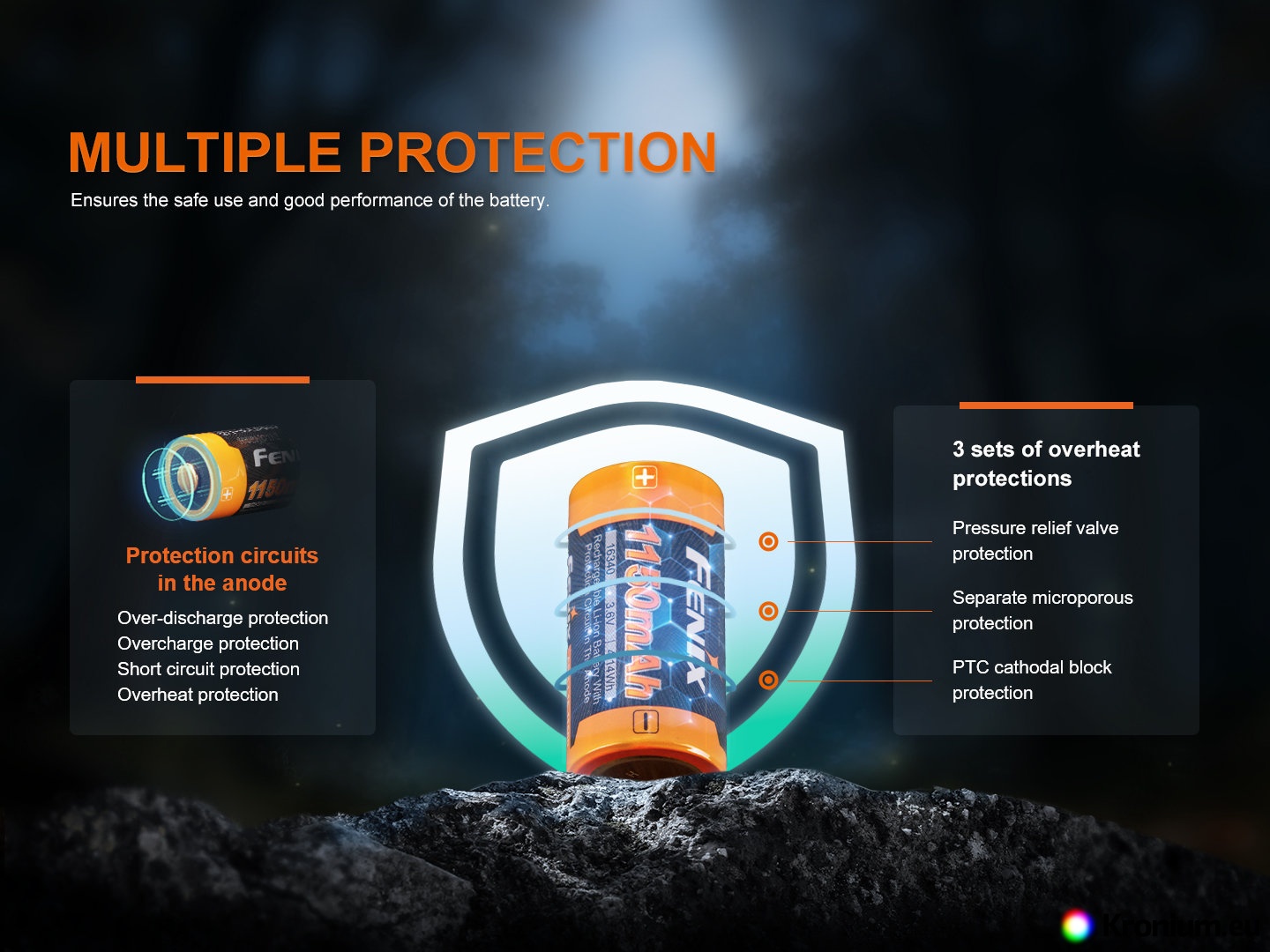

The Fenix ARB-L16-1150P belongs to the safest Li-ion batteries on the market thanks to its two-stage protection:
- Electronic protection: Integrated circuits at the positive pole monitor the battery against overcharging, over-discharging, short circuits, and high current draw. If limit values are reached, the electronics safely disconnect the cell.
- Mechanical protection: Inside the battery, there is a separator, overheating protection (PTC), and a special pressure relief valve.
Its size corresponds to the RCR123A standard and serves as a rechargeable alternative to disposable CR123A batteries. However, verify compatibility before purchase: this battery has a higher nominal voltage (3.6 V) compared to disposable batteries (3 V).
It is also suitable for models: Fenix HM51R (incl. V2.0), Fenix E15 XP-G2, Fenix E16, Fenix RC09, CL09, Fenix PD22 Ultimate Edition, and LD15R.
WARNING – do not use in older models: Fenix E15 (does not apply to XP-G2 version), PD10, PD12, PD20, PD22 (does not apply to Ultimate Edition), and HL50. The higher voltage could damage their electronics!

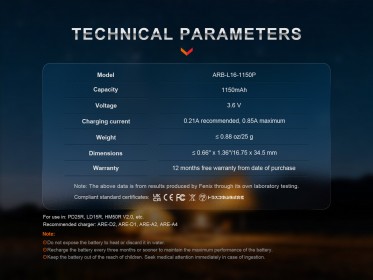

Battery parameters
- Nominal voltage: 3.6 V
- Capacity: 1150 mAh (4.14 Wh)
- Max. discharge current: 2.3 A
- Max. charging current: 0.85 A
- Dimensions: 16.75 mm (diameter) × 34.5 mm (length)
- Weight: 19 grams
- Lifespan of more than 500 charging cycles
Charging options
The battery fully replaces older types Fenix ARB-L16-700, ARB-L16-700P, ARB-L16-800P, and ARB-L16-950P. It can be charged:
- In compatible flashlights and headlamps.
- In quality Li-ion chargers.
Recommended chargers
USB charger Fenix ARE-D1
USB charger Fenix ARE-D2
Mini USB charger MC1
Four-channel USB charger VC4SL
Eight-channel USB charger VC8S
USB charger Lii-100
Four-channel charger Lii-600
SkyRC MC5000
Safety principles
- Do not discharge the battery below 2.5 V.
- Do not short-circuit the poles.
- Do not throw into fire or water.
- Ensure correct polarity when inserting into the charger.
- Use only chargers designed for Li-ion batteries.
Warranty
Statutory two-year warranty.
