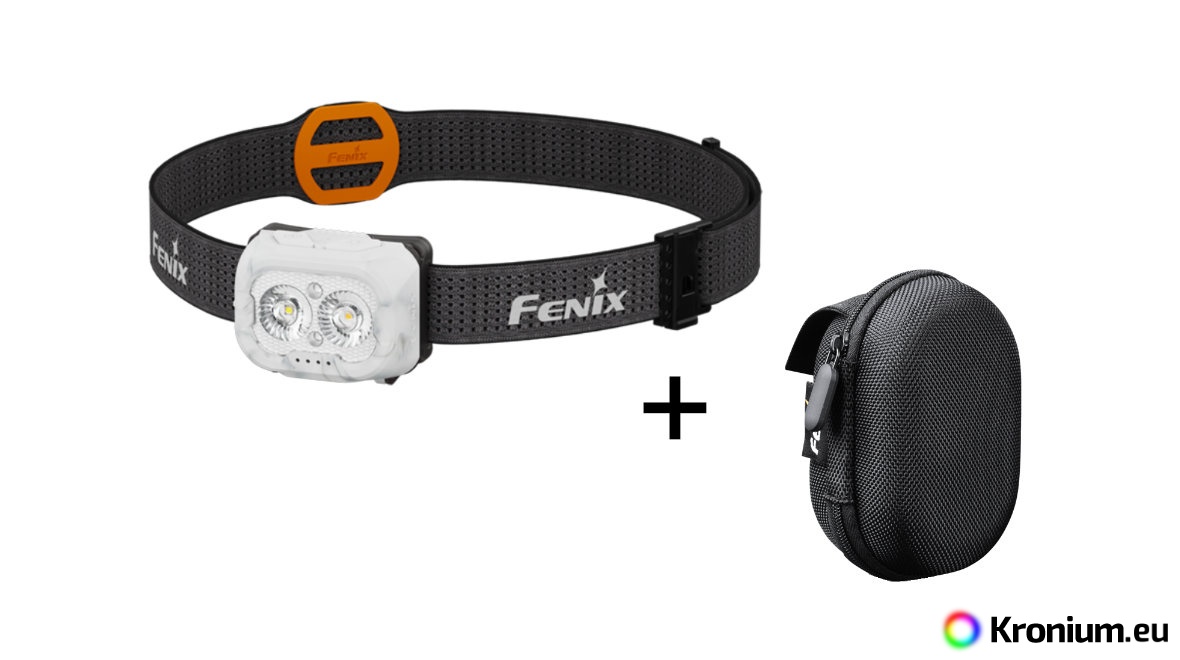

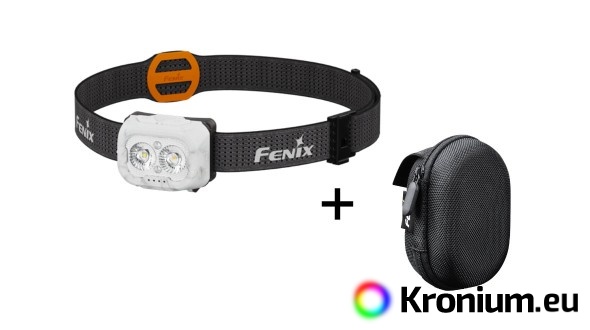

Discounted set of the headlamp Fenix HL18R-T V2.0 white and the case Fenix APB-20.

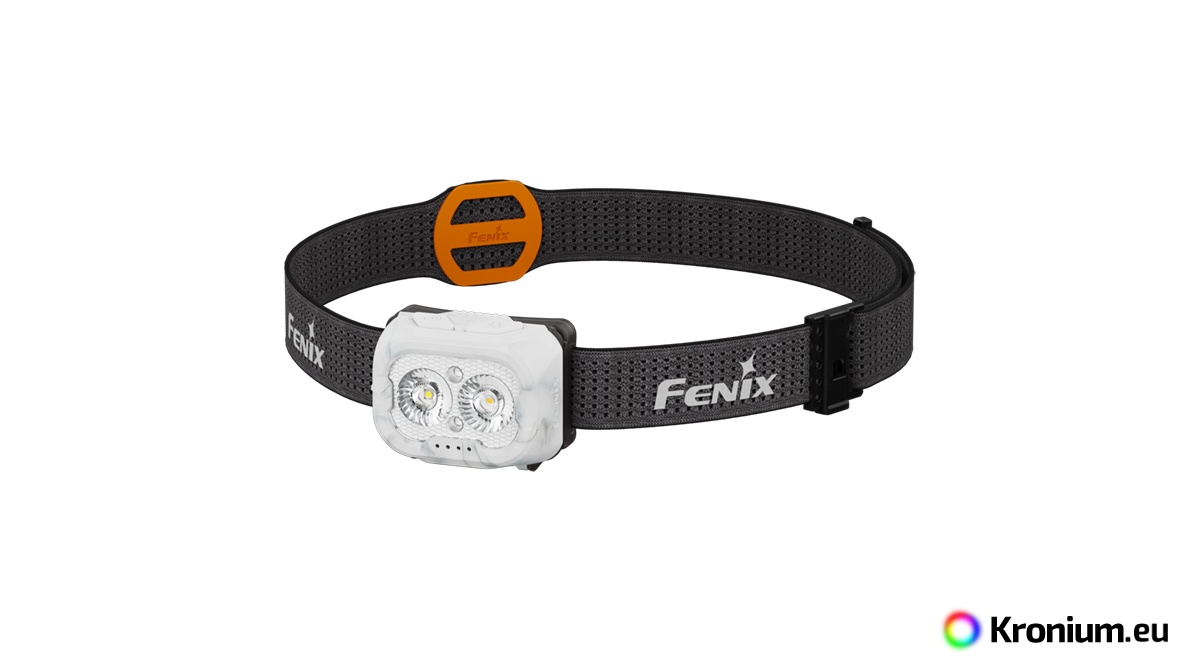

The compact Fenix HL18R-TV2.0 rechargeable headlamp features a practical dual-reflector design, up to 800 lumens (ANSI) and reach up to 125 meters. The reflectors produce well-focused light beams that shine far and near at the same time. The main reflector shines with a cool white light of approx. 6500K (daylight white) and the secondary reflector shines with a warm white light of approx. 3000K (the cones cannot be combined, however). The warm light penetrates fog, rain and snow better, so you can use it especially in bad weather conditions. The main reflector offers four light modes and a maximum luminous flux of up to 800 lumens, the second reflector offers a maximum output of 500 lumens and you can also choose from four light modes. The headlamp also features a red light, red SOS flash and a whistle integrated on the strap for emergency situations. Power is provided by a replaceable Li-ion battery with a capacity of 1900 mAh, which is charged via a USB-C connector directly in the headlamp. The battery can be removed and replaced in an emergency with three AAA batteries (they cannot be recharged in the headlamp).

Like other Fenix trail headlamps, the HL18R-T V2.0 features a strap with Sport Fit System with a single wheel for easy length adjustment. This allows you to quickly and comfortably tighten the headlamp on your head with one hand. The strap is also perforated and equipped with reflective elements to ensure good passive visibility. Thanks to its lighter weight and construction, the headlamp is particularly interesting for trail running, cycling and skiing. It is also suitable for other sports activities (hiking, climbing, camping, fishing...). Guaranteed to serve you well in every situation!

All parameters of the headlamp (lumen output, battery life, waterproofness, throw and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

Fenix HL18R-T V2.0 Headlamp Specifications

• Powerful white Luminus SST-25 LED with a cool white light, Luminus SST-20 LED with a warm white light and CRI 80 plus two complementary red Everlight 2835 LEDs, all with a lifetime of 50,000 hours, are used.
• Main reflector modes:
  • 800 lumens (3.3 hours) - 350 lumens (6.5 hours) - 130 lumens (10 hours) - 70 lumens (20.6 hours)
• Secondary reflector modes:
  • 500 lumens (4.25 hours) - 130 lumens (10 hours) - 70 lumens (20 hours) - 5 lumens (160 hours)
• Additional LED modes with red light:
  • 5 lumens steady light (50 hours) - SOS flashing 5 lumens (100 hours).
• Main light beam with 125 meters throw (3790 cd), secondary reflector throw is 89 meters (1995 cd), red light throw is 4 meters (4 cd).
• Electronics with extended lighting time function and reverse battery protection.
• Uses a Li-ion ARB-LP1900 battery with a 1900 mAh capacity.
• Can be powered by 3x AAA batteries. Can use disposable alkaline and rechargeable NiMH or Li-ion with constant 1.5 V. (Cannot be charged in headlamp).
• Rechargeable via USB-C connector.
• Convenient control with two switches.
• The headlamp can be tilted in the holder and thus set the desired direction of illumination.
• Made of durable plastic and aircraft aluminum alloy.
• Strap with reflective elements increases passive safety.
• Resistant to falls from a height of 1 meter.
• Dimensions: 57.5 × 31 × 47 mm.
• Weight 103 grams (including battery and strap).
• Waterproof and dustproof to IP66 standard (spraying with strong jets of water from all directions).
• Includes strap, 1900 mAh Li-ion battery and USB charging cable.
• The headlamp can be purchased with a spare battery, Fenix APB-20 case, USB mains adapter and USB car adapter.
• This simple spare headband is also compatible with the lamp (without swivel), or a strap with Sport Fit System (with swivel).

Using the headlamp

On/Off and mode switching - White remote spotlight is turned on by holding the right button (approx. 0.5s), spotlight with warm white light is turned on by holding the left button (0.5s). The headlights cannot be switched on at the same time, but can be easily switched between them by pressing the button of the opposite headlight. The headlamp is switched to red light when switched off by pressing any button twice quickly. The light modes are switched by briefly pressing the button of the illuminated headlight. The light is switched off again by holding the corresponding button for 0.5 s.

Lock/Unlock- Lock: Slide the lock switch down in accordance with the mark, the headlamp will flash 4 times in low warm white light mode to indicate lock. If the headlamp has been switched on, it will automatically switch off when locked. Unlock:Slide the lock switch up according to the mark, the lamp will flash 4 times in low warm white light mode to indicate unlocking.

Memory for last set power mode - The headlamp has a memory and will turn on in the last set power mode of the corresponding reflector.

 Battery Replacement - Open the rear battery cover and insert the battery(s) in accordance with the polarity markings. Replace the rear cover.

Charging - flip off the dust cap and plug the USB-C charging cable into the headlamp charging port. Replace the dust cap when charging is complete. Normal charging time is 3 hours with a 5V/1A USB power supply for a fully discharged headlamp. During charging, the headlamp can only be used in low mode of any spotlight. Four indicators light up and flash gradually during the charging process. Four permanently on indicates that charging is complete.

Battery Charge Status Indication - After briefly pressing any button (headlamp must be off), the LED battery charge status indicator between the buttons will activate. Four lit LEDs indicate that the battery is 80-100% charged, three lit 60-80%, two lit 40-60%, one lit 20-40% and one flashing LED indicates that the battery is less than 20% charged. The indication only works with the original battery .

Intelligent Overheat Protection - When using the headlamp on high power modes for a long time, a large amount of heat accumulates. When the headlamp reaches a temperature of 55 °C or higher, it will automatically reduce the power by several lumens to reduce the temperature. When the temperature drops below 55 °C, the power will gradually decrease again.

Drained Battery Warning - If the battery voltage drops below the set level, the headlamp will automatically switch to a lower mode until it reaches the lowest power mode. When the lowest power setting is reached, the battery charge indicator will flash to remind you to recharge or replace the battery in a timely manner. Only works with the original battery.

Head Strap - The head strap is assembled from factory. Turn the dial counterclockwise to tighten the strap. Turn the dial clockwise to loosen the strap. Further rotation of the wheel after the strap has been loosened as far as possible will start to tighten the strap again, reversing the direction of loosening and tightening.

Warning

• Do not disassemble the sealed parts yourself, this will breach the warranty.
• Fenix recommends using the original Fenix ARB-LP1900 battery of excellent quality.
• Remove the battery from the headlamp if you will not use it for a long time or if the battery is dead. Disposable batteries may leak and cause damage to the headlamp.
• Lock the headlamp or remove the battery to prevent accidental activation during storage or transport.
• Never use differently discharged AAA batteries or batteries with different capacities.
• Always check thoroughly that the batteries are inserted into the headlamp with the correct polarity.
• If the headlamp flashes, does not switch to higher power modes or does not light up, it may be due to one of the following reasons:
  • The battery is almost dead – charge it.
