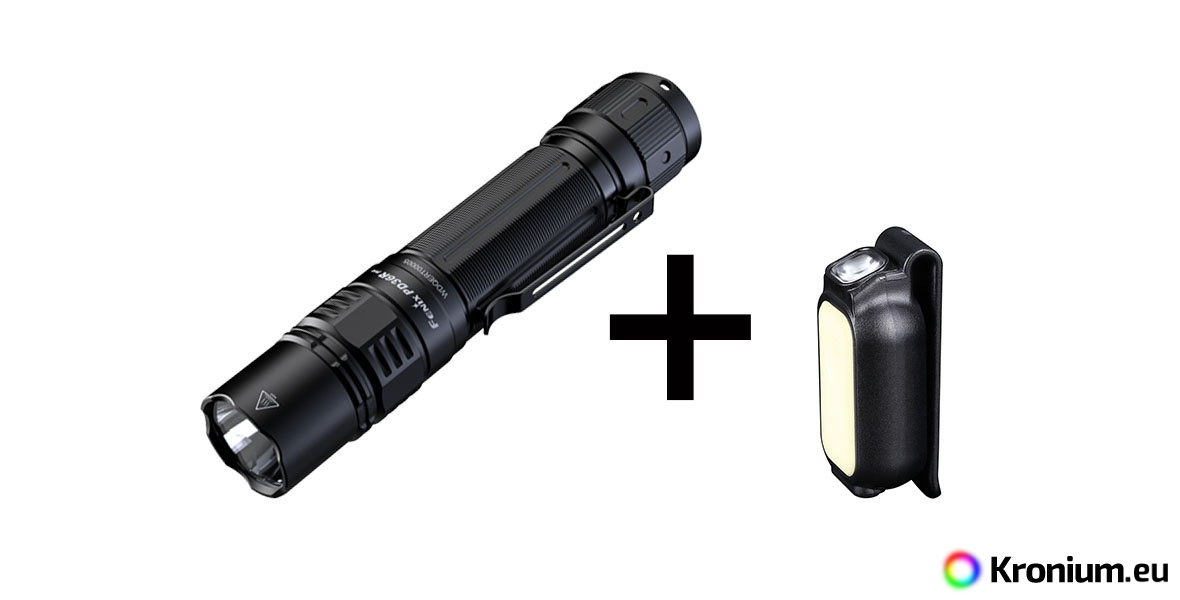

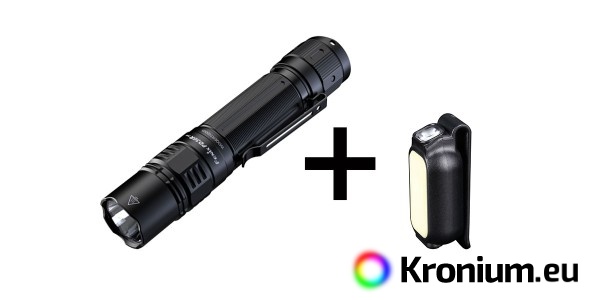

Discounted set of Fenix PD36R PRO headlamp and Fenix MINI-LITE pocket flashlight.

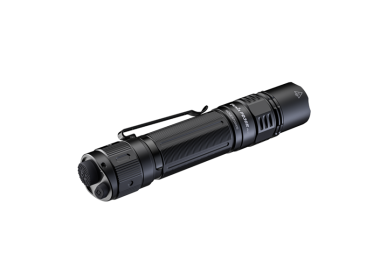

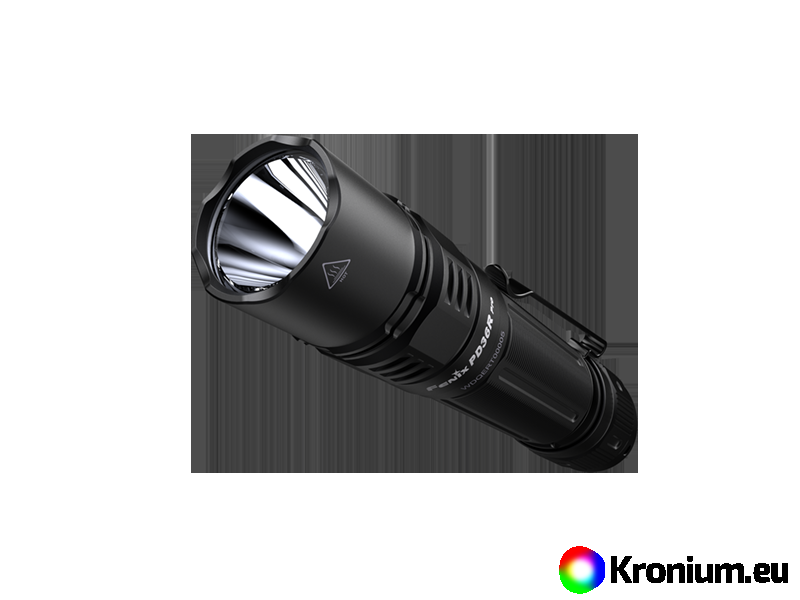

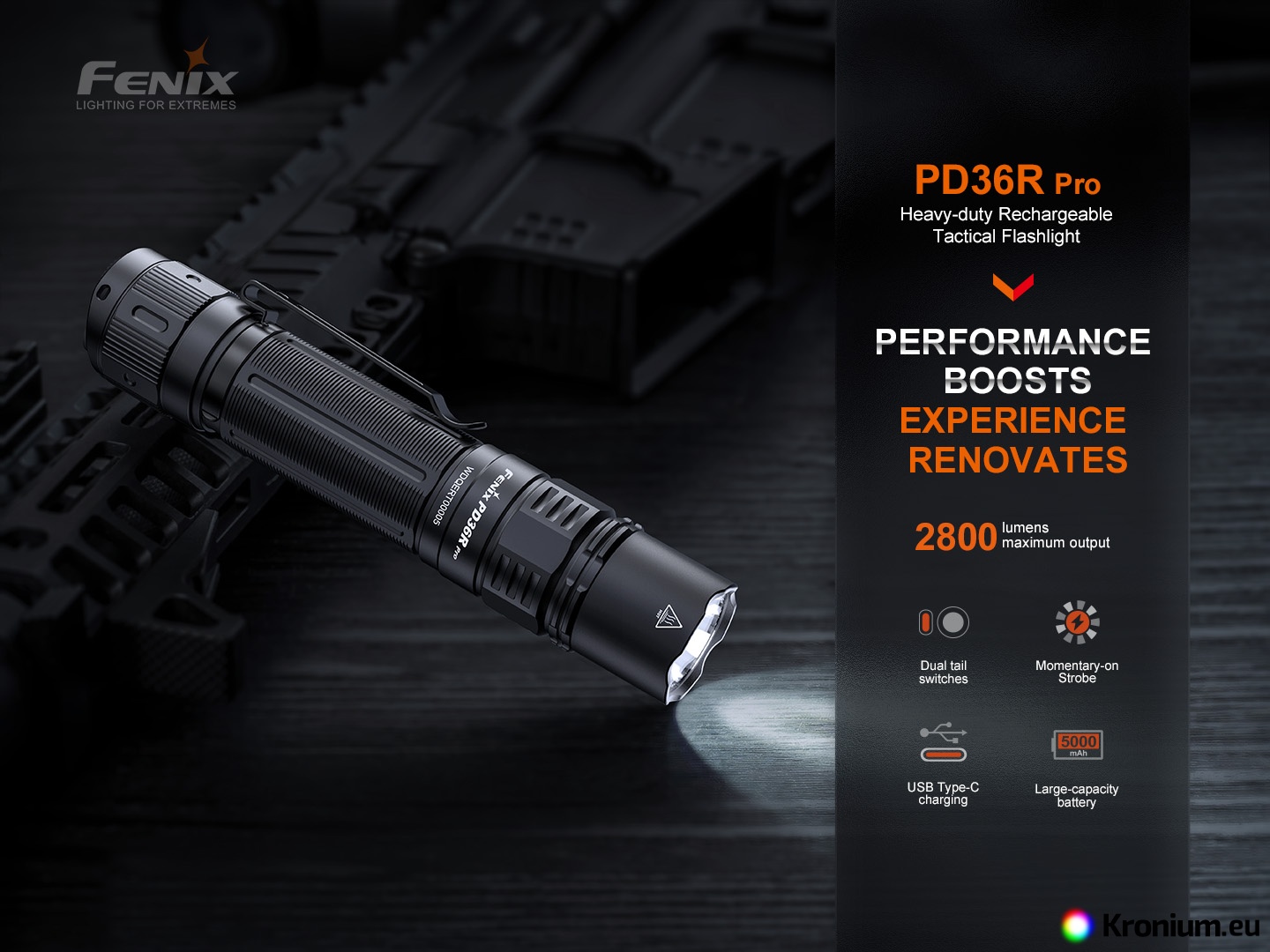

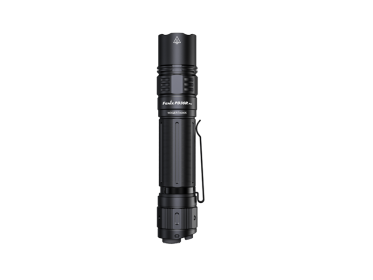

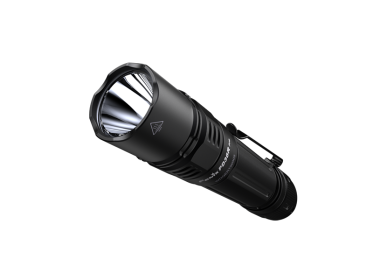

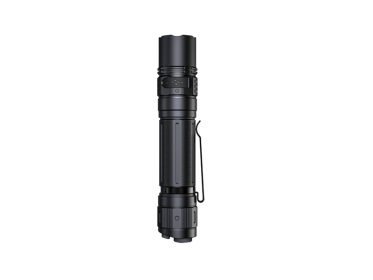

The Fenix PD36R PRO rechargeable tactical flashlight offers a peak light output of up to 2800 lumens (ANSI) and a range of up to 380 meters. The flashlight is powered by a single 21700 Li-ion battery (included), which charges directly in the flashlight via a modern USB-C connector and provides power for up to 42 hours of illumination. The Fenix PD36R PRO LED flashlight uses a dual tactical switch that allows for faster and more reliable control in crisis situations. For example, it can be quickly switched directly into strobe mode. The flashlight head is equipped with a striking rim. Therefore, the flashlight can be used to break glass in crisis situations or for self-defense. The robust design allows the flashlight to be used on long guns, making it suitable for professionals, armed forces and hunting.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

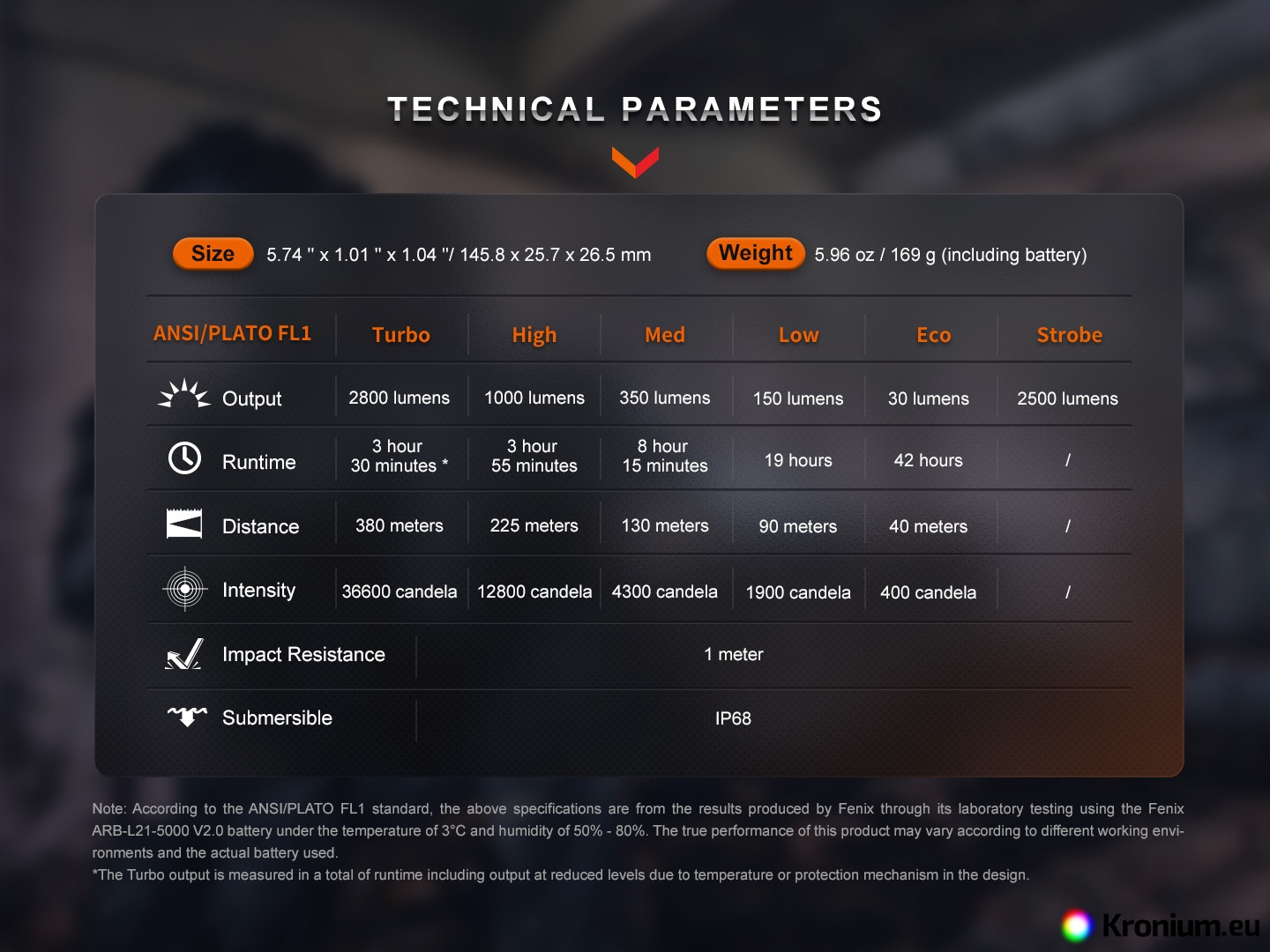

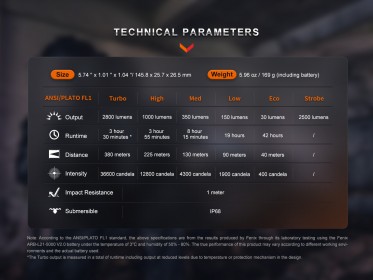

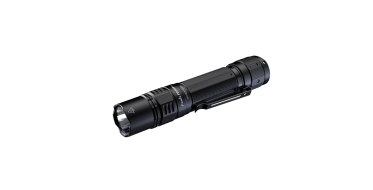

Fenix PD36R PRO LED flashlight specifications

• Powerful Luminus SFT-70 LED with 50,000 hours lifetime is used.
• Six power modes: 2800 lumens (3.5 hours) -> 1000 lumens (3.9 hours) -> 350 lumens (8.25 hours) -> 150 lumens (19 hours) -> 30 lumens (42 hours) -> strobe (stroboscopic flashing with variable frequency).
• Power is supplied by Li-ion battery type 21700 (included).
• Duration times are measured with a rechargeable 21700 Li-ion battery with 5000 mAh capacity.
• Patented Intelligent Overheat Protection.
• The flashlight has memory and will always turn on in the last set mode (doesn't apply for strobe).
• Dimensions 14.6 cm x 2.57 cm x 2.65 cm.
• Weight 169 grams including battery.
• Made of A6061-T6 aerospace hardened aluminum.
• Range up to 380 meters (36,600 cd).
• Resistant to drops from 1.5 meters.
• Scratch resistant surface - Type III hard anodized.

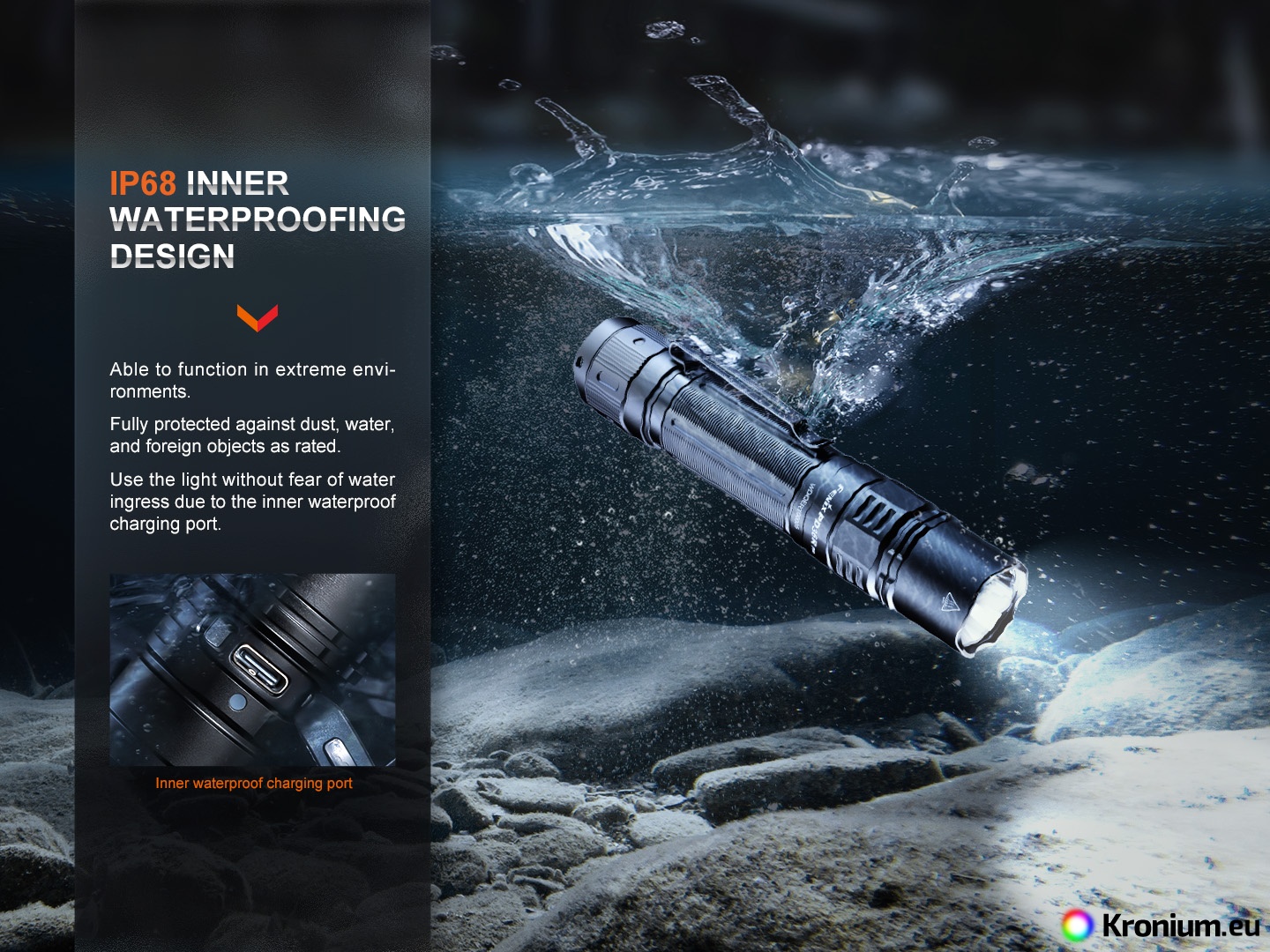

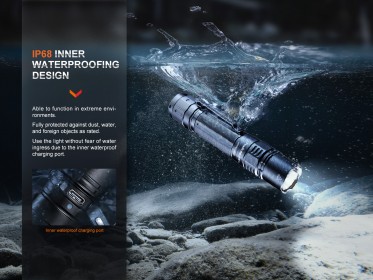

• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Dual tactical switch at the end of the flashlight (momentary on/off function).

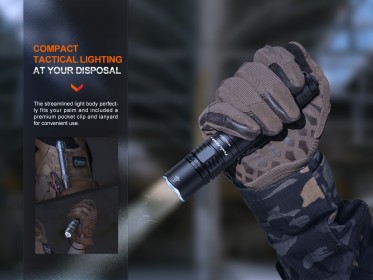

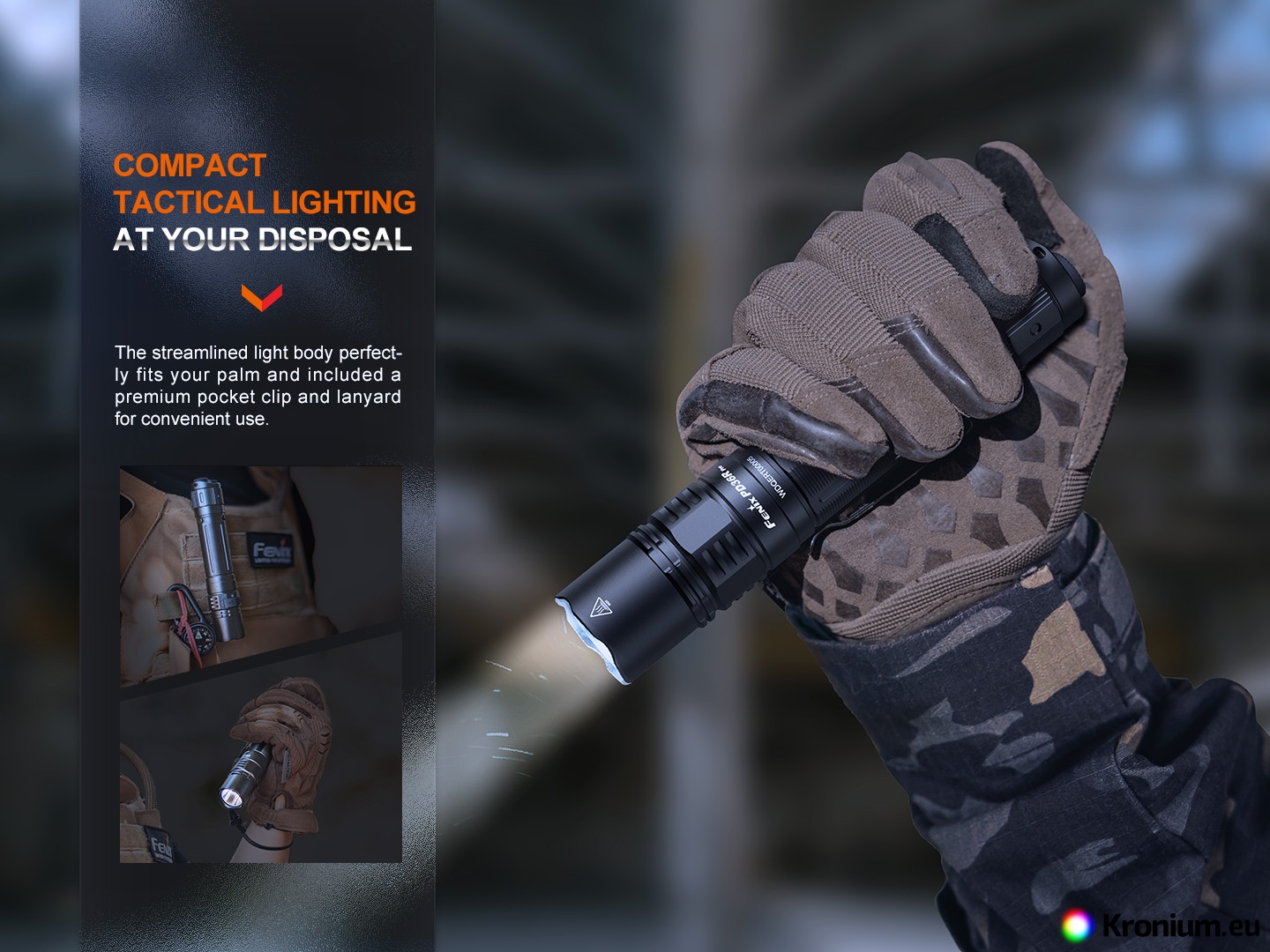

• Solid clip for safe and easy carrying of the flashlight (removable).
• The flashlight does not rotate when put down due to its design.

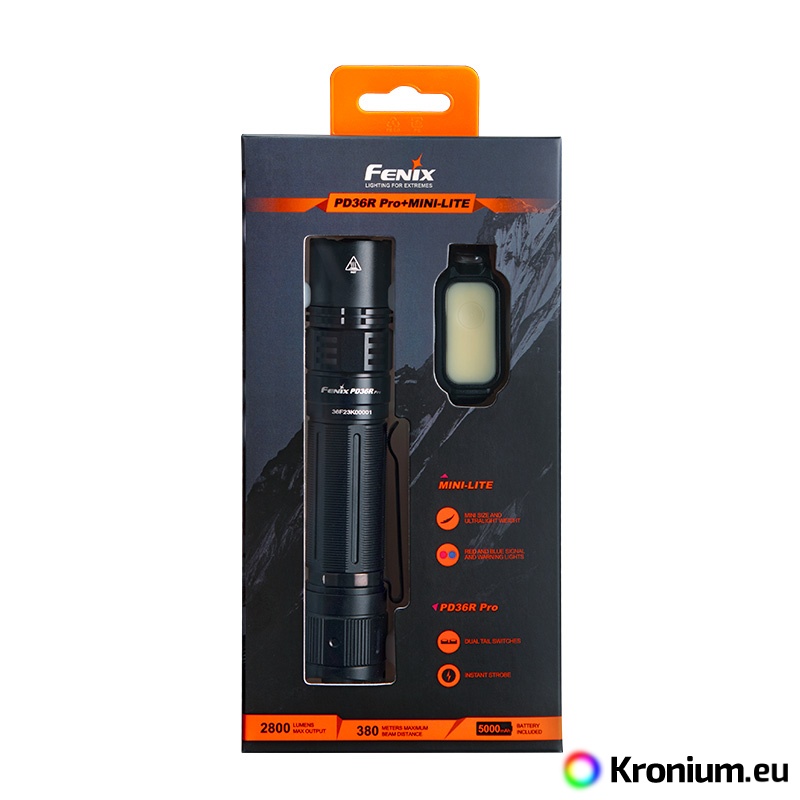

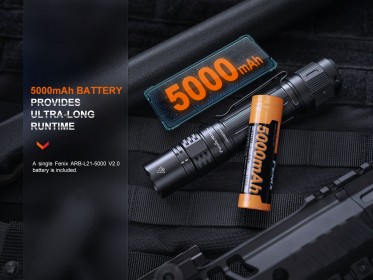

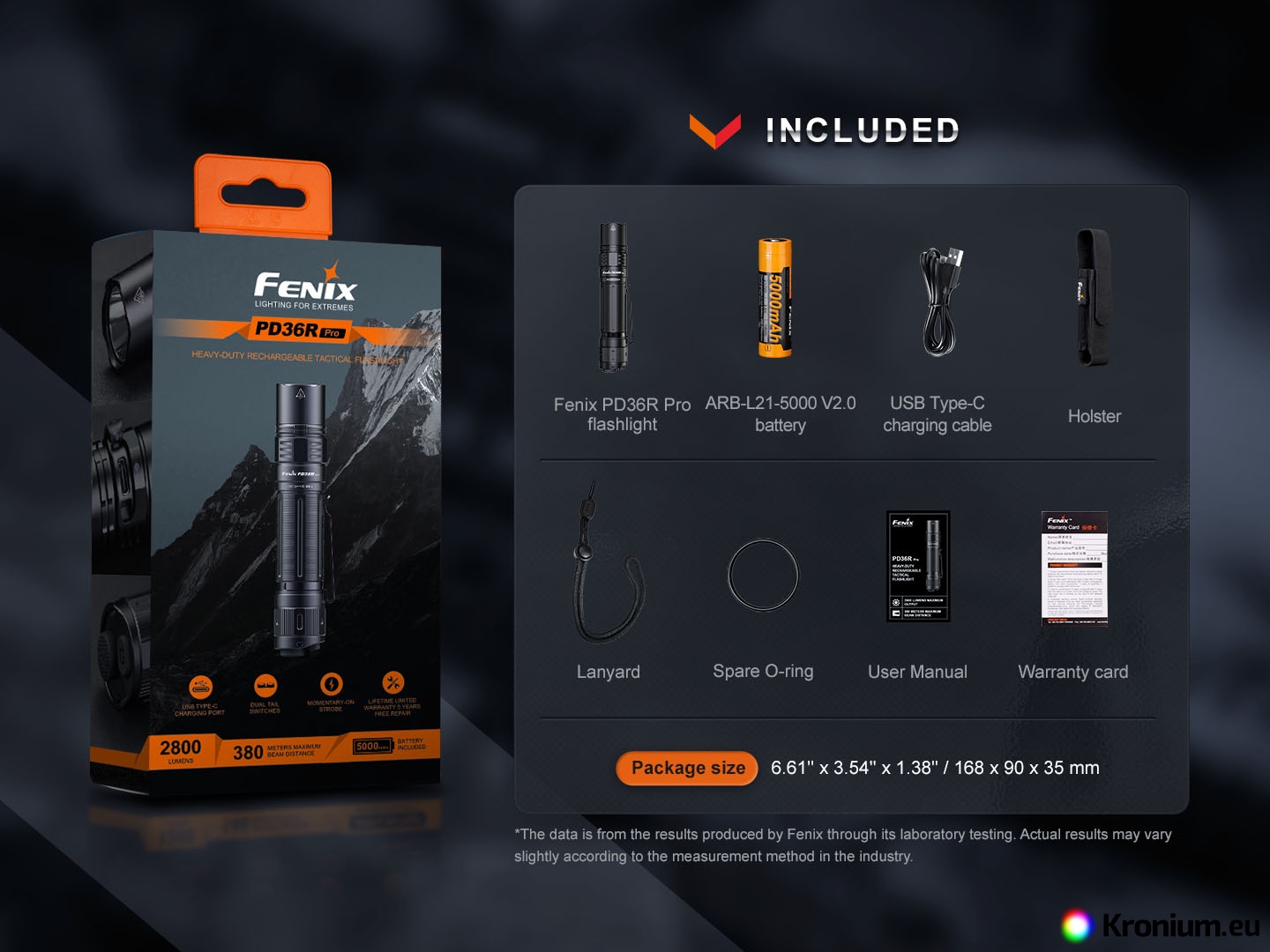

• The flashlight comes with a Fenix ARB-L21-5000 battery pack, USB-C charging cable, wrist lanyard, belt pouch and spare o-ring, this set also includes MINI-LITE flashlight.

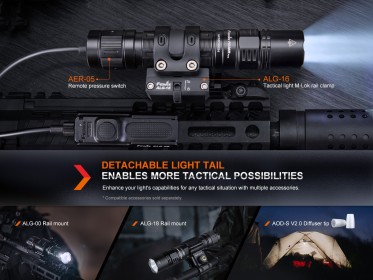

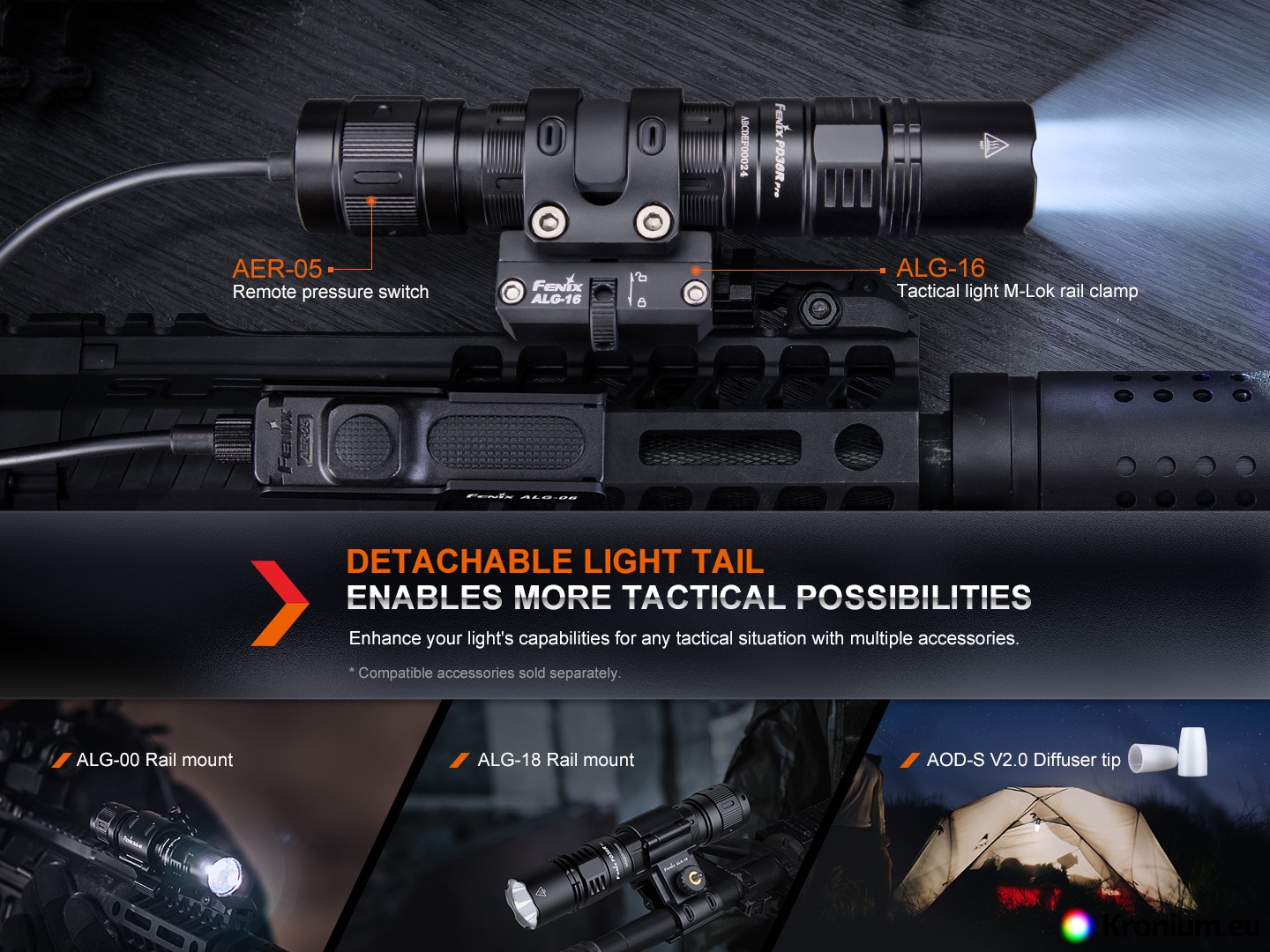

• Optional accessories available for purchase include AER-05 cable switch, quick release rail mount ALG-00, mount to M-LOK Fenix ALG-16, barrel mount Fenix ALG-18, metal magnetic barrel mount, plastic magnetic barrel mount, quick-release ALG-15 rail mount, optic flashlight mount, metal mount for optics, Fenix ALD-05 strap for using the flashlight on a helmet, Fenix FB-1 bike holder, Fenix bike holder, white diffuser AOD-S V2.0, red traffic cone AOT-S+, case ALP-10S.

Using the Fenix PD36R PRO

From manufacture, there may be a insulating cap inside the flashlight on the battery. Remove it from the battery pack before first use.

To turn on/off press the larger tactical button located on the end of the flashlight, press the button lightly for immediate activation. Press the adjacent toggle button to switch between power modes at any time during operation. To switch to flash mode with the flashlight on, hold the toggle button for approximately 0.5 seconds. To switch the flashlight directly into strobe mode, press and hold the toggle button.

Intelligent Overheat Protection- Due to the flashlight's huge 2800 lumens output, the flashlight experiences a temperature rise. If the temperature exceeds 60°C, an automatic power reduction occurs. Once the temperature drops below 60°C, the highest power output can be used again.

 Battery charge status indication- The flashlight always indicates the battery charge status three seconds after switching on. Green indicates sufficient state of charge (100% - 85%), flashing green (85% - 50%), steady red (50% - 25%) and flashing red indicates critically low battery (25% - 1%). If the battery is low, the flashlight will automatically switch to lower power modes, then flash 3 times every five minutes in the lowest mode.

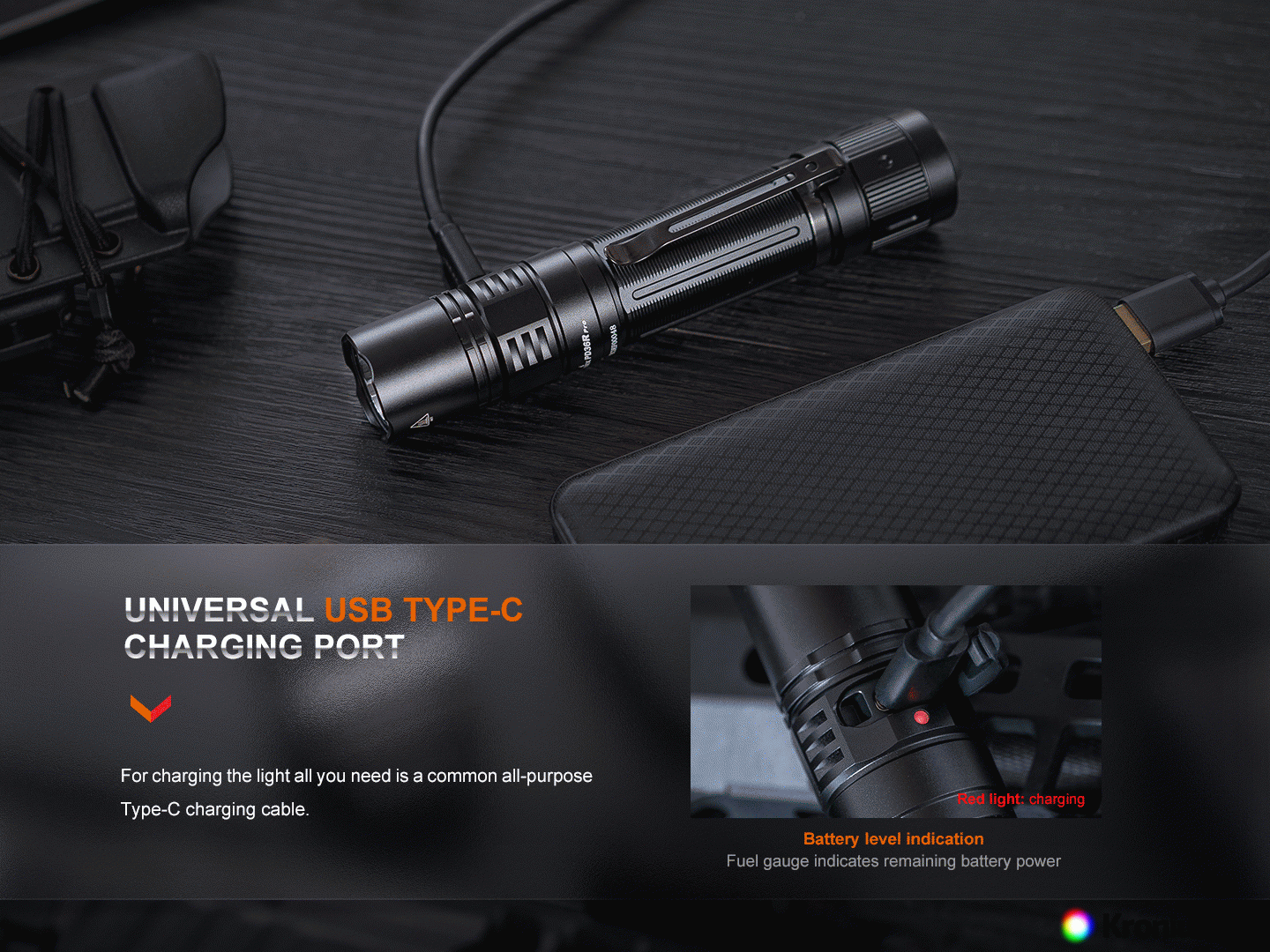

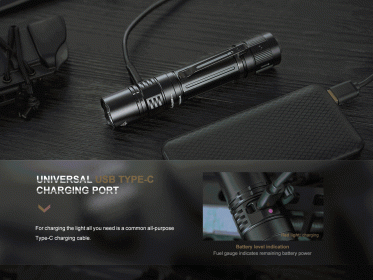

Charging - flip off the rubber cap of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into a computer or USB adapter to the mains or car. The side indicator lights red during charging. When fully charged, it will light up green. Charging a fully discharged battery takes approximately 4 hours. The flashlight cannot be used while charging.

Discharged battery warning - the flashlight automatically switches to the lowest mode over time.

Warning

• Use only high quality rechargeable batteries type 21700 with protective electronics.
• Insert the batteries with the positive pole facing the flashlight head.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The battery is dead - charge or replace it.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.
  • Head, body or back of the flashlight is loose, tighten them.
