The Fenix MINI-LITE (formerly known as E-LITE) multi-color rechargeable flashlight offers three levels of brightness with a range of up to 40m at 150 lumens (ANSI). It is powered by a built-in 275 mAh Li-pol battery that charges via a USB-C connector directly in the flashlight. Another light source is the red and blue warning light, which can be used both during sports and in emergencies. The total weight is only 18g, making the flashlight suitable for everyday carry. Thanks to the integrated buckle, you can clip it to your clothes, belt, visor, backpack or headlamp strap. Its versatility can be used not only by hikers, runners, but also cyclists.

The Fenix MINI-LITE offers a total of three permanent modes of light with 20 hours and two color flashing modes with 22 hours.

All flashlight parameters (lumen output, battery life, waterproofing and range) are measured in accordance with ANSI/NEMA FL 1-2009.

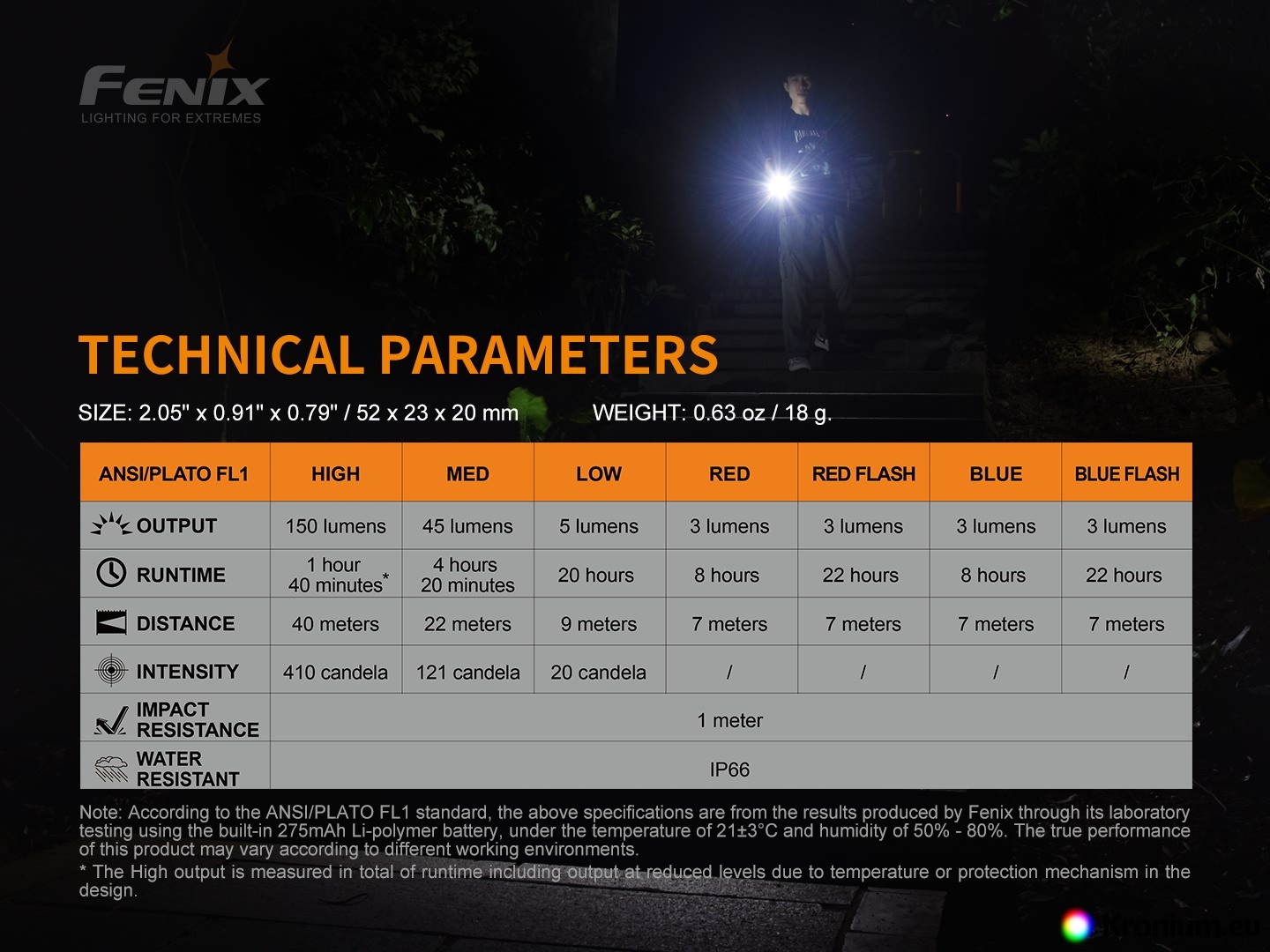

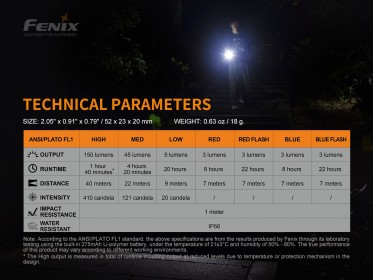

Fenix MINI-LITE Flashlight Specifications

• Uses a white MATCH CA18 LED and blue and red EVERLIGHT 2835 LEDs with 50,000 hours of life.
  • Three levels of white light: 150 lumens (1.66 hours)-> 45 lumens (4.30 hours)-> 5 lumens (20 hours)
  • Four color light functions: red light 3 lumens (8 hours)-> red flashing light 3 lumens (22 hours)-> blue light 3 lumens (8 hours)-> blue flashing light 3 lumens (22 hours)
  .
• The flashlight has a built-in Li-pol battery with 275 mAh capacity.
• Charging via USB-C connector.
• Discharged battery warning, overcharging and full battery protection.
• Battery charge status indication.
• White light range up to 40 meters (410 cd), color light range 7 meters.

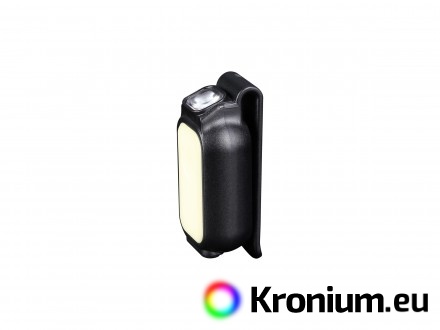

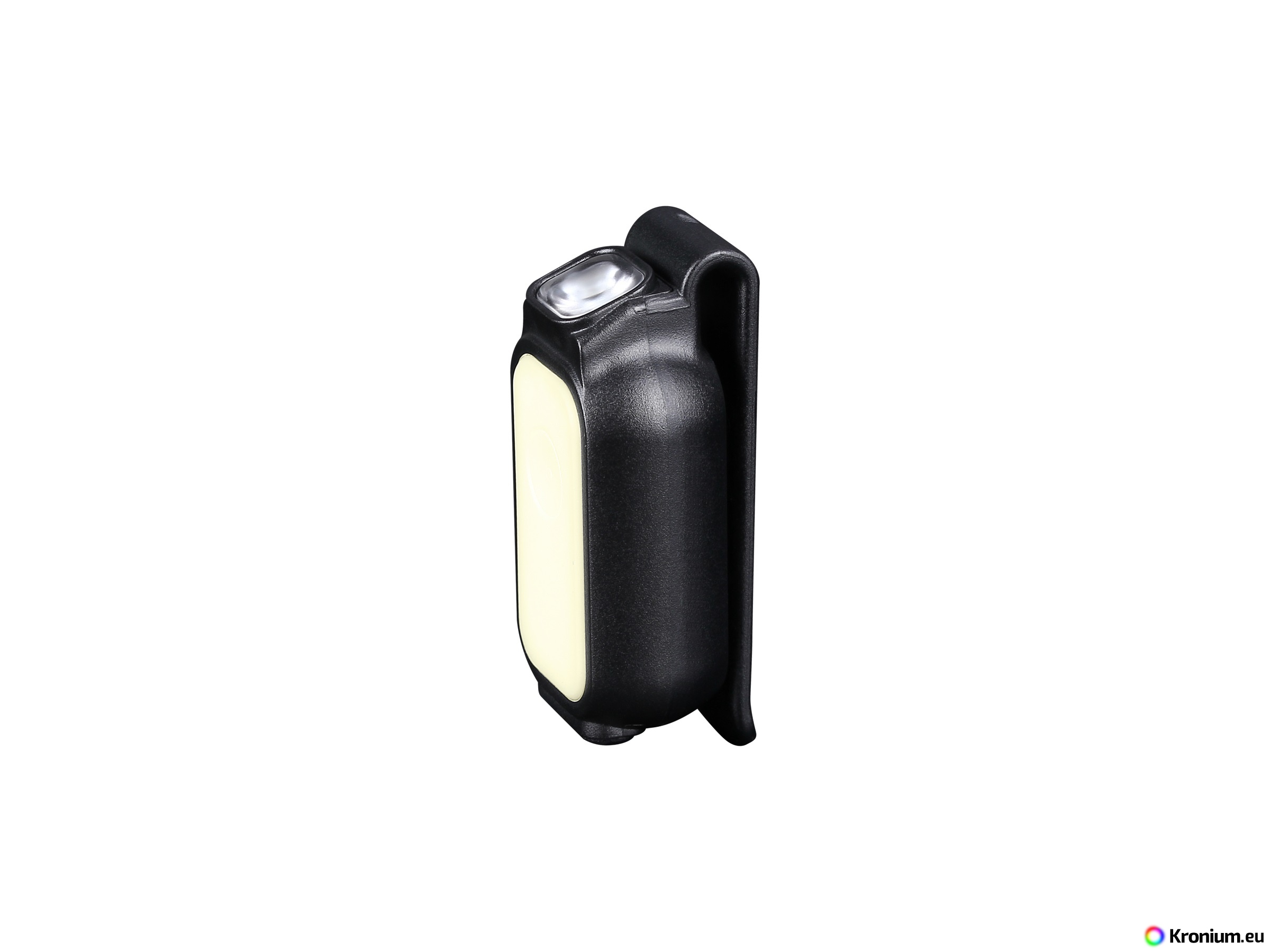

• Clip design ensures a firm and secure fit.
• Light made of impact resistant plastic.
• Light dimensions 5.2 cm x 2.3 cm x 2.0 cm.
• Weight of light 18 grams including battery.

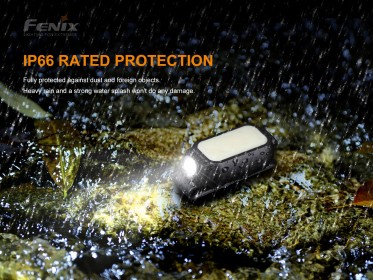

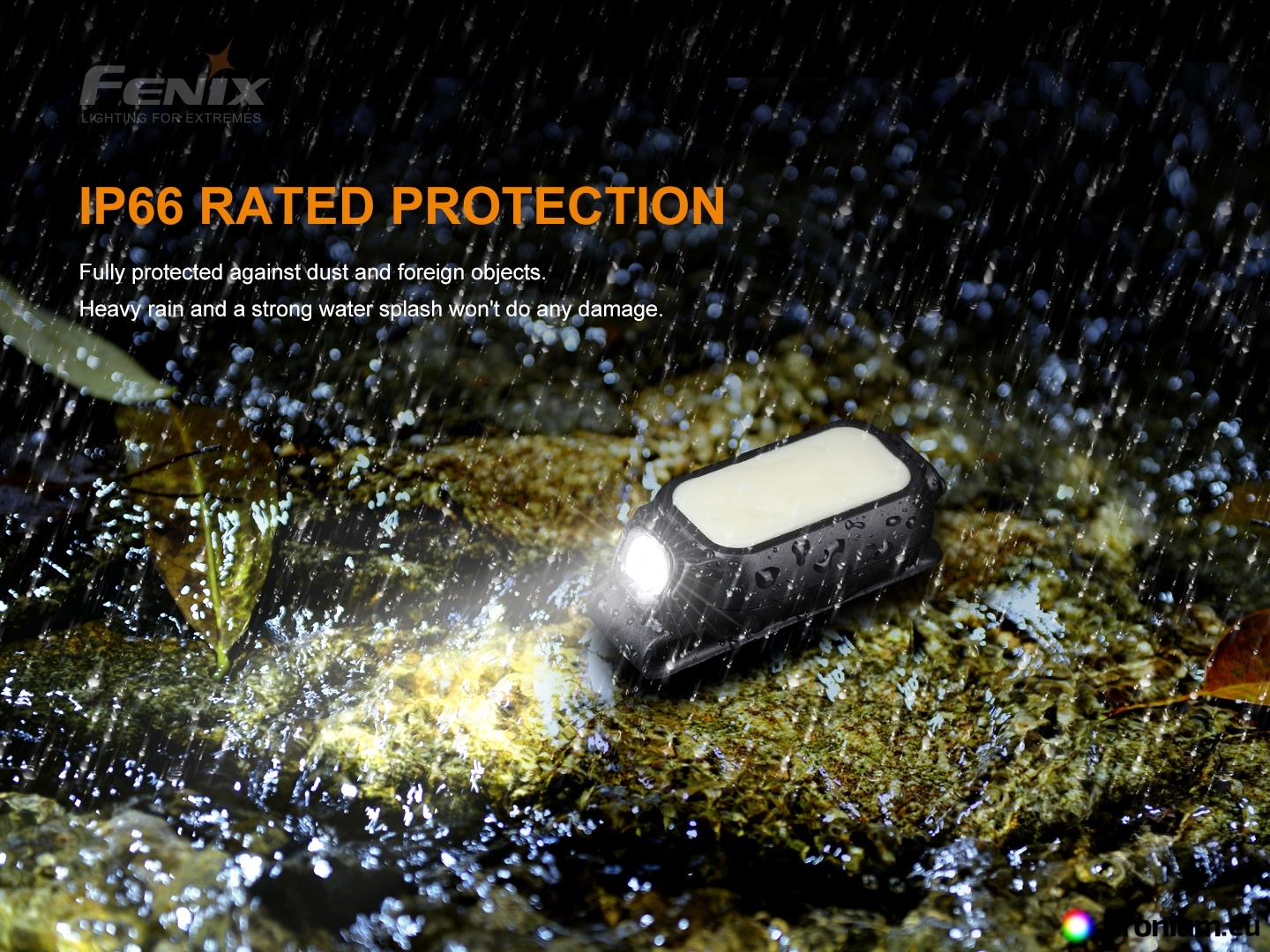

• Waterproof and dustproof to IP66 standard (spraying with strong jets of water from all directions).
• Includes USB-C charging cable and key ring.
• To charge the flashlight with a regular micro-USB cable, a micro-USB to USB-C reduction can be purchased.
• Also available for purchase are USB to power adapter and USB to car adapter, USB adapter supporting fast charging and USB-C cable.

Turn off the lights and turn on the warning signals

To turn the white light on or off, hold down the button on the flashlight for about 0.5 seconds. The white light output modes can then be switched at any time during operation by pressing the button. To switch to coloured light, hold the button down for 1.2 seconds. Red and blue light can then be switched again by pressing the button.

Battery capacity indication - With the flashlight off, press the button once briefly, then its backlight will illuminate for three seconds. A steady green light indicates an 80-100% charged battery, a flashing green light indicates a charge of approximately 50-80%, a steady red light indicates a charge of approximately 20-50% and a red flashing light indicates a nearly discharged battery (0-20%).

Discharged Battery Warning - if the battery capacity drops below approx. 20%, the flashlight will automatically switch to lower power modes to ensure the longest battery life (the flashlight cannot be switched to higher modes afterwards). If the battery is critically low, the button will flash red. In this case, we recommend charging the flashlight as soon as possible to prevent the protective electronics built into the batteries from turning off and thus turning off the light.

Overheating protection - if the temperature of the flashlight rises above 60°C, it will automatically start to reduce the power in gradual steps, once the temperature of the flashlight drops below 60°C, the power will gradually increase again.

Charging

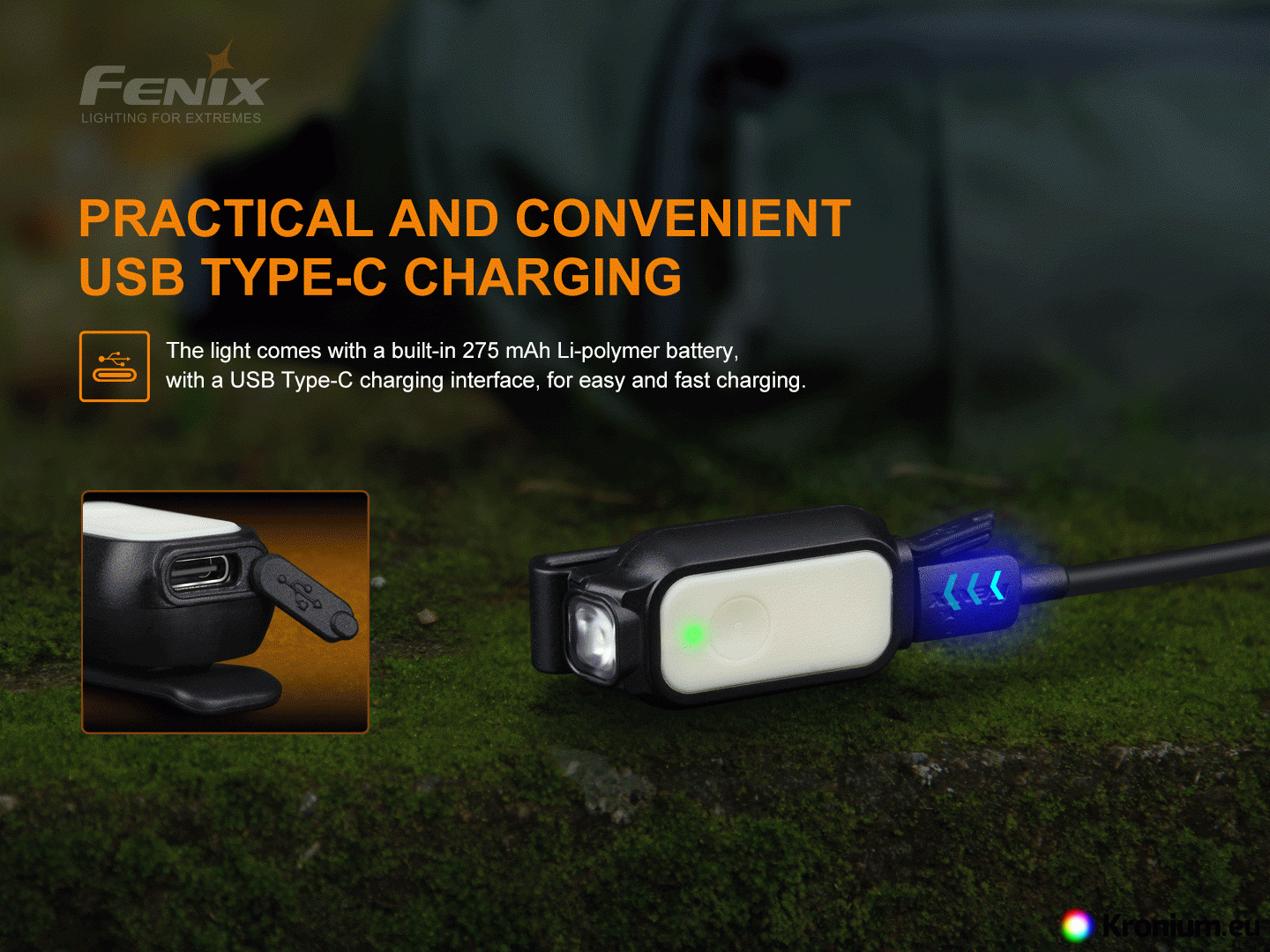

• Unplug the rubber cap of the USB-C connector on the bottom of the flashlight and use the included cable to plug it into a computer, power bank, USB power adapter or USB car adapter. Alternatively, any mobile phone charger with a USB-C connector can be used for charging.
• Button glows red during charging, glows green when fully charged.
• Charging time is about 1.5 hours. The Li-pol battery used does not suffer from memory effect, so the flashlight can be recharged at any time.
• After charging and removing the power cable, be sure to seal the USB connector cap.

Caution

• Do not disassemble the sealed parts yourself it will break the warranty.
• If the flashlight does not switch to a higher mode or does not light up, it may be due to one of the following reasons:
  • The battery is dead – charge it.

Warranty

Legal two-year warranty.
