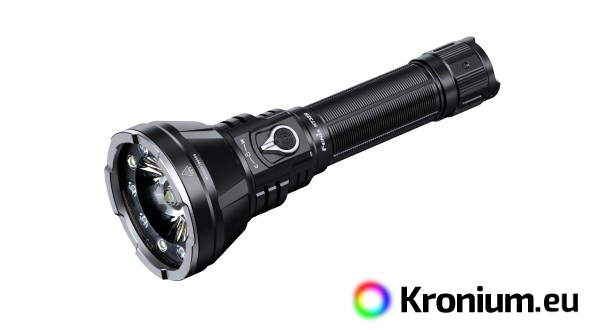

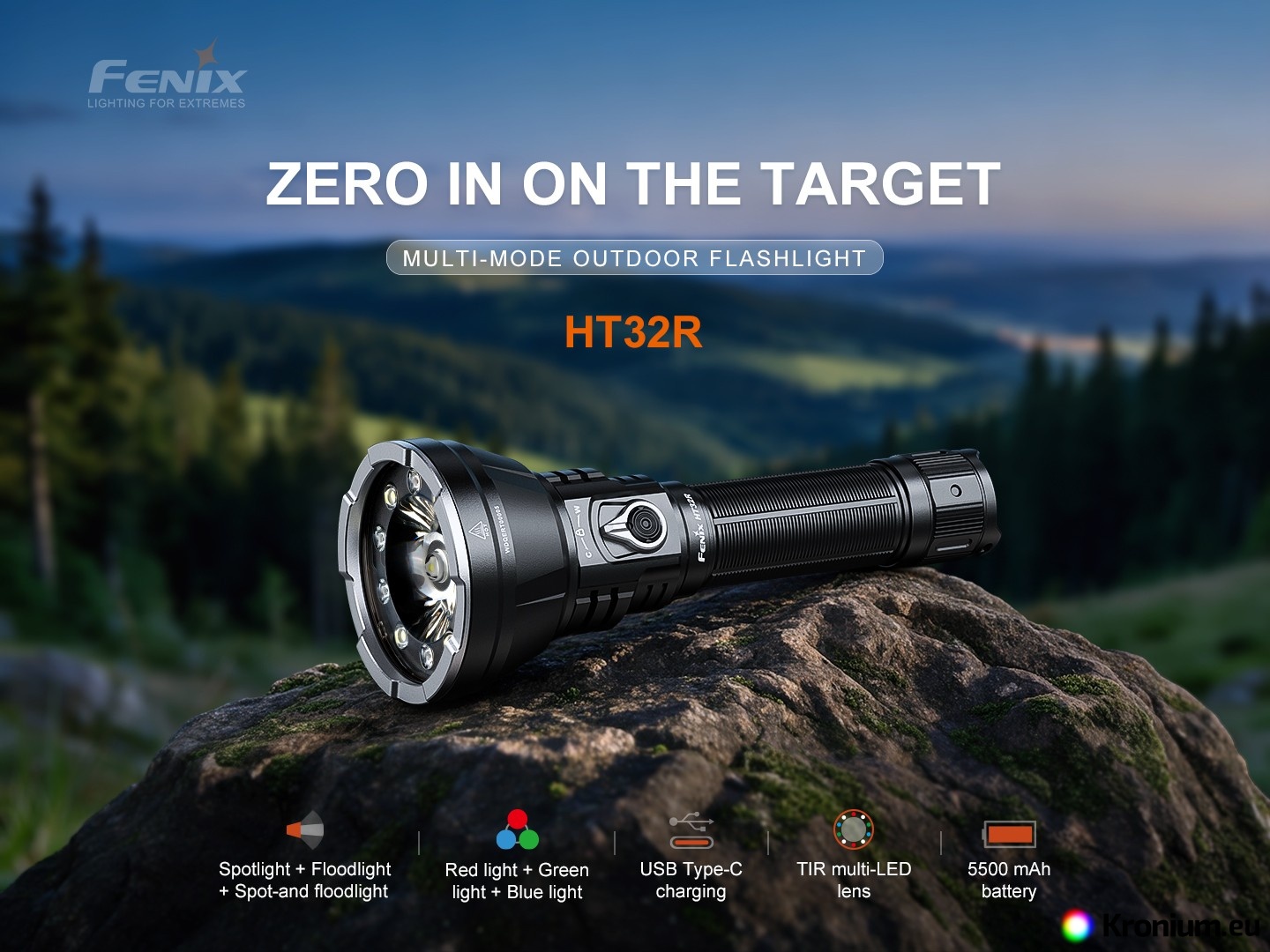

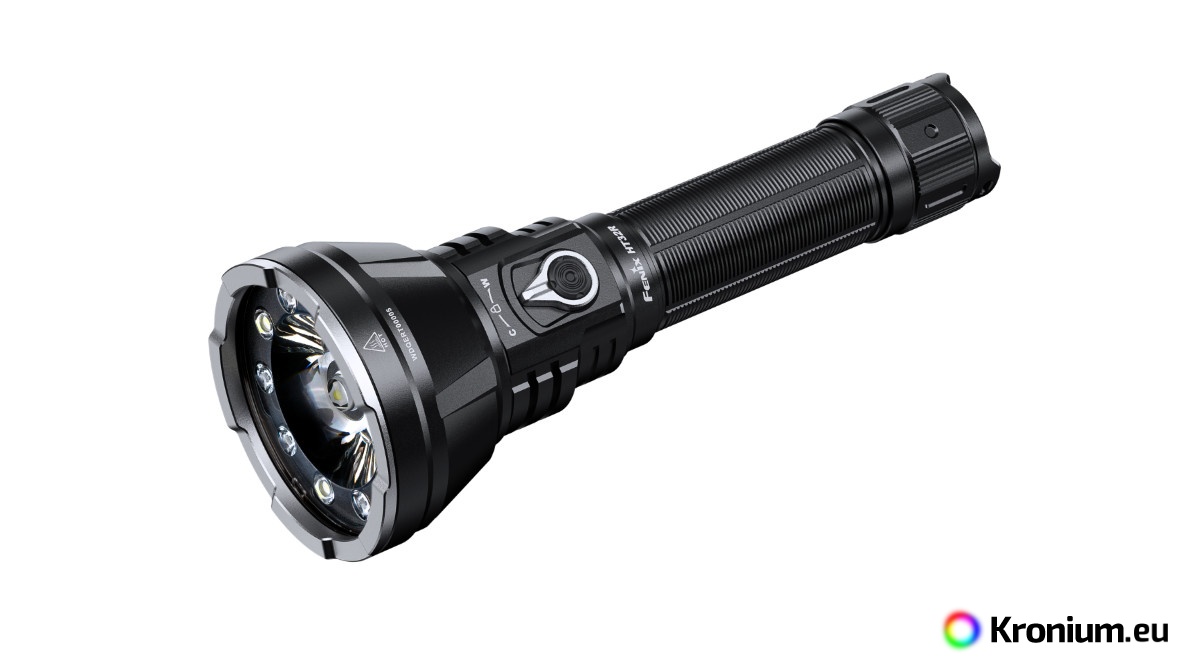

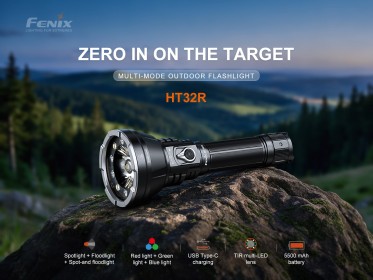

The Fenix HT32R hunting flashlight with white, red, green, and blue LEDs offers an extreme light output of up to 4000 lumens in white light and an incredible beam distance of 740 meters. The maximum output of the green light is 650 lumens with a distance of 145 meters, the maximum output of the red light is 400 lumens with a distance of 110 meters, and the blue light provides 200 lumens with a distance of 80 meters. Premium Luminus and Osram light-emitting diodes are mounted in a special TIR optic that allows switching between spotlight, floodlight, or a spot-and floodlight beam. Power is supplied by a top-tier 21700 Li-ion battery with a capacity of 5500 mAh (included in the package), which is charged via a USB-C port elegantly hidden under a sliding cover directly on the neck of the flashlight.

The Fenix HT32R multi-color LED flashlight features a unique white light system (spotlight, floodlight, and spot-and floodlight) with a runtime of over 92 hours. Additionally, it offers red (including flashing), green, and blue light modes for discreet movement in nature or signaling. It is operated by an innovative mechanical toggle switch combined with an electronic switch for rapid selection of modes and colors. The flashlight is compatible with long gun mounts and the AER-05 remote pressure switch. The Fenix HT32R is the ultimate lighting tool for professionals, hunters, and all users who demand extreme performance, beam versatility, and extensive color lighting options.

All flashlight parameters (lumen output, battery runtime, waterproofing, beam distance, and impact resistance) are measured in accordance with the ANSI/NEMA FL 1-2009 standard.

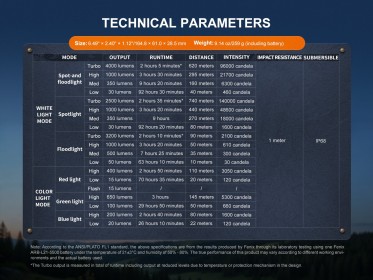

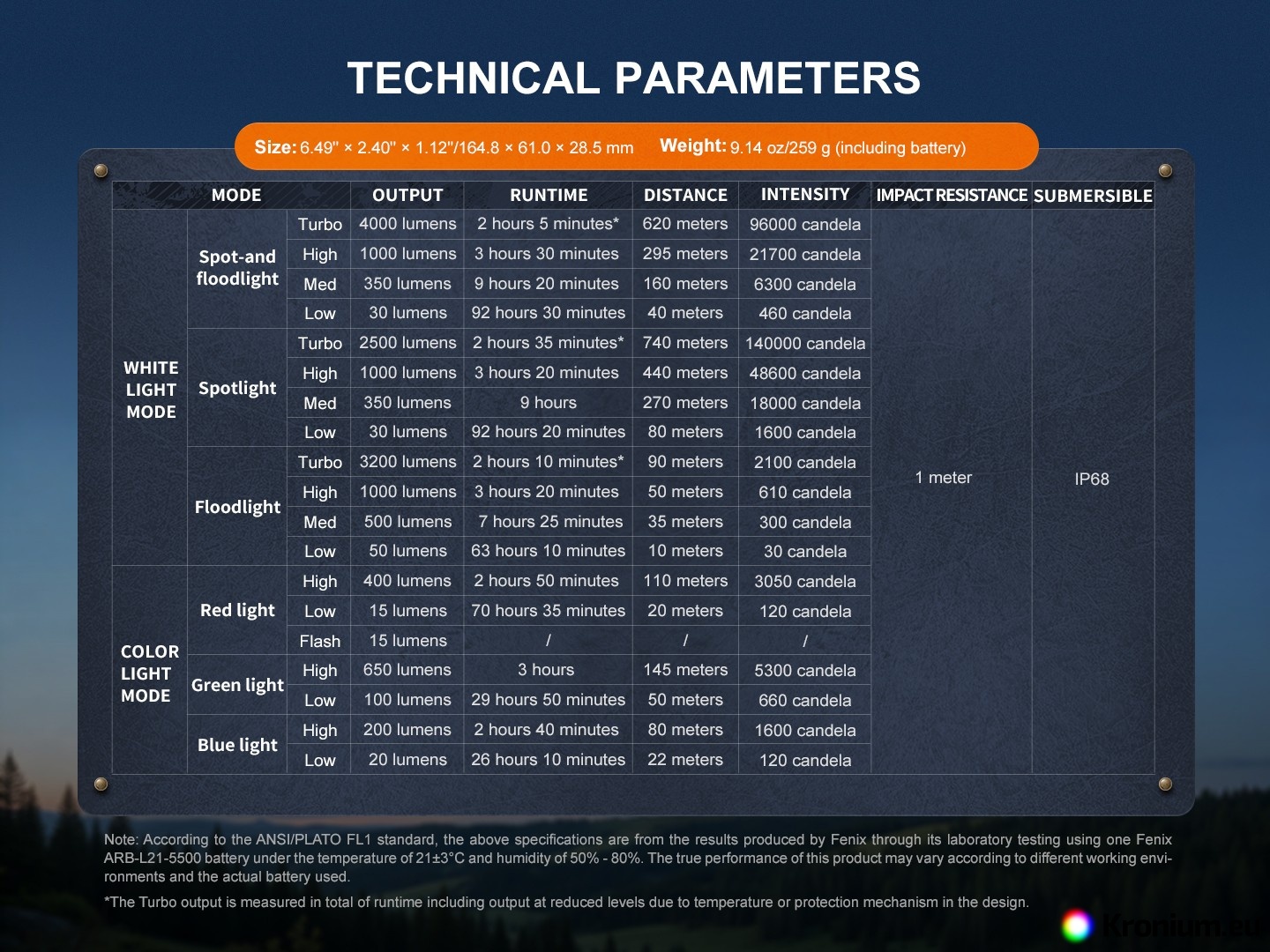

Fenix HT32R Hunting Flashlight Parameters

• Premium diodes are used: 1x Luminus SFT42R (central spotlight), 4x Luminus SST20F (floodlight), and 6x Osram Ostar for color lighting (red, green, blue) with a lifespan of 50,000 hours.
• A total of 19 lighting modes:
  • Three white light variations:
    • Spot-and floodlight: 4000 lumens (2 h 5 min) -> 1000 lumens (3 h 30 min) -> 350 lumens (9 h 20 min) -> 30 lumens (92 h 30 min).
    • Spotlight: 2500 lumens (2 h 35 min) -> 1000 lumens (3 h 20 min) -> 350 lumens (9 h) -> 30 lumens (92 h 20 min).
    • Floodlight: 3200 lumens (2 h 10 min) -> 1000 lumens (3 h 20 min) -> 500 lumens (7 h 25 min) -> 50 lumens (63 h 10 min).
  • Three color light variations:
    • Red light: 400 lumens (2 h 50 min) -> 15 lumens (70 h 35 min) -> Flash 15 lumens.
    • Green light: 650 lumens (3 h) -> 100 lumens (29 h 50 min).
    • Blue light: 200 lumens (2 h 40 min) -> 20 lumens (26 h 10 min).

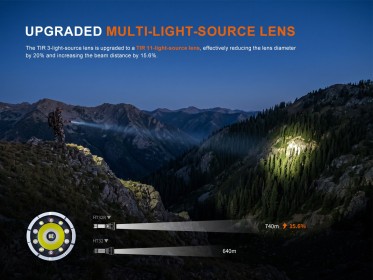

• Special TIR optics with a maximum beam distance of up to 740 meters in white spotlight mode (140,000 cd). The beam distance in spot-and floodlight mode is 620 meters, and 90 meters in floodlight mode. The distance in red light is 110 meters, green 145 meters, and blue 80 meters.
• Electronics with digital output regulation, reverse polarity protection, and protection against deep battery discharge.

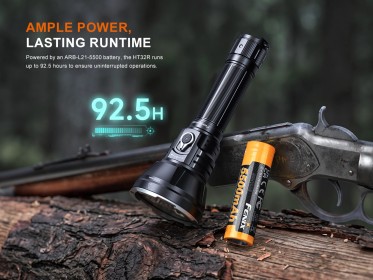

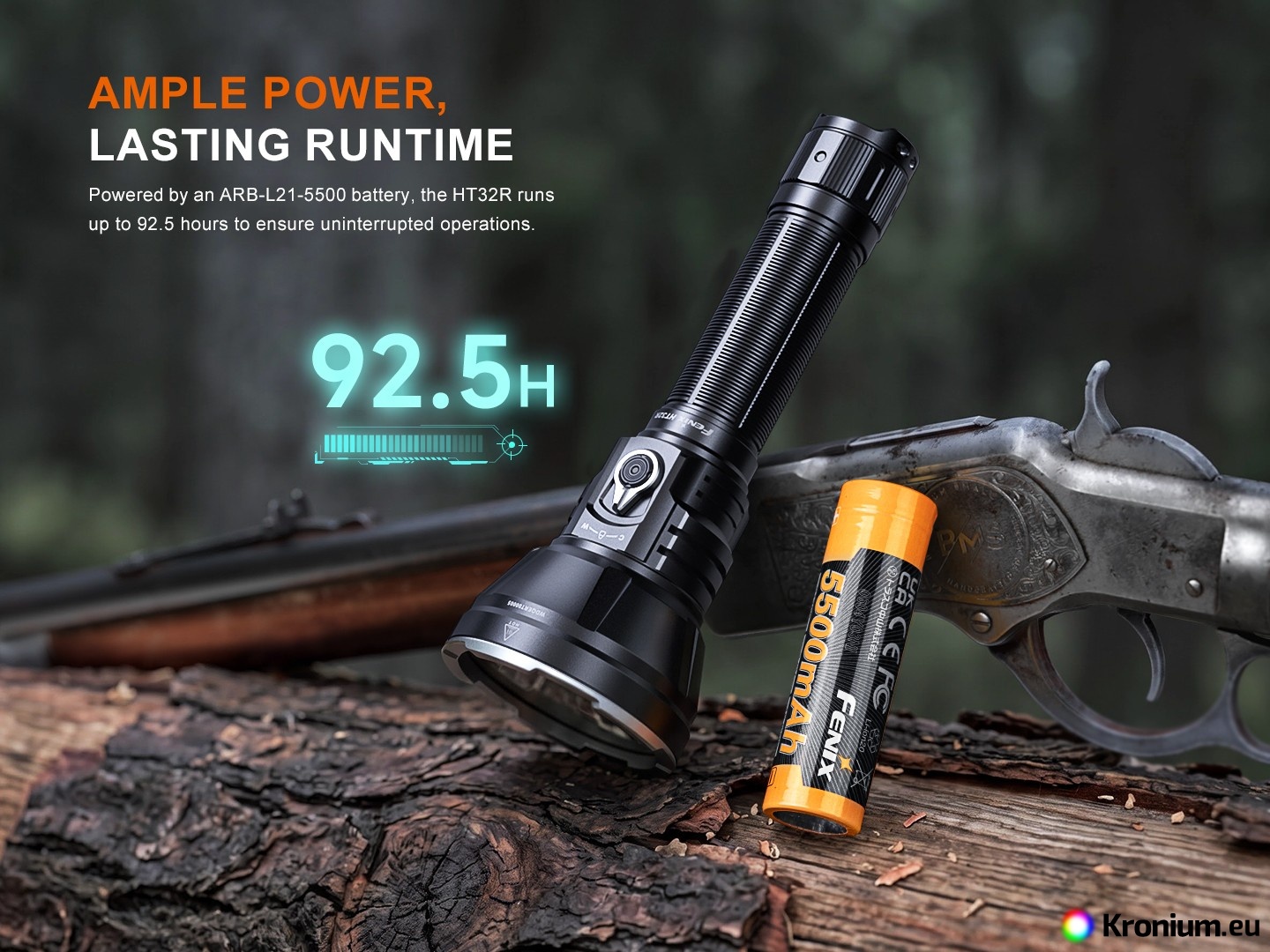

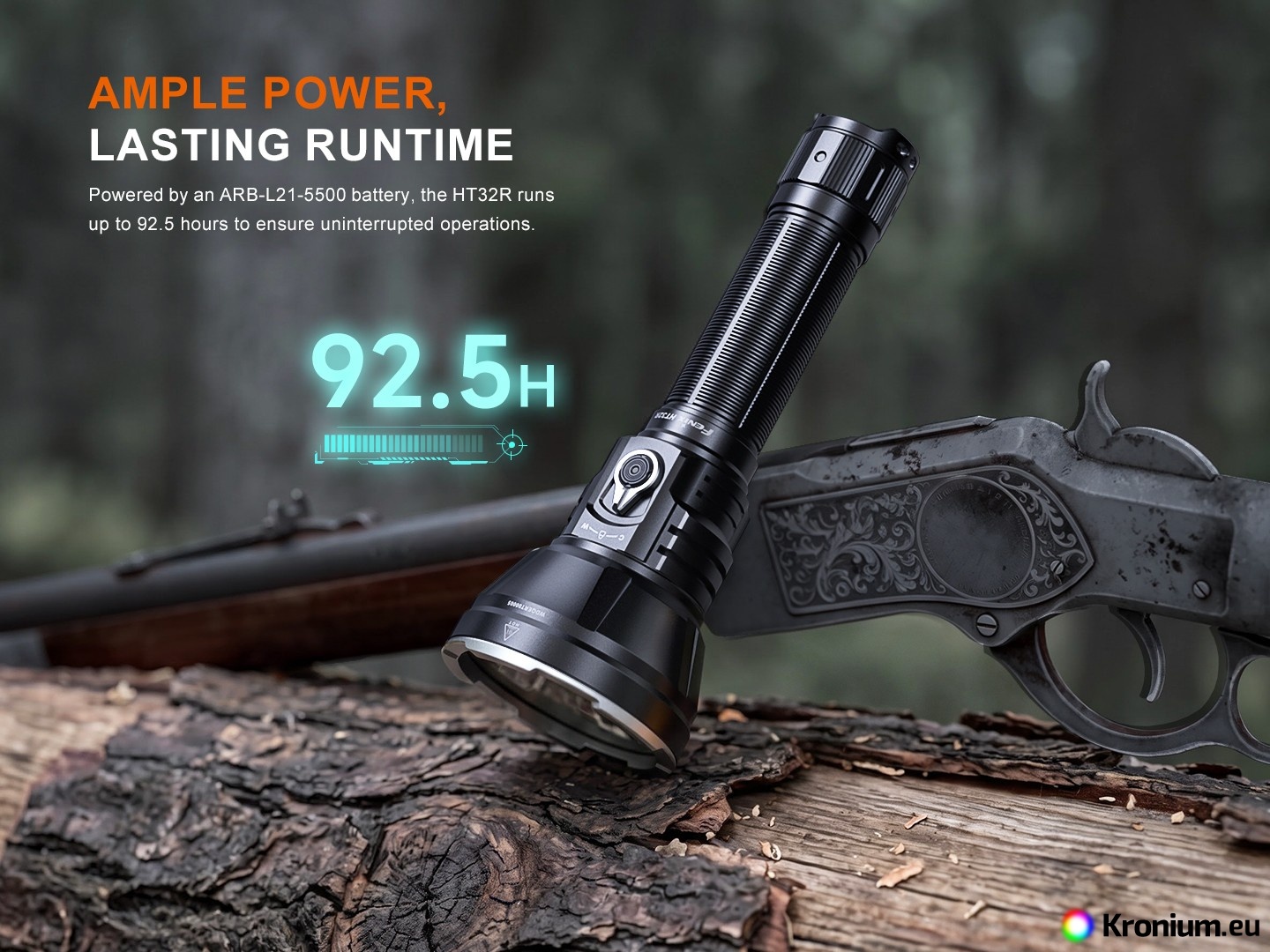

• Powered by one high-capacity 21700 5500 mAh Li-ion battery (type ARB-L21-5500).

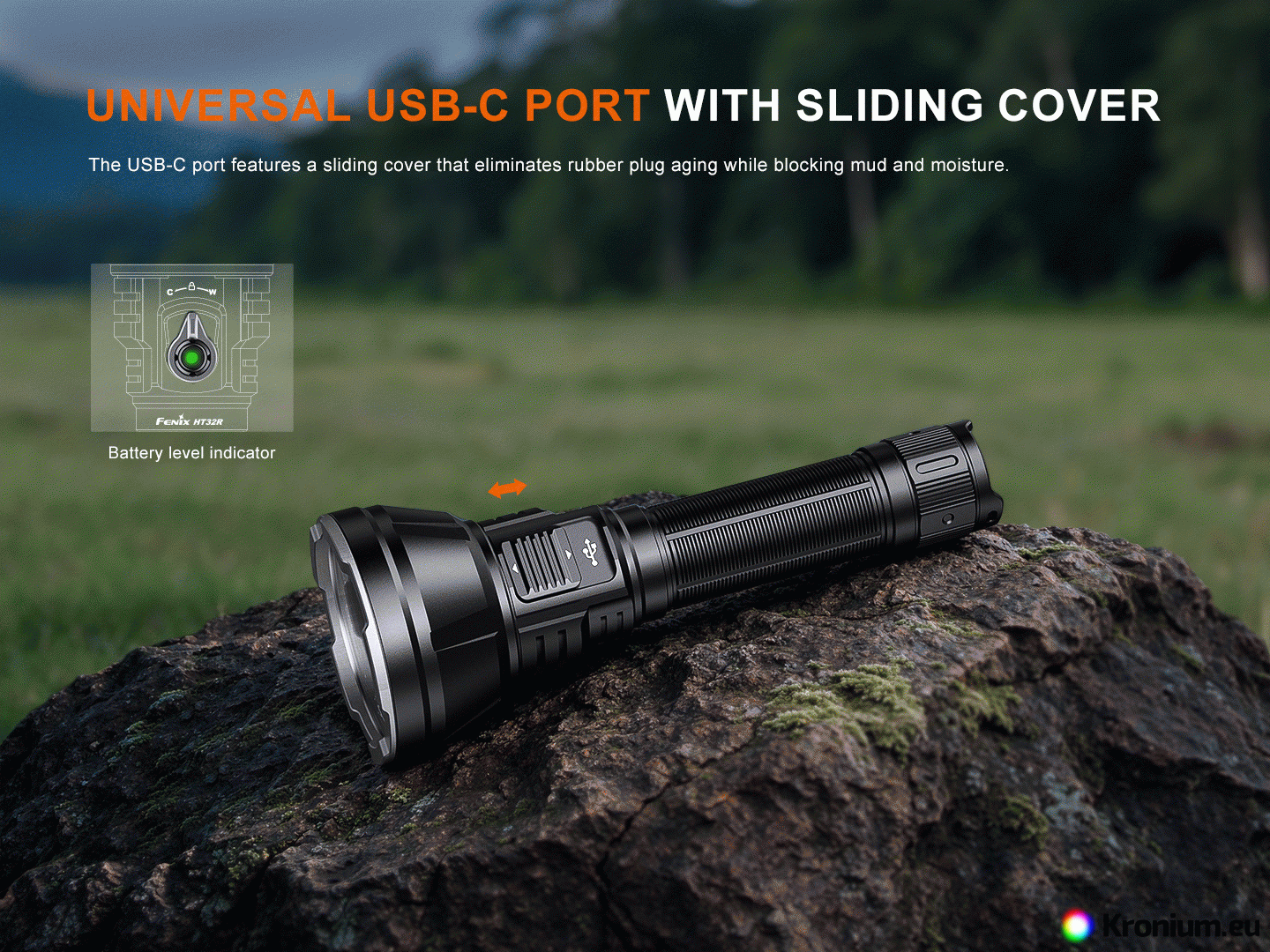

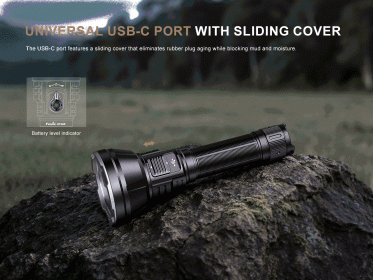

• Charging is done via a fast USB-C port located on the neck of the flashlight under a dust and water-resistant sliding cover.
• Supports fast charging (9 V / 3 A); charging time with a powerful USB adapter is approximately 1.5 hours.
• Dimensions: 16.48 cm (length) × 6.1 cm (head diameter) × 2.85 cm (body diameter).
• The flashlight has an intelligent memory circuit and turns on in the last selected mode (applies to white light except for the highest Turbo mode. In Color light mode, it always turns on in the lowest output by default).
• The flashlight body is made of A6061-T6 aerospace-grade hard-anodized aluminum and features a sturdy titanium-coated body clip.
• Durable, hard-to-scratch finish – Type III hard anodized.

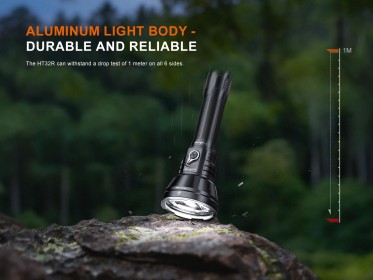

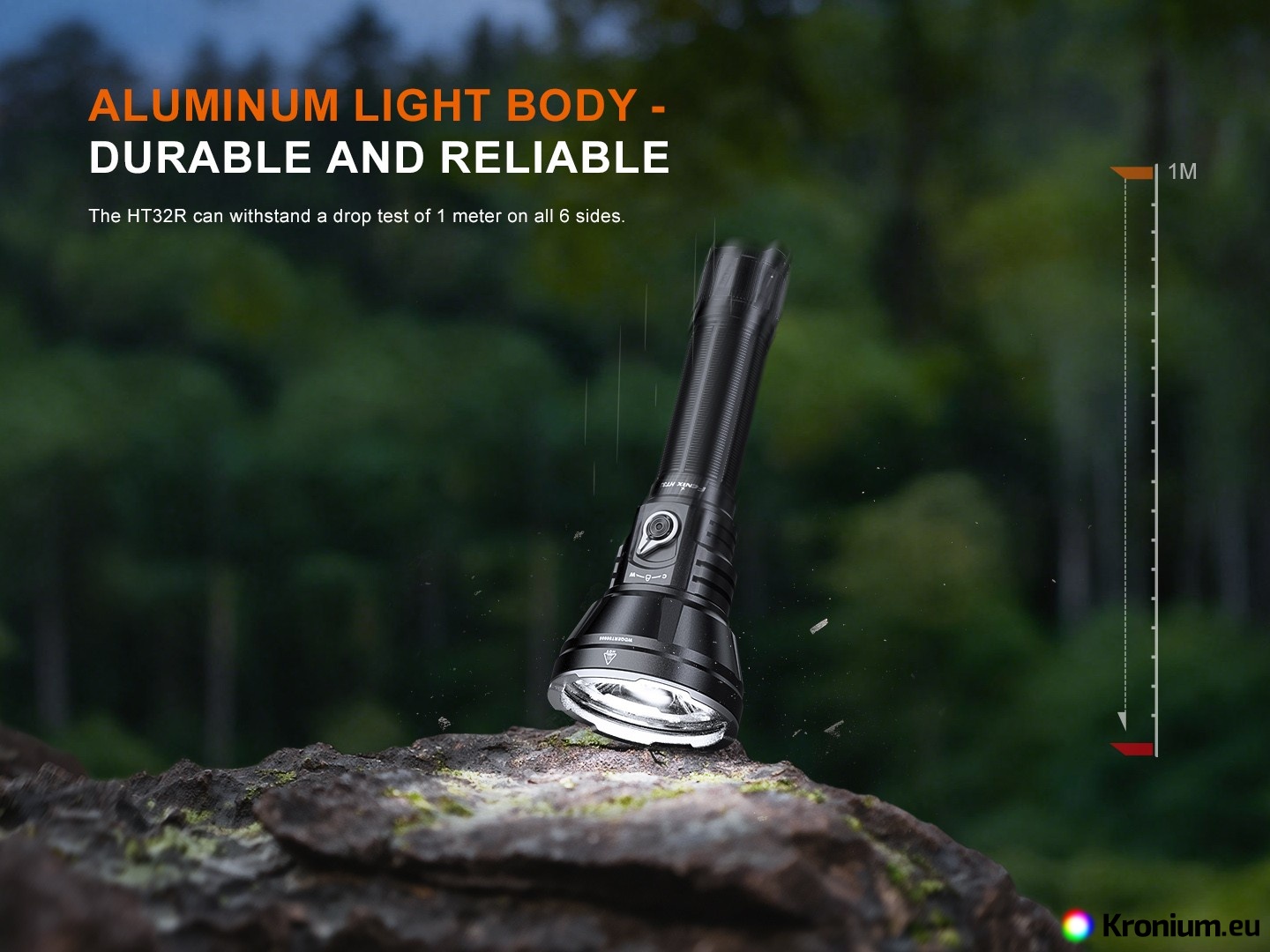

• Impact resistant to drops from a height of 1 meter.
• Highly wear-resistant trapezoidal threads.
• Weight: 259 grams (including battery).

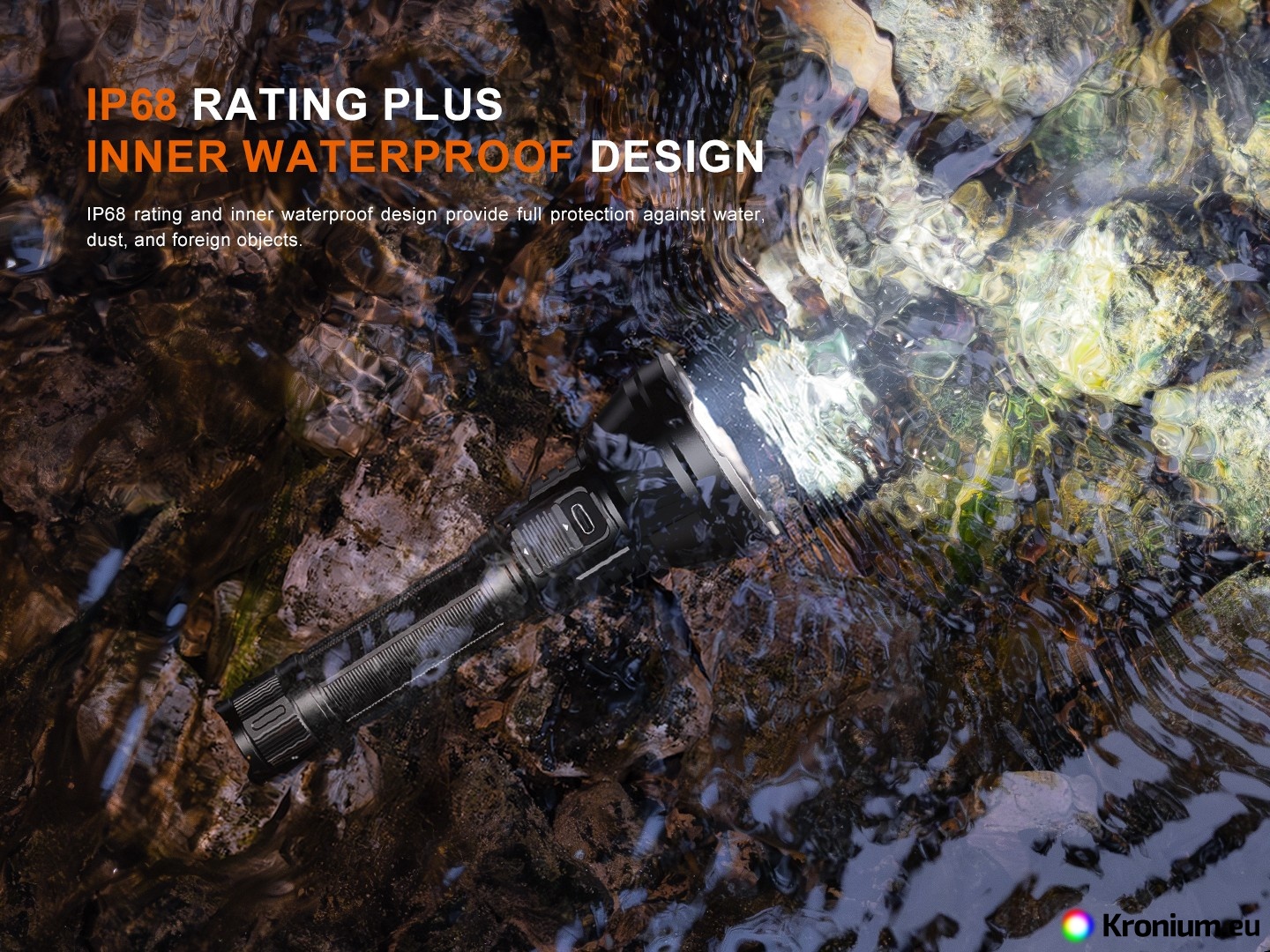

• Waterproof and dustproof according to the IP68 standard (tested underwater at a depth of 2 meters).
• Easily handles recoil when used on a weapon.
• Operation is handled via a mechanical toggle switch and an electronic button.

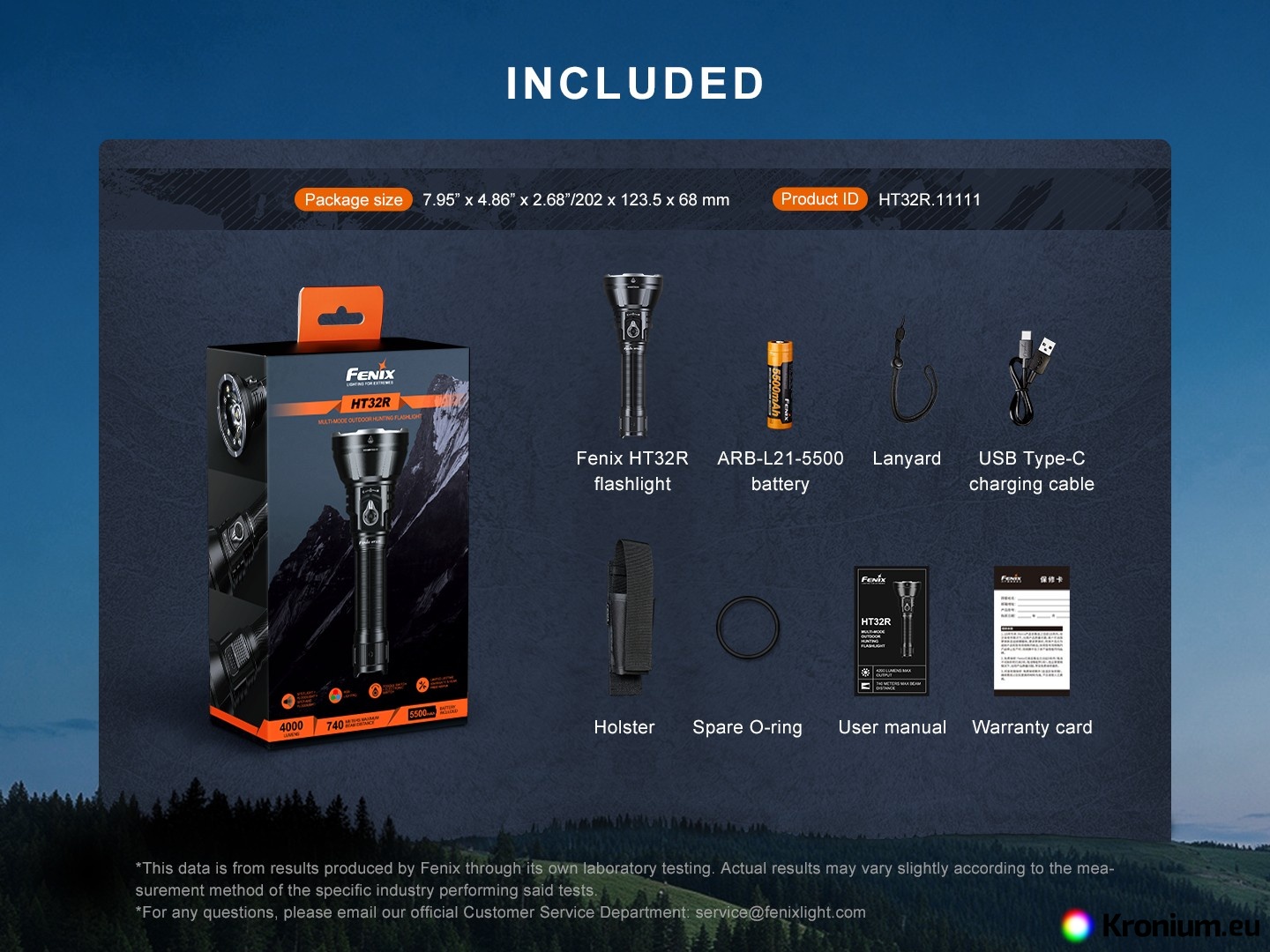

• The flashlight comes with an ARB-L21-5500 battery, USB-C charging cable, lanyard, belt holster, and a spare O-ring.

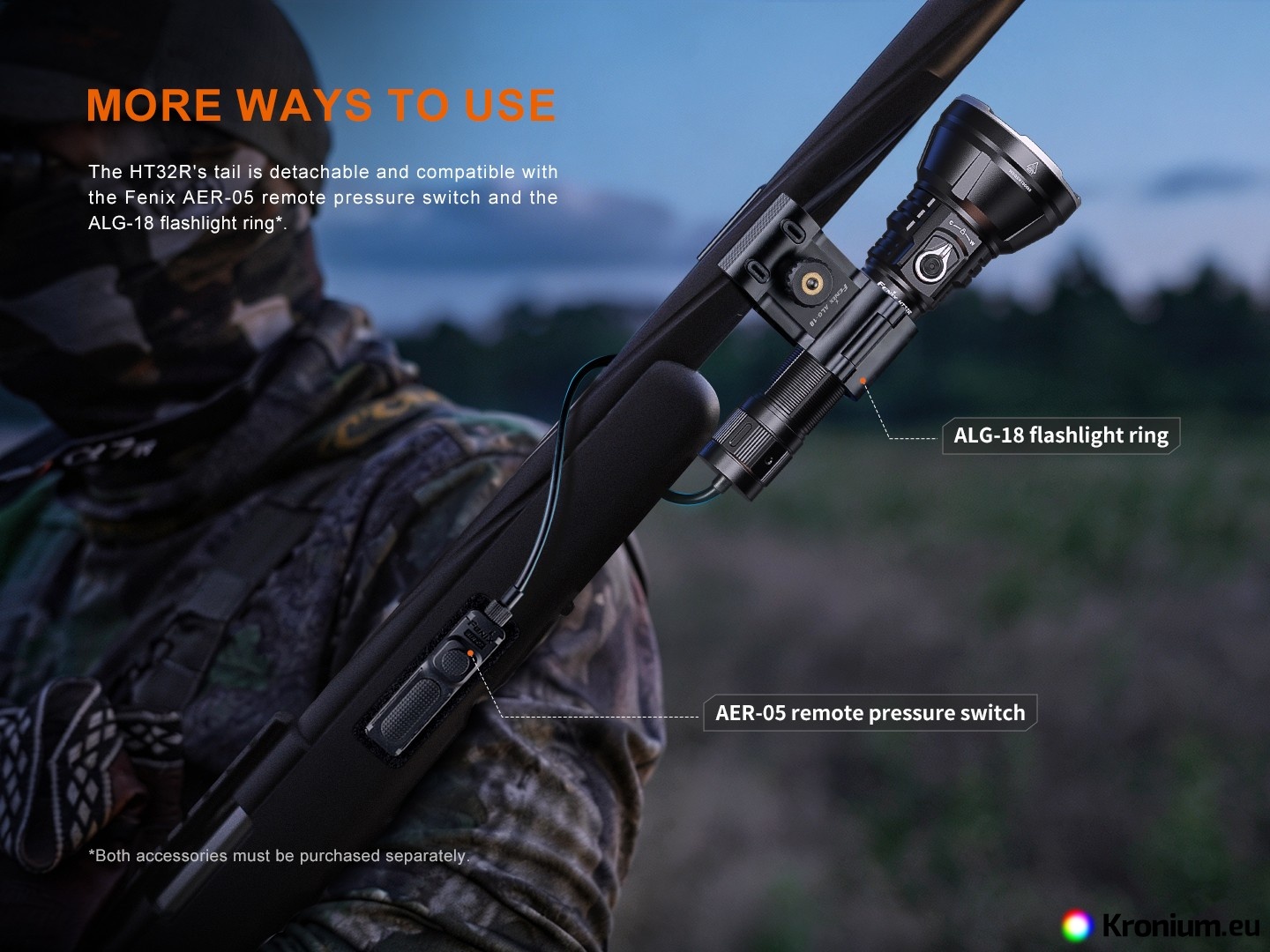

• The following accessories can be purchased: AER-05 remote switch, ALG-15 quick-release rail mount, ALG-00 quick-release rail mount, Fenix ALG-16 M-LOK mount, Fenix ALG-18 barrel mount, magnetic metal barrel mount, magnetic plastic barrel mount, optic mount.

Operating the Fenix HT32R Hunting Flashlight

There may be an insulating cap inside the battery compartment from the factory. Remove it before first use.

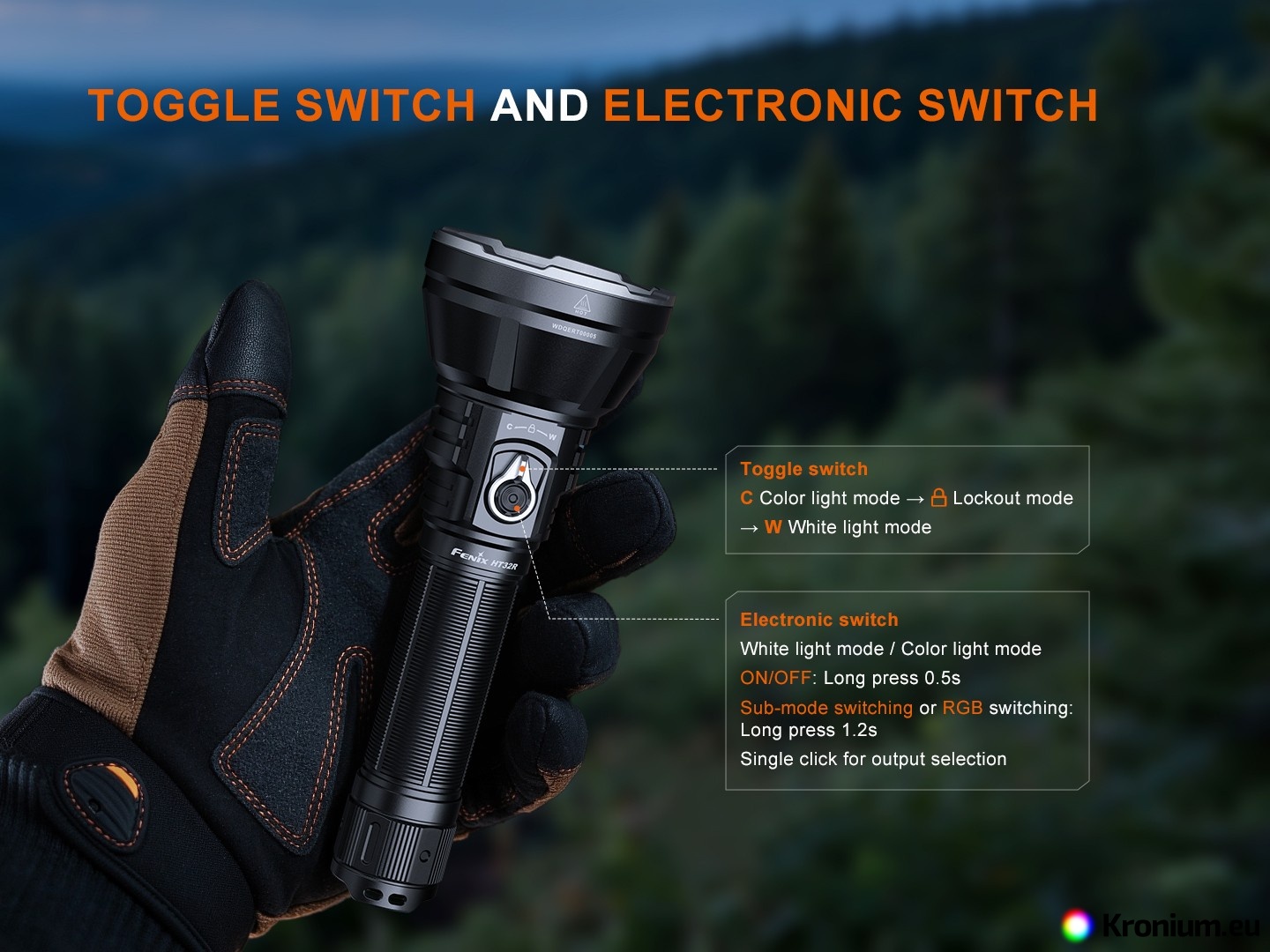

On/Off: The flashlight is equipped with a toggle switch featuring positions for White light (W), Lockout (lock icon), and Color light (C). If the flashlight is locked, turn the toggle switch to the (W) or (C) position to turn on the flashlight into the respective mode. If the flashlight is turned off and unlocked (switch in W or C), press and hold the electronic switch for 0.5 seconds to turn it on. To turn it off, press and hold the electronic switch again for 0.5 seconds, or turn the toggle switch to the center Lockout position.

Switching Light Types and Colors: Use the toggle switch to choose between white and color light. In White light mode, press and hold the electronic switch for 1.2 seconds to cycle through Spot-and floodlight -> Spotlight -> Floodlight. In Color light mode, press and hold the electronic switch for 1.2 seconds to cycle through Red light -> Green light -> Blue light.

Output Selection: While the flashlight is on, change output levels with single clicks of the electronic switch. (In white light, it cycles Low -> Med -> High -> Turbo; in color lights, it cycles Low -> High, plus Flash for red).

Charging: Slide the cover on the neck of the flashlight to reveal the port and plug in the included USB-C cable. The indicator near the port glows red while charging and turns green when fully charged. Charging takes approximately 1.5 hours with a 27 W USB power adapter.

Battery Level Indication: With the flashlight turned off, you can single-click the electronic switch; the indicator will light up for 3 seconds to show the battery status: Solid green indicates 100-85%, flashing green 85-50%, solid red 50-25%, and flashing red indicates a critically depleted battery (25-1%).

Low-voltage Warning: When the battery voltage drops below the preset level, the flashlight will gradually reduce its brightness. Upon reaching the lowest output, the battery level indicator will flash red to remind you to recharge or replace the battery.

Intelligent Overheat Protection: The flashlight generates a massive amount of heat at high outputs. If its temperature exceeds 60 °C, it will automatically step down the output. Once the temperature drops below 60 °C, higher outputs can be used again.

Warnings

• Use only high-quality rechargeable 21700 Li-ion batteries with protective electronics.
• Insert the batteries with the positive pole facing the head of the flashlight.
• Disassembling the sealed head of the flashlight will void the warranty and may cause damage.
• If the protective rubber O-rings appear damaged after prolonged use, replace them. The O-rings must also be lubricated to prevent rubber erosion. Following these rules will keep the flashlight properly protected against water.
• If the flashlight flickers, does not switch to higher output modes, or fails to illuminate, it may be due to one of the following reasons:
  • The battery is nearly depleted – charge or replace it.
  • The contacts inside the flashlight are dirty – clean them with a cotton swab soaked in rubbing alcohol.
  • The tail cap is loose – tighten it.
