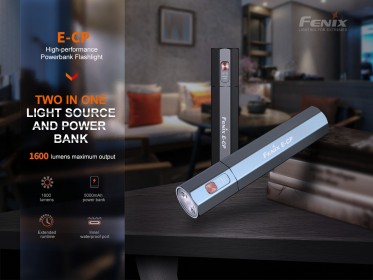

Fenix E-CP combines the function of a handheld flashlight with up to 1600 lumens and a power bank with 5000 mAh capacity. Power is provided by a built-in Li-ion battery with. Fenix E-CP is a great portable EDC flashlight and powerbank in one, for charging your mobile phone and other portable electronics. However, it will also fit perfectly into your outdoor kit if you're heading off the grid for an extended period of time.

All flashlight parameters (luminous flux, battery runtime, waterproofness, range and shockproofness) are measured in accordance with ANSI/NEMA FL 1-2009.

Fenix E-CP powerbank flashlight specifications

• Quality Luminus SST-40 LED with a lifetime of 50000 hours.

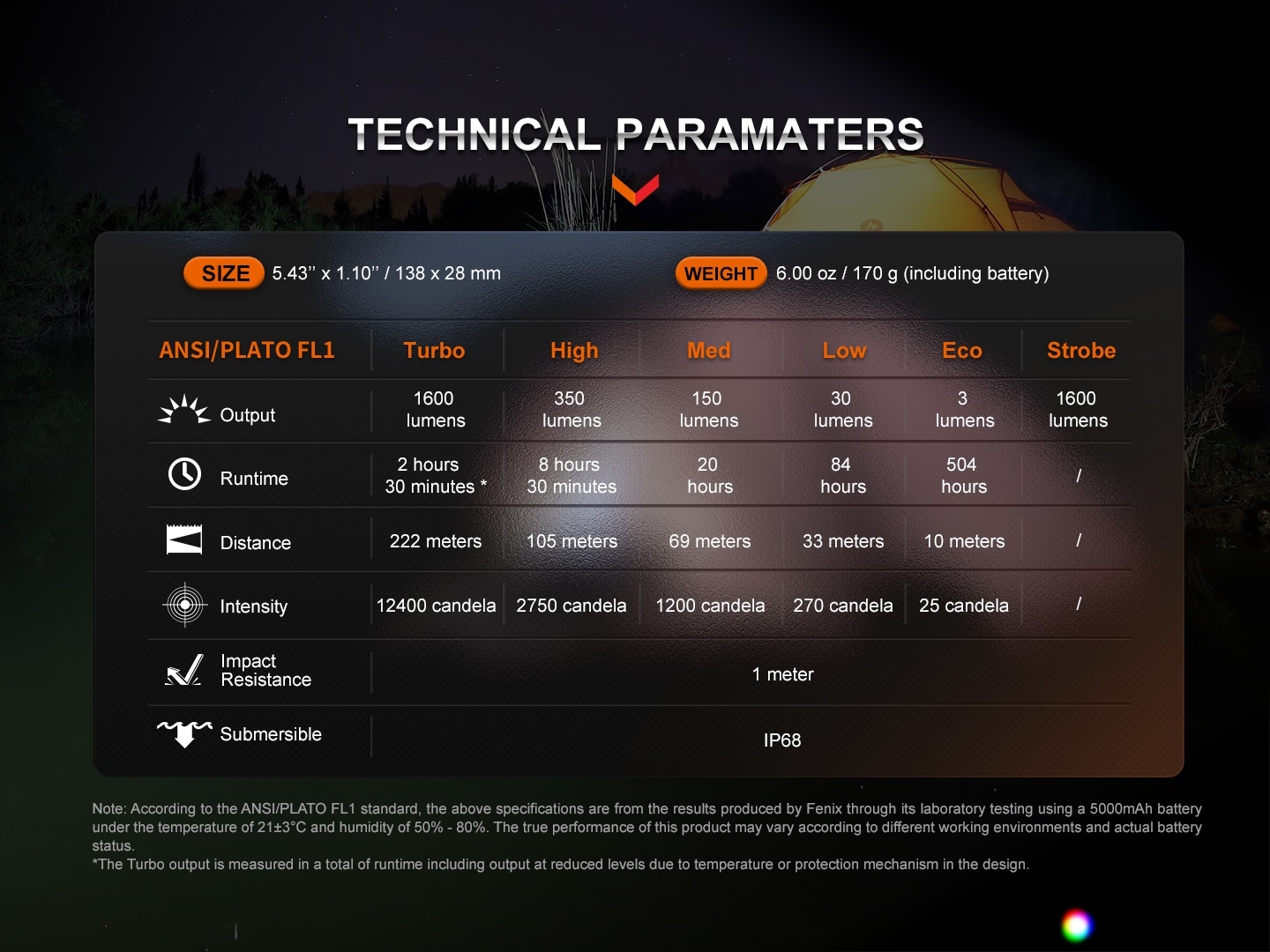

• Six power modes: 1600 lumens (2.5 hours) -> 350 lumens (8.5 hours) -> 150 lumens (20 hours) -> 30 lumens (84 hours) -> 3 lumens (504 hours) -> strobe (1600 lumens).
• Power is provided by a built-in Li-ion battery with 5000 mAh capacity.
• Battery rechargeable via USB-C, charging time 2-6 hours depending on the power of the powersource used.
• Dischargeable USB-C and USB-A ports for power bank function.
• Supports fast charging protocols with up to 18W power for both charging and discharging (5V/2.4A, 9V/2A, 12V/1.5A).
• The lamp has memory and turns on in the last set mode (not valid for the highest mode and strobe).
• Range up to 222 meters (12400 cd).

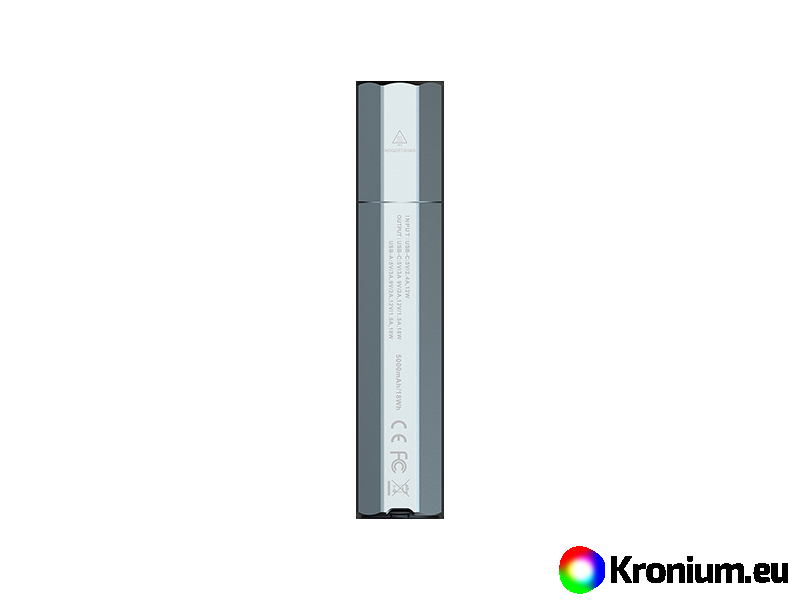

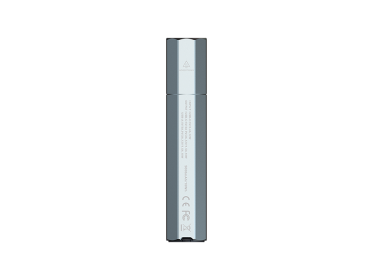

• Back flat side of the fixture is used to stand on a pad.
• Patented intelligent overheat protection (IOP).
• Waterproof to IP68 standard (immersion up to 2 meters), rechargeable port with internal water ingress protection.
• Shockproof to drops from a height of 1 meter.
• Bottom body made of A6061-T6 aluminum alloy with HA-III anodization and enhanced scratch resistance.
• Dimensions 13.8 x 2.8 cm.
• Weight 170 grams (including battery).

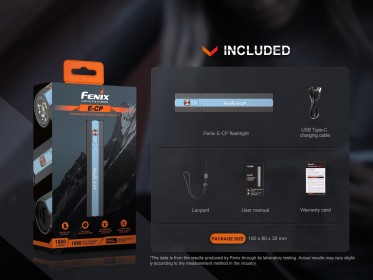

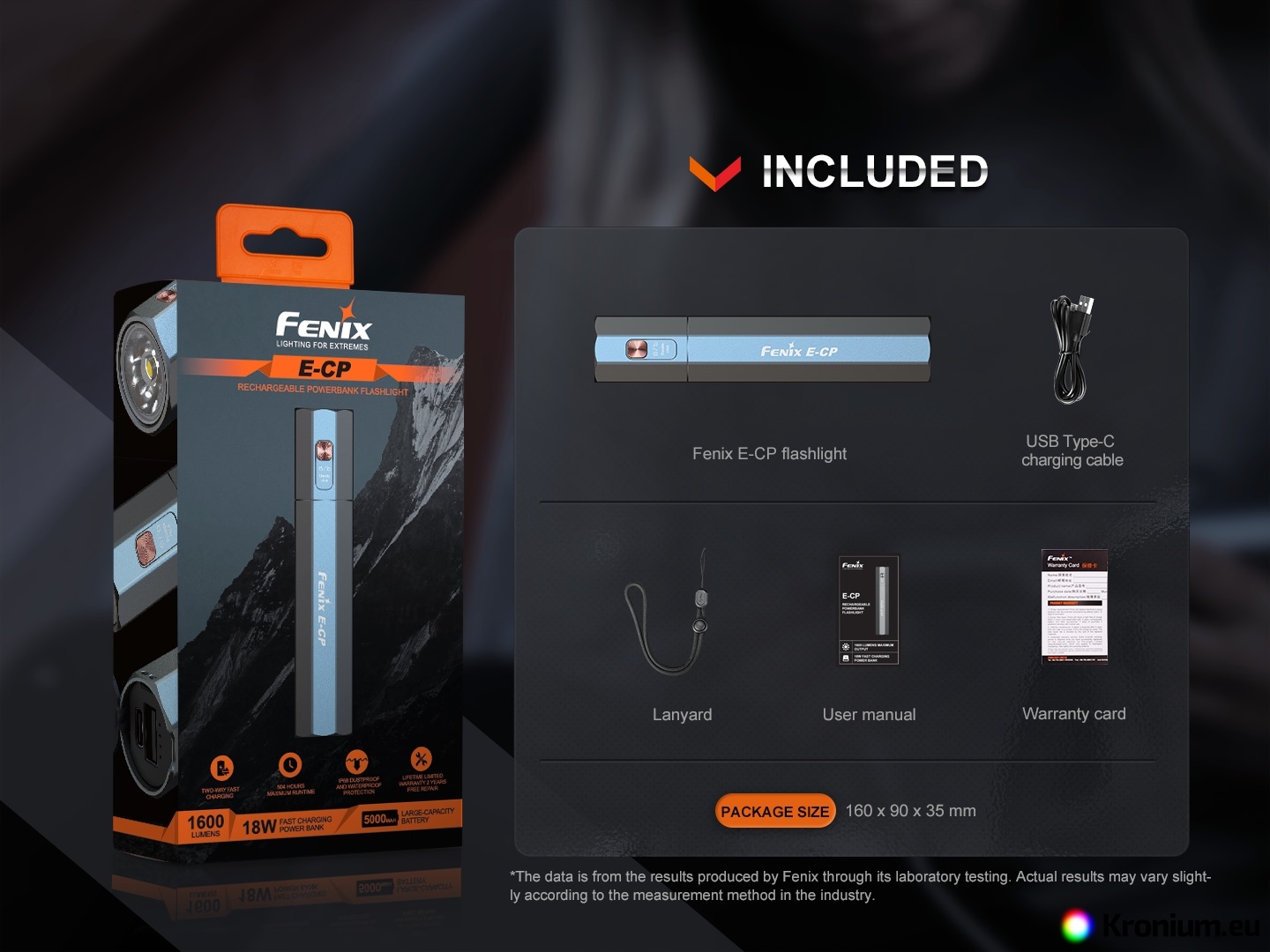

• Includes flashlight, hand loop and USB-C charging cable.
• Optional accessories can be purchased with the flashlight, such as the Fenix ALD-05 strap for using the flashlight on a helmet, USB mains adapter, USB adapter supporting fast charging, USB adapter supporting fast charging, USB car adapter, bike holder, bike holder, special Fenix bike holder or BikeBlock bike helmet holder and ALP-10S holster.

Useing of the Fenix E-CP flashlight

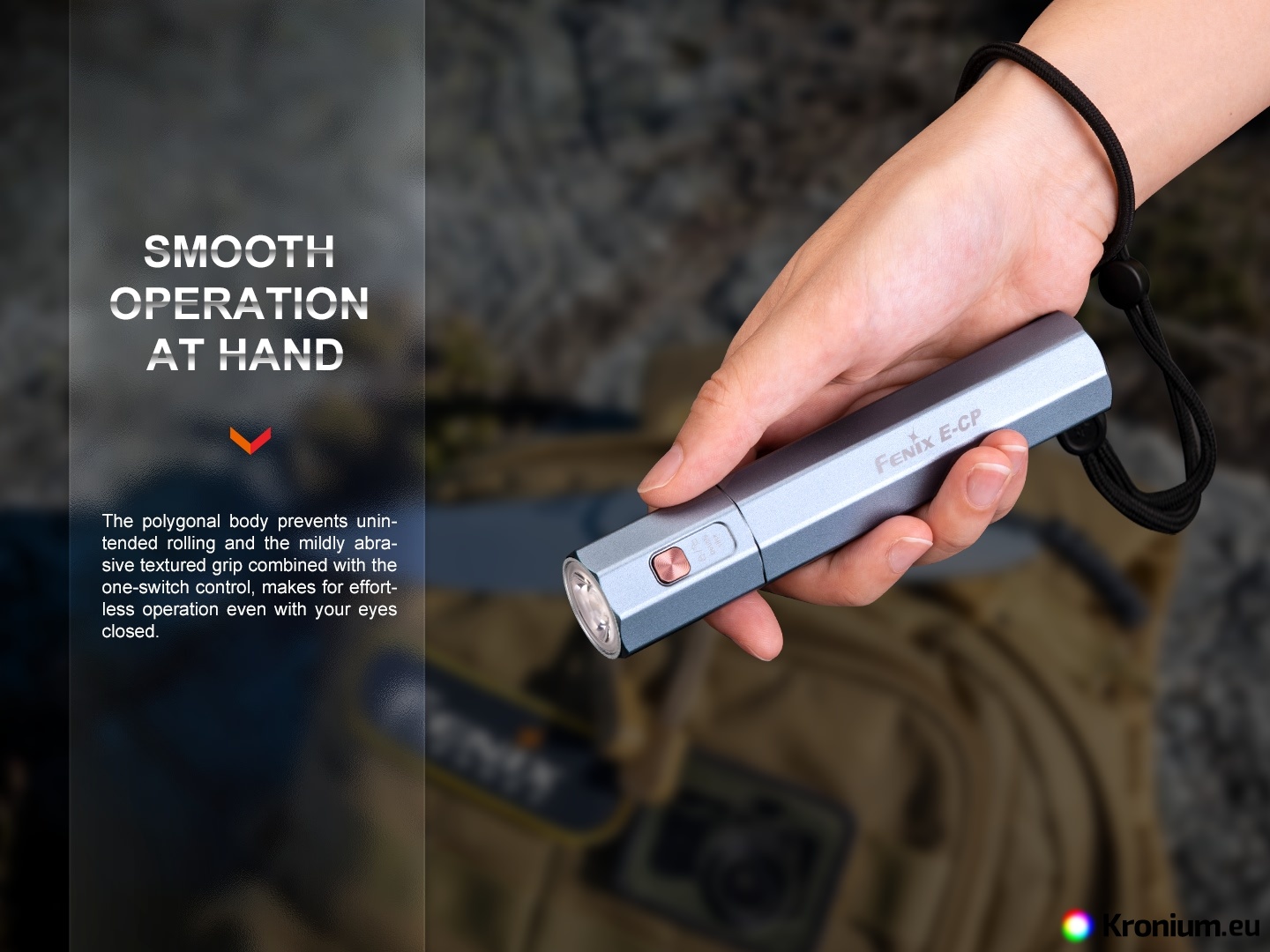

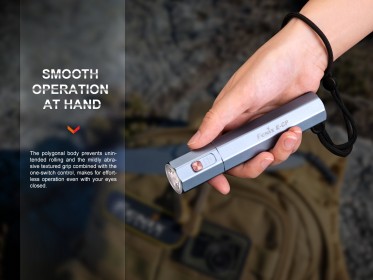

To turn on/off the flashlight, press the side button for 0.5 seconds. With the lamp on, simply press the side button to change modes in a cycle : 3 - 30 - 150 - 350 - 1600 lumens. To switch to flash mode, hold the side button for approximately 1.2 seconds.

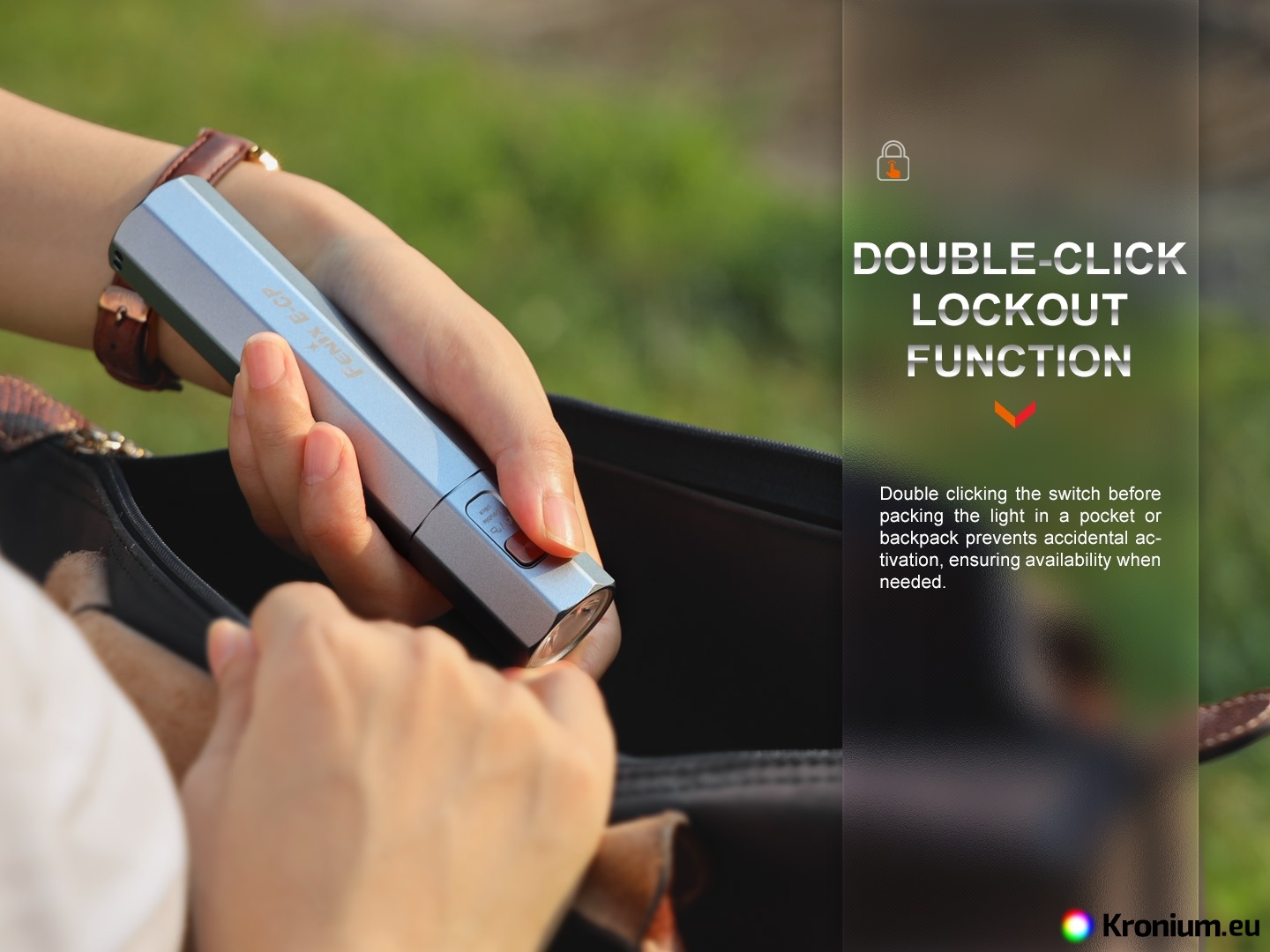

The control button can be locked, to prevent it from spontaneously switching on, e.g. when transporting in luggage - when the lamp is switched off, press the control button twice quickly (within a range of 0.5 seconds). To unlock, press the button again twice quickly.

Charge Status Indication - when the flashlight is off, simply press the side button to trigger the battery/power bank charge indicator hidden under the rubber cover next to the USB connectors.

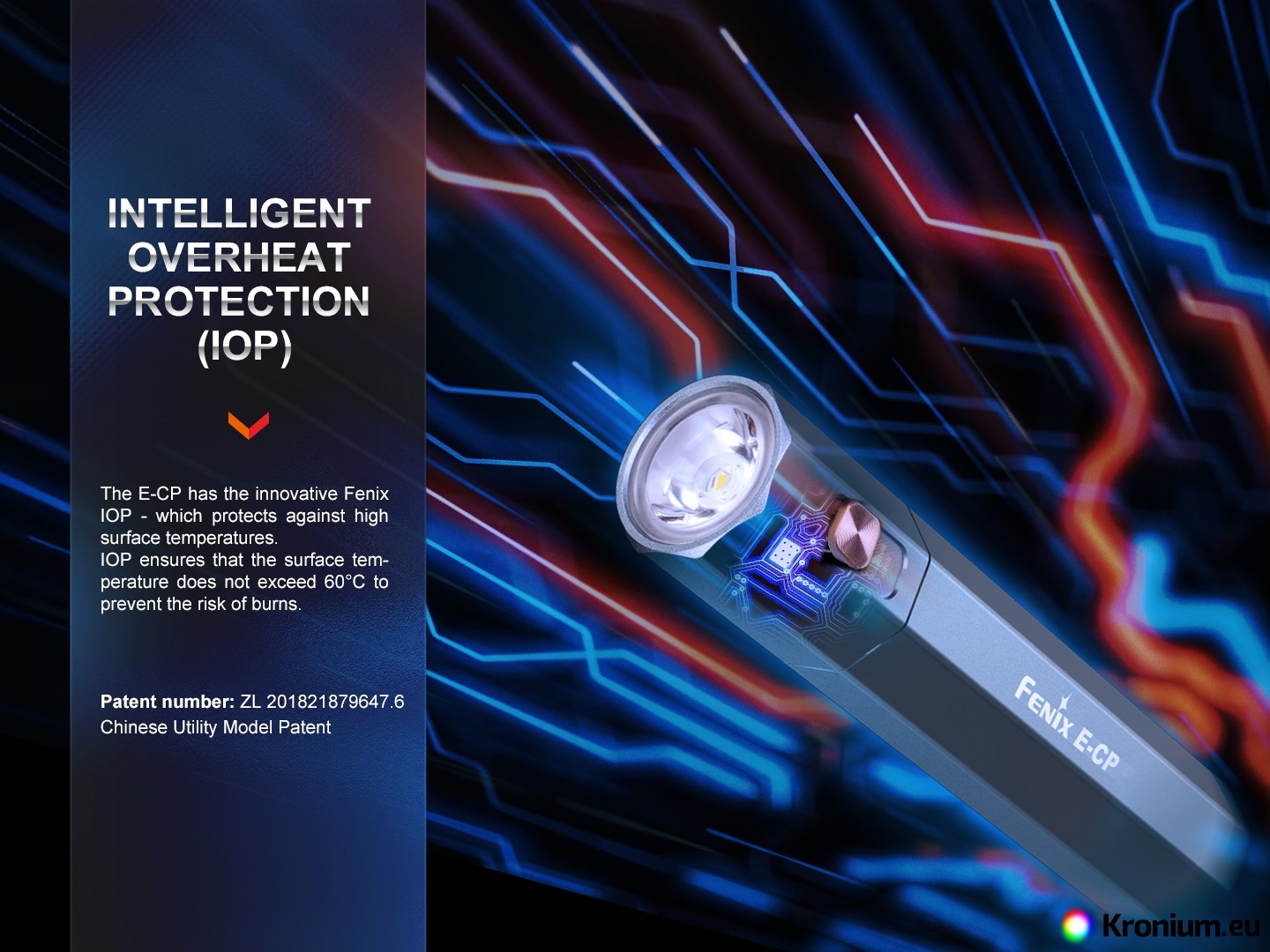

Intelligent overheat protection- if the temperature of the flashlight exceeds 50 °C, an automatic power reduction will occur. As soon as the temperature drops below 50 °C, the highest power output can be used again.

Charging the battery/power bank - remove the rear connector cover and plug the included cable into the USB-C connector on the flashlight (USB-C female-to-female connector), plug the other end of the cable into a computer or a USB mains or car adapter (not included). During charging, the indicator LED lights red and turns green when fully charged. Replace the connector cover once the flashlight is charged. Charging a fully discharged battery takes approx. 2 hours using an 18W power supply or 3.5 hours using a 5V/2A power supply. The lamp can be used in 3, 30 and 150 lumens modes when charging, however, this will increase the charging time.

Powerbank function- turn off the flashlight and remove the rear connector cover. Plug the USB cable into one of the USB connectors (both the classic large USB-A connector and the USB-C connector work as output). When the device to be charged is connected, charging starts automatically, indicated by a four-part indicator next to the USB ports. When used as a power bank, it can also be simultaneously lit in 3, 30 and 150 lumens modes. When the process is complete, unplug the device being charged and replace the protective connector cap.

Warning

• Do not disassemble the sealed parts of the flashlight yourself, it will violate the warranty.
• Use the control button lock when carrying the luminaire in luggage or pocket and also when storing it.

Warranty

Warranty two years.
