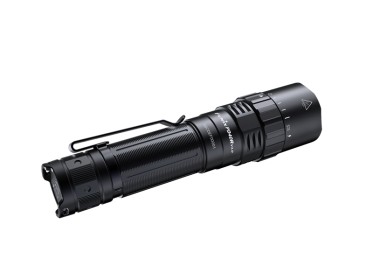

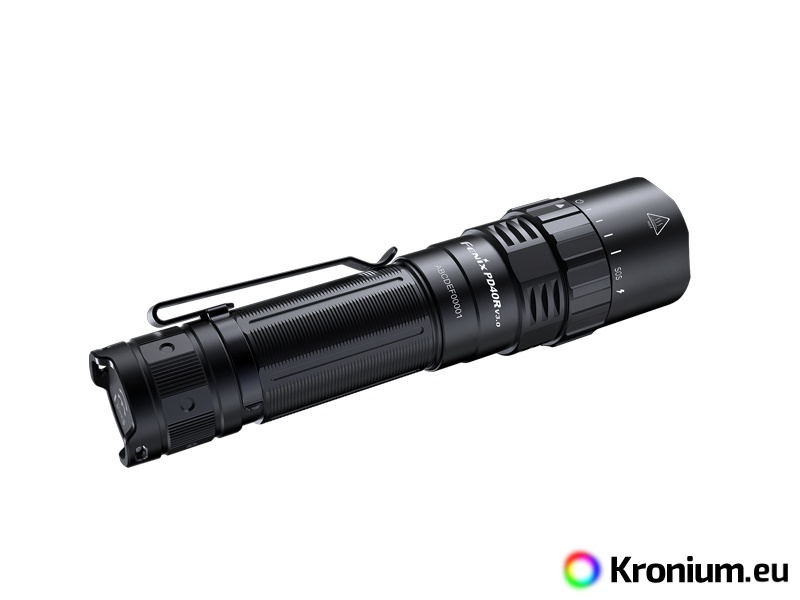

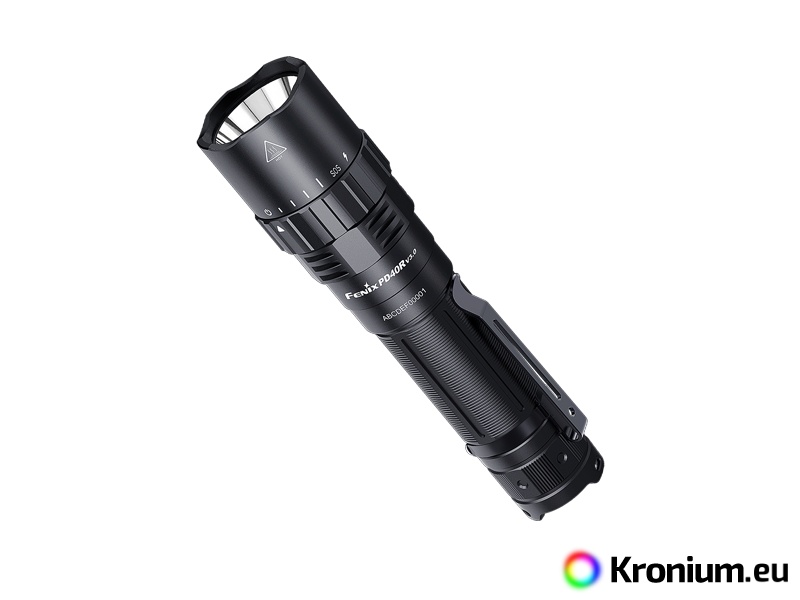

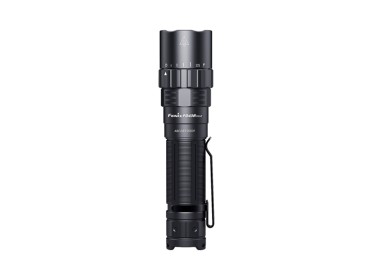

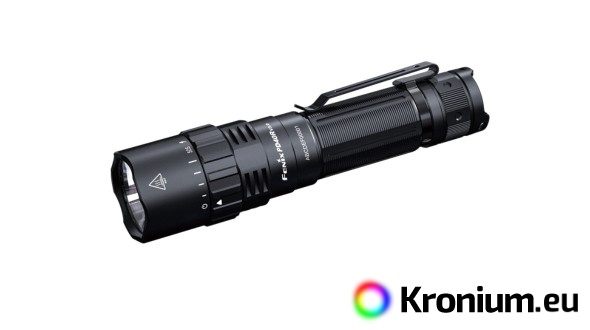

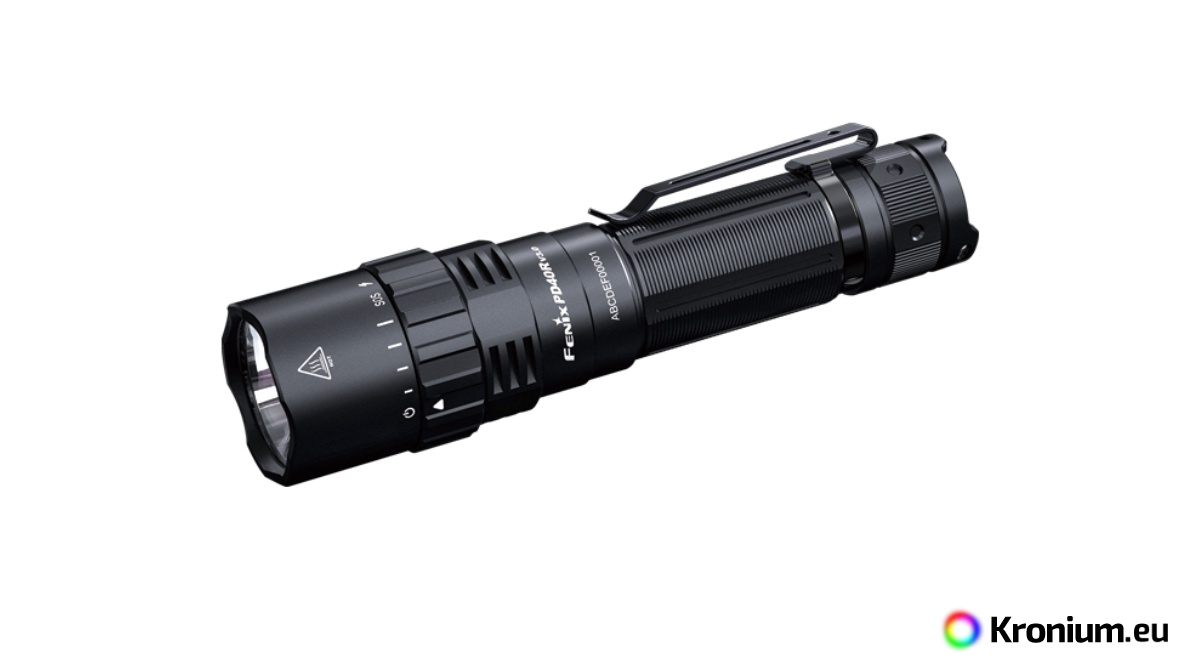

The Fenix PD40R V3.0 rechargeable flashlight offers great light output up to 3000 lumens and a range of up to 500 meters. The flashlight features six different light modes that are easily switched via a rotary ring on the head of the flashlight. Also included is a rechargeable 21700 Li-ion battery with 5000 mAh capacity, which is charged directly in the flashlight via a modern USB-C connector. On its lowest mode, it can can be lit for up to 89 hours, which is almost 4 days of continuous light. There is also a strobe and an SOS signalling for emergency situations.

The flashlight features a battery charge indication next to the charging connector. The PD40R V3.0 impresses not only with its compact dimensions, but also with its excellent light output with long range. The flashlight is particularly suitable for moving in impassable terrain, search operations, surveillance, daily carry and normal home use.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

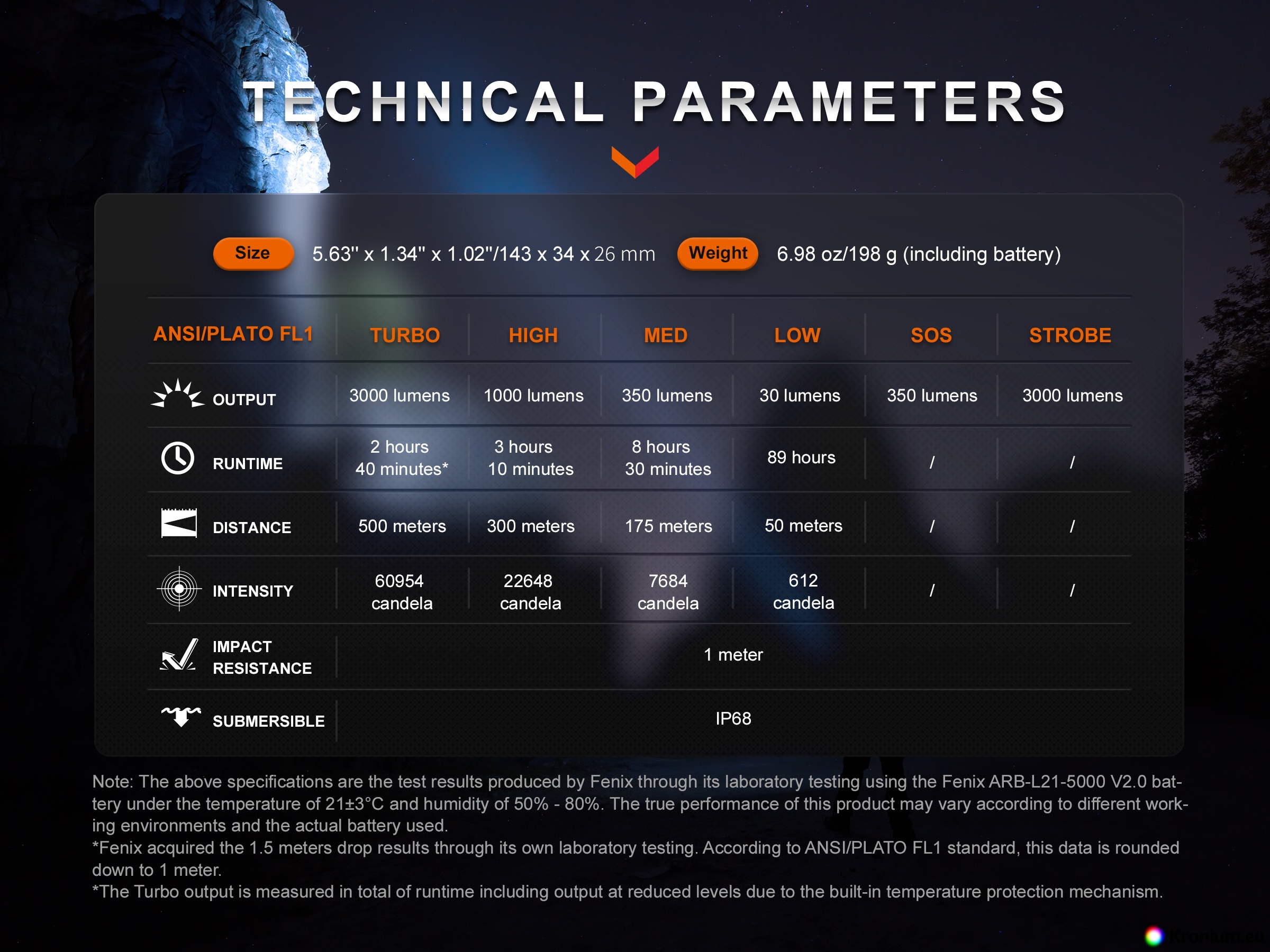

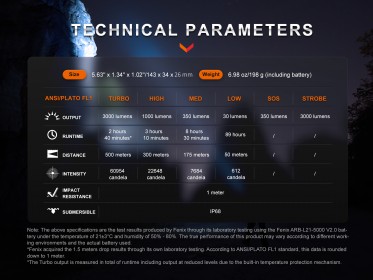

Fenix PD40R V3.0 Rechargeable Flashlight Specifications

• The top performance LED LUMINUS SFT-70 with 50000 hours lifetime is used.
• Six lighting modes: turbo 3000 lumens (2.67 hours) -> 1000 lumens (3.17 hours) -> 350 lumens (8.5 hours) -> 30 lumens (89 hours) - SOS 350 lumens and strobe 3000 lumens (strobe with variable frequency).

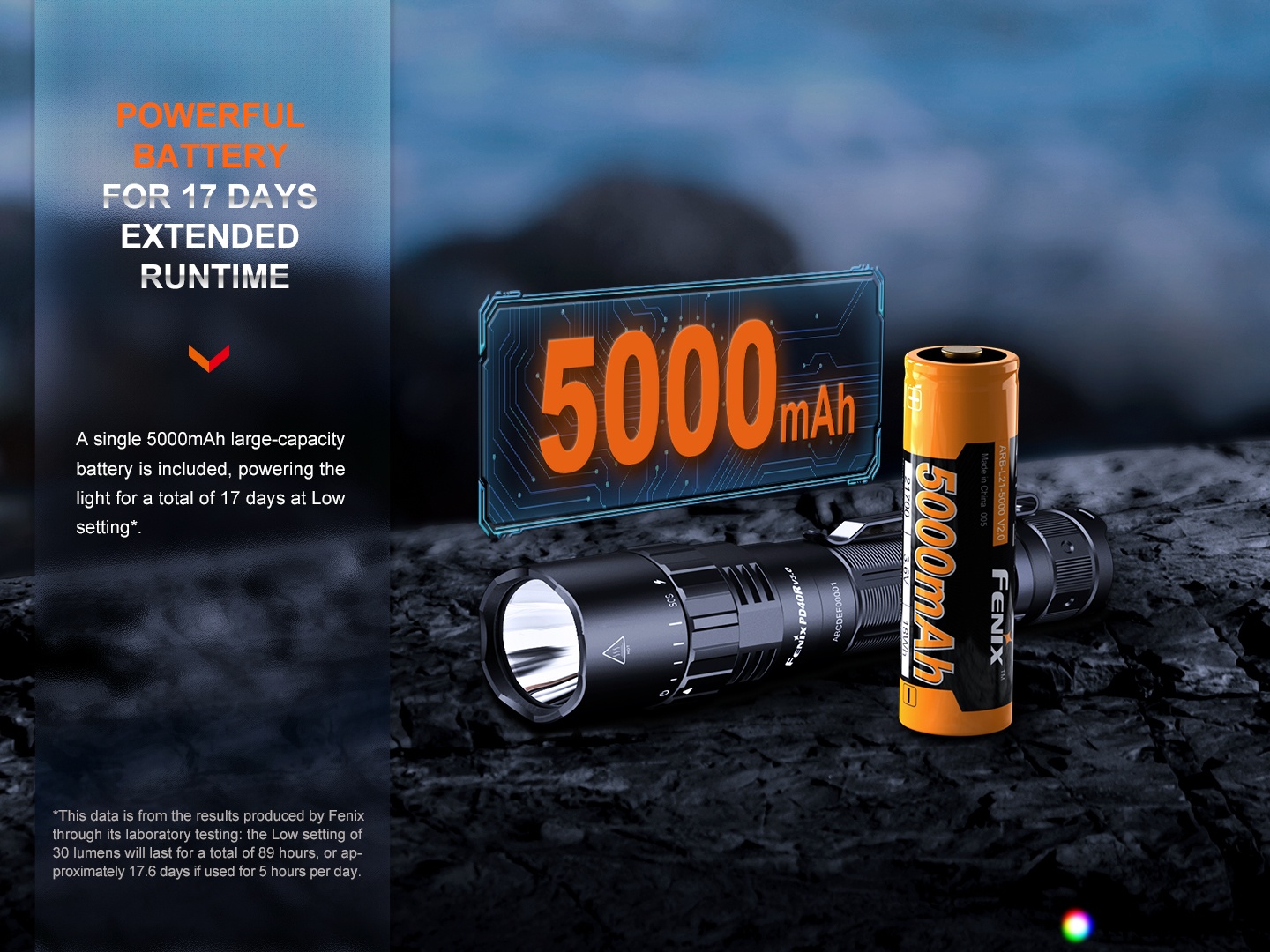

• Light output and run times are measured with the included Li-ion 21700 battery with 5000 mAh capacity.
• Max. battery diameter 22,0 mm., max. battery length 77,0 mm.
• For maximum performance operation, the flashlight requires a battery that can handle current draws of more than 14 A (Fenix ARB-L21-4000P, ARB-L21-5000 V2.0, ARB-L21-6000, ARB-L21-6000B).

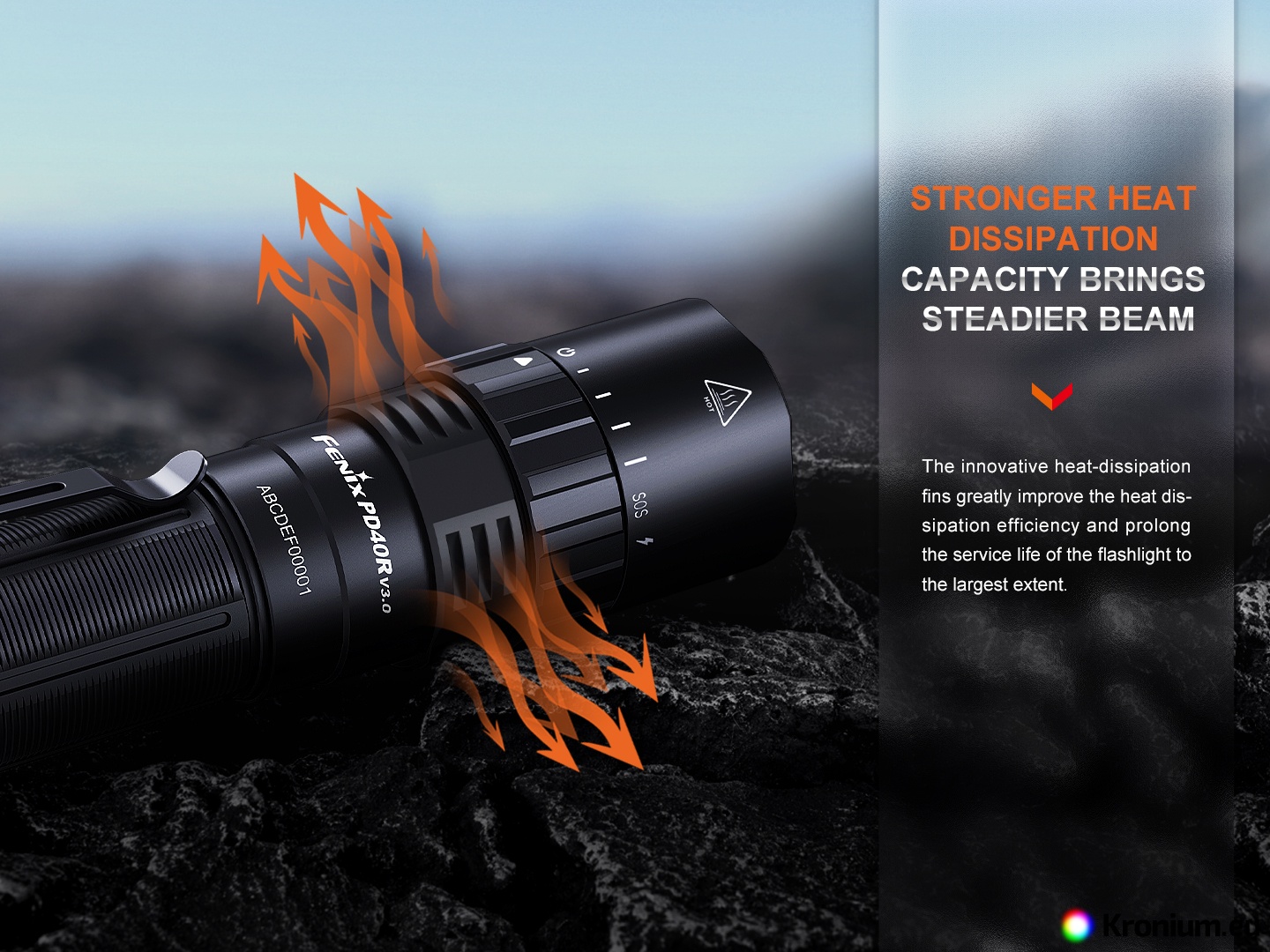

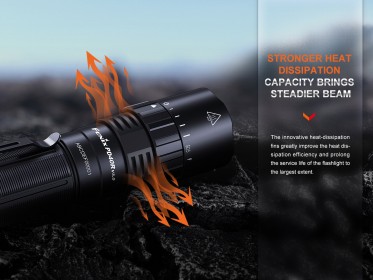

• The flashlight is equipped with intelligent overheat protection.
• Digital power control, low battery warning.
• Protection against accidental insertion of the battery in reverse (reverse polarity).
• Smooth parabolic reflector for light cone with 500 m (60,954 cd).
• Dimensions 14.3 cm (length) x 3.4 cm (reflector diameter) x 2.6 cm (body diameter).
• Weight 126 grams (without battery), 198 grams including battery.
• Made of aerospace hardened aluminum, durable surface - Type III hard anodized.

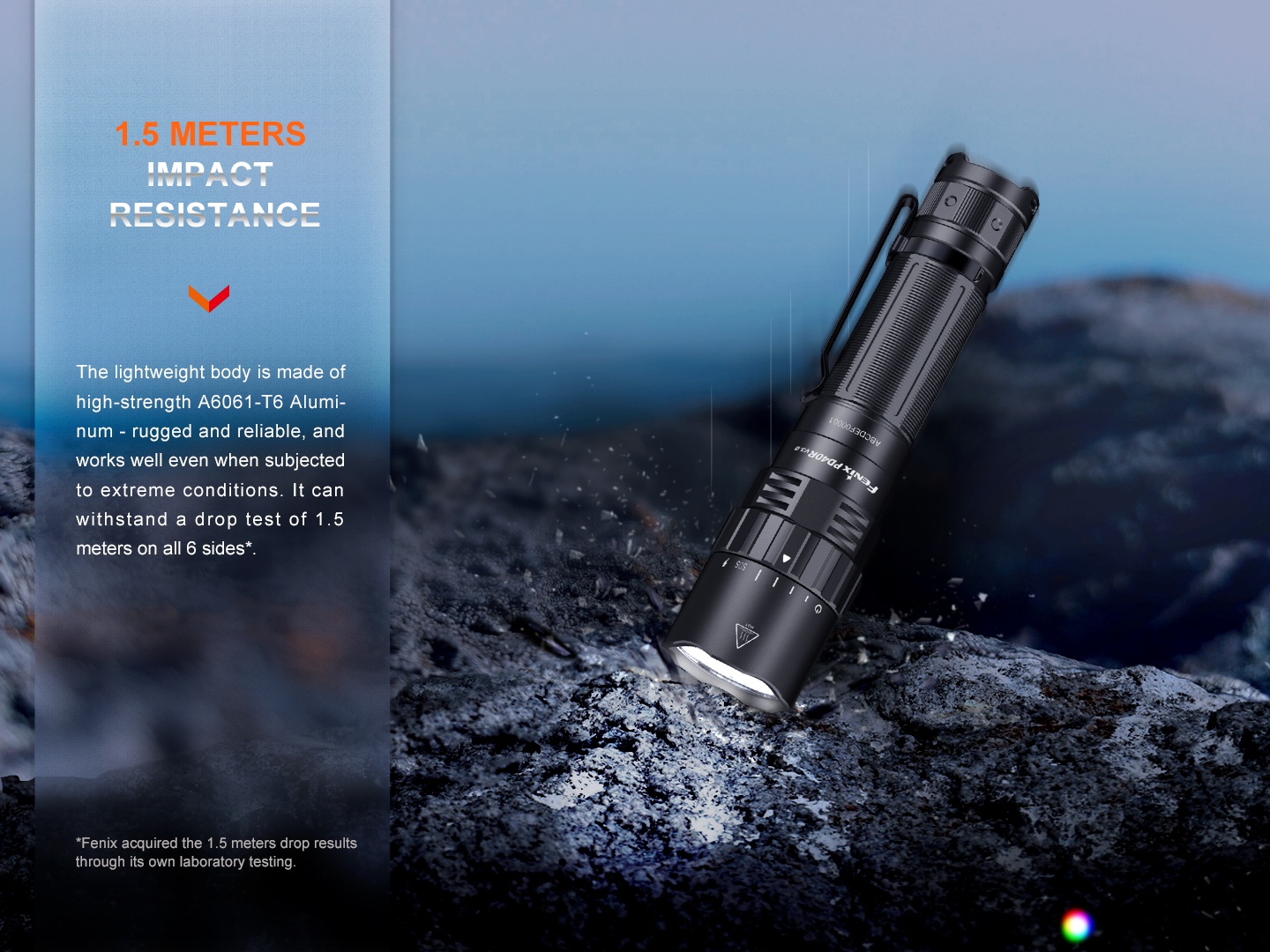

• Impact resistant to drops from 1 meter.

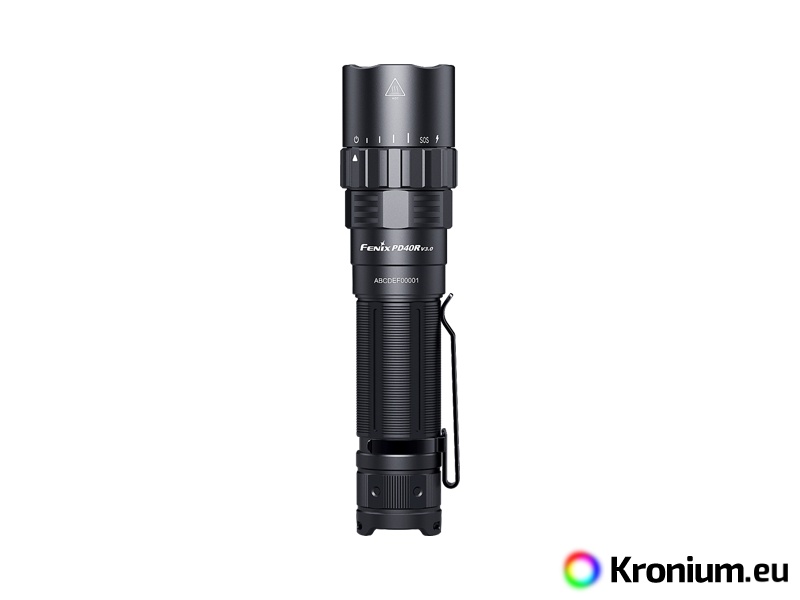

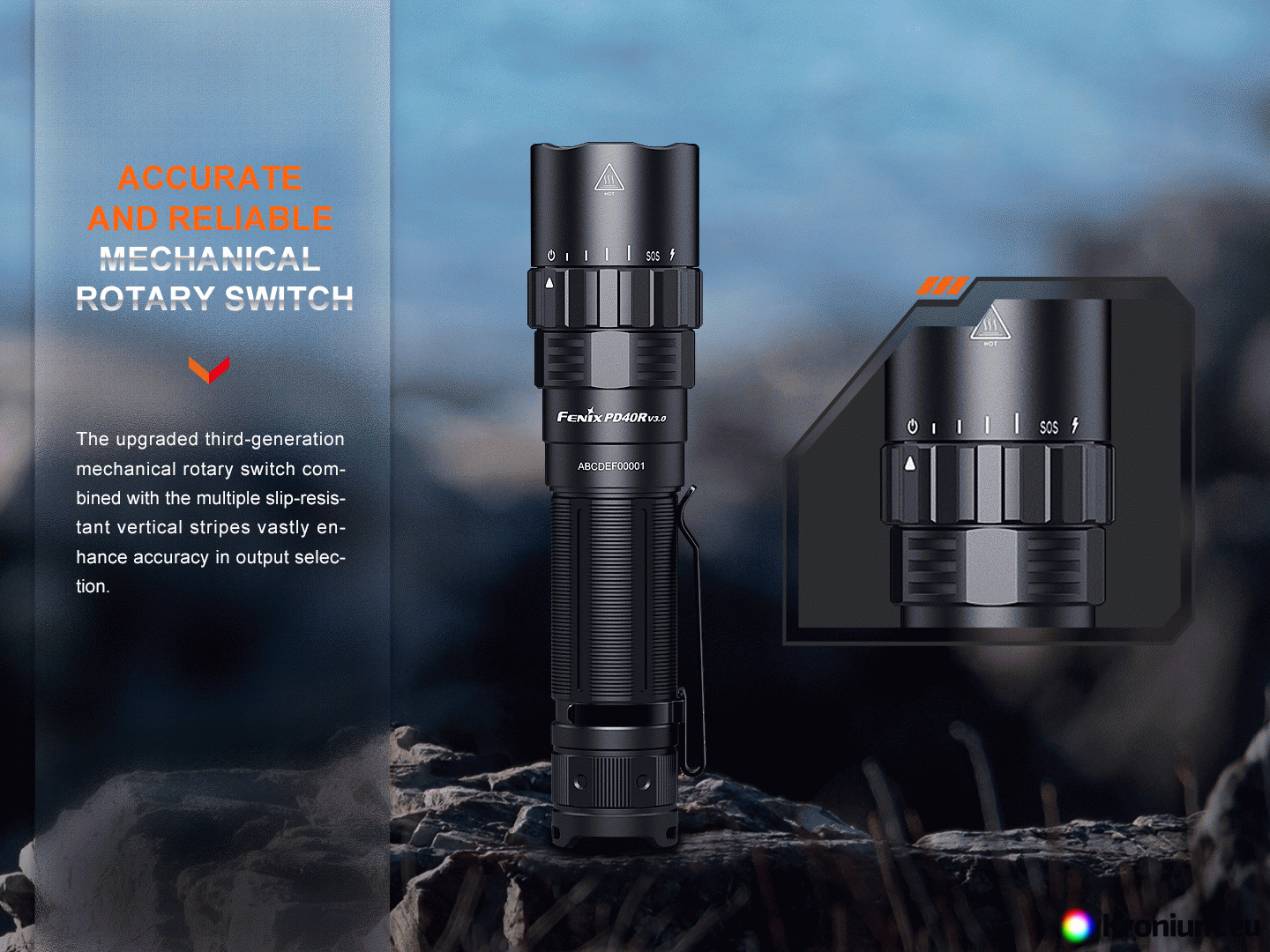

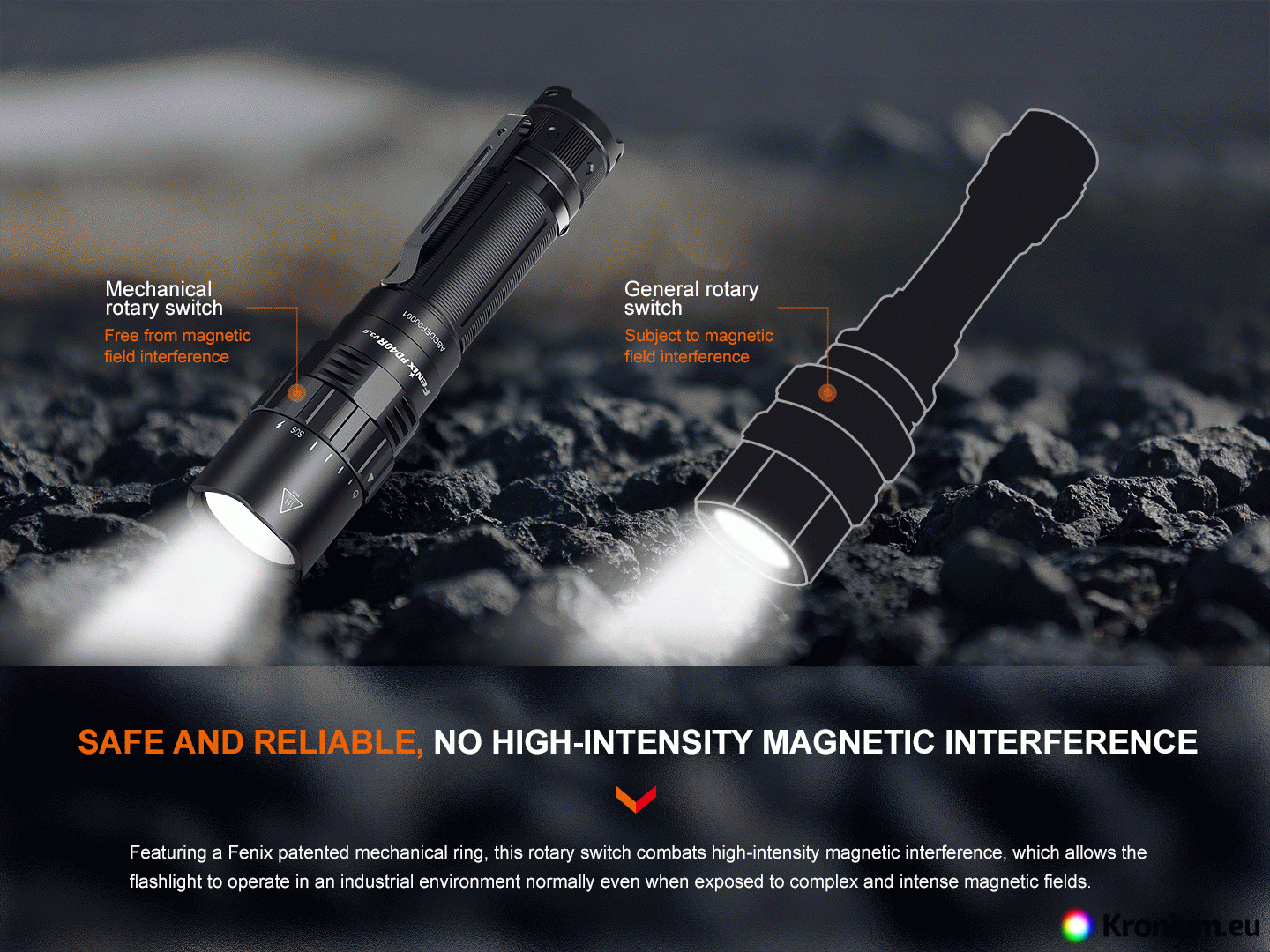

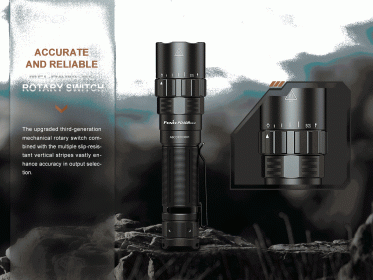

• Switching and selection of light modes by rotary ring on the head of the flashlight.
• Capable of standing alone on a flat surface and serving as a candle.
• Trapezoid threads with increased wear resistance.
• Substantial surface grooves for better grip, design prevents the lamp from rotating on uneven surfaces.

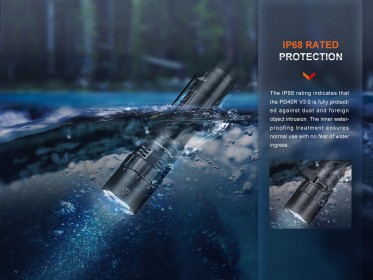

• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).

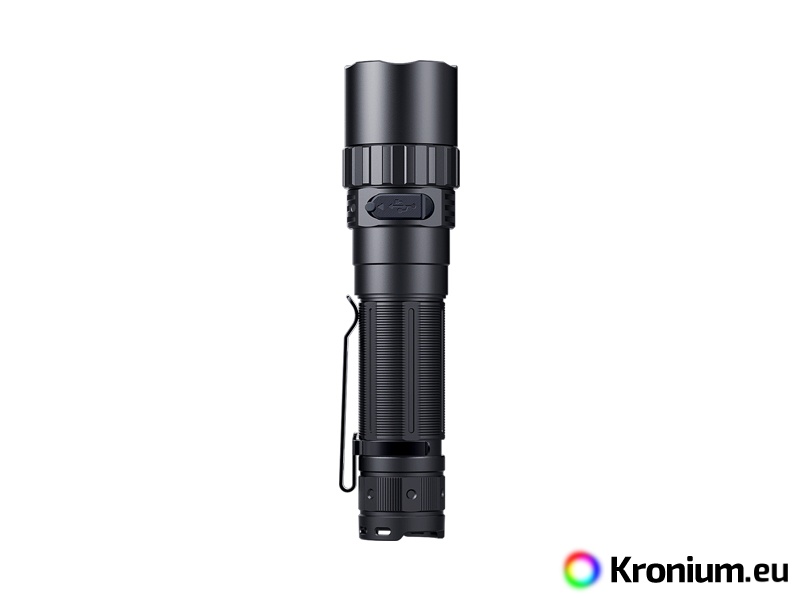

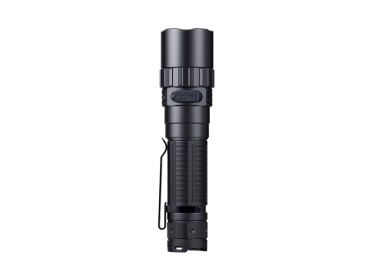

• Removable steel clasp.
• Hardened ultra clear glass lens with anti-reflective surface.

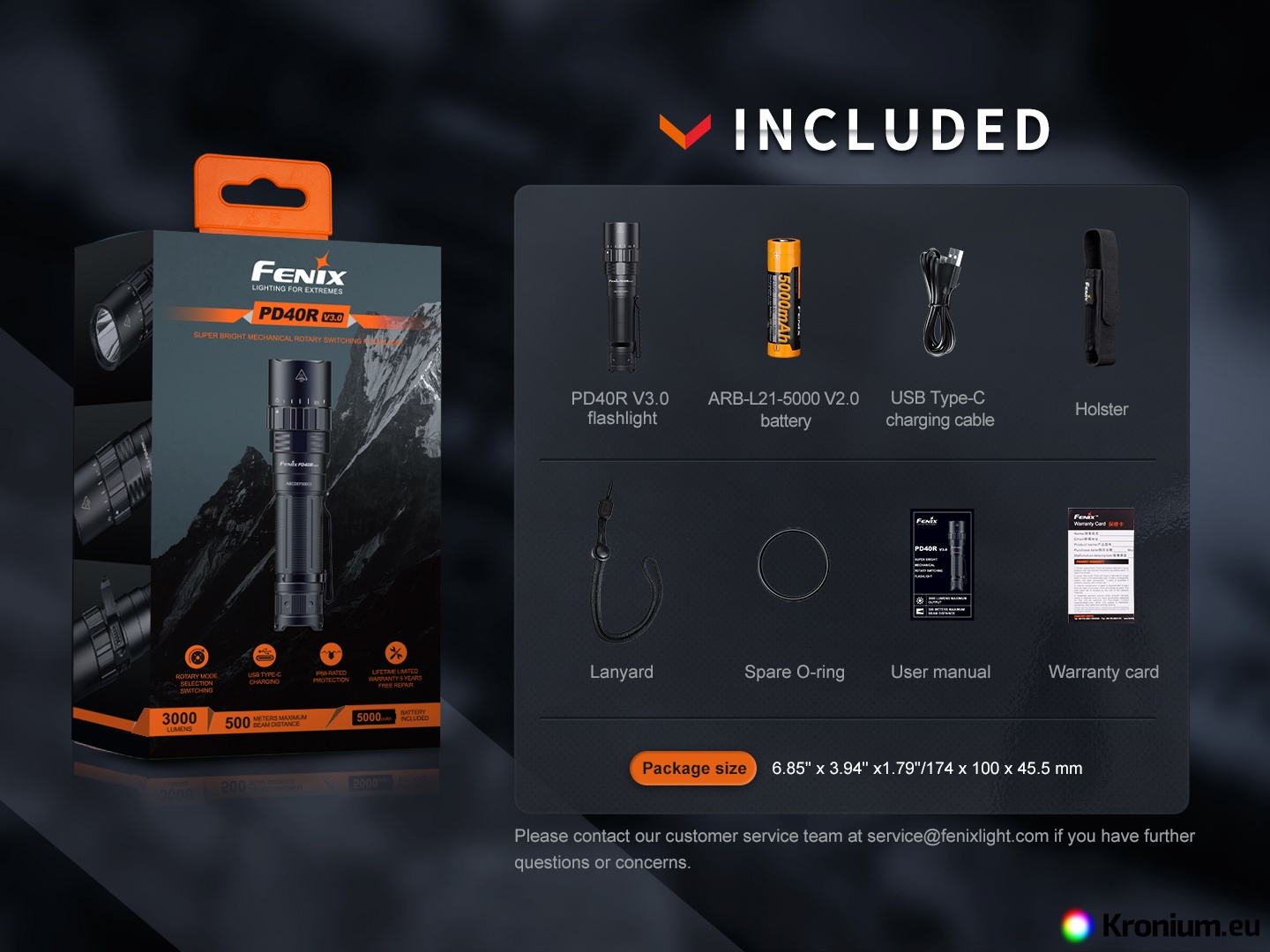

• The flashlight comes with a wrist lanyard, belt pouch, Fenix ARB-L21-5000 V2.0 battery, USB-C cable and spare o-ring.
• The flashlight can also be purchased with AOF-M filter and AOD-M white diffuser, Fenix ALD-05 strap for use of helmet mounted flashlight, bike holder, special Fenix ALB-10 bike mount, ALP-10L holster, USB mains adapter and USB car adapter, USB-C cable.

Using the Fenix PD40R V3.0 fashlight

From manufacture, there may be an insulating cap on the battery inside the flashlight, please remove it before first use.

To switch on, turn the control ring to the right. To change modes, turn the control ring (to increase power to the right, to decrease power to the left). In the far right position is the strobe and one position ahead of it is the SOS. To turn the flashlight off, turn the ring to the leftmost position.

Intelligent overheat protection - if the temperature of the flashlight rises above 60°C, it will automatically start to reduce the power in gradual steps, once the temperature of the flashlight drops below 60°C, the highest power can be used again.

Battery charge status indicator - every time you turn on the light, the indicator LED next to the charging connector is activated for three seconds. If the indicator LED is green, the battery is more than 85% charged. Green flashing means 50-85% capacity. If it is red, it is 25-50% charged. Red flashing indicates less than 25% of the battery capacity is remaining.

Charging - flip off the rubber cap of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into your computer or a USB adapter to your mains or car. During charging, the indicator next to the charging connector lights up red. When fully charged, it will light up green. Charging a fully discharged battery takes approximately 3 hours (with a 2A power supply). During charging, the flashlight can be used in 30 and 350 lumen modes.

Discharged battery warning - the flashlight automatically switches to the lowest mode and the indicator LED on the side starts flashing red.

Warning

• Do not disassemble the sealed parts in the flashlight head yourself, it will violate the warranty.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The battery is dead, charge it.
  • The contacts inside the flashlight are clogged – clean them with a cotton ball dipped in alcohol.
  • The back of the flashlight is loose, tighten it.
