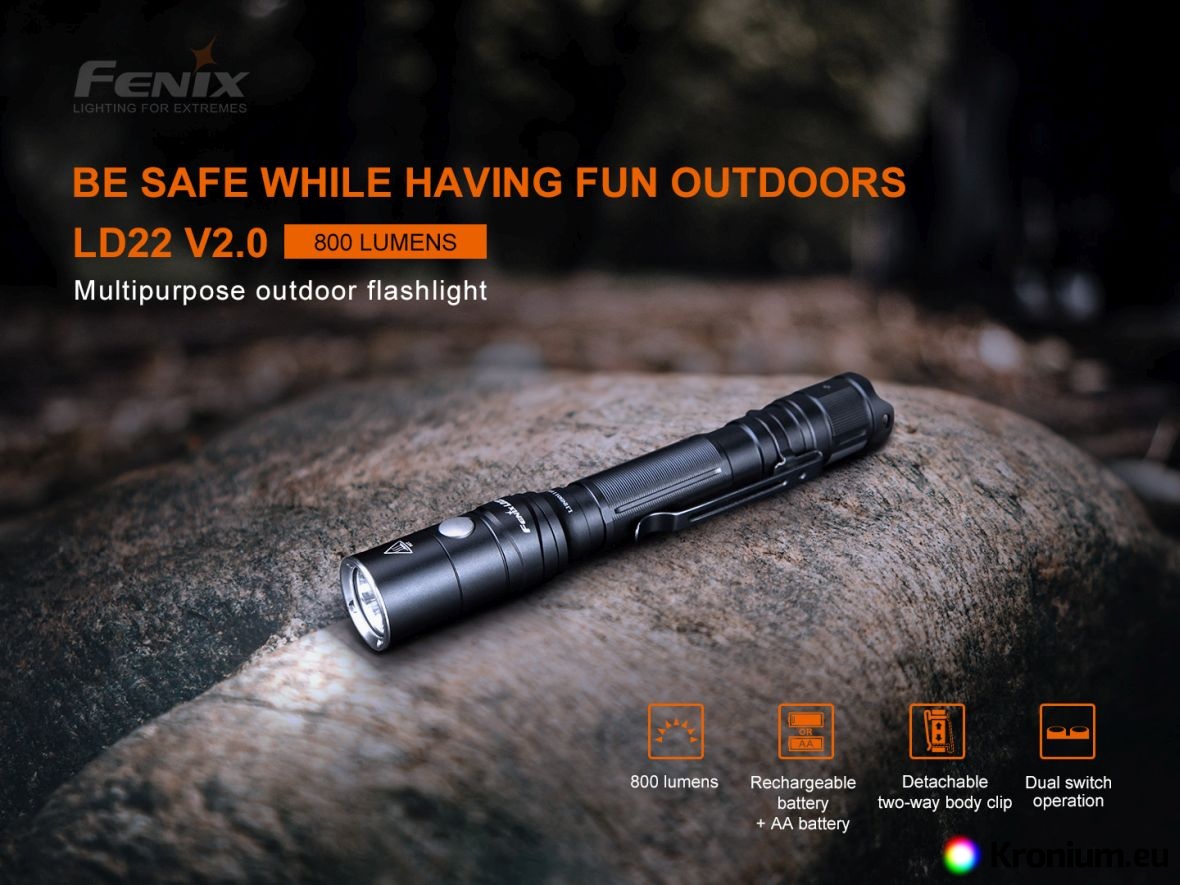

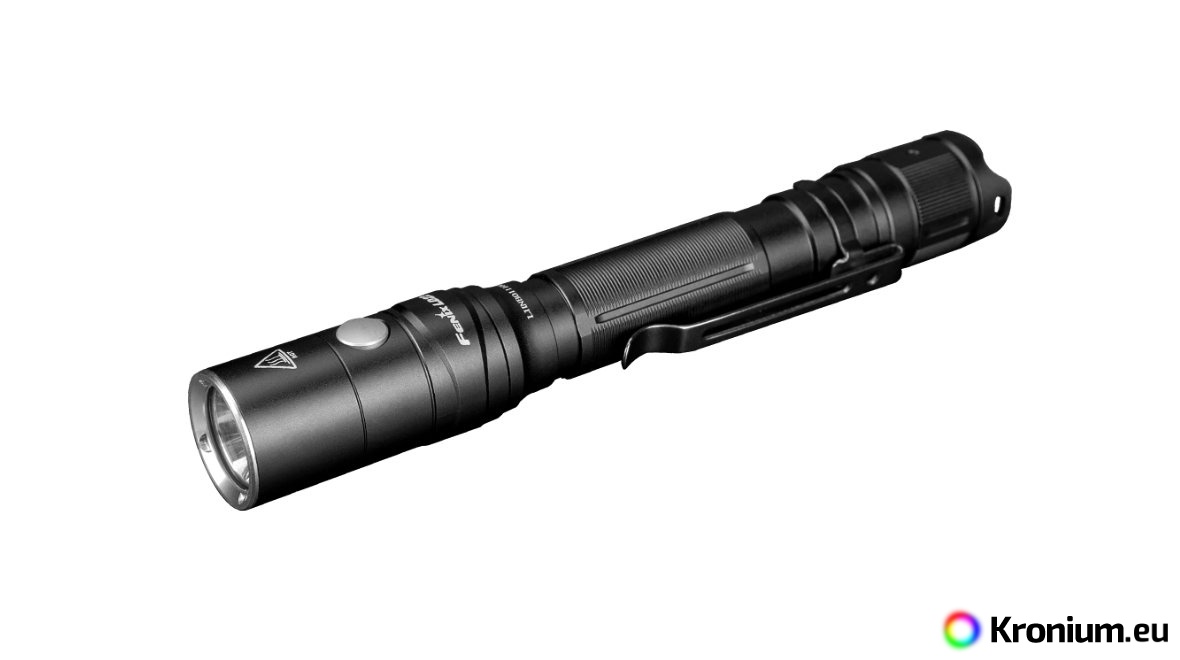

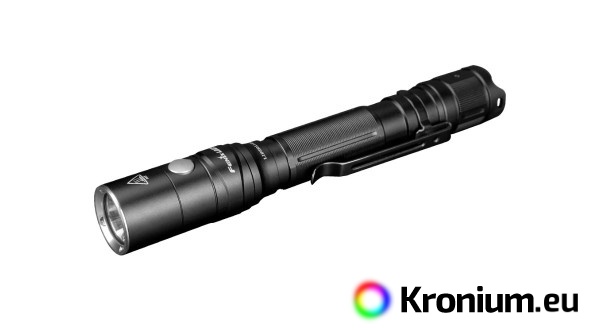

The newest generation of the Fenix LD22 V2.0 flashlight offers a light output of up to 800 lumens (ANSI) and a range of 214 meters. A single Li-ion battery type ARB-L14-1600U2 with 1600 mAh capacity and built-in USB-C connector charging (battery included), providing power for up to 220 hours of illumination in the lowest mode. If necessary, it can be replaced with two regular AA batteries, with which, however, the maximum output is limited to 350 lumens. It can also be replaced with two Li-ion batteries of type 14500, with which the flashlight works at a maximum output of 800 lumens. The flashlight is equipped with a highly efficient Luminus SST-20 LED capable of lighting in seven modes, including strobe and SOS. You will appreciate its practicality at home, in the cottage, at work, in the car, when camping and as part of an evacuation package.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

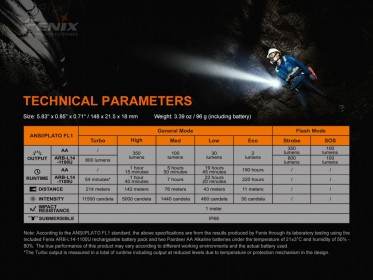

Fenix LD22 V2.0 flashlight specifications

• Luminus SST-20 high-end LED with 50,000 hours lifetime is used.
• Power modes:

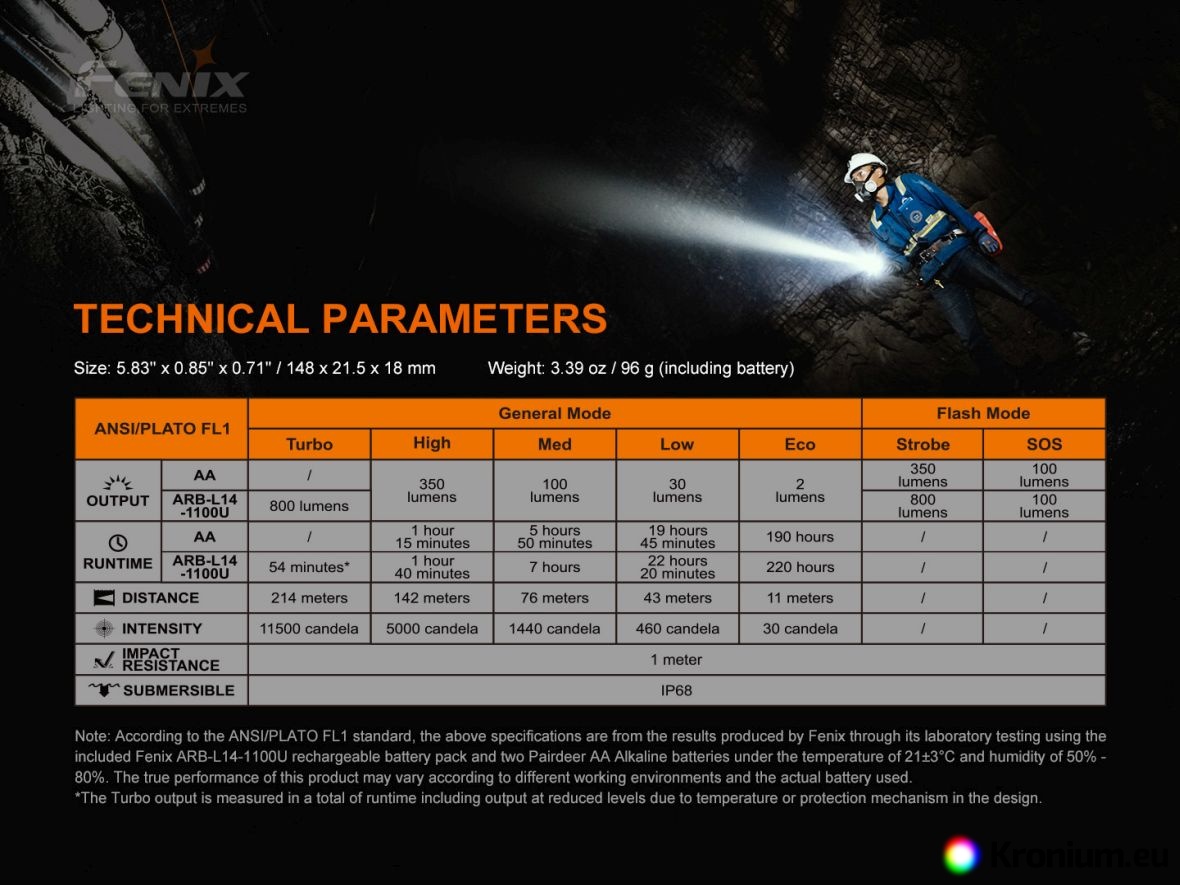

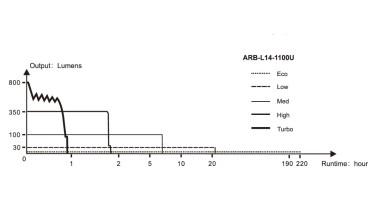

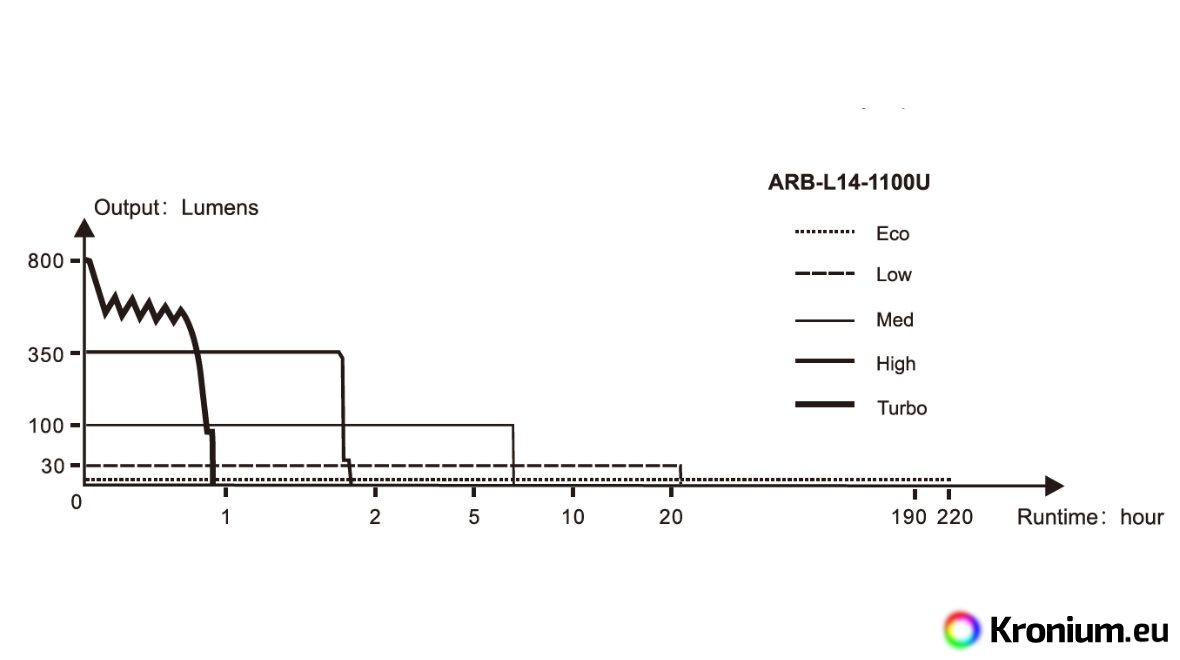

• • When using the ARB-L14-1100U battery: 800 lumens (54 minutes) -> 350 lumens (1.6 hours) -> 100 lumens (7 hours) -> 30 lumens (22.3 hours) -> 2 lumens (220 hours) -> Strobe 800 lumens -> SOS 100 lumens.
  • When using AA alkaline batteries: 350 lumens (1.25 hours) -> 100 lumens (5.8 hours) -> 30 lumens (19.75 hours) -> 2 lumens (190 hours) -> Strobe 350 lumens -> SOS 100 lumens.
• It uses a ARB-L14-1600U2 type Li-ion battery with a capacity of 1600 mAh, which is included, to provide power.
• Max. battery diameter 14,4 mm., max. battery length 50,5 mm.

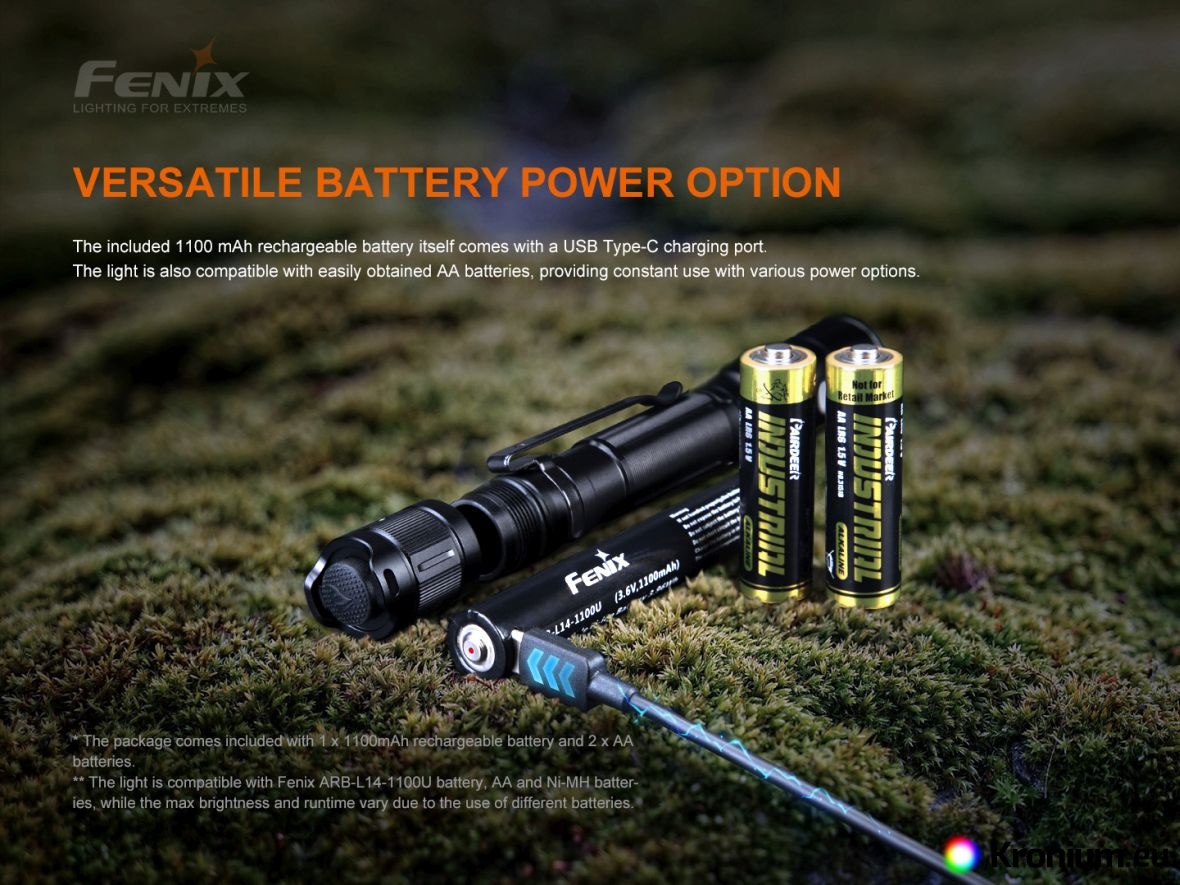

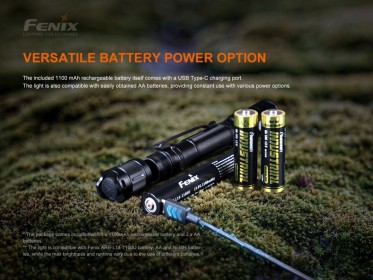

• For operation, two standard alkaline or NiMH AA batteries, or two 14500-type Li-ion batteries with a length of up to 50.5 millimeters, can also be used. The 1050 mAh battery is compatible, while the 800 mAh battery is not.
• Supported power supply voltage of the flashlight is 1.9 - 8.4 V.
• Intelligent overheat protection.
• Smooth aluminum reflector for light cone with 214 meters (11500 cd) range.
• Digitally controlled for constant brightness.
• Protection against accidental reverse battery insertion (reverse polarity).

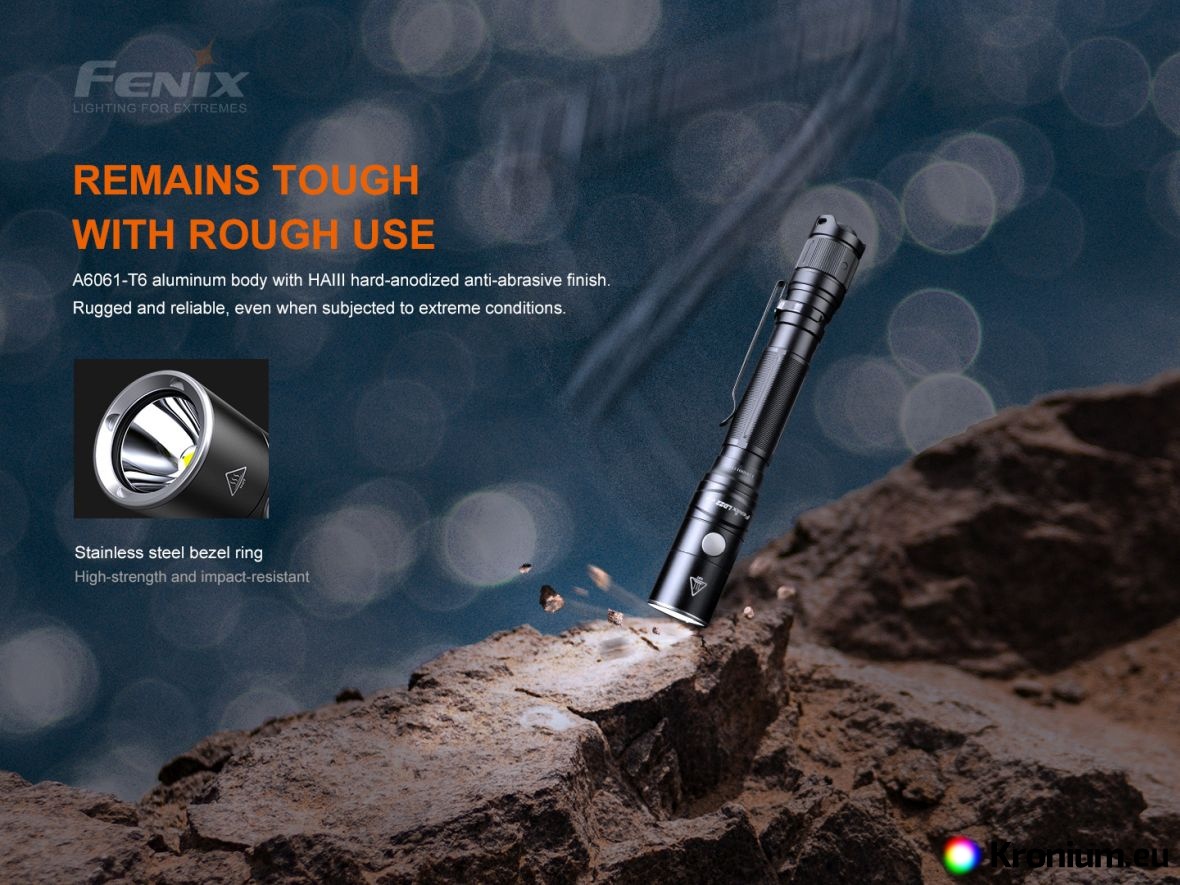

• Made of A6061-T6 type aerospace hardened aluminum.
• Insensitive to drops from 1 meter.
• Bottom surface - Type III hard anodized.

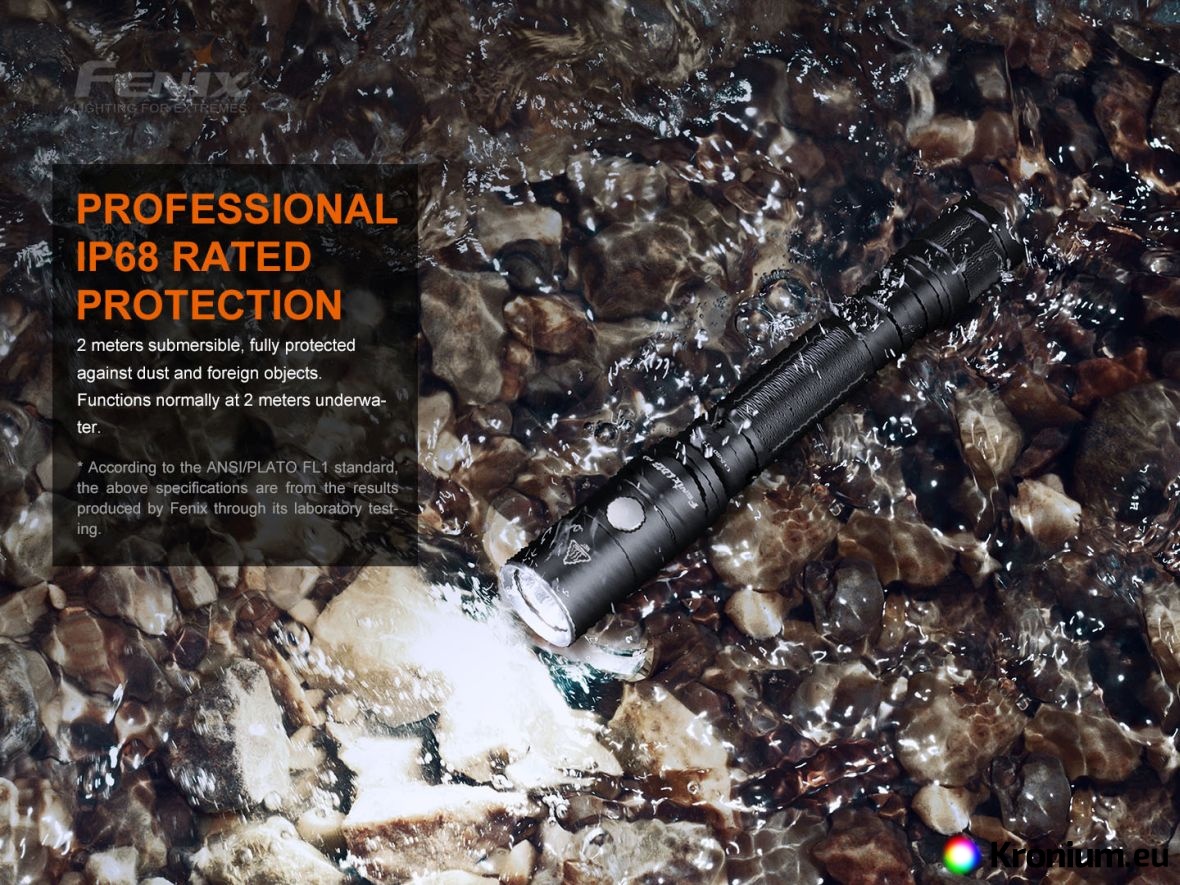

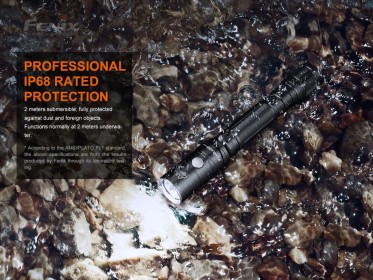

• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• The flashlight remembers the last used light mode except strobe and SOS.

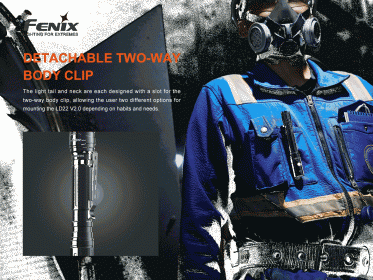

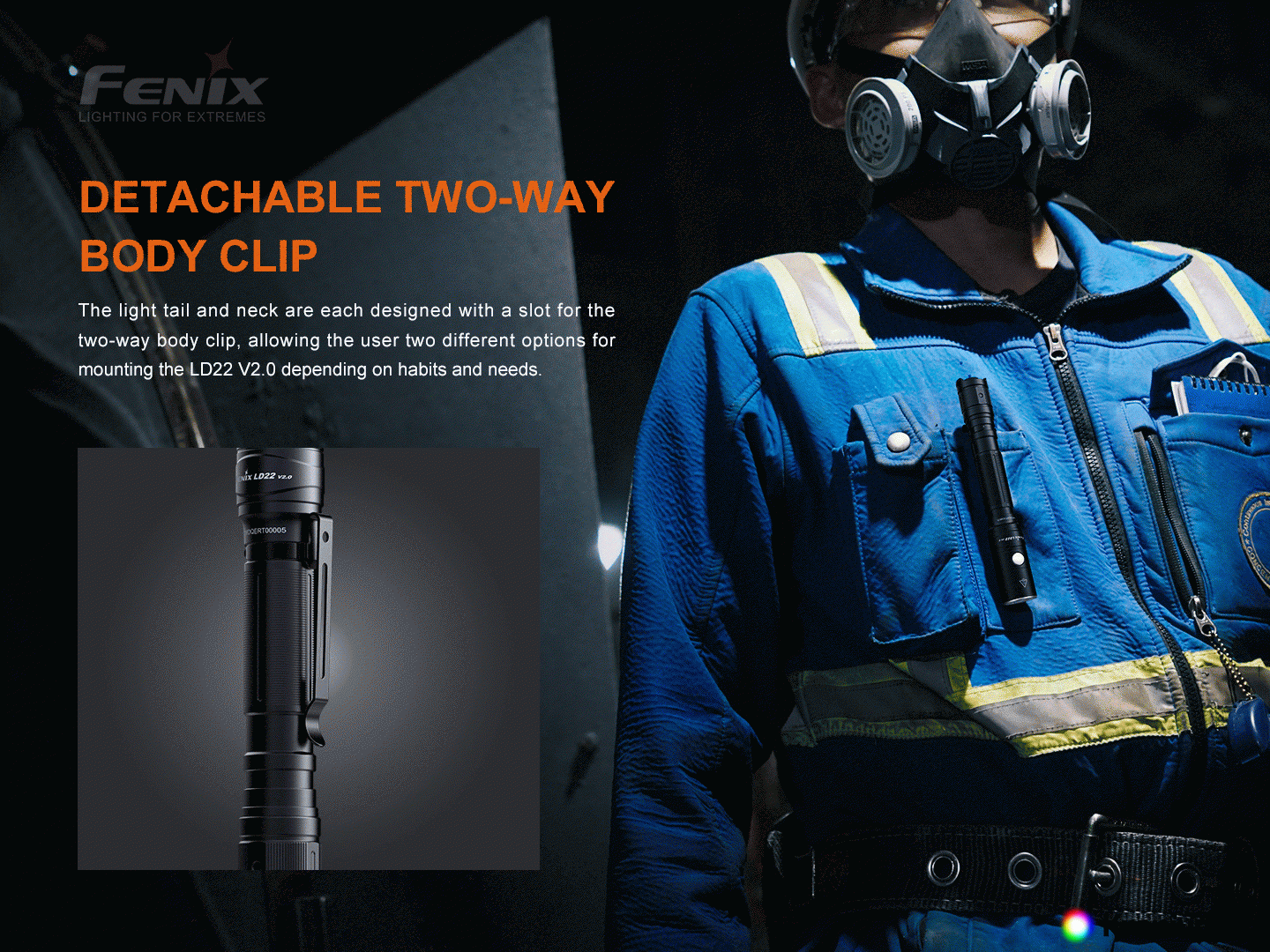

• Removable clip with durable finish, can be placed in two positions on the flashlight body.
• Hardened ultra clear glass lens with anti-reflective surface.
• Trapezoid threads with increased wear resistance.

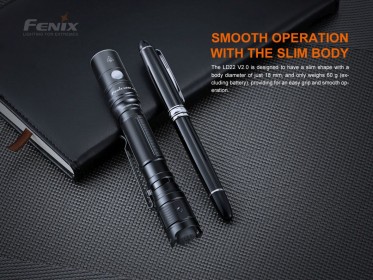

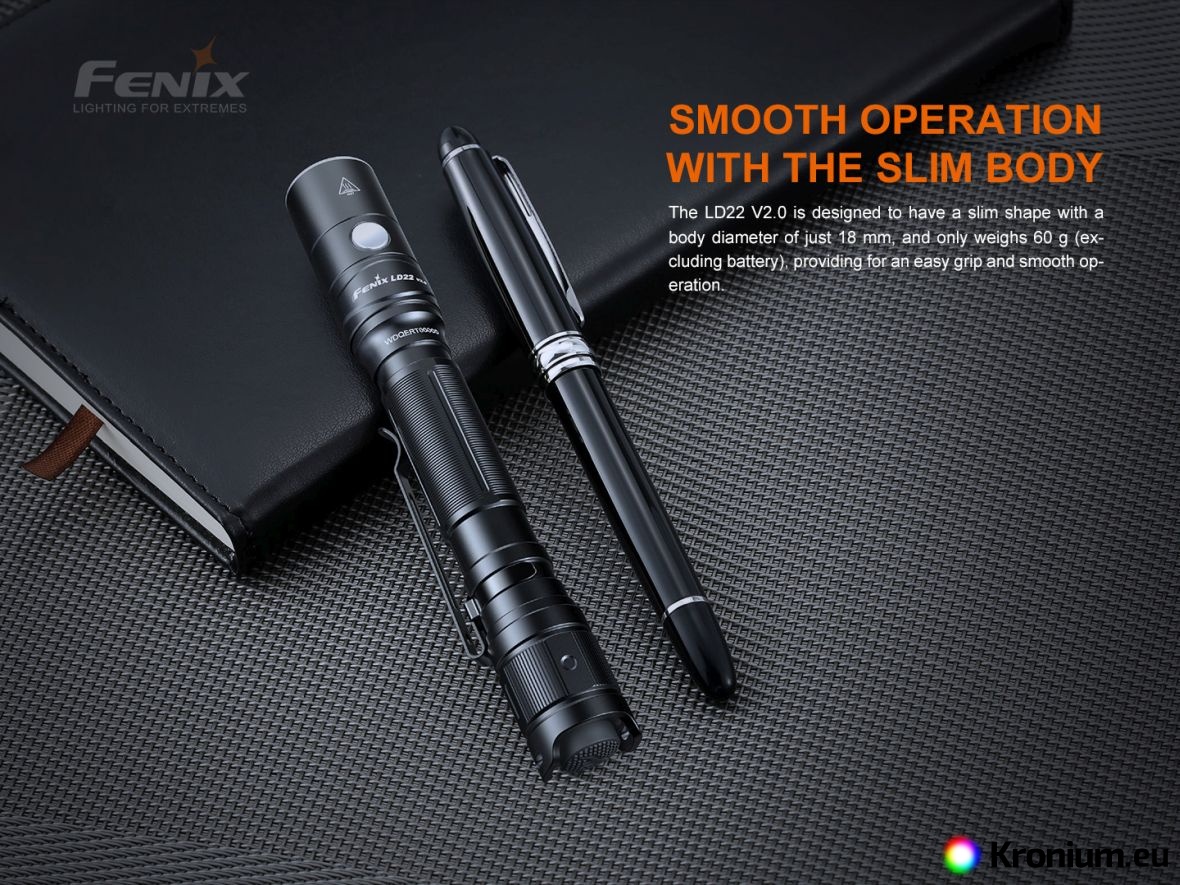

• Dimensions 14.8 cm (length) x 2.15 cm (head diameter) x 1.8 cm (body diameter).
• Weight 96 grams (including battery).
• Tactical switch at the end of the flashlight (momentary on/off function).

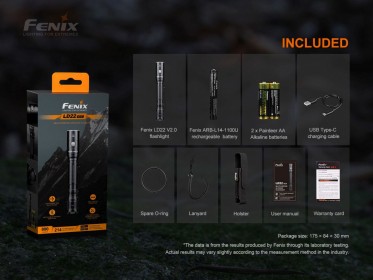

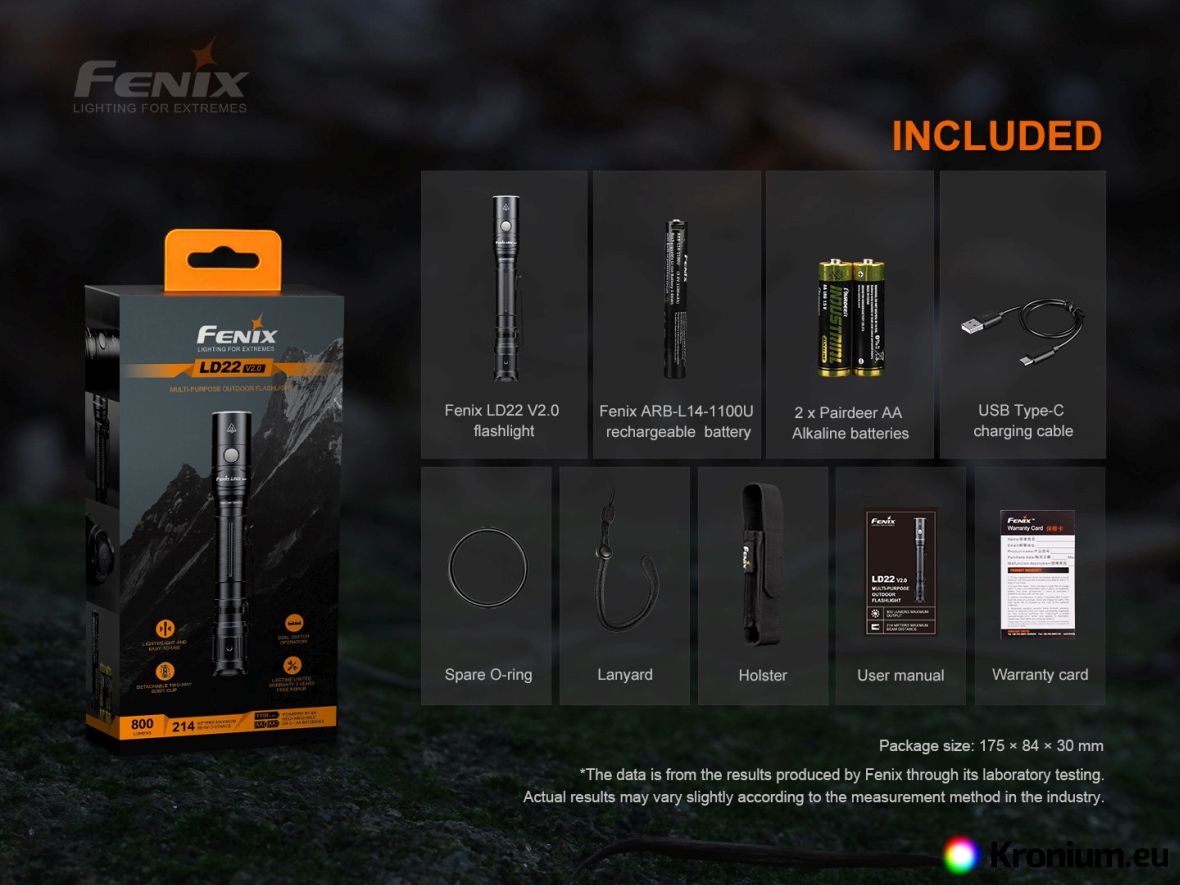

• Includes ARB-L14-1100U battery pack with USB-C connector, two disposable alkaline AA batteries, USB-C charging cable, belt pouch, spare o-ring and wrist lanyard.
• Optional original accessories available for purchase include: replacement battery, AOD-S diffuser, red filter AOF-S or swivel housing AB02.
• The flashlight is also compatible with the LockBlocks bike holder, BikeBlock bike helmet holder, Bike Holder FB-1 or Fenix Bike Holder.

Using the Fenix LD22 V2.0 flashlight

From manufacture, there may be a black insulating cap inside the flashlight on the battery. Remove it from the battery before first use.

To turn on, press the switch located at the end of the flashlight, to activate the button immediately. By pressing the side button at the head of the flashlight, you can cycle through the five steady light modes at any time during operation. To switch to strobe mode, hold the side button for approximately 0.5 seconds. Another press then turns on the SOS.

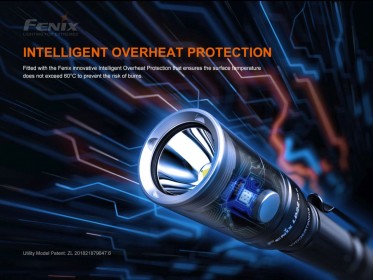

Intelligent overheat protection - if the temperature of the flashlight rises above 60°C, it will automatically start to reduce power in gradual steps until its temperature stabilizes. As soon as the temperature of the lamp drops below 60°C, the power will automatically increase again to the original level.

Low Battery Warning - the flashlight will automatically switch to the lowest mode gradually, then flashes three times every 5 minutes in the lowest mode. This indicates the need to charge the battery.

Charging - remove the battery from the flashlight, plug the USB-C cable into the side USB-C connector on the battery, plug the other end of the cable into a computer, powerbank or USB mains adapter or USB car adapter (not included). When the battery reaches full charge, it glows blue.

Warning

• Do not disassemble the sealed part in the head of the flashlight yourself, it will violate the warranty.
• Remove the alkaline batteries from the flashlight if you will not be using it for a long time or if the batteries are already dead. This will prevent the risk of the batteries leaking and subsequently damaging the flashlight.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The battery is dead – charge it or replace it if using disposable batteries.
  • The contacts inside the flashlight are clogged – clean them with a cotton ball dipped in alcohol.
  • Head, body or back of the flashlight is loose – add lubricant to the sealing rings and tighten both the head and end of the flashlight firmly.

Warranty

Five years warranty on the flashlight, two years on the battery.
